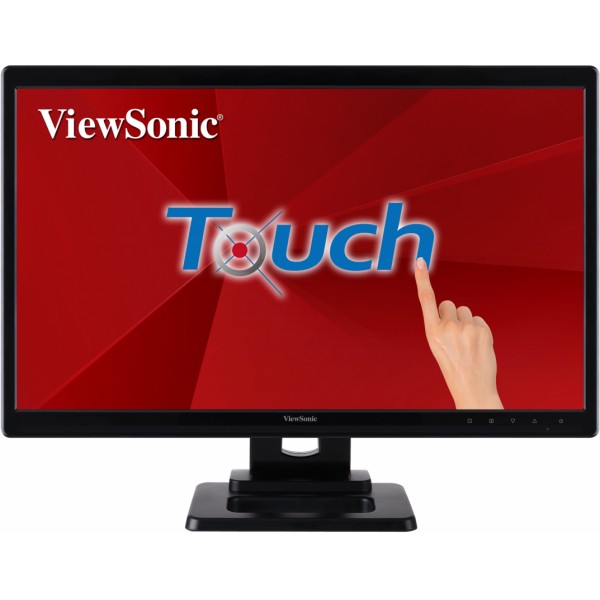

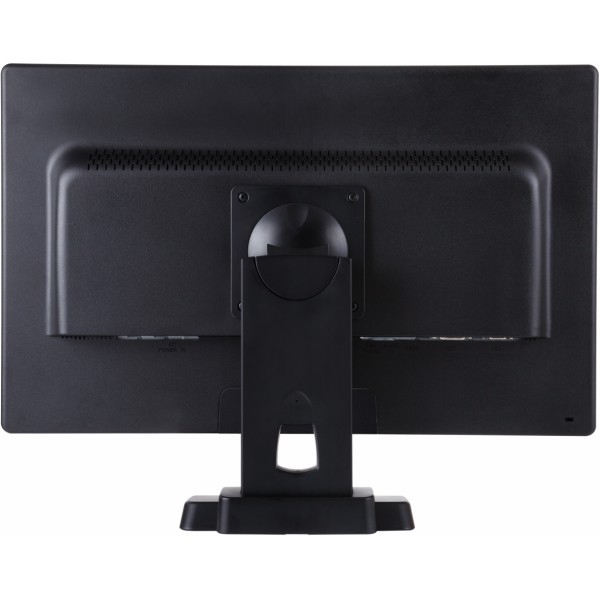

TD2420

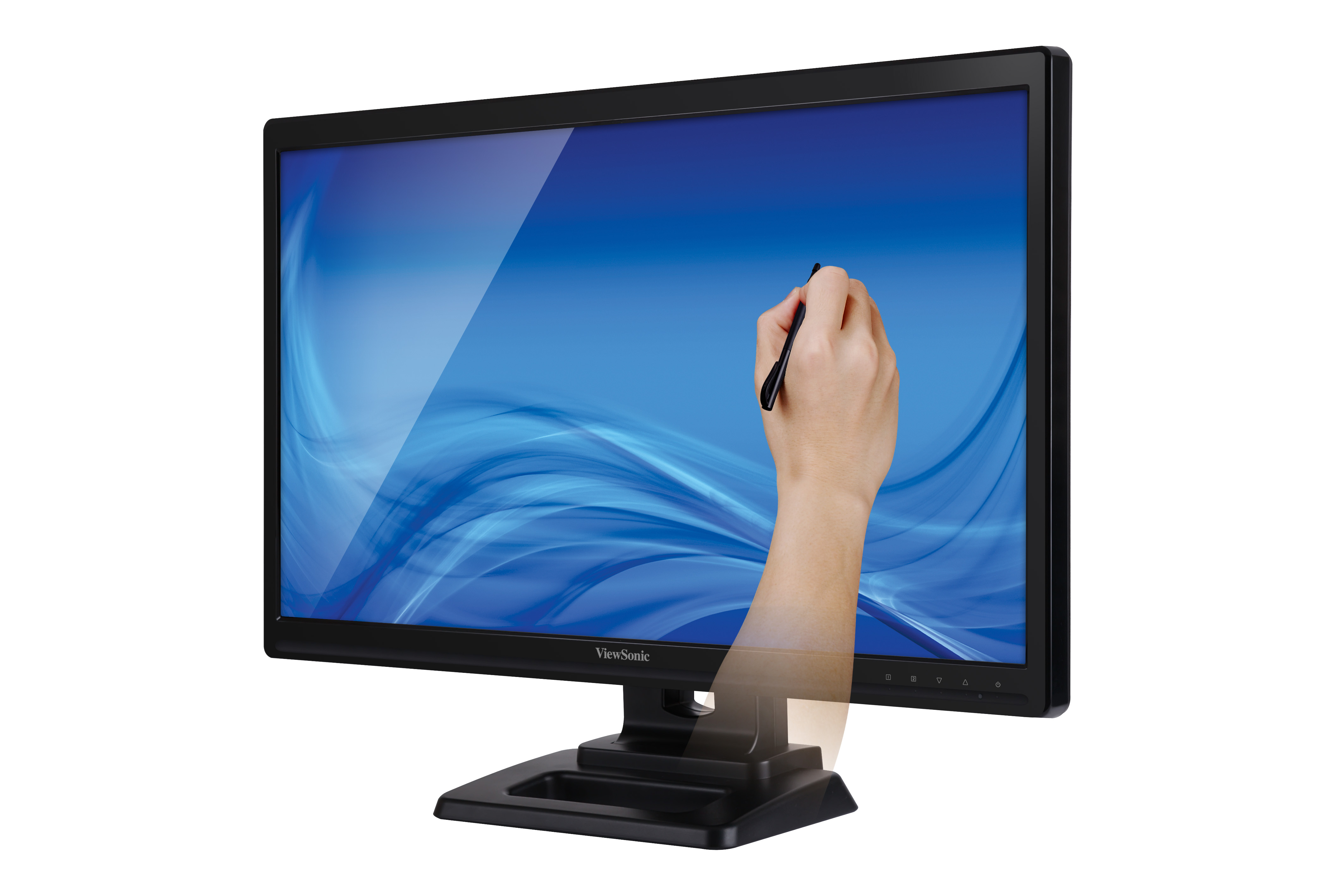

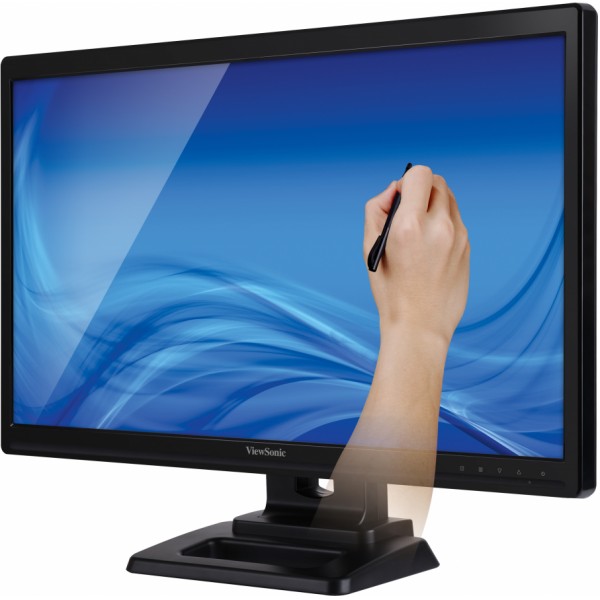

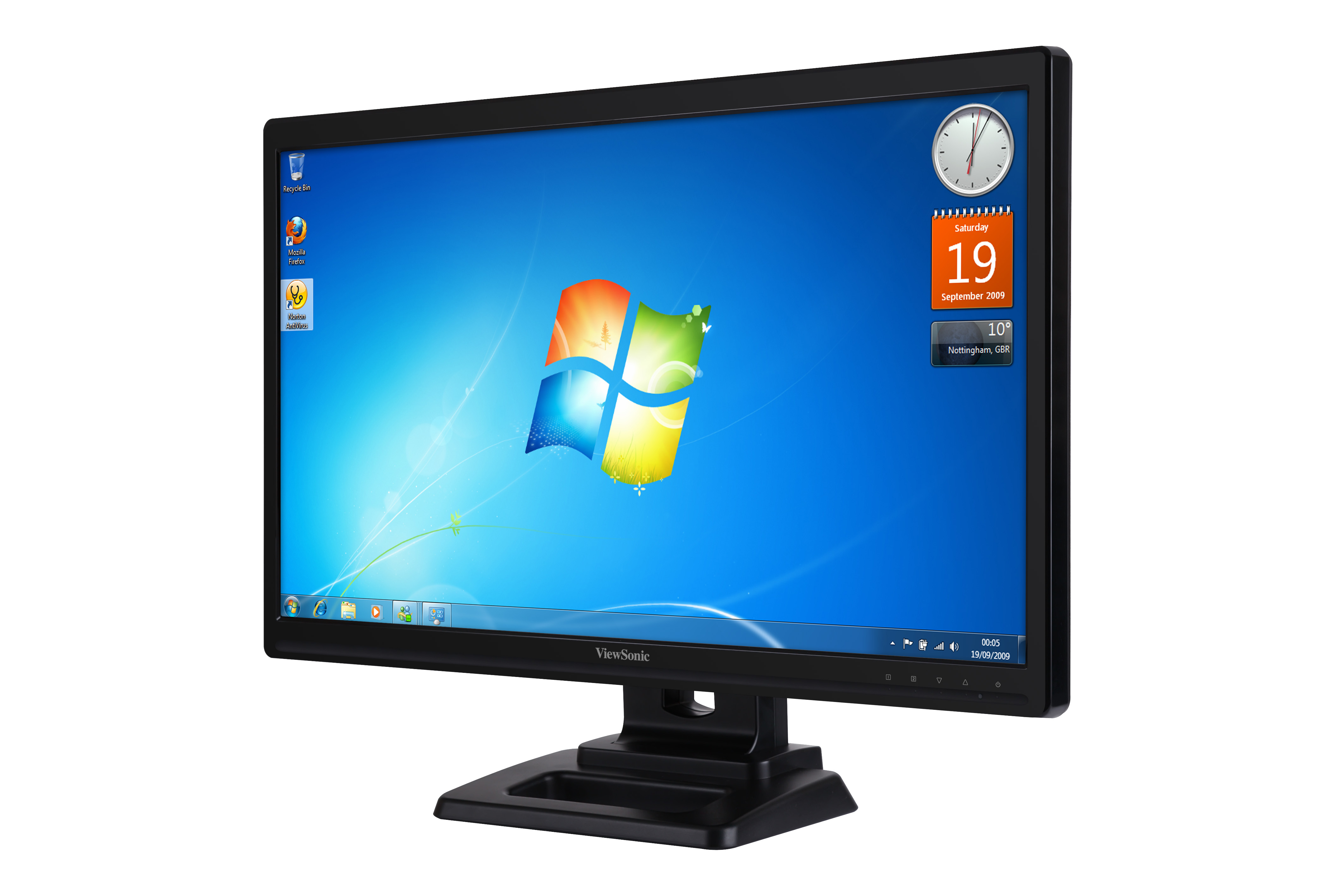

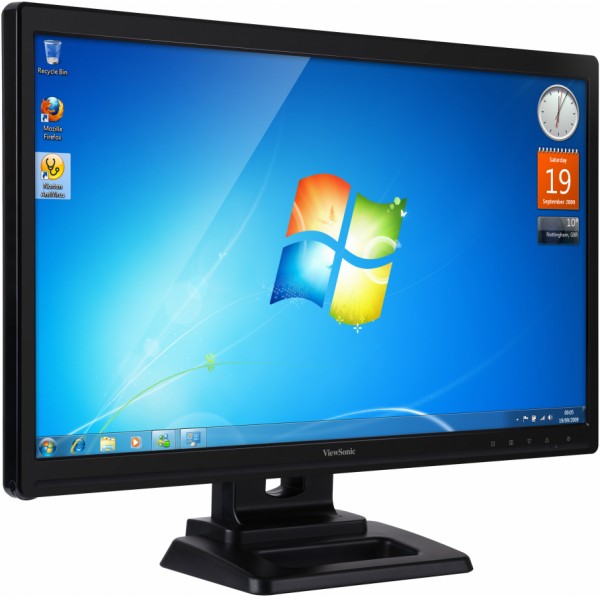

24" FHD 2 Points Touch LED Monitor with VGA, DVI, HDMI, Speakers and Touch Pen

“ViewSonic kurumsal müşteriler için tasarladığı optik dokunmatik teknolojisine sahip, Windows 8 uyumlu monitörü TD2420.”

LCD
Tip: 24" (23.6" viewable) Wide Color TFT Active Matrix LED
Optimum Resolution: 1920x1080
Rată de contrast: 1000:1 (typ.)
Unghiuri de vizualizare: 170º horizontal, 160º vertical
Timp de răspuns: 5ms (typ.)
Panel Surface: hard-coating (7H)
Display Area: 20.5" horizontal x 11.5" vertical; 23.6" diagonal 521.28(W) x 293.22(H) mm
Luminozitate: 210 cd/m² (typ)
Rată de contrast dinamic: 20,000,000:1
Backlight: White-light LED
Durată de viață sursă de lumină fundal: 30,000 hours (min.)
Intrare video
Analog: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
Digital: HDMI, DVI (TMDS, 100 ohms)
Frequency: Fh: 24~82kHz, Fv: 50~75Hz
Sync: Separate Sync
Compatibilitate

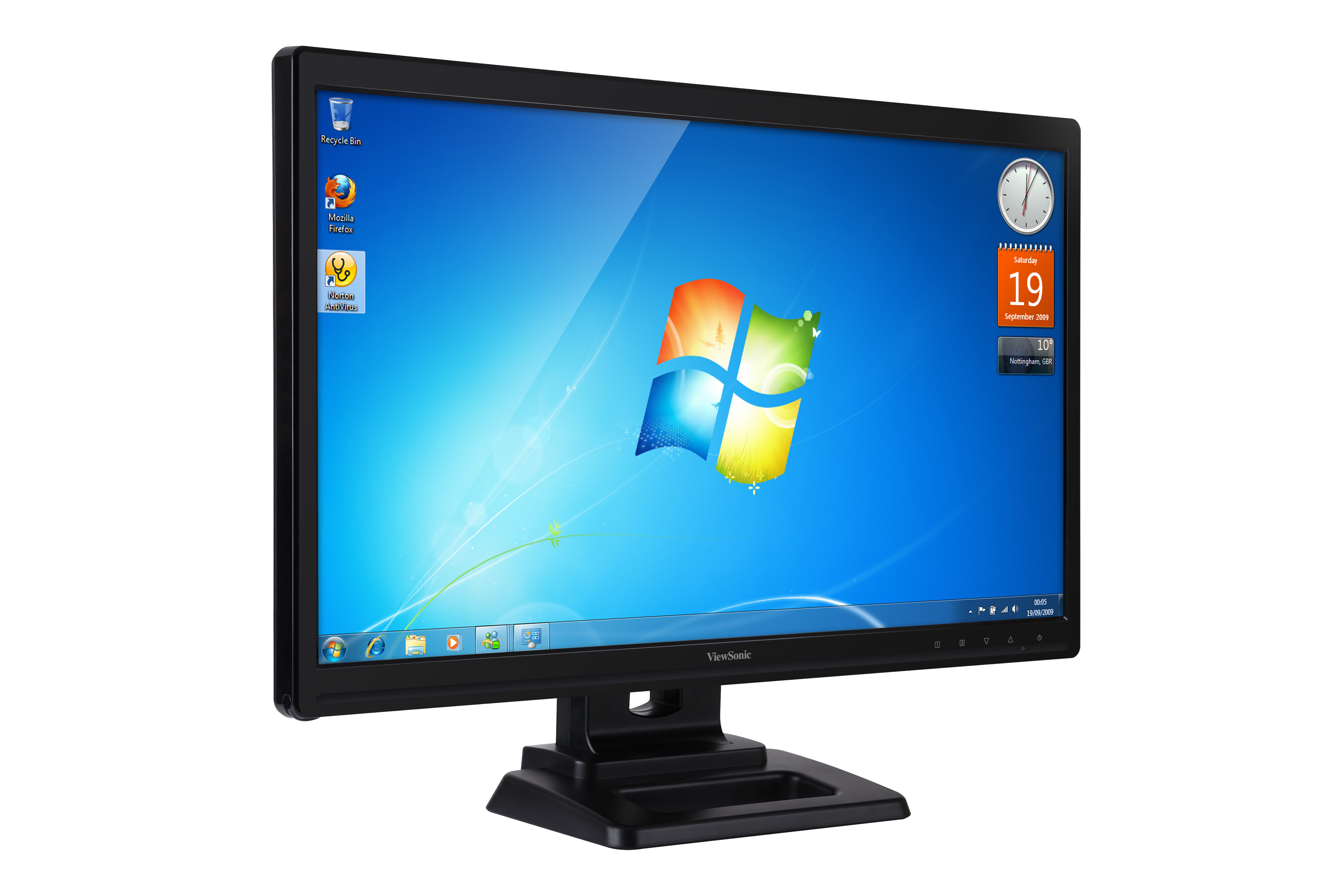

PC: PC compatibles (Windows® 7 / 8 Operating System)

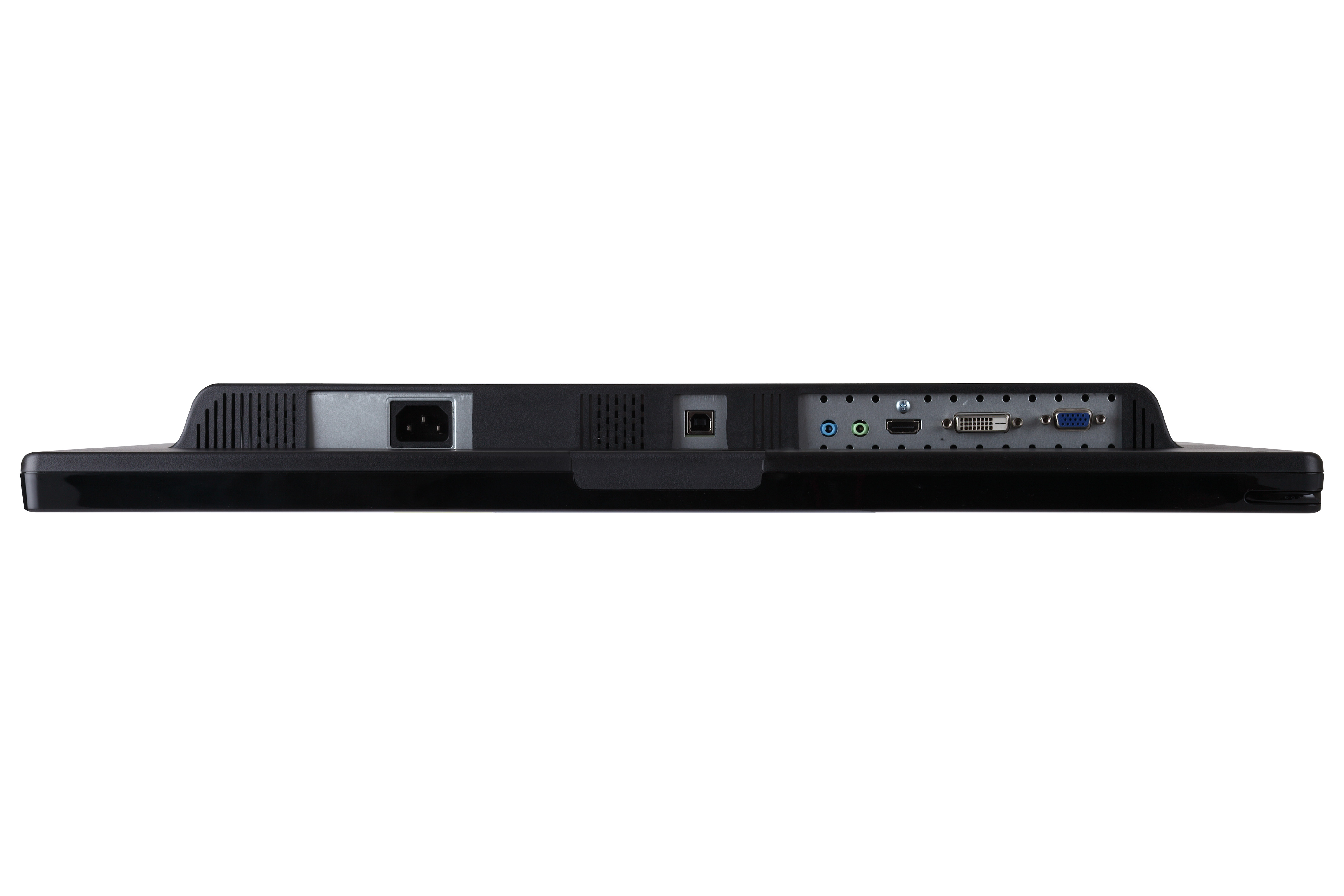

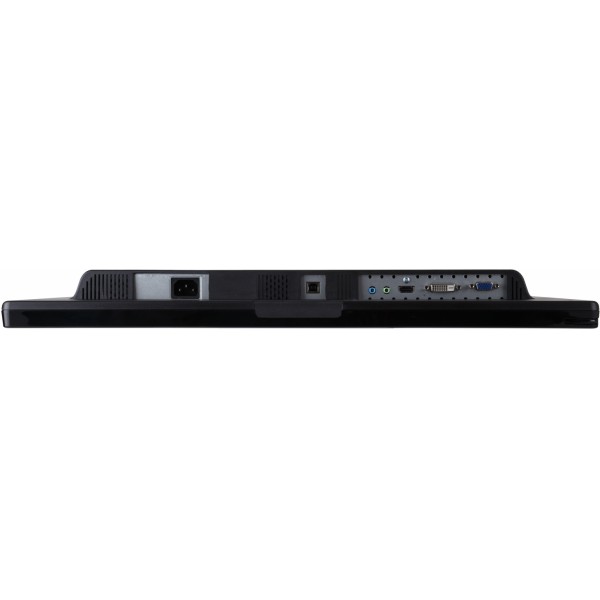

Conector
Audio: Audio In (3.5mm mini-jack)
Headphone (3.5mm mini-jack)

Putere: Internal power board, 3-pin plug (CEE22)
Controale
Front Panel: 1, 2, Down, Up, Power
DIMENSIONS
Dimensiuni (mm): 622.29 x 459.30 x 192.50
Physical (in): 24.49" x 18.08" x 7.57"
Packaging: 678 x 525 x 179

26.69" x 20.66" x 7.04"
POWER
Conserve: 20W (typ.)
Voltaj: AC 100–240V (universal), 50 / 60Hz
Consum: 25W (typ.)
Optimize: 22W (typ.)
WEIGHT
Net With Stand: 6.6 kg (3 lbs)
Net Without Stand: 5.23 kg (2.38lbs)
Greutate: 8.1kg (3.68lbs)

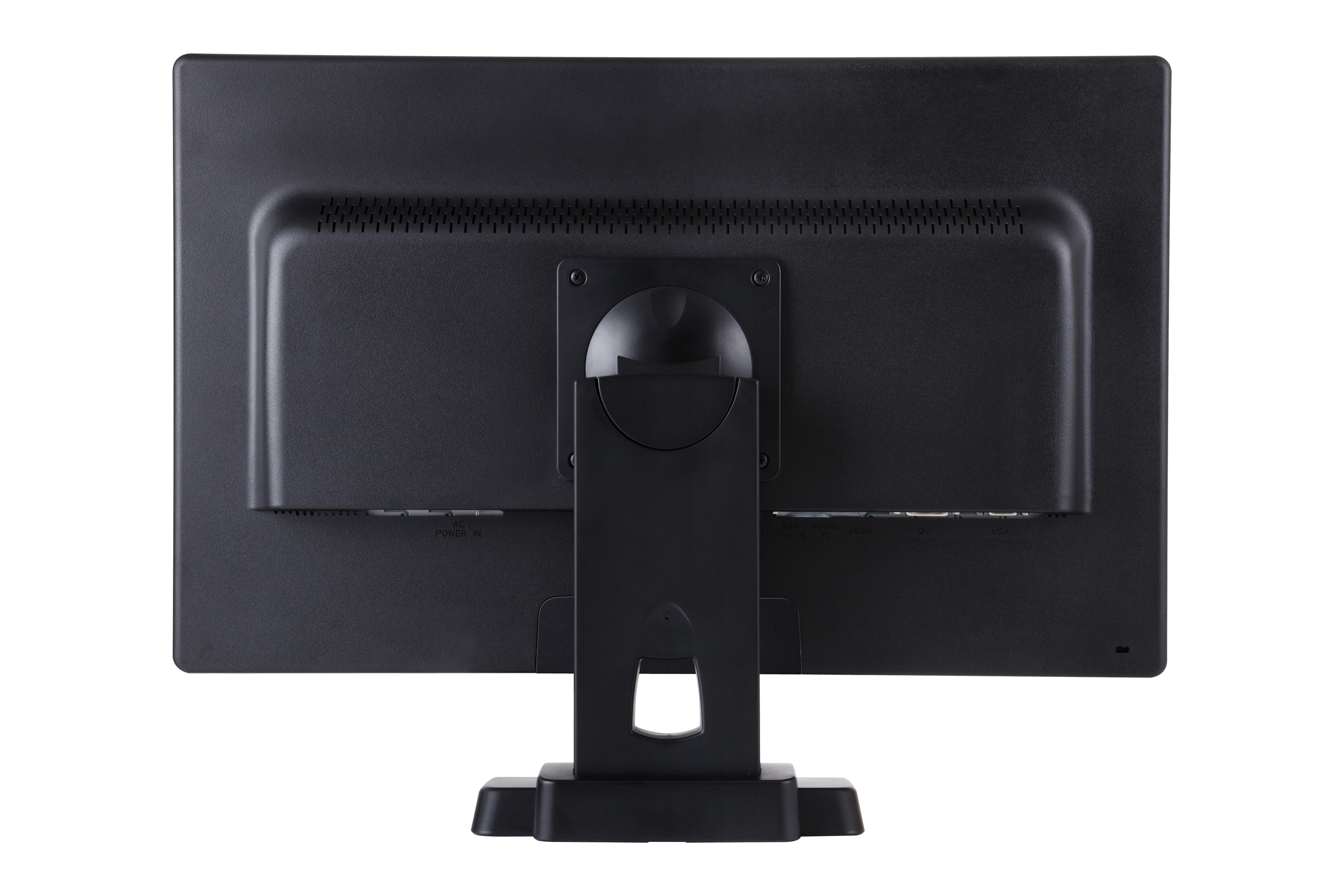

VESA® MOUNT
100mm * 100mm
POWER MANAGEMENT
Eco Mode
ERGONOMICS

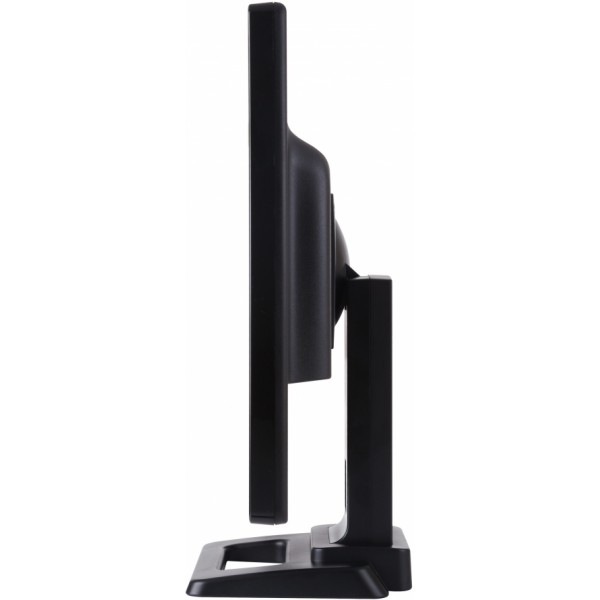

Înclinare: -2° ~ 18° degrees
OPERATING CONDITIONS
Temperatură: 32° F to 104° F (0° C to 40° C)
Umiditate: 10% to 90% (no condensation)
AUDIO OUT
Speakers: 2W x2
CONȚINUT PACHET

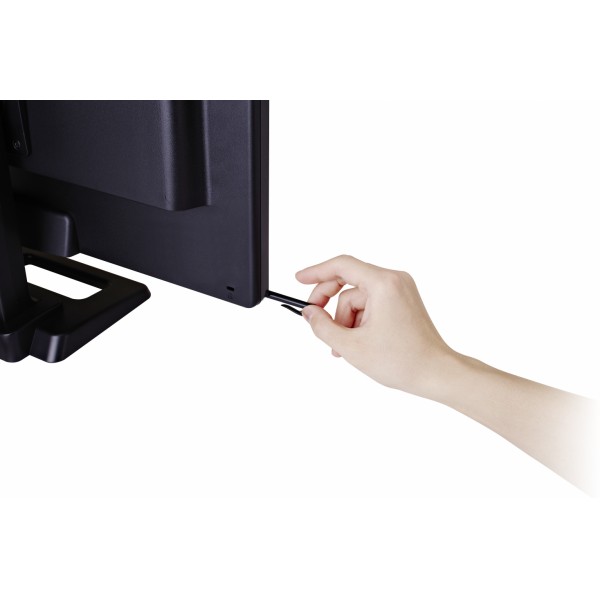

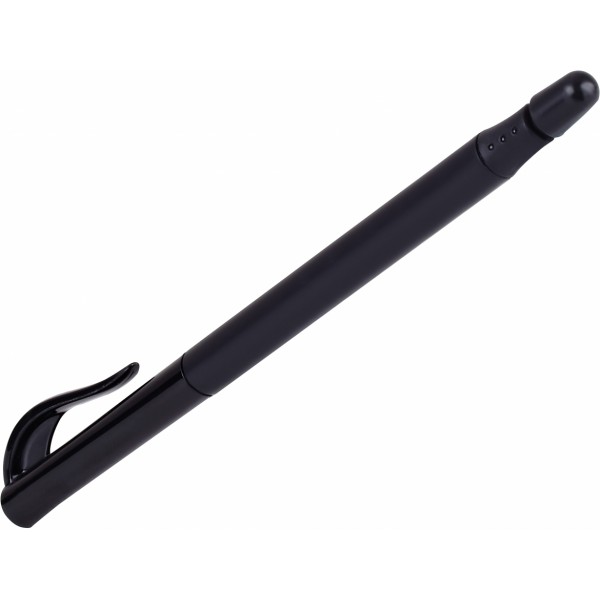

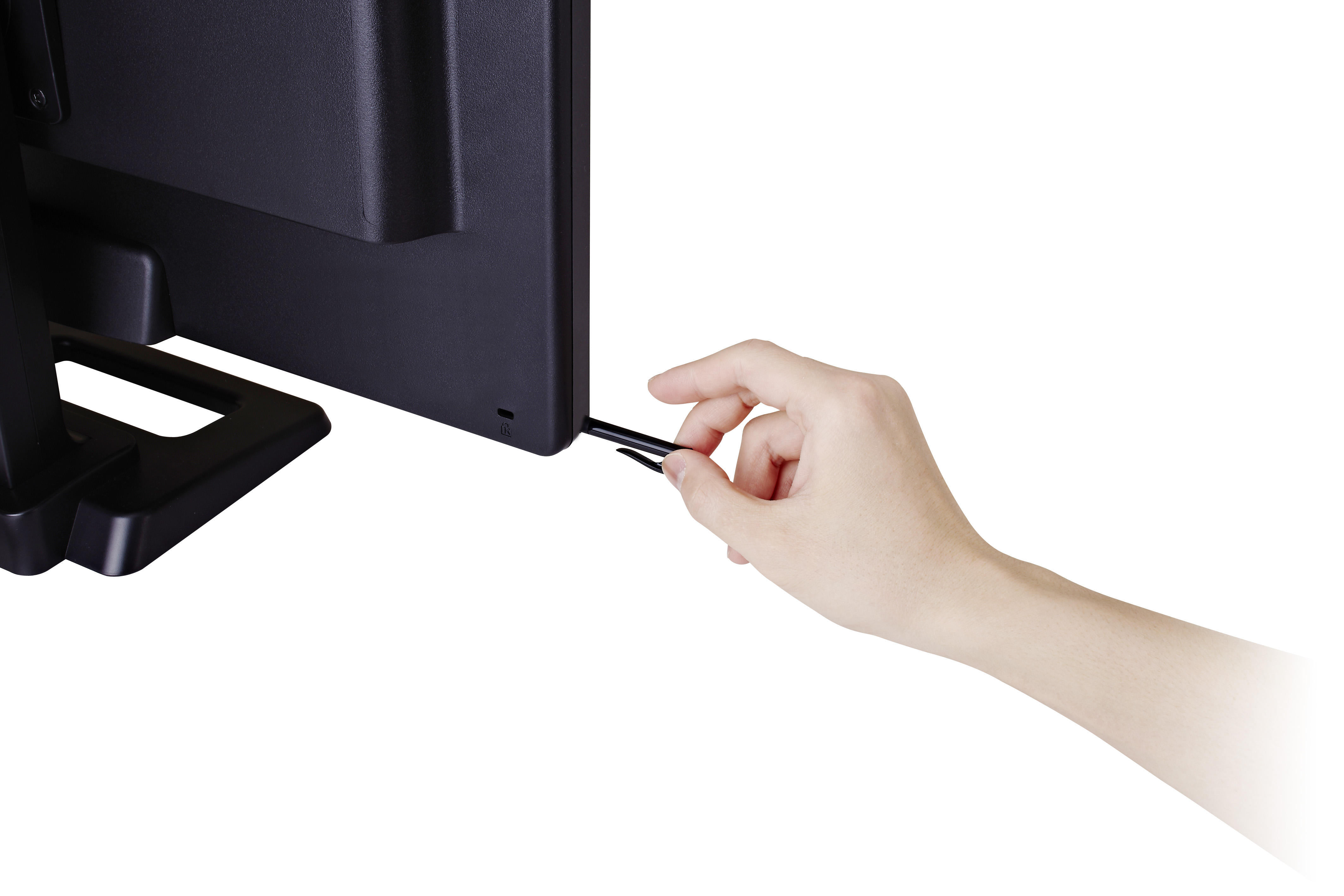

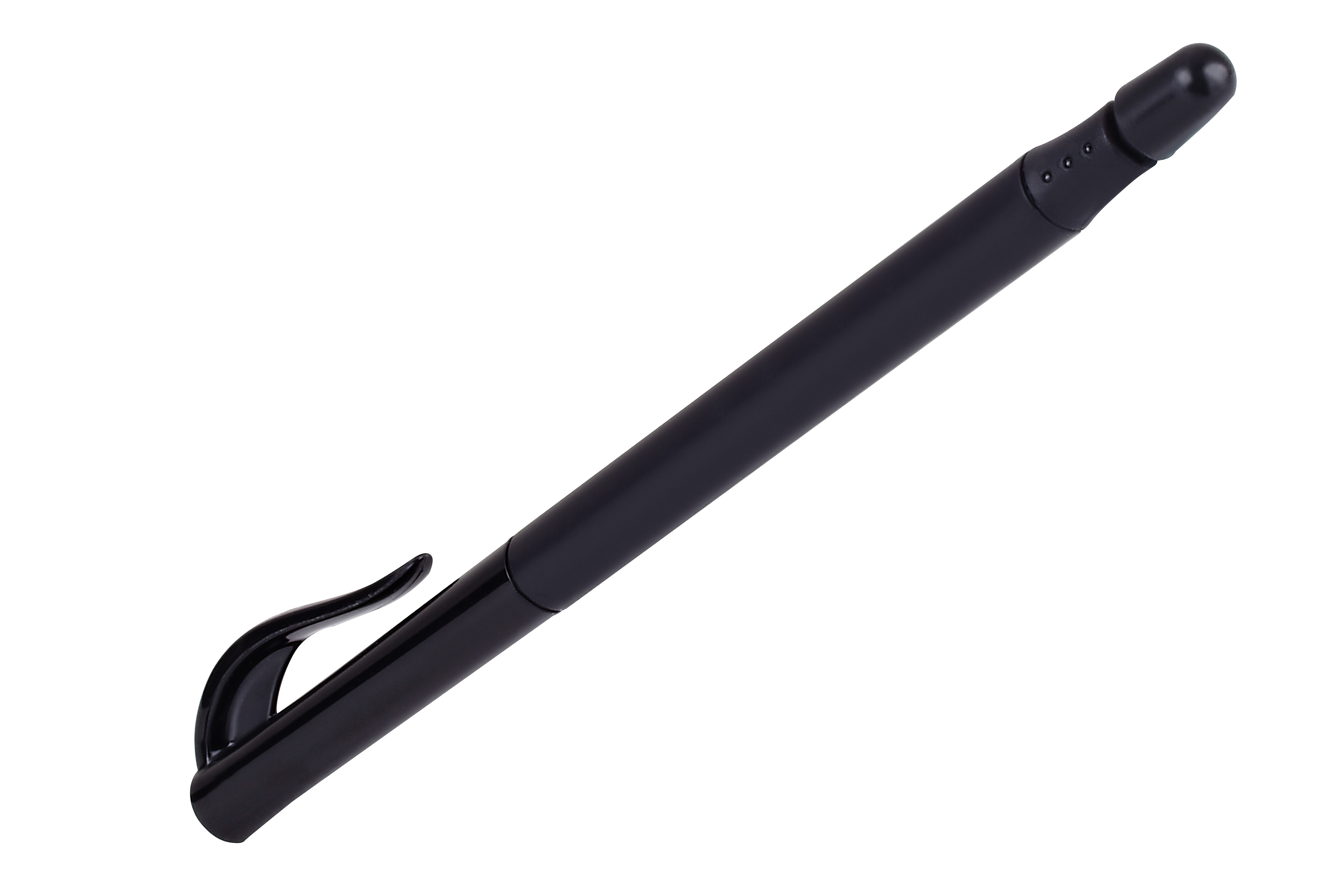

AC/DC Adaptor *1, Power Cable *1，Audio Cable *1, VGA Cable*1，Quick Start Guide *1, ViewSonic CD Wizard *1 USB cable *1, DVI cable *1, stylus*1
