LDP216-121

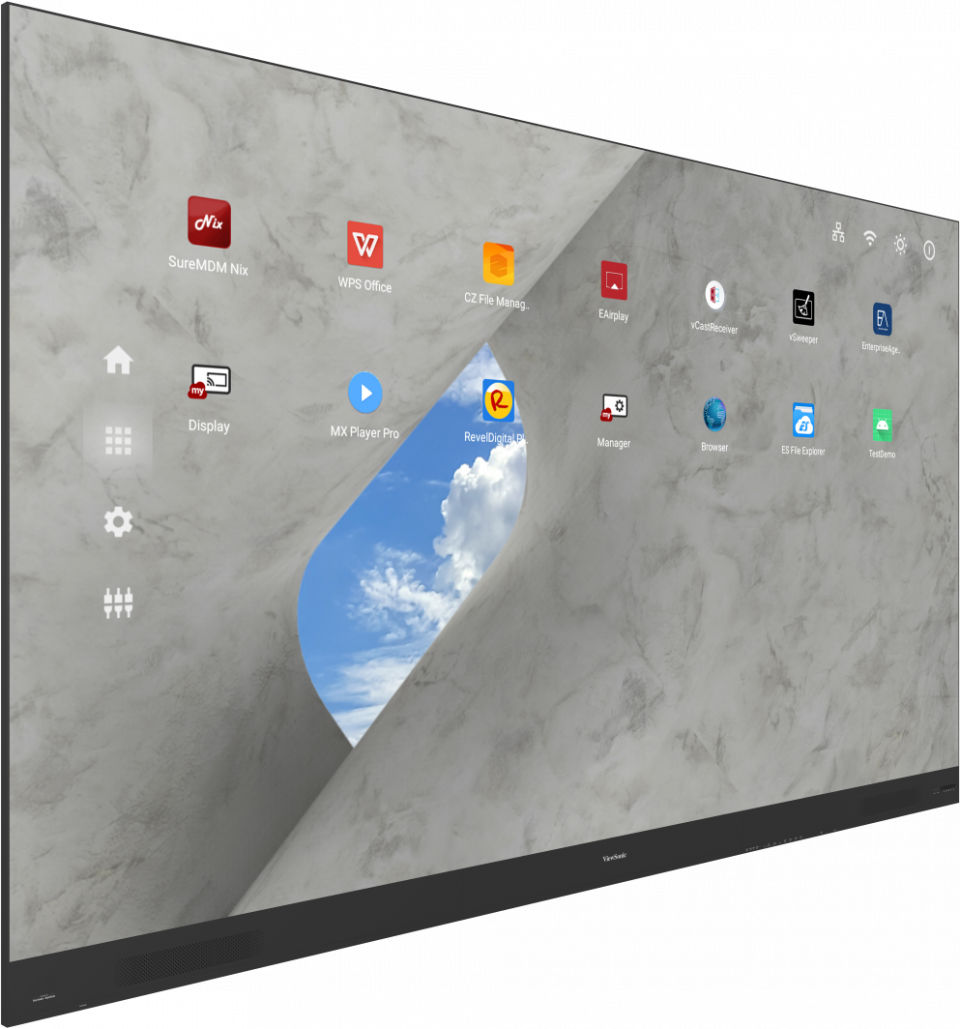

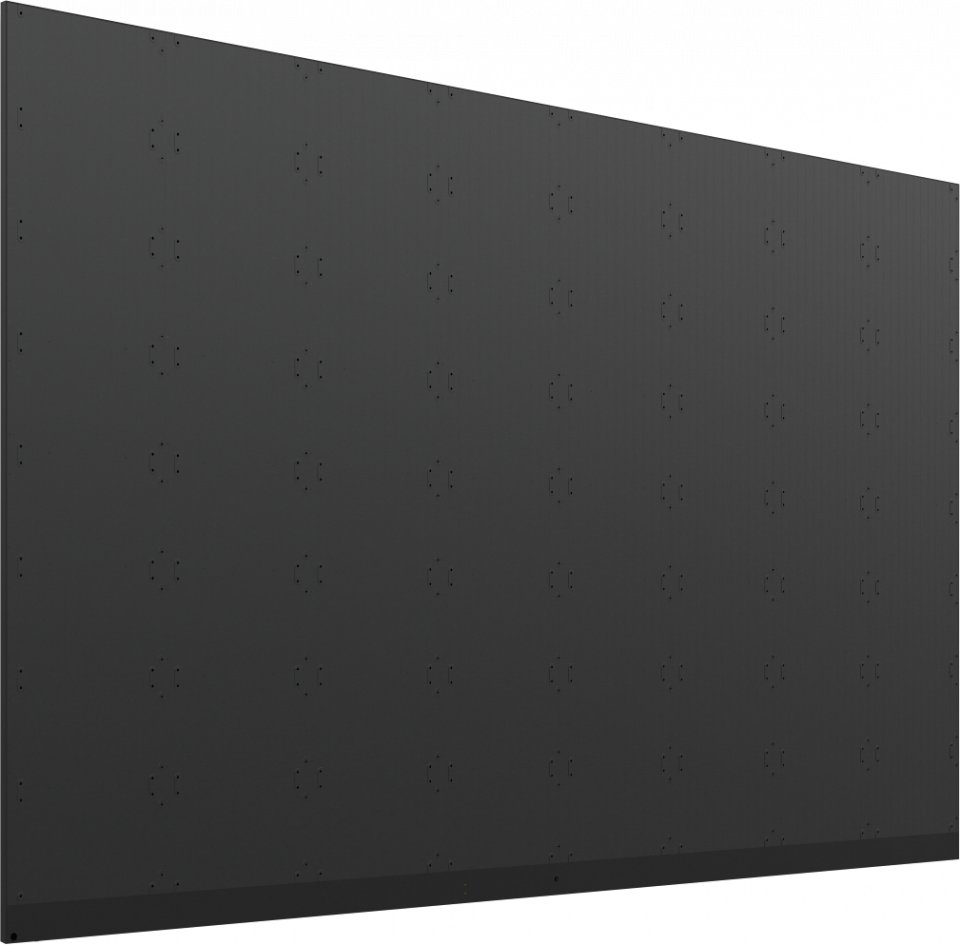

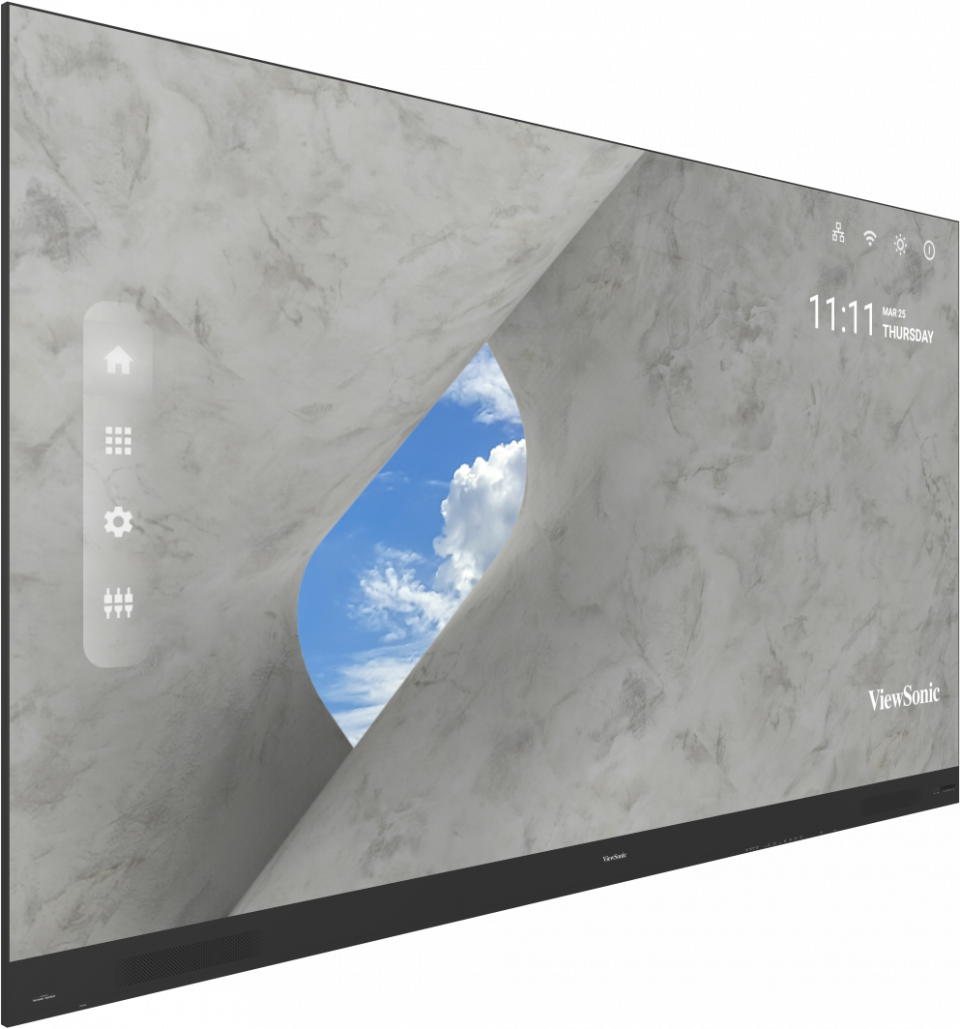

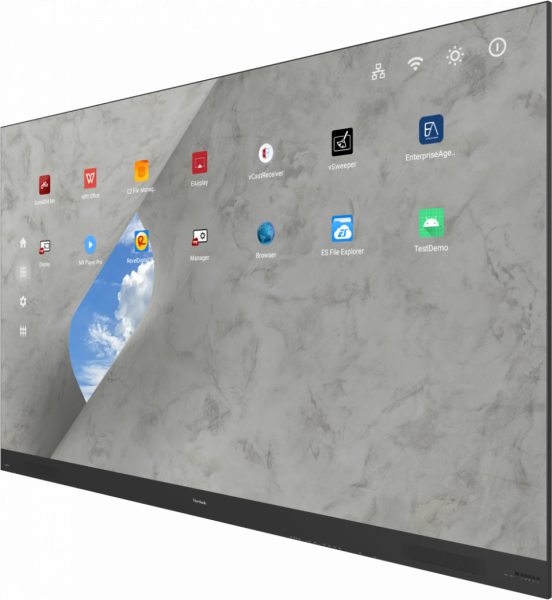

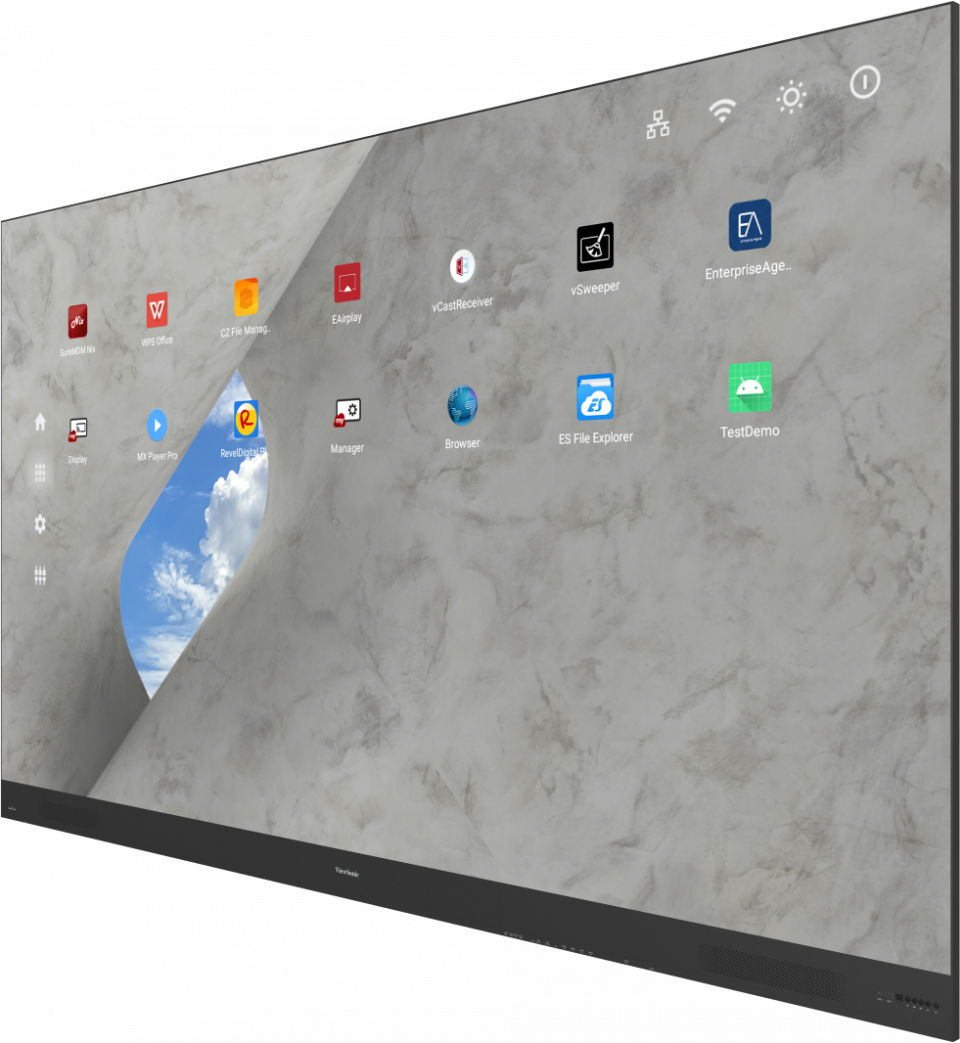

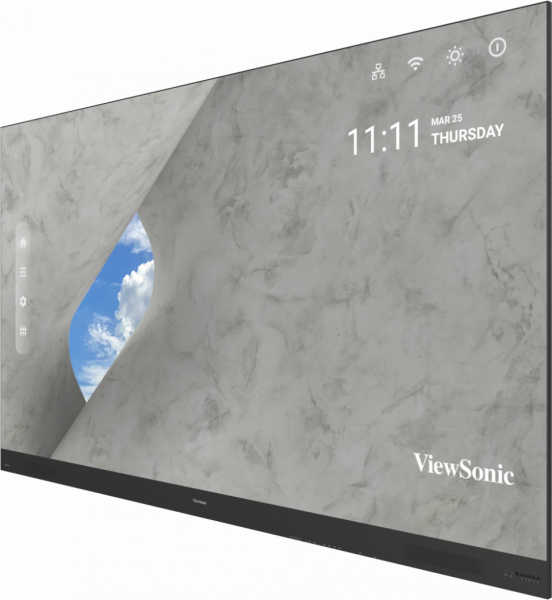

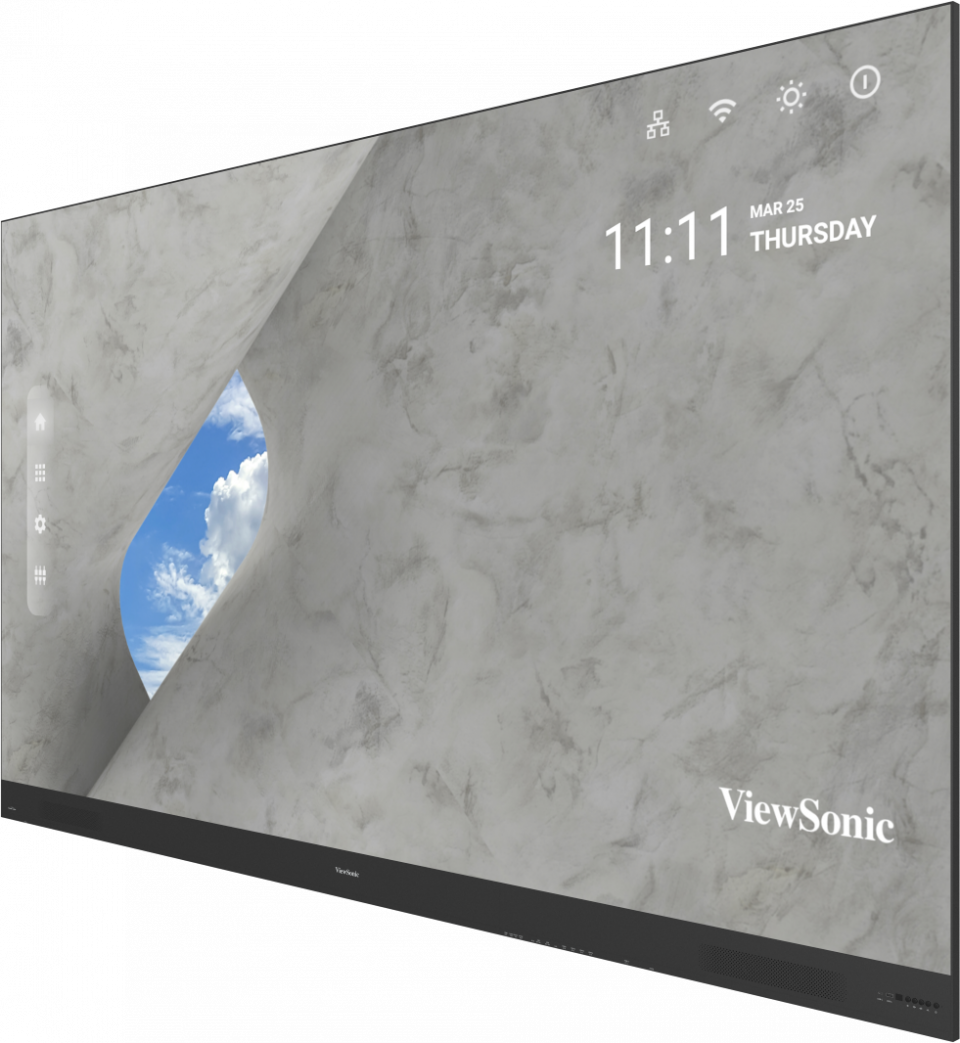

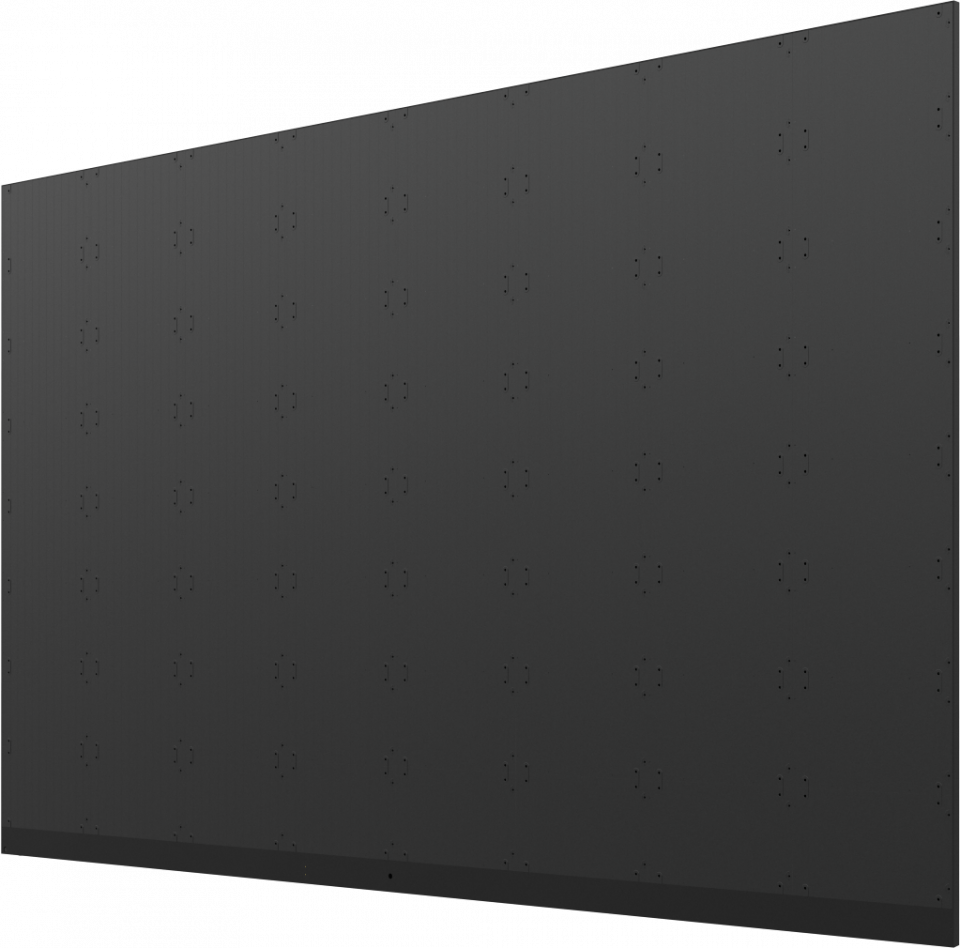

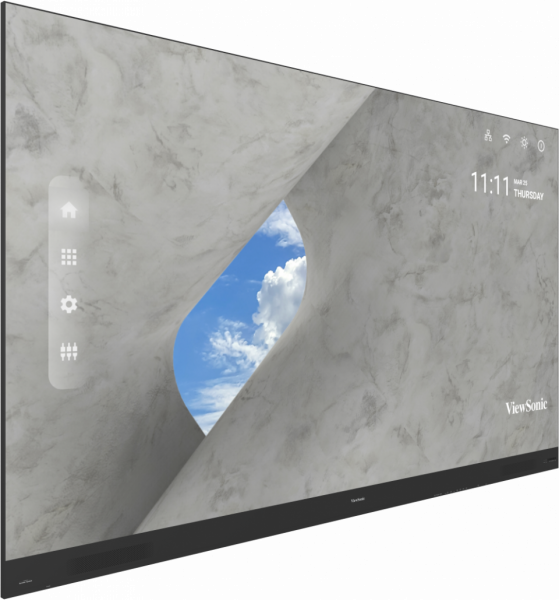

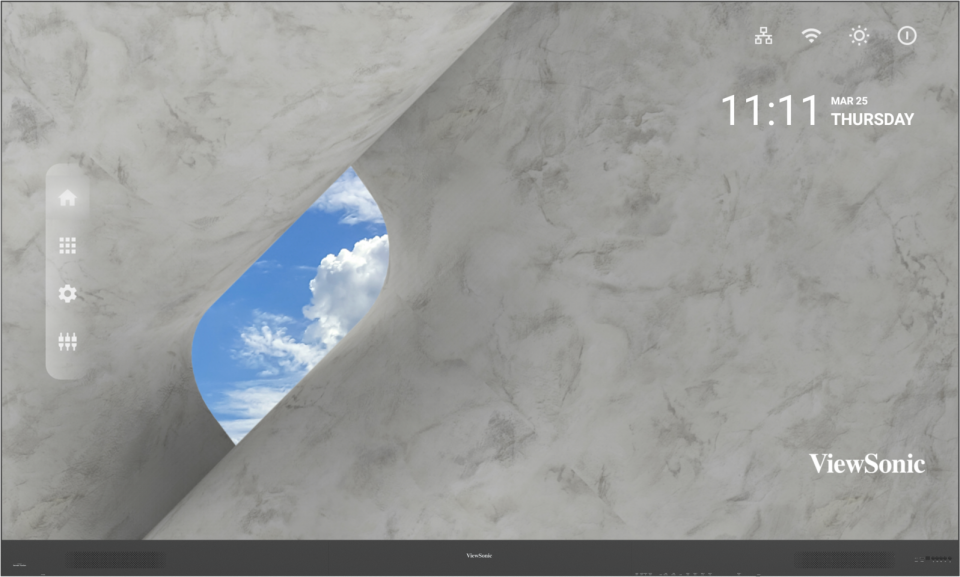

216” 4K UHD All-in-One Direct View LED Display

  • 4K UHD display for rich details and immersive visuals
  • Reliable operation with COB LED packaging technology
  • Immersive audio from built-in Harman Kardon speakers
  • All-in-One design without complicated setup
  • Adaptable and flexible to suit any display scenario
  • Effortless full-front maintenance

仕様


  • Specification
    Screen Size: 216"
    Display Area (mm): 4800 (H) x 2700(V)
    Native Resolution: 3840x2160
    Panel Technology: Direct view LED
    LED Package Type: COB
    Pixel Pitch (mm): 1.25
    Refresh Rate: 3840Hz
    Brightness (max.): 500 nits (8 levels adjustable)
    Contrast Ratio (typ.): 20000:1
    Orientation: Landscape / Portrait
    Viewing Angles (typ.): H = 170, V = 170
    LED Lifetime (typ.): 100,000
    Local Storage: Total 64GB
    (56GB available storage)

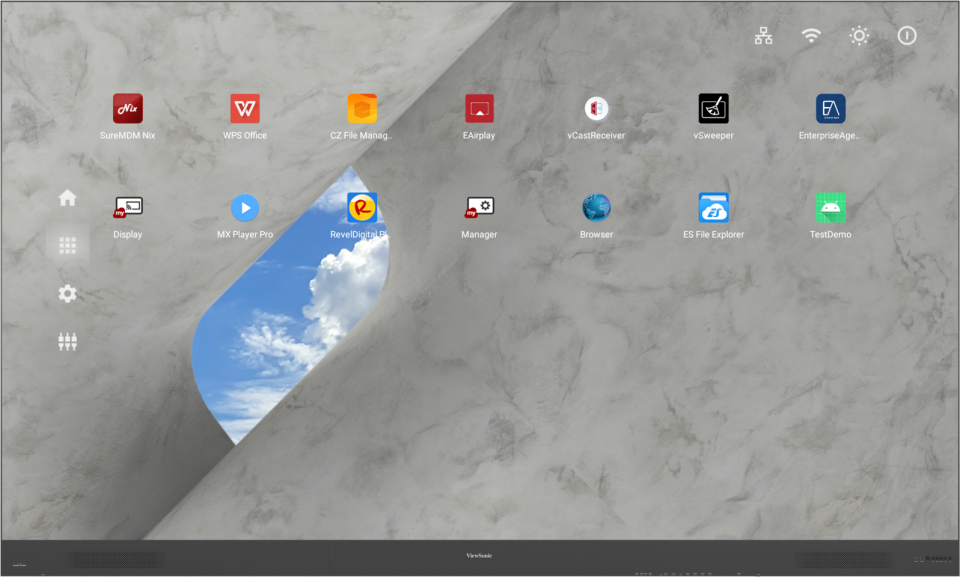

    Embedded OS: Android 9.0
    Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160P/60Hz
    Horizontal Frequency: 23-120 kHz
    Vertical Scan Rate: 15-135 Hz
  • Input
    HDMI: x5
    (HDMI 2.1 x 1, HDMI 2.0 x 2, HDMI 1.4 x 2)
    USB Type A: x3
    (USB2.0 x3)
    RJ45 Input (Internet): x1
    IR in: x1
    Wi-Fi Input: 2.4G/5G Hz
    USB Type C: x1
    (Video input、Power output (5V/2A))
    HDBaseT: x1
    (1080P@100m、4K30Hz@70m)
  • Output
    HDMI out: x2
    (HDMI 2.0 external x1,internal x1)
    Speaker: 20W x2 (Harman Kardon)
    Audio out (3.5mm): x1
    USB Type A (Power): Shared with USB input
    (5V/1.5A x3)
