LB-WIFI-001

Dual Band Wireless Module for ViewBoard® IFP50 Series

Demande de renseignements sur les ventes Partager

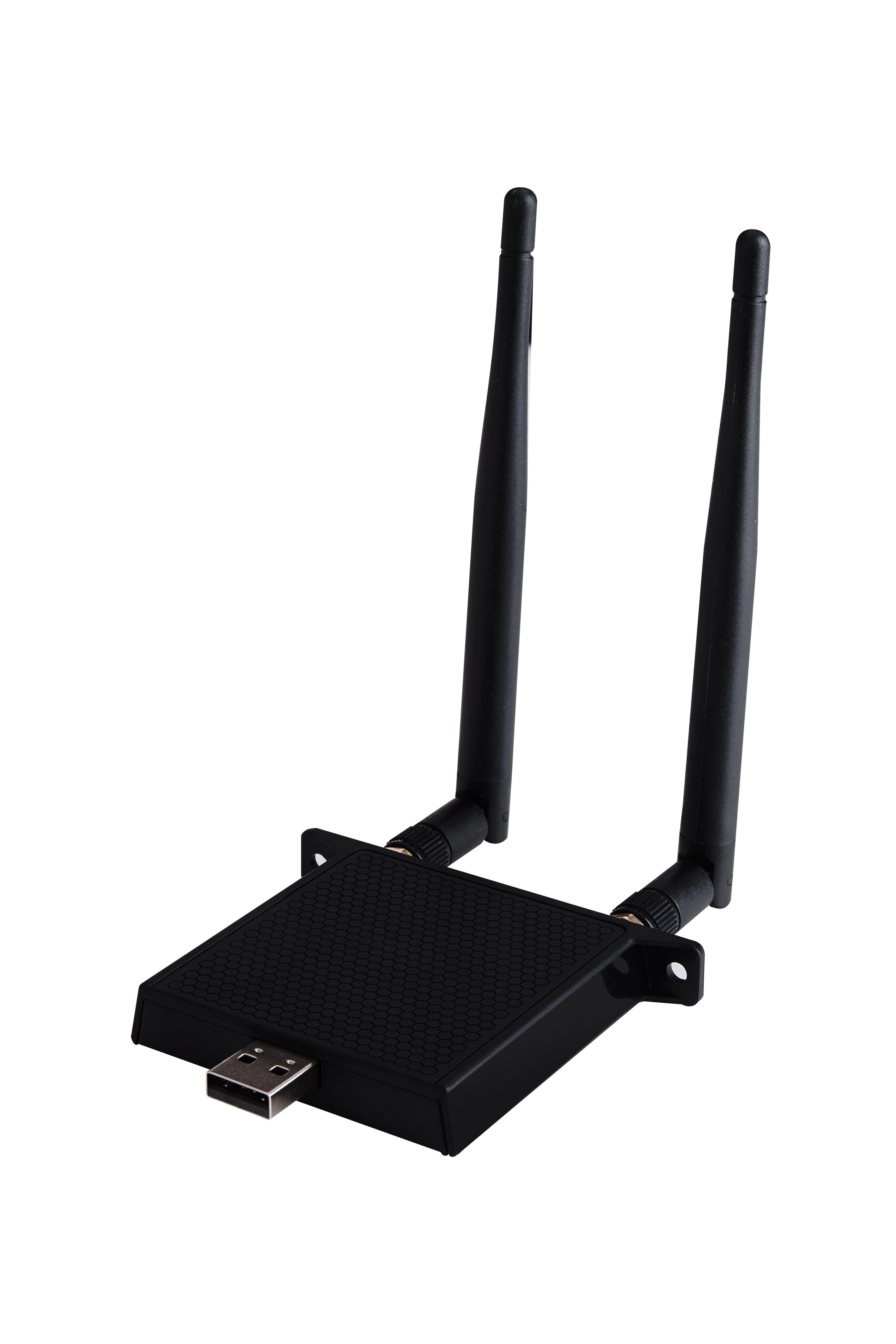

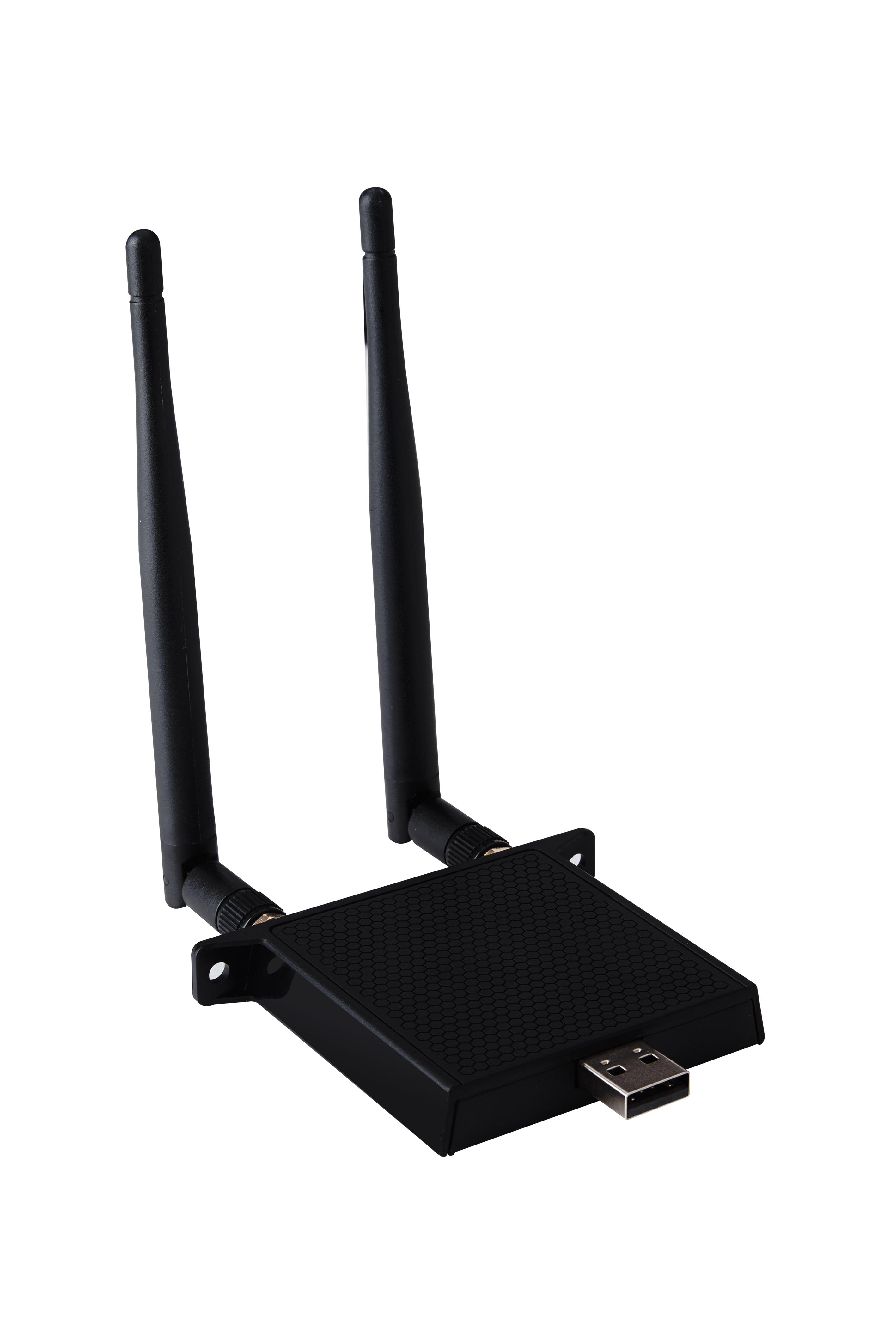

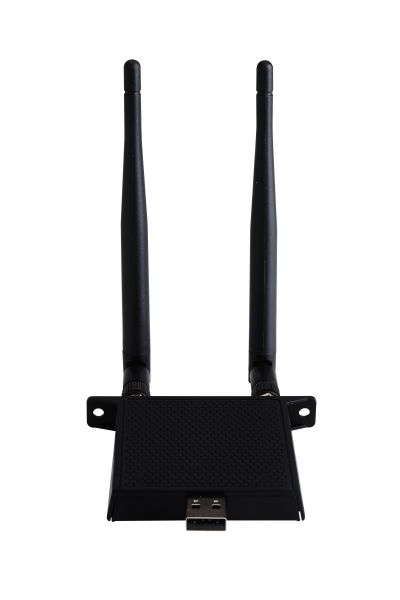

PHOTOS

INTRODUCTION

The ViewSonic LB-WIFI-001 wireless module delivers fast wireless internet connection for ViewSonic ViewBoard^® interactive displays (IFP50 series). It supports dual frequency 2.4GHz and 5.0GHz bandwidth, along with the newest 802.11AC standard to provide up to 433Mbps transmission.

Dual Band Wireless Support

This device offers a 2.4GHz and 5GHz dual band wireless transmission that smoothly streams multimedia content such as videos and images, without any delays. The 2.4GHz frequency is perfect for web browsing and presentations, while the wider bandwidth of 5GHz is perfect for streaming high-quality videos and games.

2.4GHz and 5GHz, smooth playback

Faster Wi-Fi

Wireless 802.11 AC delivers incredibly fast Wi-Fi performance with internet speeds of up to several gigabits per second.

802.11AC wireless network

SPÉCIFICATIONS

Core
CPU: Realtek RTL8821AU-VS
Stockage
Interface: USB 2.0
Sans fil / Bluetooth
Wifi Standard: 802.11 a/b/g/n/ac,
2.4G & 5G(5150MHz-5250MHz & 5725MHz-5825MHz), Up to 433.5Mbps
Bluetooth: Support 2.1/3.0/4.0 BLE

Alimentation
Tension: 5V DC
Consommation: < 2.5W
OPERATING CONDITIONS
Température (º C): 32°F to 104°F (0°C to 40°C)
Humidité: 10% ~ 90% non-condensing
DIMENSIONS
Physique (pouces / mm): 3.90x0.43x3.03 in / 99x11x77mm
Emballage (pouces / mm): 3.54x0.63x6.18 in / 90x16x157mm
WEIGHT
Net (lb / kg): 0.07lb / 30g
Brut (lb / kg): 0.18lb / 80g
REGULATIONS
FCC, FCC ID, IC ID, CE, RCM
CONTENU DE L'EMBALLAGE
1. LB-WIFI-001
2. QSG
