CDE6510

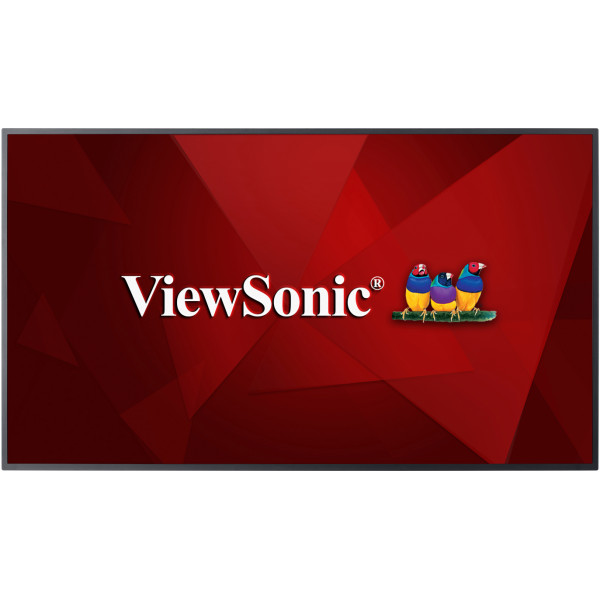

65" 4K Ultra HD Meeting Room Display
SPÉCIFICATIONS
- LCD PANELTaille de l'écran: 65"
Type/ Technologie: TFT LCD Module with DLED Backlight
Surface d'affichage (mm): 1428.48 (H) x 803.52 (V)
Rapport d'aspect: 16:09
Résolution: 3840x2160 @60Hz
Colors: 1.07B colors
Luminosité: 350 nits (typ.)
Rapport de contraste: 4000:1 (typ.)
Temps de réponse: 8 ms
Angles de visualisation: H = 178, V = 178 (typ.)
Backlight: DLED
Durée de vie du rétroéclairage: 30,000 Hours Min.
Hardness: 3H - INPUTHDMI: x 4
RGB / VGA: x 1
DisplayPort: x 1
Audio: x1 PC audio (3.5 mm)
RS232: x 1
PC Slot: x 1 (optional VPC12-WPO)
IR: x 1 - OUTPUTRS232: x 1
IR: x 1
- LANRJ45: x 1
- USBType A: x 1 for 5V/2A
2.0 Type A: x 2 (USB Playback)
3.0 Type A: x 1 (USB Playback) - HAUT-PARLEURS10W x 2
- COMPATIBILITYVGA: 1920 x 1080
DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz - POWERTension: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consommation: Normal 165 W, Max 295 W - ERGONOMICSMontage mural (VESA® ): 400 x 400mm ; Screw: M6*(10+X) mm. (X=thickness of wall mount plate)
- OPERATING CONDITIONSTempérature (º C): 5°C to 40°C
Humidité: 20% ~ 80% non-condensing - DIMENSIONS (L x H x P)Physical (mm / inch): 1458.7 x 938.8 x 540 mm / 57.43 x 36.96 x 21.26 in. (with Stand)
Physical w/o Stand (mm / inch): 1458.7 x 834.7 x 81.6 mm / 57.43 x 32.86 x 3.21 in. (w/o Stand)
Packaging (mm / inch): 1655 x 1078 x 280 mm / 65.16 x 42.44 x 11.02 in - WEIGHTNet (kg / lb): 28.9 kg / 63.71 lbs (with Stand)
Net w/o Stand (kg / lb): 24.8 kg / 54.67 lbs (w/o stand)
Gross (kg / lb): 34.84 kg / 76.80 lbs - What's in the box?1. CDE6510 commercial display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. RS232 cable
7. RS232 daisy chain cable (2.4mm – 2.4mm)
8. IR sensor cable
