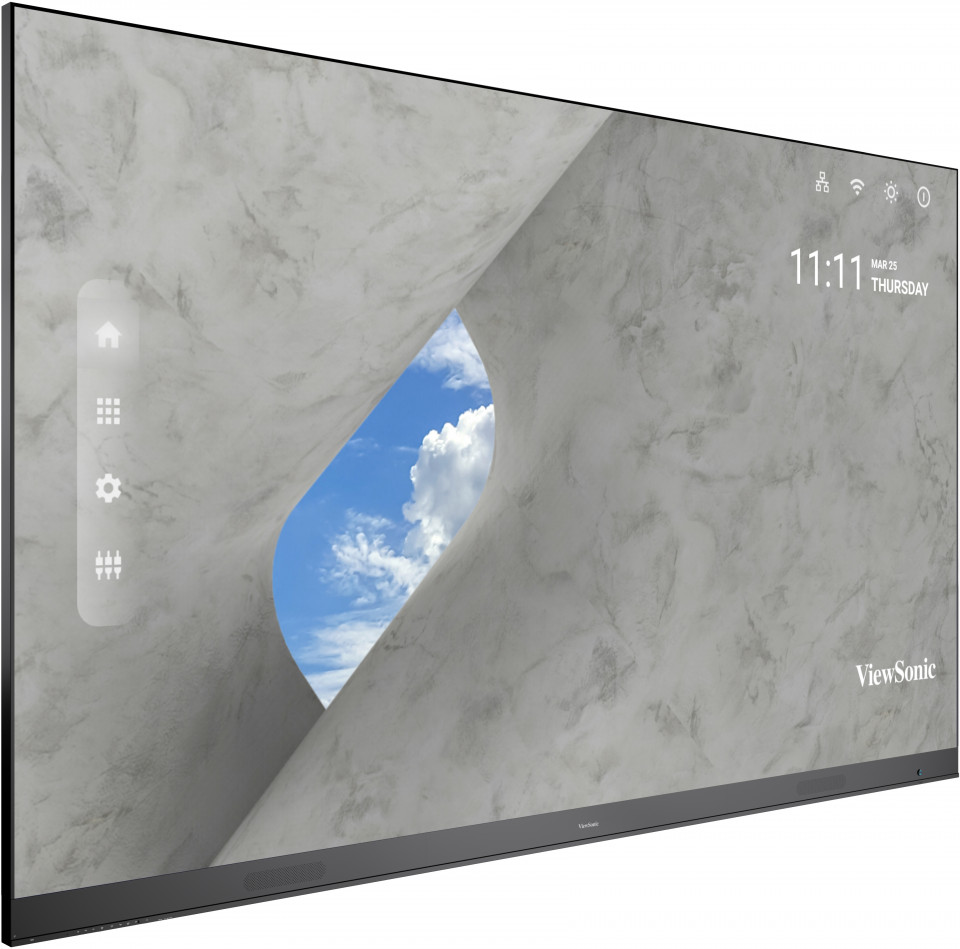

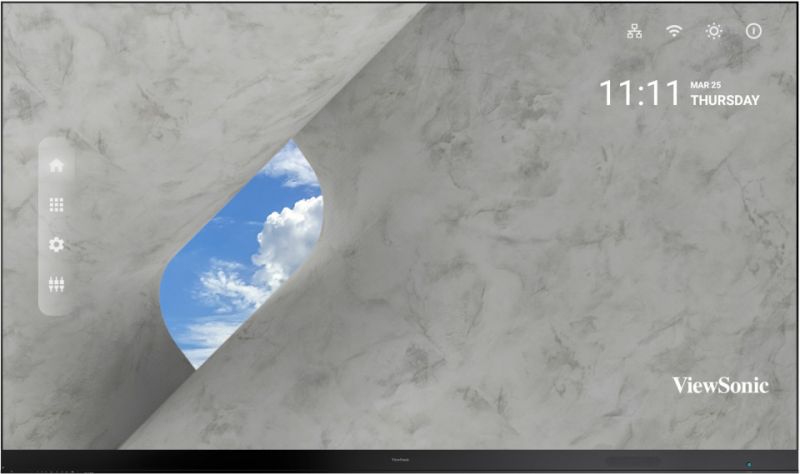

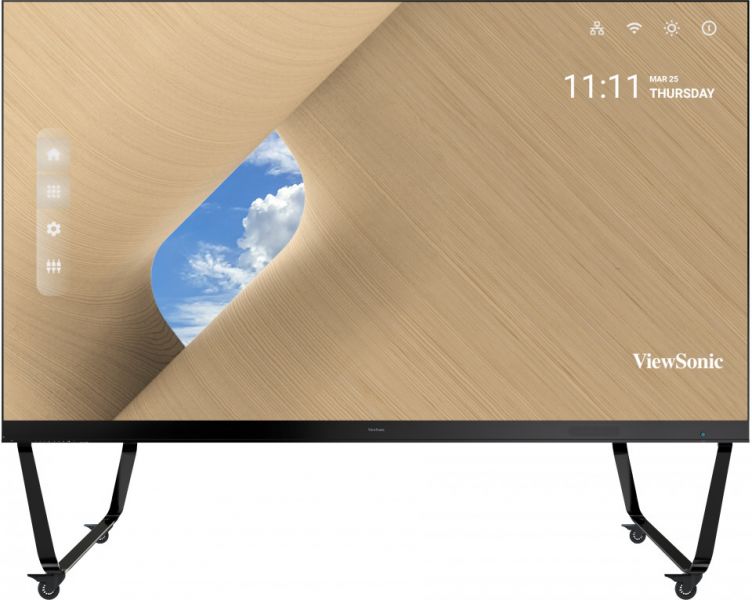

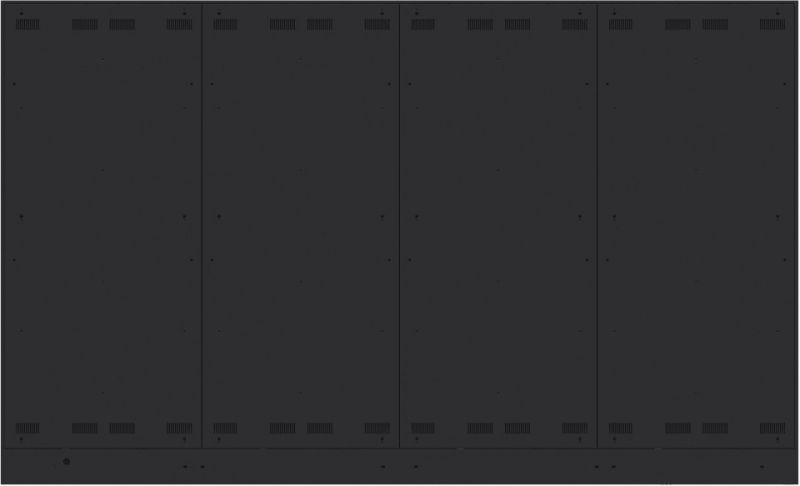

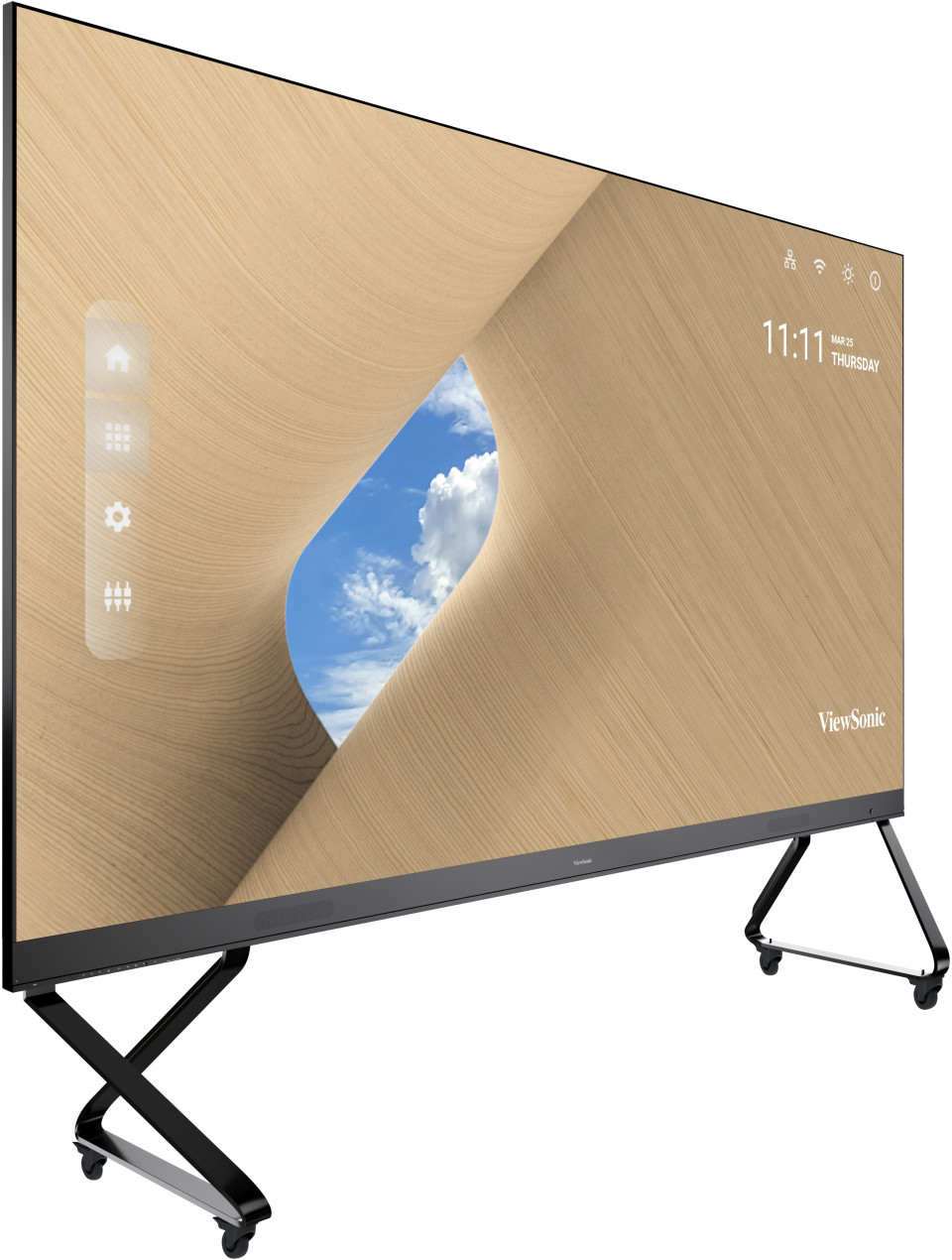

Module LED P1.0 - LD108-121
Module pour Écran dvLED personnalisable Pitch 1.0mm
- Module LED P1.0 - LD108-121
- Impressively large, yet seamless view
- All-in-One design without complicated setup
- Easy delivery, installation, and maintenance
- Engaging front-facing presentation solution
- Flexible wireless content sharing solution
SPÉCIFICATIONS
- SpécificationsScreen Size: 108''
Surface d'affichage (mm): 2400 (H) x 1350(V)
Résolution native: 1920x1080
Panel Technology: Direct view LED
Bonding Wire: Gold
Pixel Pitch (mm): 1.25
Refresh Rate: up to 4440Hz
Brightness (max.): 500 nits (8 levels adjustable)
Contrast Ratio (typ.): 6000:1
Orientation: Landscape
Viewing Angles (typ.): H = 160, V = 160
LED Lifetime (typ.): 100,000 Hours
Stockage local: Total 32GB
(26GB available storage)
Prise en charge de la résolution: HDMI(640 x 480) to
1080p(1920 x 1080)
Compatibilité HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Fréquence horizontale: 31K-94kHz
Fréquence de balayage vertical: 56-85Hz - EntréeHDMI: x2
(HDMI 1.4, HDCP 1.4)
USB Type A: x3
(USB3.0 x1, USB2.0 x2)
RJ45 Input (Internet): x1
Wi-Fi Input: 2.4G/5G Hz - SortieHDMI out: x1
(HDMI 1.4, HDCP 1.4)
Haut-parleur: 5W*2
Sortie audio (3,5 mm): x1
USB Type A (Alimentation): Shared with USB input
(5V/1A x1, 5V/0.5A x2)
- ContrôleRJ45 (LAN control): x1(shared with internet)
USB Type A (Services): x1
(shared with USB A input)
USB Type B (Debug): x1
RS232 (DB 9-pin female): x1
IR Receiver: x1 - AutresTension d'alimentation: 100-120V/30A~ 50/60Hz
220-240V/15A~ 50Hz
(vary by country)
Consommation électrique: 1330W (typ), 1900W (max)
< 0.5W (Sleep), < 0W (Off)
Température de fonctionnement: 0~40℃
LED Module Quantity: 64
Ingress Protection Rating: IP30
Poids net: 194 lbs
(88kg)
Gross Weight: 397 lbs
(180kg)
Screen Dimensions (WxHxD): 95.3x57.8x1.4 inches
(2420.8x1468.45x35mm)
Screen Dimensions (WxHxD) with wall mount: 95.3x57.8x2.2 inches
(2420.8x146.458x56mm)
Packing Dimensions: 57.9x33.5x26.8 inches
(1470x850x680mm) - Standard AccessoriesCordon d'alimentation: x1
USB Cable (A-B): x1
Télécommande: x1
Guide de démarrage rapide: x1
Montage mural: x1
Spare Parts: LED PCB Unit x7
Maintenance Tool: LD-MK-001 x1 - Optional AccessoriesMaintenance Tool: LD-MK-001

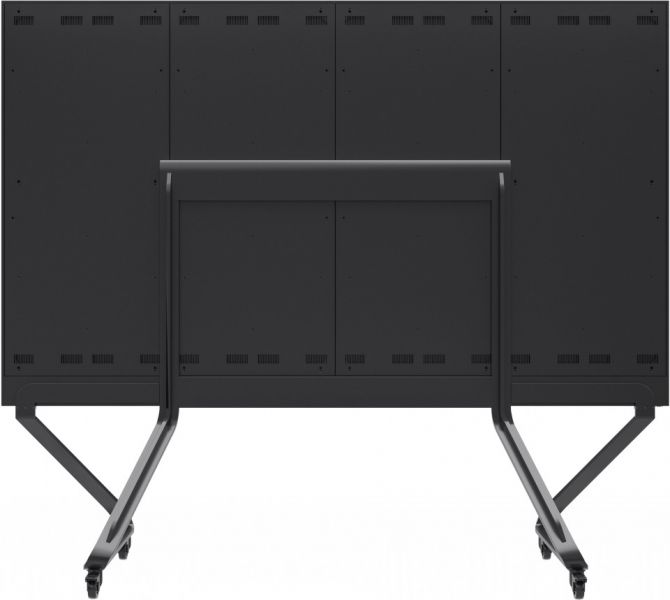

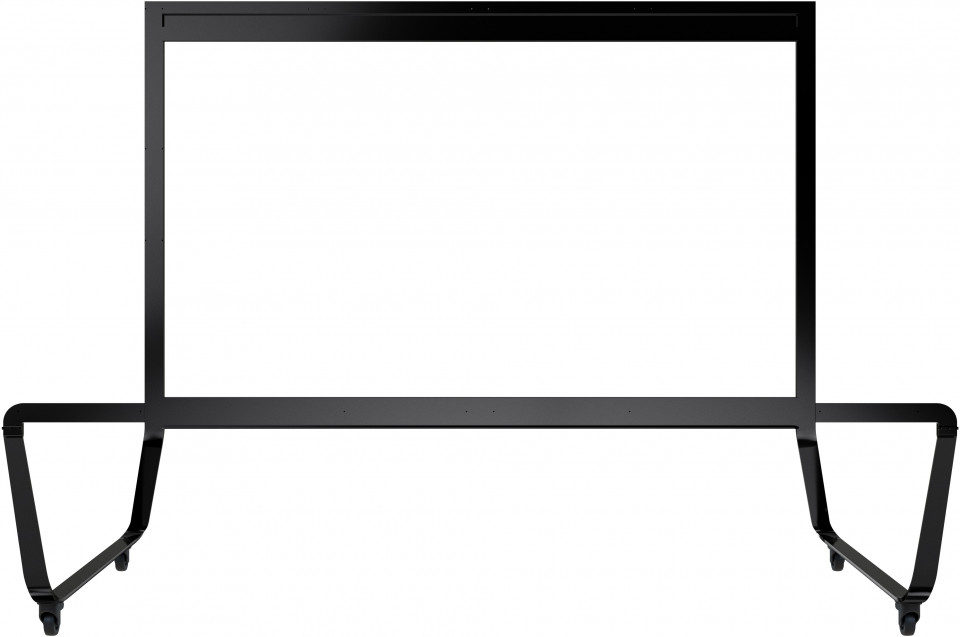

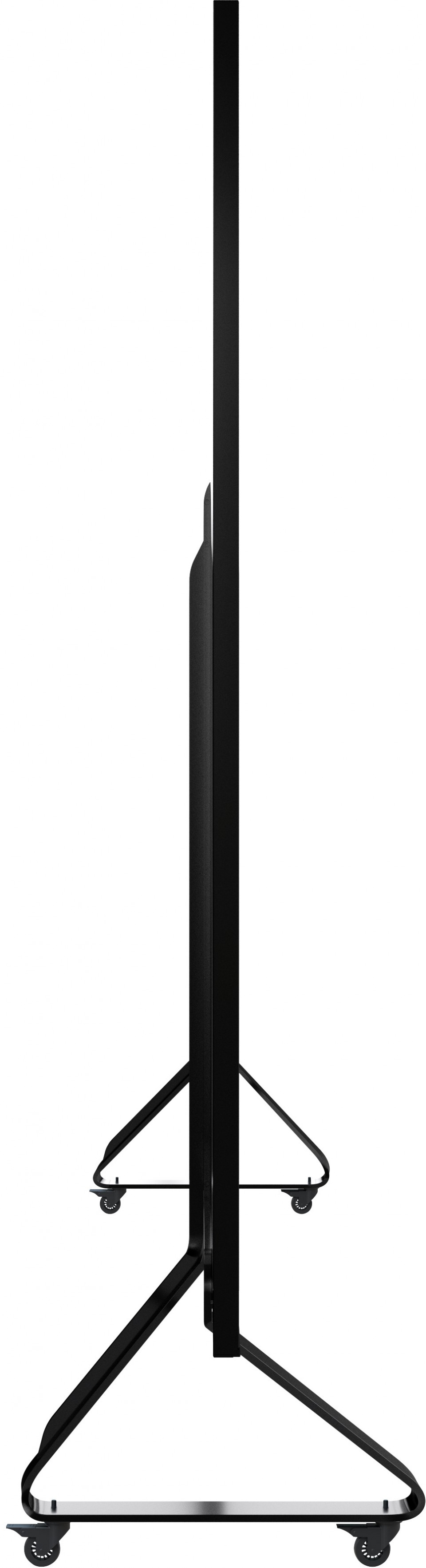

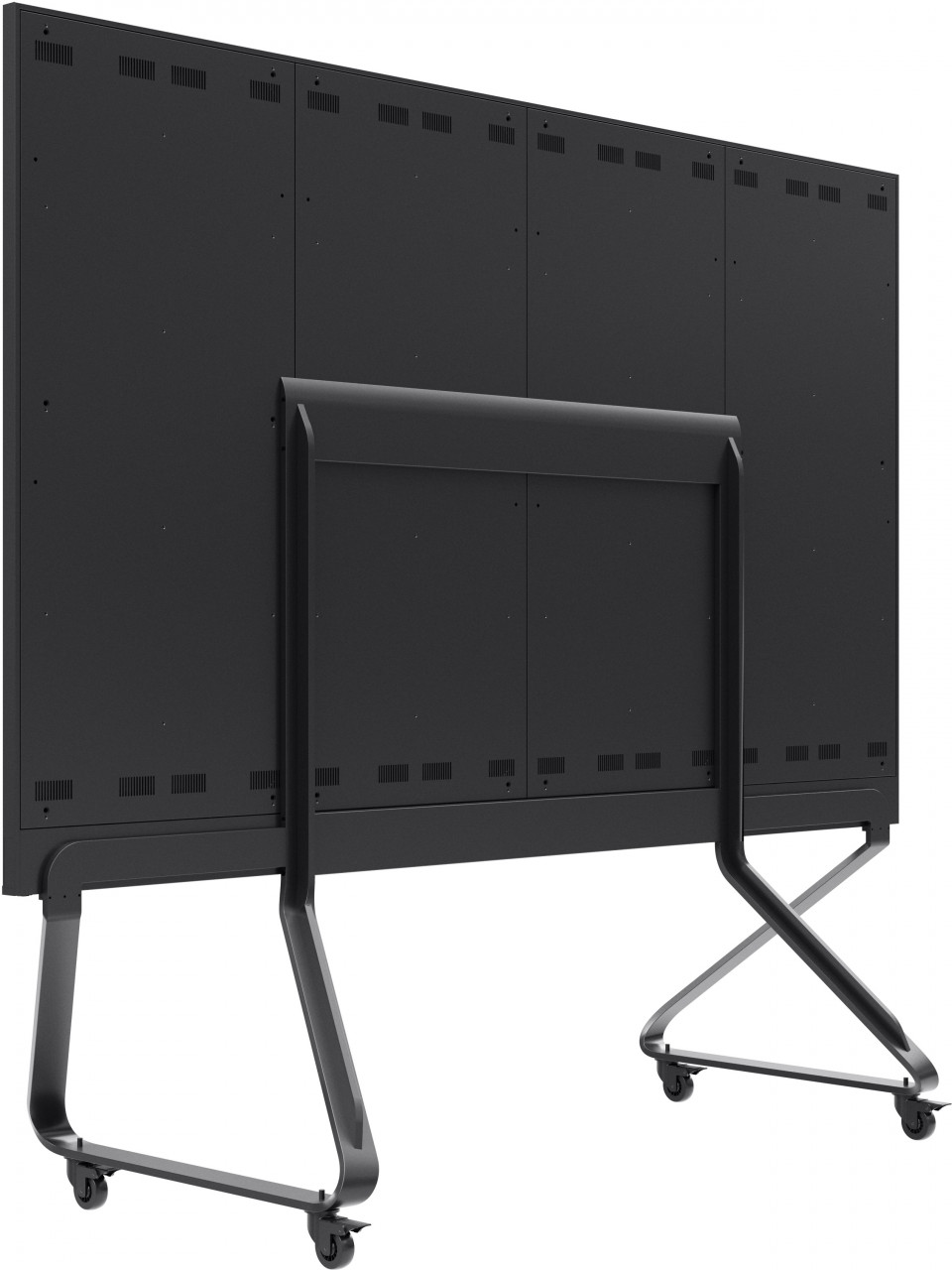

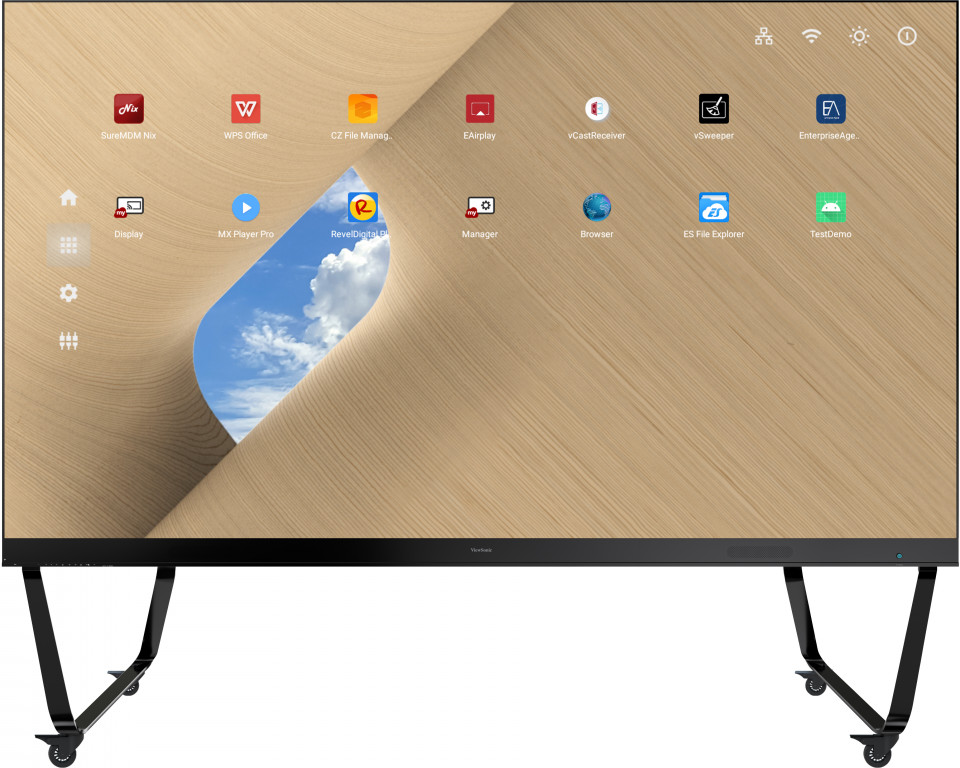

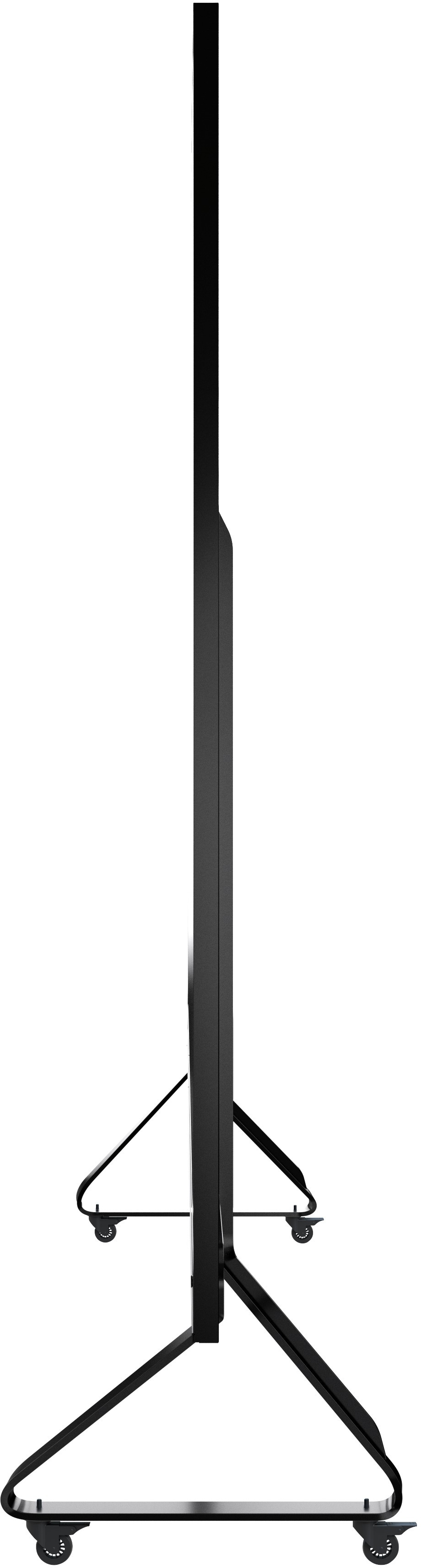

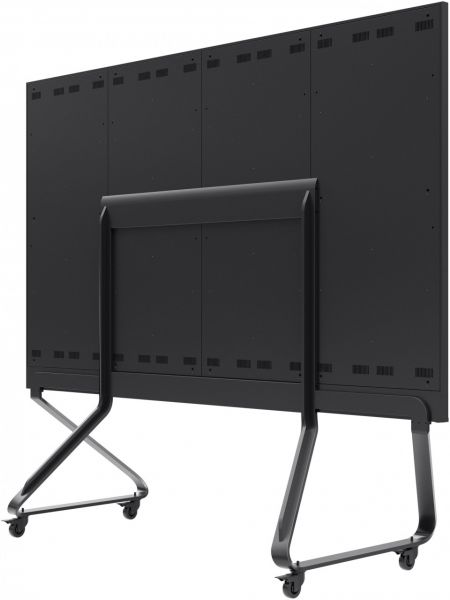

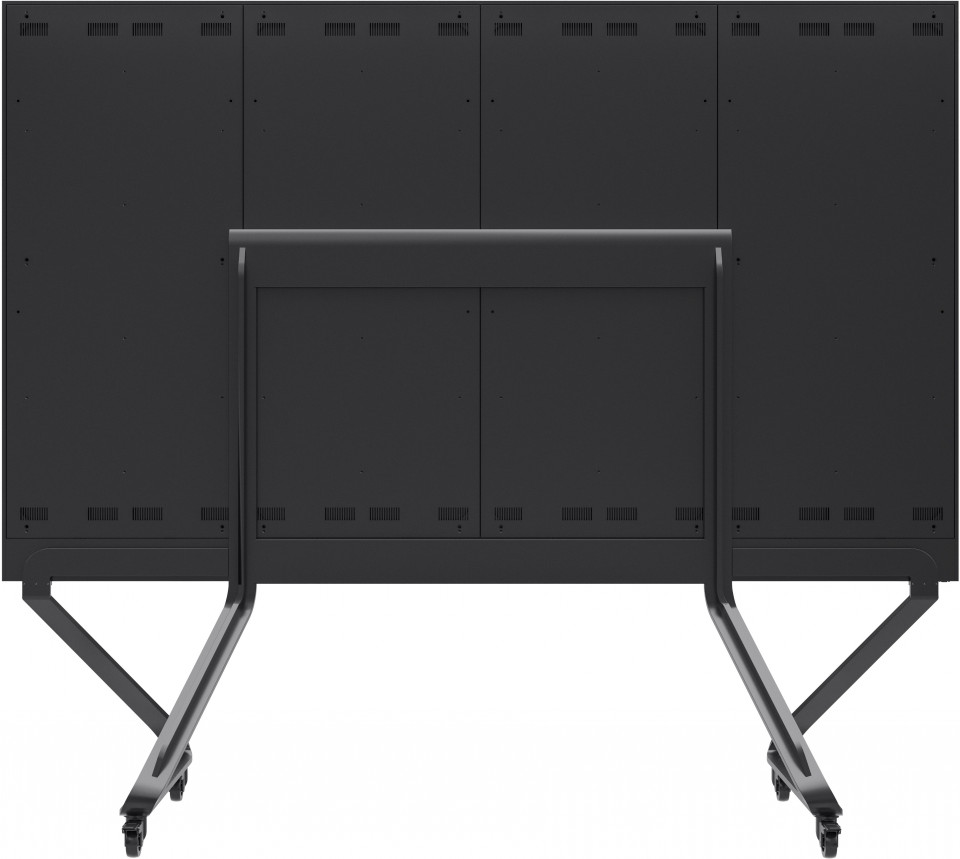

Floor Stand: LD-STND-003
Motorized Trolley: LD-STND-103
ViewBoard Cast Button(USB-C): VB-WPS-001
ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
