CDX4952

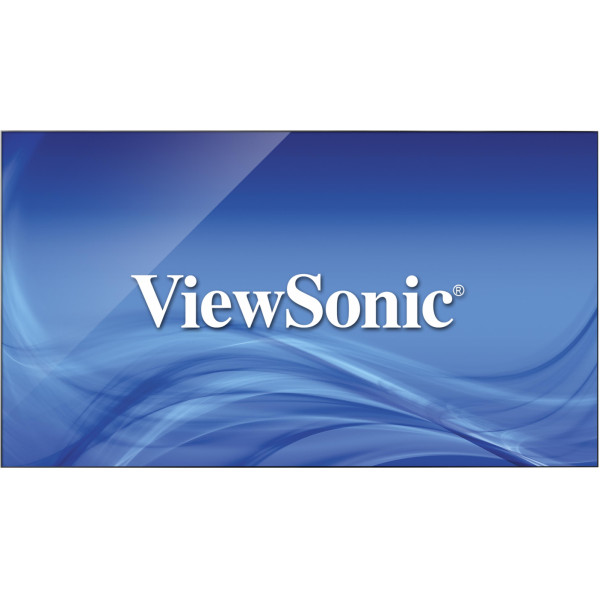

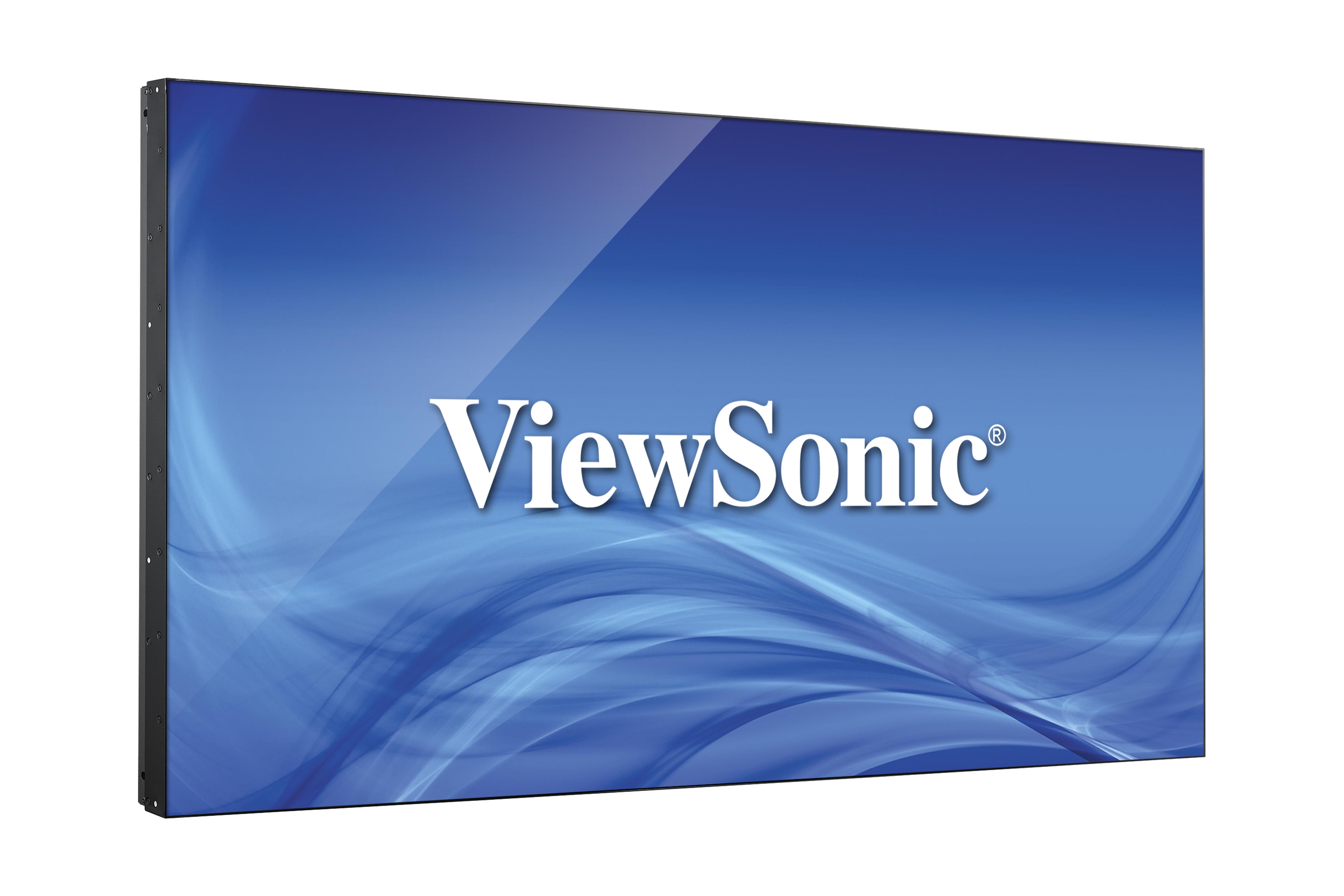

49" Ultra-Narrow Bezel Commercial Display
SPÉCIFICATIONS
- LCD PANELTaille de l'écran: 49" (48.5'' diagonal)
Type/ Technologie: TFT LCD Module. (IPS type, DLED backlight)
Surface d'affichage (mm): 1073.8(H) x 604.0 (V) (48.50” diagonal)
Rapport d'aspect: 16:09
Résolution: 1920 x 1080
Colors: 10 bit, 1.07 Billion colors
Luminosité: 450 nits (typ.)
Rapport de contraste: 1300:1 (typ.)
Temps de réponse: 12 ms
Angles de visualisation: H = 178°, V = 178° (typ.)
Backlight: LED
Durée de vie du rétroéclairage: 50,000 Hours (typ.)

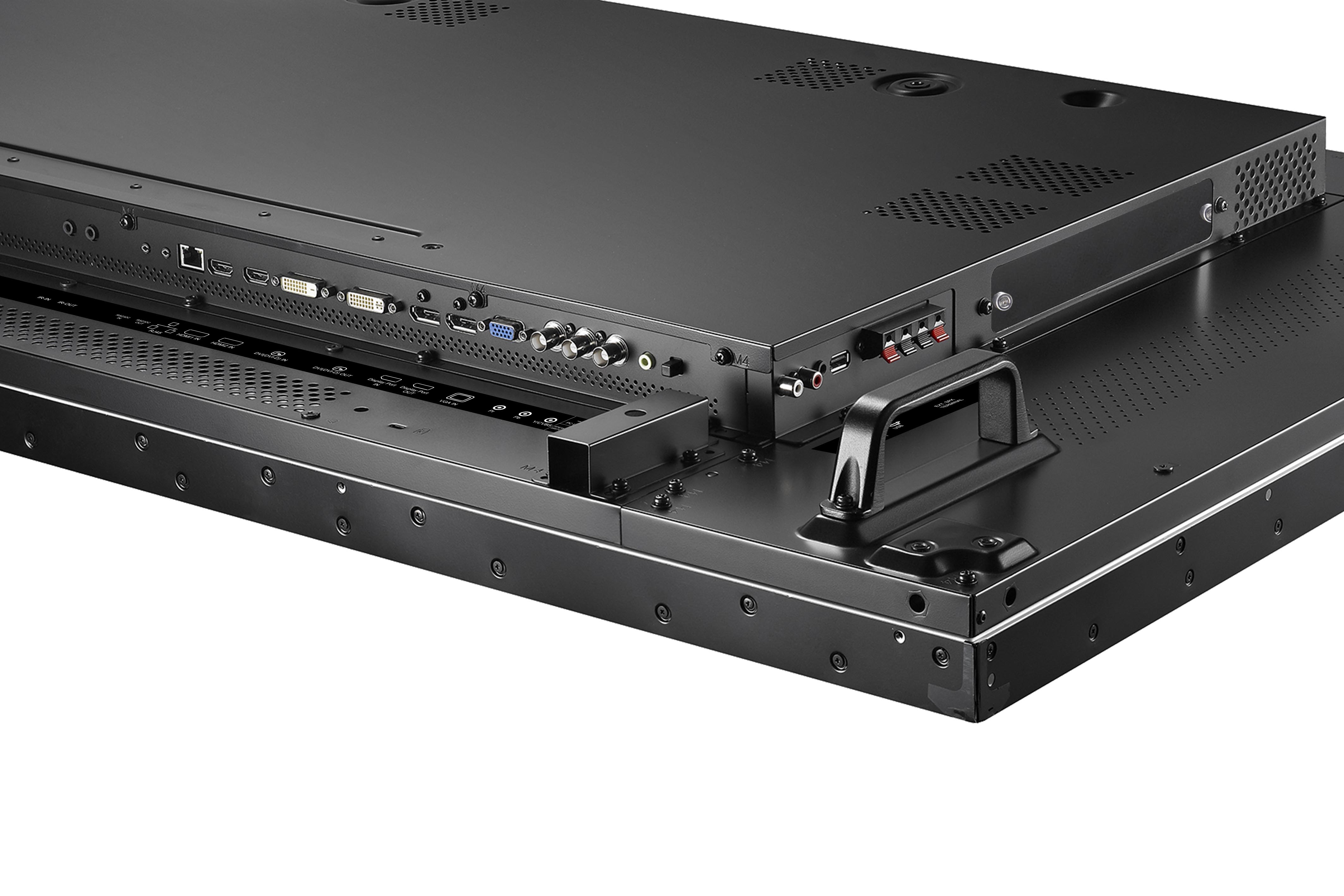

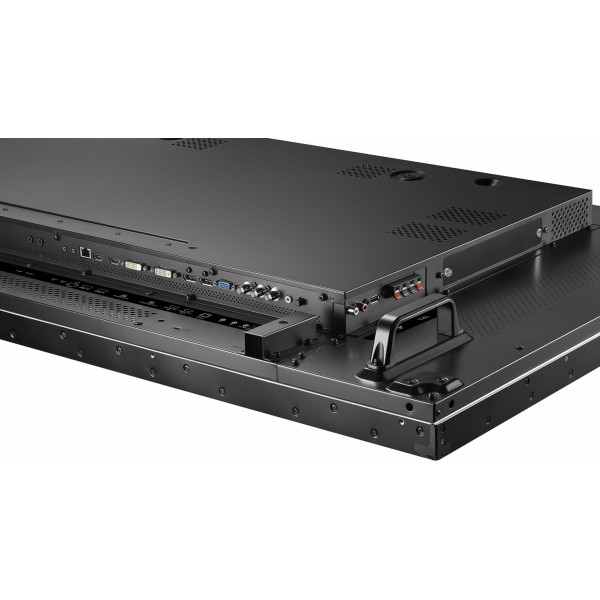

Hardness: Hard coating(3H), Anti-glare treatment of the front polarizer, Haze 1%(Typ.) - INPUTHDMI: x 2 (1.4)
RGB / VGA: x 1
DisplayPort: x 1
DVI: x 1
Audio: x1
CVBS: x 1 (Share with component Y)
YPbPr: x 1
RS232: x 1
OPS: x 1
IR Pass Through: x 1 - OUTPUTDisplayPort: x 1
DVI: x 1
Audio: x 1
RS232: x 1
IR Pass Through: x 1
- LANRJ45: x 1
- HAUT-PARLEURS10W x2
- COMPATIBILITYCVBS: 480i
HDMI (1080p): 480i, 480p,720p,1080i,1080p, 4k2k@30Hz
DisplayPort: 480i, 480p,720p,1080i,1080p, 4k2k@30Hz
YPbPr: 480i, 480p,720p,1080i,1080p
DVI: 480i, 480p,720p,1080i,1080p - CONTROLSPhysical- Top OSD: PICTURE:POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU
Picture style, Restore style, Backlight, Colour, Sharpness, Noise reduction, MPEG artifact reduction, Digital Crystal Clear, Advanced, Game or computer, Format and edges, Input resolution
SOUND: Sound style, Restore style, Bass, Treble, Balance, Surround mode, Audio Out, Advanced
TILING: Enable, H monitors, V monitors, Position, Frame Comp.
GENEERAL SETTINGS: Menu language, Monitor ID, Eco mode, Auto search, Clock, Scheduling, Sleep timer, CEC, Auto adjust, Locak KB lock, RC lock, Pixel shift, Smart power, Wake on lan, Switch on state, Light sensor, LED, Switch on delay, Logo, APM, Information OSD, DisplayPort Ver., Cooling fan, Network control port,Factory settings.
NETWORK SETTINGS: View network settings, Network configuration, Static IP Configuration, Digital Media Renderer-DMR, Network name - POWERTension: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consommation: Normal 110 W, Max 235 W - ERGONOMICSMontage mural (VESA® ): 400x400mm ; Screw: M6*10mm
- OPERATING CONDITIONSTempérature (º C): 5 – 40 degC (Landscape), 5 – 35 degC (Portrait)
Humidité: 20% ~ 80% without condensation - DIMENSIONS Physique (pouces / mm): 1077.6 x 648.7 x 400 mm / 42.43’ x 25.54’ x 15.75’ in.
Physical w/o Stand (inch / mm): 1077.6 x 607.8 x 93.5 mm / 42.43 ‘x 23.93’ x 3.68’ in
Emballage (pouces / mm): 1367 x 897 x 366 mm / 53.82’ x 35.31’ x 14.41’ in - WEIGHTNet (lb / kg): 23.9 kg / 52.69 lb
Net w/o Stand (lb / kg): 21.6 kg / 47.62 lb
Brut (lb / kg): 34.3 kg / 75.62 lb - What's in the box?1. CDX4952 Commercial Display

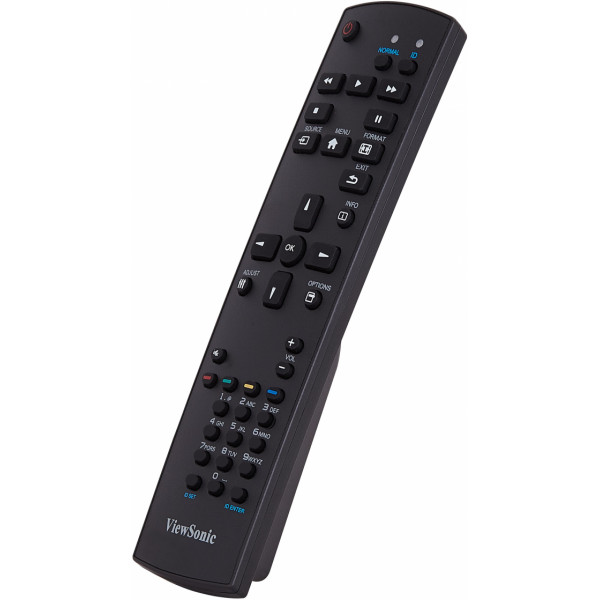

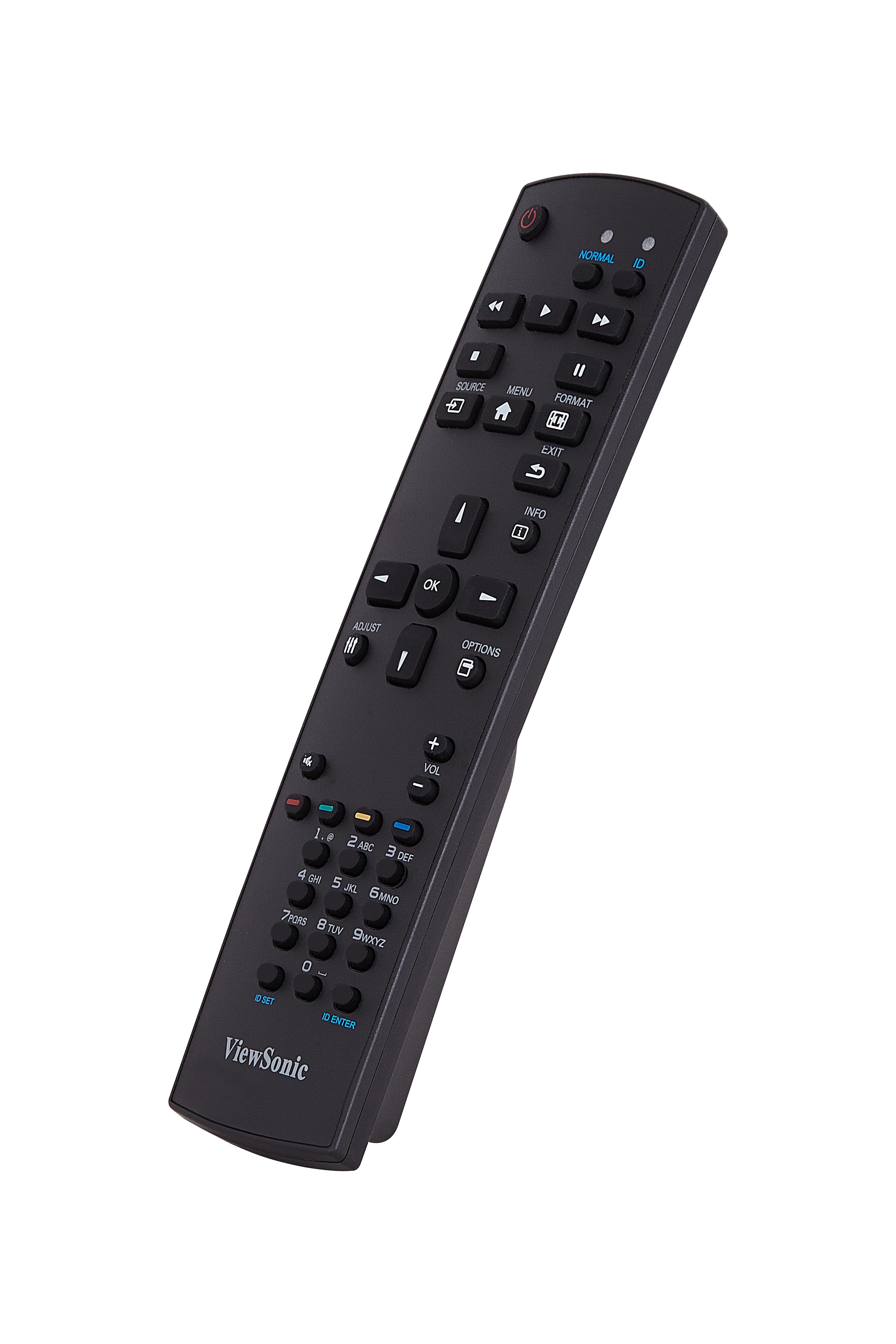

2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. VGA cable
7. RS232 cable
8. IR sensor cable
9. RS232 daisy chain cable
10. Edge Alignment Kit-1
11. Edge Alignment Kit-2
12. Thumb Screw
*Actual content may differ from market to market
