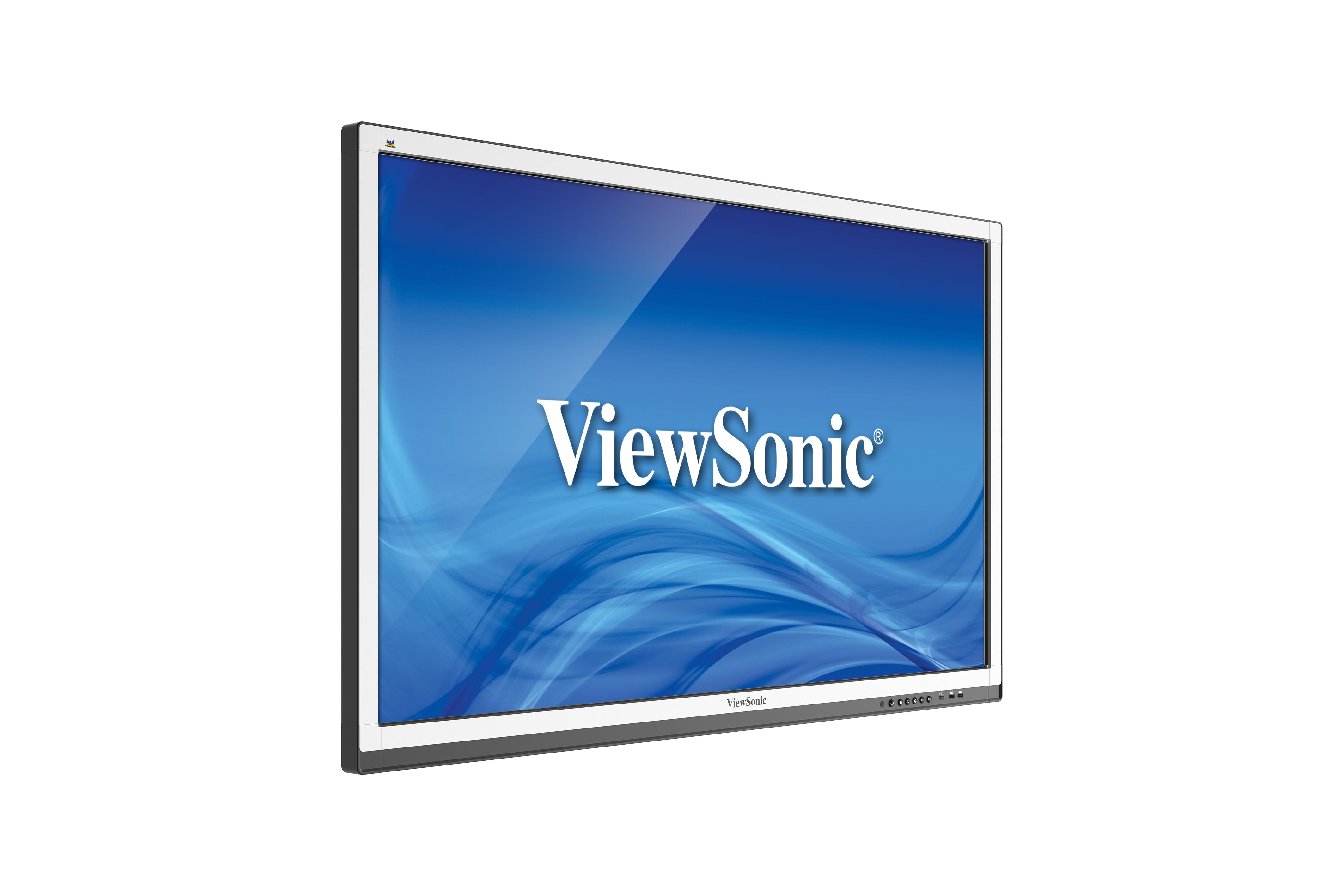

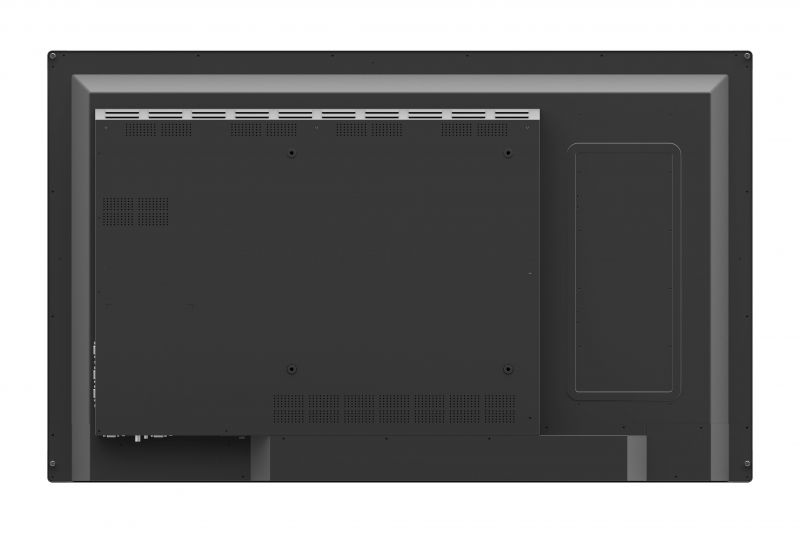

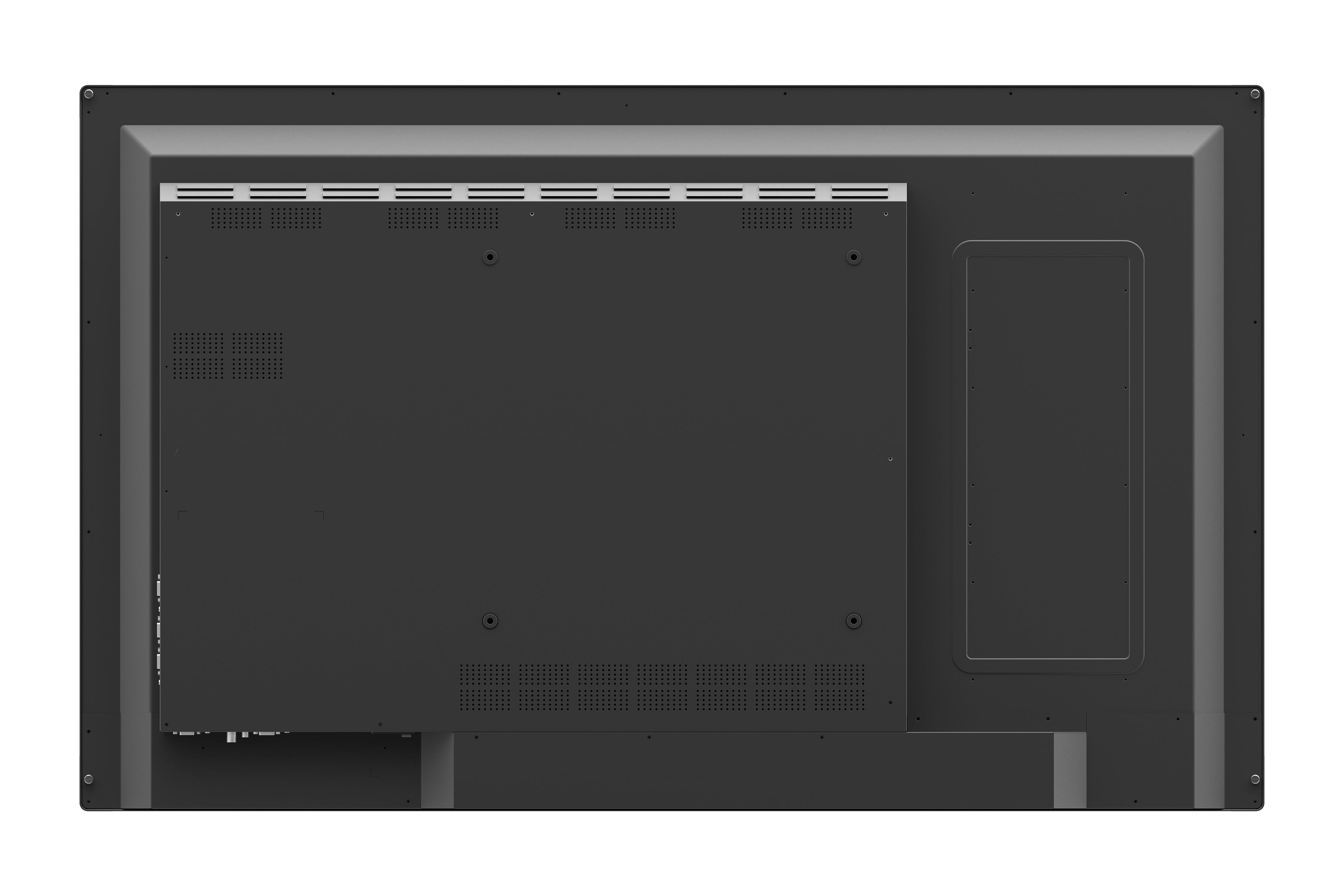

CDE5561T

55” Full HD Commercial LED Display

LCD PANEL
Panel Size: 54.6"
Type/Tech: TFT LCD Module with LED Backlight
Display Area: 1209.6(H) x 680.4(V) (54.6” diagonal)
Aspect Ratio: 16:9
Resolution: 1920 x 1080
Colors: 16.7 M
Brightness: 350 nits (typ.)
Contrast Ratio: 1200:1 Typ.
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours Typ.
Surface Treatment: AG coating (7H)
Orientation: Landscape
TOUCH
Type/Tech: IR Recognition
Touch Resolution: 32767 x 32767
Touch Point: 20 point for gesture, 10 point for writing
INPUT
HDMI: x3
RGB / VGA: x3
Audio: x3 PC audio(3.5 mm)
CVBS: x1
RS232: x1
OPS: PC Slot (proprietary)

OUTPUT
RGB / VGA: x1
Audio: x1 Earphone Out
SPDIF: x1
LAN
RJ45: x1
USB
Type A: x3 (USB 2.0 including 2 USB ports in front), x1 (USB 3.0)
Type B: x1 (for touch)
SPEAKERS
10Wx2
COMPATIBILITY
RGB PC/HDMI PC: up to 1920x1080@60Hz / 1080p
CVBS: 480i
HDMI: 480i, 480p, 720p, up to 1080p
Bundle Software
ViewBoard Lite, ViewBoard 2.1
POWER
Voltage: 100-240VAC +/- 10% 50/60Hz Wide Range
Consumption: 162W (Typ.) < 0.5 W ("Off")
ERGONOMICS
Wall Mount: 400 x 400
OPERATING CONDITIONS
Temperature: 0°C to 40°C
Humidity: 20% ~ 80% non-condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 51.34x31.5x3.82 / 1304x800x97
WEIGHT
Net (lb / kg): 71.65 / 32.5
PACKAGE CONTENTS
VGA cable / Power cable x 4 / Remote control / USB cable / Audio cable / Touching pen x 3 (LB-PEN-003) / User manual CD wizard / RS232 adapter
