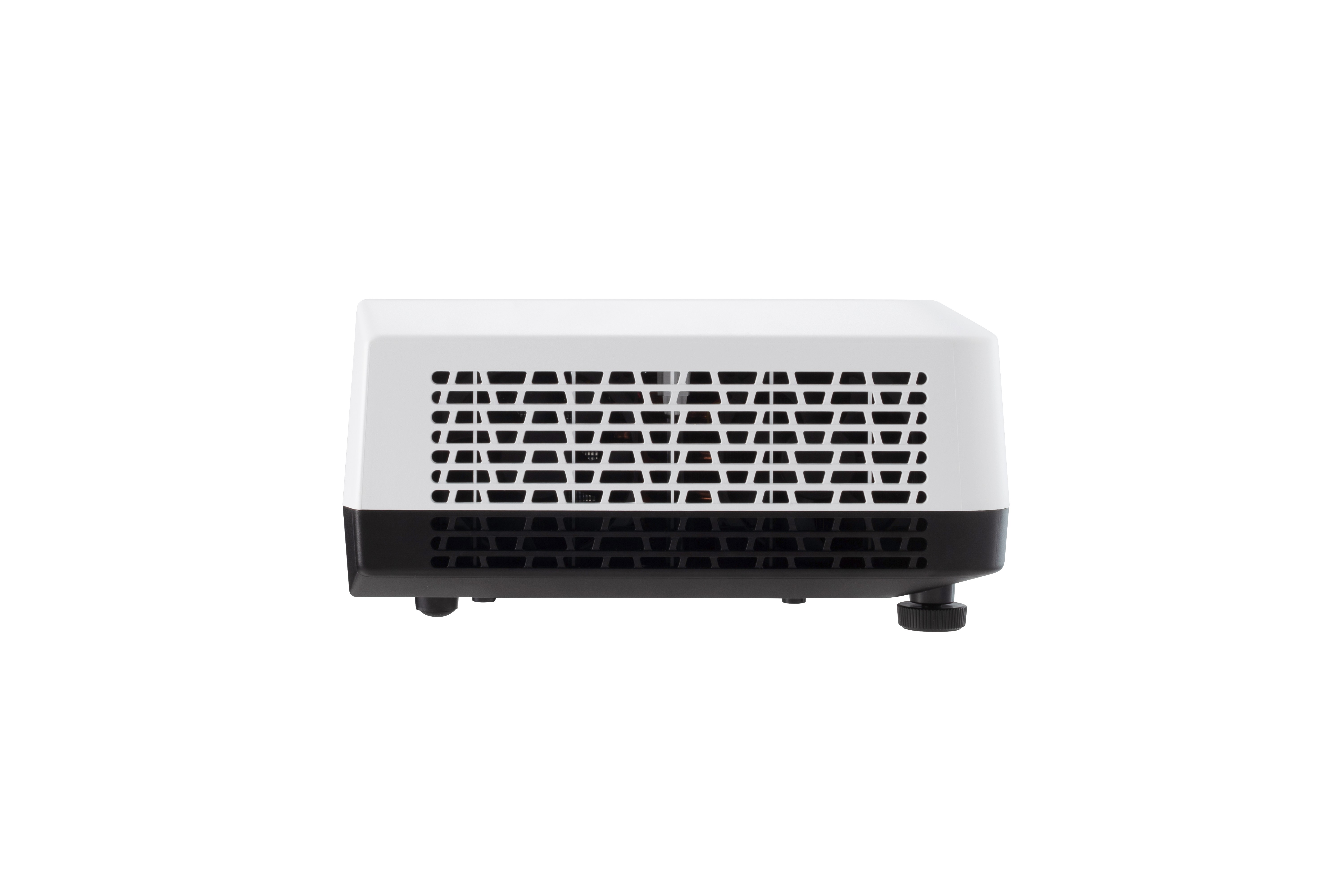

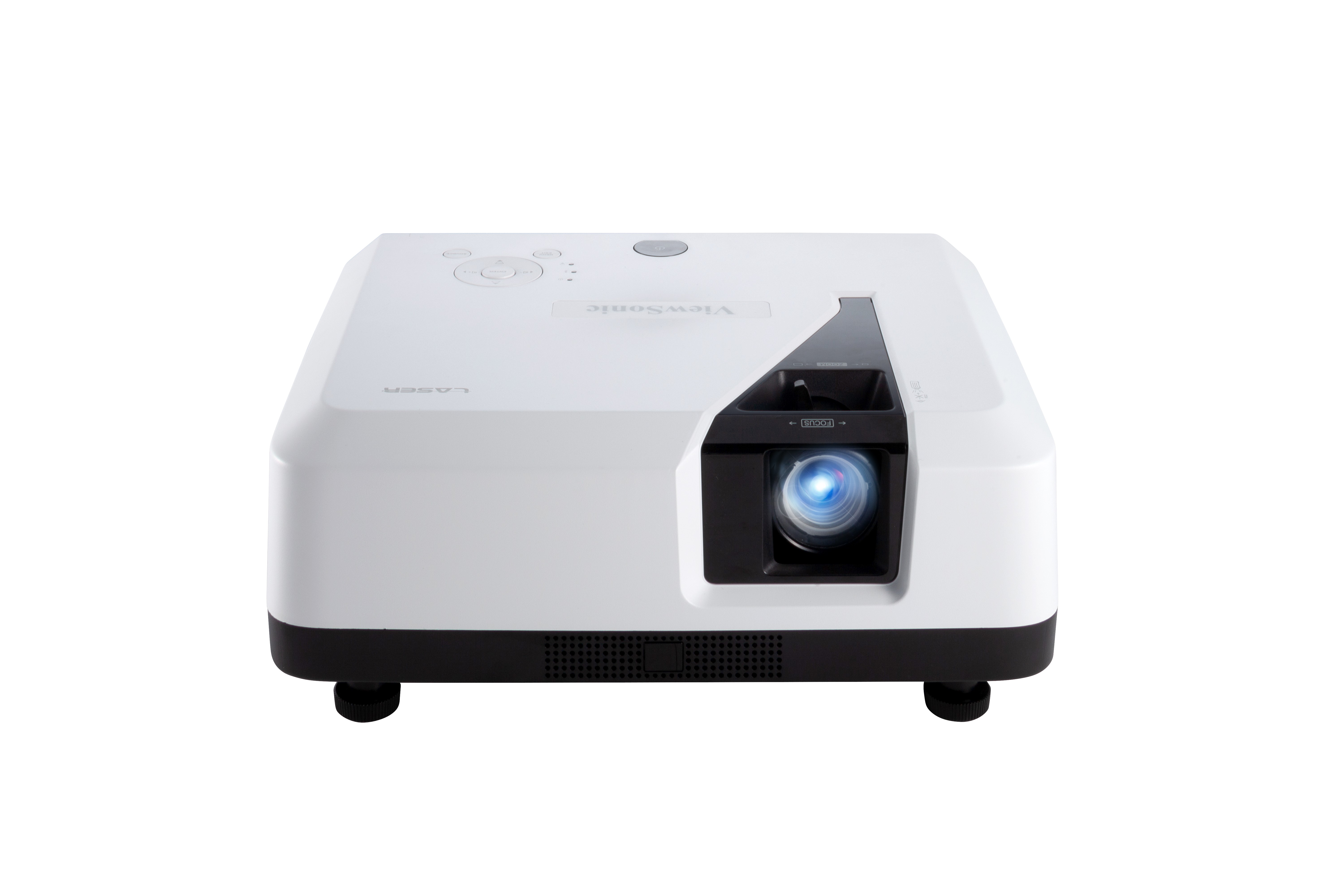

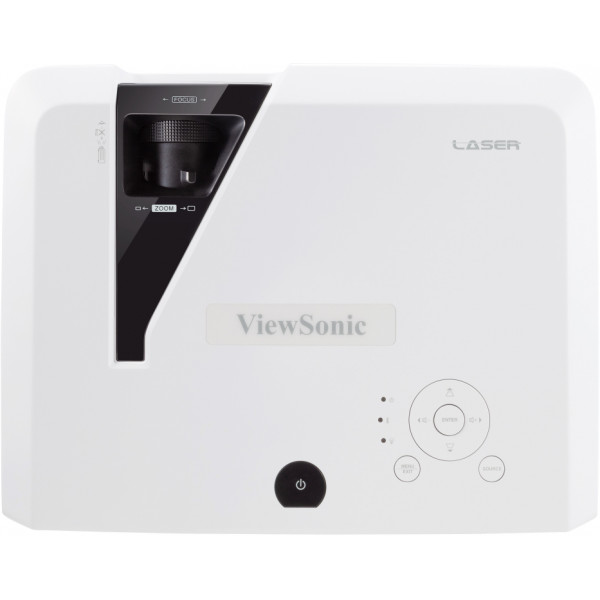

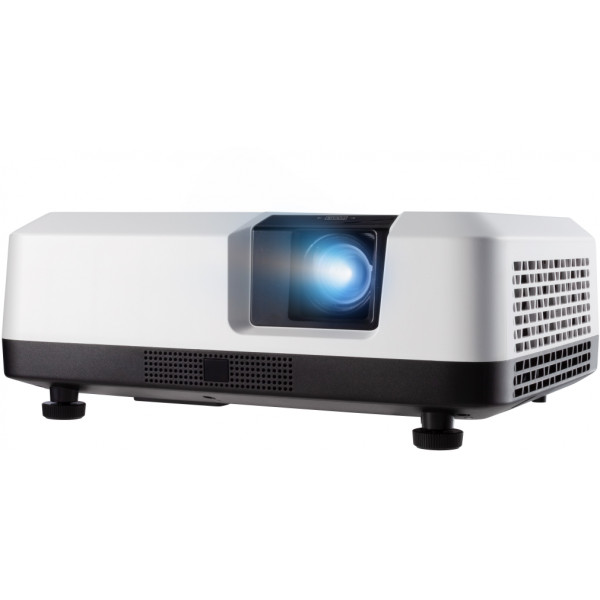

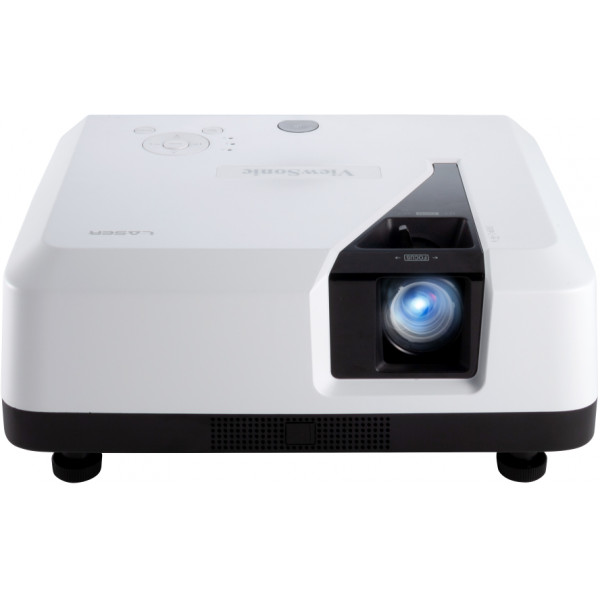

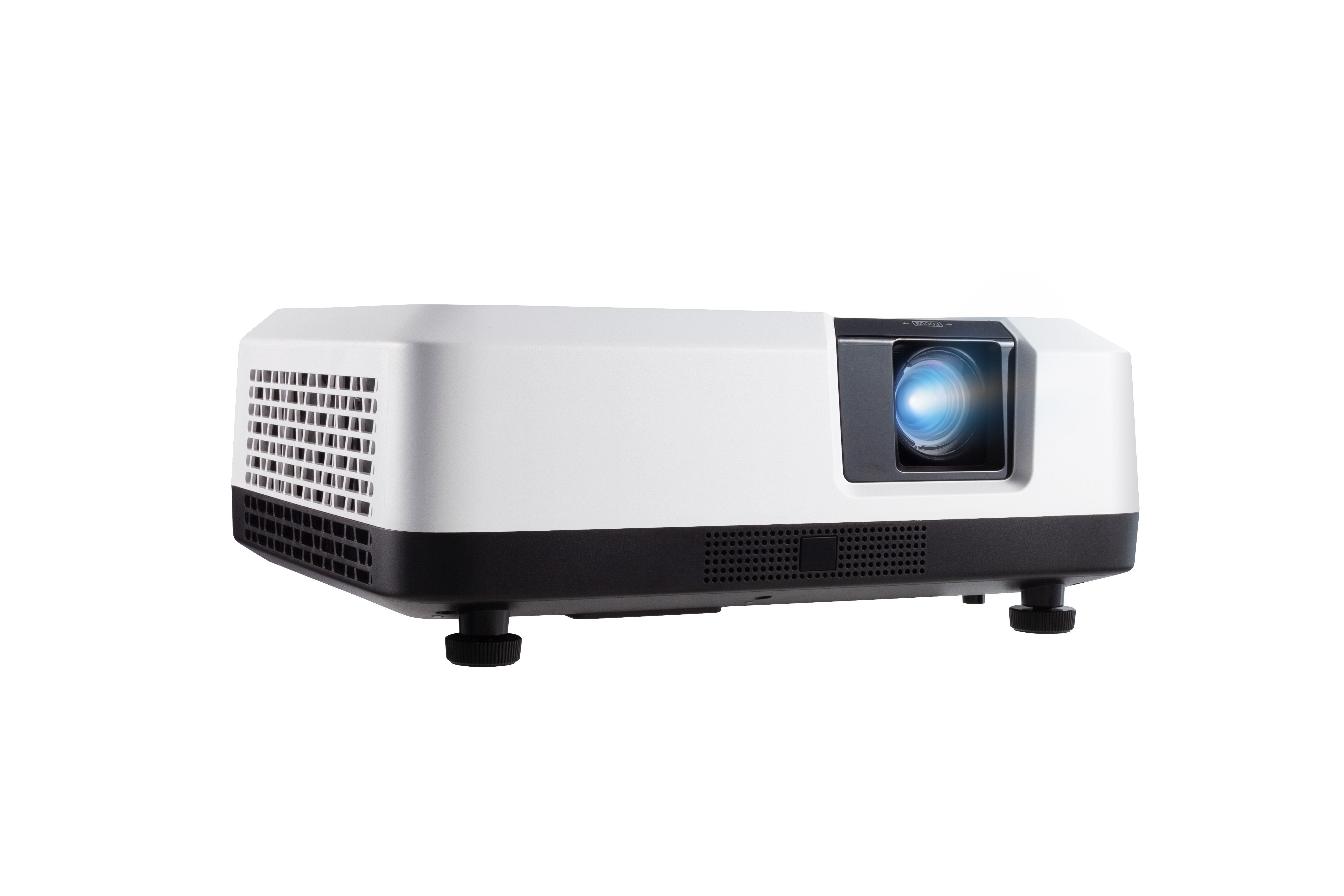

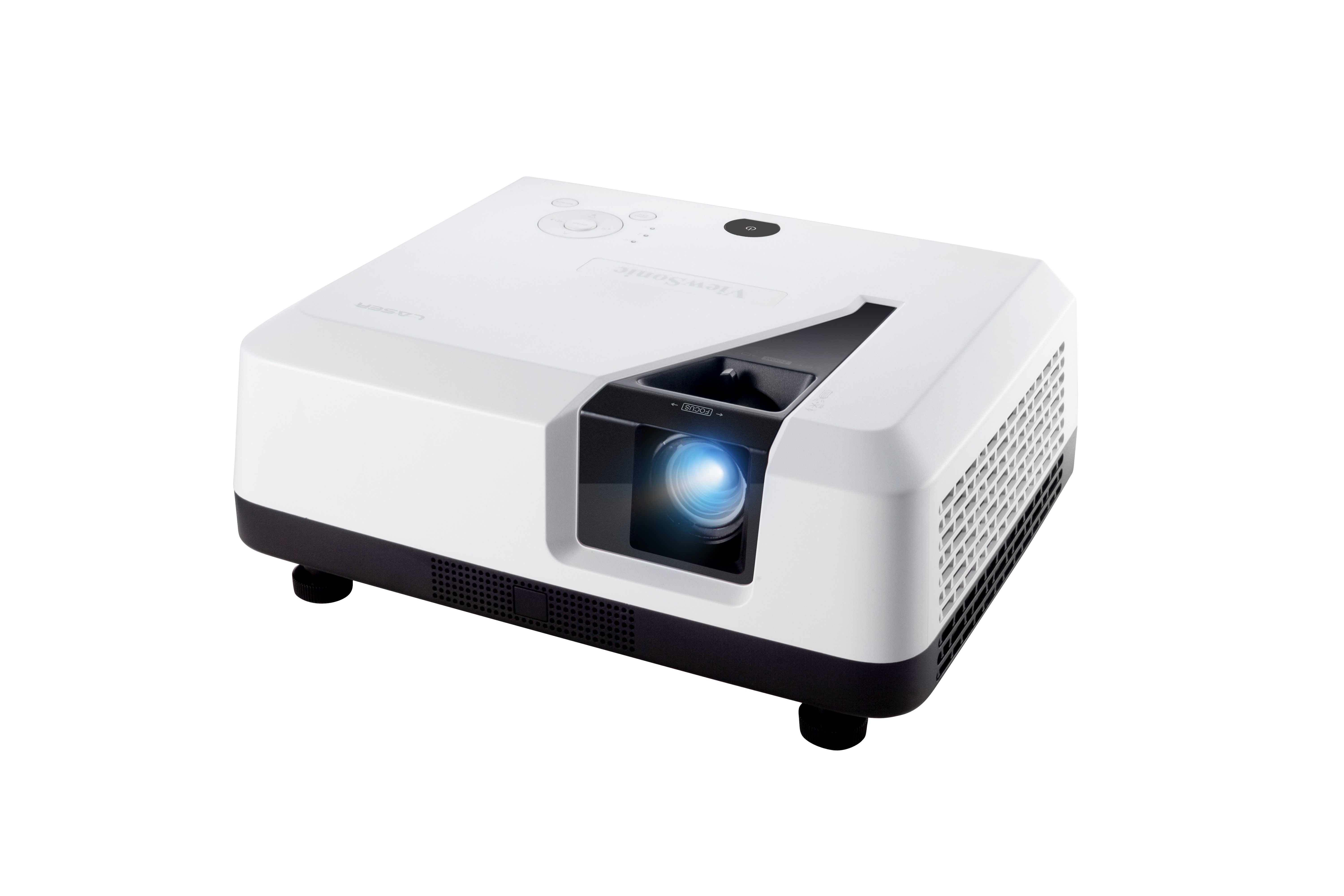

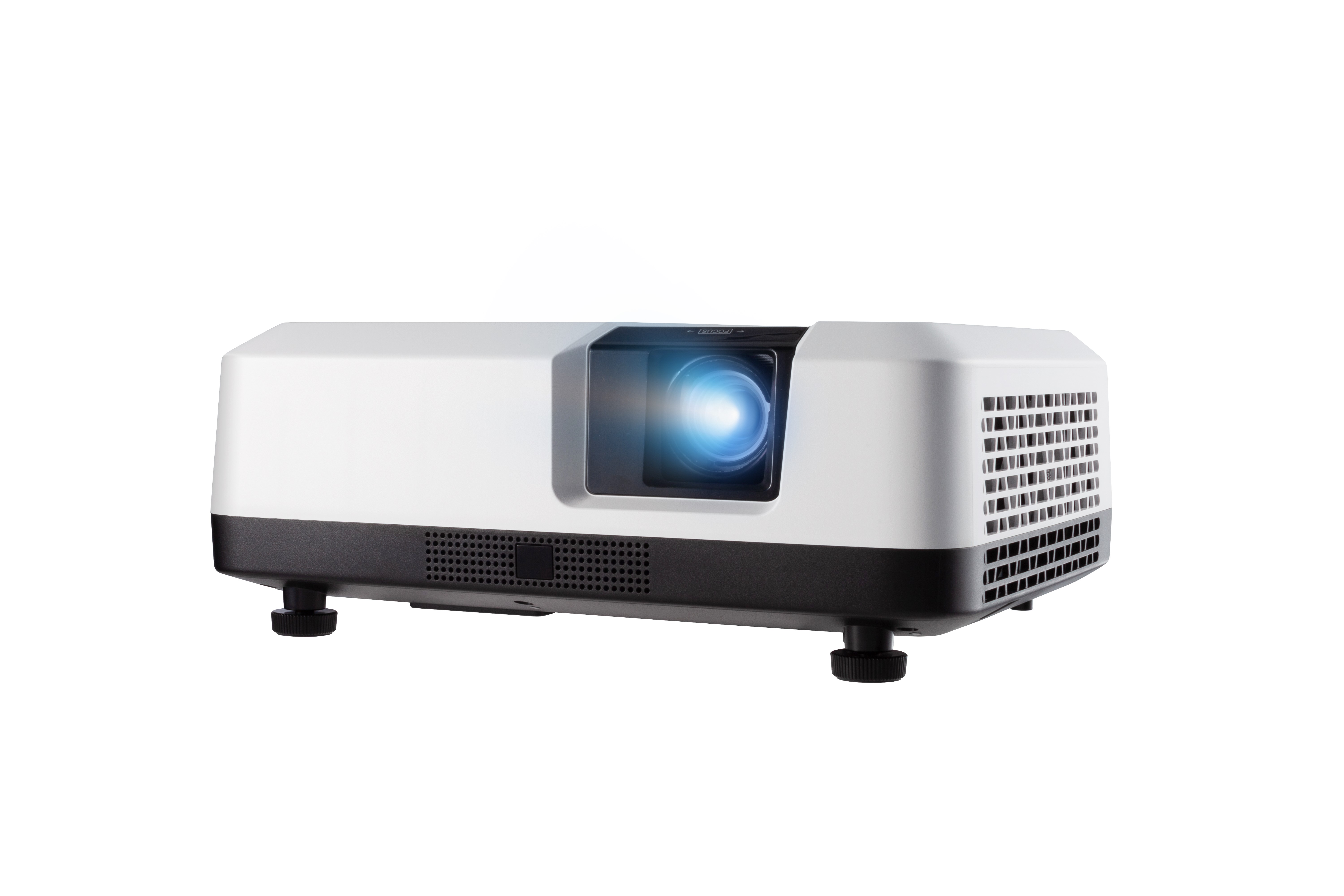

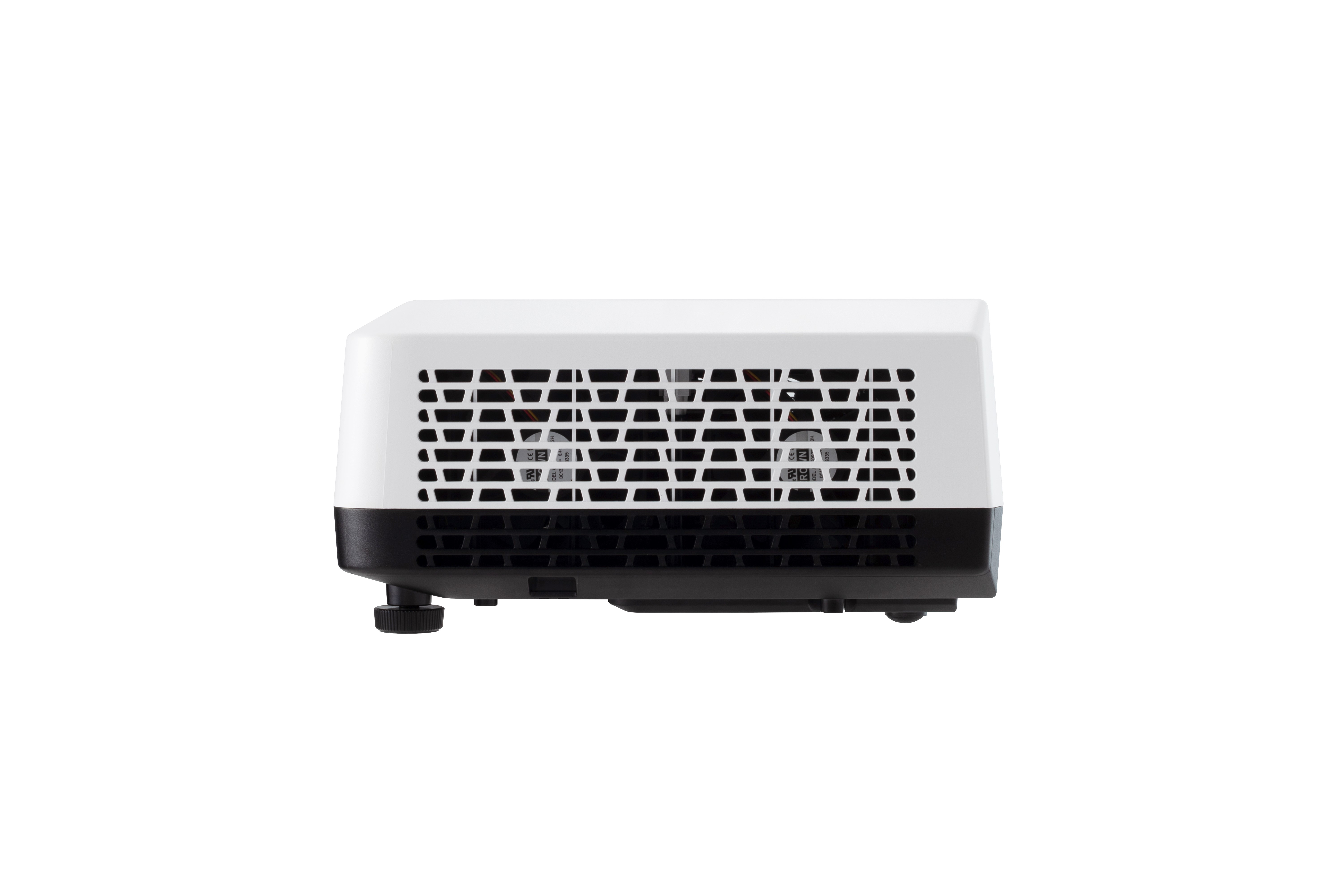

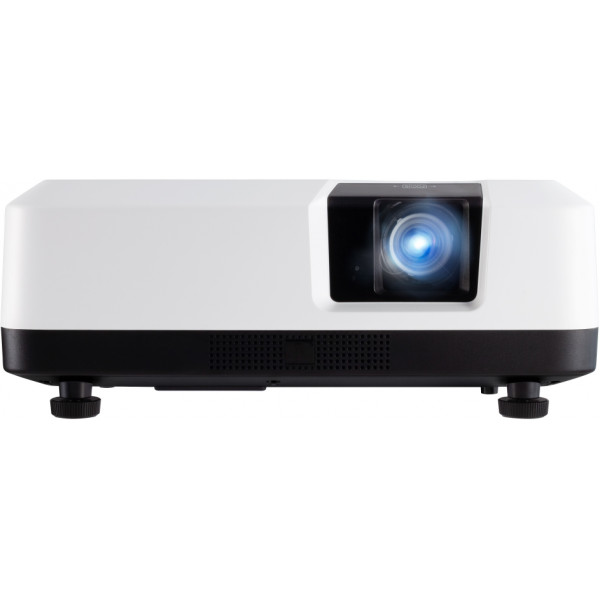

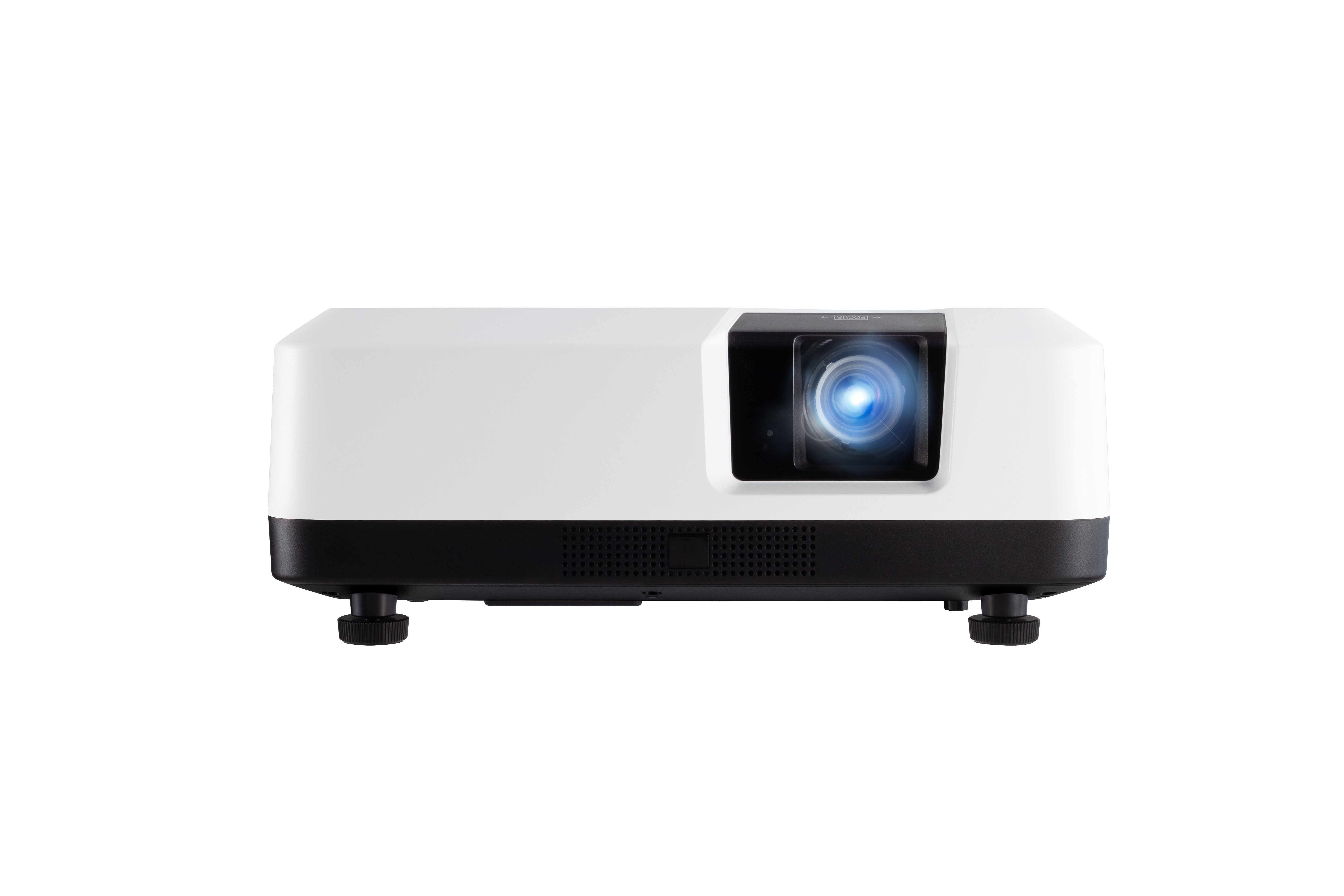

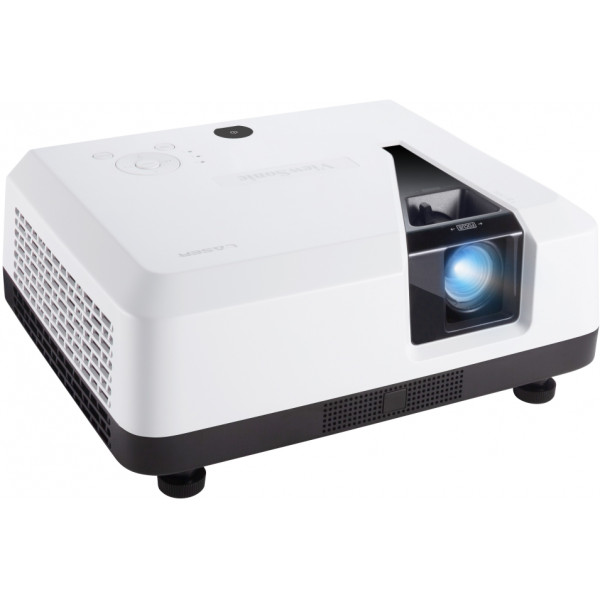

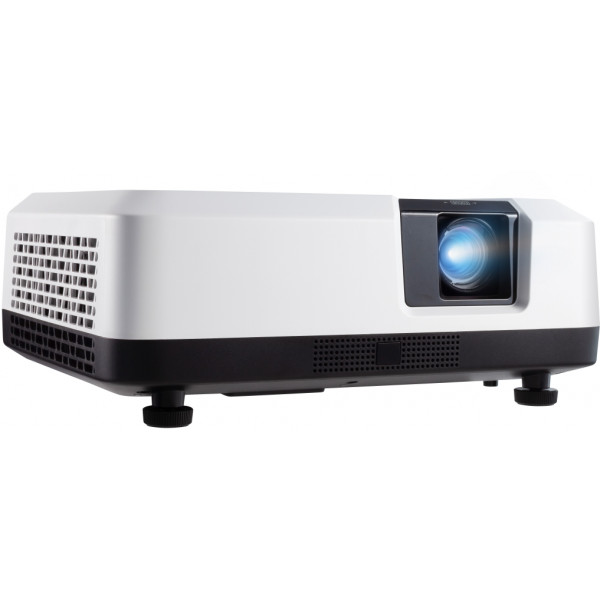

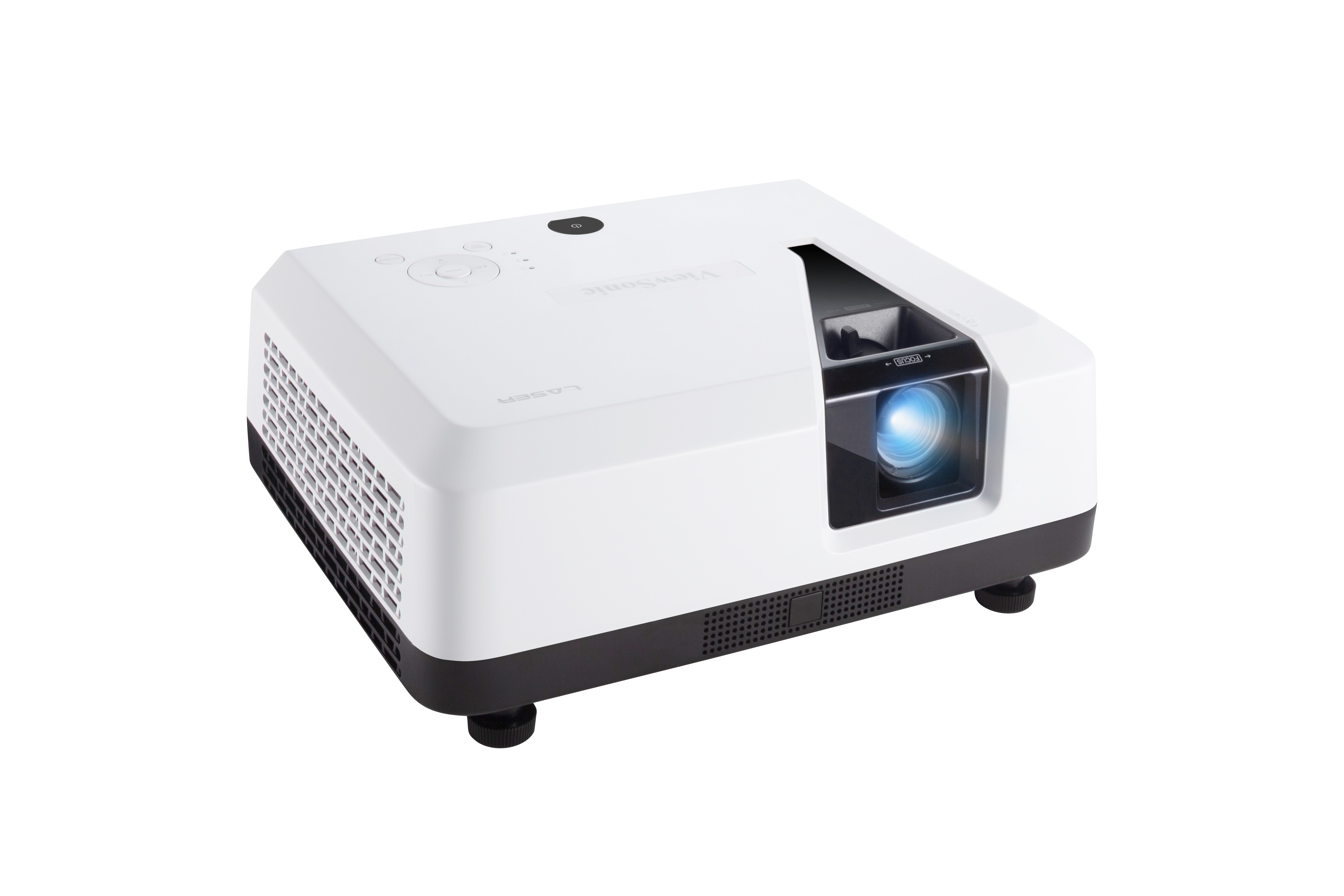

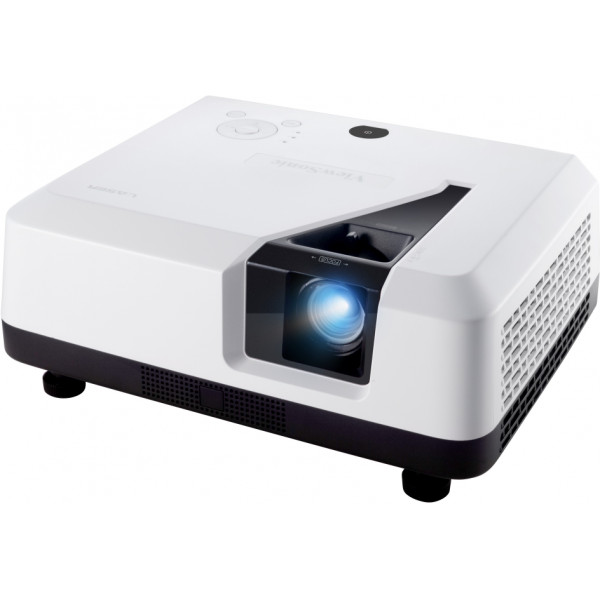

LS700HD

3,500 ANSI Lumens 1080p Laser Projector

  • Lamp-free Laser Phosphor technology
  • Notch Filter technology to provide better colour performance
  • 20,000 hours life span
  • Ultra-high Contrast
  • H/V Keystone & 4 corner adjustment

SPECIFICATIONS


  • Specification
    Projection System: 0.47" 1080p
    Native Resolution: 1920x1080
    Brightness: 3500 ANSI Lumens
    Contrast Ratio with SuperEco Mode: 3000000:1
    Display Colour: 1.07 Billion Colours
    Light Source Type: Laser Phosphor system
    Light Source Life (Normal): up to 20000
    Light Source Life (SuperEco): up to 20000
    Lamp Watt: Nichia MCD
    Lens: F=1.9-2.49, f=12-15.6mm
    Projection Offset: 100%+/-5%
    Throw Ratio: 1.13~1.47
    Image Size: 60" - 300"
    Throw Distance: 1.5-8.79m(100"@2.5m)
    Keystone: H:+/-40° , V:+/-40°
    Optical Zoom: 1.3X
    Digital Zoom: 0.8x ~ 2.0x
    Audible Noise (Normal): 34dB
    Audible Noise (Eco): 30dB
    Input Lag: 16ms (TBD)
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K~102KHz
    Vertical Scan Rate: 23~120Hz

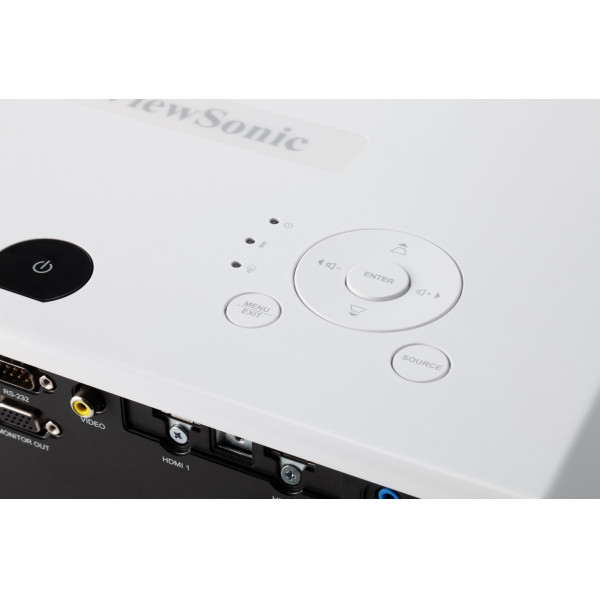

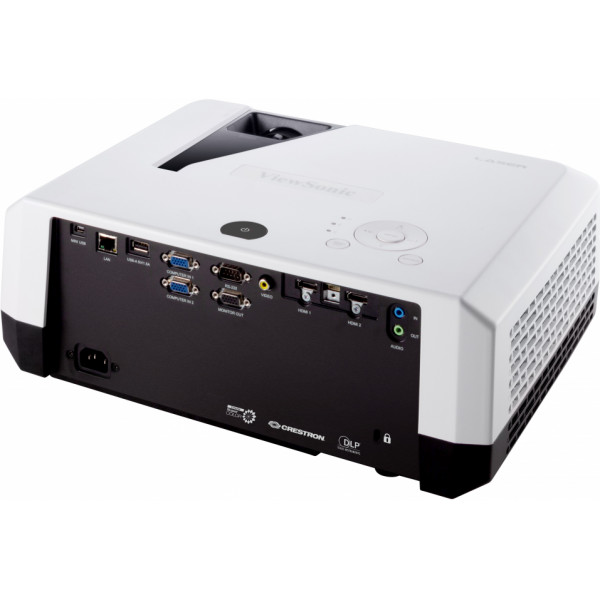

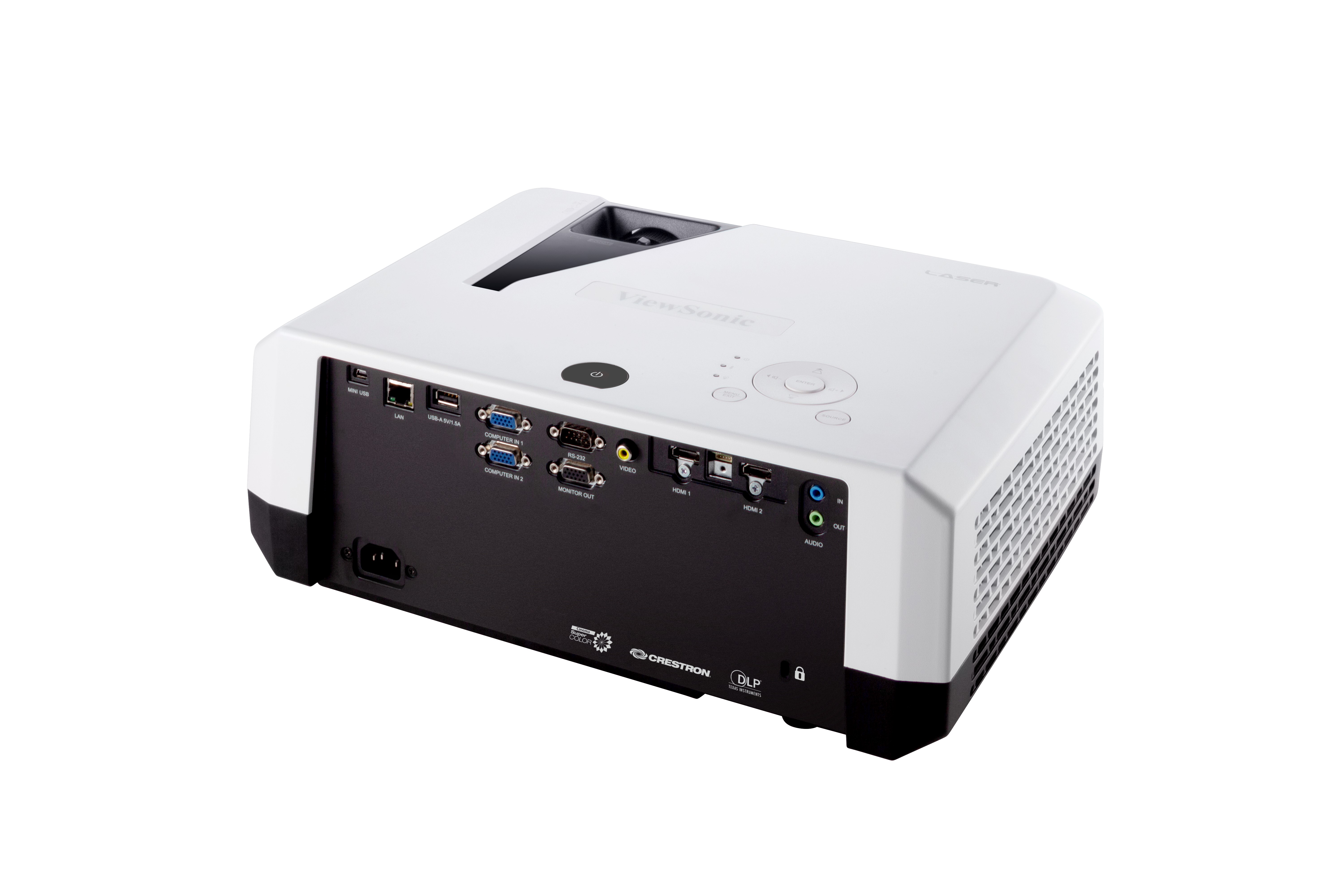

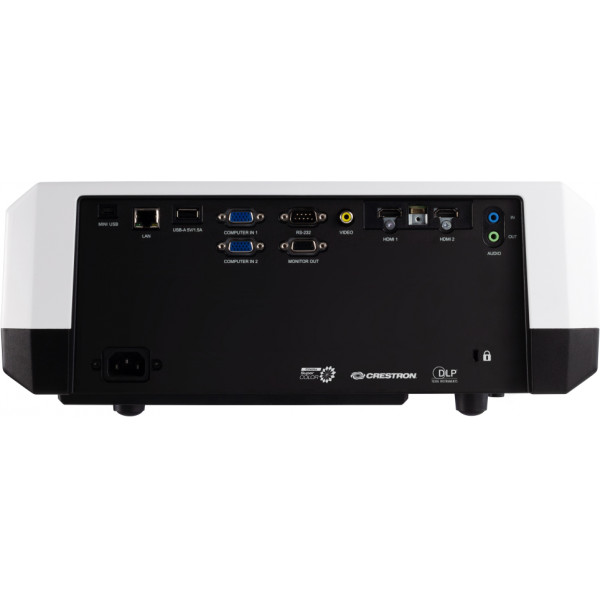

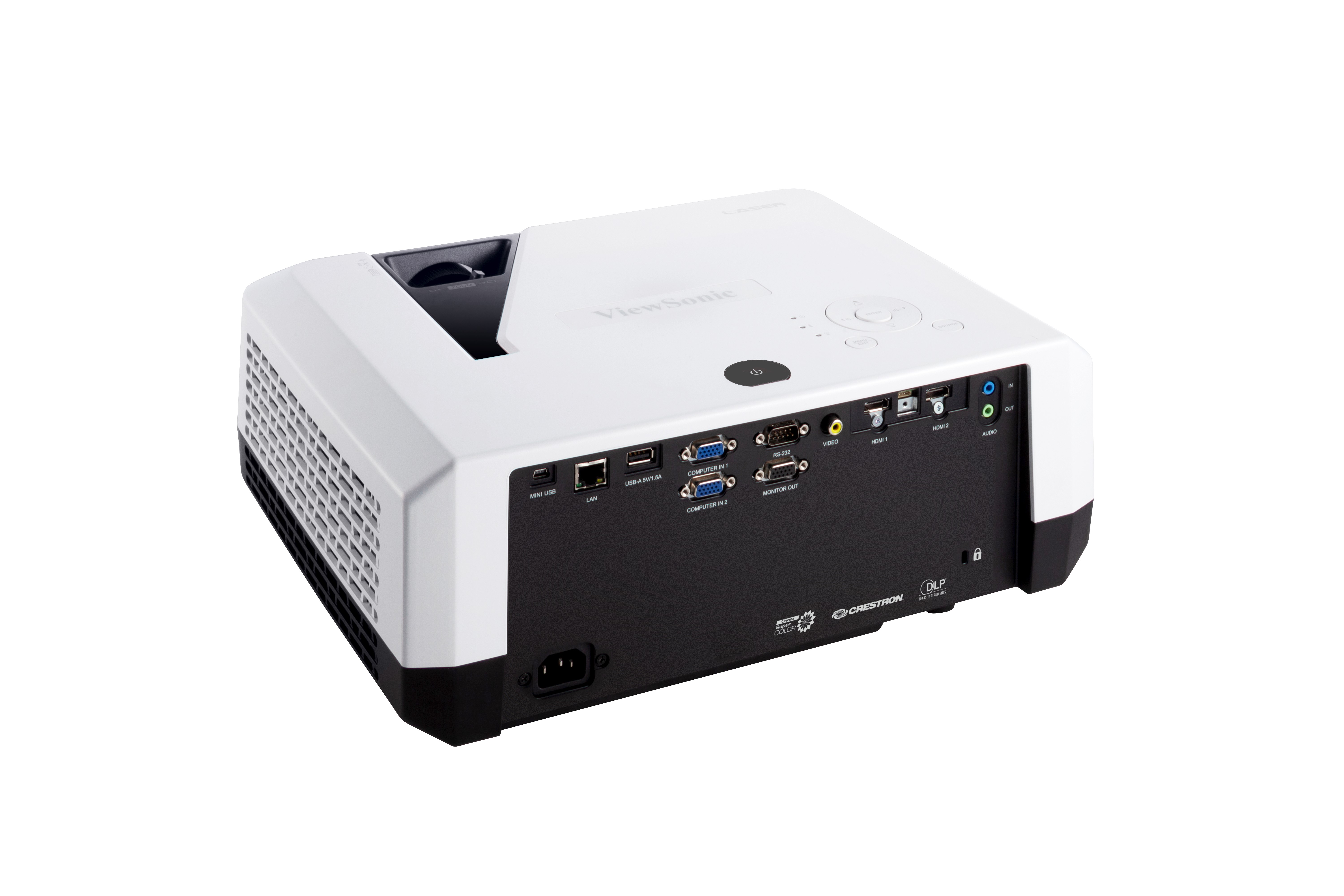

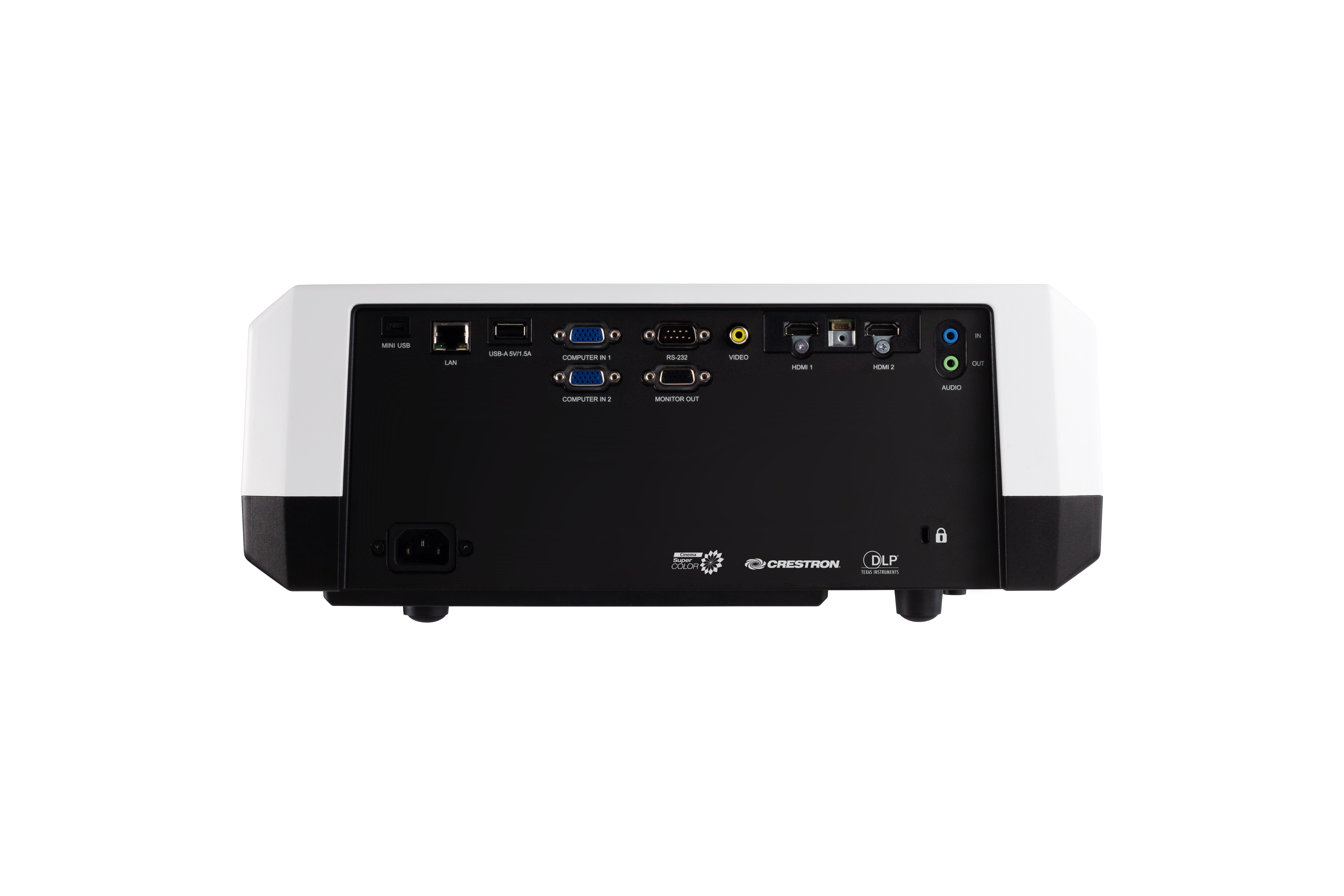

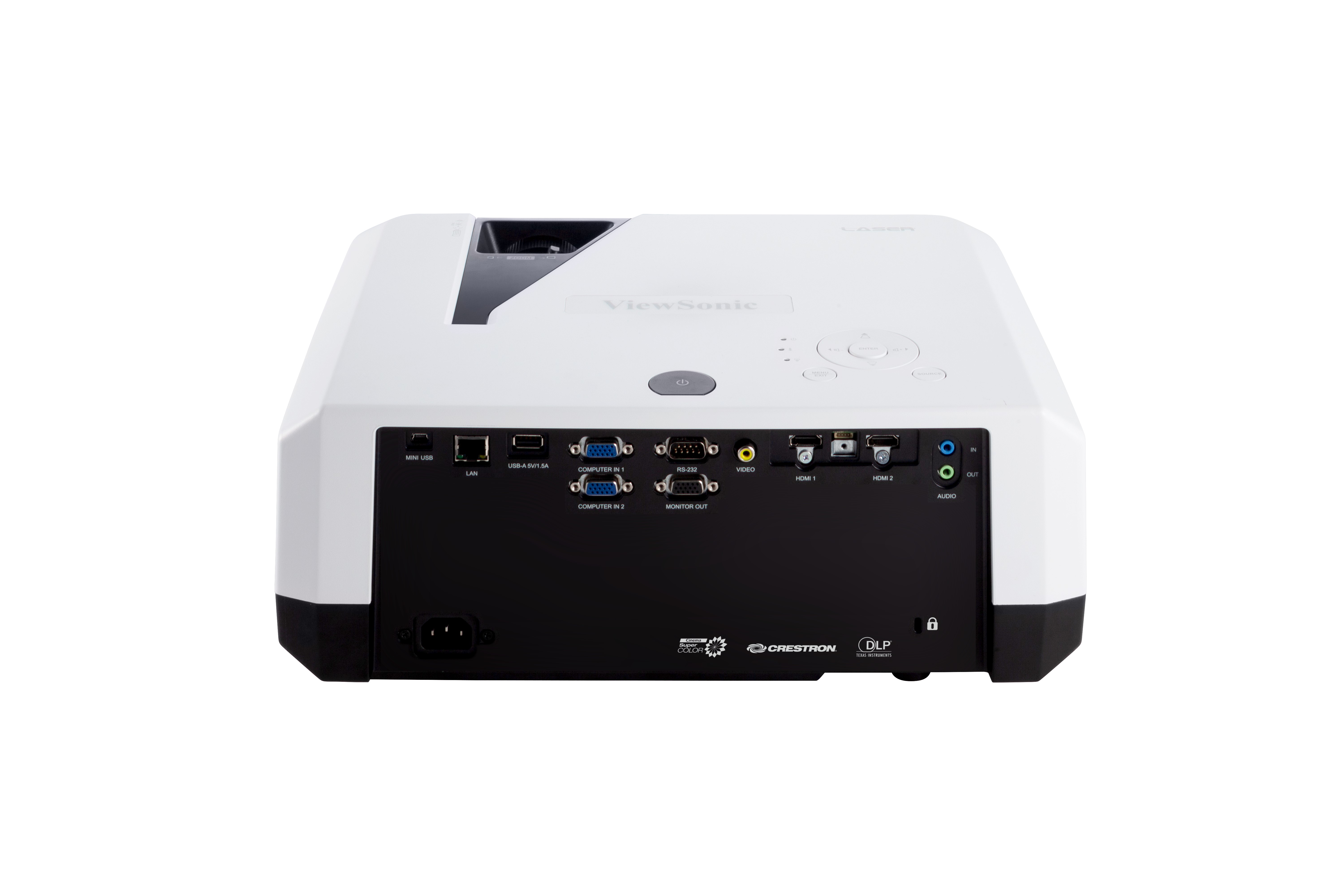

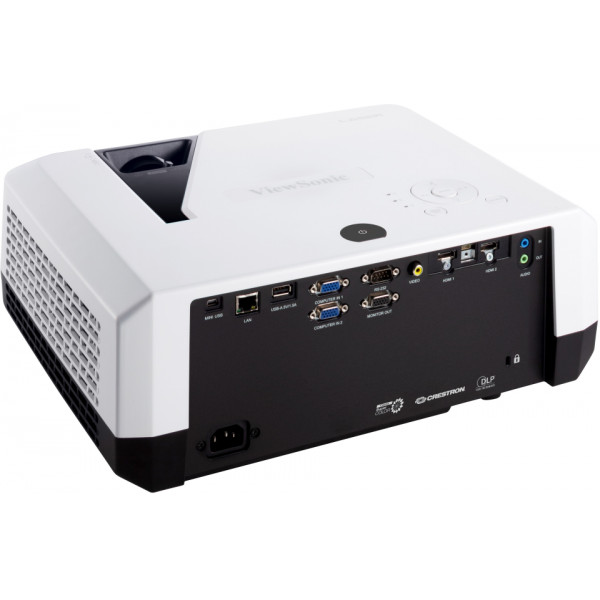

  • Input
    Computer in (share with component): 2
    Composite: 1
    Audio-in (3.5mm): 1
    HDMI: 2
    (HDMI 1.4a/HDCP1.4 x2)
  • Output
    Monitor out: 1
    Audio out (3.5mm): 1
    Speaker: 2W
    USB Type A (Power): 1 (5V/ 1.5A)
