BCP120

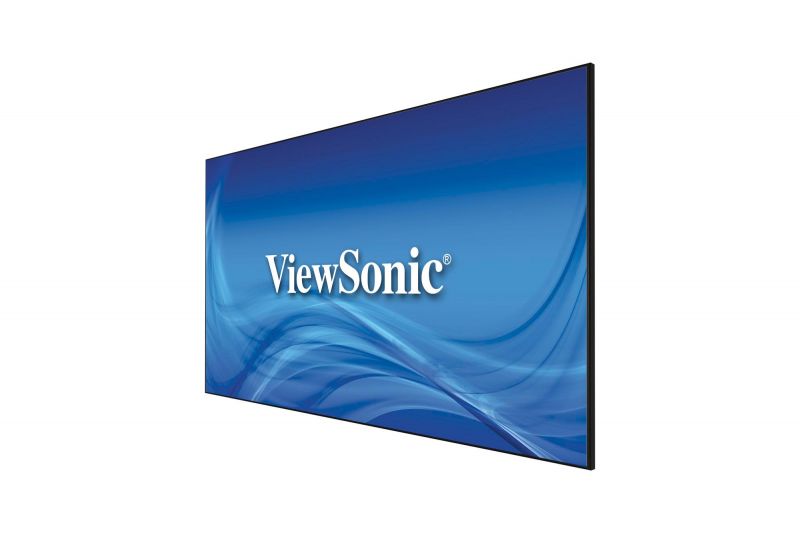

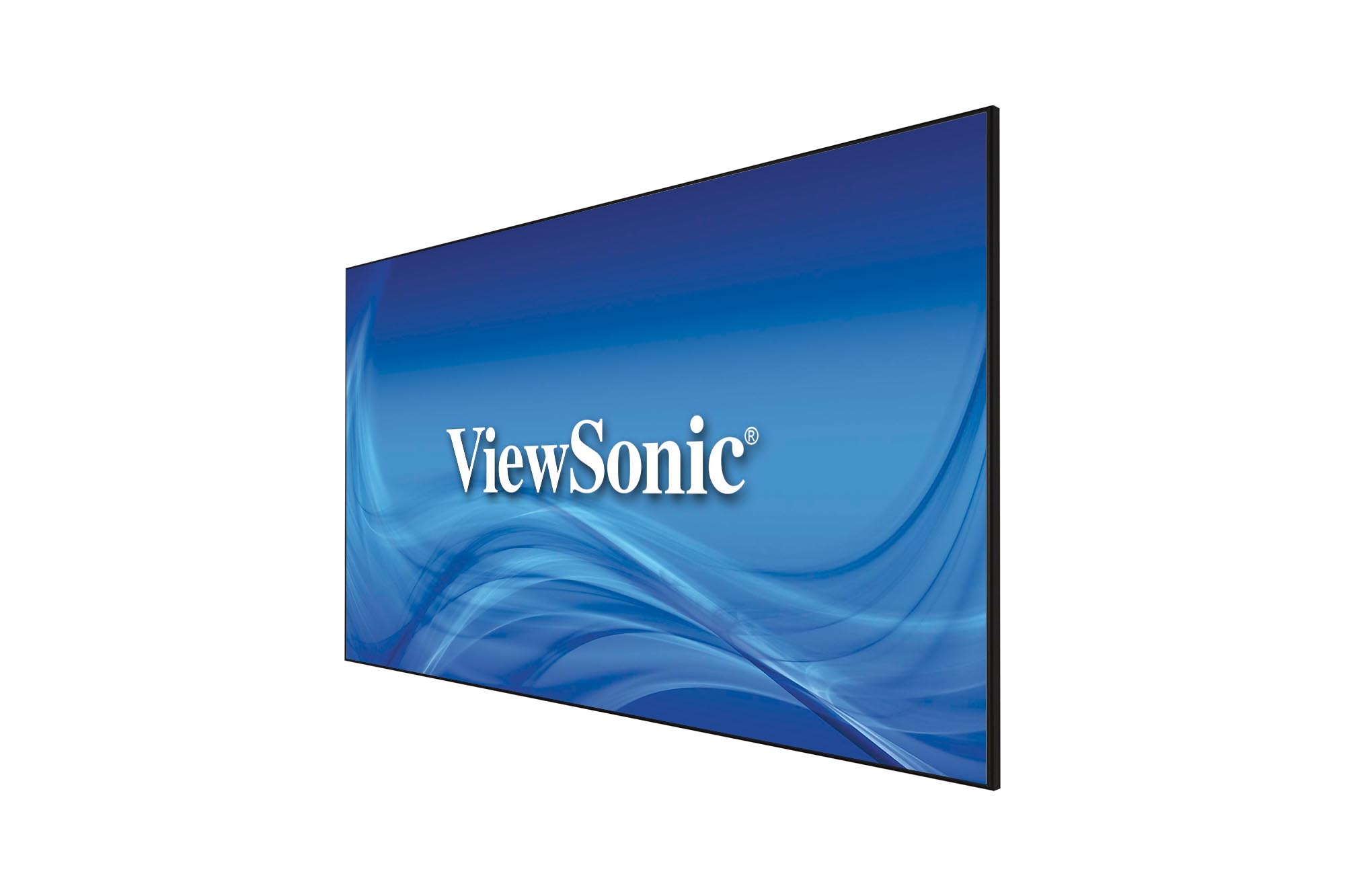

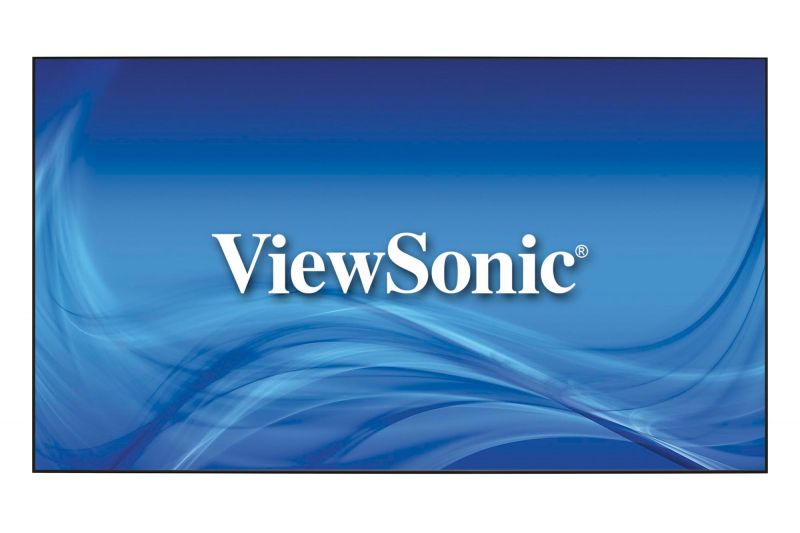

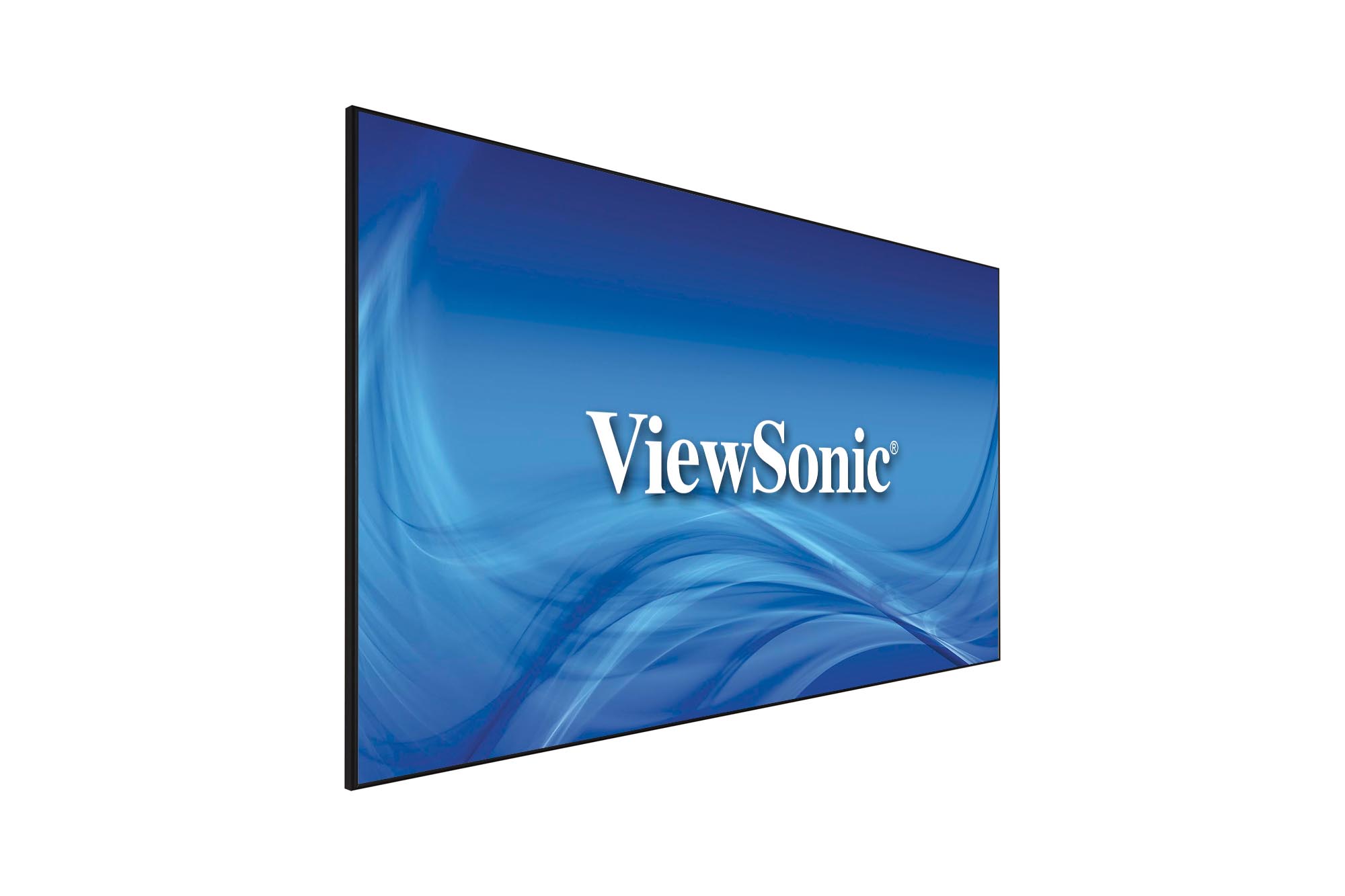

120" BrilliantColorPanel™
SPECIFICATIONS
- Image Size
(aspect ratio / screen size)16:9 / 120” - Image Area2657 x 1494mm
- Physical(Assembly)2679 x 1516 x 35 mm
- Carton Box2770 x 380 x 160mm
- WeightNet: 14.5kg; Gross: 33Kg
- Optimal Projector InfoLens Throw ratio <0.3
- Film typeTPU
- Peak gain0.6 +/- 0.05
- Horizontal half-gain angle80 degrees
- Lens pitch 300 um
- Frame Width11mm
- Safety/EMCRoHS
- Included AccessoriesScreen * 1
The main frame * 4
Modified box * 4
L-shaped angle iron * 4
Wall bracket * 2
M5 15mm Screw * 8
M5 8mm Screw * 16
Screen height fine adjustment screw * 2
Spring hook * 80
Mounting screws * 4
Plastic plugs * 4
