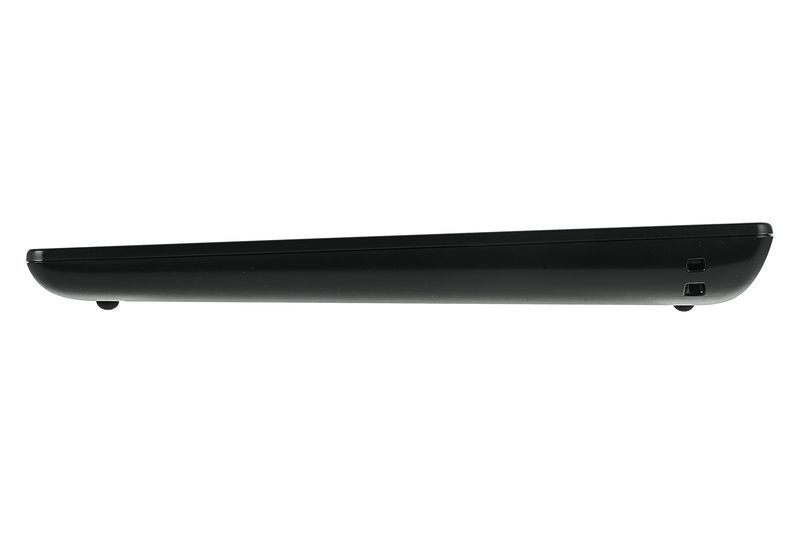

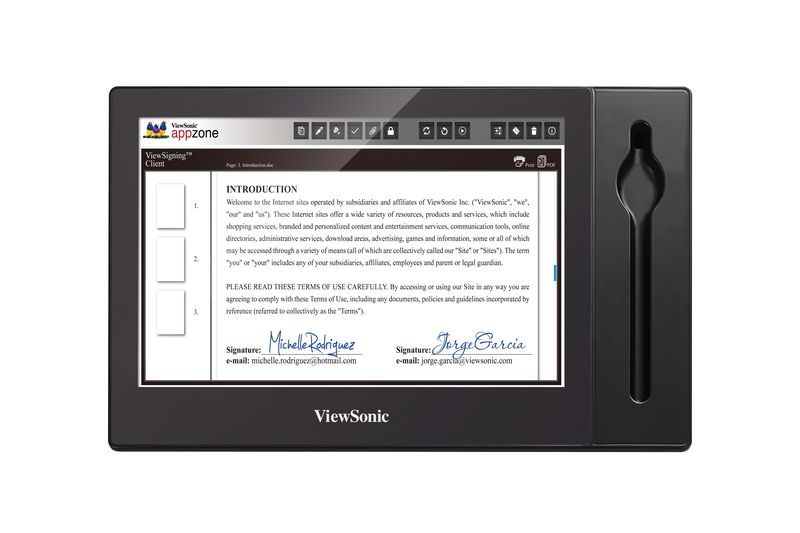

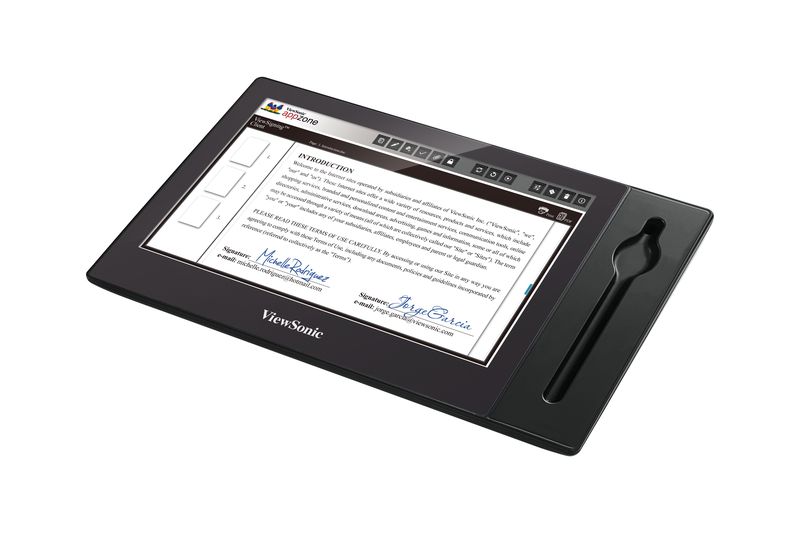

PD1011

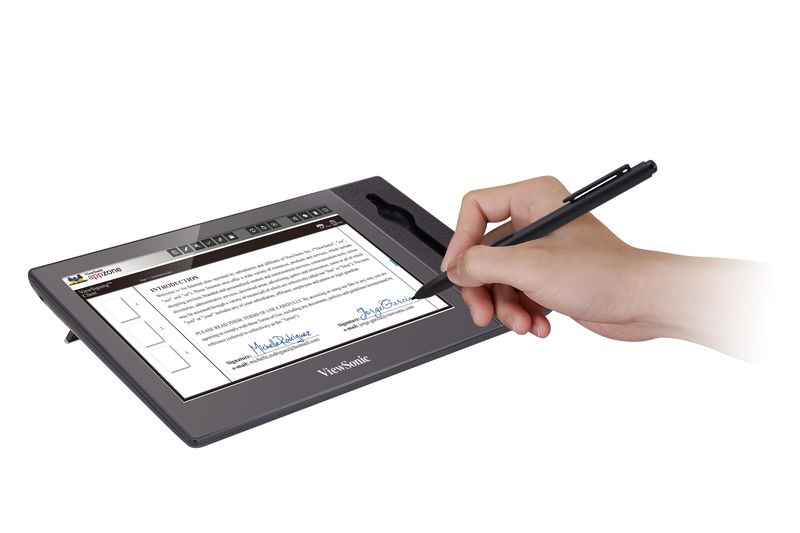

10" Pen Display provides the perfect solution for companies that want to adopt digitalized and paperless management systems
SPECIFICATIONS
- LCD PanelDisplay Area: 216.96 (W)X135.60 (H) mm
Optimum Resolution: 1280 x 800, 16:10
Brightness: 160 cd / m2
Contrast Ratio: 800 : 1
Viewing Angles: 170° (V) / 170° (H)
Response Time: 16ms
Pixel Array: 0.2175 mm x 0.2175 mm
Backlight: LED Light-Bar
Surface Treatment: 8H tempered glass - InputFrequency: Horizontal:30-48kHz, Vertical:56-70Hz
- TouchTechnology: Electromagnetic Resonance
Touch Pen: Battery-Free
Resolution: 2048 LPI
Writing Response: 200 PPS (point per second)
Pressure Level: 2048 Levels
Digitizer Resolution: 5080 LPI
Accuracy: ± 0.5mm (center), ± 2 mm (edge)
Detectable Height: 5 - 10mm above glass
- CompatibilityPC: Windows XP/ Windows 7/ Windows 8

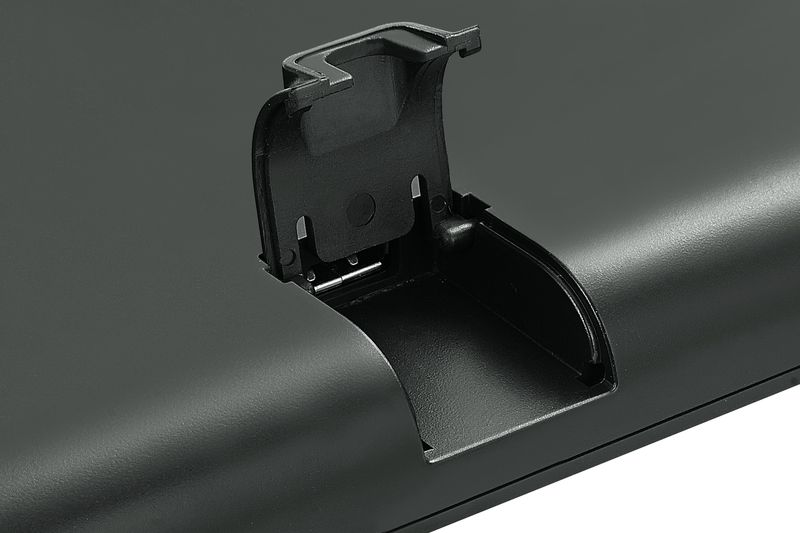

MAC: Yes - ConnectorPower: Share with USB
Video: USB2.0 x1
USB: x 1 - ERGONOMICsTilt: 5°, 15°
- PowerVoltage: 5V / 1A
Consumption: 5W - Operating ConditionsTemperature: 32°F to 122°F (0°C to 50°C)
Humidity: 20% - 80%(Max), Non-Condensation - DimensionsPhysical (in / mm): 11.81” x 7.28” x0.87” inch 300 x 185 x 22 mm
Box (in / mm): 14.17” x 10.79” x 2.99” inch 360 x 274 x76 mm - WeightNet (lb / kg): 1.87 lb. 0.85 kg
Gross (lb / kg): 2.87 lb. 1.30 kg - WHAT'S IN THE BOX1. Pen Display x1 2. Quick Star Guide x1 3. Driver CD x1 4. USB 2.0 Y-cable x1 5. Replacement tool of Pen tip x1 6. Pen x1 7. Pen tip x3 8. Warranty card x1 (VSCN only) 9. Pen rope x1 10. User Guide x1 (China Mobile only) *Actual content may differ from market to market
