PD0521

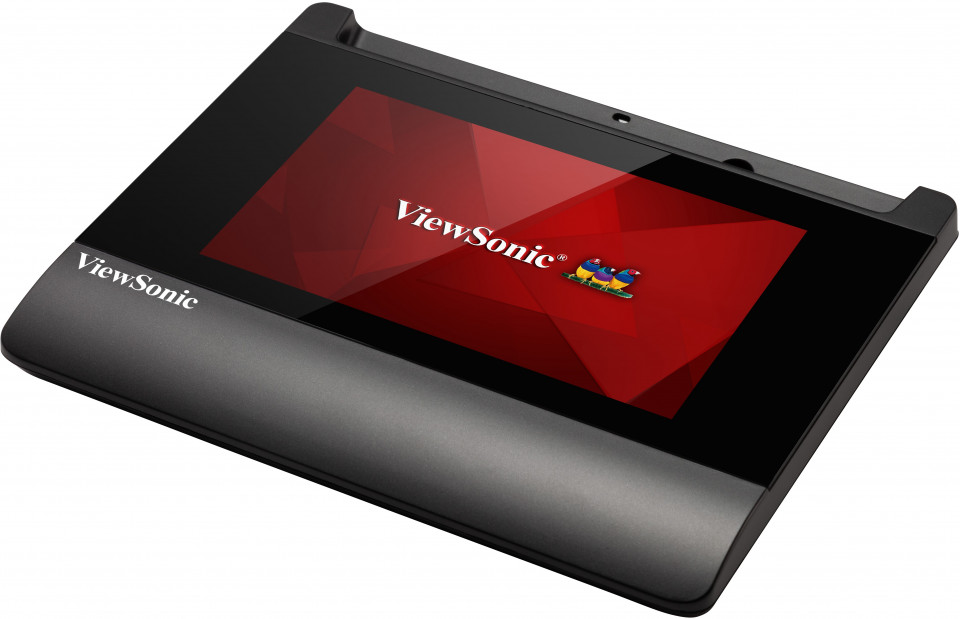

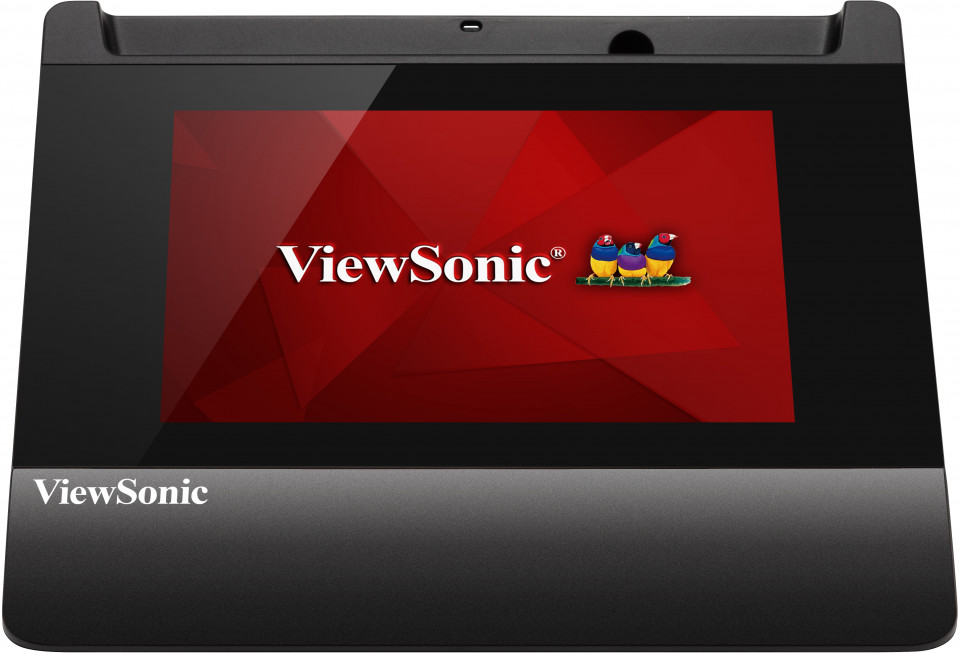

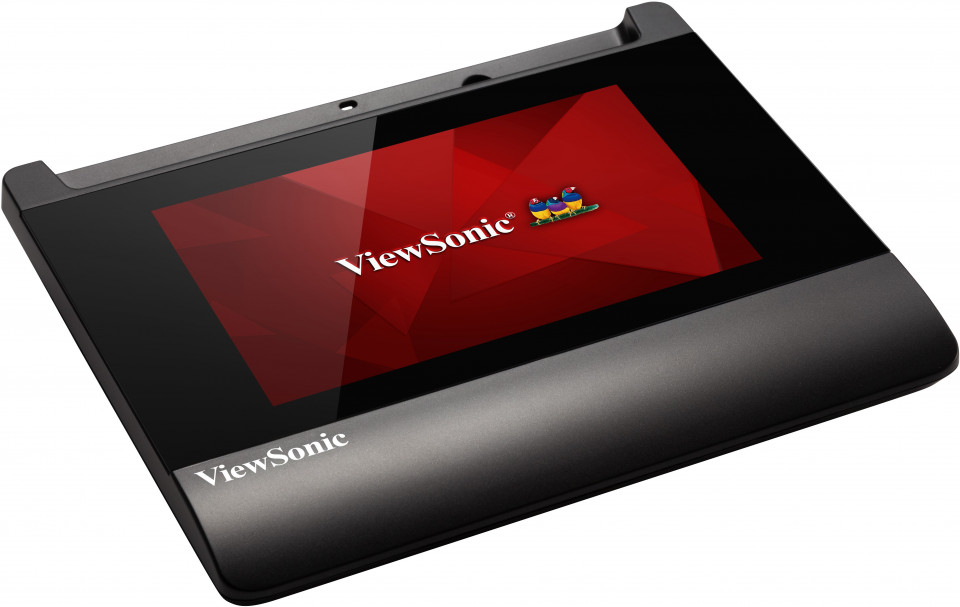

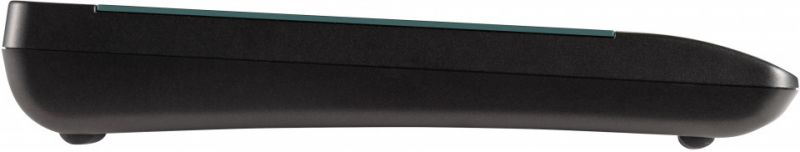

5” High Performance Colour LCD Signature Pad
- Implemented Antimicrobial technology on pen and housing
- A superior and intuitive handwriting experience with 2048 pen pressure
- USB connectivity for more flexible use
- 8H glass with anti-scratch, anti-glare, and anti-fingerprint
- Ergonomic design, VESA-compliance, and Kensington lock security
- Windows® compatible and support e-Signature software
SPECIFICATIONS
- LCD PANELDisplay Area : 108.0 x 64.8 mm (5" TFT LCD)
Optimum Resolution: 800 x 480 pixels (16:10)
Brightness: 150 cd/m2
Contrast Ratio: 350:1
Backlight: LED Light-Bar
Viewing Angles: H:125° (60°/ 65°) V:110° (60°/ 50°)
Panel Surface: Anti-glare, Hard coating (8H) - CONNECTORUSB: Micro USB 2.0 x 1
- TOUCHAccuracy: +/- 0.5mm(center)
- ERGONOMICSTilt: 3.5°
- COMPATIBILITYPC: Windows 10, 11, and later
(Win 7, Linux Ubuntu, Chrome OS by request) - POWERVoltage: USB 5V
Consumption: 2.06W(Typ.) / 2.50W(Max.) - OPERATING CONDITIONSTemperature (º F / º C): 0℃ to 50℃
Humidity: 20%-80%(Max), Non-condensation - DIMENSIONS W x H x D (inch/mm)Physical (in / mm): 160.0 x 130.0 x 21.4 mm
Box (in / mm): 276.0 x 190.0 x 72.0 mm - WEIGHTNet (lb / kg): 0.25 kg
Gross (lb / kg): 0.5 kg - WARRANTY1 Year
- WHAT'S IN THE BOX1. PD0521 Signature pad x 1
2. USB 2.0 cable (Type-A to Micro USB) x 1

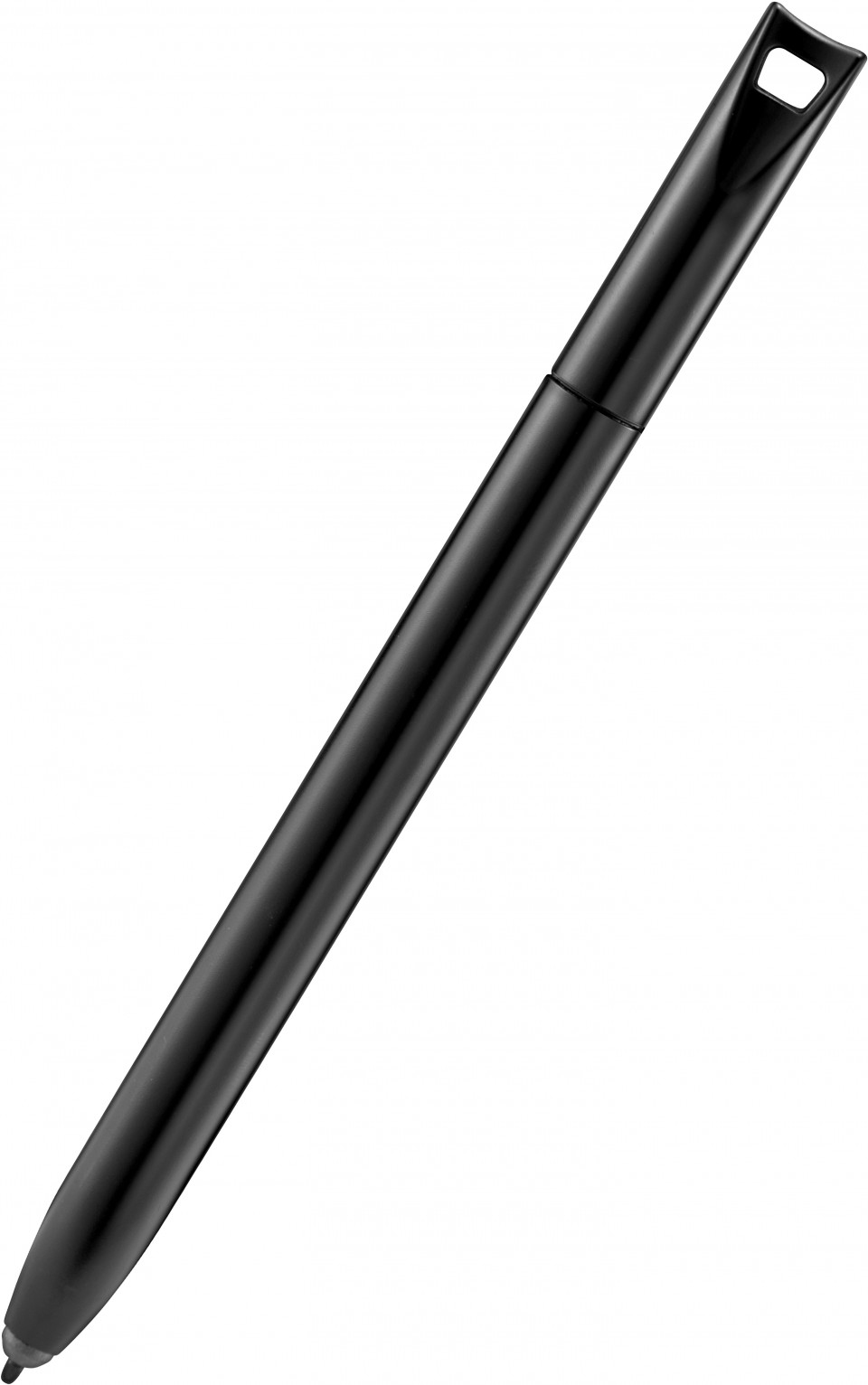

3. EMP-001 Pen x 1
4. Pen nib x 3
5. Pen tether x 1
6. Nib removal tool x 1
7. Quick start guide x 1
