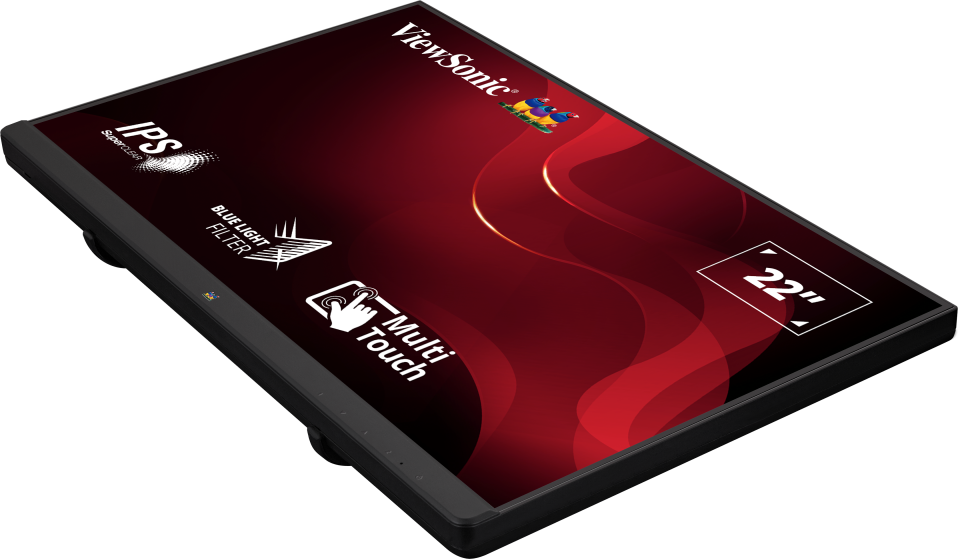

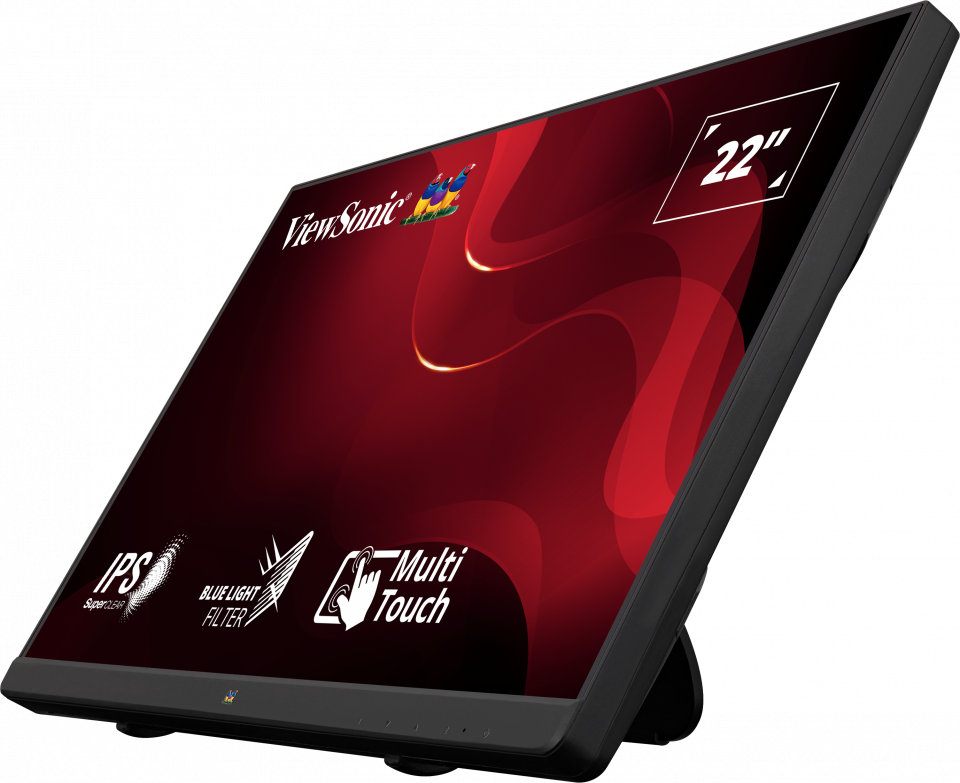

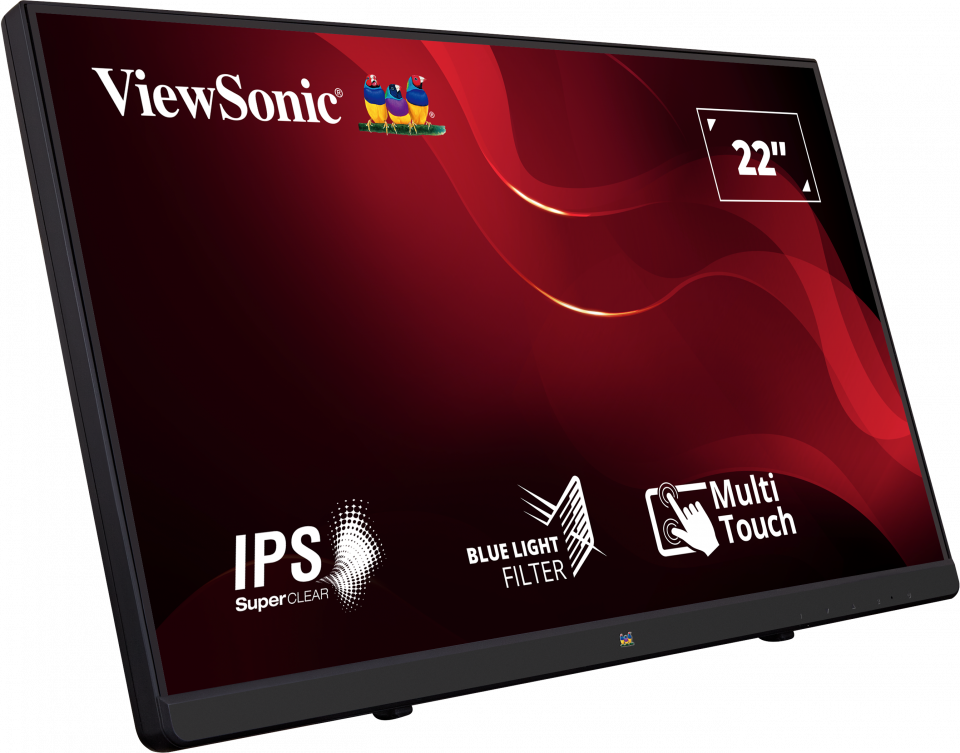

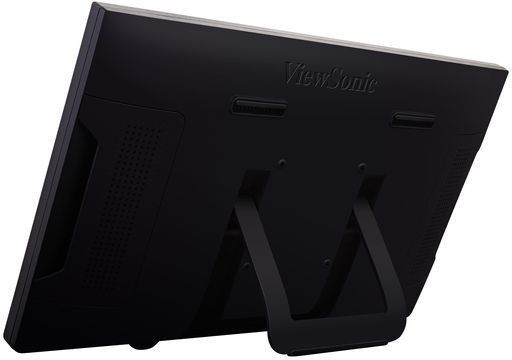

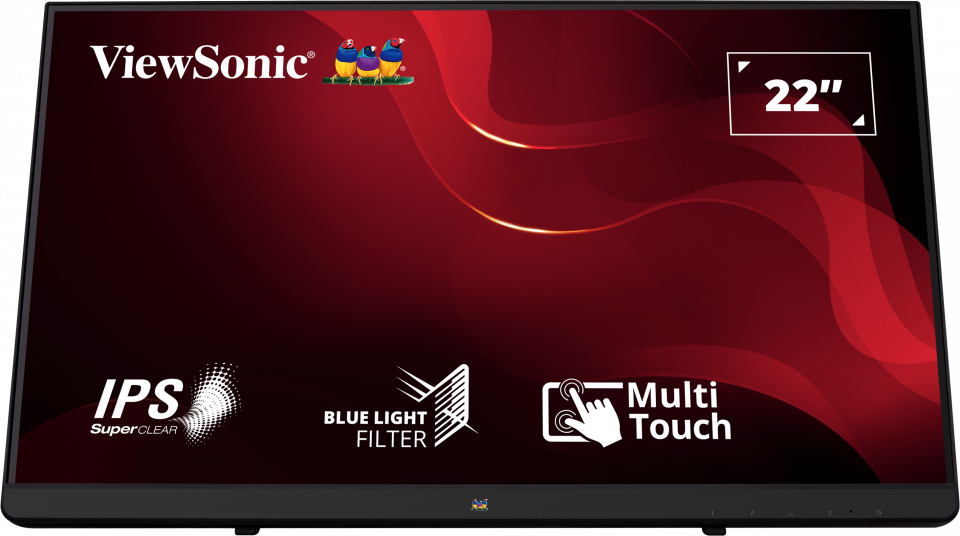

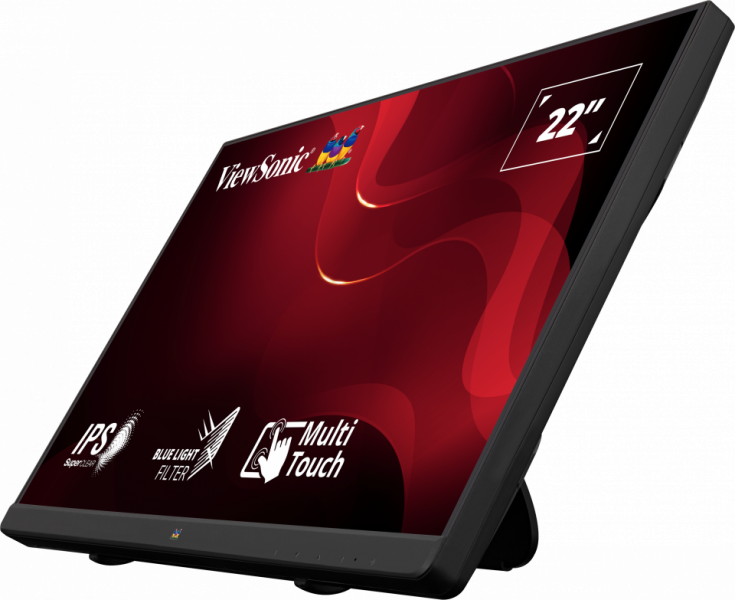

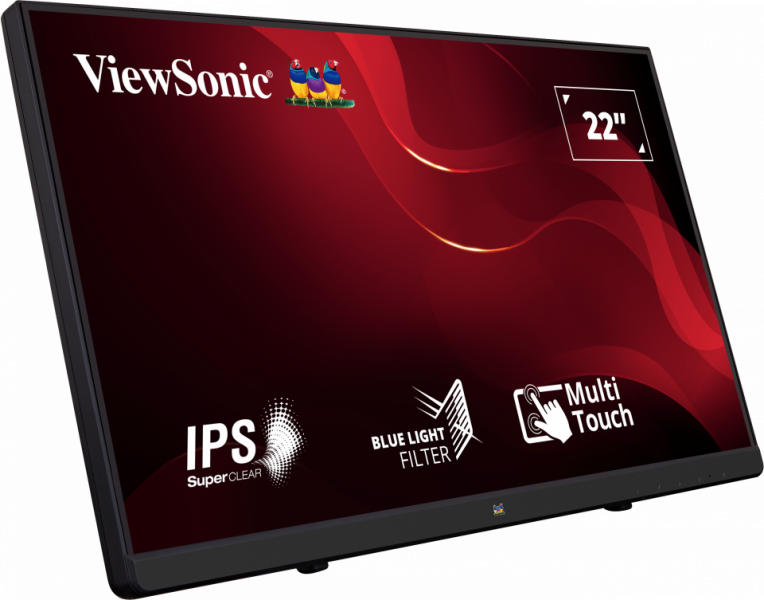

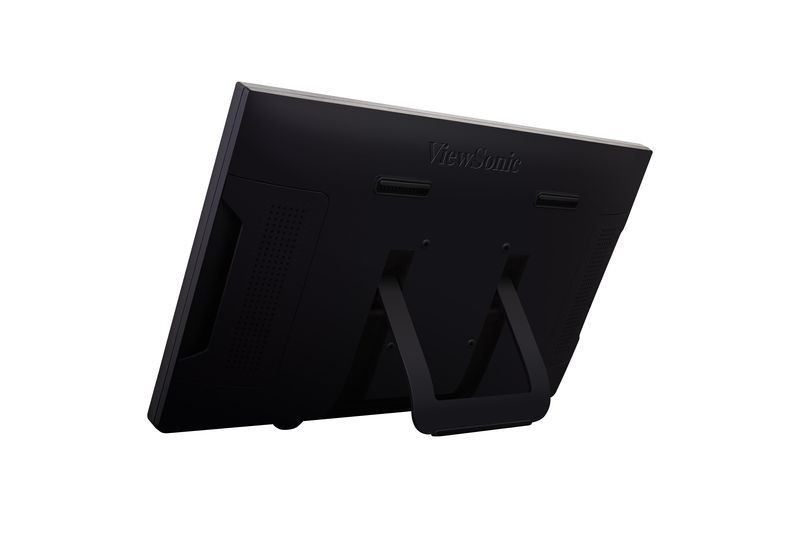

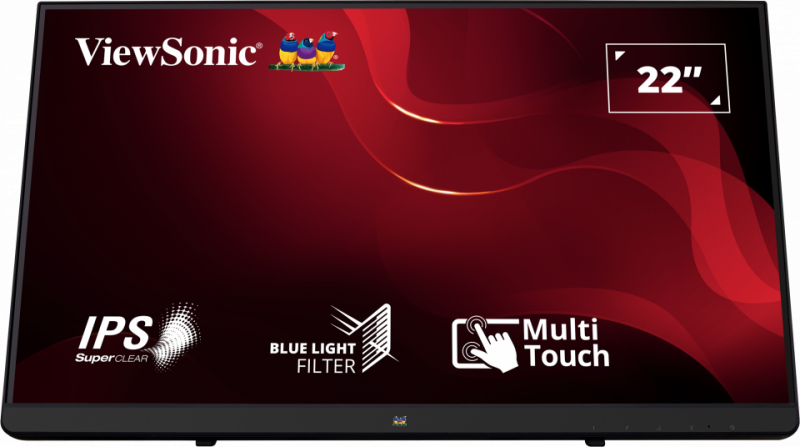

TD2230

22" 10-point Touch Screen Monitor

  • SuperClear® technology
  • Frameless design
  • Full HD 1080p resolution
  • HDMI, DisplayPort and VGA inputs
  • Supports Windows® 7/8/10 and selected Linux

SPECIFICATIONS


  • Display
    Display Size (in.): 22
    Viewable Area (in.): 21.5
    Panel Type: IPS Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 1,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 200 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 5ms
    Response Time (GTG w/OD): 5ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 77% size (Typ)
    sRGB: 108% size (Typ)
    Pixel Size: 0.248 mm (H) x 0.248 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 0.7mm
  • Compatibility
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
    Mac® Resolution (min): 1920x1080

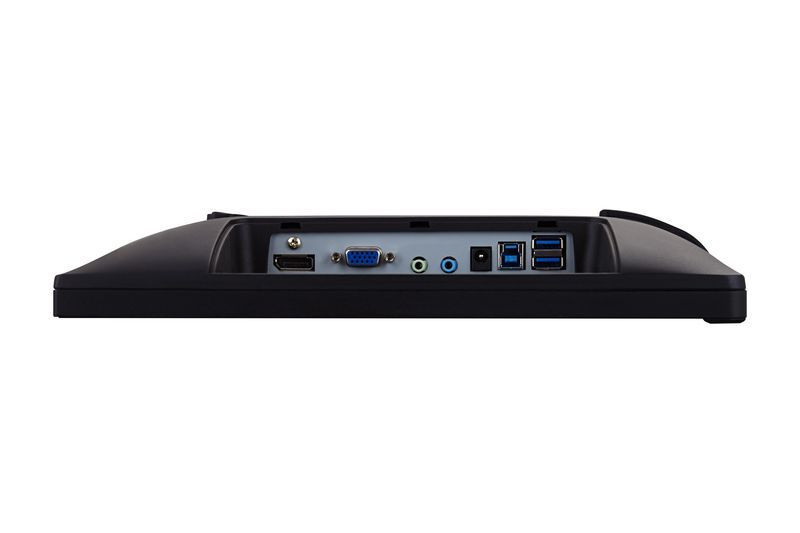

  • Connector
    VGA: 1
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    3.5mm Audio In: 1
    3.5mm Audio Out: 1

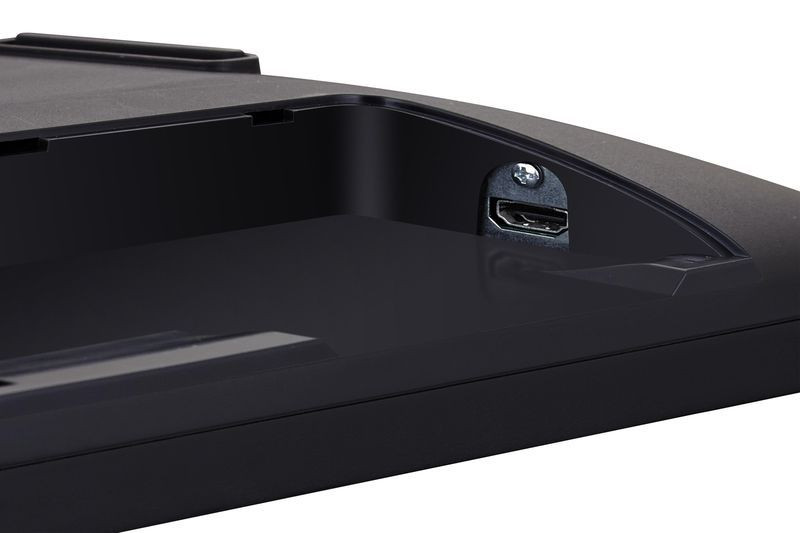

    HDMI 1.4: 1
    DisplayPort: 1
    Power in: DC Socket (Center Positive)
