CDE6502

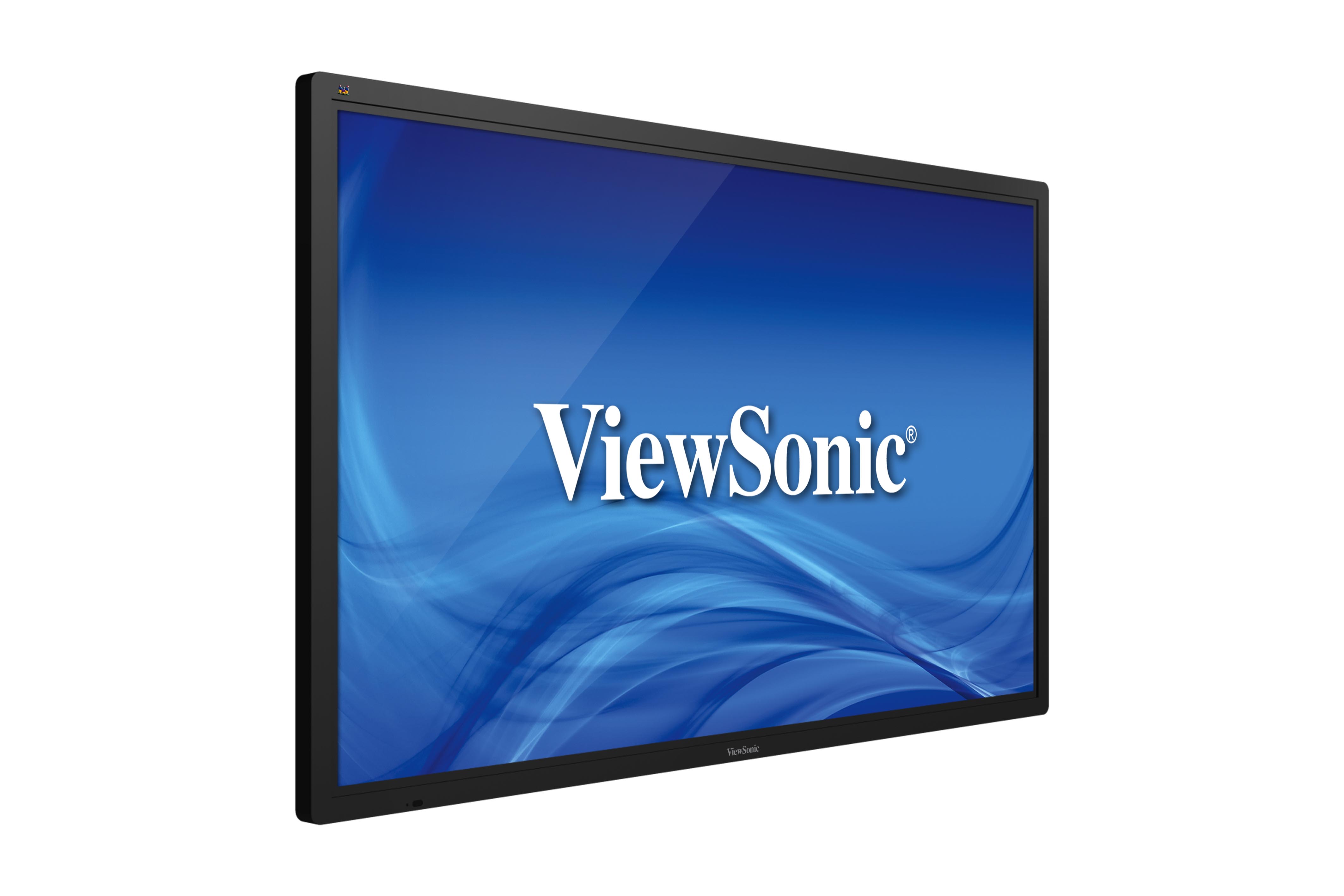

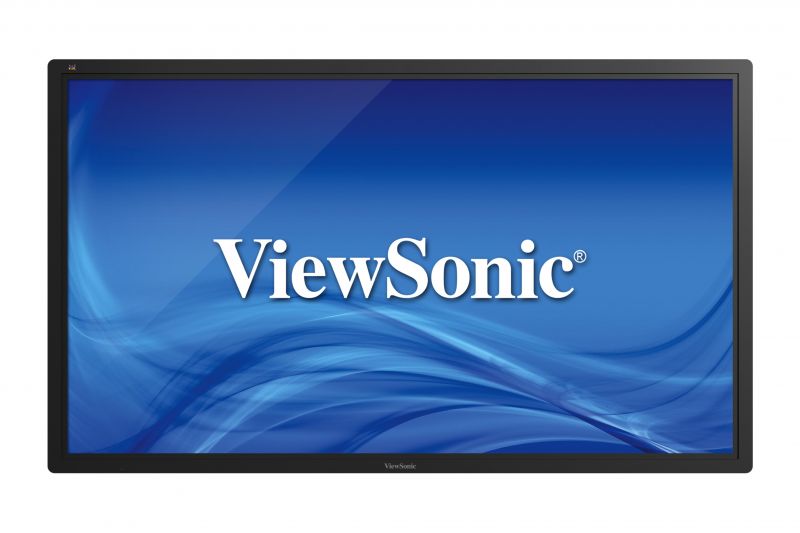

65" Full HD Direct-lit LED Commercial Display
SPECIFICATIONS
- DISPLAYPanel Size: 65"
Type/ Tech: TFT LCD Module. with LED Backlight
Display Area (mm): 1428.48(H) x 803.52 (V) (65” diagonal)
Aspect Ratio: 16:9
Resolution: 1920x1080
Colors: 16.7M
Brightness: 350 nits (typ.)
Contrast Ratio: 4000:1 Typ.
Response Time: 8ms
Viewing Angles: H = 178, V = 178 (typ.)
Backlight Life: 30,000 Hours (typ.)
Surface Treatment: Anti-Glare, 3H, Haze=2%
Orientation: Landscape/Portrait - INPUTHDMI: x2 (Support MHL x1)
RGB / VGA: x1
Audio : x1 PC audio(3.5mm)
RS232: x1 - OUTPUTAudio: x1 Earphone Out
- LANRJ45: x1
- USBType A: x3 (USB3.0 x2, USB2.0 x1)
- SPEAKERS10W x2
- COMPATIBILITYRGB PC/HDMI PC: 480i, 480p,720p,1080i,1080p
HDMI: 480i, 480p,720p,1080i,1080p - POWERVoltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumption: 150W (typ), 180 W (max)
< 0.5 W ("Off") - ERGONOMICSWall MounWall Mount (VESA): 400x400mm
- OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 20%~80% @40℃ non-condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 59.53 x 39.53 x 11.81 / 1512 x1004 x 300 (w/ Stand)
Packaging (inch / mm): 53.74 x 34.02 x 7.28 / 1365 x864 x185 (w/o Stand) - WEIGHTNet (lb / kg): 103.62 / 47 (w/o Stand)
- PACKAGE CONTENTSCDE6502 commercial display / Remote Control with batteries / User manual CD wizard / Quick Start Guide / Power Cables *Actual content may differ from market to market
