LS741HD

5,000 ANSI Lumens 1080p Laser Installation Projector

  • 3rd generation laser phosphor technology with a lifespan up to 30,000 hours
  • 5,000 ANSI Lumens offering bright images in any environment
  • Installation flexibility: 1.6x optical zoom, H/V keystone, 360° projection, and portrait mode
  • Centralized LAN control for efficient management
  • Compact size and lightweight design reducing cost of transportation and installation
  • Up to a 300" ultra-large screen with a lower cost-per-inch
Contactează-ne  Distribuie

PREZENTARE GENERALĂ

The LS741HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for commercial and educational spaces. It can project up to a 300” ultra-large screen in 1080p Full HD resolution with high native contrast. This DLP projector uses 3rd generation laser phosphor technology, delivering a brightness of 5,000 ANSI Lumens for up to 30,000 hours. Its lamp-free design offers an eco-friendly and cost-effective solution with less power consumption, while its lightweight and compact build reduces transportation costs. Equipped with features like a 1.6x optical zoom, H/V keystone, and 360° projection capabilities, the LS741HD offers flexible setup possibilities. Additionally, its comprehensive LAN control allows centralized management, making it perfect for boardrooms, lecture halls, and public spaces.

Bright, Compact, Durable

The LS741HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
3rd Generation Laser Phosphor Technology
Bright, Compact, Durable 1

Bright Images for Large Venues

Delivering 5,000 ANSI Lumens, the LS741HD provides vibrant and sharp projection in 1080p FHD in all lighting conditions for gallery, restaurant, gym, and other expansive spaces.
5,000 ANSI Lumens
Bright Images for Large Venues 1

Save on Costs and Energy

With its advanced lamp-free light source, the LS741HD offers a highly energy-efficient and cost-saving display solution by consuming up to 51% less power than competing projectors.
Less Power Consumption
Save on Costs and Energy 1

Unmatched Contrasts, Enhanced Visibility

This projector utilizes the advanced 0.65" DMD chip from Texas Instruments, surpassing the capabilities of the 0.47” standard chip. It offers a high native contrast ratio for deeper blacks, resulting in clearer, more legible images with enhanced visual depth.
0.65” DMD Chip, High Native Contrast Ratio
Unmatched Contrasts, Enhanced Visibility 1

Enhanced Installation Flexibility

Equipped with a 1.6x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design. ​
1.6x Optical Zoom
Enhanced Installation Flexibility 1

Centralized Control for Management Efficiency

The LS741HD is certified for Crestron and Q-SYS, and compatible with AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.
Comprehensive LAN Control
Centralized Control for Management Efficiency 1

Easy and Cost-effective Installation

The LS741HD is 33% lighter in weight and 32% smaller in size compared to its predecessor and even most competing projectors in the market, greatly reducing the cost of transportation and increasing the ease of installation.​
Lighter Weight, Compact Size
Easy and Cost-effective Installation 1

Ultra-large Screen with Lower Cost-per-inch

This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays.​
Up to 300”
Ultra-large Screen with Lower Cost-per-inch 1

Upgrade Your Projector with Wireless Content Casting

Enhance your projector with the WPD-700 Wireless Screen Casting Kit for seamless wireless content sharing. The projector's built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters.
WPD-700, USB-A Power Supply
Upgrade Your Projector with Wireless Content Casting 1

Get ​​Perfectly-shaped Images Effortlessly

Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.
H/V Keystone Correction, 4 Corner Adjustment
Get ​​Perfectly-shaped Images Effortlessly 1

Improved Dust Resistance for Enhanced Durability

This DLP projector's innovative sealed engine, rated IP6X, prevents dust from affecting internal components without using an air filter. It ensures longer product life and consistent image quality, even in environments with poor air quality, saving on maintenance costs and efforts.
Filter-free, Sealed Engine
Improved Dust Resistance for Enhanced Durability 1

Versatile Creative Application​s

The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.
360° Projection, 90° Portrait Mode
Versatile Creative Application​s 1

Non-stop 24/7 Operation

The projector's advanced cooling design enables 24/7 operation without any degradation in image quality or performance. This makes it the go-to solution for applications that require continuous projection in retail stores, malls, museums, airports, and other public spaces.
Non-stop 24/7 Operation 1

A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily via USB cable connection with your own laptop.

Learn more: https://youtu.be/irlhJLpDHas

*The latest projector software update can be found in the download section at the bottom of the page when available.
A Simpler Way to Update Projector Software 1

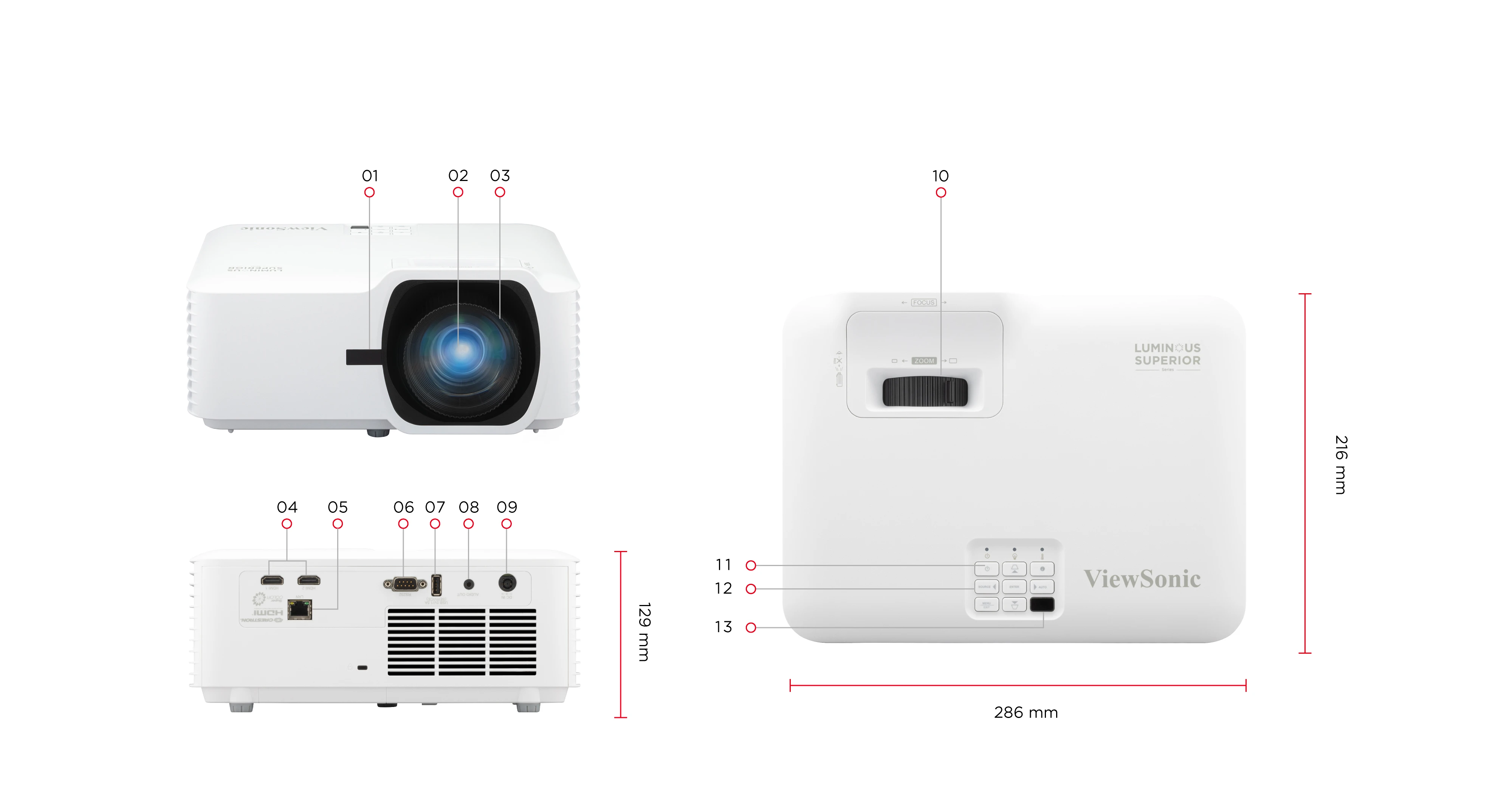

Dimensions & I/O Ports

Dimensions & I/O Pots 1
  1. Front IR
  2. Lens
  3. Focus Ring
  4. HDMI x2
  5. RJ45
  6. RS232
  7. USB-A (5V/1.5A, Service)
  8. Audio Out
  9. DC In
  10. Zoom Ring
  11. Power Button
  12. Keypad
  13. Top IR

SPECIFICAȚII


  • Specificație
    Sistem de proiecție: 0.65" 1080P
    Rezoluție Nativă: 1920x1080
    Luminozitate: 5000 (ANSI Lumens)
    Rată de contrast: 3000000:1
    Display Color: 1.07 Billion Colors
    Tip sursă de lumină: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lentile: F=2.5-3.26, f=20.911-32.62mm
    Decalaj de proiecție: 132%+/-10%
    Raportul de proiectare: 1.4-2.24
    Zoom optic: 1.6X
    Zoom Digital: 0.8x-2.0x
    Dimensiune Imagine: 30"-300"
    Distanță de proiectare: 0.93-14.88m
    (100"@3.10m)
    Intrare Keystone: H:+/-30° , V:+/-30°
    Zgomot perceptibil (funcție Normal): 30dB
    Audible Noise (Eco): 24dB
    Input Lag: 49.5ms
    Suport rezoluție: VGA(640 x 480) to WUXGA RB(1920 x 1200)
    *RB-Reduced Blanking
    Compatibilitate HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Frecvență orizontală: 15K-102KHz
    Rată verticală de scanare: 24-120Hz
  • Input
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
  • Ieșire
    Audio-out (3.5mm): 1
    Difuzor: 15W
    USB Tip A (Alimentare): 1 (5V/1.5A)
