LD-SCB-025

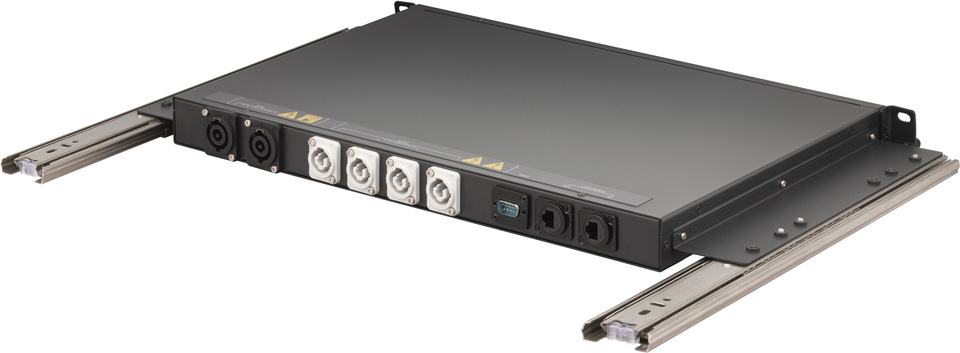

Rack-Mount All-in-One System Control Box

  • Integrated all-in-one design simplifies setup and operation
  • Discreet power box installation behind the screen enables clean, clutter-free configurations
  • Integrated power on/off control supports energy-efficient and sustainable operation
  • 1U rack-mount design fits seamlessly into standard server cabinets
  • Centralized control via LAN and RS-232 ensures streamlined system management
Contactează-ne  Distribuie

PREZENTARE GENERALĂ

The LD-SCB-025 is a compact, rack-mounted All-in-One control system purpose-built for ViewSonic’s Customizable All-in-One LED Displays (LDC Series). Designed for streamlined deployment and efficient integration, it features a 1U rack-mount form factor that fits standard server cabinets, making it ideal for space-conscious AV environments. Its discreet power system installs behind the display for a clean, professional setup with no visible cabling. One-touch power control supports energy-efficient operation, while LAN and RS-232 control ports enable centralized monitoring and management — perfect for ProAV environments requiring scalable, low-maintenance solutions.

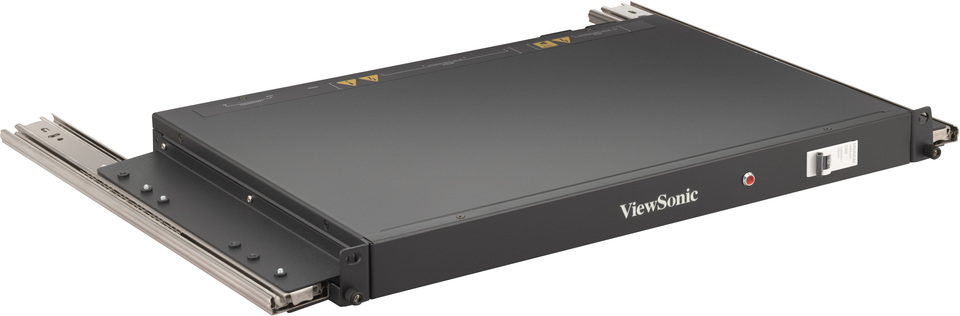

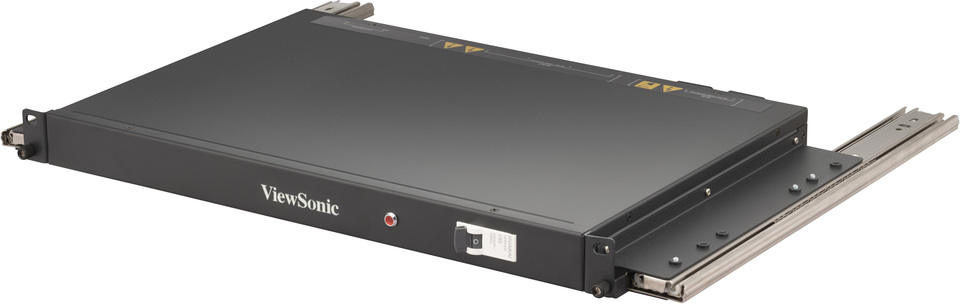

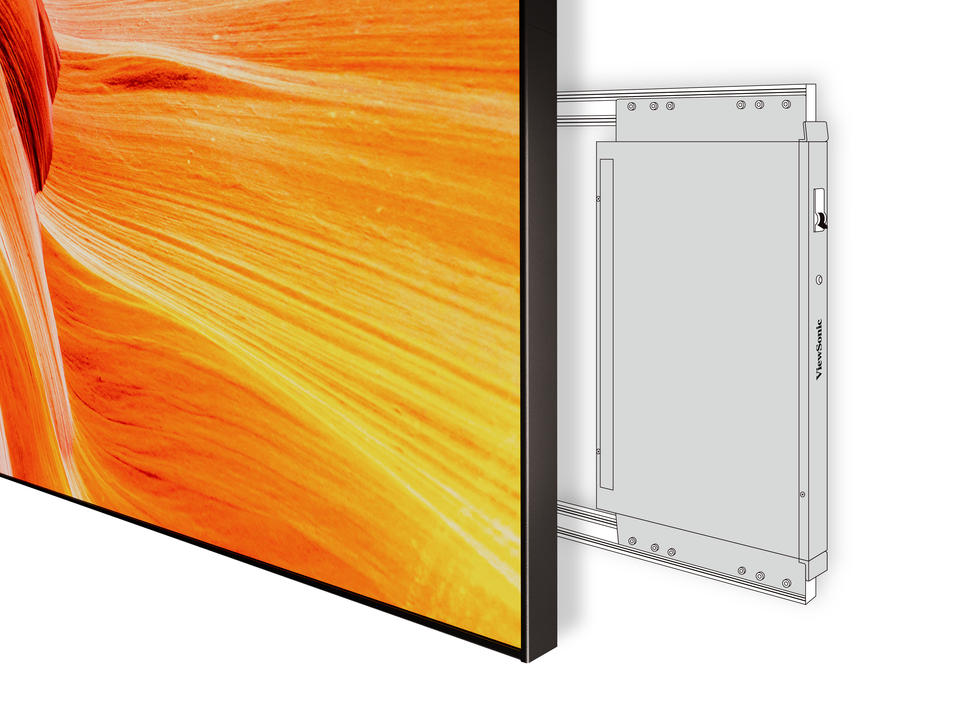

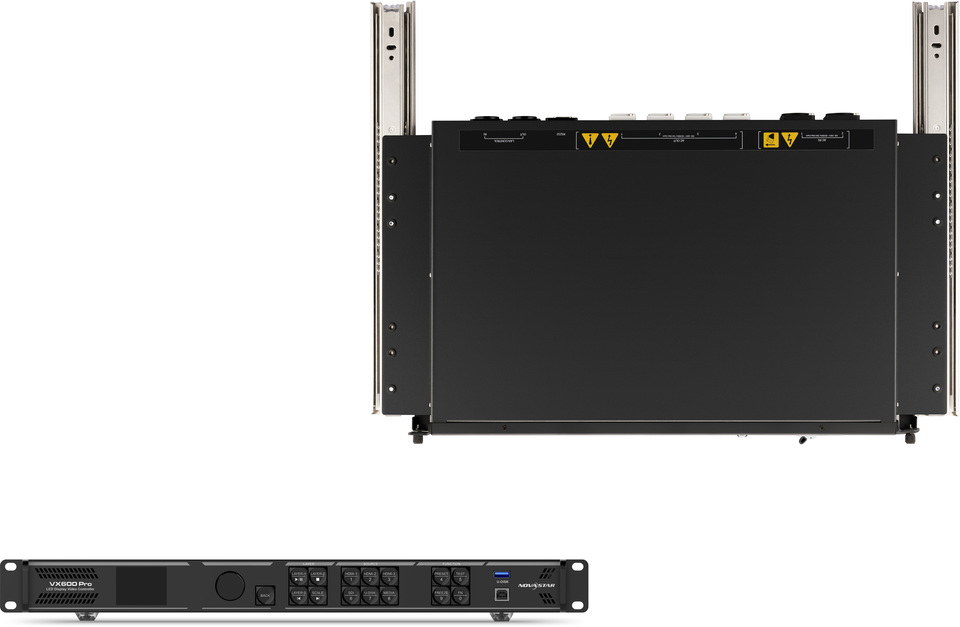

Behind-Screen Mounting for Effortless Power Setup

The All-in-One System Control Box streamlines power management by eliminating bulky configurations and reducing the need for licensed electricians. Its discreet, behind-the-screen mounting minimizes cable length and hardware exposure, which enables faster, cleaner installations, reduces regulatory complexity, and helps lower installation costs across commercial and enterprise environments.
Clutter-Free Power Integration
Behind-Screen Mounting for Effortless Power Setup 1

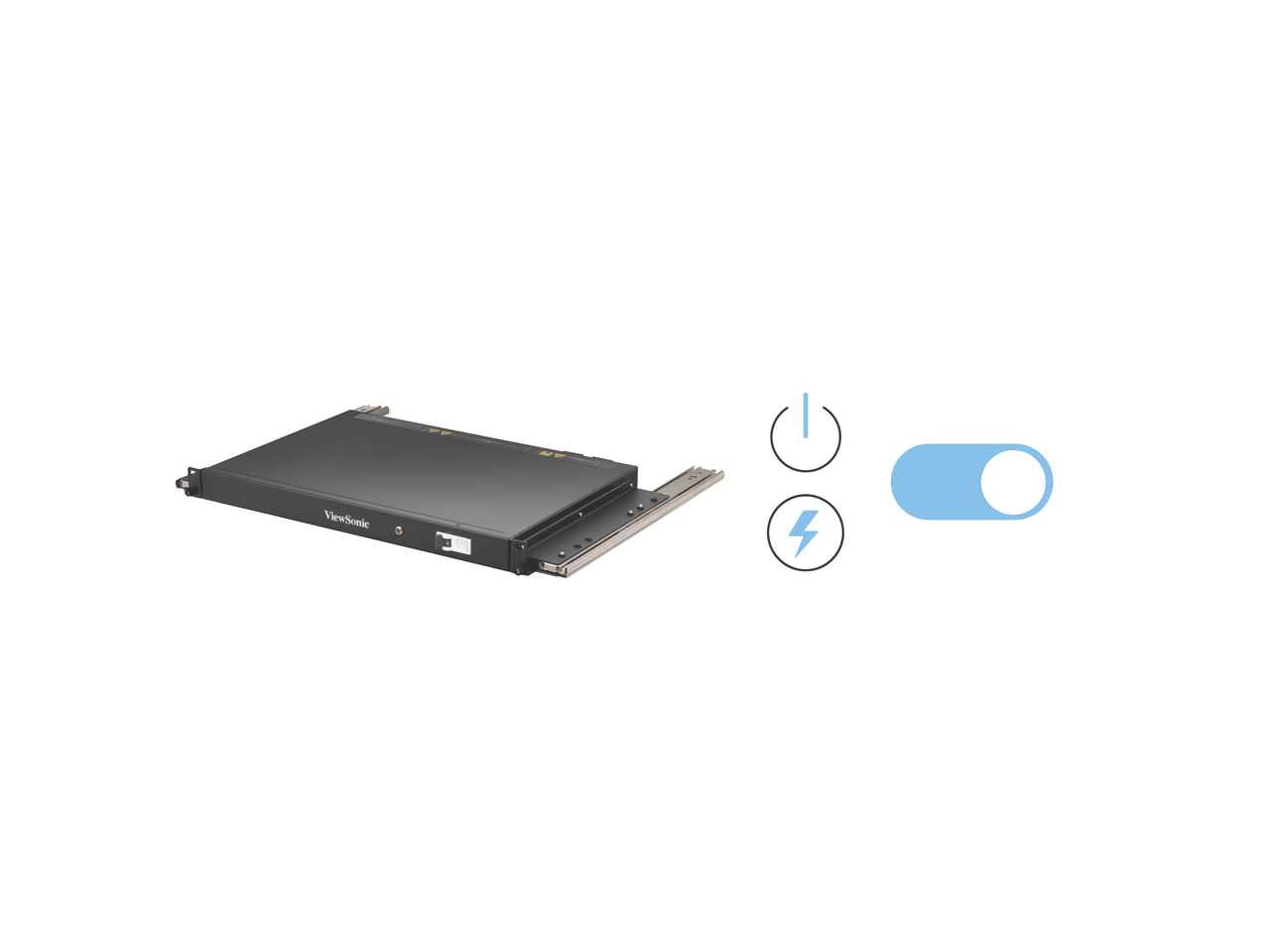

Lower Power Consumption with Smarter Control

Power down the entire system with a single command, eliminating the need for technicians to manually access equipment in server rooms. Unlike conventional setups, this All-in-One System Control Box provides full power-off capability that reduces energy waste, lowers operating costs, and supports more sustainable AV system management.
Full Power-Off with One Command
Lower Power Consumption with Smarter Control 1

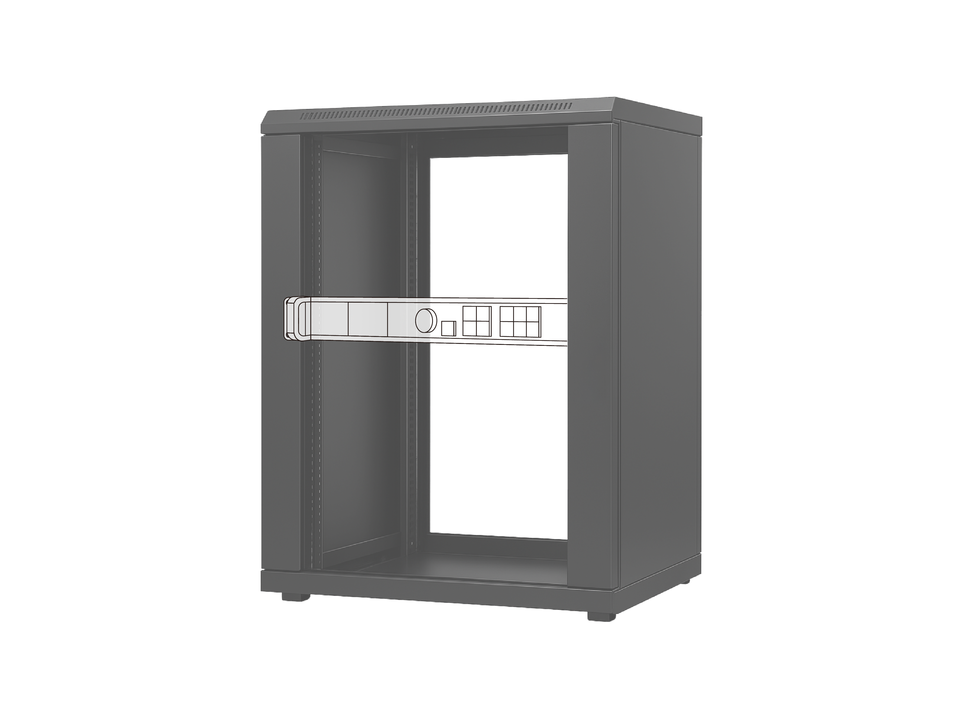

Space-Saving Design for AV Integration

The LD-SCB-025 features a 1U rack-mount design, ensuring seamless compatibility with standard server cabinets. Its compact, space-efficient form factor simplifies placement, streamlines setup, and improves installation efficiency—making it an ideal choice for professional AV environments.
1U Rack-Mount Design
Space-Saving Design for AV Integration 1

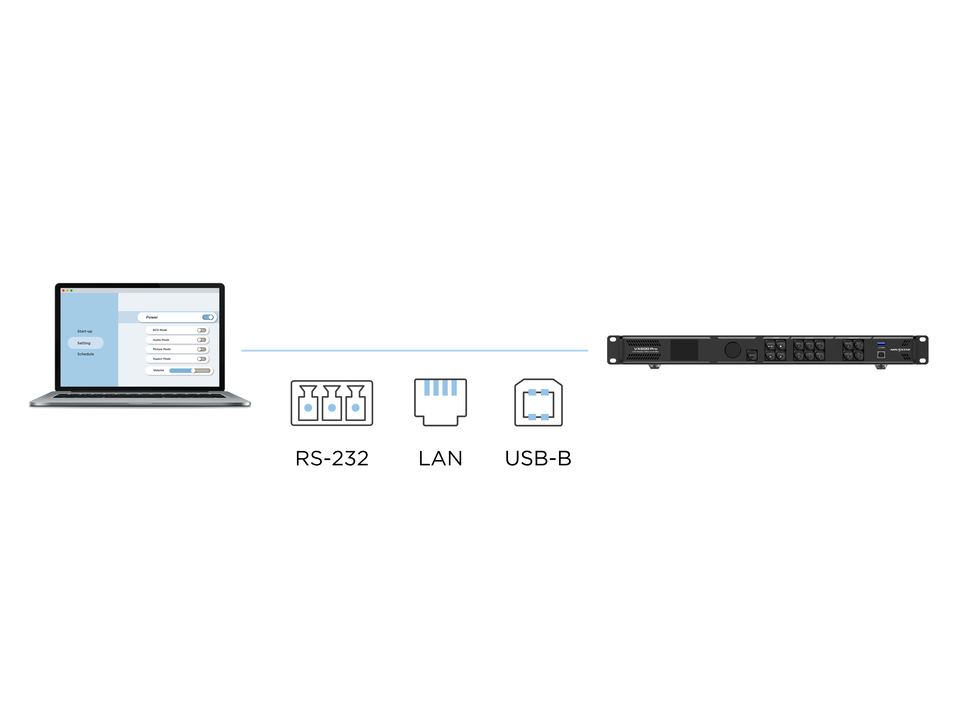

Seamless Integration with Centralized Management

The All-in-One System Control Box supports multiple control protocols, including LAN, RS-232 and USB-B, enabling centralized management and seamless integration across devices and environments. By providing unified control, it improves operational efficiency, streamlines maintenance, and accelerates troubleshooting.
LAN and RS-232 Protocol Support
Seamless Integration with Centralized Management 1

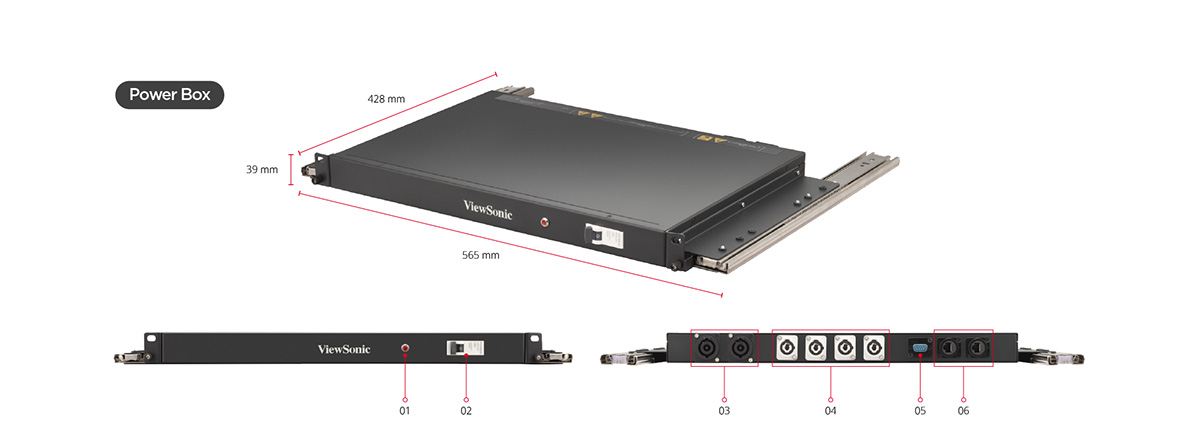

Dimensions & I/O Ports

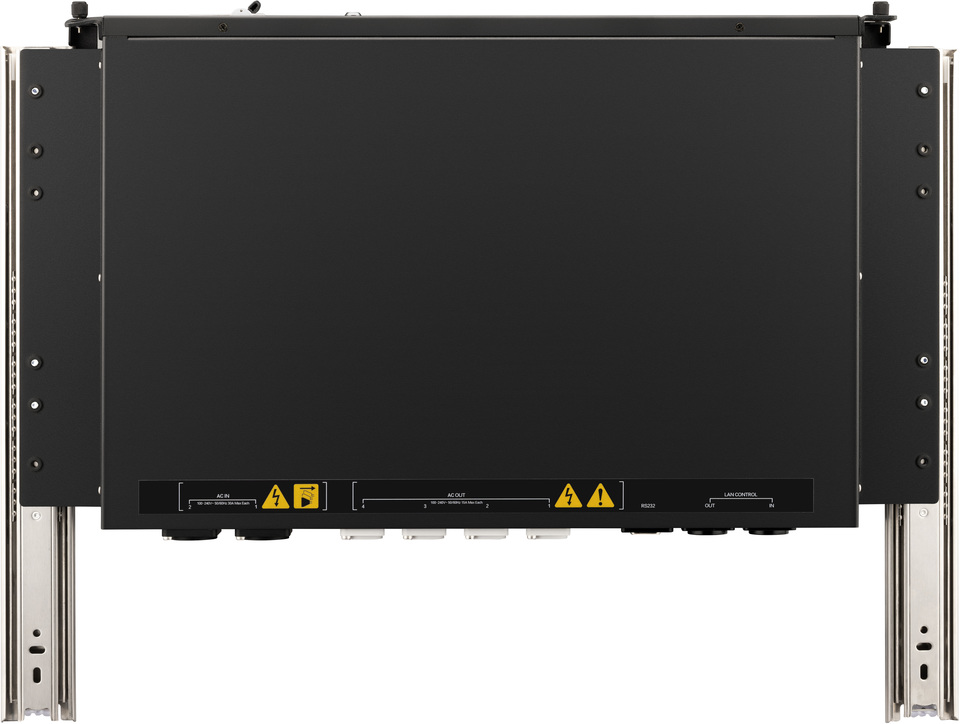

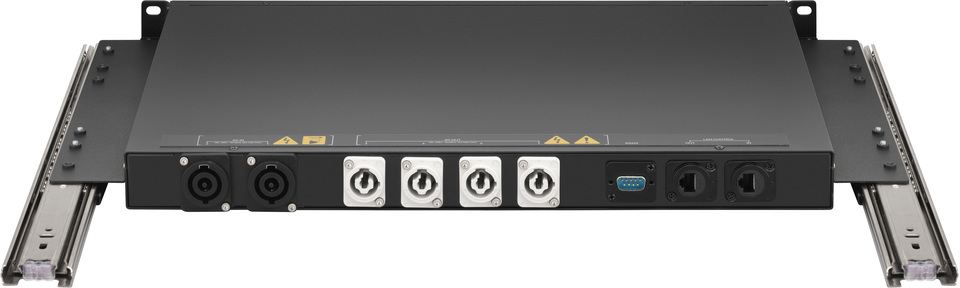

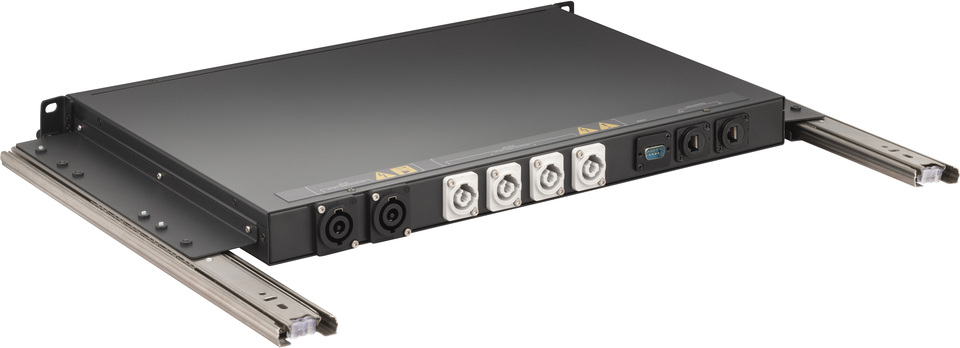

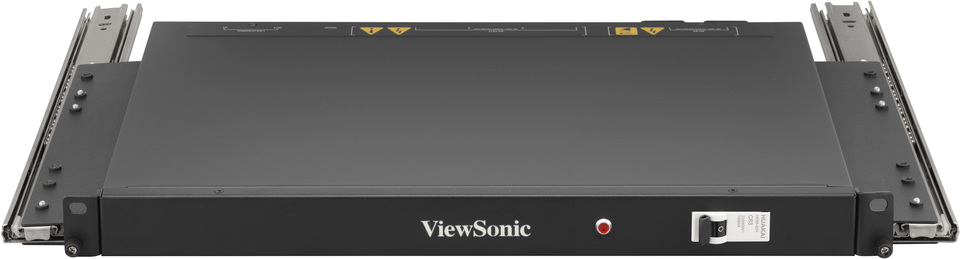

  1. Indicator Light
  2. Power Button
  3. AC In ×2
  4. AC Out ×4
  5. RS232
  6. LAN Control In & Out

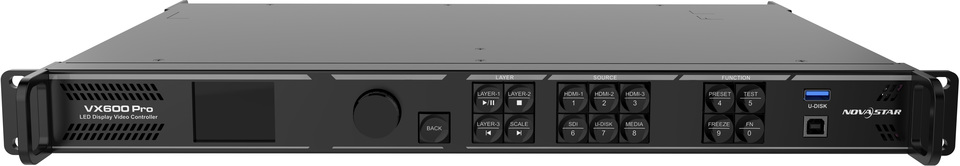

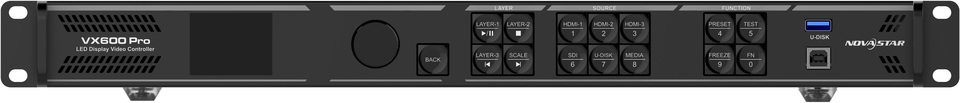

  1. Display Panel
  2. Control Knob
  3. Back Button
  4. Layer Control Buttons
  5. Input Source Buttons
  6. Function Buttons
  7. USB-A (Front Panel)
  8. USB Control
  9. Ethernet Port ×2 (Control)
  10. Light Sensor
  11. Genlock In & Loop
  12. 3G-SDI In & Loop
  13. USB-A (Rear Panel)
  14. RS232 (3-Pin)
  15. Ethernet Port ×6 (Output)
  16. Audio In & Out
  17. 3D Out
  18. HDMI 2.0 In & Loop
  19. HDMI 1.3 In ×2
  20. Optical Port ×2
  21. Monitor Out (HDMI 1.3)
  22. Power Button
  23. AC In

SPECIFICAȚII


  • Specificație
    Pixel count (max.): 3,900,000
    Max widest.: 10,240pixels
    Max highest: 8,192 pixels
    Dimensions (WxHxD): Power module :
    22.24x1.54x16.85 inches
    (565x39x428 mm)
    Control box :
    19x1.97x11.90 inches
    (482.6x50.1x302.2mm)

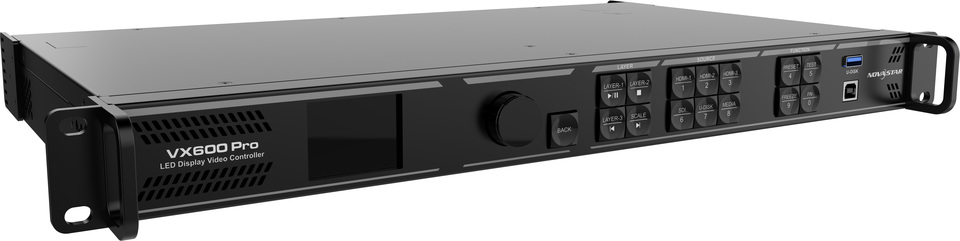

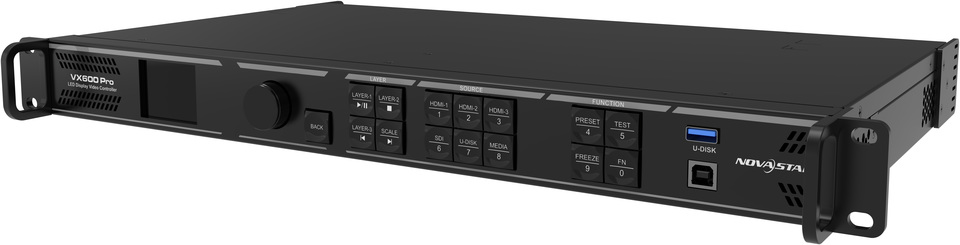

    Procesor: VX600 Pro
    Consum de putere: 41W
    Output Power Consumption: 13.2kW@220V
    6.6kW@110V
    Net Weight : Power module：
    13.23 lbs
    (6 kg)
    Control box：
    8.60 lbs
    (3.9 kg)
  • Input
    HDMI: 3
    (HDMI 2.0/HDCP 2.2 x1, HDMI 1.3/HDCP 1.4 x2)
    USB Tip A: 2
    (USB3.0 x1, USB2.0 x1)
    RJ45 (Internet): 2
    (control)
  • Ieșire
    HDMI: 1
    (HDMI 1.3/HDCP 1.4)
    Ieșire audio (3.5mm): 1
    USB Tip A (Alimentare): USB 3.0 5V/0.9A x1
    USB 2.0 5V/0.5A x1
