VPCF5-S33-G1-2A

Slot-in PC for ViewBoard®

Light OS UEFI Shell Allows Scripting, File manipulation, and Obtaining System Information
Ideal Integrated Solution for ViewBoard® Interactive Displays & Presentation Displays
Powerful Intel® 12th Core Processors embedded TPM2.0
DP1. 4 Port for Up to 5K resolution at 60Hz, Offering Incredible Clear and Detailed Content
Improved System Stability, Security, & Thermal Control

Contactează-ne Distribuie

GALERIE

PREZENTARE GENERALĂ

Seize the power to get more done when you sync your ViewBoard® interactive displays and Presentation Displays with the ViewSonic VPCF5-S33-G1-2A slot-in PC. Integrated with exceptional performance from Intel® processors, 8GB DDR4 memory, and 256GB of SSD storage, the experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.2, and a range of ports, including 4K HDMI, 5K DP, USB 3.1, and Gigabit LAN RJ45 for faster workflows.

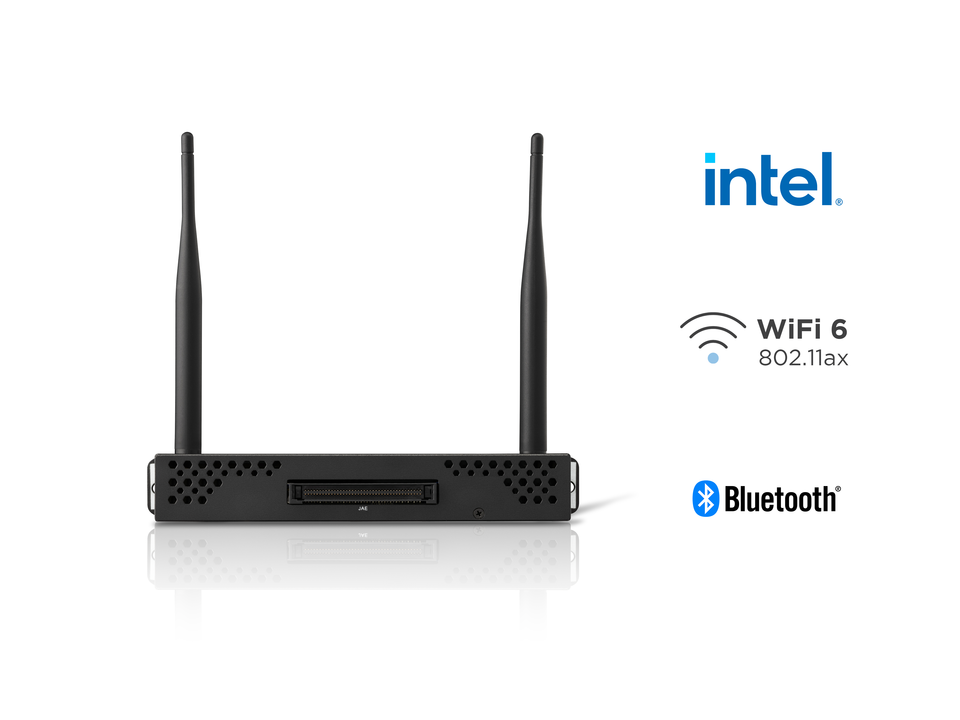

Tap Into a Productivity Powerhouse

Boost your interactive whiteboard with remarkable power and lightning-fast speed from the Intel® 12th Gen Core™ processor, allowing you to zip through tasks effortlessly. With Intel® WiFi 6 and Bluetooth 5.2 integration, experience ultra-fast and versatile connectivity.

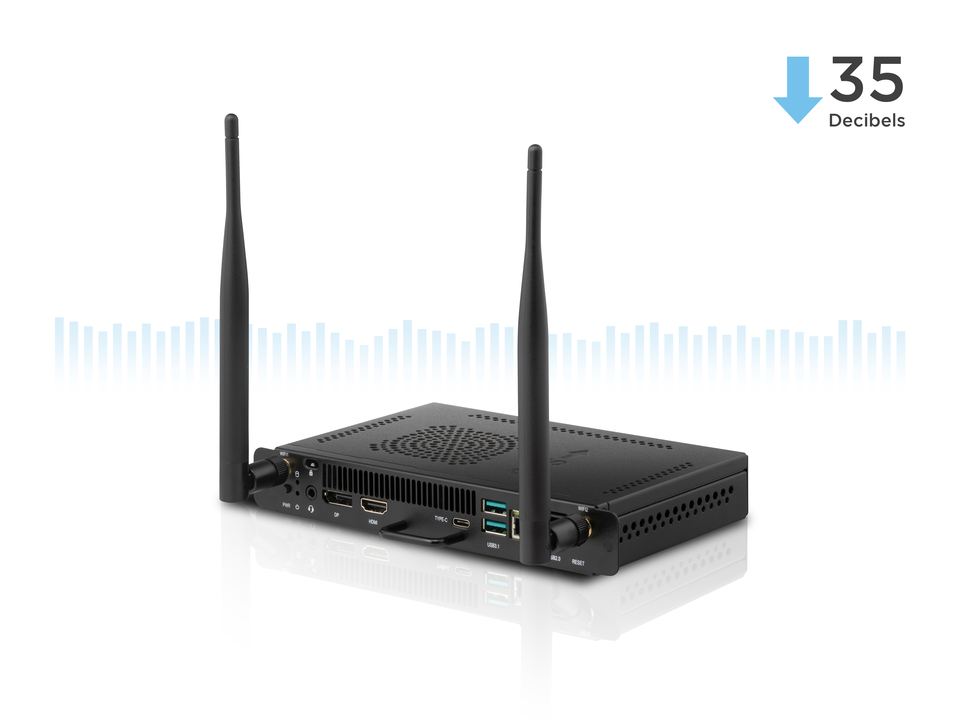

Quiet Efficiency with Advanced Thermal Control

Equipped with a thermal control circuit and noise reduction capabilities, the device's fan dissipates heat efficiently while maintaining quiet acoustics under 35 decibels, ensuring a more conducive and longer use.

Enhanced Data Security

The VPC enhances data protection with a Trusted Platform Module (TPM), securing hardware with integrated cryptographic keys and providing robust encryption against cyberthreats.

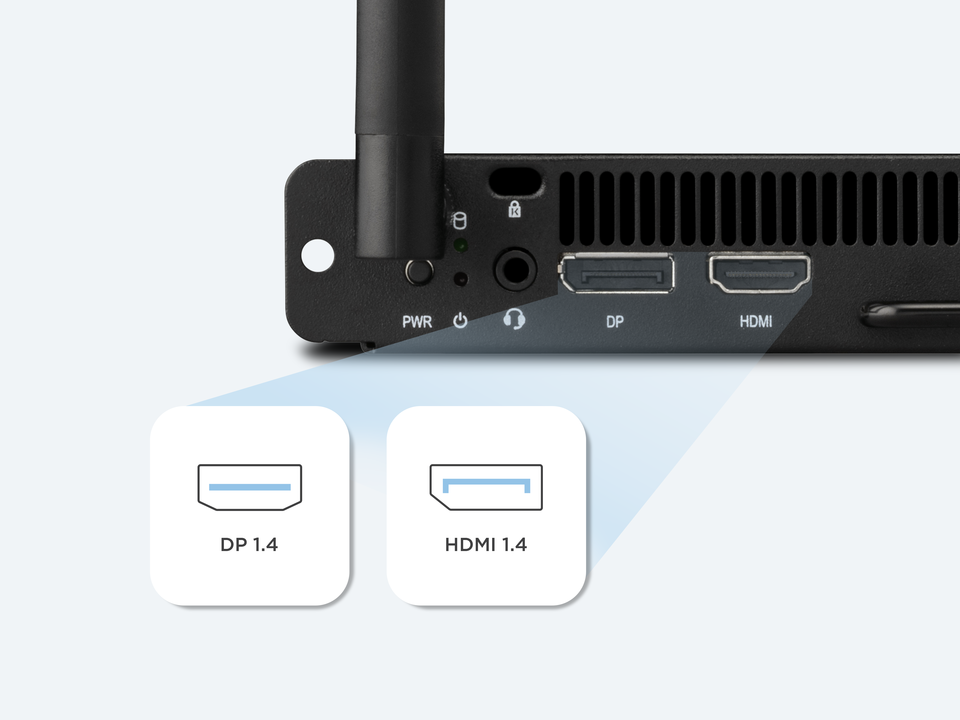

Unparalleled Visual Clarity

Experience exceptional visual performance with HDMI 1.4 and DP 1.4 output ports, respectively supporting up to 4K resolution at 24Hz and 5K resolution at 60Hz, offering flexibility for various resolutions.

SPECIFICAȚII

Software
Sistem de operare: UEFI Shell
Nucleu
Procesor: Intel Gen12th core i5 CPU or later Gen. CPU
Grafică: Intel Iris Xe Graphics (DP Supports up to 8K@30Hz, HDMI Supports up to 3840x2160@30Hz)
Memorie
Tip: DDR4
Capacitate: 8GB

Stocare
Dimensiune: M.2 SSD
Capacitate: 256GB
Interfață: PCIE
INPUT
MIC (Microfon): MIC-In&Line-Out two in one connector
OPS Standard: 80 PIN x1 (HDMI 2.0 4K@60Hz, DP 5K@60Hz, USB3.0 x1 + USB2.0 x2, DC 12-19V)
OUTPUT
HDMI: x1 (Max 3840x2160@30Hz)
Audio: MIC-In&Line-Out two in one connector
LAN
RJ45: x1 (RJ45 10/100/1000M)
Wireless/ Bluetooth
Wireless/ Bluetooth: Intel® Wi-Fi 6 AX101
WIFI 6 802.11 ax + BT5.2
USB
Tip A: USB 3.1 x 2 / USB 2.0 x 2
Tip C: USB 3.1 Gen2 x 1 (Data Only)
Putere
Voltaj: DC 19 V/ 4.74A
Consum: Max 90 W
OPERATING CONDITIONS
Temperatură (º C): 0℃ ~ 40℃(working)
Umiditate: 20% ~ 80% RH
Non-Condensing(working)
DIMENSIUNU (D x Î x A)
Dimensiuni (inch/ mm): 7.87 x 4.68 x 1.18 in / 200 x 119 x 30 mm
Ambalare (inch/ mm): 10 x 7.72 x 2.76 in / 254 x 196 x 70 mm
WEIGHT
Masă (Ib/ kg): 1.54 lb / 0.7 kg
Greutate (Ib/ kg): 1.54 lb / 3.4 kg
CONȚINUT PACHET
CONȚINUT PACHET: 1. Quick Start Guide(With Compliance Statement )
2. Screws x 2
3. Antenna x 2
