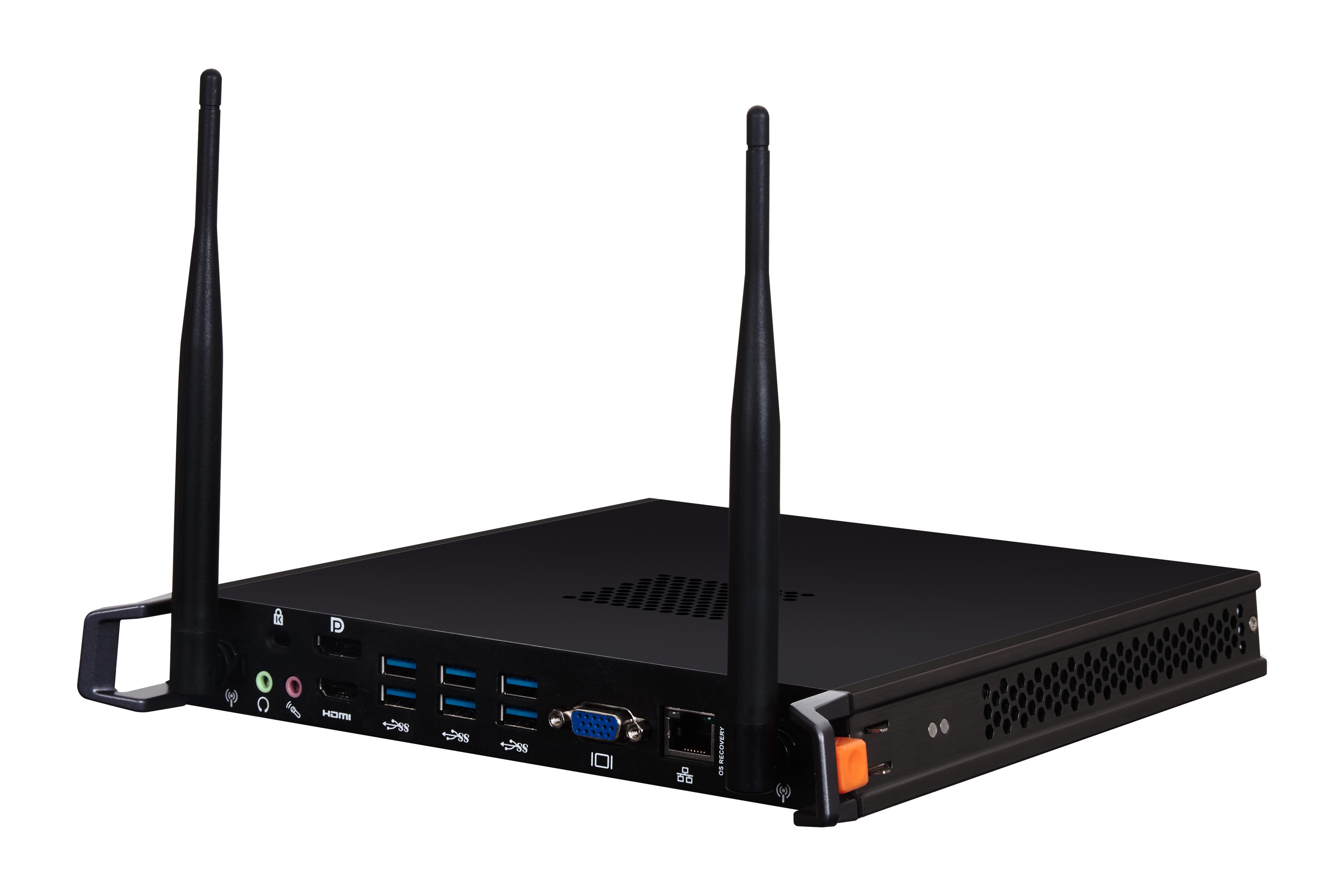

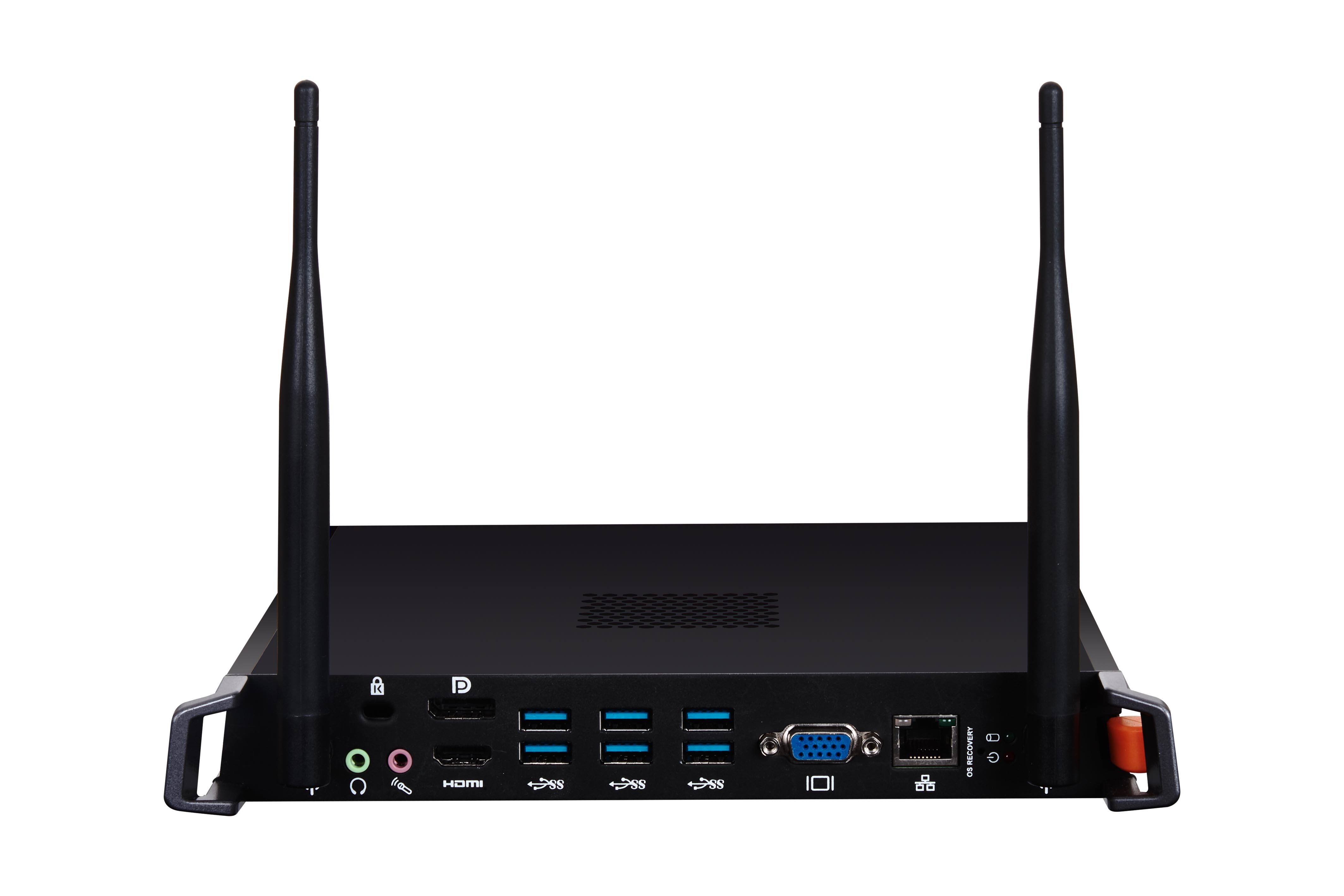

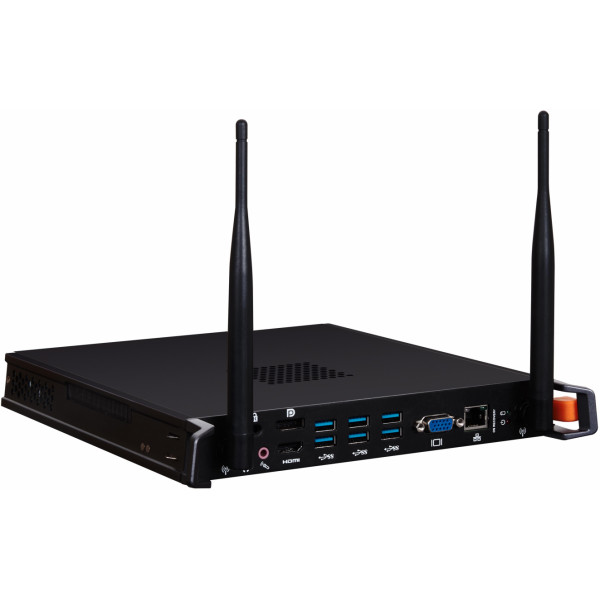

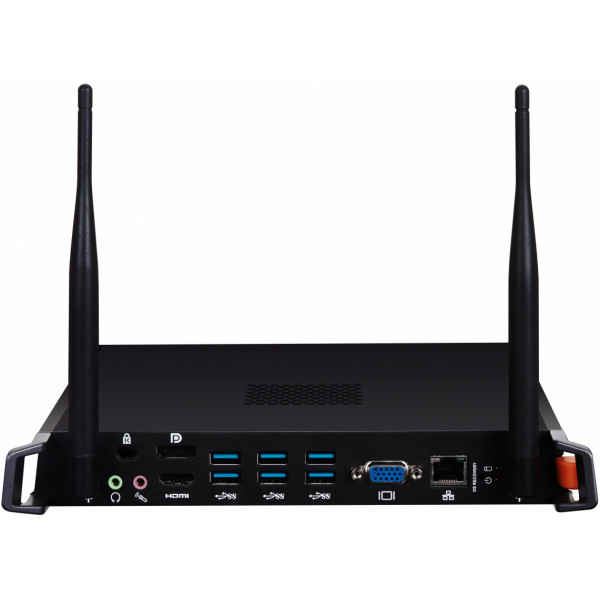

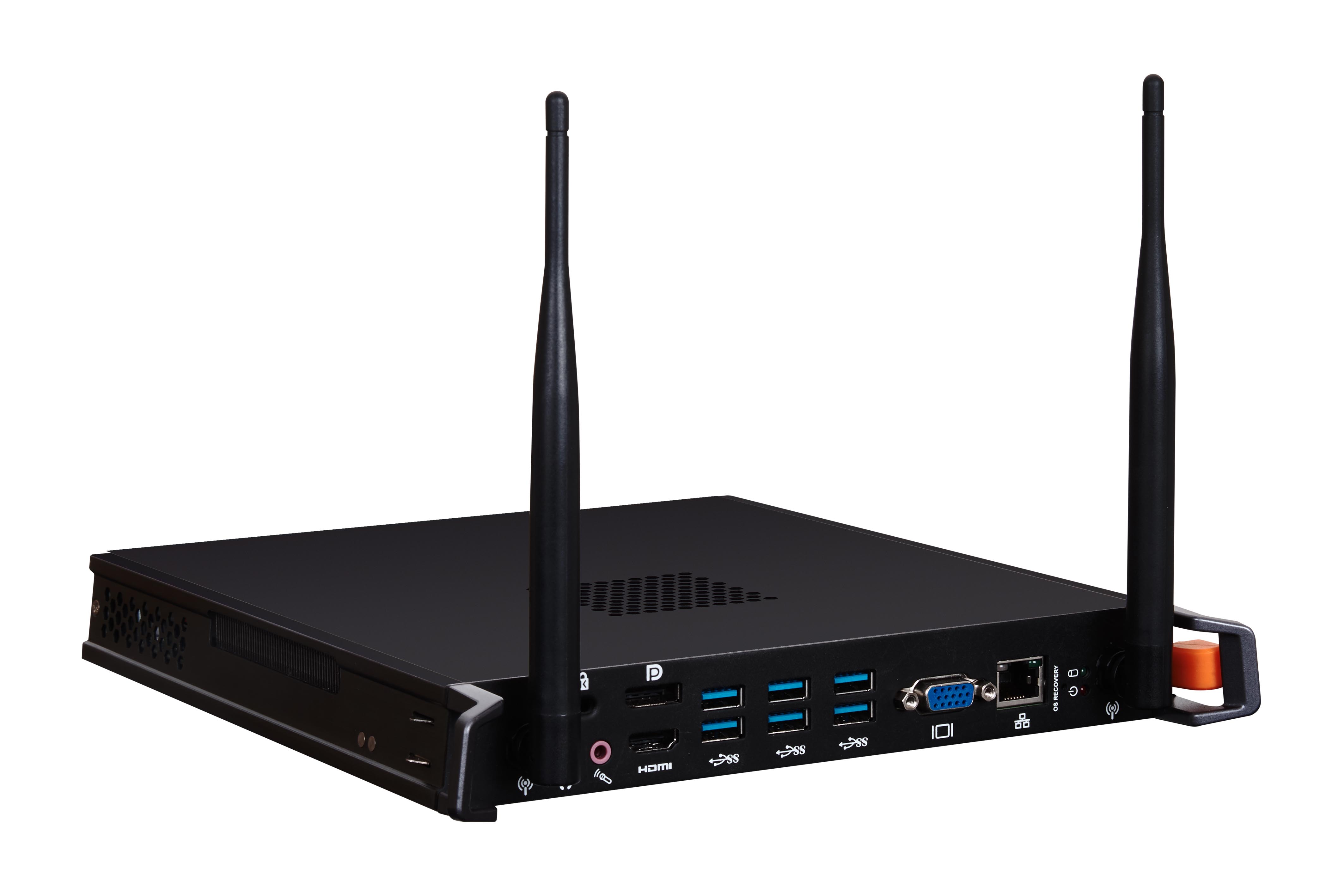

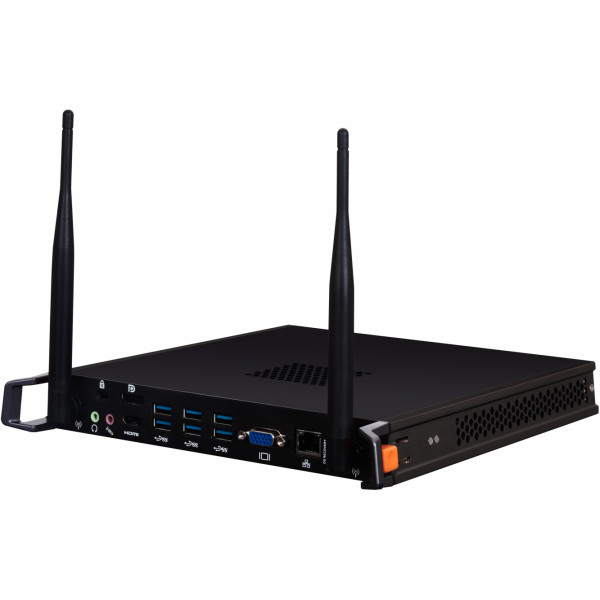

VPC10-WP
Windows Slot-in PC for ViewBoard® IFP8650/7550/6550/5550
- Powerful system with Intel® Core™ i5-6400, 8GB DDR4 memory, and 128GB SSD storage (up to 256GB)
- Complete network support WiFi 2.4GHz/5GHz, Bluetooth, and Giga LAN Ethernet
- Rich I/O ports, including 4K DisplayPort-out, HDMI-out, and VGA-out
- Windows 10 Pro OS support
SPECIFICAȚII
- SystemProcesor: Intel® Core™ i5-6400
Memorie: DDR4 8GB (expendable to 16GB)
Grafică: Intel HD Graphics 530
Stocare: 2.5" 128GB SATA3 SSD (expendable to 256G)
Network: Wireless 802.11 abgn-AC (2.4GHz/5GHz)
Bluetooth 4.0
Gigabit LAN ethernet
OS: Windows 10 Pro 64 bit support - INPUTMIC (Microfon): x 1
- OUTPUTHDMI: x 1
RGB/ VGA: x 1
Display Port: x 1
Audio (Earphone out): x 1
- LANRJ45: x 1
- USB3.0 Type A: x 6
- SoftwareWindows 10 Pro 64 bit*, ViewBoard 2.1
*Region need to purchase and activate the Window 10 license locally - OPERATING CONDITIONSTemperatură (º C): 32°F to 113°F (0°C to 45°C)
Umiditate: 10% ~ 90% non-condensing - WEIGHTNet (kg / lb): 1.9kg / 4.2lbs
Gross (kg / lb): 2.4kg / lbs
