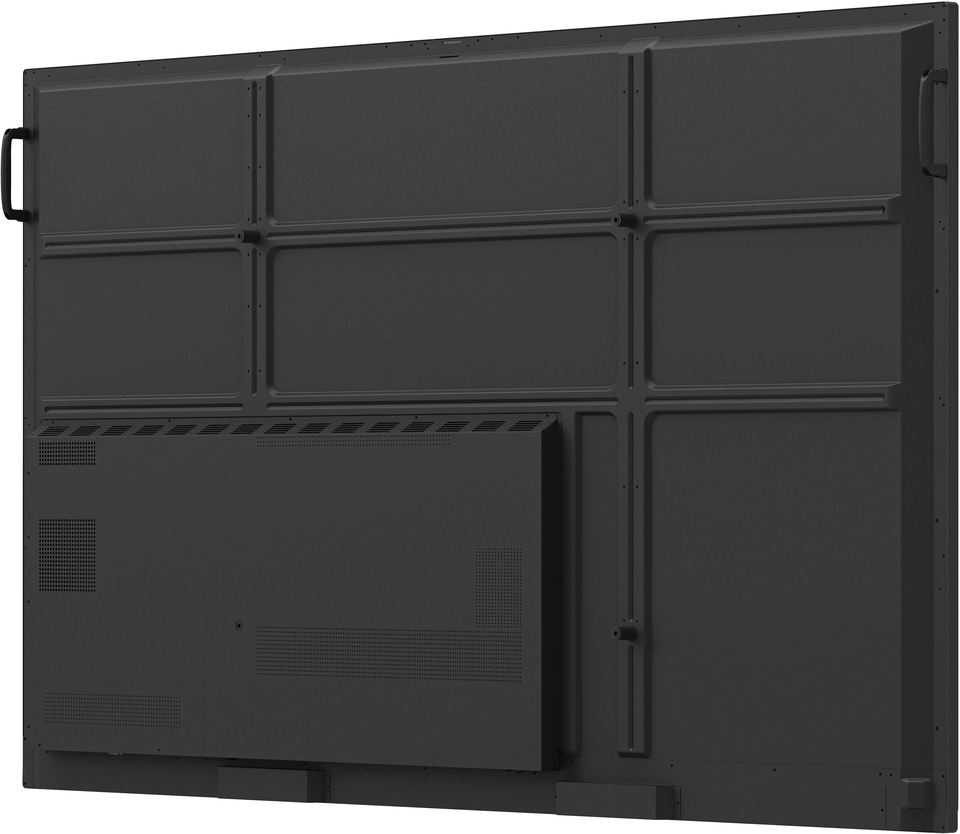

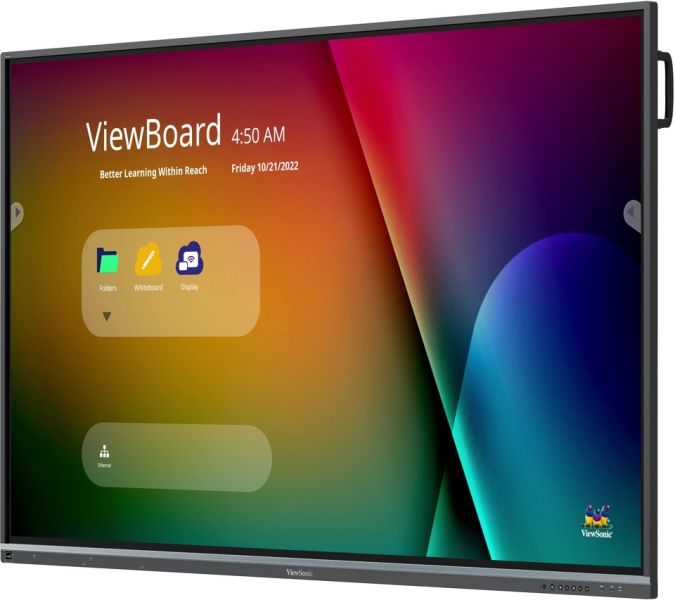

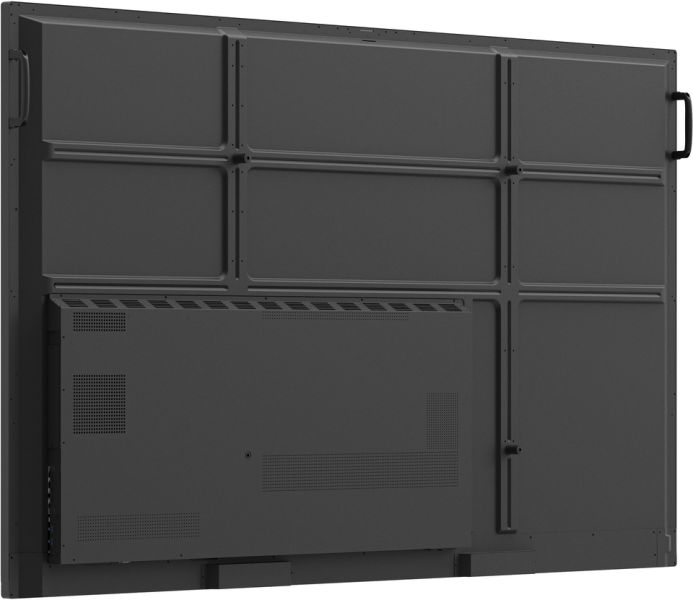

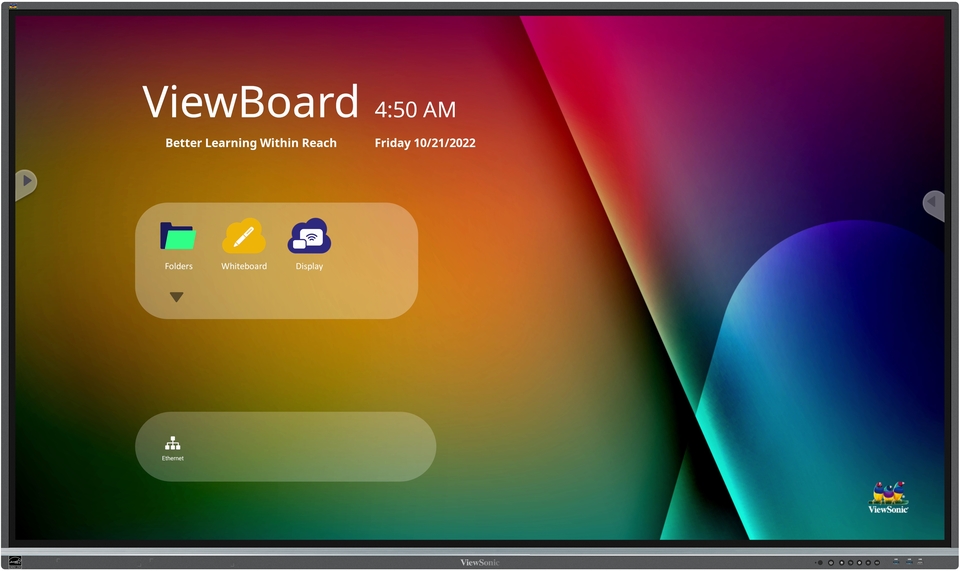

ViewBoard IFP8650-5

ViewBoard® 86" 4K Interactive Display

Ultra Fine Touch Technology offering up to 40-point touch for a pen-on-paper writing experience
myViewBoard Whiteboard software with engaging classroom tools
Screen share via USB-C or wirelessly via myViewBoard Display and ViewBoard Cast with Airplay and Chromecast
Intuitive remote device control and multimedia broadcast with myViewBoard Manager
Android 11 OS powered by an octa-core CPU for optimized efficiency and security (Upgradeable to Android 13)

SPECIFICAȚII

Display
Dimensiune Panel: 86"
Tip Panel: TFT LCD Module with DLED Backlight. IPS
Suprafață Display (mm): 1913.0(H) x 1084.0 (V)
Aspect Ratio: 16:9
Rezoluție: UHD 3840x2160
Colors: 1.07B colors (10bit)
Luminozitate: 500 nits
Rată de contrast: 1200:1 (typ.) 5000:1 (DCR)
Timp de răspuns: 8ms
Unghiuri de vizualizare: H = 178, V = 178 typ.
Durată de viață sursă de lumină fundal: 50,000 hours (Min)
Tratament pentru protecția suprafeței: Hardness: 7H, Anti-glare coating
Ramă: Slim
Orientare: Landscape
Platformă
Procesor: ARM Cortex-A73*4 + Cortex-A53*4
Memorie RAM: 4GB
Stocare: 32GB
Touch
Tipul/ Tehnologia: Ultra Fine Touch Techology (IR Recognition)
Rezoluție Touch: 32768 ×32768
Touch Point: Windows: 40 points of touch, Android : 20 points of touch

INPUT
HDMI: 2.0 x 3 (3840x2160 @60Hz, HDCP2.2, HDMI1 with CEC/ARC)
RS232: x1
OPS: x1
WiFi: x 1 module slot
OUTPUT
HDMI: x1 (4K@60Hz)
Audio: x1 (Earphone out)
SPDIF: x1 (optical)
LAN
RJ45: x2
USB
Tip A: 2.0 x 2
3.0 x 4
Tip B: x2, for touch
Tip C: x1 ( DP 1.2, USB2.0, PD65W, Ethernet 100M)
DIFUZOARE
12W x 2 + 16W x 1 subwoofers
Top Camera Plate
Yes
Sistem de operare incorporat
Android 13
Pachet Software
Software Basic Annotation: myViewBoard
Software Pro Annotation: myViewBoard for Windows (Embedded in Windows Slot-in PC)
Prezentare wireless: vCast/myViewBoard Display App/AirSync*
*myViewBoard Display will be replaced by AirSync in Q1 2025.
Caracteristici speciale
All-in-one USB port: “SmartPort™ USB” to all channels.
Partajare simplă LAN între IFP și dispozitivul cu slot-in: Yes
Light Sensor: Yes
Putere
Voltaj: 100-240VAC +/- 10% Wide Range
Consum: 175W(typ.), 0.5W (off)
ERGONOMICS
Montare pe perete (VESA® ): 800 mm x 600 mm
OPERATING CONDITIONS
Temperatură (º C): 0°C to 40°C
Umiditate: 10% ~ 90% RH non-condensing
DIMENSIUNU (D x Î x A)
Dimensiuni (inch/ mm): 77.05 x 45.66 x 3.41 in / 1957.1 x 1159.8 x 86.5 mm
Ambalare (inch/ mm): 83.07 x 50.51 x 8.86 in / 2110 x 1283 x 225 mm
WEIGHT
Masă (Ib/ kg): 147.05lb/66.7kg
Greutate (Ib/ kg): 191.58lb/86.9kg
CONȚINUT PACHET
1. Power cord
2. Remote control with AAA battery
3. Touch USB cable
4. Touch pen x 2
(VB-PEN-009)
5. Quick Start Guide + Compliance statement
6. RS232 adapter
7. Clamp x 5
8. Camera Plate
9. Screw x 8
10. HDMI cable
Compatibil Slot intrare PC
• VPC2-O series
• VPC2-O-B series
• VPC25-W33-O1-1B
• VPC27-W53-O1-1B
• VPC12-WPO-17
• VPC12-WPO-18
