CDE6561T

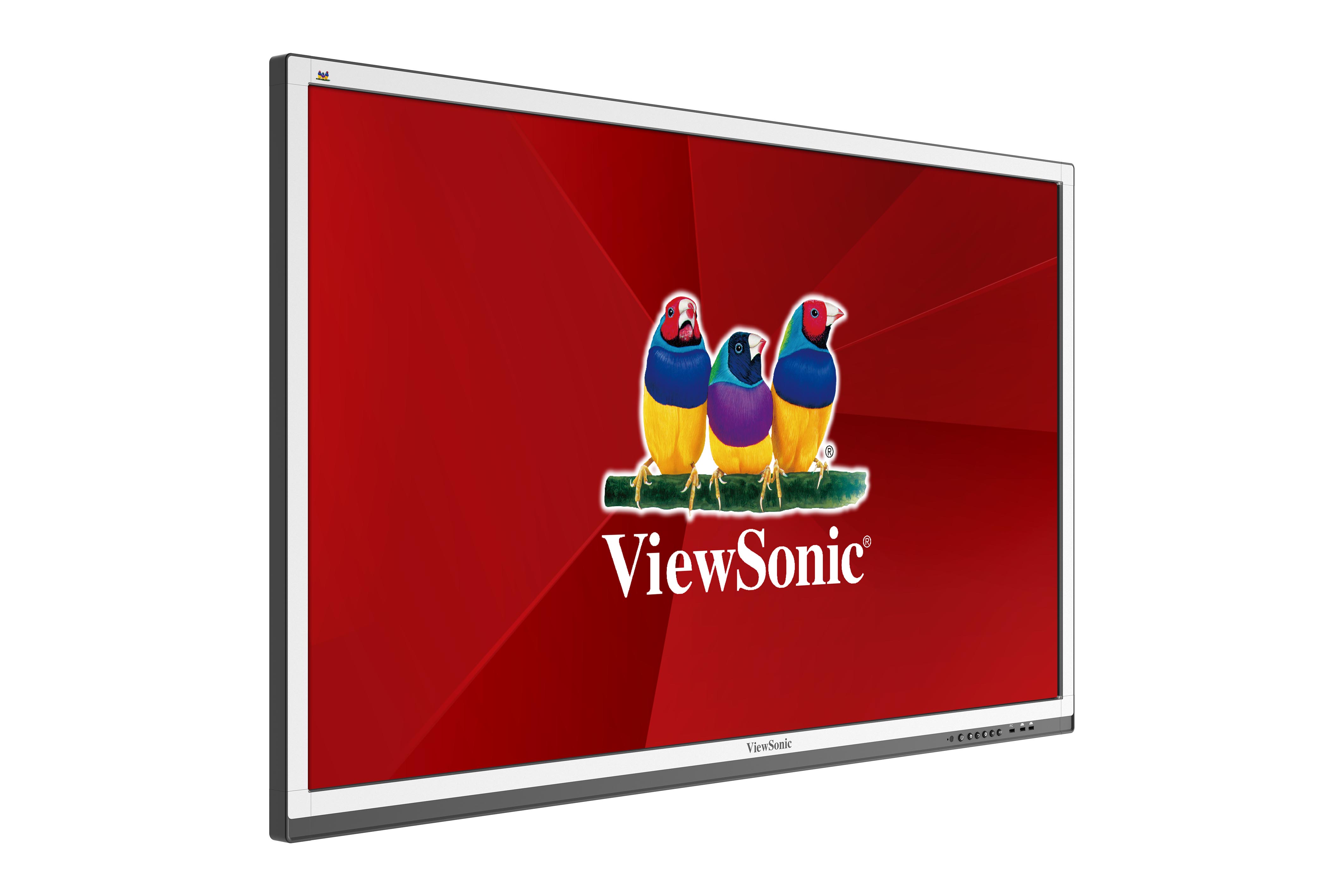

65’’ 20-Point Touch Interactive Flat Panel

GALERIE

RECENZII

Install Awards 2018's Corporate and Industrial Project of the Year

Citește recenziile

SPECIFICAȚII

LCD PANEL
Dimensiune Panel: 65” (64.5” viewable)
Tipul/ Tehnologia: TFT LCD Module with LED Backlight
Suprafață Display (mm): 1428.48(H) x 803.52(V) (64.5” diagonal)
Aspect Ratio: 16:09
Rezoluție: 1920x1080
Colors: 10 bit, 1.07B colors
Luminozitate: 350 nits (typ.)
Rată de contrast: 1400:1 Typ.
Timp de răspuns: 8ms
Unghiuri de vizualizare: H = 178, V = 178
Backlight: LED
Durată de viață sursă de lumină fundal: 50,000 Hours Typ
Hardness: 7H
TOUCH
Tipul/ Tehnologia: Infrared
Rezoluție Touch: 32767 x 32767
Touch Point: 20 points for gesture, 5 points for writing
Response time: 15ms MAX.
System: Windows10 / Windows8/Windows7/WindowsXP/Vista/Linux/Mac/Android/Wince/Chrome
INPUT
HDMI: x3
RGB/ VGA: x3
Audio: x3 (PC audio in)
CVBS: x1
RS232: x1
OPS / ViewSonic PC module slot: N/A / x1 (for NMP710)

OUTPUT
RGB/ VGA: x1
Audio: x1 (Earphone out)
SPDIF: x1 (Coxial)
LAN
RJ45: x1
USB
Tip A: x3 (2.0); x1 (3.0)
Tip B: x1 (for touch)
DIFUZOARE
10W x 2
BUILT-IN PC
Procesor: ARM Cortex A9 Dual Core CPU
Graphic: ARM Mali400 MP4
Memorie: 1.5GB
Stocare: 8GB
Networking: Integrated 10/100/1000M Adaption
COMPATIBILITY
RGB PC/ HDMI PC: Refer to timing table
CVBS: 480i
HDMI: 480i, 480p,720p, up to 1080
CONTROLS
Physical- Top OSD: Power, Home, Return, Setting, VOL-, VOL+ INPUT: PC, Android, AV, VGA1, VGA2, VGA3, HDMI1, HDMI2, HDMI3, HDMI4 LIGHT: 1~10 VOLUME: 0~100 VGA: H Position, V Position, Phase, Clock, Zoom, Auto Adjust, Writing Mode PICTURE: Brightness, Contrast, Hue, Sharpness, Color Temp, Zoom, Writing Mode
Embedded Linux OS: SETTING: Ethernet checking, Sound, Display, Apps, Language&input, Date&time, About device ANNOTATION: Annotation menu, Return, Main, Pen, ViewBoard Lit, Open file, Screenshot, close menu INTERFACE: ViewBoard Lit, Folders, Browser, PIP, Settings, Apps
Multimedia: IMAGE: Close, Zoom in, Zoom out, Previous, Play/Pause, Next, Counterclockwise, Clockwise, setting AUDIO: Close, Previous, Play/Pause, Next, Playlist, Loop, Random, Single VIDEO: Close, Previous, Fast backward, Play/Pause, Fast forward, Next, Playlist
POWER
Voltaj: 100-240VAC +/- 10% Wide Range
Consum: "On" 270W(typ), "Power Saving" < 0.5 W, "Off" (Suspend) < 0.5 W
ERGONOMICS
Wall Mount (VESA® ): 600 x 400 (M8 x 60mm) With Wall Mount Spacer
OPERATING CONDITIONS
Temperature (º C): 32°F to 104°F (0°C to 40°C)
Umiditate: 20% ~ 80% non-condensing
DIMENSIONS (W x H x D)
Dimensiuni (inch/ mm): 59.96x36.38x3.9 in/ 1523x924x98
Ambalare (inch/ mm): 66.18x42.17x8.66 in / 1697x1071x220
WEIGHT
Masă (Ib/ kg): 100.31lb / 45.5kg
Greutate (Ib/ kg): 125.66 lb /57kg
WARRANTY
**Warranty offered may differ from market to market
What's in the box?
CDE Interactive Large Format Display Monitor
VGA cable
Power cable x 4
Remote control
USB cable
Audio cable
Touching pen x 3
User manual CD wizard
RS232 adapter
Wall Mount Spacer
