LSC730WU-ST

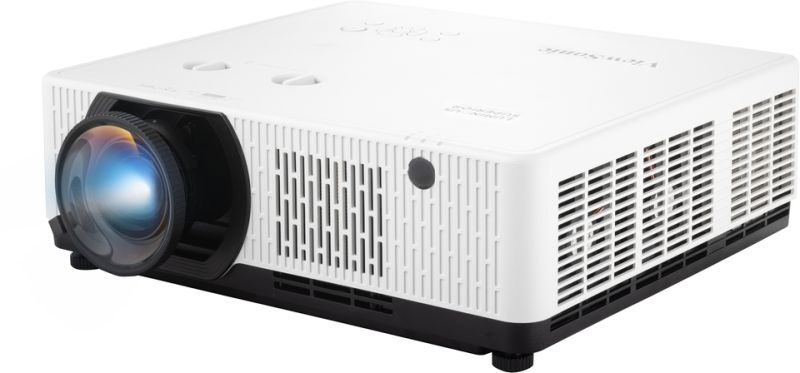

7,300 ANSI Lumens WUXGA Short Throw Laser Installation Projector
- 7,300 ANSI Lumens offering bright images in any environment
- Up to a 300" ultra-large screen with a lower cost-per-inch
- 0.68-0.82 short throw for seamless viewing experience without shadows

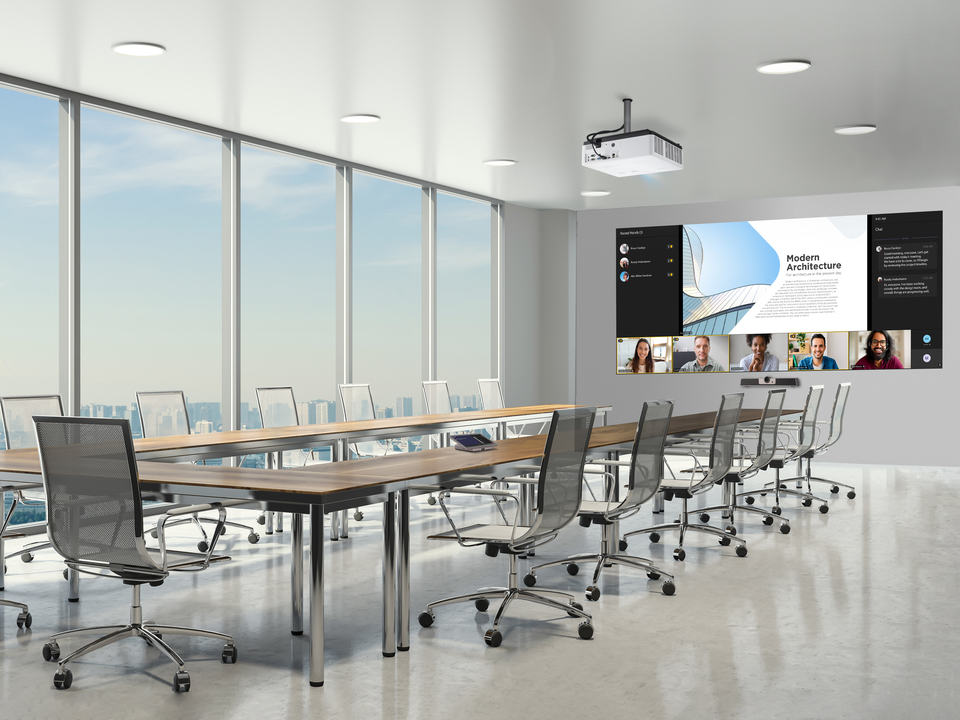

- Supports a 21:9 aspect ratio, ideal for Microsoft Teams Rooms
- Installation flexibility: H/V lens shift, 1.2x optical zoom, and H/V keystone correction
- 2nd generation laser phosphor technology with a lifespan up to 30,000 hours

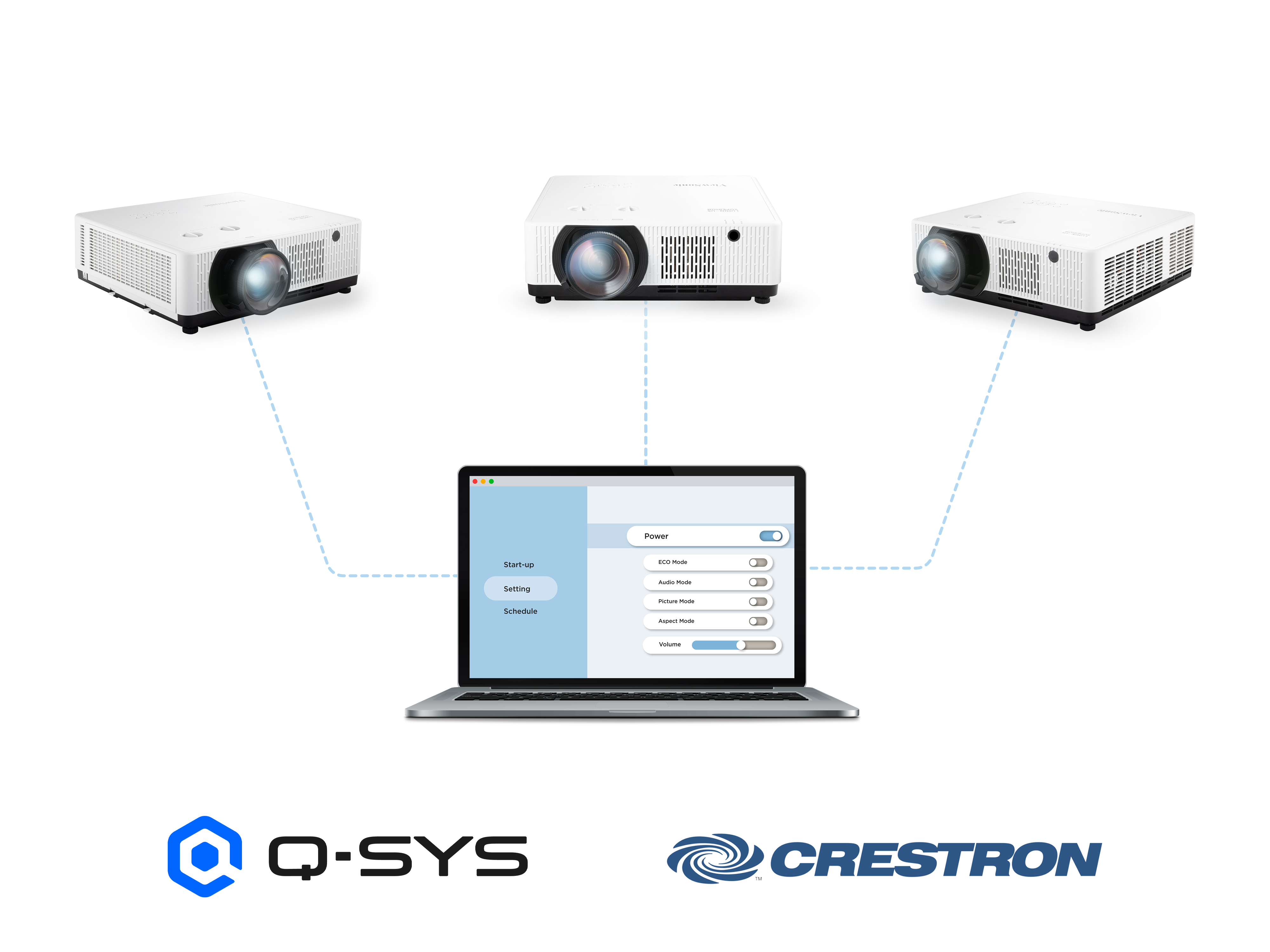

- Centralized LAN control for efficient management
SPECIFICAȚII
- SpecificațieSistem de proiecție: 3LCD (3x0.64" with MLA)
Rezoluție Nativă: 1920x1200
Luminozitate: 7300 (ANSI Lumens)
Brightness (Center Lumens): 8300
Rată de contrast: 3000000:1
Display Color: 1.07 Billion Colors
Tip sursă de lumină: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lentile: F=1.7-1.8, f=9.66-11.65mm
Decalaj de proiecție: 0%+/-5%
Raportul de proiectare: 0.679-0.821
Zoom optic: 1.2X
Zoom Digital: 1.0x-4.0x
Dimensiune Imagine: 50"-300"
Distanță de proiectare: 0.73-5.31m
(100"@1.46m)
Intrare Keystone: H:+/-15° , V:+/-10°
Auto Keystone: +/- 10° (V)
Lentile Shift V. Range: +50%, 0%
Lentile Shift H. Range: +23%, -23%
Zgomot perceptibil (funcție Normal): 37dB
Zgomot perceptibil (funcție Eco): 27dB
Input Lag: 60ms
Suport rezoluție: VGA(640 x 480) to 4K(3840 x 2160)
Compatibilitate HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Frecvență orizontală: 15K-100KHz

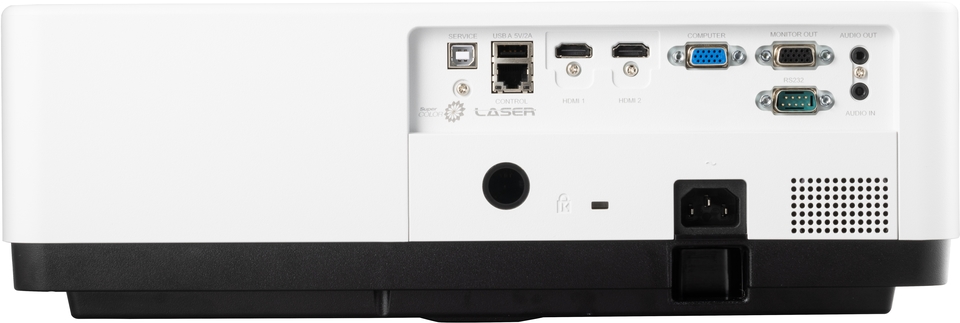

Rată verticală de scanare: 23-85Hz - InputIntrare computer (partajare componentă): 1
HDMI: 2
(HDMI 1.4, HDCP 1.4)
Intrare audio (3.5mm): 1
USB Tip A: 1 (5V/2A) - IeșireIeșire monitor: 1
Audio-out (3.5mm): 1
Difuzor: 16W
USB Tip A (Alimentare): 1
(USB2.0 - 5V/2A,
share with USB A Input)
- ControlRS232 (DB-pin-tată): 1
RJ45 (LAN control): 1
USB Tip B (Service): 1 - AlteleVoltaj sursă: 100-240V+/- 10%, 50/60Hz
(AC in)
Consum de putere: Normal: 375W
Standby: <0.5W
Temperatură de funcționare: 0~40℃
Carton: Brown
Greutate netă: 8.1kg (17.86 lbs)
Gross Weight: 10.73kg (23.66 lbs)

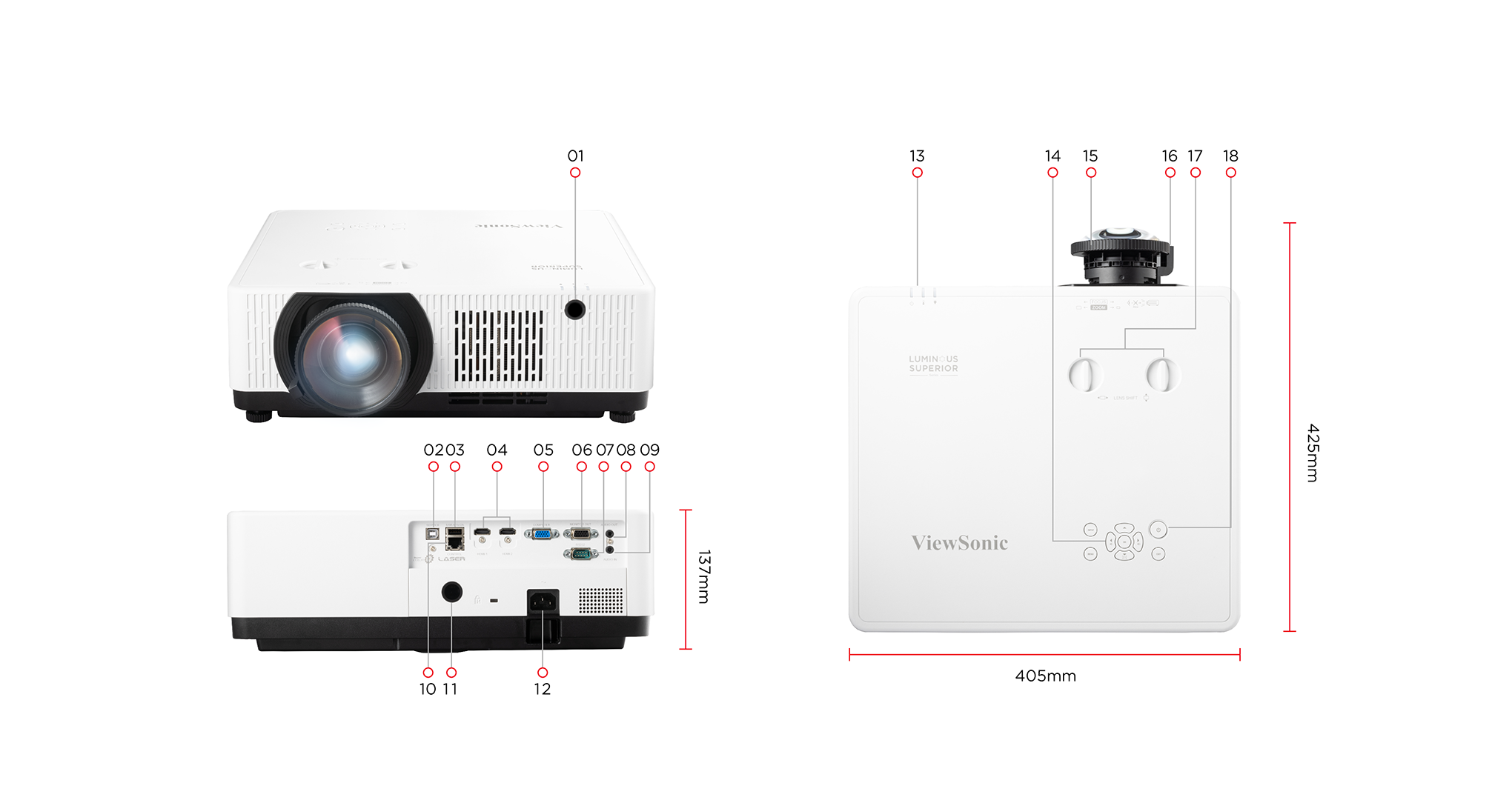

Dimensiuni (WxDxH) cu Adjustment Foot: 405x425x137mm (15.9x16.7x5.4 in)
Packing Dimensions: 525x520x280mm (20.7x20.5x11 in)
Limbă meniu display: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese,Thai, Farsi, total 25 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages - Accesoriu standardCablu alimentare: 1

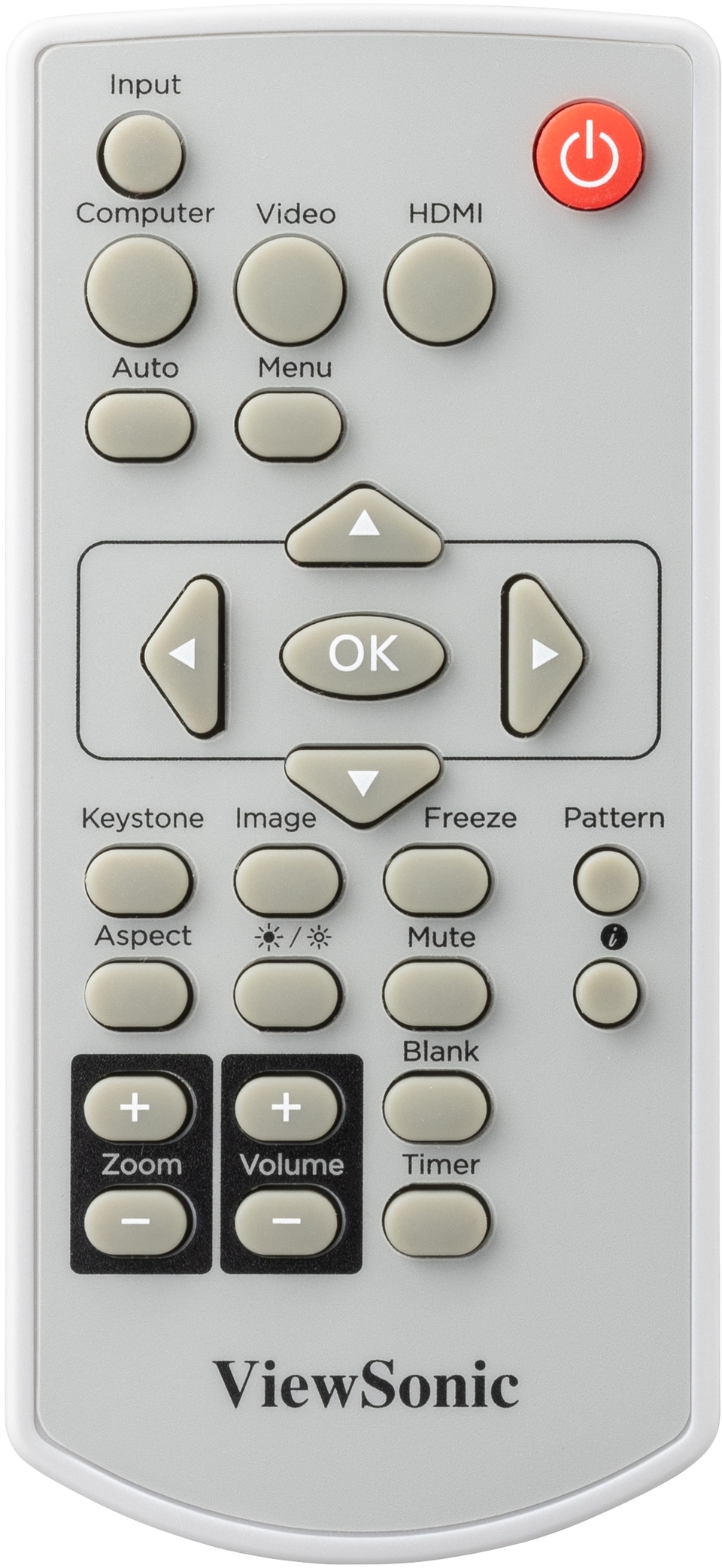

Telecomandă: 1
QSG: Yes
Filtru de aer: Yes
Warranty Card: Yes (CN Only) - Accesoriu opționalFiltru de aer: RSPL
Wall/Ceiling Mount: PJ-WMK-007
