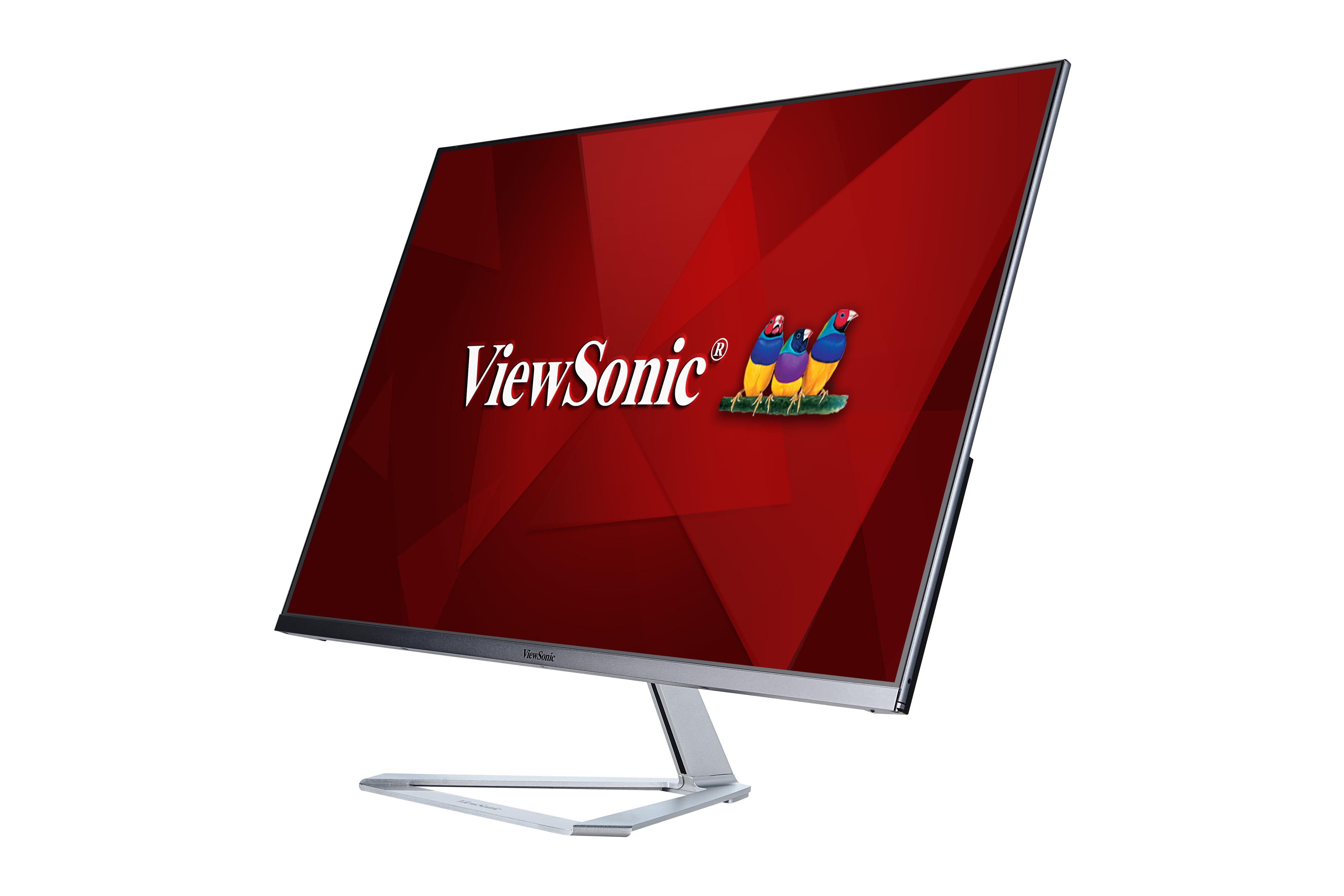

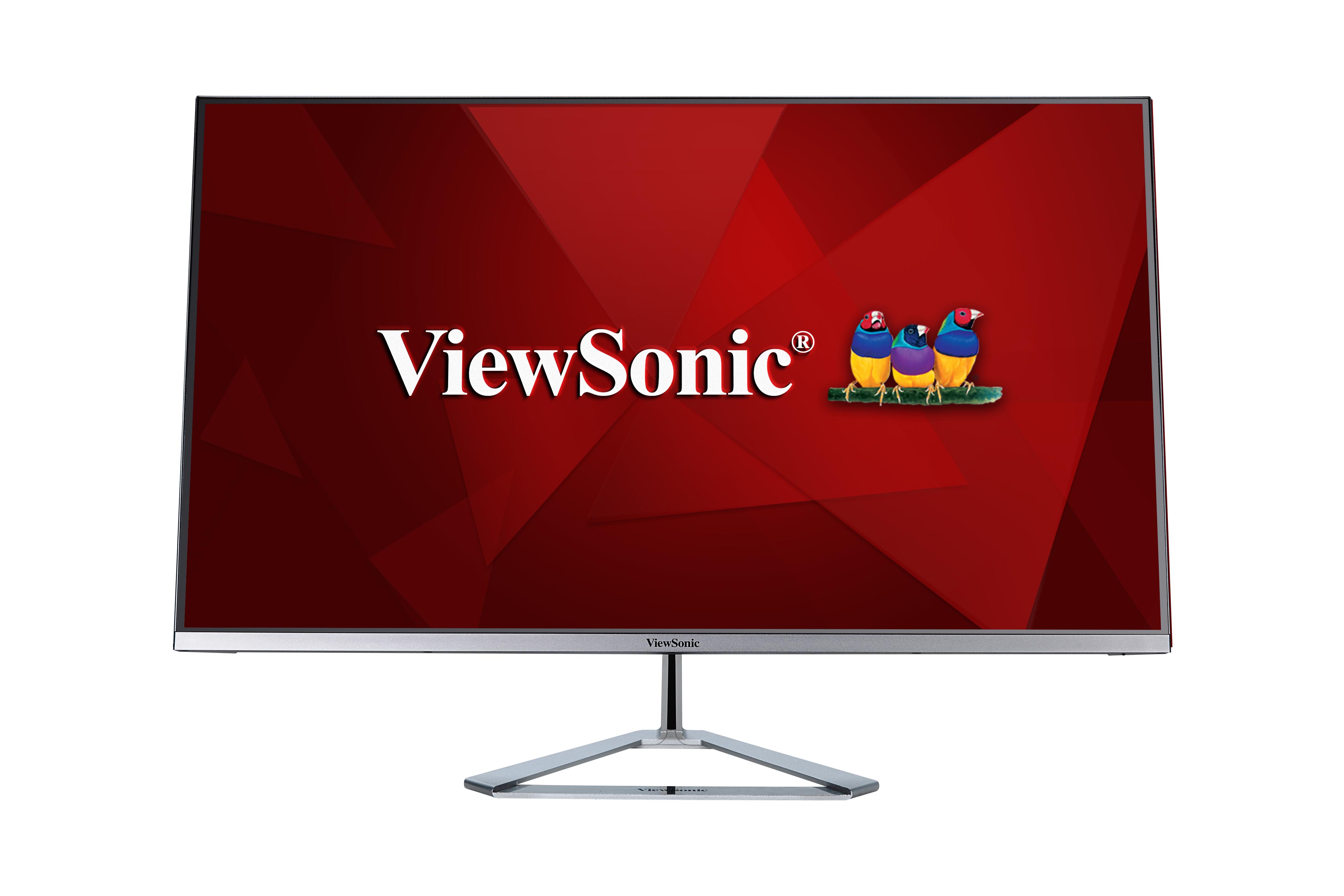

VX3276-mhd

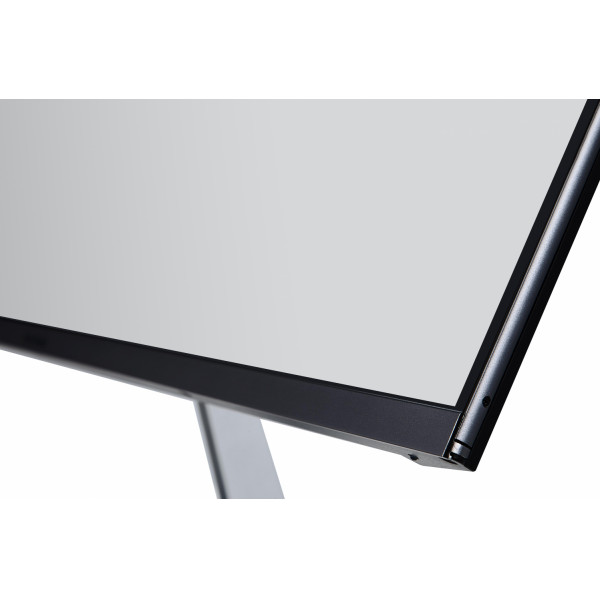

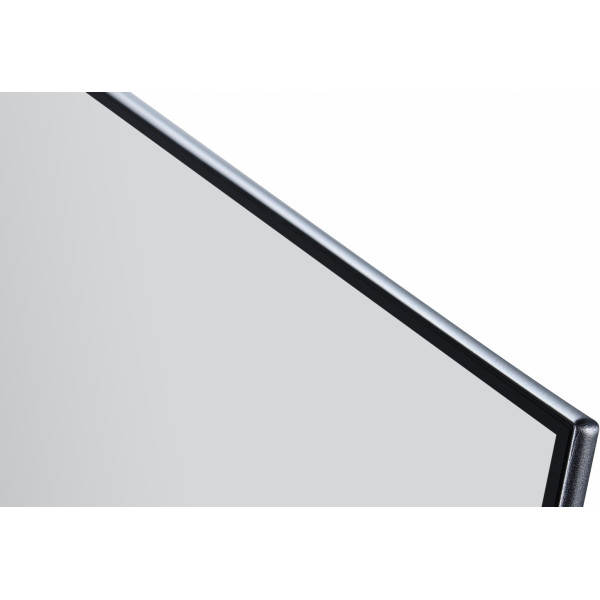

32" (31.5" viewable) FHD SuperClear® IPS Monitor with a Stylish Ultra-Slim Frameless Design
SPECIFICAȚII
- DISPLAYMonitor Size: 32”W (31.5” Viewable)
Panel Technology: SuperClear® IPS TFT CD
Rezoluție: 1920 x 1080
Display Area: 698.4mm (H) x 392.85mm (V)
Aspect Ratio: 16:9
Luminozitate: 250 cd/m² (Typ)
Rată de contrast: 1200:1 (Typ)
Rată de contrast dinamic: 80,000,000:1
Viewing Angle: 178 degrees / 178 degrees (Typ)
Timp de răspuns: 8 ms (GtG)
Spectru de culori: 75% of NTSC (Typ)
Panel Surface: Anti-Glare (semi-glossy) type, Haze 1%
Pixel Pitch: 0.364mm (H) x 0.364mm (V) - INPUT SIGNALFrequency: VGA: Fh = 24 ~ 83KHz ; Fv = 50 ~ 75Hz
HDMI: Fh = 24 ~ 83KHz ; Fv = 50 ~ 75Hz
DisplayPort: Fh = 24 ~ 83KHz ; Fv = 50 ~ 75Hz
Sync: VGA: Separate Sync
HDMI: TMDS
DisplayPort: PCI-E - COMPATIBILITYPC: Windows 7, Windows 8, Windows 8.1, Windows 10 certified
Mac®: Power Mac tested

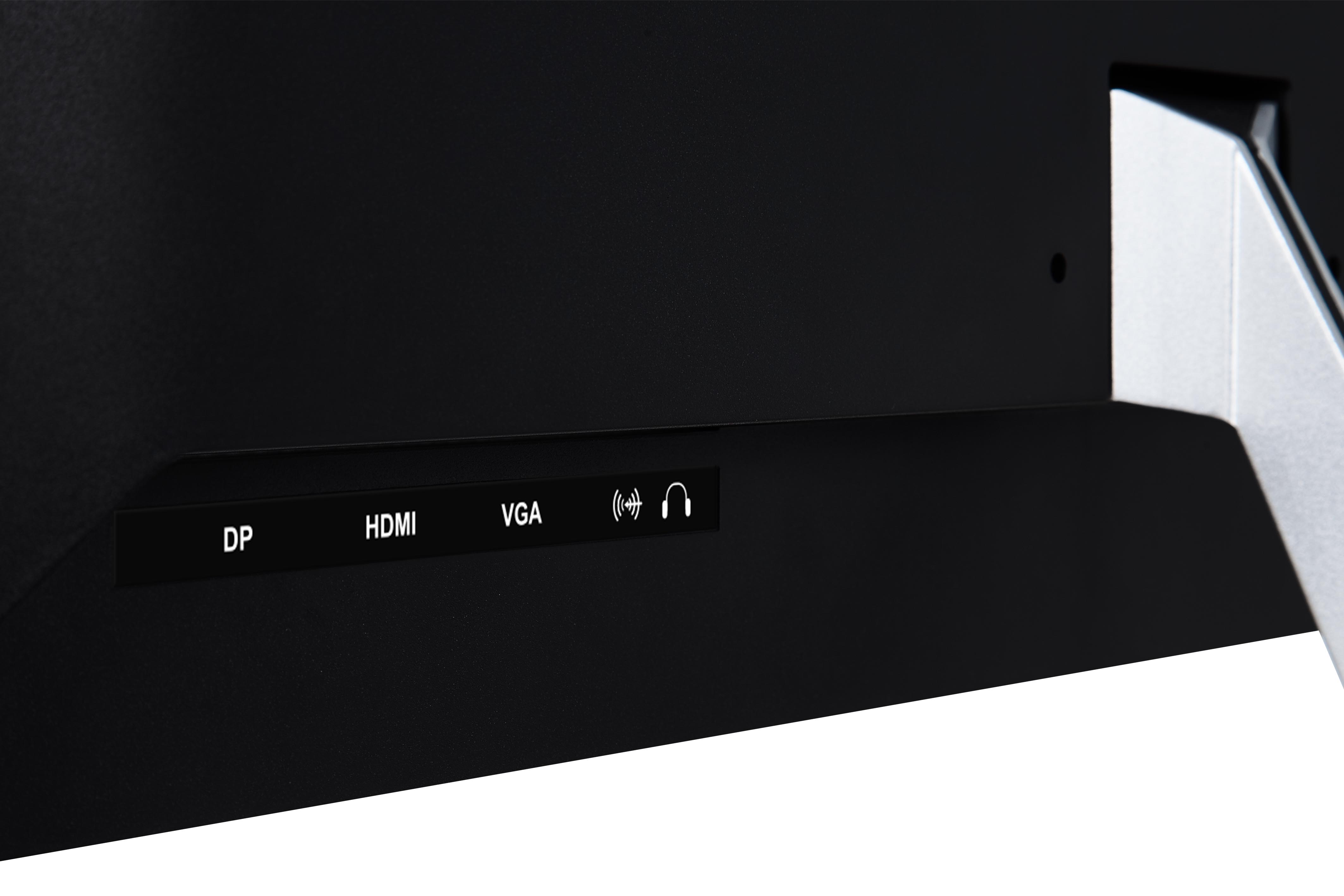

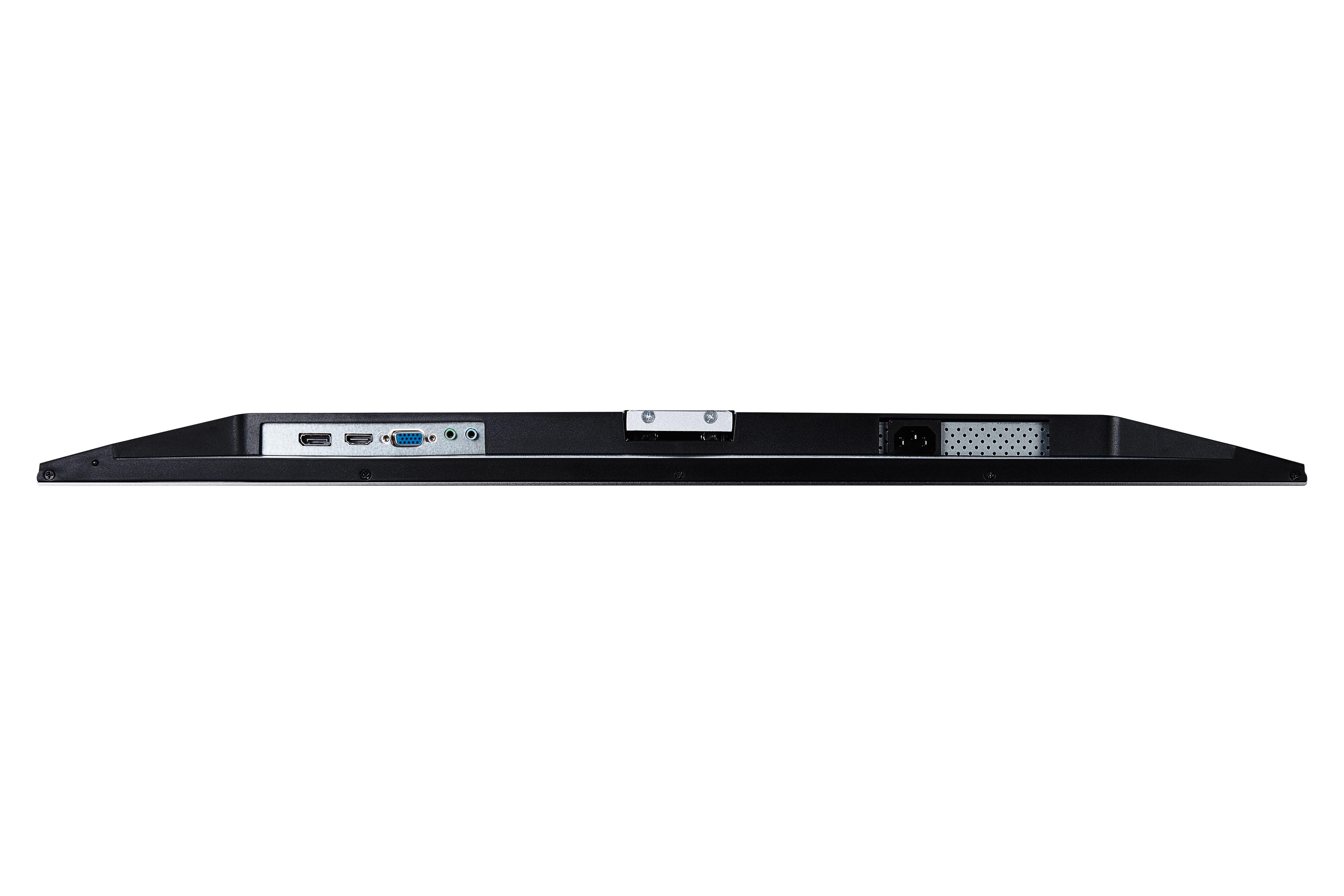

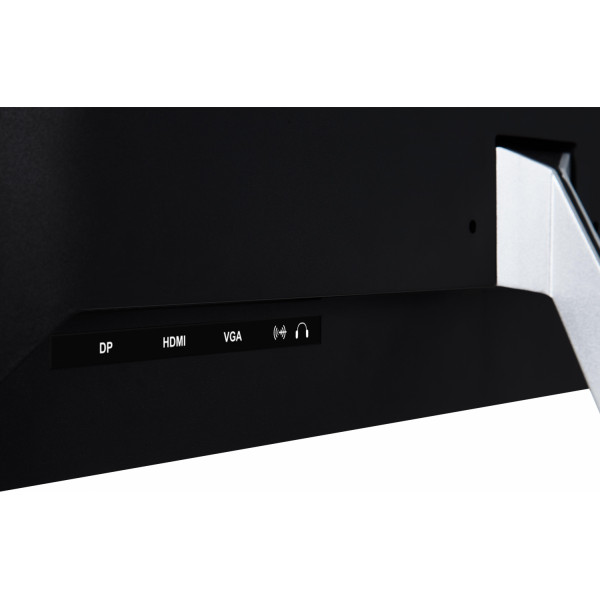

- CONNECTORDigital: HDMI x 1 (v1.4 compatible)
DisplayPort x 1 (v1.2 compatible)
Analog: VGA x 1
Audio Out: Earphone out x 1 (3.5mm plug)
Audio In: Audio in x 1 (3.5mm plug) - DIFUZOARE2W x 2
- POWERPutere: 3-pin plug (CEE22) x 1
Voltaj: AC 100-240V (Universal); 50/60Hz
Consum: 36W
Optimize: 31W

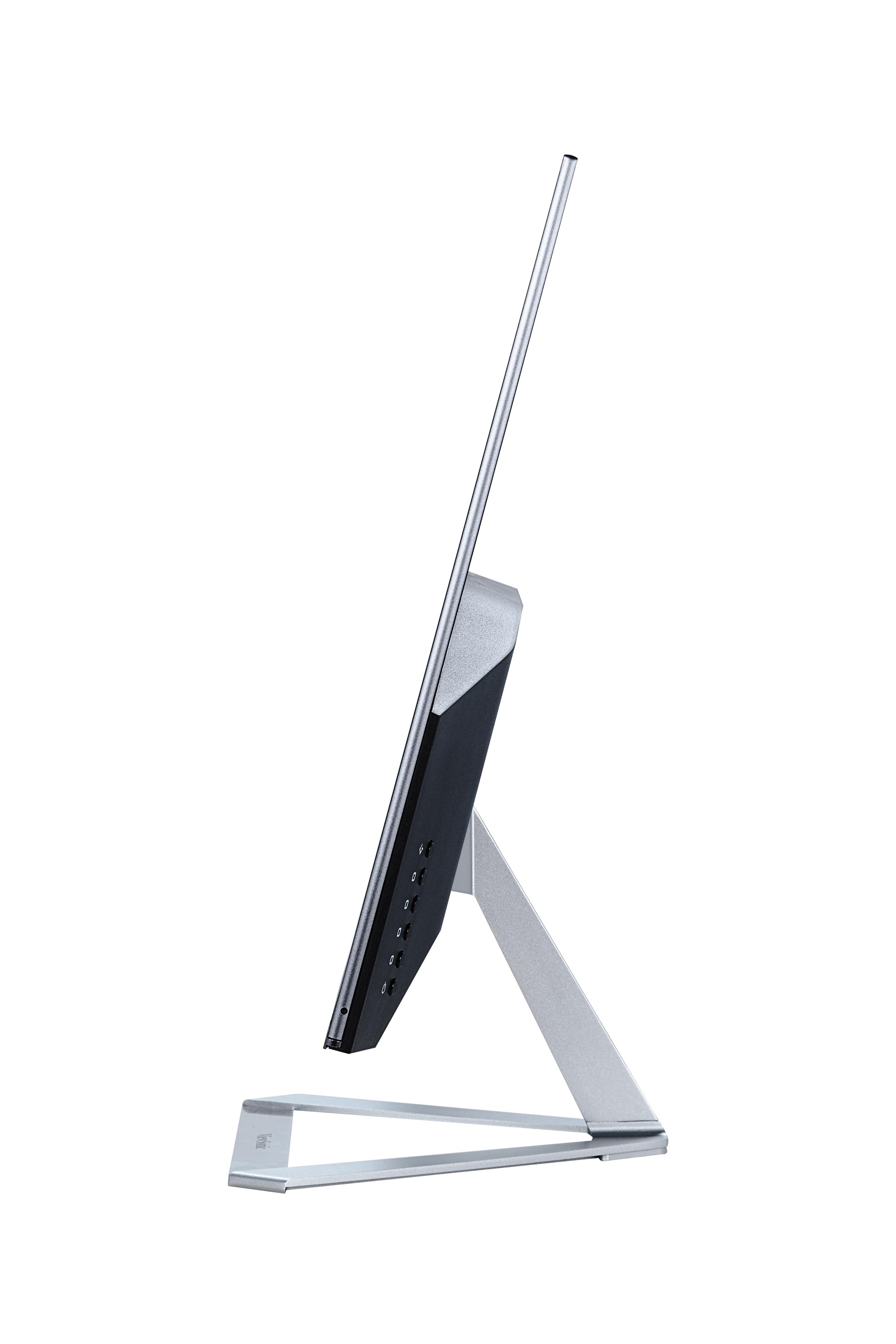

Conserve: 26W - ERGONOMICSÎnclinare: 15 ~ -4 degrees
- SPECIAL FEATURESDDC/2B, DDC/CI, HDCP, Detachable Base, KENSINGTON Microsaver Security Compatible
- WALL MOUNTVESA®: 100mm x 100mm
- OPERATING CONDITIONSTemperature (º F / º C): 32°F to 104°F (0°C to 40°C)
Umiditate: 20% to 90% (no condensation) - DIMENSIONS (W x H x D) (mm)Physical with stand (mm): 712.89mm (W) x 503.87mm (H) x 230mm (D)
Physical without stand (mm): 712.89mm (W) x 416.4mm (H) x 38.2mm (D)
Ambalare (mm): 785mm (W) x 498mm (H) x 112mm (D) - WEIGHTNet with stand (kg): 6.2kg
Net without stand (kg): 5.6kg
Greutate (kg): 8.2kg - CONȚINUT PACHETLCD Display
Power Cable
HDMI Cable
Quick Start Guide
*Actual content may differ from market to market
