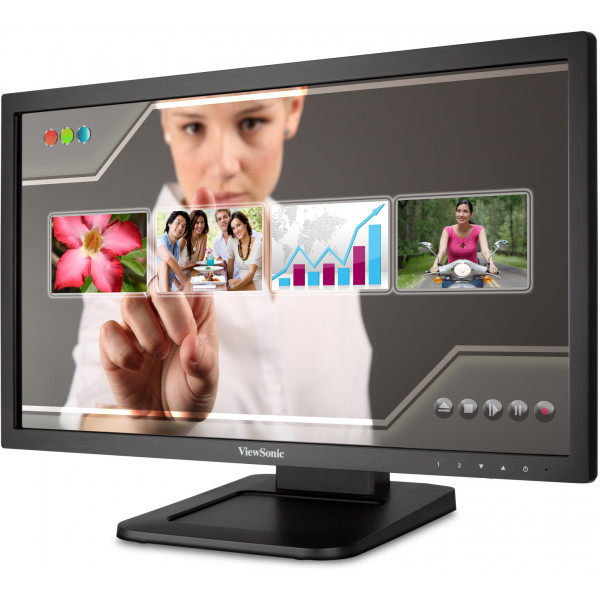

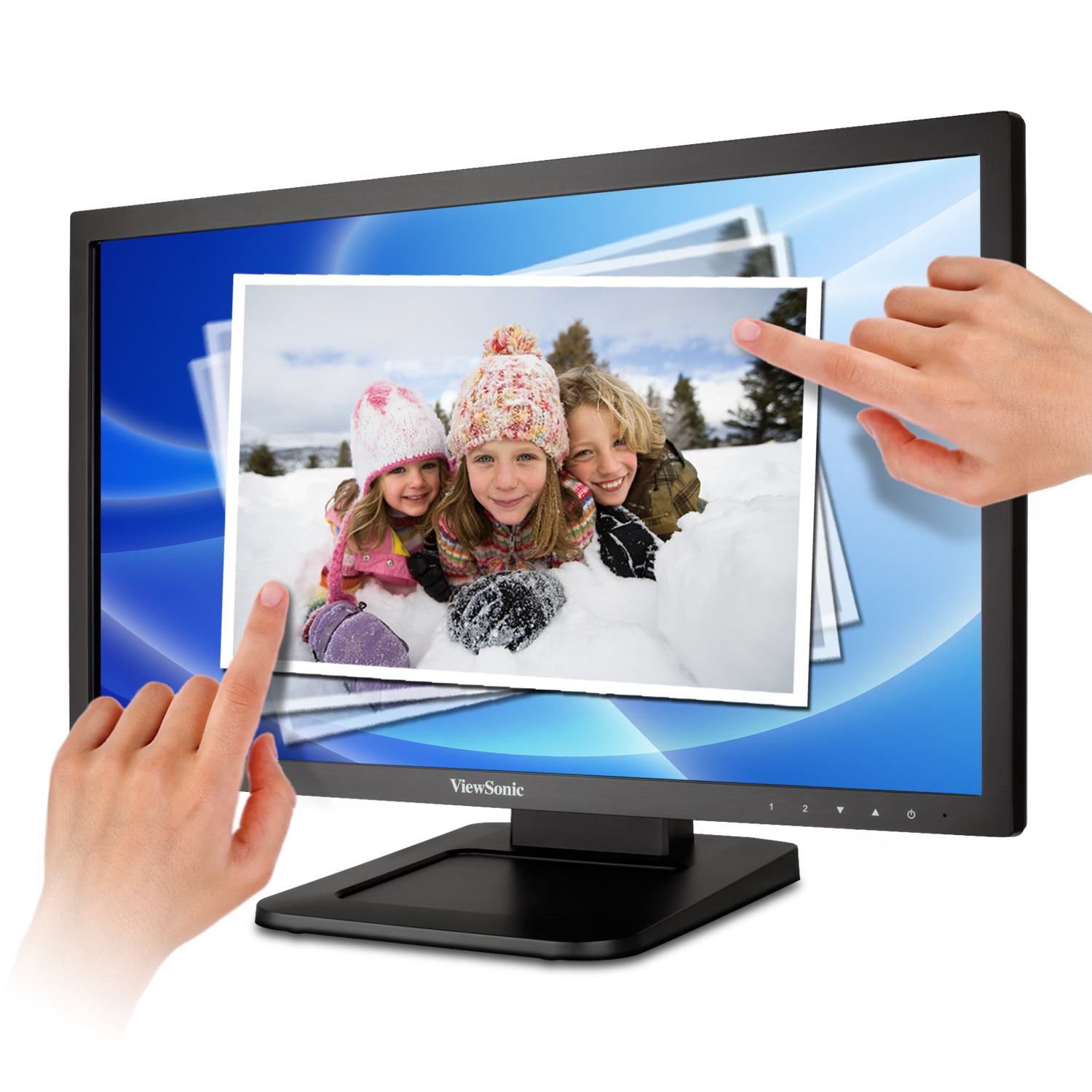

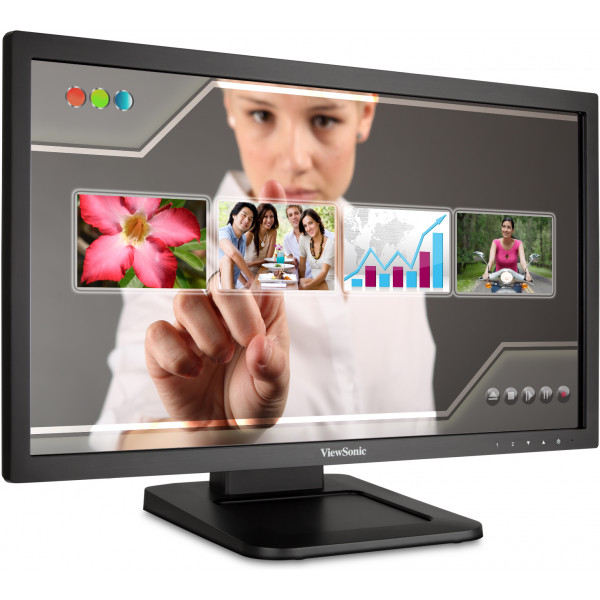

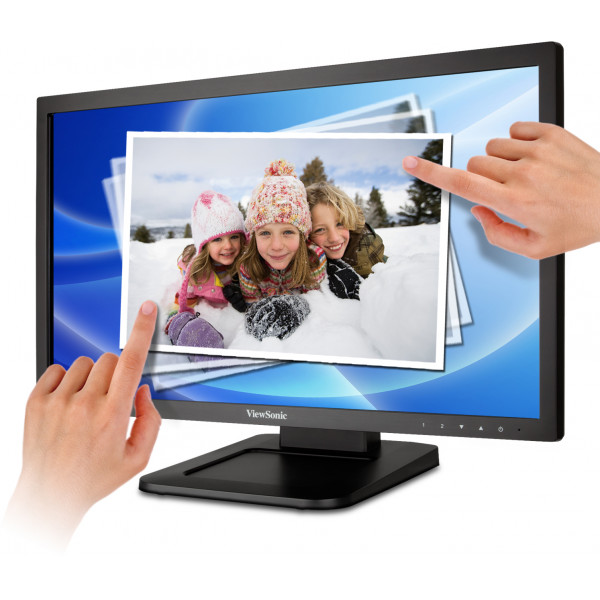

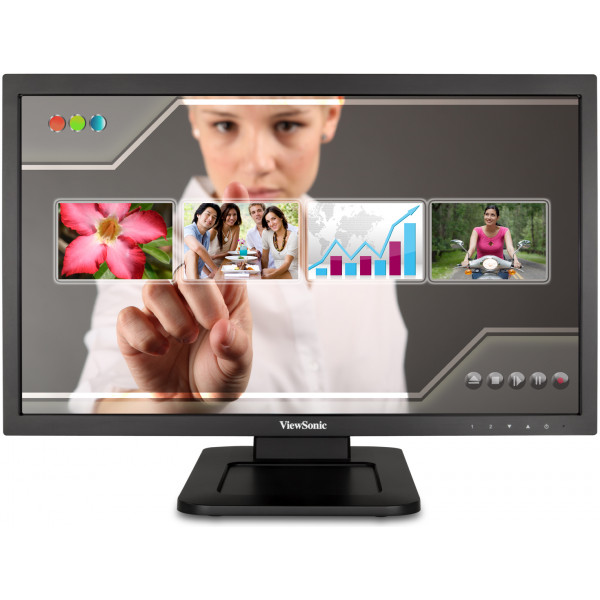

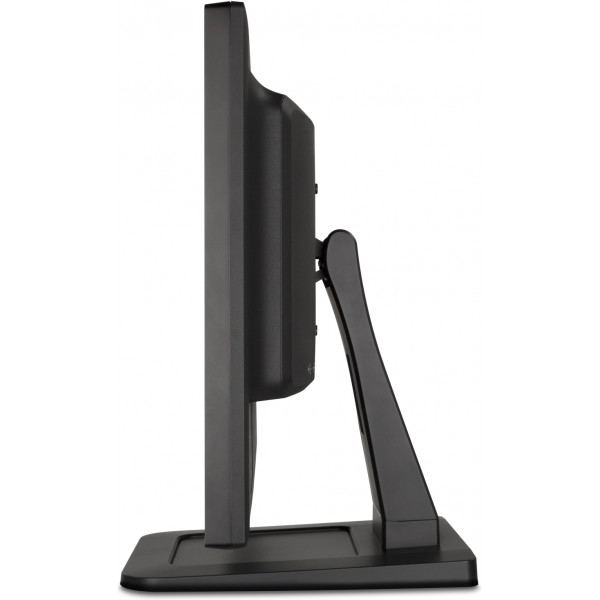

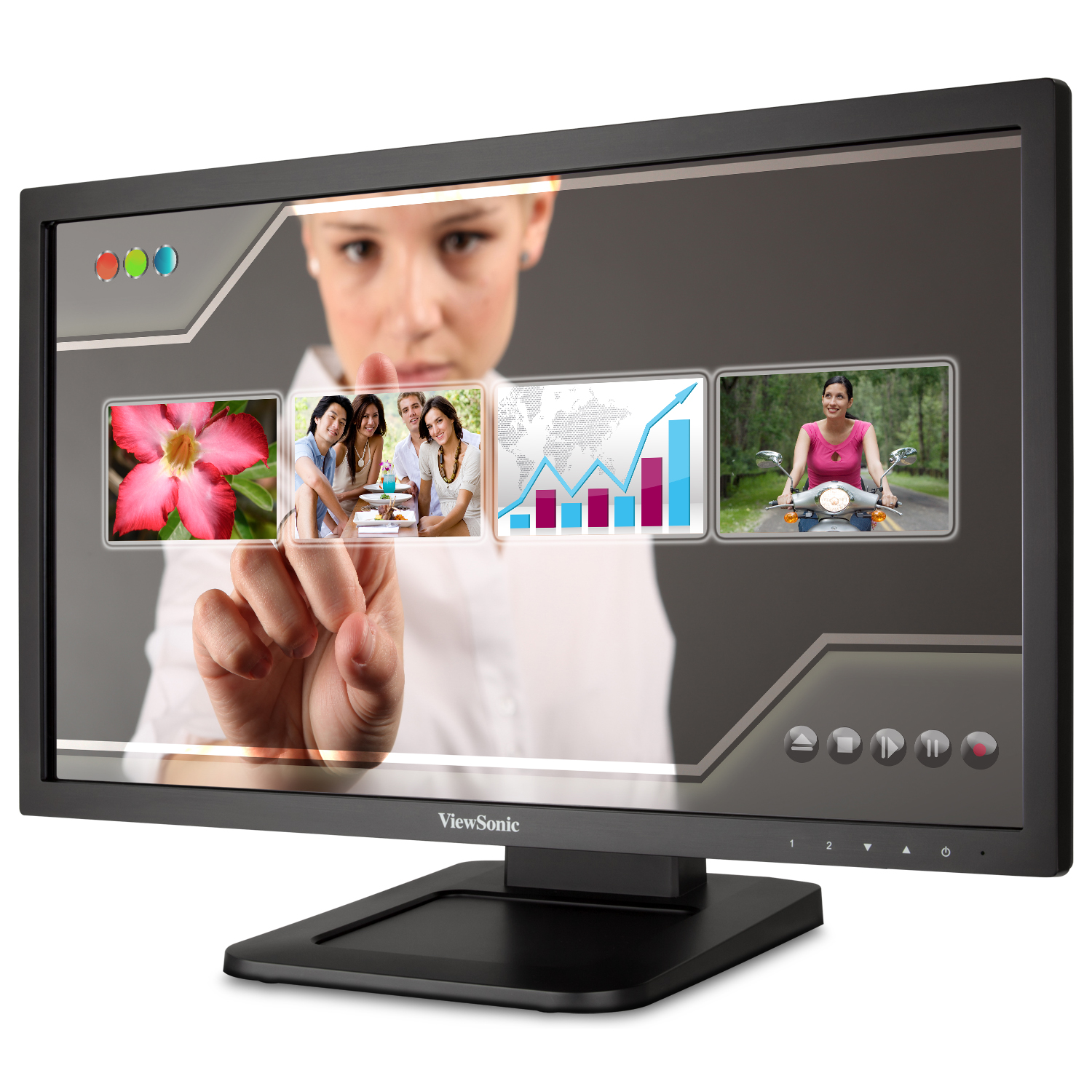

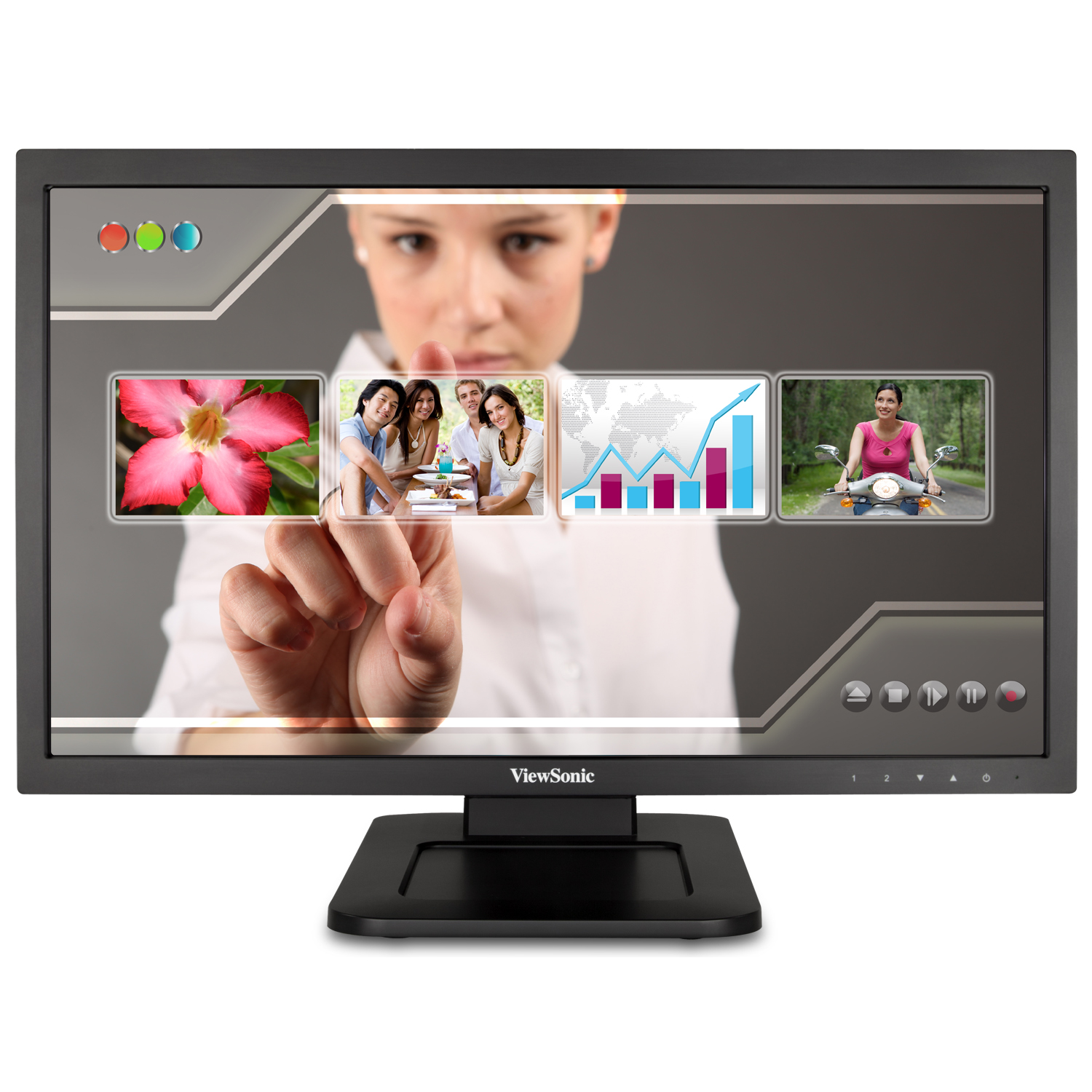

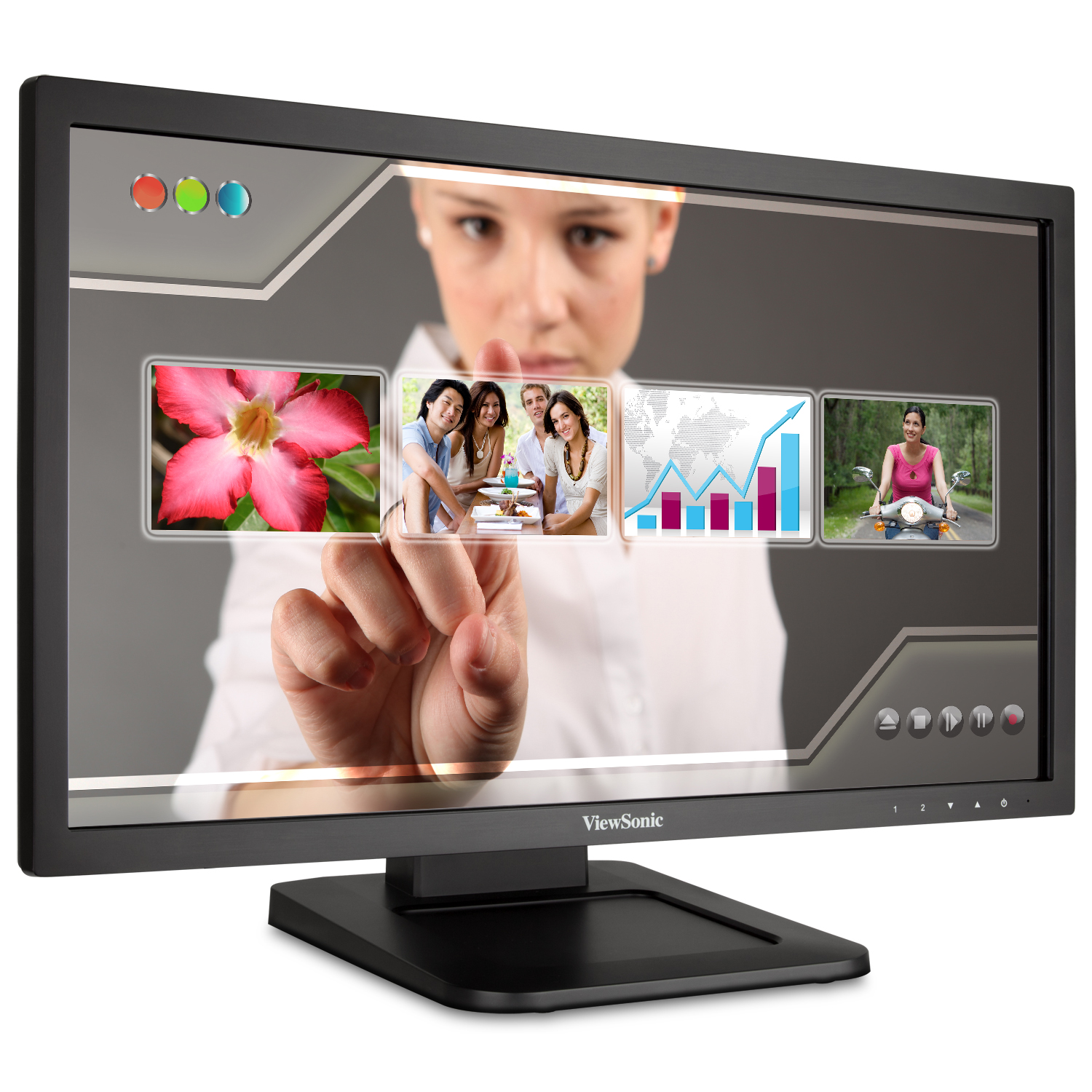

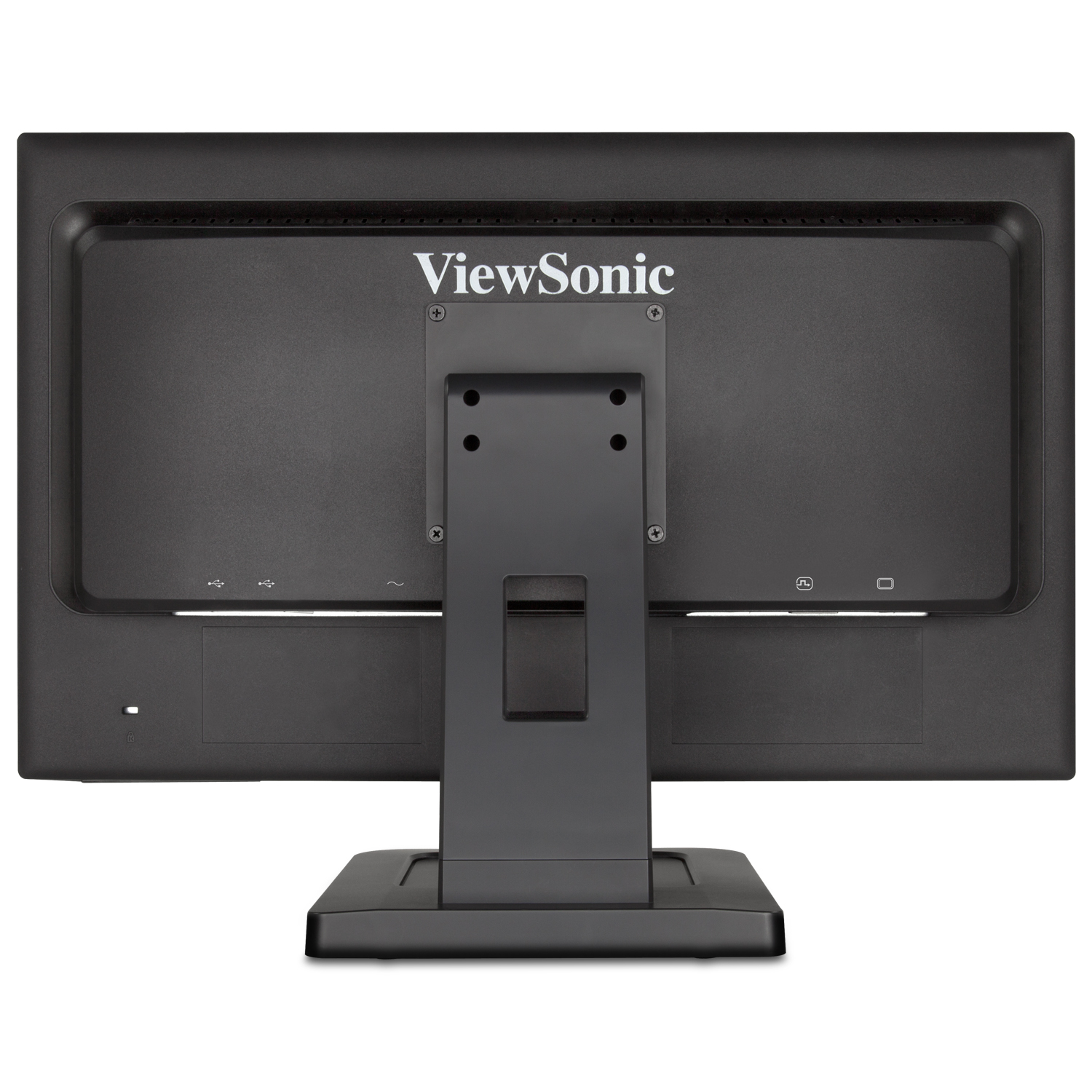

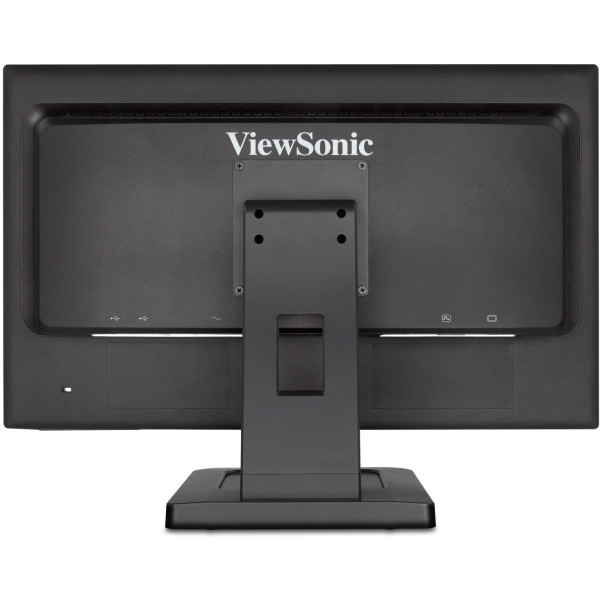

TD2220
22" 2-point Touch Screen Monitor
SPECIFICAȚII
- DisplayDimensiune Display (încheiat): 22
Suprafață de vizualizare (inch): 21.5
Tip Panel: TN Technology
Rezoluție: 1920 x 1080
Tip rezoluție: FHD (Full HD)
Rata de contrast static: 1,000:1 (typ)
Rată de contrast dinamic: 20M:1
Sursă de lumină: LED
Luminozitate: 200 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspect Ratio: 16:9
Response Time (Typical Tr+Tf): 5ms
Unghiuri de vizualizare: 170º horizontal, 160º vertical
Durată de viață sursă iluminare fundal (ore): 30000 Hrs (Min)
Curbare: Flat
Rată de refresh (Hz): 60
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Dimensiune Pixel: 0.248 mm (H) x 0.248 mm (V)
Tratament pentru protecția suprafeței: Glossy, Hard Coating (7H)
Cover Glass Thickness: 1.88mm - CompatibilitateRezoluție PC (maximă): 1920x1080
Rezoluție Mac® (max): 1920x1080
Sistem de operare PC: Windows XP/Vista/7 certified; macOS tested

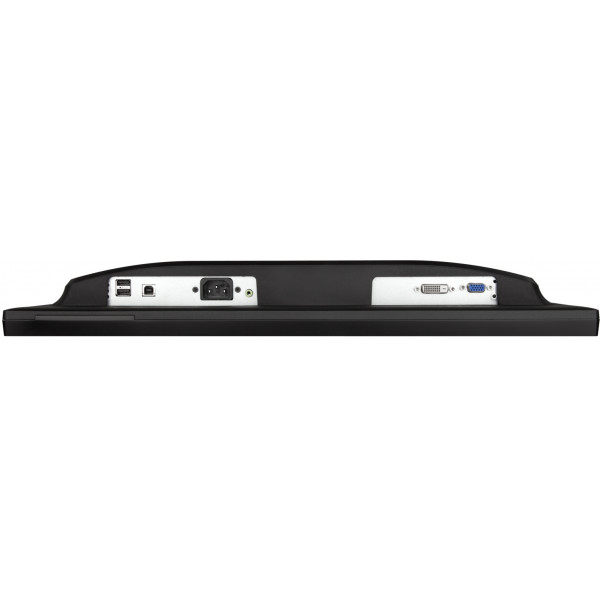

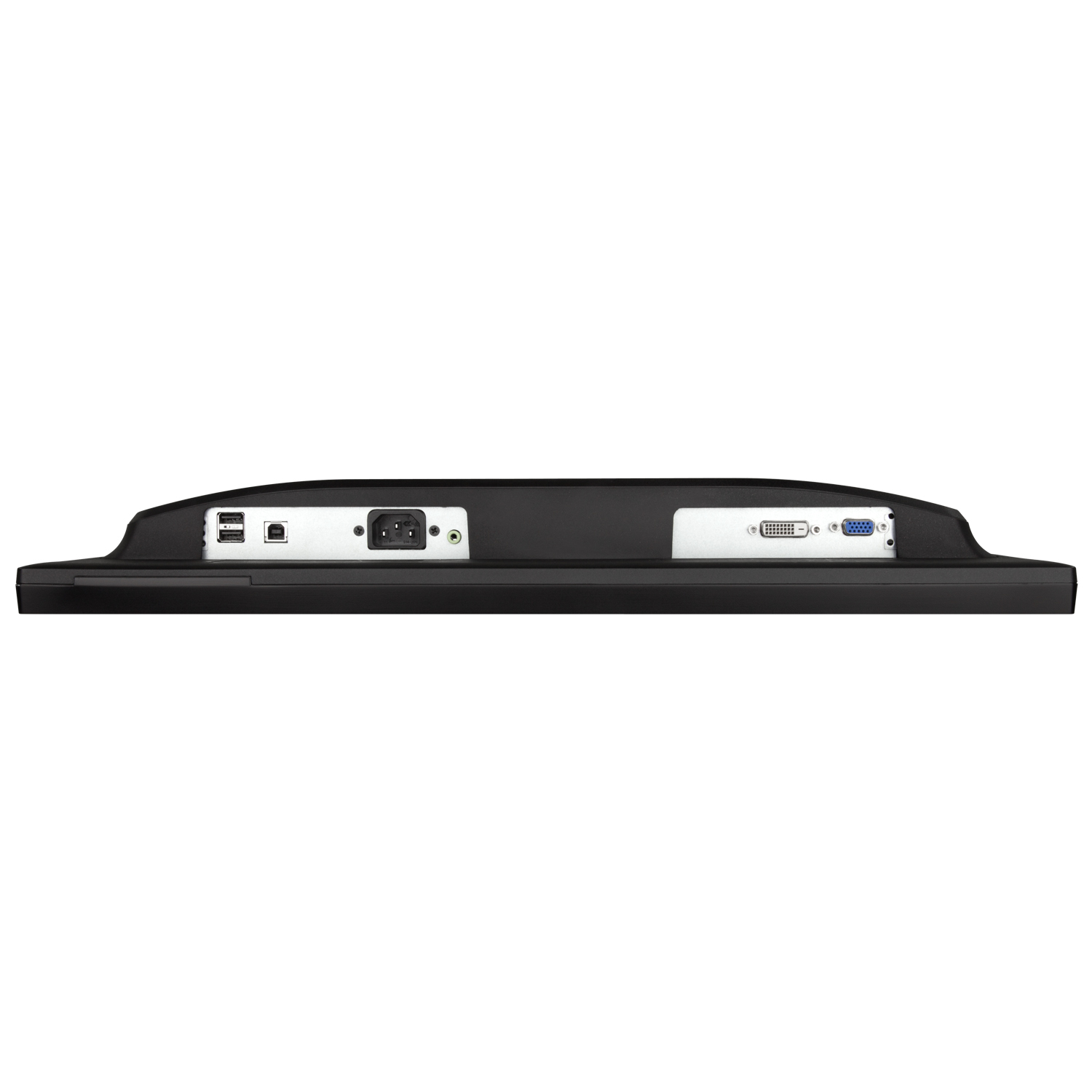

Rezoluție Mac® (min): 1920x1080 - ConectorVGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
DVI-D: 1
Putere intrare: 3-pin Socket (IEC C14 / CEE22)
- AudioDifuzoare interne: 2Watts x2
- PutereMod Eco (Menținut): 16W
Eco Mode (optimized): 18W
Consum (tipic): 23.5W
Consum (max): 26.5W
Voltaj: AC 100-240V
Stand-by: 0.5W
Sursă: Internal Power Supply - Hardware extraSlot blocaj Kensington: 1
Cable Organization: Yes - ControaleComenzi fizice: 1, 2, Up, Down, Power
On Screen Display (OSD): Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall - Condiții de funcționareTemperatură: 32°F to 104°F (0°C to 40°C)
Umiditate (lipsă condens): 20% to 90% - Wall Mount Compatibil VESA: 100 x 100 mm
- Semnal intrareFrecvență orizontală: 24 ~ 83KHz
Frecvență verticală: 50 ~ 76Hz - Intrare videoDigital Sync: TMDS - DVI-D

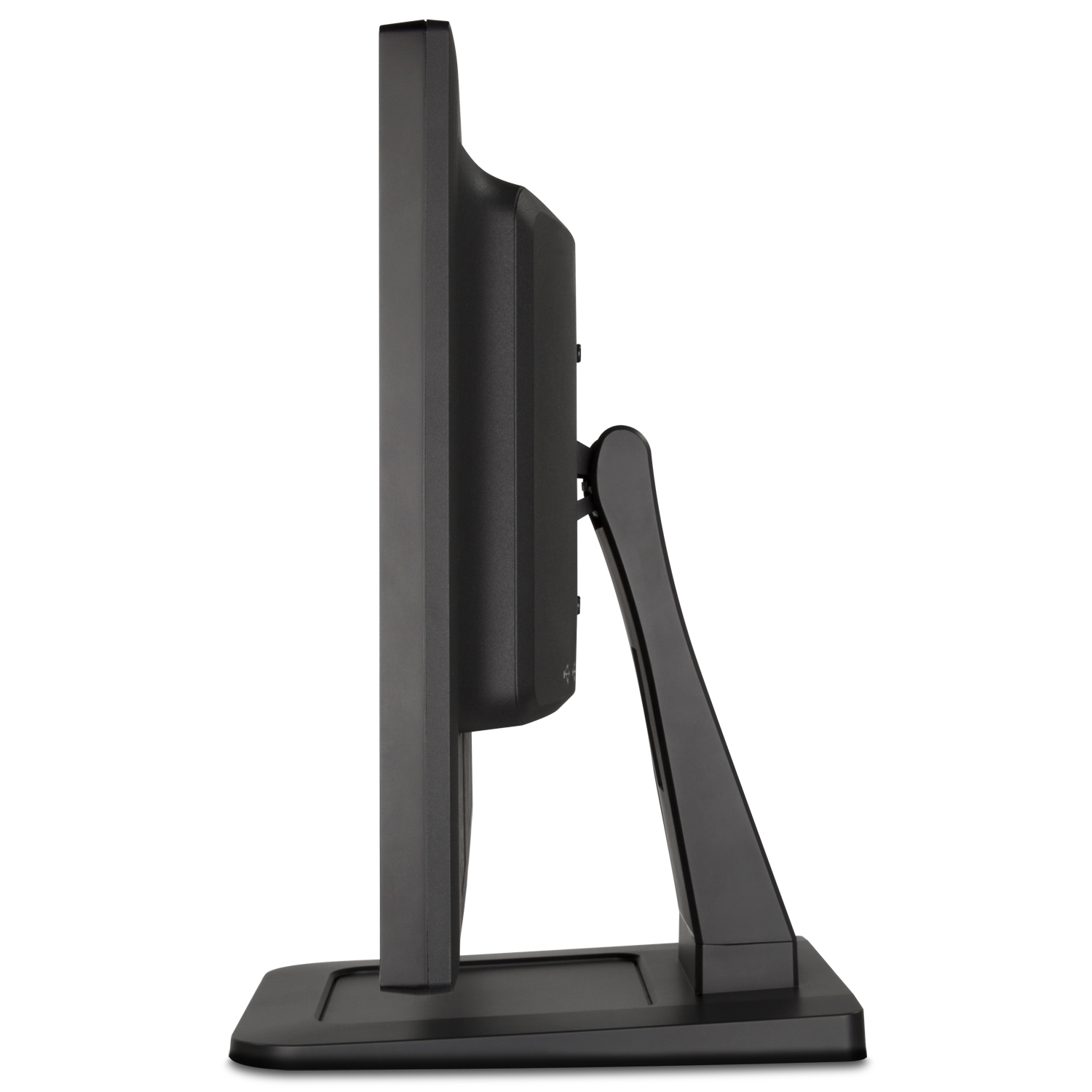

Analog Sync: Separate/Composite/SOG - RGB Analog - ErgonomieÎnclinare (față/spate): -5º / 20º
- Greutate (imperial)Masă (Ibs): 10.8
Greutate fără stand (Ibs): 8.7
Greutate (Ibs): 14.2 - Weight (metric) Masă (kg): 4.9
Greutate fără stand (kg): 4
Greutate (kg): 6.5 - Dimensiuni (imperial) (wxhd)Ambalare (în.): 22.4 x 16.8 x 8.4
Dimensiuni (înch): 20.1 x 14.4 x 9.4
Dimensiune fără stand (inch): 20.1 x 12.2 x 2.6 - Dimensiuni (metric) (wxhd)Ambalare (mm): 570 x 427 x 214
Dimensiuni (mm): 511 x 365 x 240
Dimensiune fără stand (mm): 511 x 310 x 66 - GeneralReguli: cULus, FCC-B, ICES003, Energy Star, CEC, MX-CoC, Mexico Energy, REACH, WEEE, VCCI, BIS
CONȚINUT PACHET: TD2220 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, DVI Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Coș de gunoi: Please dispose of in accordance with local, state or federal laws.
Garanție: *Warranty offered may differ from market to market
Power Management: Energy Star standards
