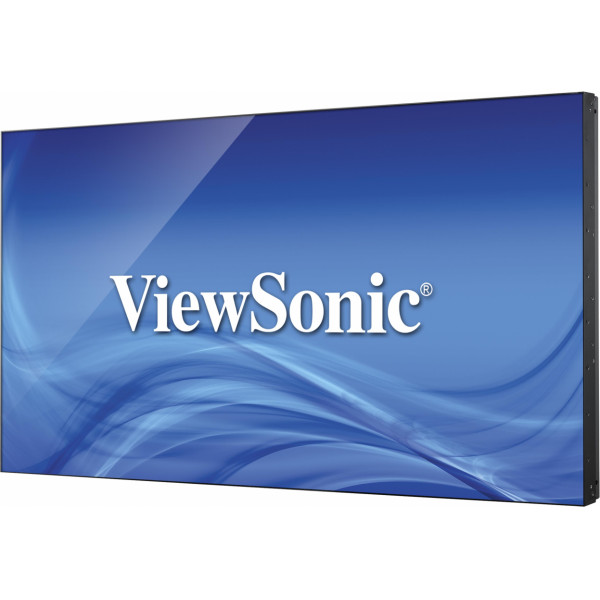

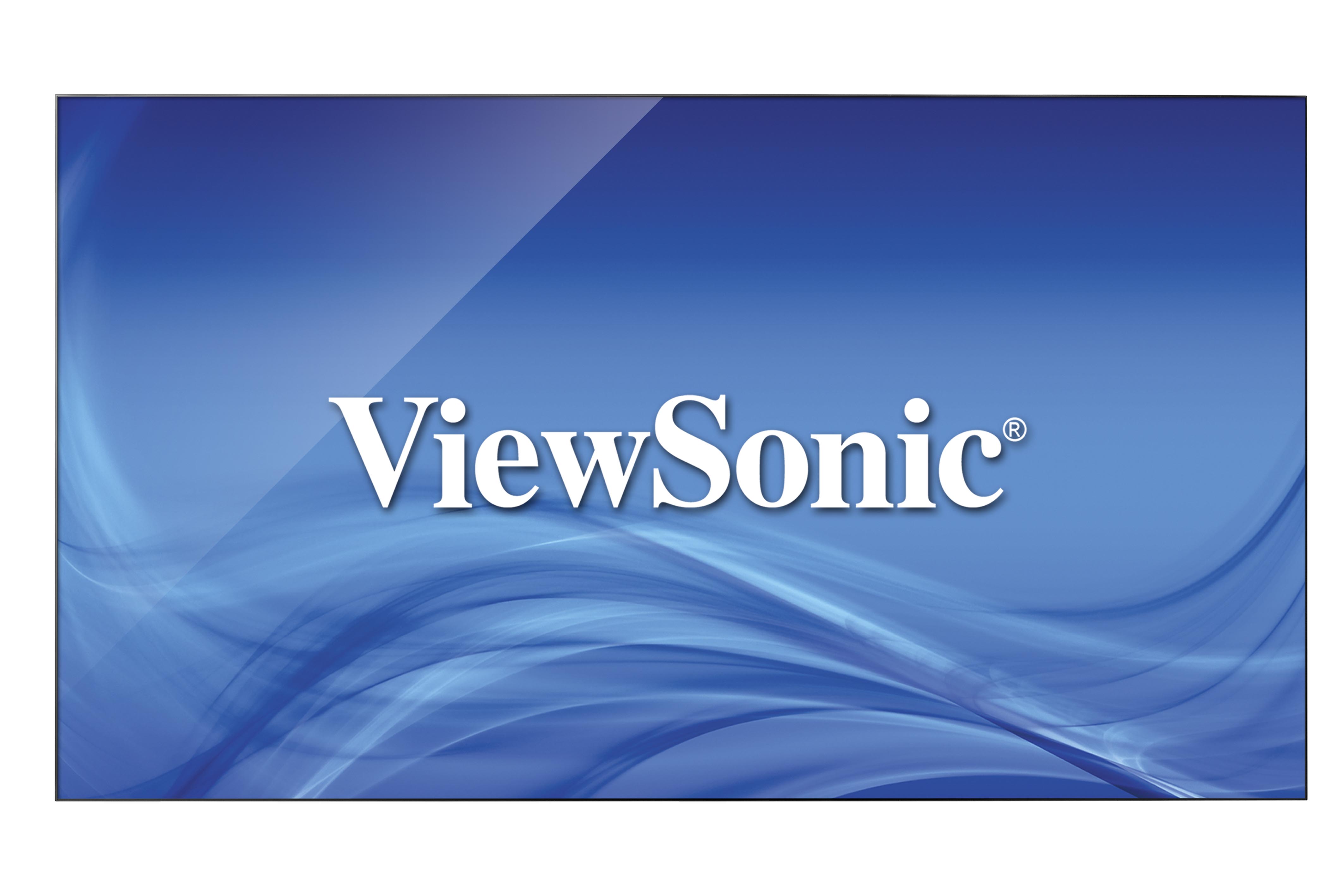

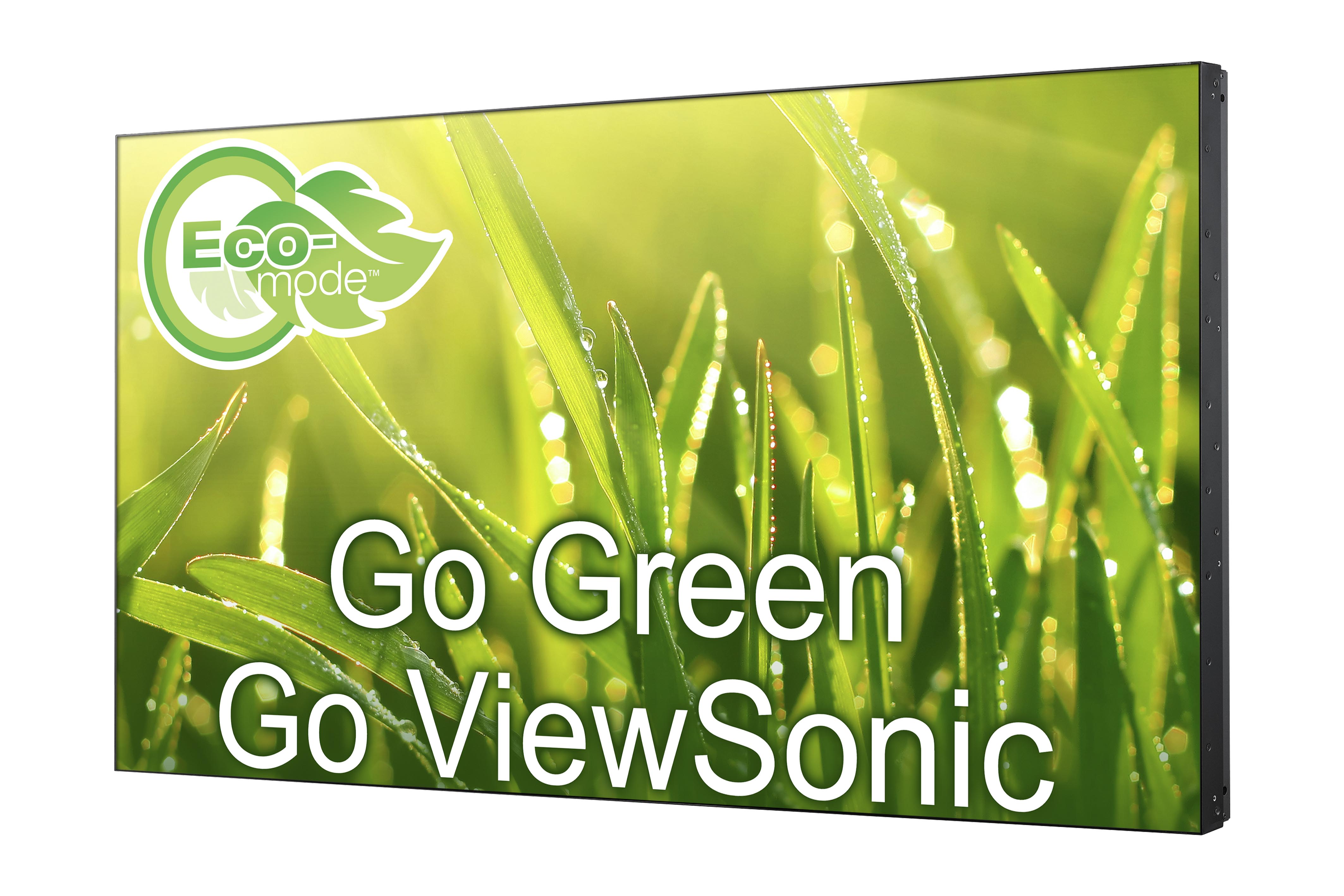

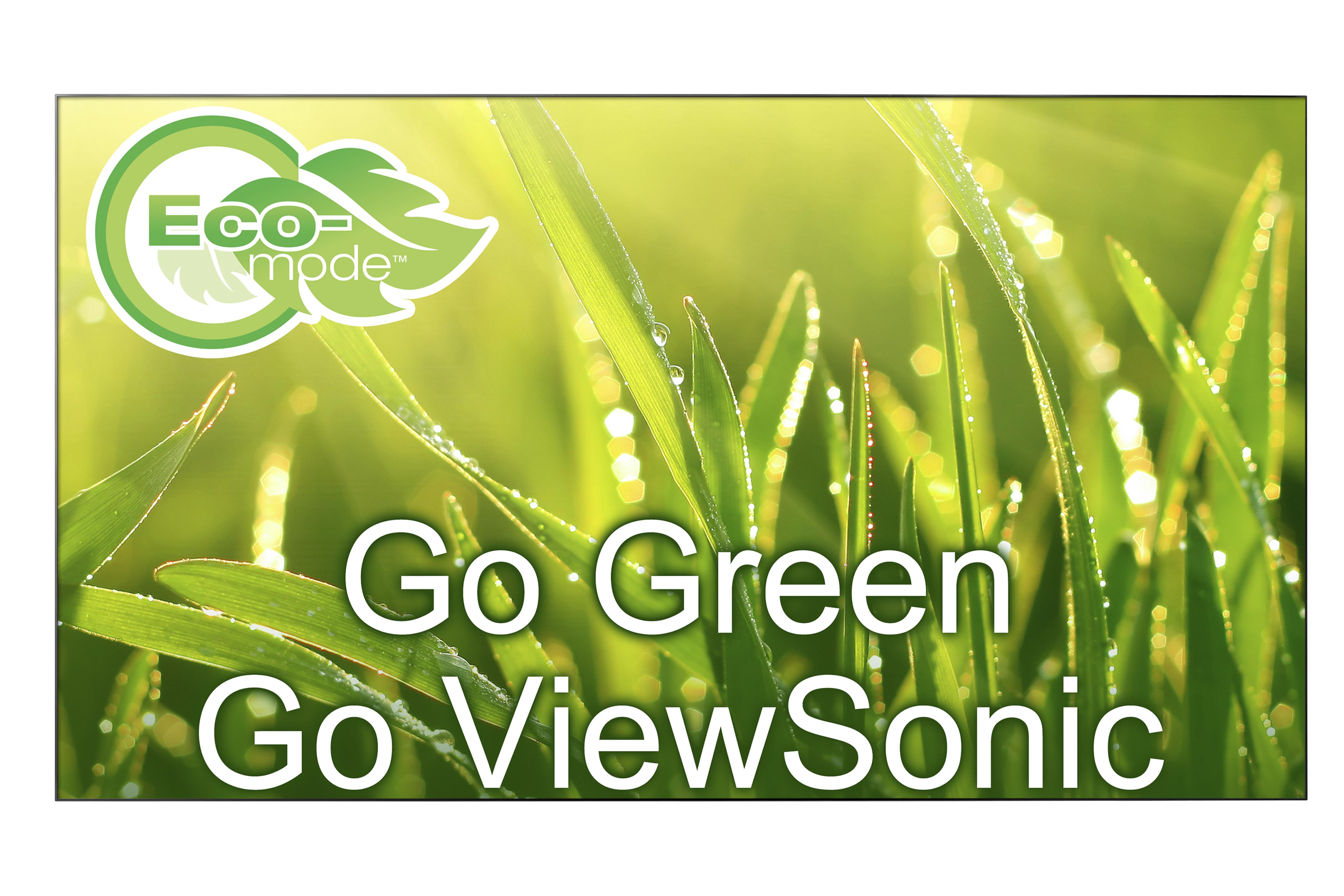

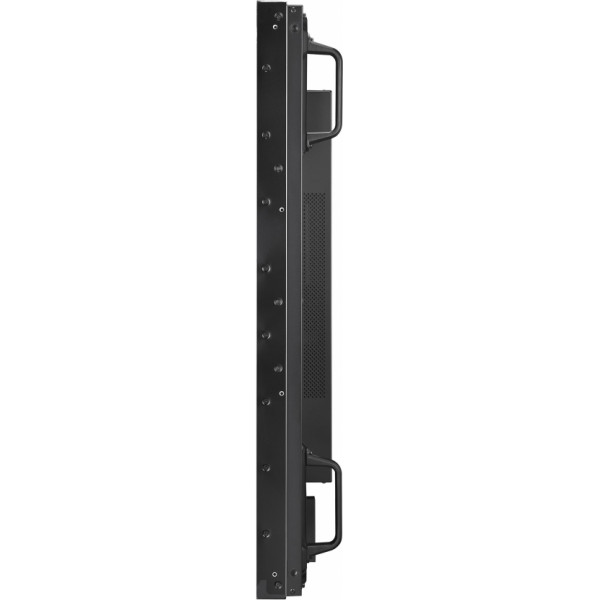

CDX4952
49" 1080p Commercial Display
- Ultra-narrow Bezel
- 10x10 Tiling Support with DisplayPort or DVI
- Supports HDMI CEC pass-through
- vController Software
- Computing expansion PC slot for Intel OPS
SPECIFICAȚII
- LCD PANELDimensiune Panel: 49" (48.5'' diagonal)
Tipul/ Tehnologia: TFT LCD Module. (IPS type, DLED backlight)
Suprafață Display (mm): 1073.8(H) x 604.0 (V) (48.50” diagonal)
Aspect Ratio: 16:09
Rezoluție: 1920 x 1080
Colors: 10 bit, 1.07 Billion colors
Luminozitate: 450 nits (typ.)
Rată de contrast: 1300:1 (typ.)
Timp de răspuns: 12 ms
Unghiuri de vizualizare: H = 178°, V = 178° (typ.)
Backlight: LED
Durată de viață sursă de lumină fundal: 50,000 Hours (typ.)

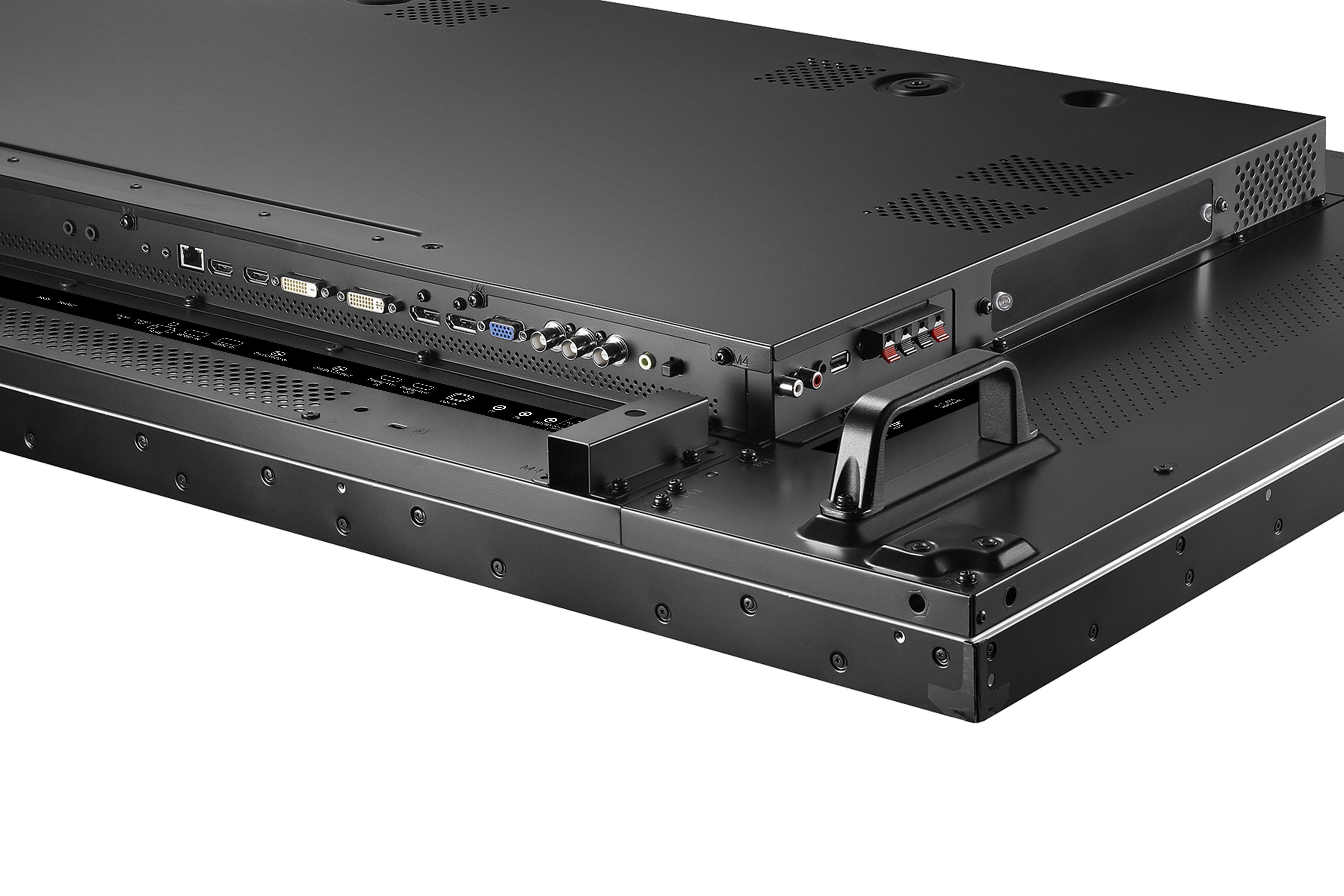

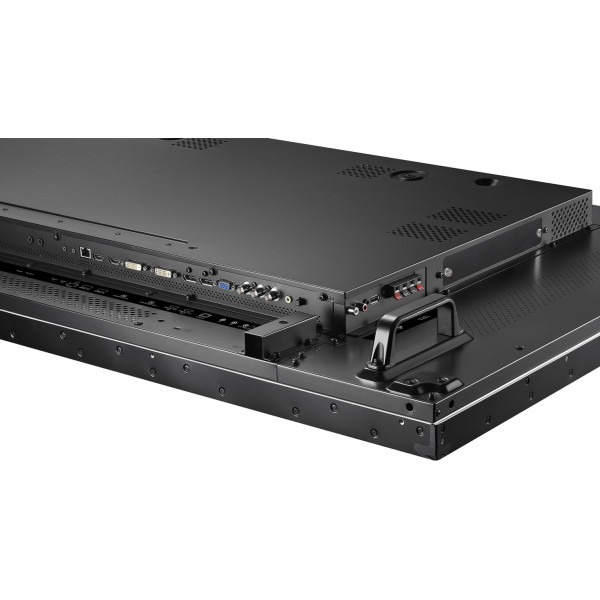

Hardness: Hard coating(3H), Anti-glare treatment of the front polarizer, Haze 1%(Typ.) - INPUTHDMI: x 2 (1.4)
RGB/ VGA: x 1
Display Port: x 1
DVI: x 1
Audio: x1
CVBS: x 1 (Share with component Y)
YPbPr: x 1
RS232: x 1
OPS: x 1
IR Pass Through: x 1 - OUTPUTDisplay Port: x 1
DVI: x 1
Audio: x 1
RS232: x 1
IR Pass Through: x 1
- LANRJ45: x 1
- DIFUZOARE10W x2
- COMPATIBILITYCVBS: 480i
HDMI (1080p): 480i, 480p,720p,1080i,1080p, 4k2k@30Hz
Display Port: 480i, 480p,720p,1080i,1080p, 4k2k@30Hz
YPbPr: 480i, 480p,720p,1080i,1080p
DVI: 480i, 480p,720p,1080i,1080p - CONTROLSPhysical- Top OSD: PICTURE:POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU
Picture style, Restore style, Backlight, Colour, Sharpness, Noise reduction, MPEG artifact reduction, Digital Crystal Clear, Advanced, Game or computer, Format and edges, Input resolution
SOUND: Sound style, Restore style, Bass, Treble, Balance, Surround mode, Audio Out, Advanced
TILING: Enable, H monitors, V monitors, Position, Frame Comp.
GENEERAL SETTINGS: Menu language, Monitor ID, Eco mode, Auto search, Clock, Scheduling, Sleep timer, CEC, Auto adjust, Locak KB lock, RC lock, Pixel shift, Smart power, Wake on lan, Switch on state, Light sensor, LED, Switch on delay, Logo, APM, Information OSD, DisplayPort Ver., Cooling fan, Network control port,Factory settings.
NETWORK SETTINGS: View network settings, Network configuration, Static IP Configuration, Digital Media Renderer-DMR, Network name - POWERVoltaj: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consum: Normal 110 W, Max 235 W - ERGONOMICSMontare pe perete (VESA® ): 400x400mm ; Screw: M6*10mm
- OPERATING CONDITIONSTemperatură (º C): 5 – 40 degC (Landscape), 5 – 35 degC (Portrait)
Umiditate: 20% ~ 80% without condensation - DIMENSIONS Dimensiuni (inch/ mm): 1077.6 x 648.7 x 400 mm / 42.43’ x 25.54’ x 15.75’ in.
Physical w/o Stand (inch / mm): 1077.6 x 607.8 x 93.5 mm / 42.43 ‘x 23.93’ x 3.68’ in
Ambalare (inch/ mm): 1367 x 897 x 366 mm / 53.82’ x 35.31’ x 14.41’ in - WEIGHTMasă (Ib/ kg): 23.9 kg / 52.69 lb
Net w/o Stand (lb / kg): 21.6 kg / 47.62 lb
Greutate (Ib/ kg): 34.3 kg / 75.62 lb - What's in the box?1. CDX4952 Commercial Display

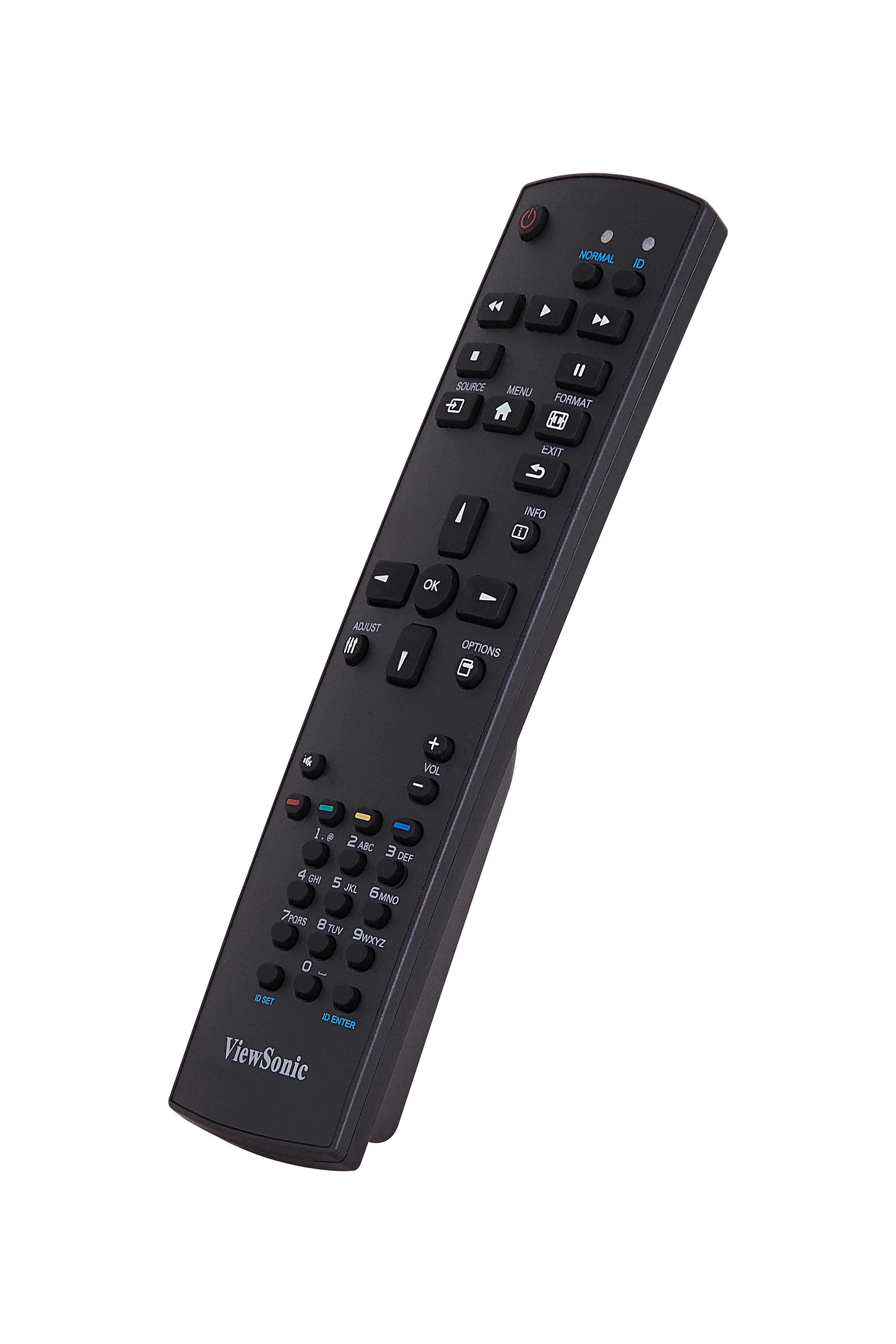

2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. VGA cable
7. RS232 cable
8. IR sensor cable
9. RS232 daisy chain cable
10. Edge Alignment Kit-1
11. Edge Alignment Kit-2
12. Thumb Screw
*Actual content may differ from market to market
