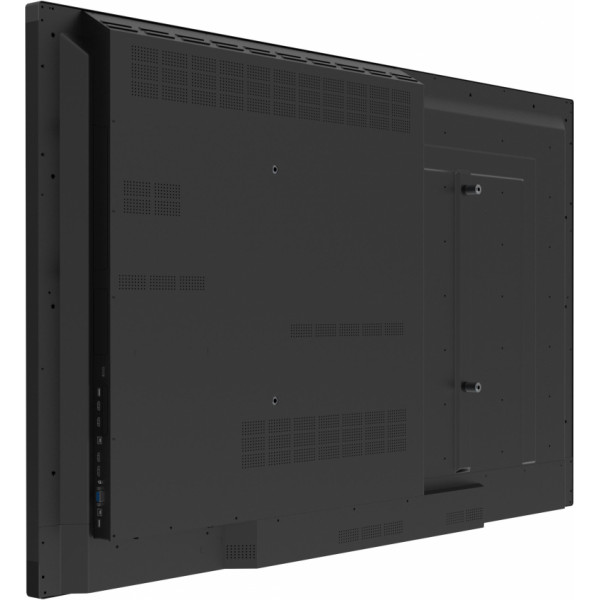

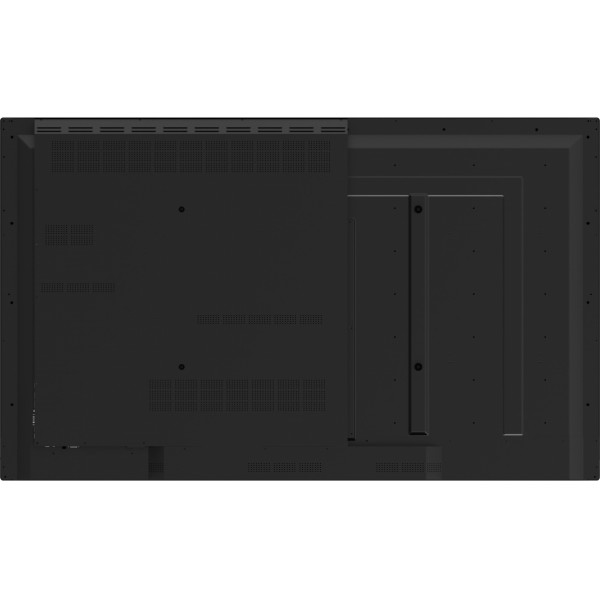

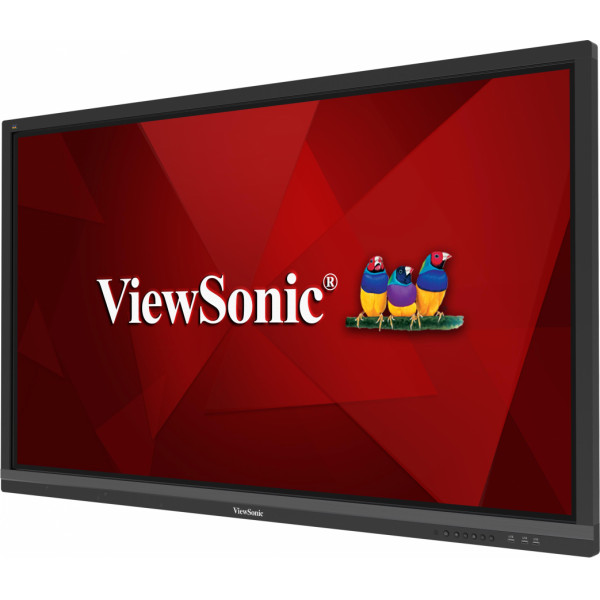

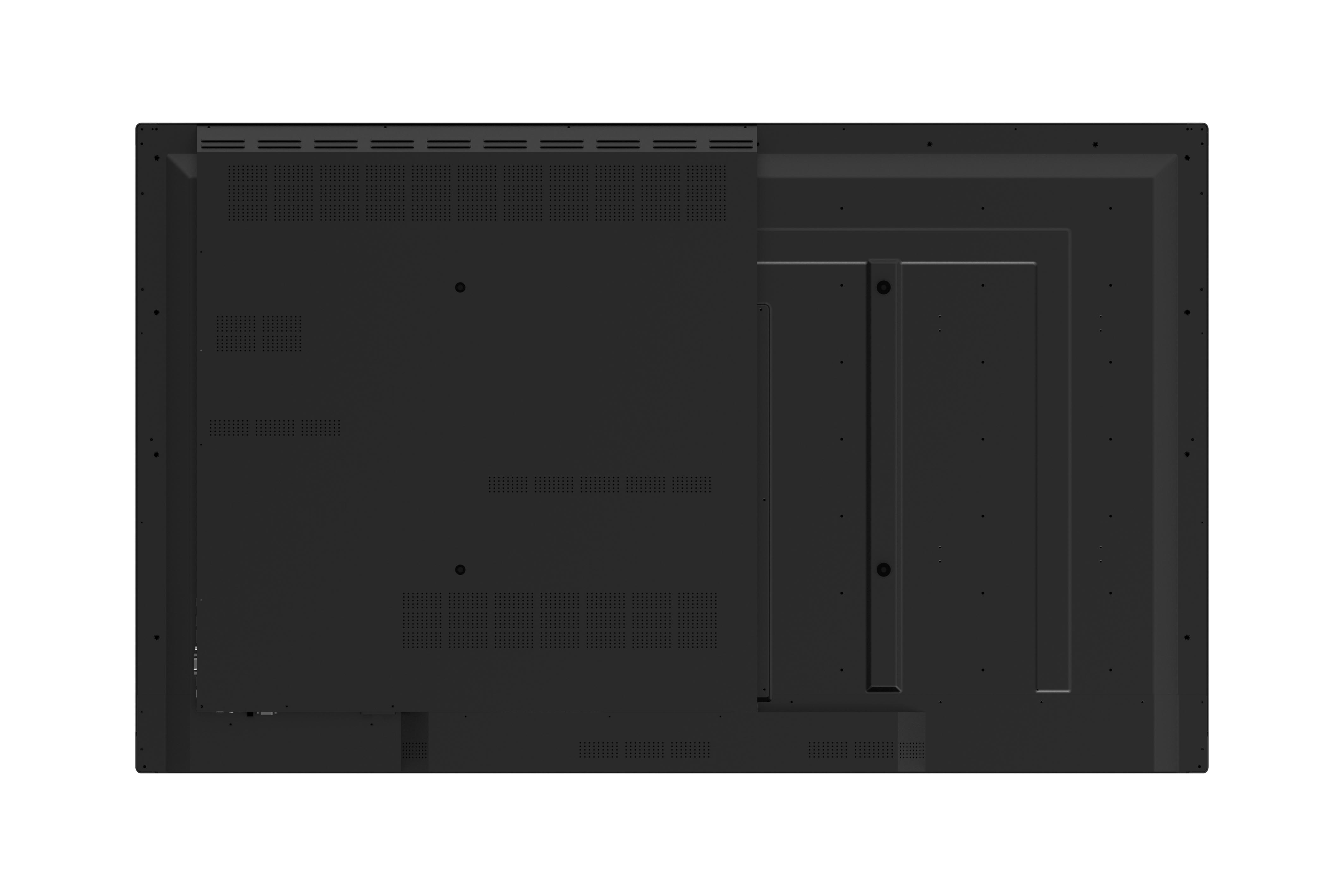

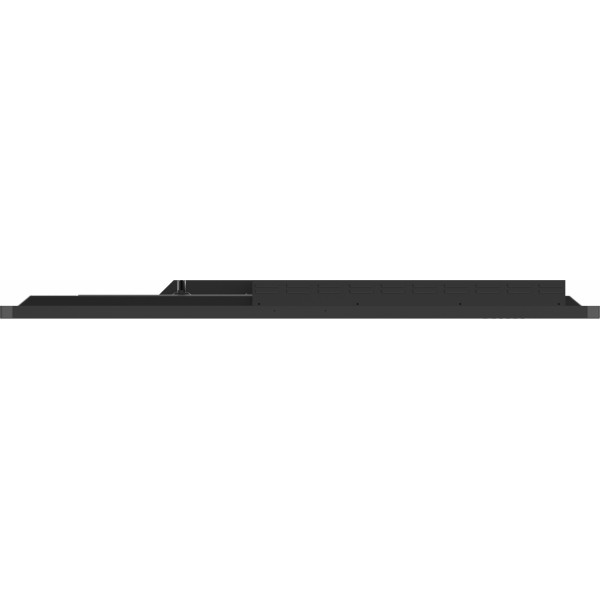

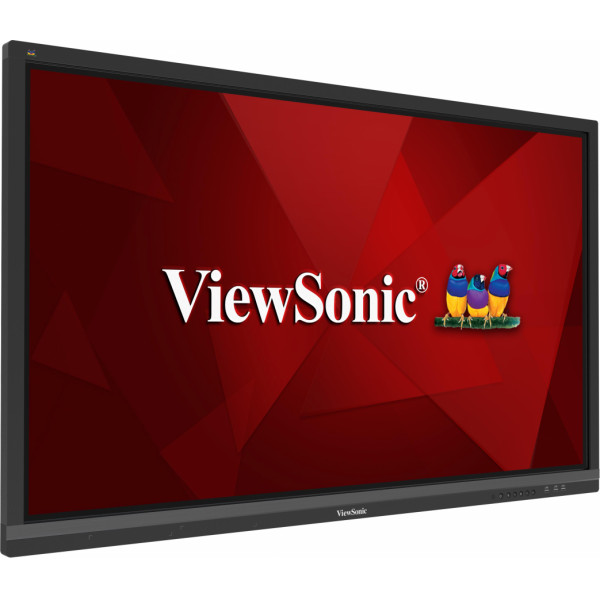

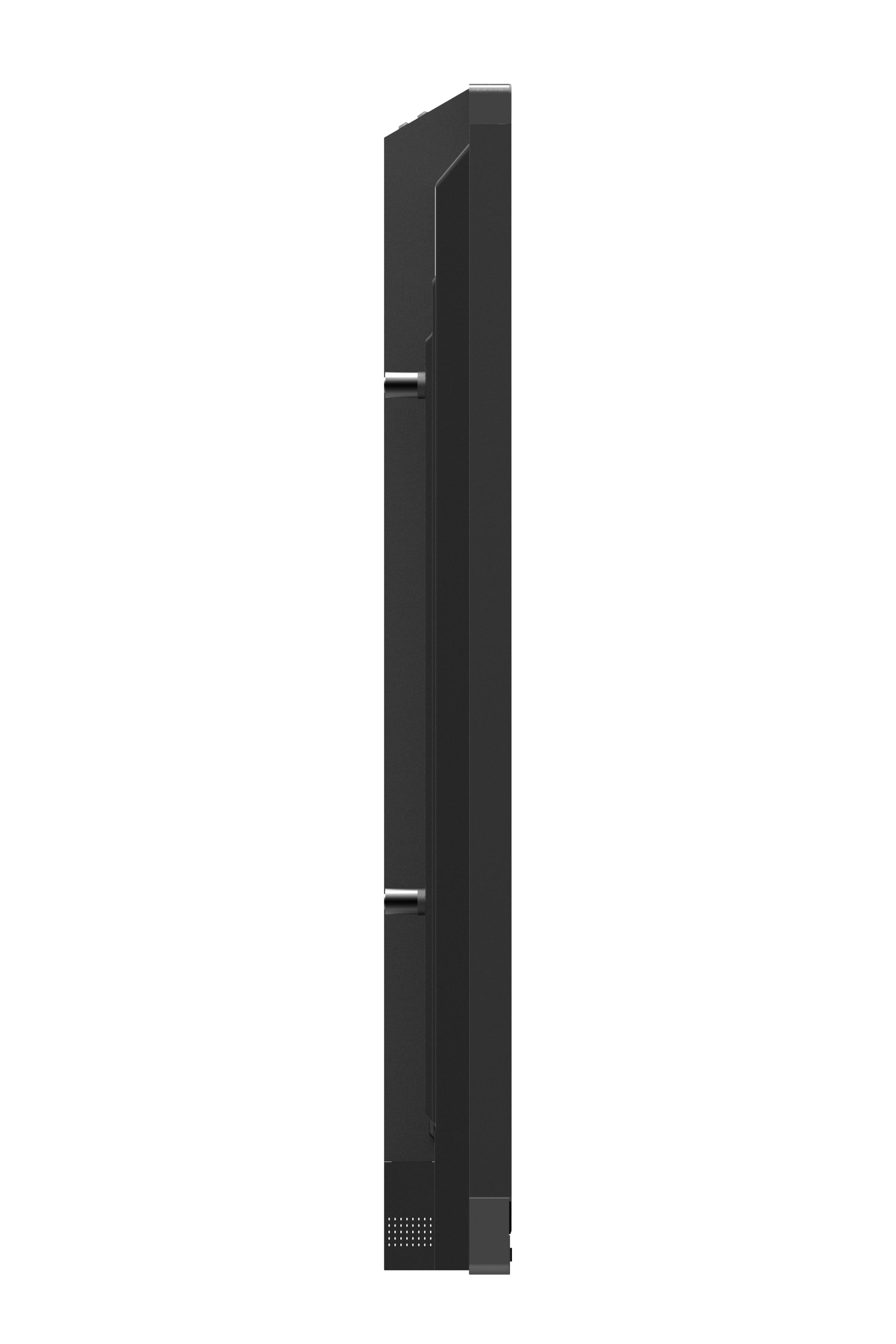

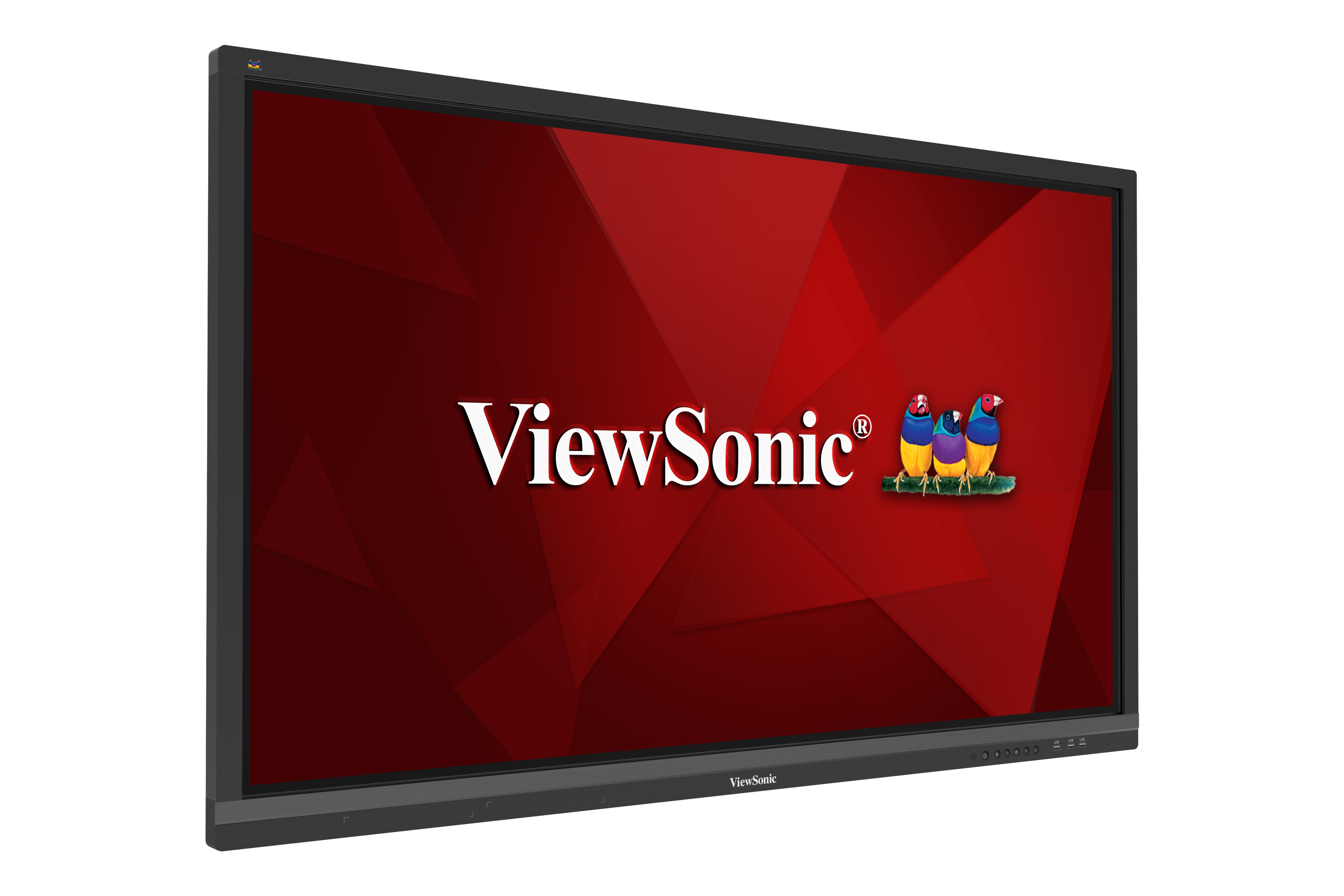

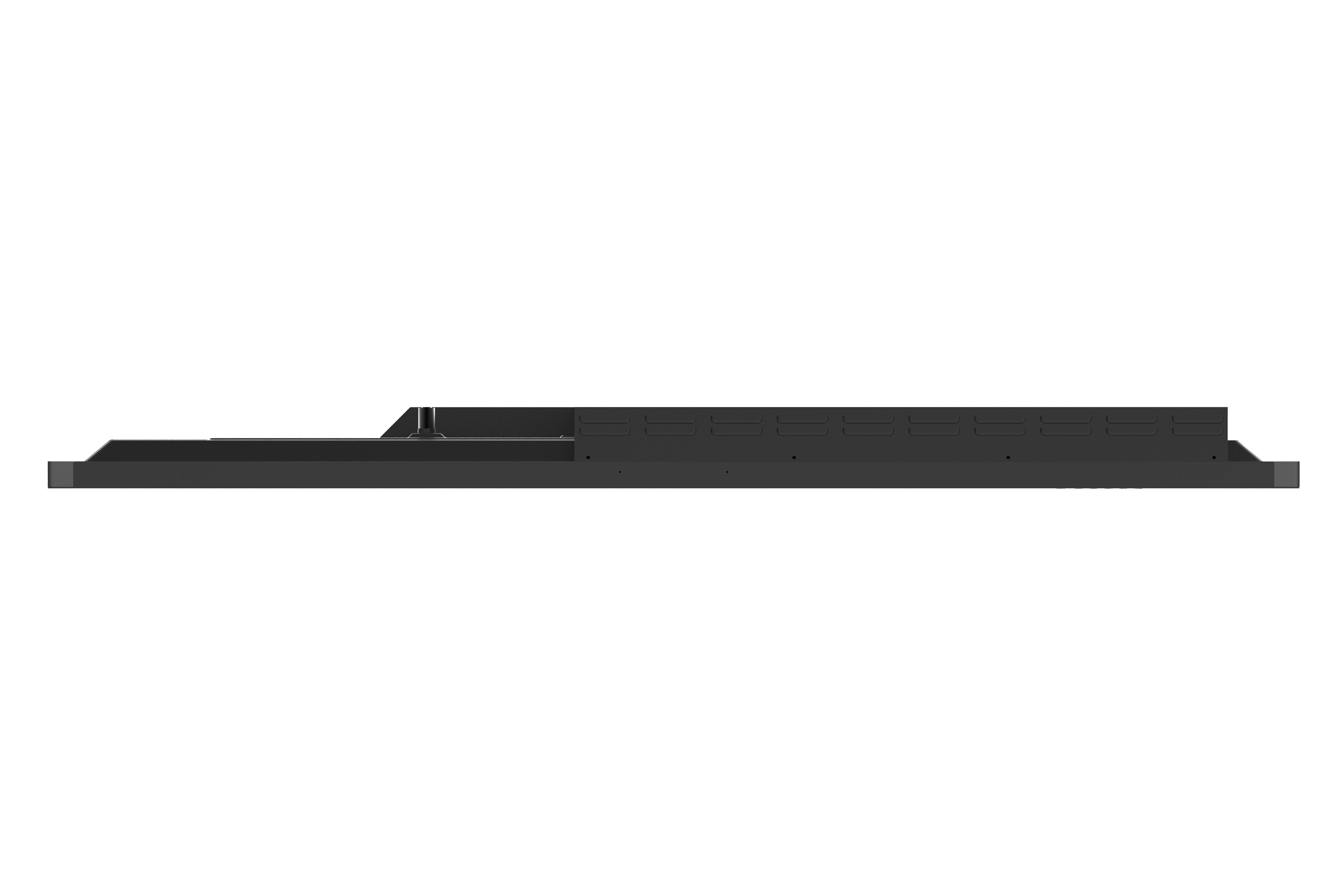

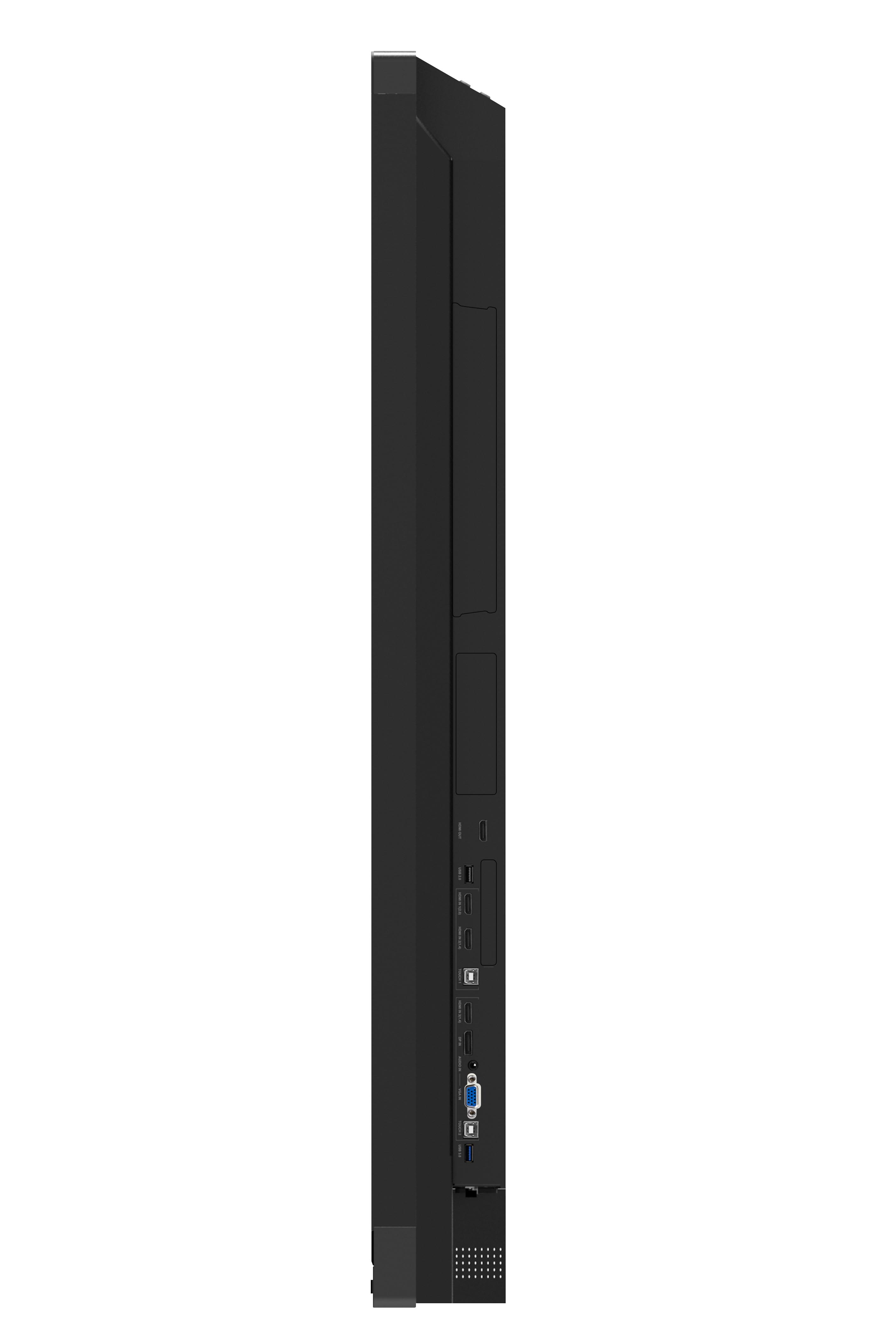

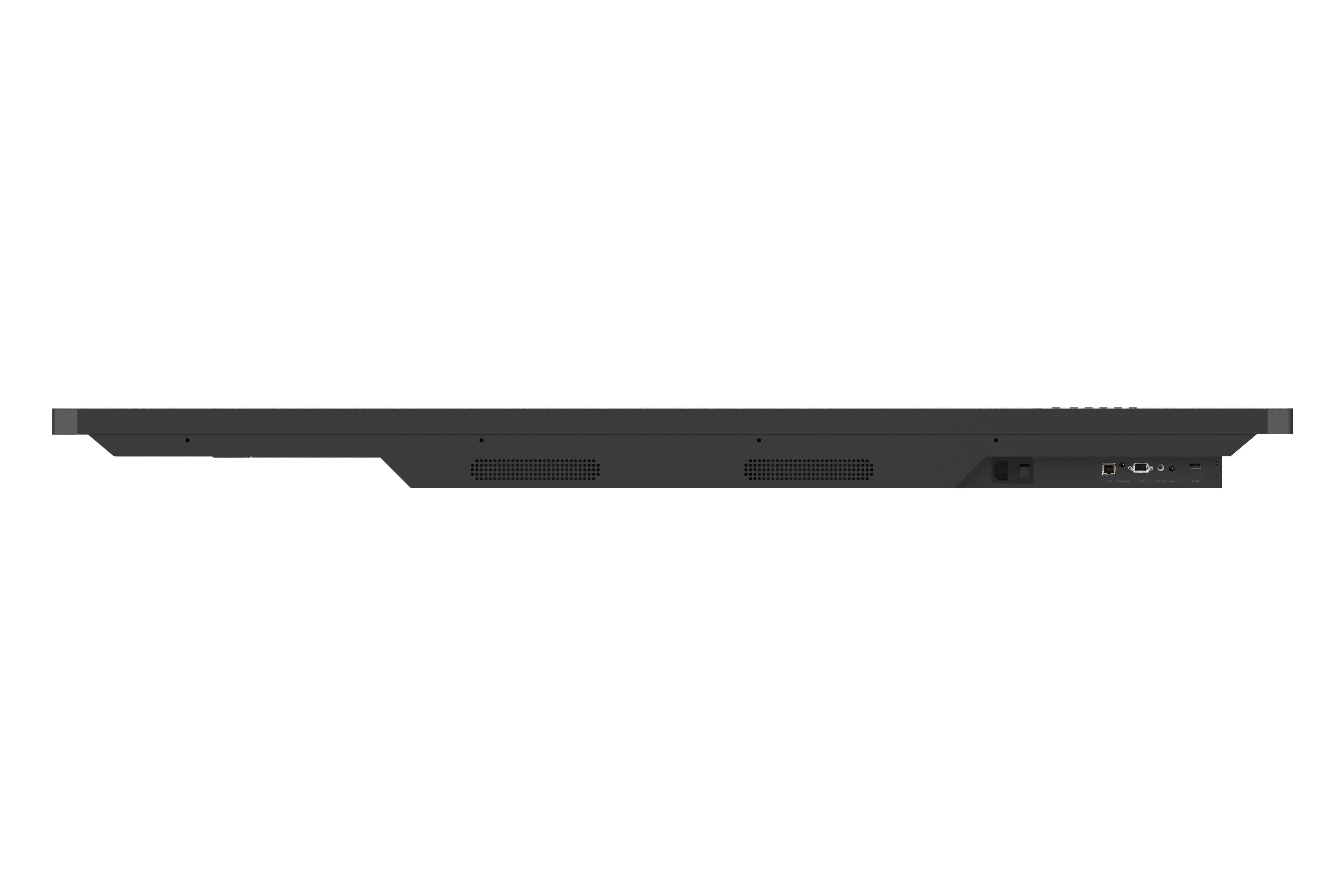

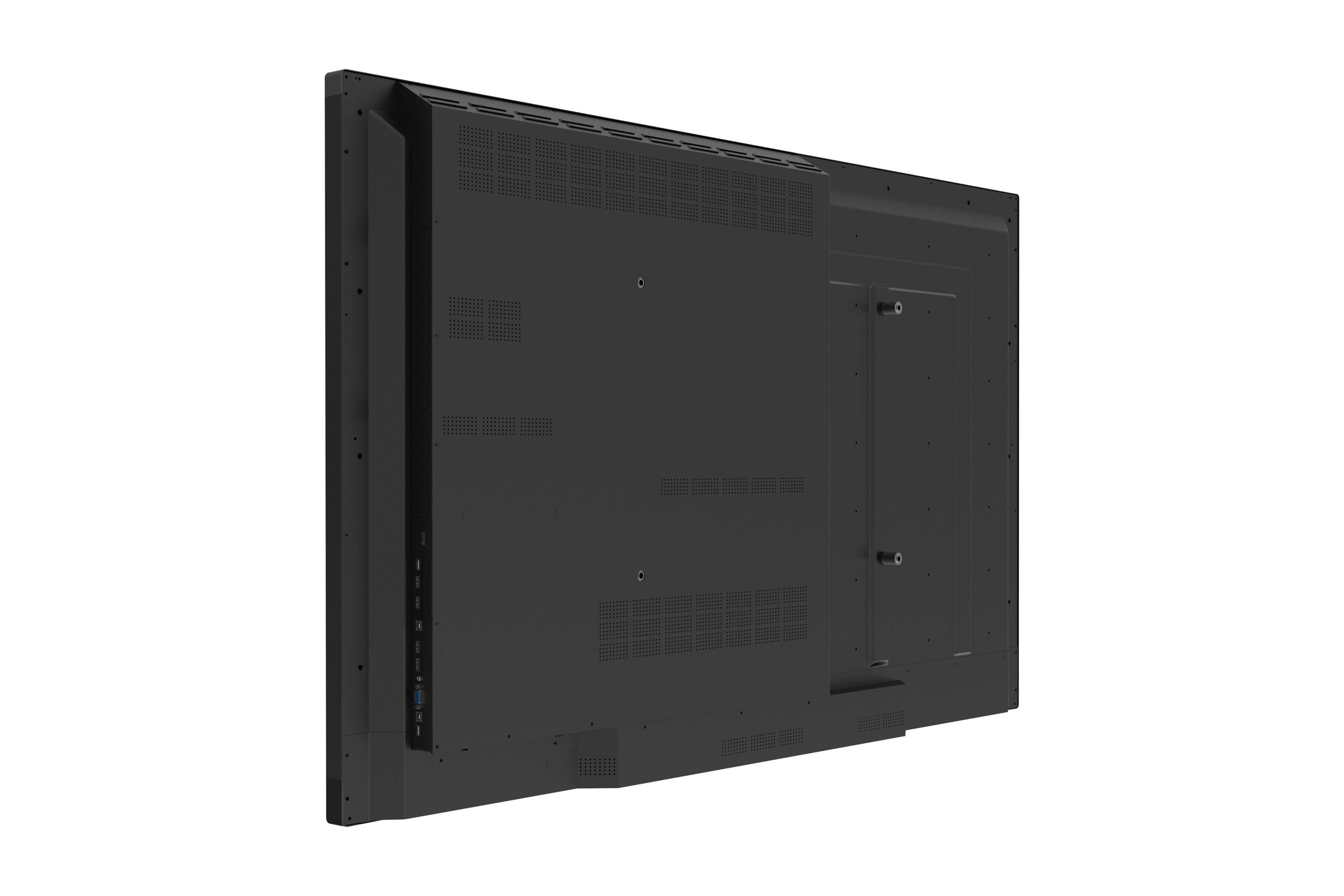

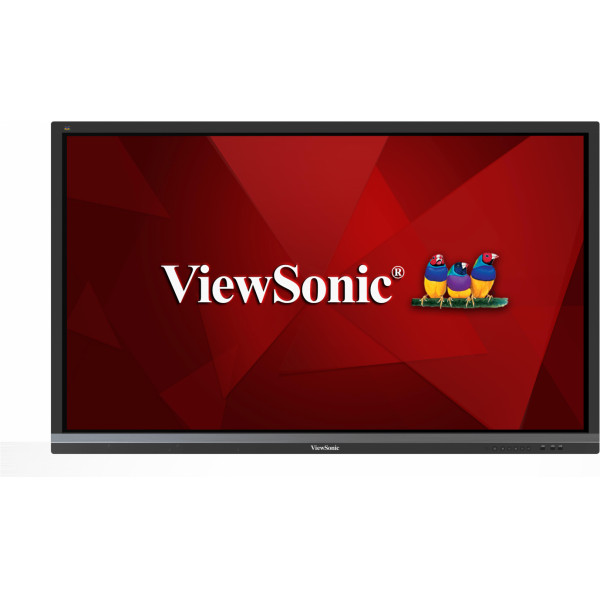

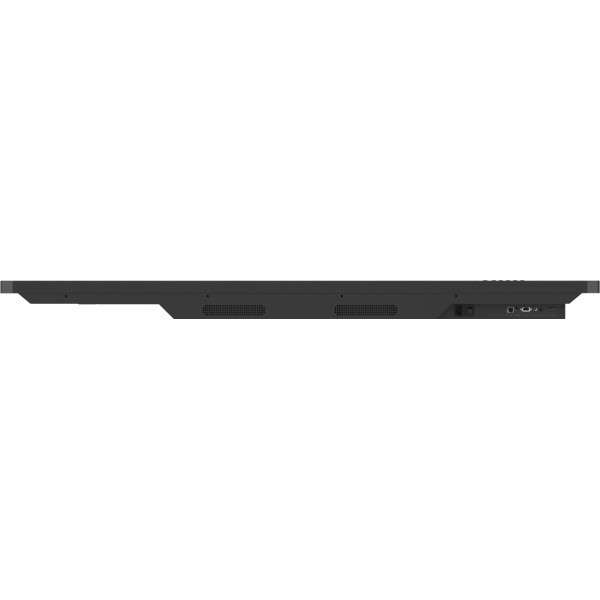

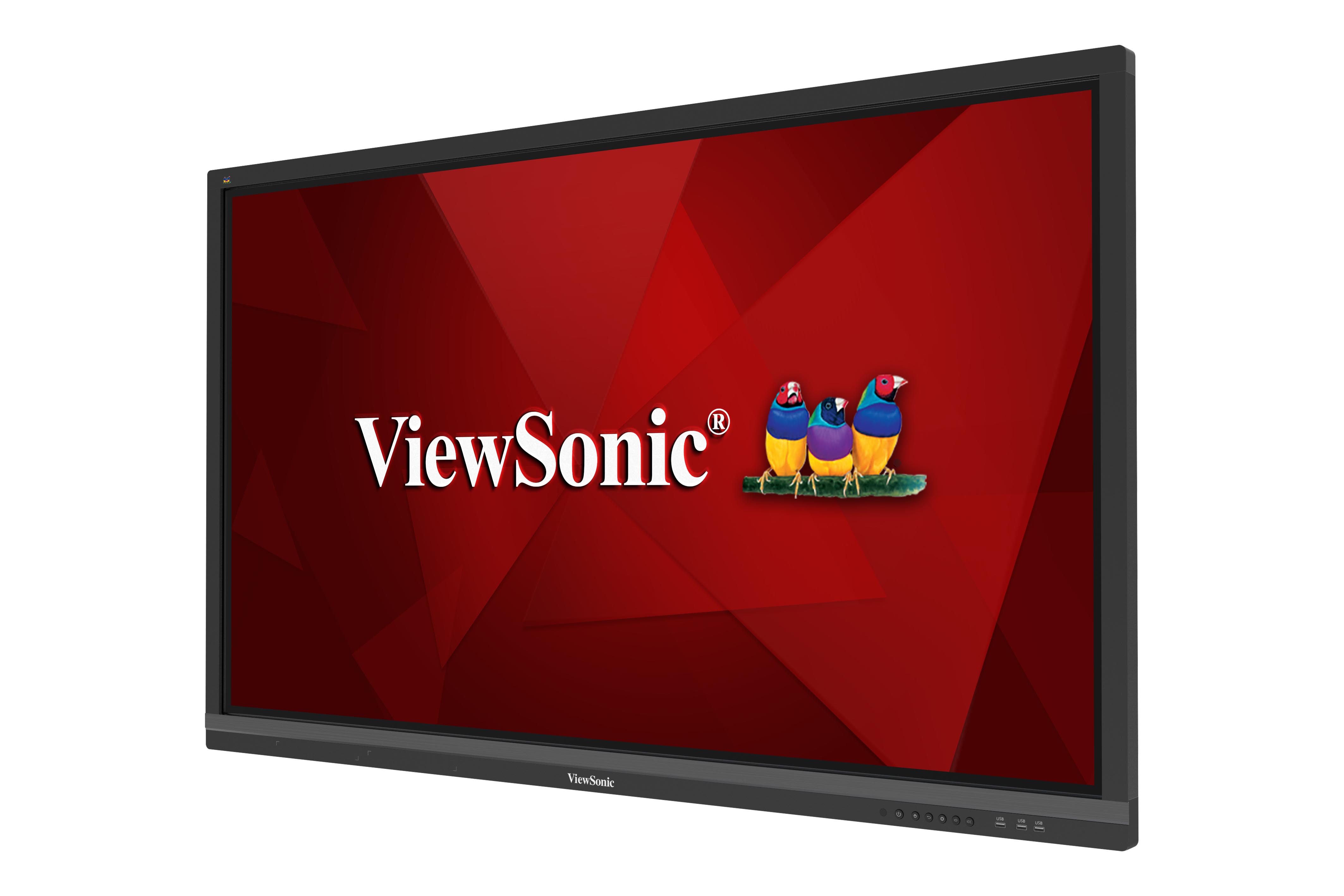

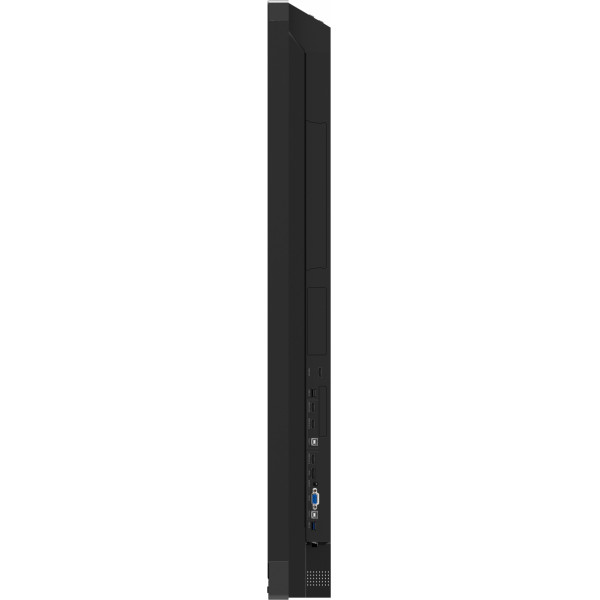

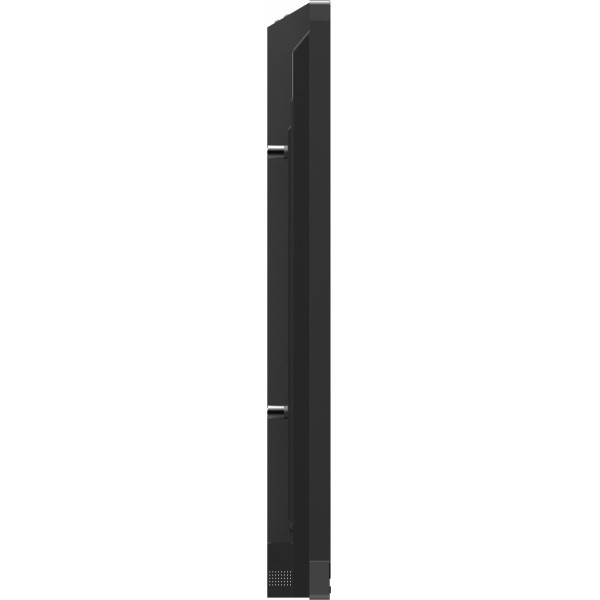

ViewSonic ViewBoard IFP6550

IFP6550

65" 4K Interactive Flat Panel

20-Point Multi-Touch
Floating Pen - Annotation on Demand
ViewBoard^® Cast Content Sharing Software
Built-in ARM Quad-core CPU with 16GB Storage
Out-of-Box Collaboration

DANE TECHNICZNE

LCD PANEL
Rozmiar panelu: 65"
Rodzaj/Technologia: TFT LCD Module with DLED Backlight
Obszar wyświetlania (mm): 1431 (H) x 807 (V) (64.5” diagonal)
Proporcje obrazu: 16:09
Rozdzielczość: 3840 x 2160
Colors: 1.07B colors (10bit)
Jasność: 350 nits (typ.) 300 nits (min.)
Współczynnik kontrastu: 1200:1 (typ.)
Czas reakcji: 8 ms
Kąty widzenia: H = 178, V = 178 (typ.)
Backlight: DLED
Czas pracy podświetlenia: 30,000 Hours Min.
Hardness: 7H
TOUCH
Rodzaj/Technologia: IR Recognition
Czułość dotyku: 32767 x 32767
Punkt dotyku: 20 points touch, 10 points writing
Czas reakcji: <15ms
System: Windows 10 / Windows 8 / Windows 7 / Windows XP / Vista / Linux / Mac / Android / Wince / Chrome
Life Time: 80,000hrs

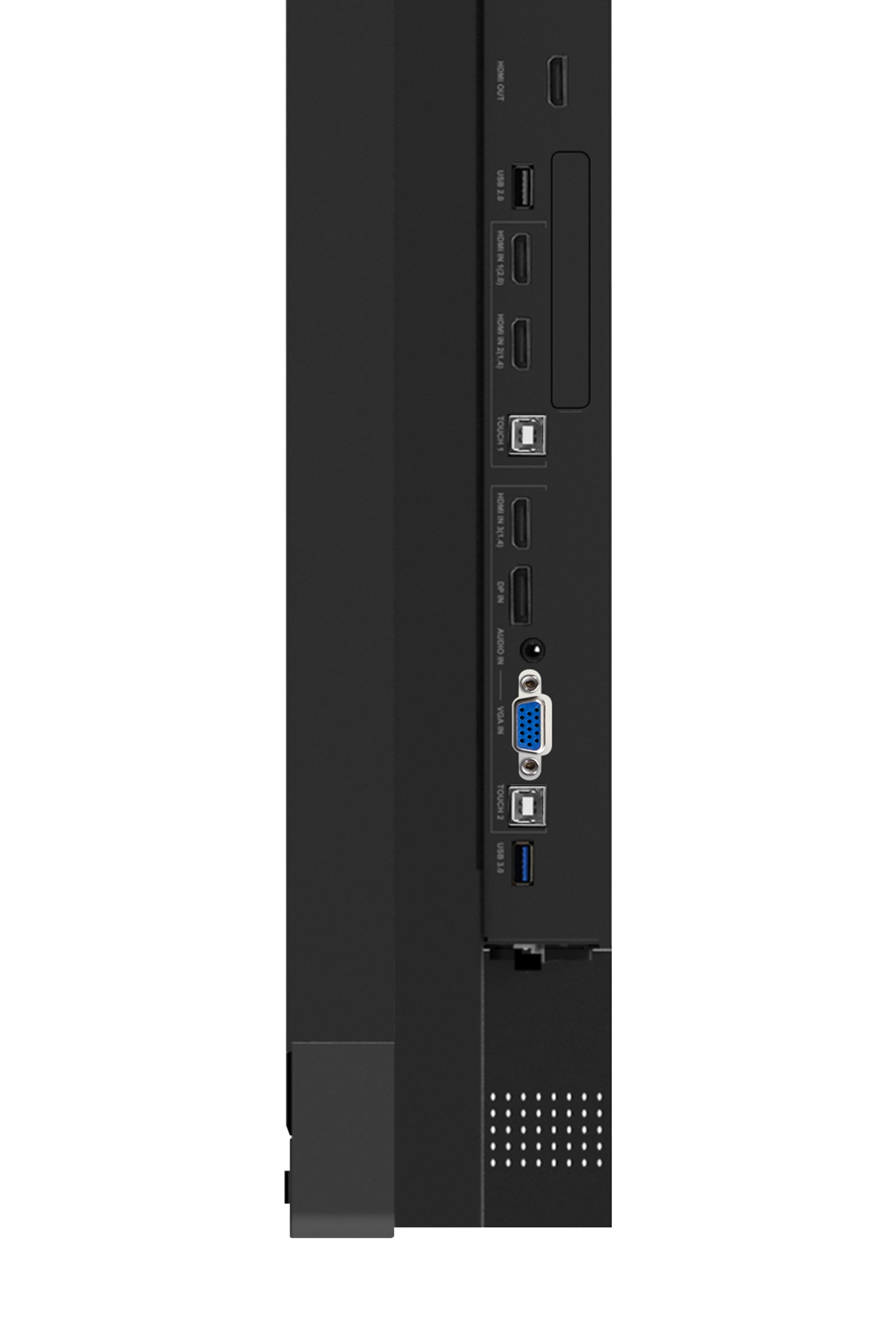

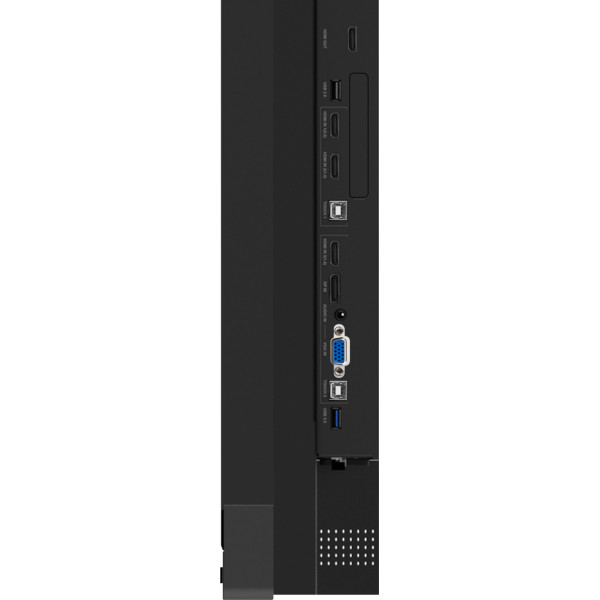

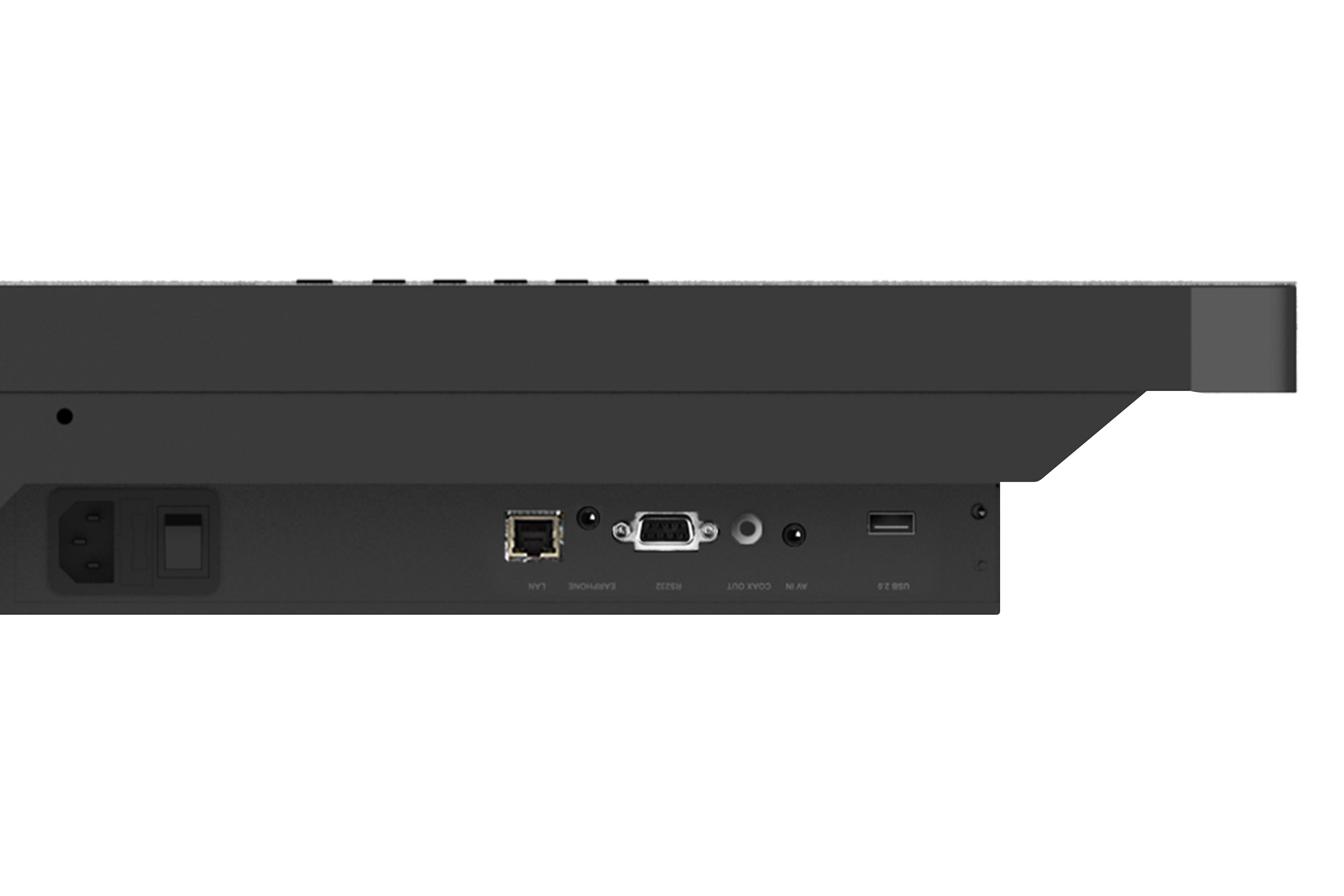

INPUT
HDMI: x 3
RGB / VGA: x 1
DisplayPort: x 1
Dźwięk: x 1
CVBS (AV): x 1
RS232: x 1
PC Slot: x 2

OUTPUT
HDMI: x 1 (for all sources)
Audio (Earphone out): x 1
SPDIF: x 1
Sieć lokalna
RJ45: x 1
USB
2.0 Type A: x 3 (front x 1, for both embedded player and slot-in PC)
3.0 Type A: x 3 (front x 2, for both embedded player and slot-in PC)
2.0 Type B (For touch): x 2
Głośniki
16W x 2
BUILT-IN PC
Procesor: ARM Cortex A53 Quad Core 1.2G Hz CPU
Graphic: ARM Mali-450 Quad Core
Pamięć: 2GB DDR3
Pamięć masowa: 16GB eMMC
Networking: 10/100M auto-identification and DHCP
COMPATIBILITY
VGA: Refer to timing table
HDMI: 3840x2160
DP: 3840x2160
CVBS: 480i
POWER
Napięcie: 100-240VAC +/- 10% Wide Range
Zużycie energii: 190W(Typ, without Slot-In PC); 285W(Typ, Including Slot-In PC)
ERGONOMICS
Uchwyt do montażu na ścianie (standard VESA®): 600 x 400mm; Screw: M8 x 25mm
OPERATING CONDITIONS
Temperatura (º C): 32°F to 104°F (0°C to 40°C)
Wilgotność powietrza: 10% ~ 90% non-condensing
DIMENSIONS
Physical w/o Stand (mm / inch): 1521 x 922 x 99 mm / 59.9 x 36.3 x 3.9 inch
Packaging (mm / inch): 1697 x 1071 x 220 mm / 66.81 x 42.17 x 8.66 inch
WEIGHT
Net (kg / lb): 47kg / 103.62lbs
Gross (kg / lb): 60kg / 132.28lbs
What's in the box?
1.VGA cable(5 meters)
2.Power cable(3 meters) x 4
3.Remote control
4.USB cable(5 meters)
5.Audio cable(5 meters)
6.AV cable
7.Touching pen x 3
8.User manual CD wizard
9.Quick Start Guide
10.RS232 adapter
11.Clamp x 5
12.Plate
13.Screw x 3
