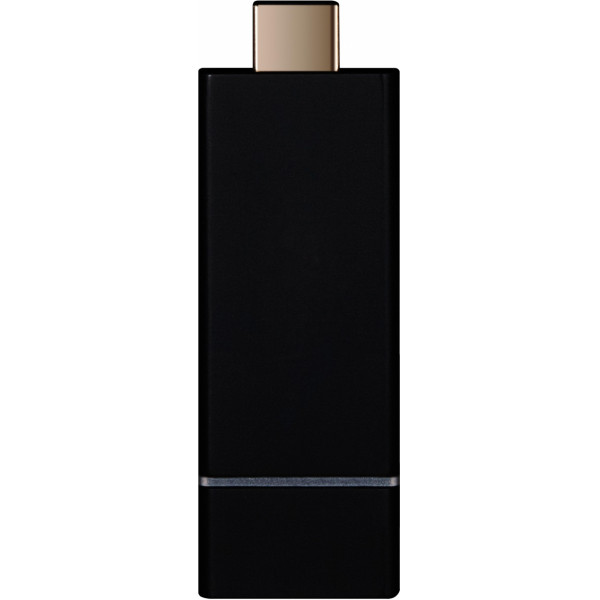

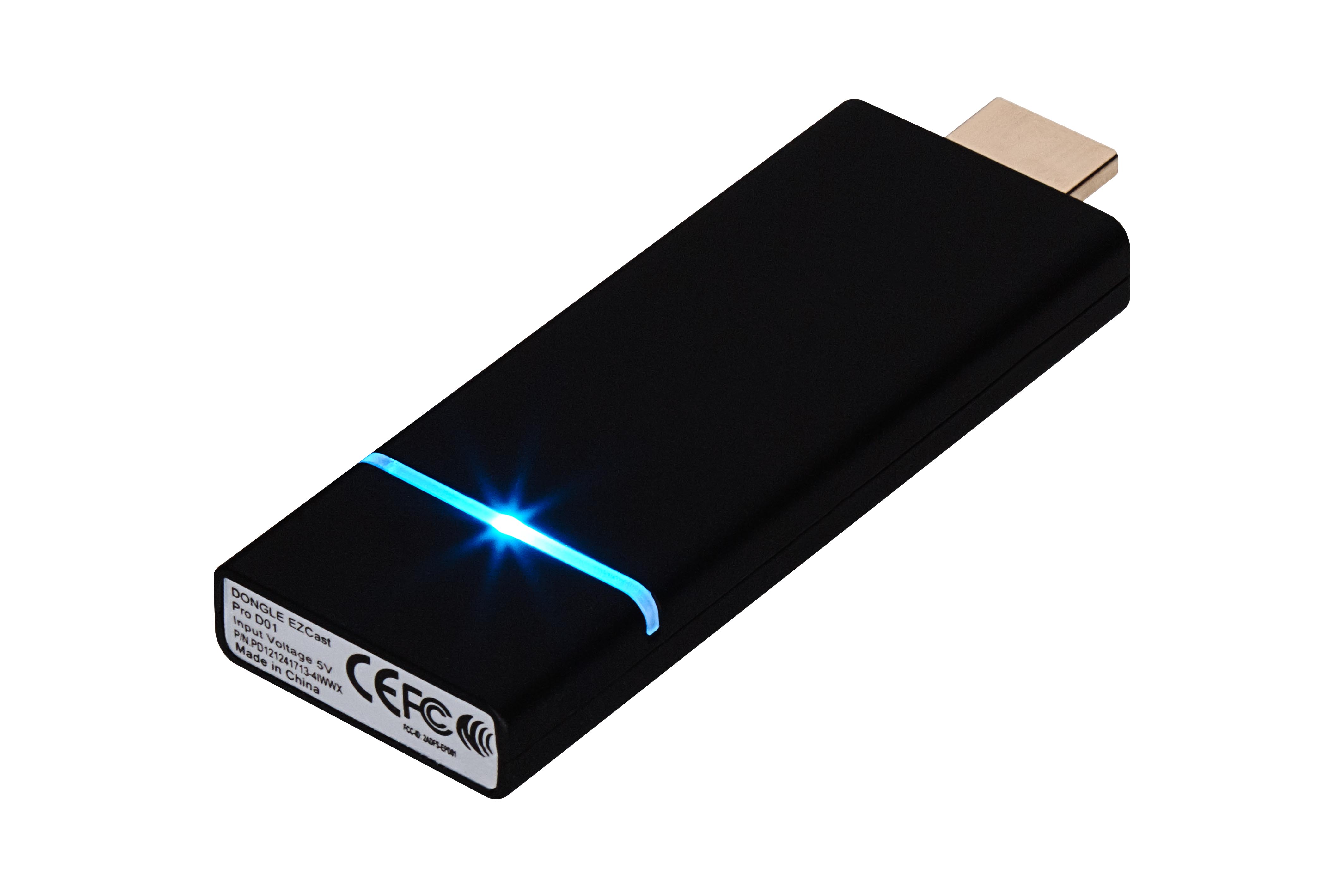

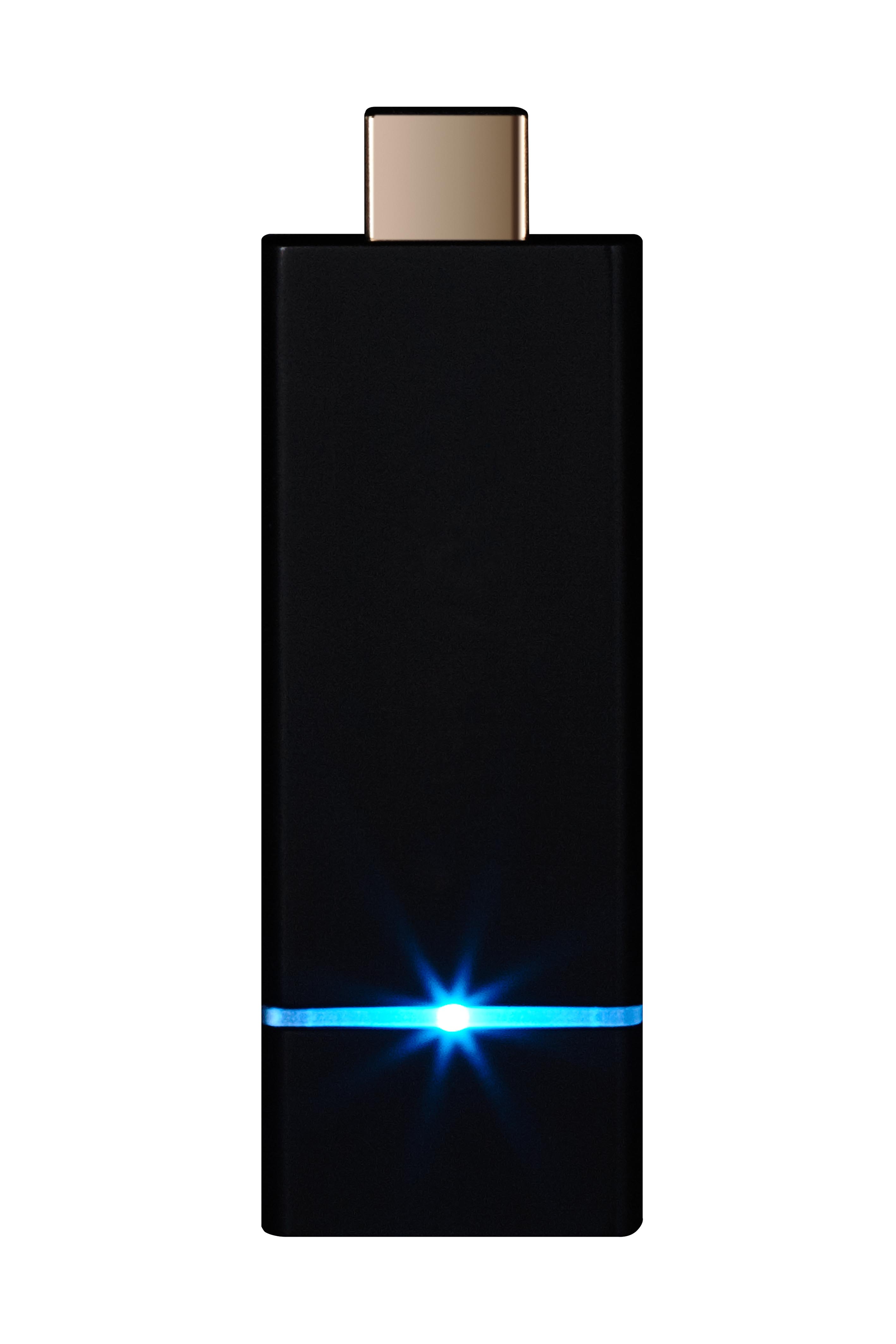

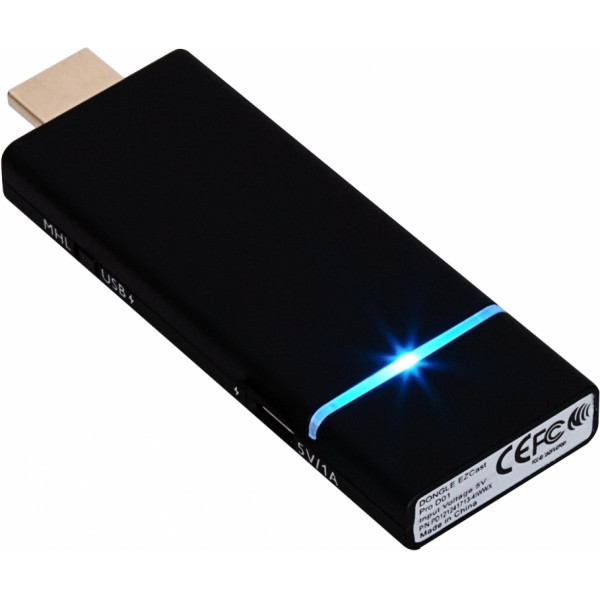

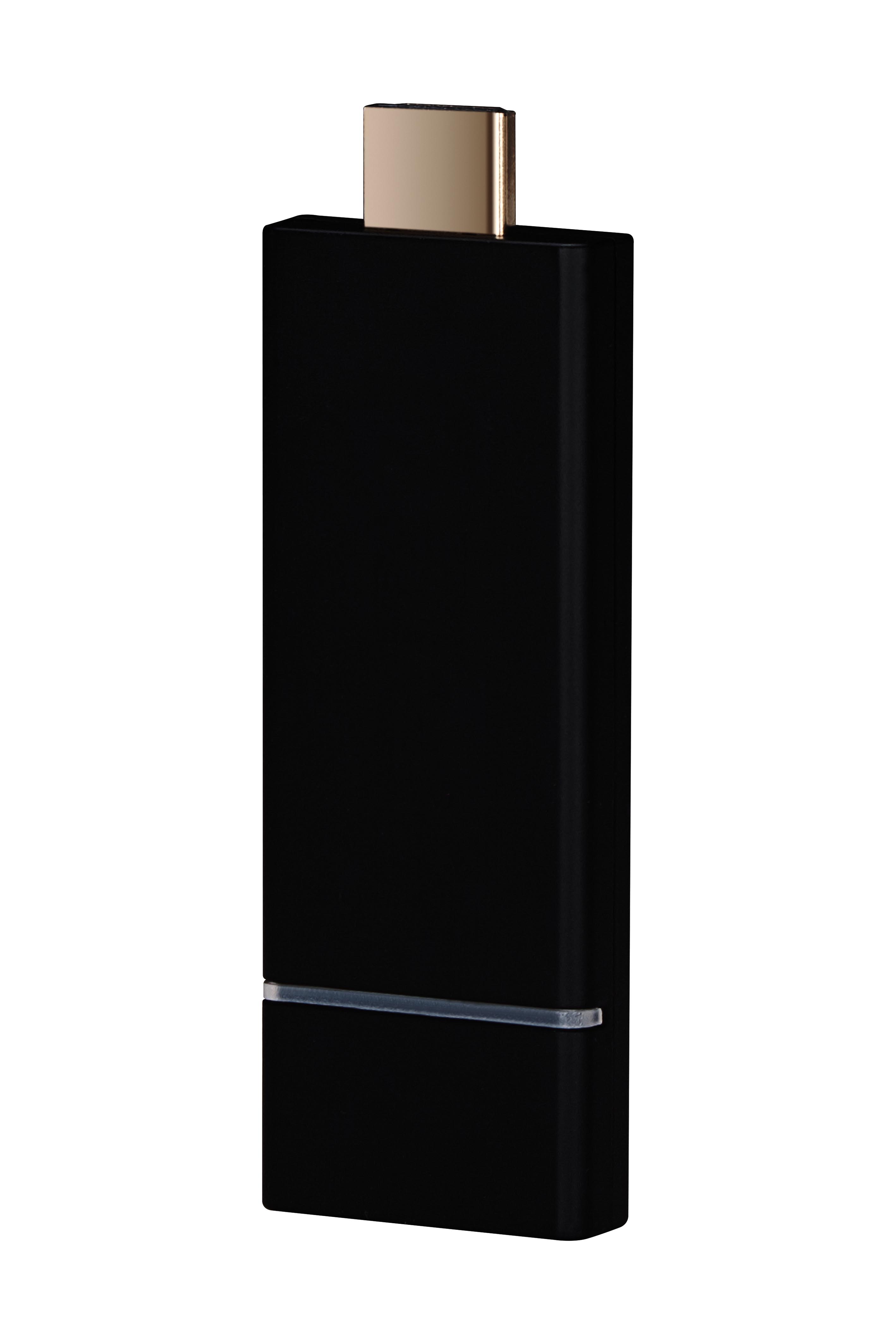

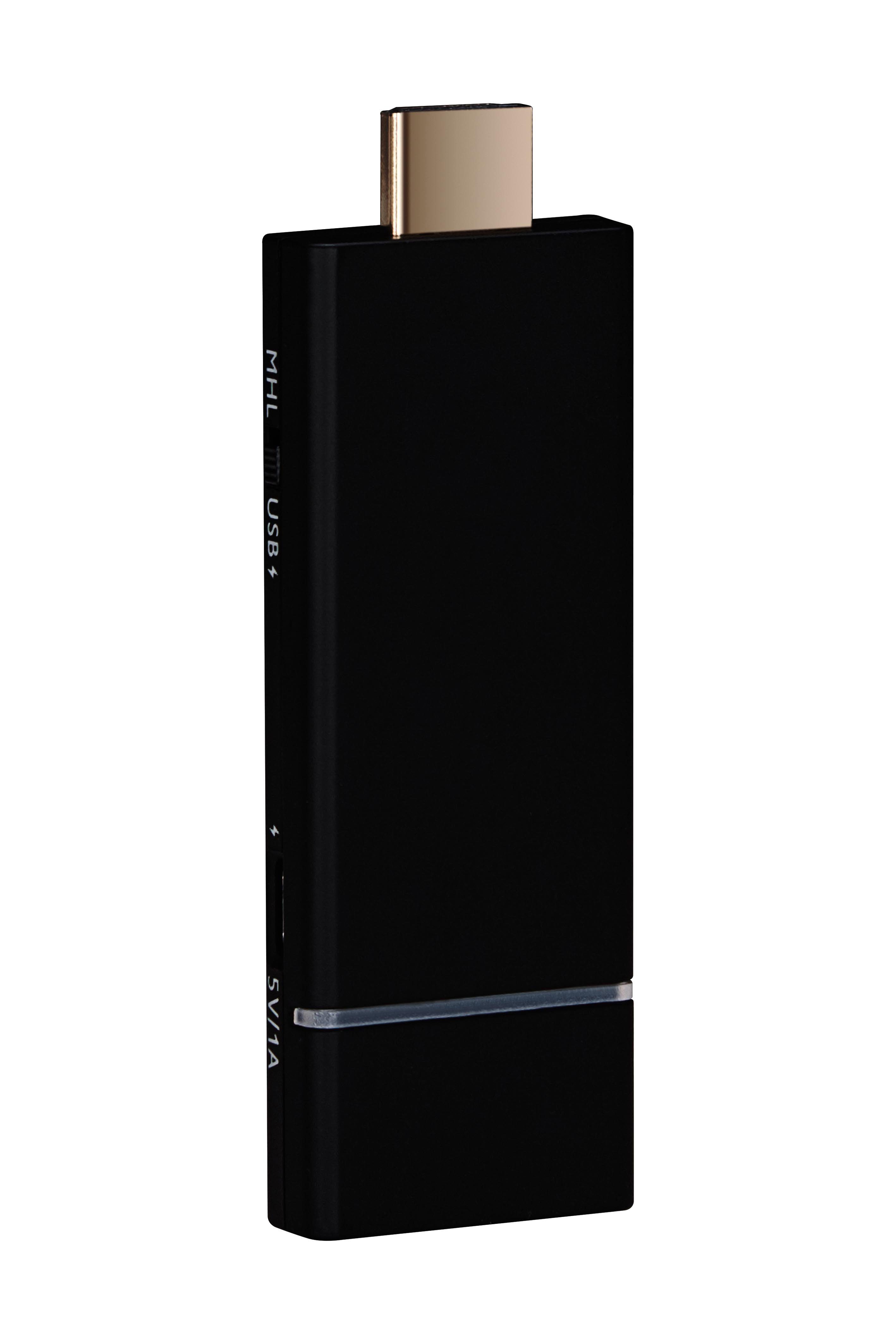

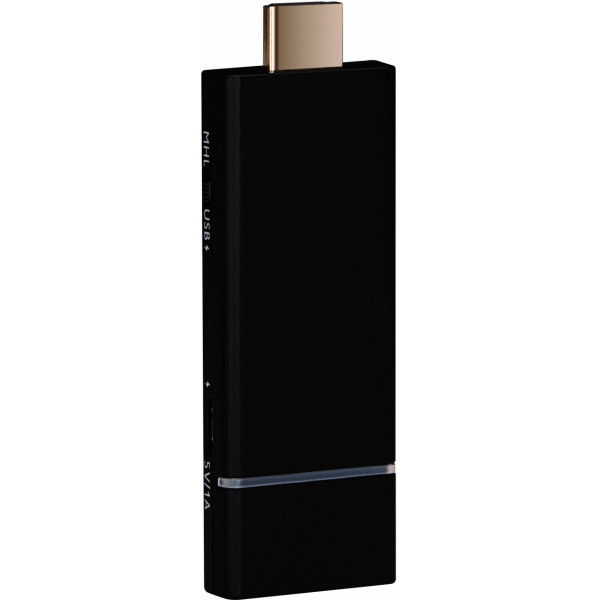

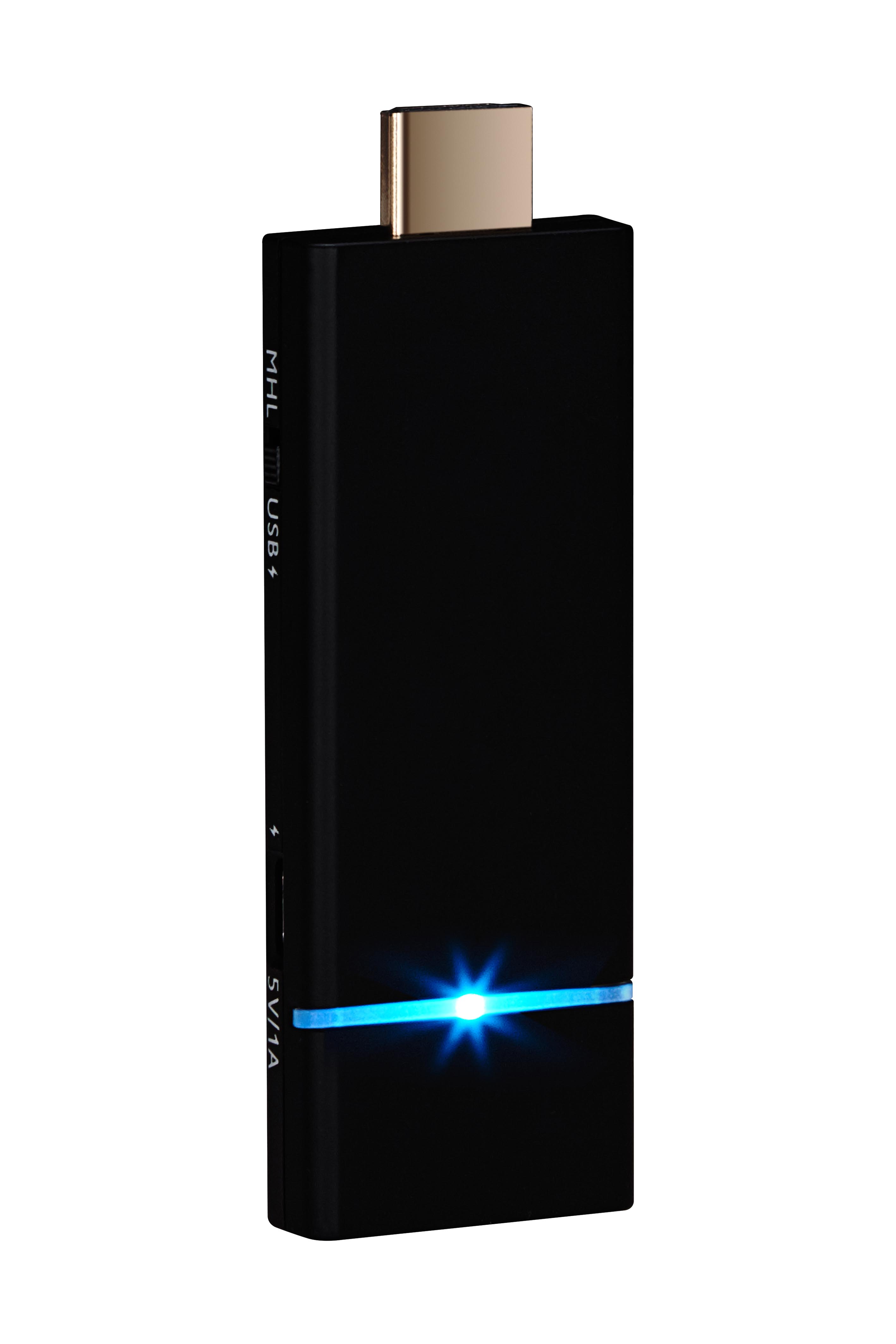

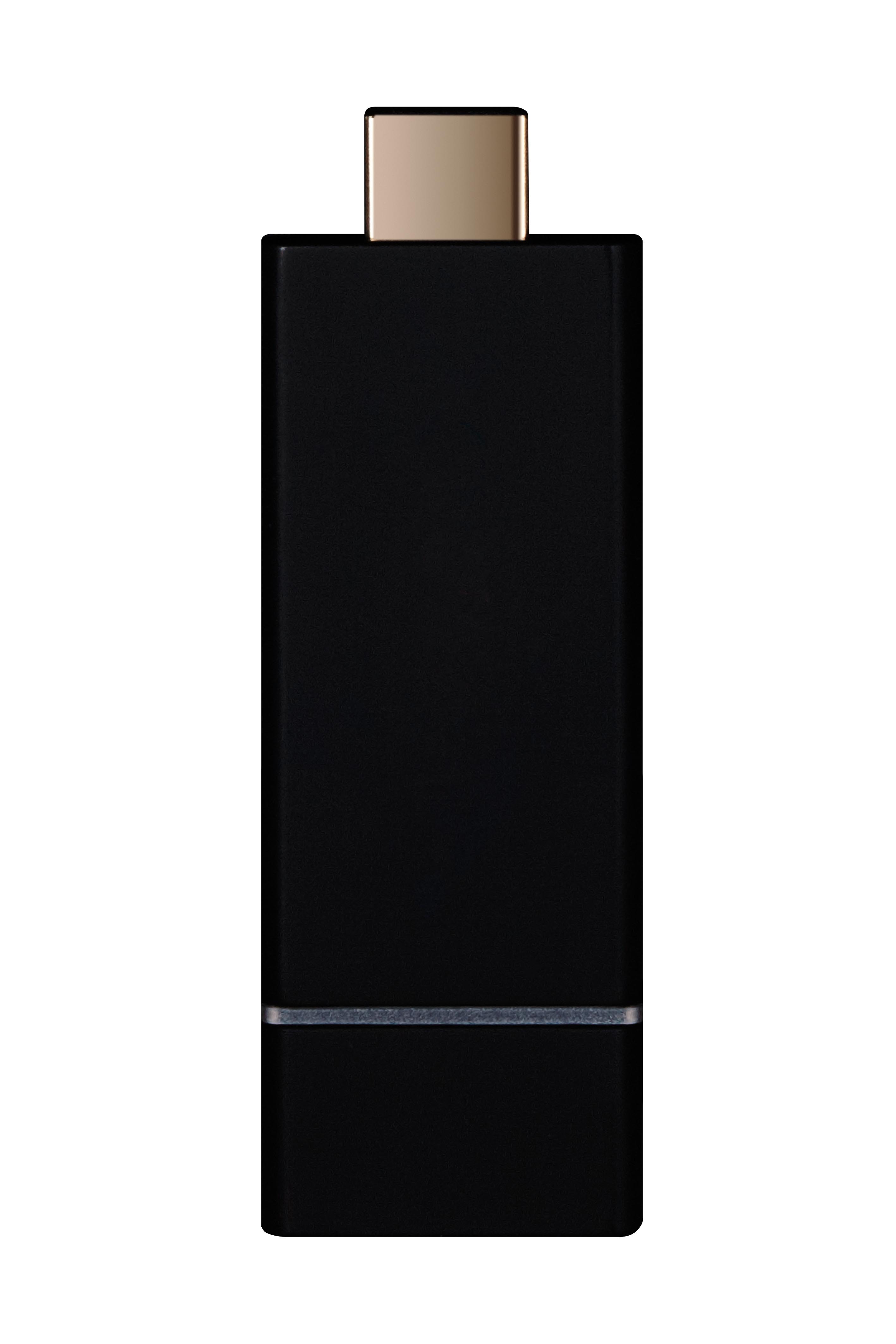

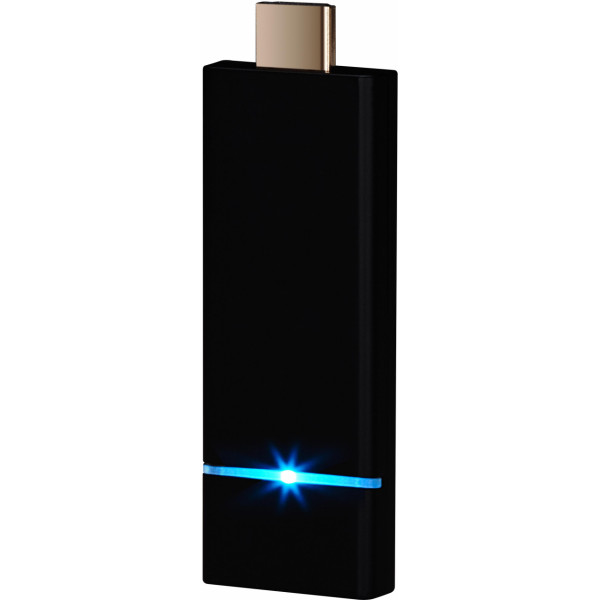

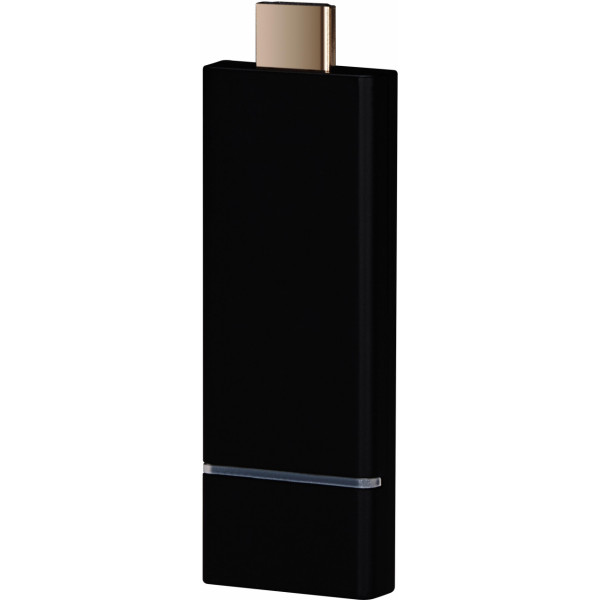

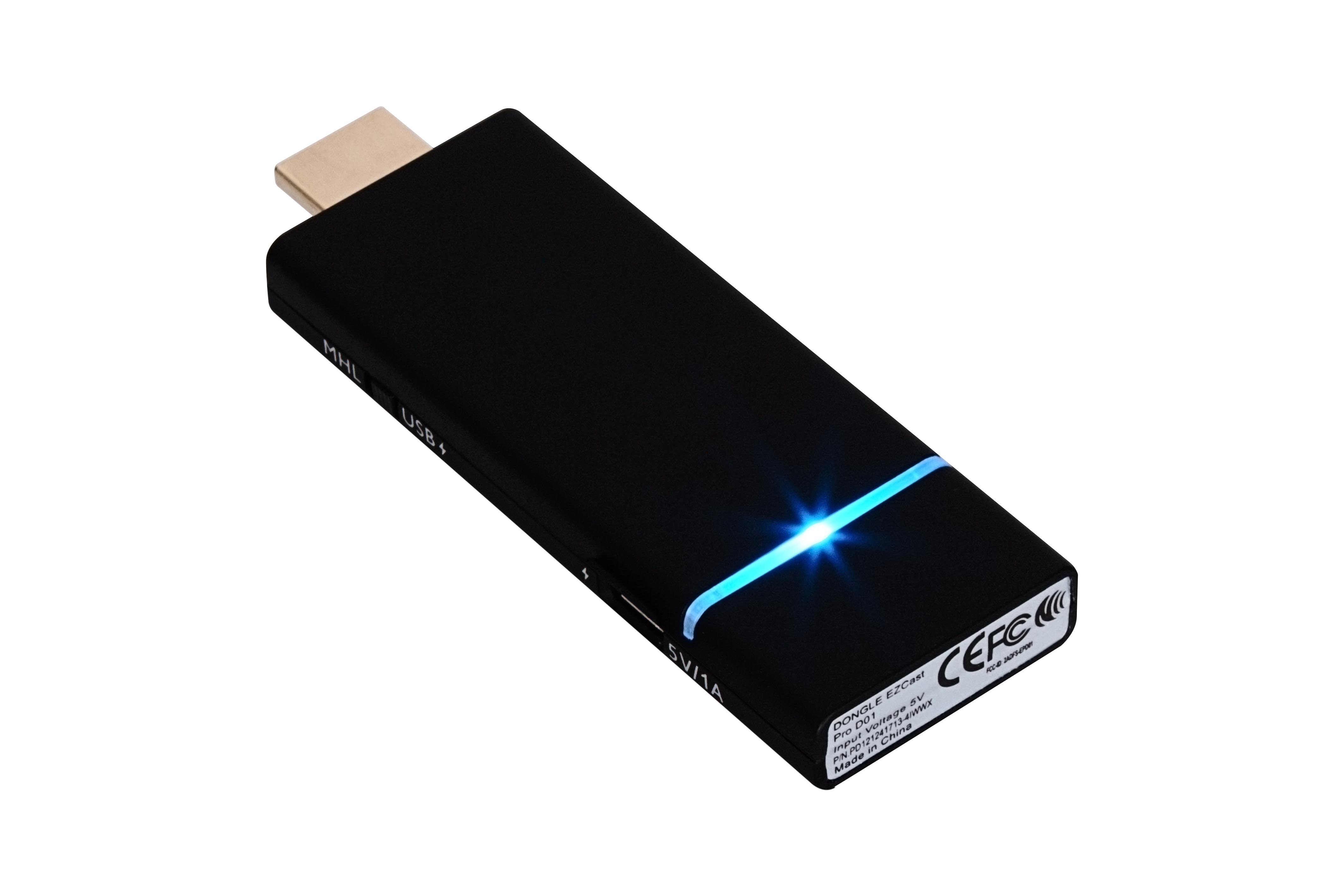

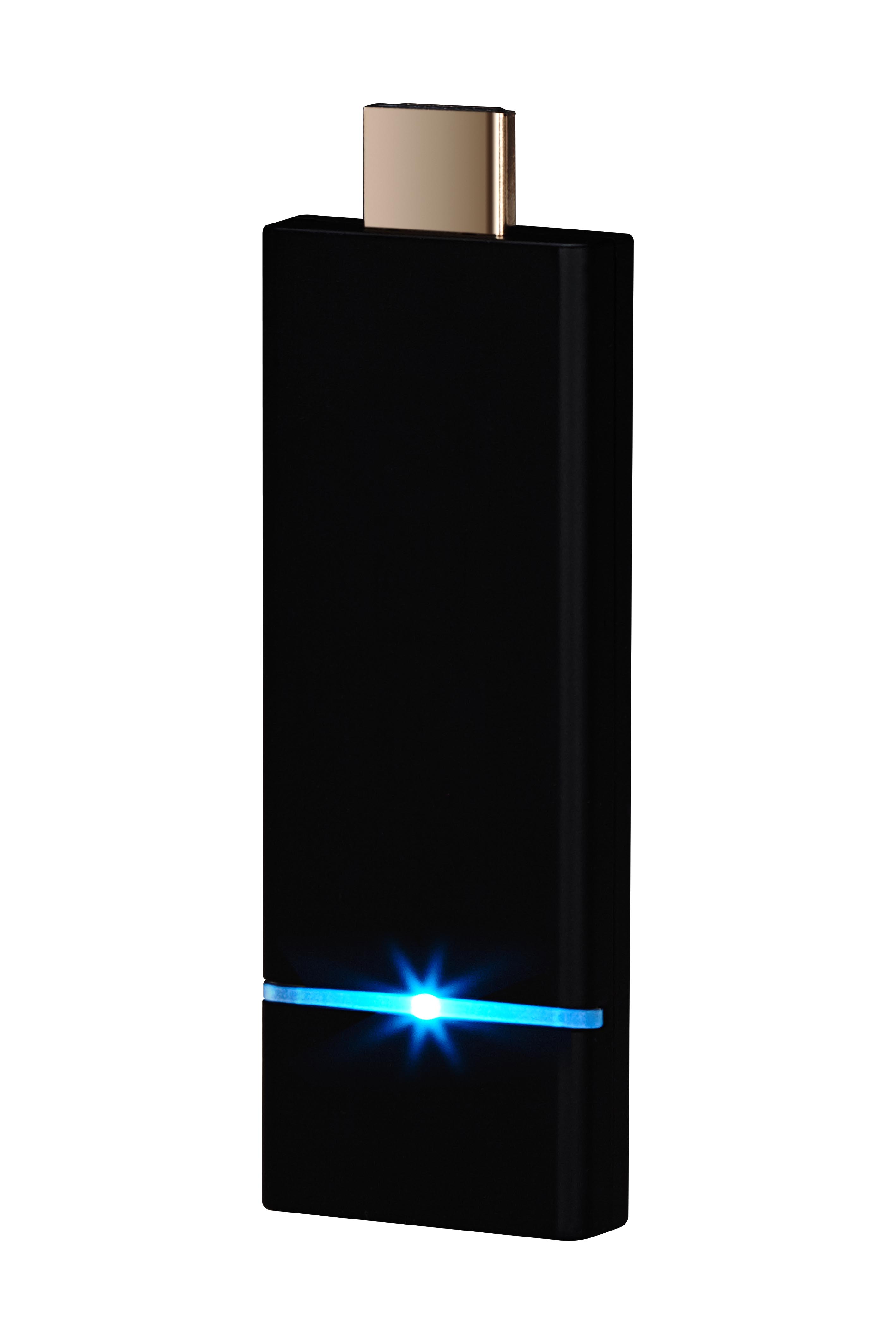

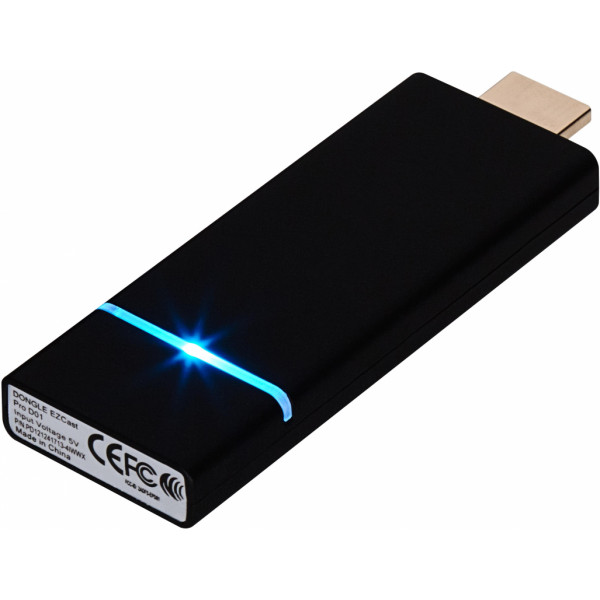

VC10

Security/ Encryption: WPA2, WPA2-PSK

Support Output Resolution: HDMI: 1080P 24/30/60Hz, 720P24/60Hz , XGA, ,WXGA

HDMI: • HDMI 1.3 with HDCP(2.0/1.x) / MHL compatible
• MHL 2.0 (just compatible MHL2.0 later)
Network: Wireless(802.11a/b/g/n)2.4G, 2T2R

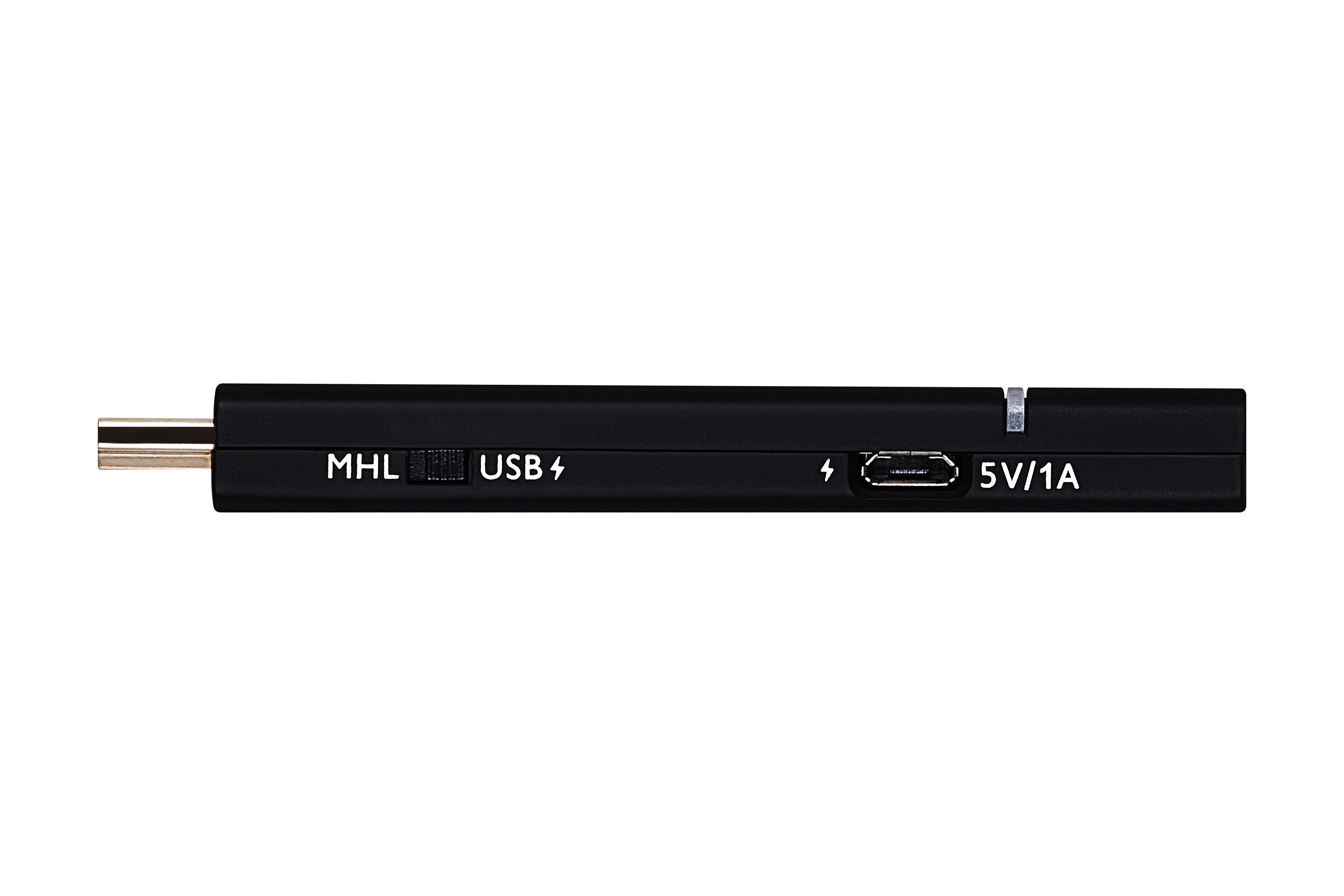

Moc: Type Micro USB B (x1) (for HDMI connecton)

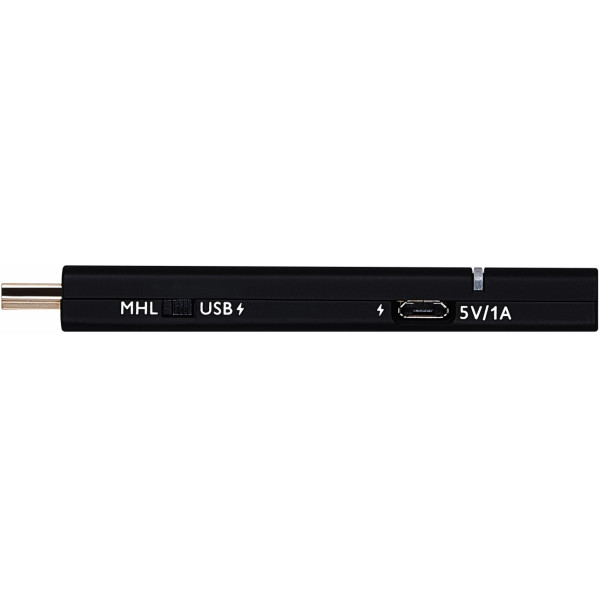

Slide Switch: Switch HDMI & MHL function.

DC: 5V/1A or MHL by switch
Zużycie energii: 5W (Maximum)
No standby mode

Setitng: Control by virtual remote on APP

Temperatura: 23°F to 113°F (-5°C to 45°C)
Wilgotność powietrza: 0% to 95% Non-Condensing
Altitude: 0 to + 13123 ft

Temperatura: -22°F to 140°F (-30°C to +60°C)
Wilgotność powietrza: 0% to 95% Non-Condensing
Altitude: 0 to + 50033 ft

Physical: 94.3 x 32.34 x12.54 (mm)

Waga netto: 0.06 (lbs)
Brutto: 0.22 (lbs)

Language (Print): English (WW)
Language (Digital): English, French and Spanish(VSA)
English, German, Russian and Turkish(VSE)
English and Traditional Chinese(VSI)

The Top Level Assembly shall consist of :
1.VC10
2.HDMI extender
3.UBA cable (A to micro B)
4.QSG
