Hot

TD1630-3

16" 10-point Touch Screen Monitor

  • Advanced ergonomic stand for tilt or flat
  • HDMI and VGA inputs
  • Supports Windows® 7/8/10 and selected Linux
  • 7H hardness screen
  • Dual integrated speakers

GAMBARAN

The ViewSonic TD1630-3 is a 16” (15.6” viewable) display with 10-point multi-touch functionality. With an advanced ergonomic design, the TD1630-3 can tilt or lay flat to give users maximum comfort. Delivering touchscreen versatility, this display offers fantastic flexibility for retail or business settings, while VGA and HDMI inputs provide ample connectivity. Compatibility with a wide range of operating systems, including Windows 10/11 and Linux versions*, along with dual integrated speakers, make this intuitive touchscreen a highly accurate, ultra-responsive touch experience that is ideal for interactivity in a retail or business settings.
*Supports Windows 7/8/10/11 , Linux Kernel 4.X/3.X

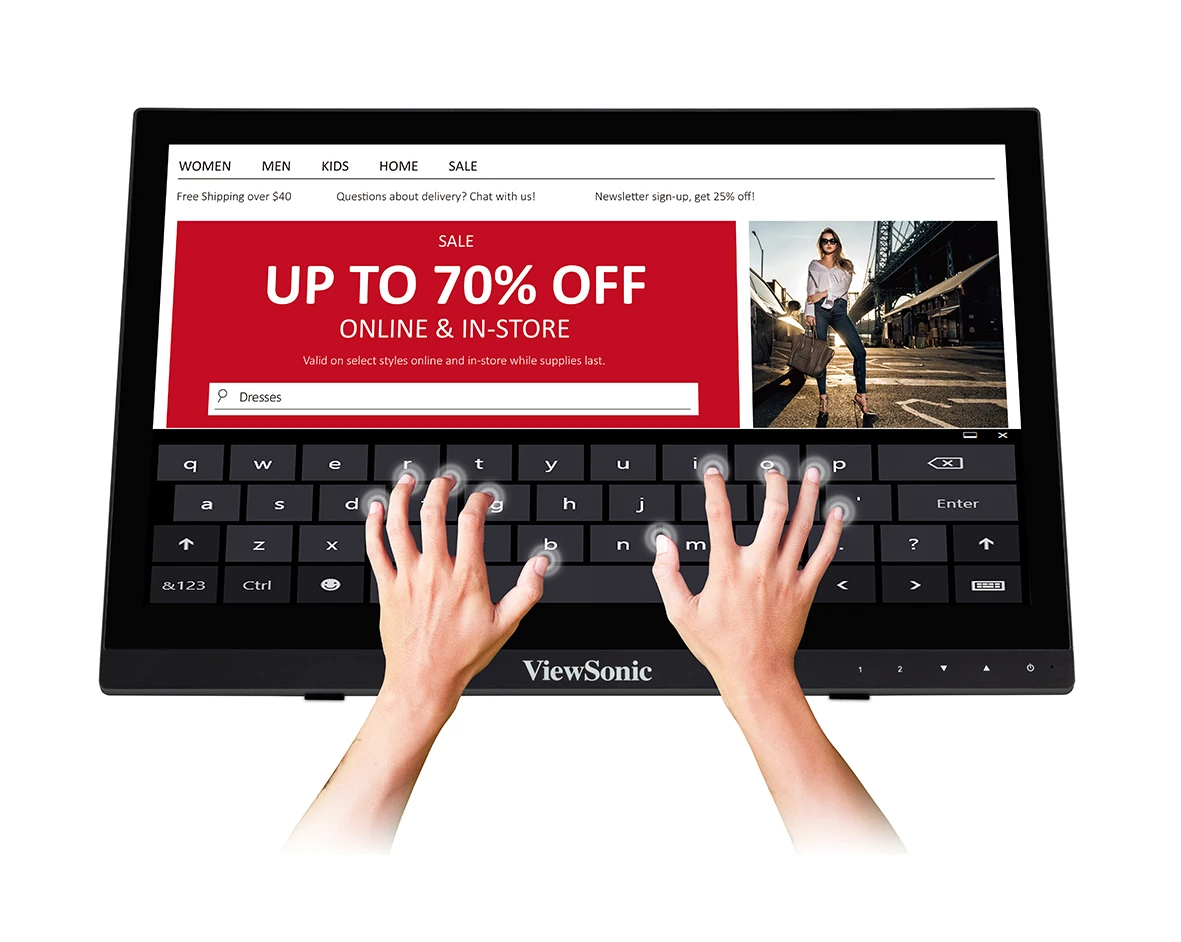

10-Point Projected Capacitive Touch

Touch screens with projected capacitive touch can recognise up to 10 points of simultaneous contact, allowing for a highly accurate and ultra-responsive touch experience. With smooth and responsive touch capabilities, this touch display is ideal for home entertainment, office work, education, and commercial use.

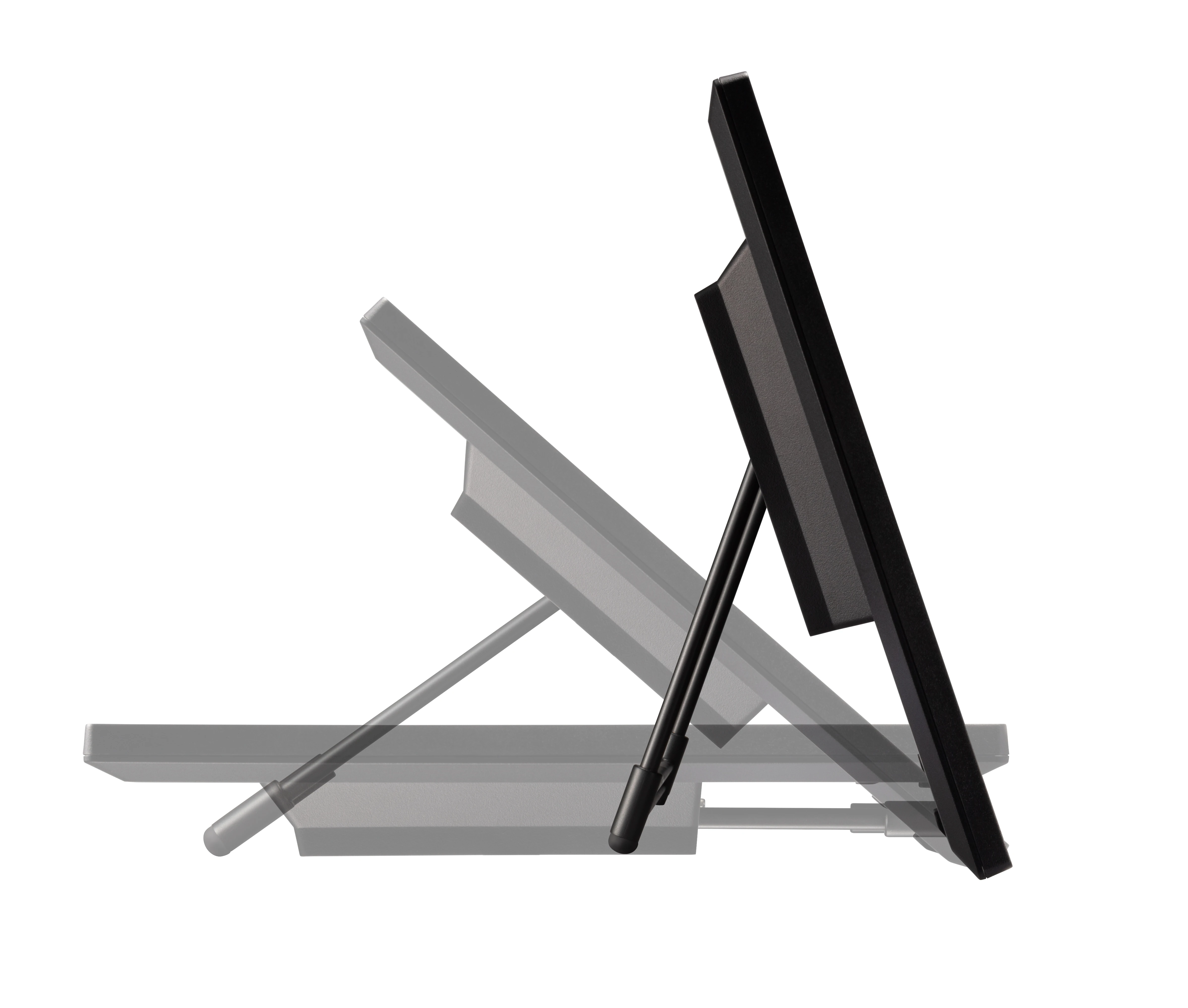

Advanced Ergonomic Stand Design

A stable, integrated bookstand design makes it easy to adjust the angle of this display for a better user experience. The display can tilt or lay completely flat on a tabletop for a more comfortable work environment.

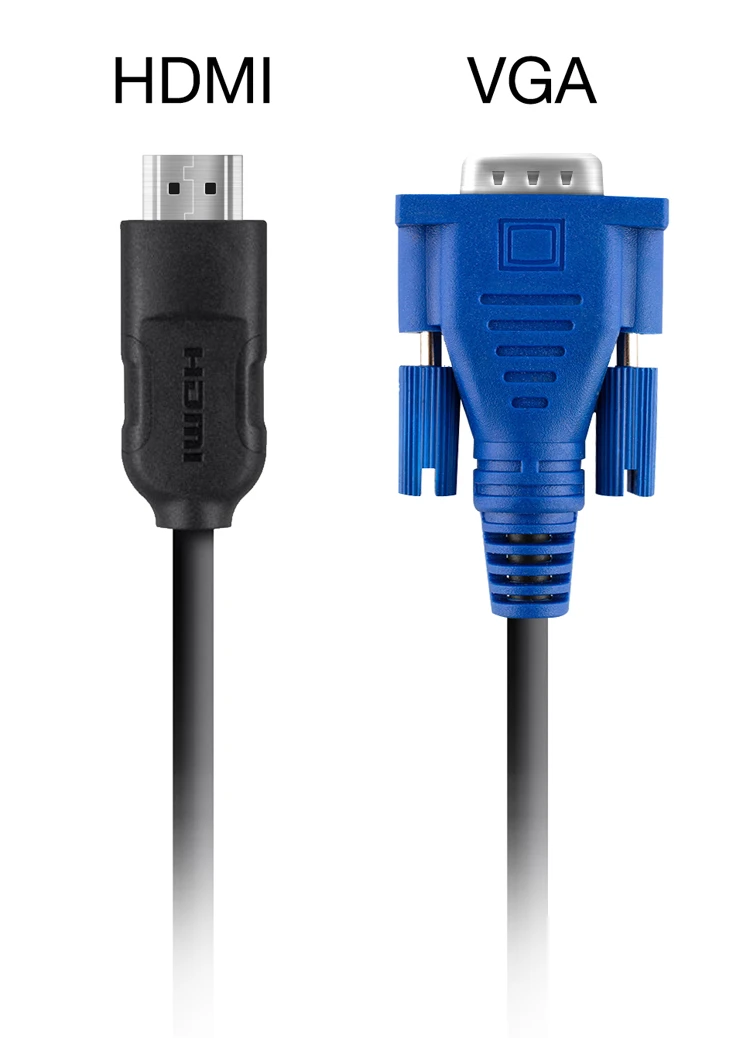

Versatile Connectivity

HDMI and VGA inputs give you the freedom to connect your monitor to a variety of devices.

Cross-platform Compatibility

"Cross compatibility with a wide range of operating systems including Windows 10/11,Linux and certain Linux versions*.
*Supports Windows 7/8/10/11, Linux Kernel 4.X/3.X

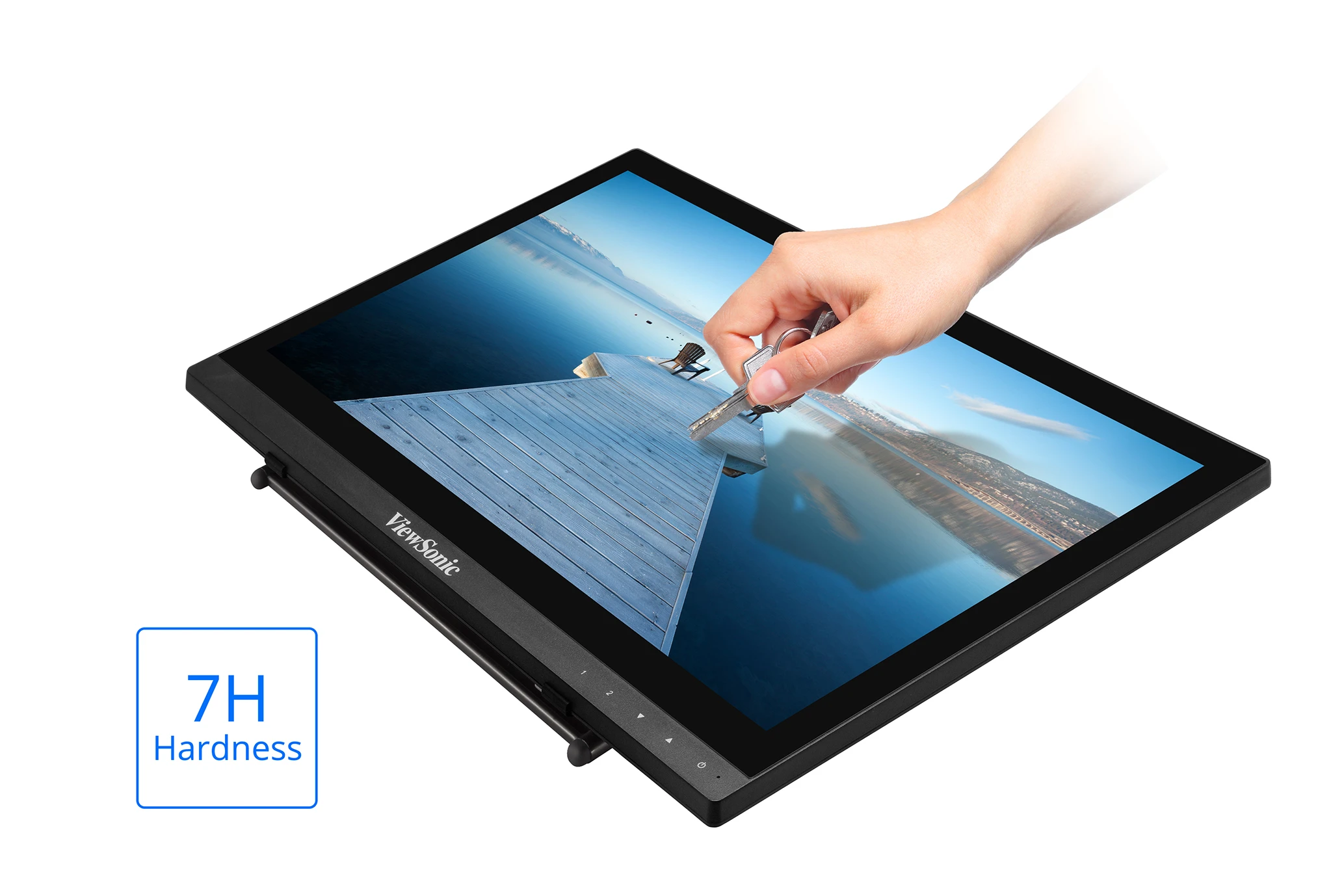

Durable, Scratch-resistant Screen

This touch display is equipped with a durable, protective glass faceplate, resulting in increased durability with scratch protection; as well as a consistent, high-quality touch experience in high-traffic areas like public spaces where the touch display can be used as a kiosk.

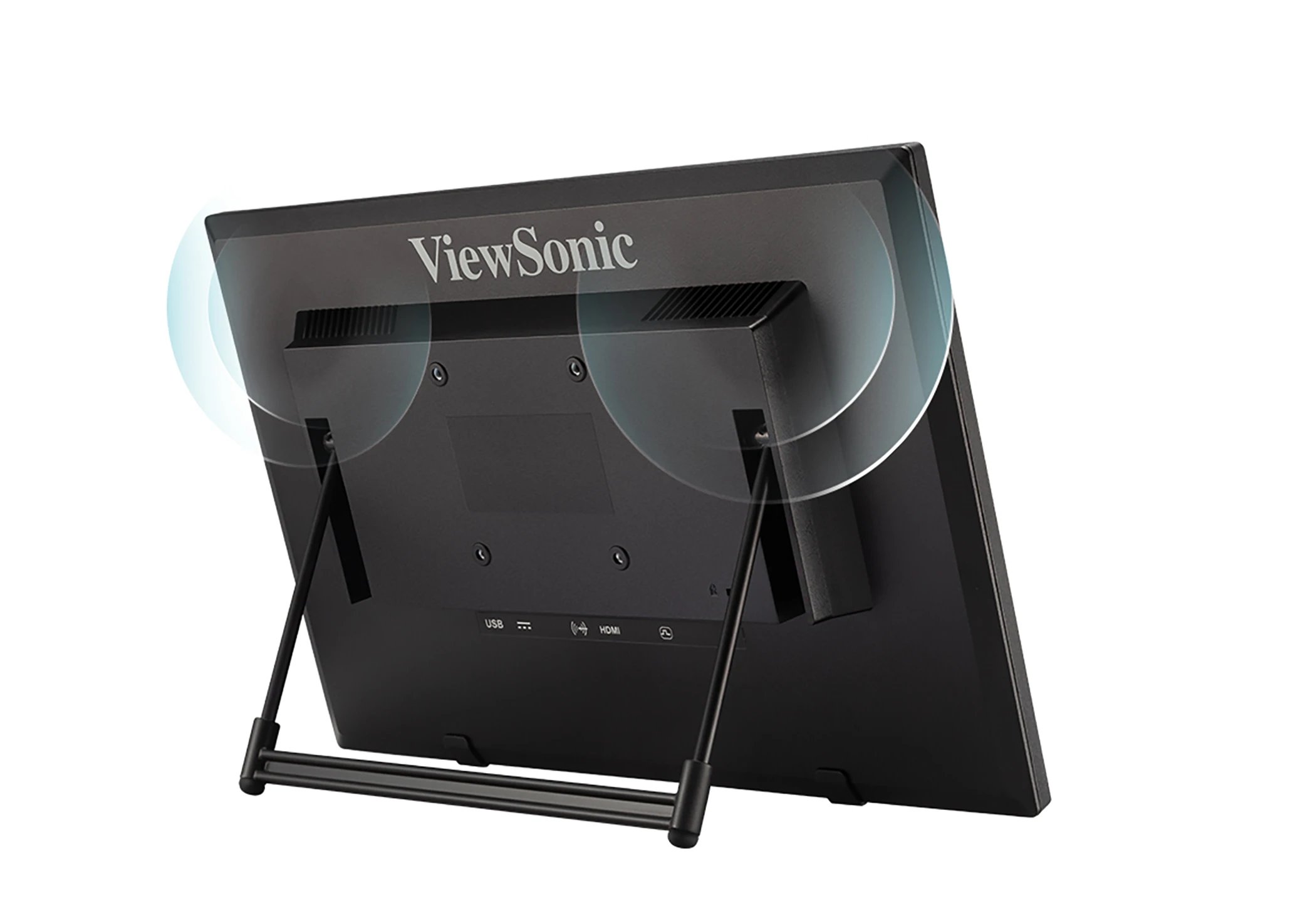

Dual Integrated Speakers

Designed with dual integrated speakers, this monitor combines incredible screen performance with stereo sound for an immersive multimedia experience.

Enhanced Viewing Comfort

Blue Light Filter helps to eliminate eye strain from extended viewing periods.

VESA-compatible mount

Conveniently mount the monitor to your liking by utilising its VESA compatible mount design.

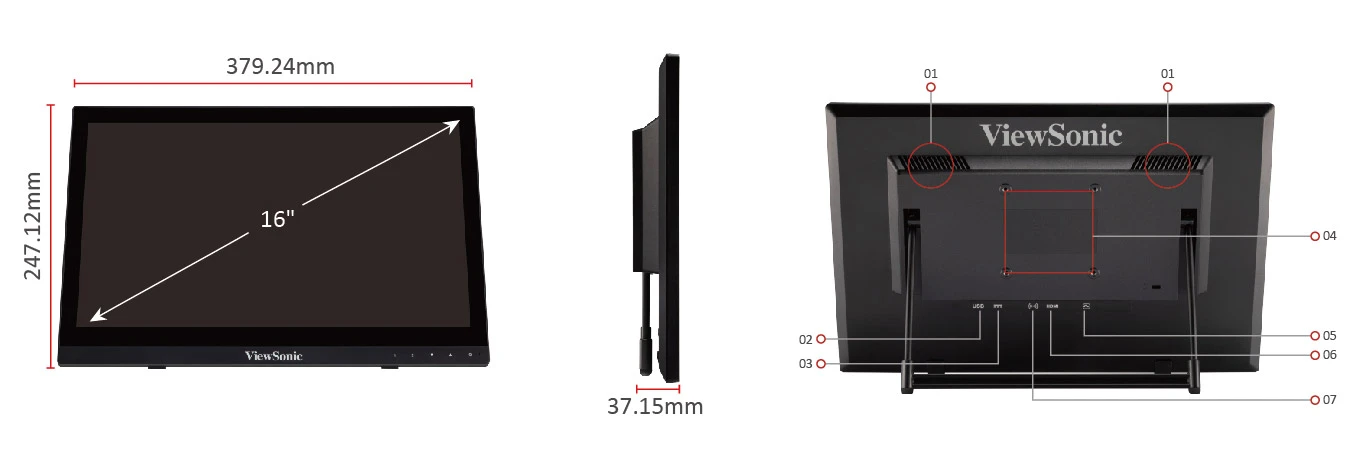

75mm x 75mm
  1. Internal Speakers
  2. USB
  3. DC In
  4. VESA Compatible(Wall Mount 75x75mm)
  5. VGA
  6. HDMI
  7. Earphone

ULASAN


SPESIFIKASI


  • Tampilan
    Display Size (in.): 16
    Viewable Area (in.): 15.6
    Jenis Panel: TN Technology
    Resolusi: 1366 x 768
    Jenis Resolusi: WXGA (Wide XGA)
    Rasio Kontras Statis: 500:1 (typ)
    Rasio Kontras Dinamis: 10M:1
    Sumber cahaya: LED
    Kecerahan: 190 cd/m² (typ)
    Colors: 262K
    Color Space Support: 6 bit true
    Aspect Ratio: 16:9
    Response Time (Typical Tr+Tf): 12ms
    Sudut Pandang: 90º horizontal, 60º vertical
    Backlight Life (Jam): 15000 Hrs (Min)
    Lengkungan: Flat
    Refresh Rate (Hz): 60
    Filter Cahaya Biru: Yes
    Low Blue Light: Software solution
    Color Gamut: NTSC: 45% size (Typ)
    sRGB: 67% size (Typ)
    Ukuran Piksel: 0.252 mm (H) x 0.252 mm (V)
    Layar sentuh: Projected Capacitive, 10-point multi-touch
    Surface Treatment: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 0.83mm
  • Kesesuaian
    Resolusi PC (max): 1366x768
    Resolusi Mac® (maks): 1366x768
    Sistem Operasi PC: Windows 7/8/8.1/10/11 certified; macOS tested
    Resolusi Mac® (min): 1366x768
  • Konektor
    VGA: 1
    USB 2.0 Type B: 1
    3.5mm Audio In: 1
    HDMI 1.4: 1
    Power in: DC Socket (Center Positive)
