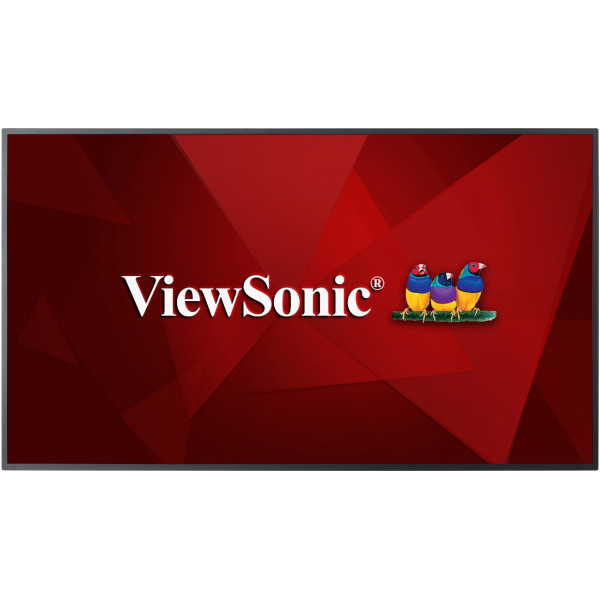

CDE6510
65" 4K Ultra HD LED Commercial Display
- Embedded Android SOC ondersteunt Android apps
- PC slot voor Intel OPS (slot-in PC)
- USB multimediaspeler
- vController software
- Ondersteunt HDMI CEC pass-through
Specificaties
- LCD PANELPaneelgrootte: 65"
Type: TFT LCD Module with DLED Backlight
Weergavegebied (mm): 1428.48 (H) x 803.52 (V)
Aspectratio: 16:09
Resolutie: 3840x2160 @60Hz
Colors: 1.07B colors
Helderheid: 350 nits (typ.)
Contrastverhouding: 4000:1 (typ.)
Reactietijd: 8 ms
Kijkhoeken: H = 178, V = 178 (typ.)
Backlight: DLED
Levensduur achtergrondverlichting: 30,000 Hours Min.
Hardness: 3H - INPUTHDMI: x 4
RGB/VGA: x 1
DisplayPort: x 1
Audio: x1 PC audio (3.5 mm)
RS232: x 1
PC Slot: x 1 (optional VPC12-WPO)
IR: x 1 - OUTPUTRS232: x 1
IR: x 1
- LANRJ45: x 1
- USBType A: x 1 for 5V/2A
2.0 Type A: x 2 (USB Playback)
3.0 Type A: x 1 (USB Playback) - SPEAKERS10W x 2
- COMPATIBILITYVGA: 1920 x 1080
DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz - POWERSpanning: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumptie: Normal 165 W, Max 295 W - ERGONOMICSWandmontage (VESA®): 400 x 400mm ; Screw: M6*(10+X) mm. (X=thickness of wall mount plate)
- OPERATING CONDITIONSTemperatuur (º C): 5°C to 40°C
Luchtvochtigheid: 20% ~ 80% non-condensing - AFMETINGEN (B x H x D)Physical (mm / inch): 1458.7 x 938.8 x 540 mm / 57.43 x 36.96 x 21.26 in. (with Stand)
Physical w/o Stand (mm / inch): 1458.7 x 834.7 x 81.6 mm / 57.43 x 32.86 x 3.21 in. (w/o Stand)
Packaging (mm / inch): 1655 x 1078 x 280 mm / 65.16 x 42.44 x 11.02 in - WEIGHTNet (kg / lb): 28.9 kg / 63.71 lbs (with Stand)
Net w/o Stand (kg / lb): 24.8 kg / 54.67 lbs (w/o stand)
Gross (kg / lb): 34.84 kg / 76.80 lbs - What's in the box?1. CDE6510 commercial display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. RS232 cable
7. RS232 daisy chain cable (2.4mm – 2.4mm)
8. IR sensor cable
