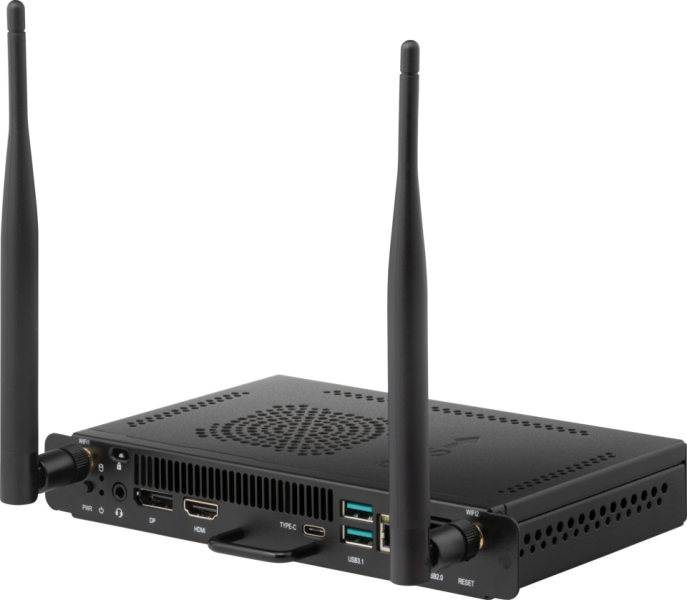

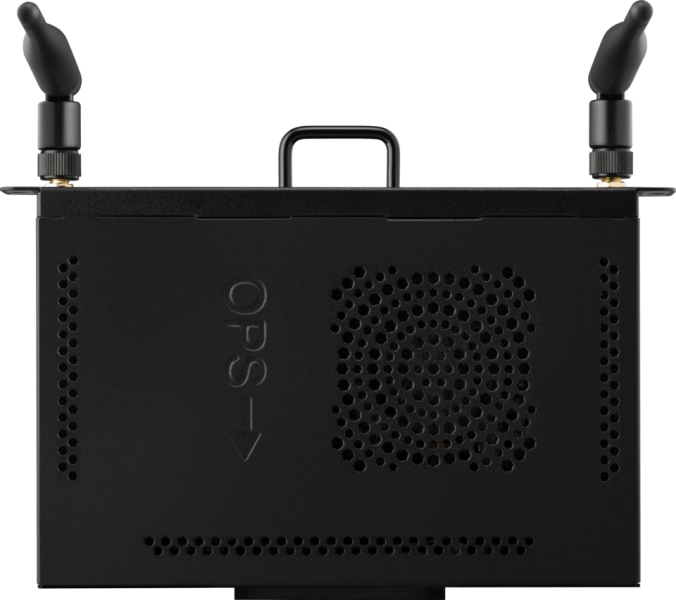

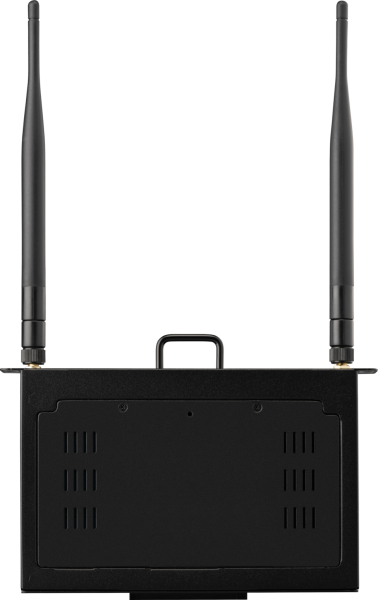

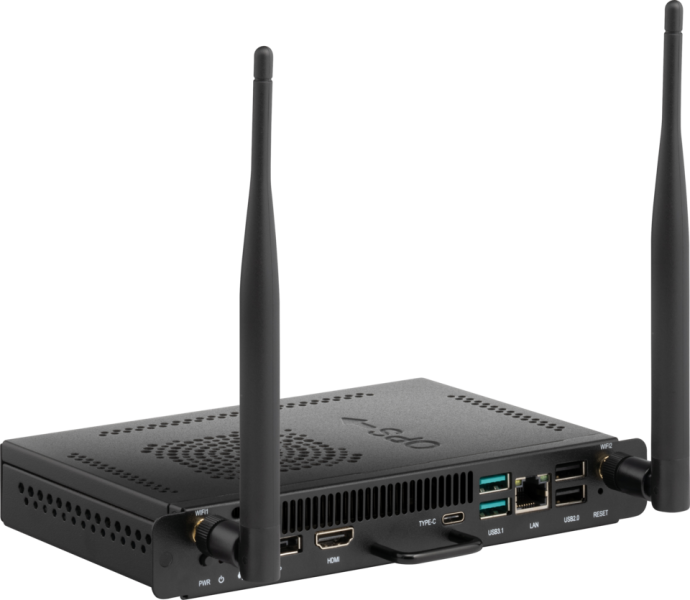

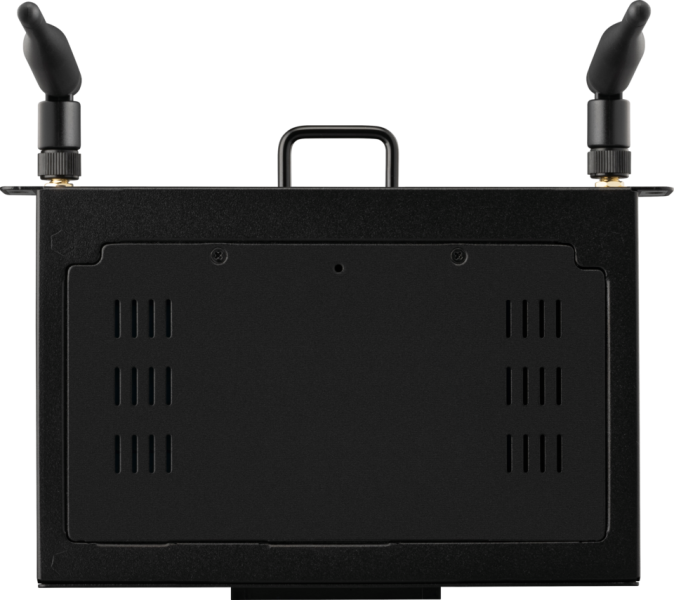

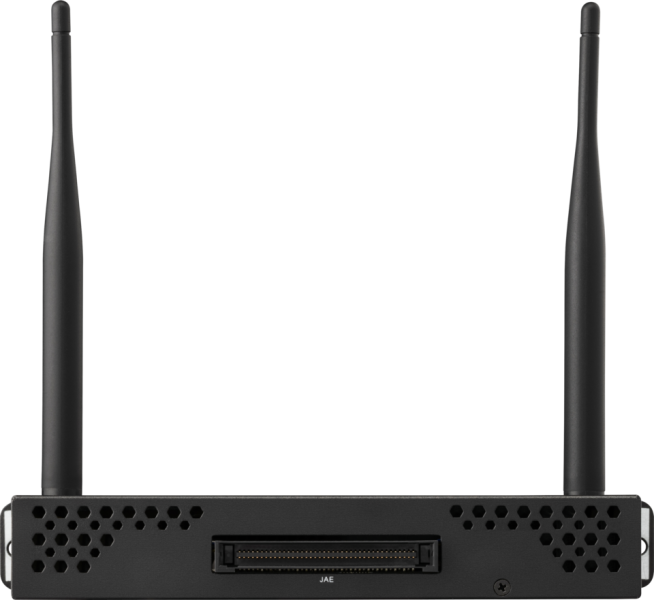

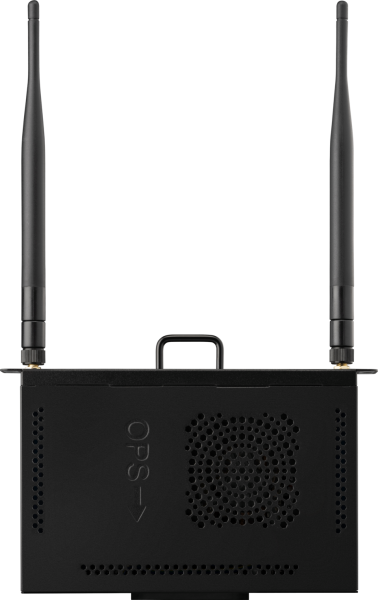

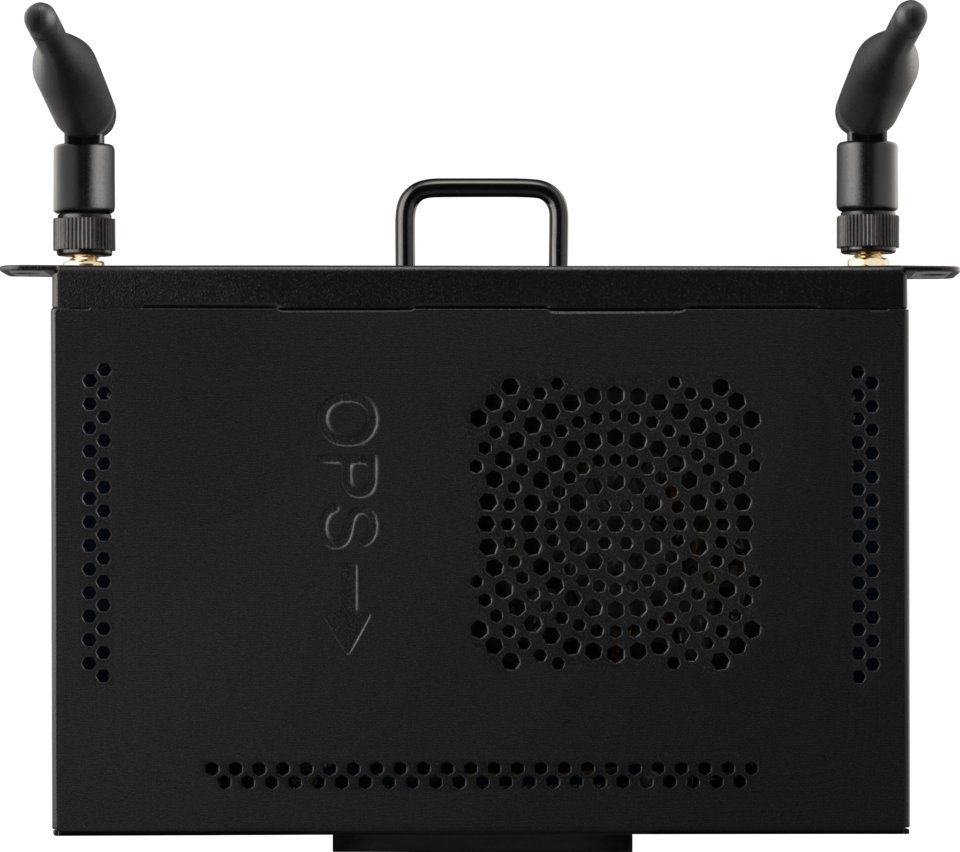

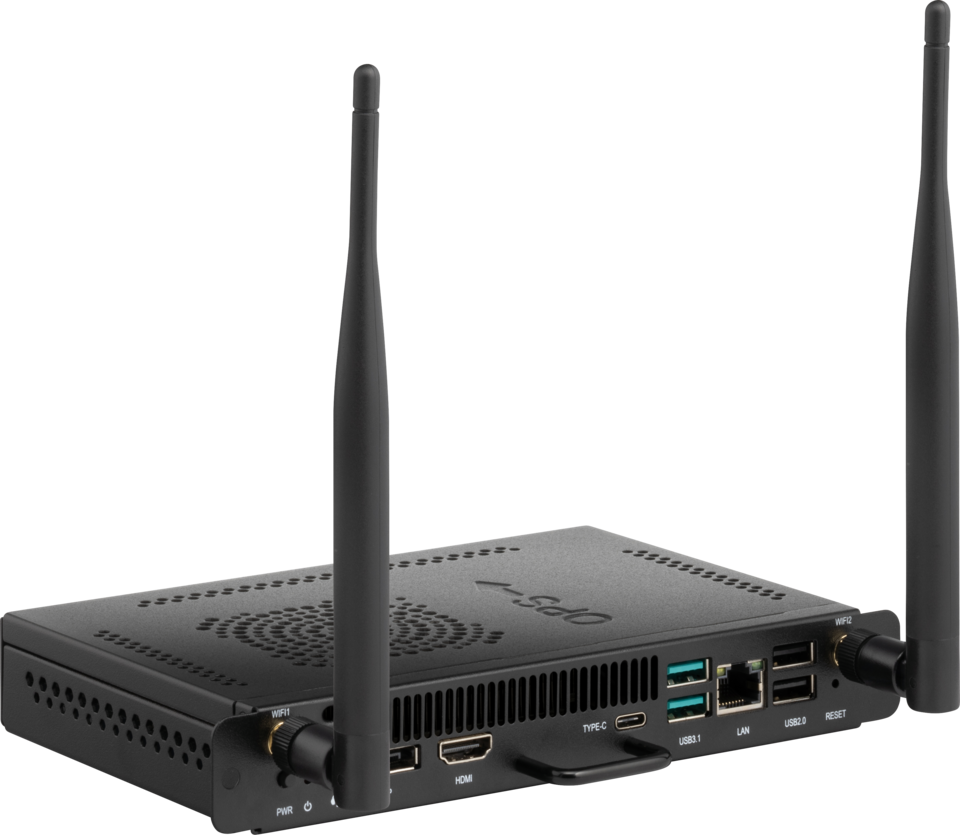

VPCF5-W55-G1-2A
Slot-in PC voor ViewBoard® Interactive Display
- Windows 11 Pro
- Een ideale geïntegreerde oplossing voor ViewBoard® interactieve schermen & presentatieschermen
- Aangedreven door Intel® 12e generatie processors met ingebouwde TPM2.0
- DP1.4-poort ondersteunt tot 5K-resolutie bij 60Hz, voor heldere en gedetailleerde inhoud
- Verbeterde systeemstabiliteit, beveiliging en thermische controle
Specificaties
- SoftwareBesturingssysteem: Windows 11 Pro
- KernCPU: Intel Gen12th core i5 CPU or later Gen. CPU
Grafische afbeeldingen: Intel Iris Xe Graphics (DP Supports up to 8K@30Hz, HDMI Supports up to 3840x2160@30Hz) - GeheugenType: DDR4
Capaciteit: 16GB
- OpslagAfmeting: M.2 SSD
Capaciteit: 512GB

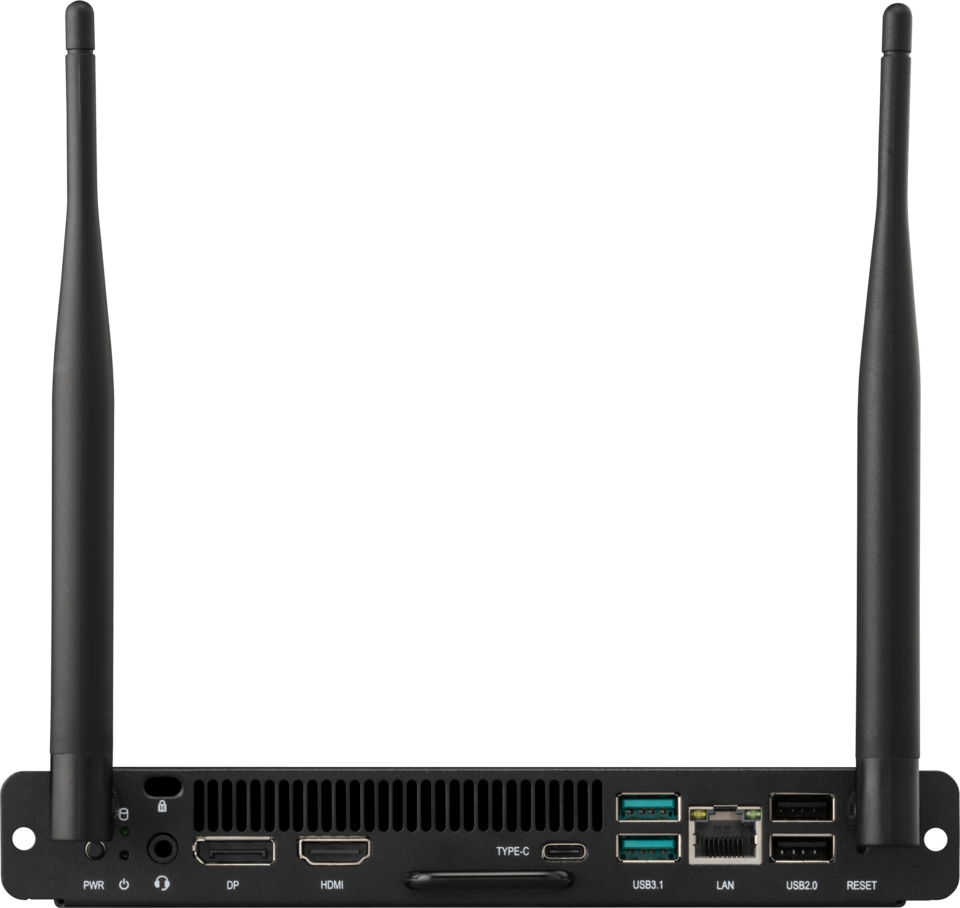

Interface: PCIE - INPUTMIC (microfoon): MIC-In&Line-Out two in one connector
OPS Standard: 80 PIN x1 (HDMI 2.0 4K@60Hz, DP 5K@60Hz, USB3.0 x1 + USB2.0 x2, DC 12-19V) - OUTPUTHDMI: x1 (Max 3840x2160@30Hz)
Audio: MIC-In&Line-Out two in one connector - LANRJ45: x1 (RJ45 10/100/1000M)
- Draadloos / BluetoothDraadloos / Bluetooth: Intel® Wi-Fi 6 AX101
WIFI 6 802.11 ax + BT5.2 - USBType A: USB 3.1 x 2 / USB 2.0 x 2
Type C: USB 3.1 Gen2 x 1 (Data Only) - StroomSpanning: DC 19 V/ 4.74A
Consumptie: Max 90 W - OPERATING CONDITIONSTemperatuur (º C): 0℃ ~ 40℃(working)
Luchtvochtigheid: 20% ~ 80% RH
Non-Condensing(working) - AFMETINGEN (B x H x D)Fysiek (inch/mm): 7.87 x 4.68 x 1.18 in / 200 x 119 x 30 mm
Verpakking (inch / mm): 10 x 7.72 x 2.76 in / 254 x 196 x 70 mm - WEIGHTNetto (lb / kg): 1.54 lb / 0.7 kg
Bruto ( lb/kg): 1.54 lb / 3.4 kg - VERPAKKINGSINHOUDVERPAKKINGSINHOUD: 1. Quick Start Guide(With Compliance Statement )
2. Screws x 2
3. Antenna x 2
COMPATIBEL MET VPCF5-W55-G1-2A
105” 5K Presentation Display
65" 4K Professional Commercial Display with ProAV Integration
75" 4K Professional Commercial Display with ProAV Integration
86" 4K Professional Commercial Display with ProAV Integration
92" 5K-presentatiescherm
98" 4K Professional Commercial Display with ProAV Integration
ViewBoard IFP5541-1 EDLA-certified 55” display with motion sensor and 8-microphone array
Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 65” 4K Interactive Display
ViewBoard IFP6535-1 EDLA-certified 65" display with energy-saving motion sensor
ViewBoard IFP6541-1 EDLA-certified 65” display with motion sensor and 8-microphone array
ViewBoard® 65" 4K Interactive Display
65“ 4K PCAP Touch EDLA Certified Interactive Display
65“ 4K PCAP Touch EDLA Certified Interactive Display
Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 75” 4K Interactive Display
ViewBoard IFP7535-1 EDLA-certified 75" display with energy-saving motion sensor
ViewBoard IFP7541-1 EDLA-certified 75” display with motion sensor and 8-microphone array
ViewBoard® 75" 4K Interactive Display
75“ 4K PCAP Touch EDLA Certified Interactive Display
75“ 4K PCAP Touch EDLA Certified Interactive Display
Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 86” 4K Interactive Display
ViewBoard IFP8635-1 EDLA-certified 86" display with energy-saving motion sensor
ViewBoard IFP8641-1 EDLA-certified 86” display with motion sensor and 8-microphone array
ViewBoard® 86" 4K Interactive Display
86“ 4K PCAP Touch EDLA Certified Interactive Display
86“ 4K PCAP Touch EDLA Certified Interactive Display
ViewBoard® 92" 5K Interactive Display
ViewBoard IFP9841-1 EDLA-certified 98” display with motion sensor and 8-microphone array
