Specificaties
- DisplaySchermgrootte (inch): 22
Zichtbare oppervlakte (in.): 21.5
Paneeltype: TN Technology
Resolutie: 1920 x 1080
Resolutietype: FHD (Full HD)
Statische contrastverhouding: 1,000:1 (typ)
Dynamische contrastverhouding: 20M:1
Lichtbron: LED
Helderheid: 200 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + Hi-FRC)
Aspectratio: 16:9
Response Time (Typical Tr+Tf): 5ms
Kijkhoeken: 170º horizontal, 160º vertical
Levensduur achtergrondverlichting (uren): 30000 Hrs (Min)
Kromming: Flat
Vernieuwingsfrequentie (Hz): 60
Color Gamut: NTSC: 72% size (Typ)
sRGB: 103% size (Typ)
Pixelgrootte: 0.248 mm (H) x 0.248 mm (V)
Oppervlakte behandeling: Glossy, Hard Coating (7H)
Cover Glass Thickness: 1.88mm - CompatibiliteitPC-resolutie (max.): 1920x1080
Mac® Resolutie (max.): 1920x1080
PC-besturingssysteem: Windows XP/Vista/7 certified; macOS tested

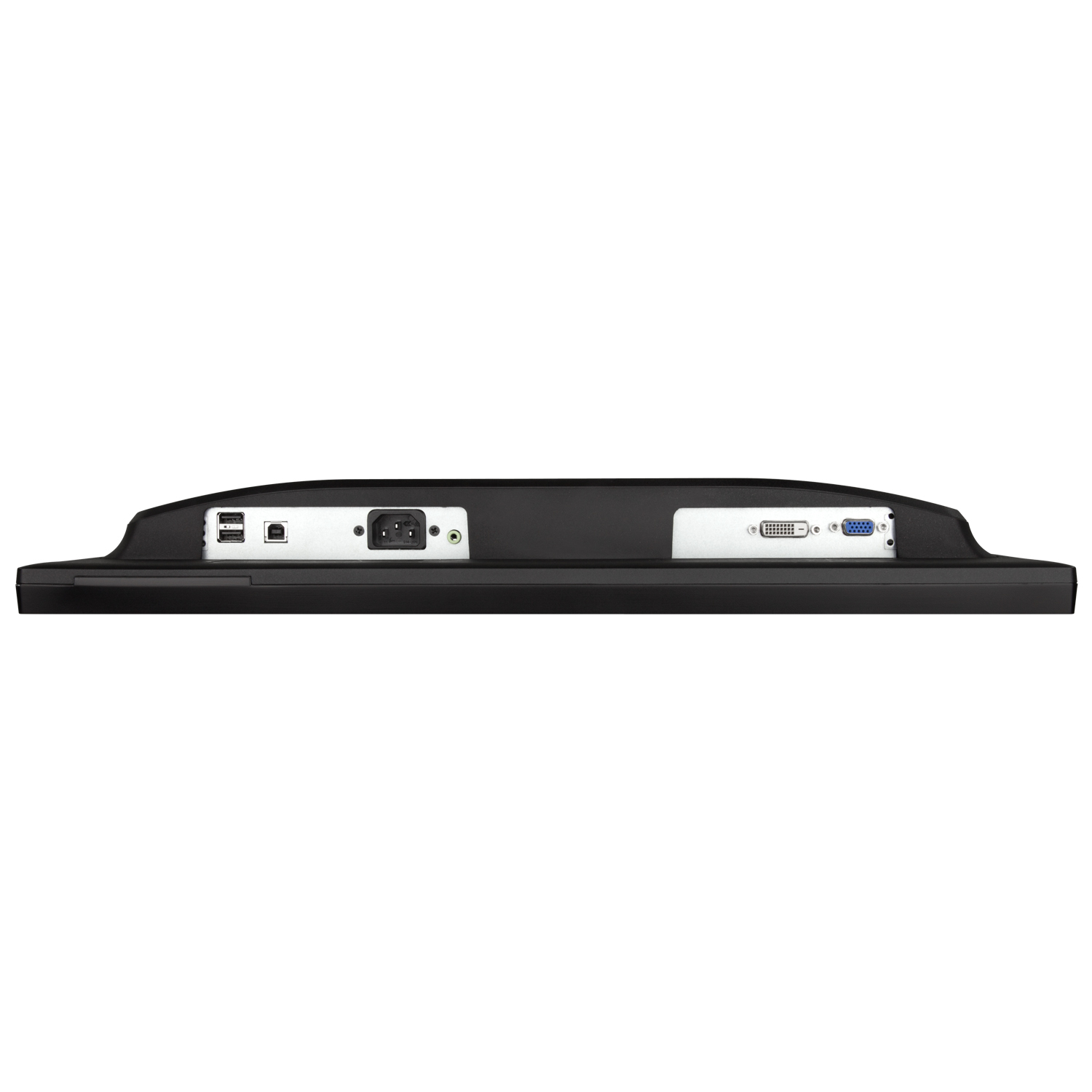

Mac® Resolutie (min): 1920x1080 - ConnectorVGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
DVI-D: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
- AudioInterne luidsprekers: 2Watts x2
- StroomEco-modus (behouden): 16W
Eco Mode (optimized): 18W
Verbruik (typisch): 23.5W
Verbruik (maximaal): 26.5W
Spanning: AC 100-240V
Stand-by: 0.5W
Stroomvoorziening: Internal Power Supply - Extra hardwareKensington-slotsleuf: 1
Cable Organization: Yes - BesturingFysieke controles: 1, 2, Up, Down, Power
Schermweergave: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall - Bedrijfsomstandigheden:Temperatuur: 32°F to 104°F (0°C to 40°C)

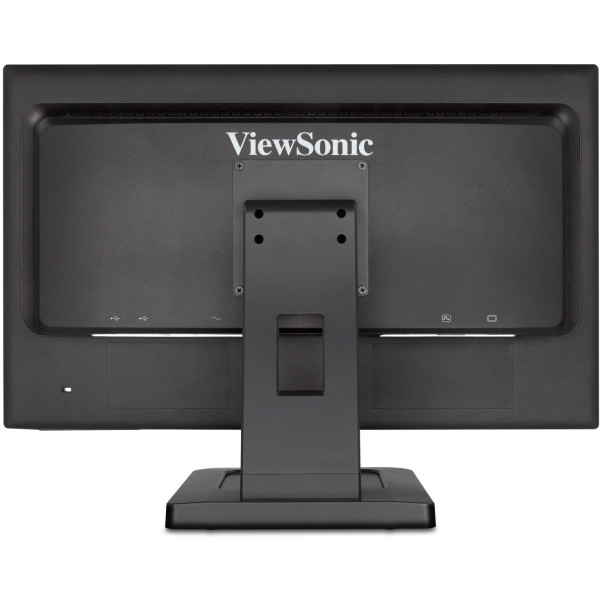

Vochtigheid (niet-condenserend): 20% to 90% - Wall Mount VESA-compatibel: 100 x 100 mm
- IngangssignaalFrequentie Horizontaal: 24 ~ 83KHz
Frequentie verticaal: 50 ~ 76Hz - Video-ingangDigitale synchronisatie: TMDS - DVI-D

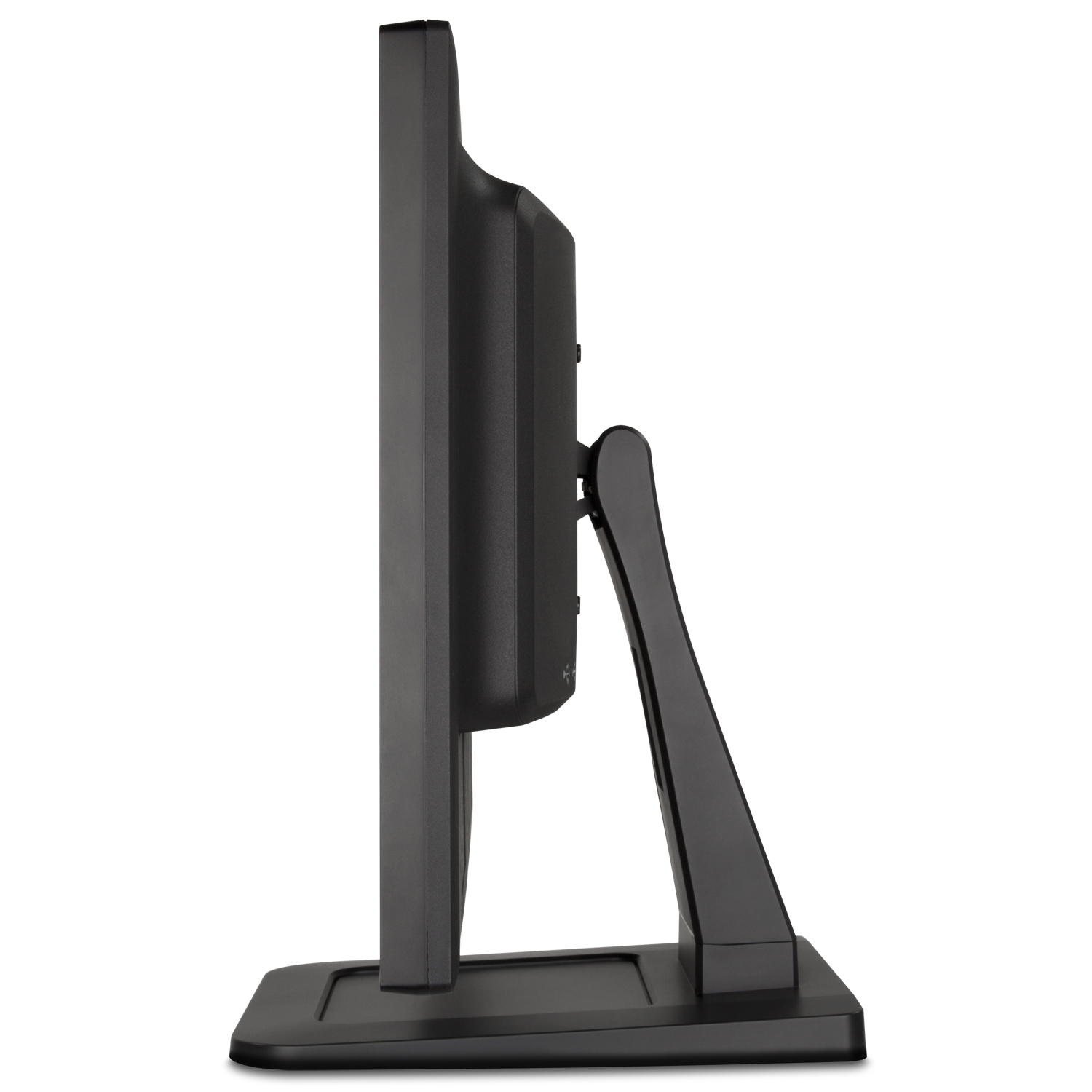

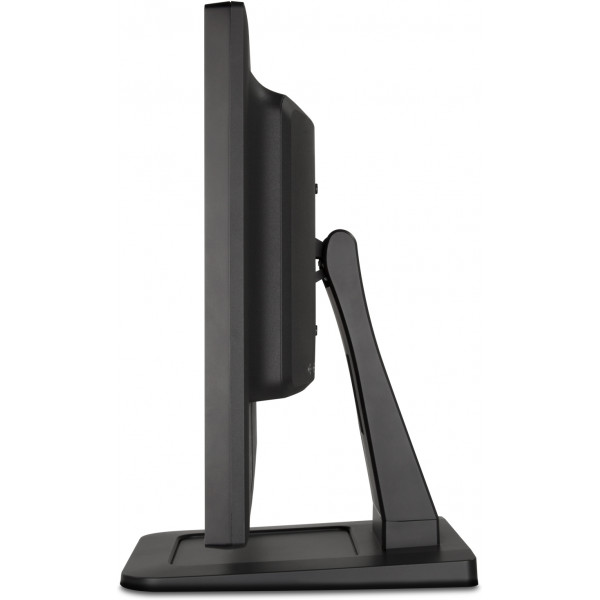

Analog Sync: Separate/Composite/SOG - RGB Analog - ErgonomieKantelen (vooruit/achteruit): -5º / 20º
- Gewicht (imperiaal)Netto (lbs): 10.8
Netto Zonder Standaard (lbs): 8.7
Bruto (lbs): 14.2 - Weight (metric) Netto (kg): 4.9
Netto Zonder Standaard (kg): 4
Bruto (kg): 6.5 - Afmetingen (imperiaal) (bxhxd)Verpakking (inch): 22.4 x 16.8 x 8.4
Fysiek (inch/mm): 20.1 x 14.4 x 9.4
Fysiek zonder standaard (in.): 20.1 x 12.2 x 2.6 - Afmetingen (metrisch) (bxhxd)Verpakking (mm): 570 x 427 x 214
Fysiek (mm): 511 x 365 x 240
Fysiek zonder standaard (mm): 511 x 310 x 66 - AlgemeenVERPAKKINGSINHOUD: TD2220 x1, 3-pin Plug (IEC C13 / CEE22) x1, VGA Cable (Male-Male) x1, DVI Cable (Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Recyclen/verwijderen: Please dispose of in accordance with local, state or federal laws.
Garantie: *Warranty offered may differ from market to market
Stroombeheer: Energy Star standards
