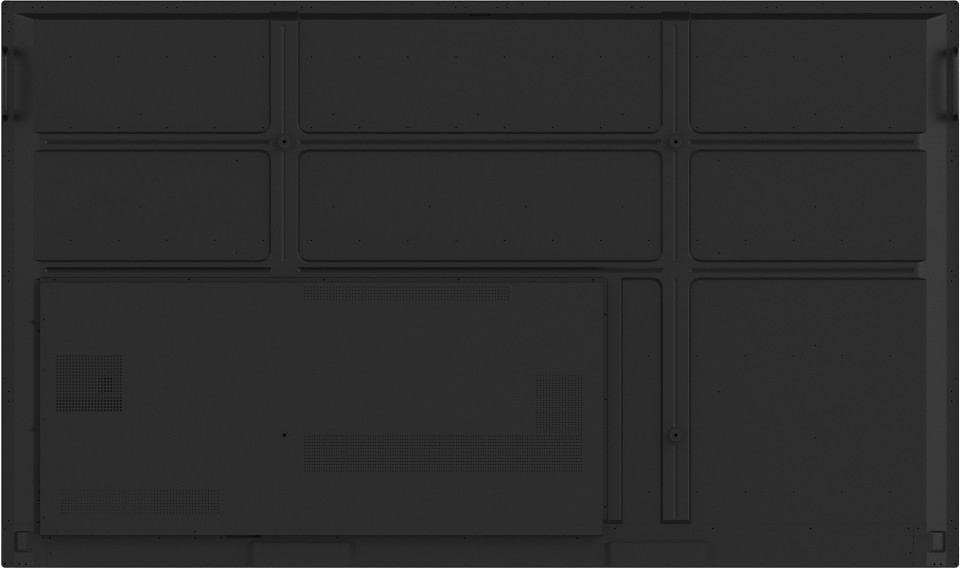

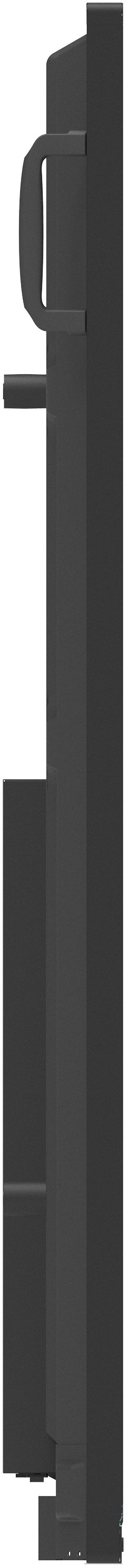

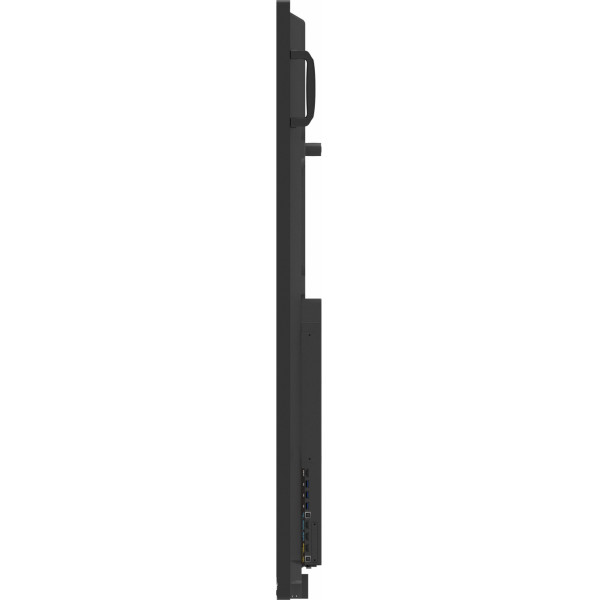

IFP8650-3

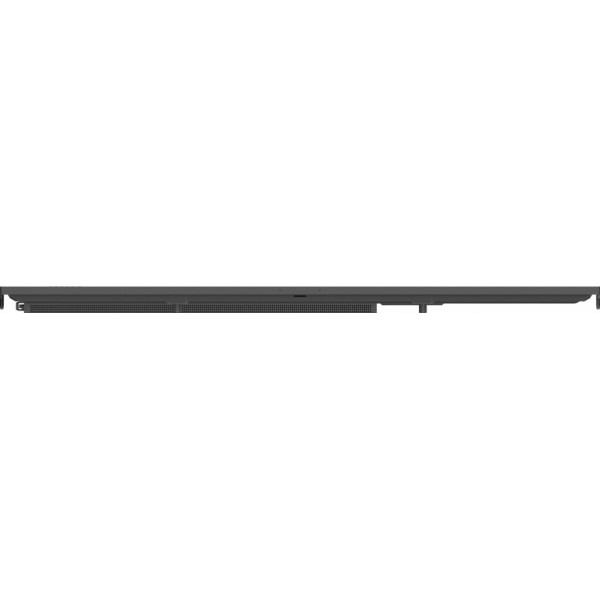

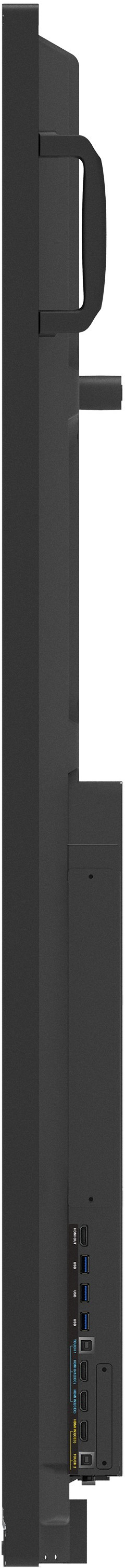

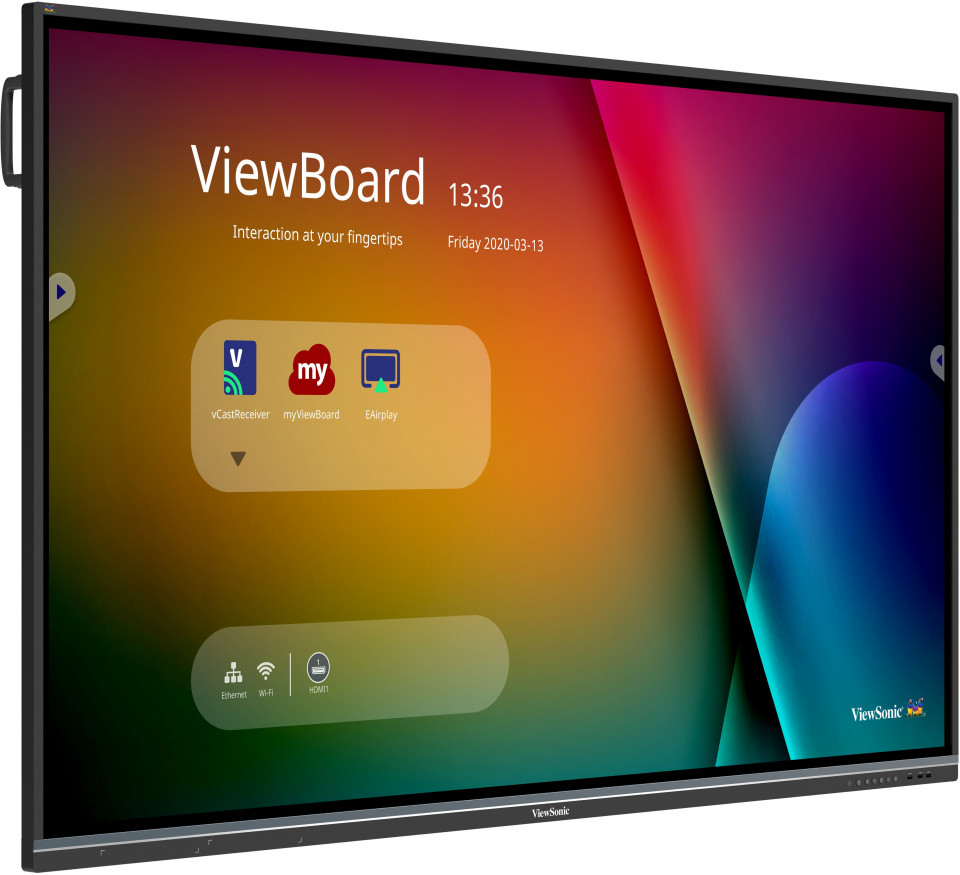

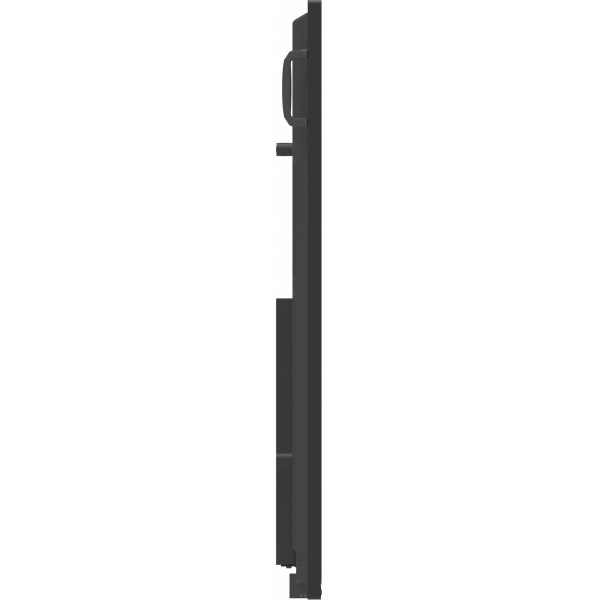

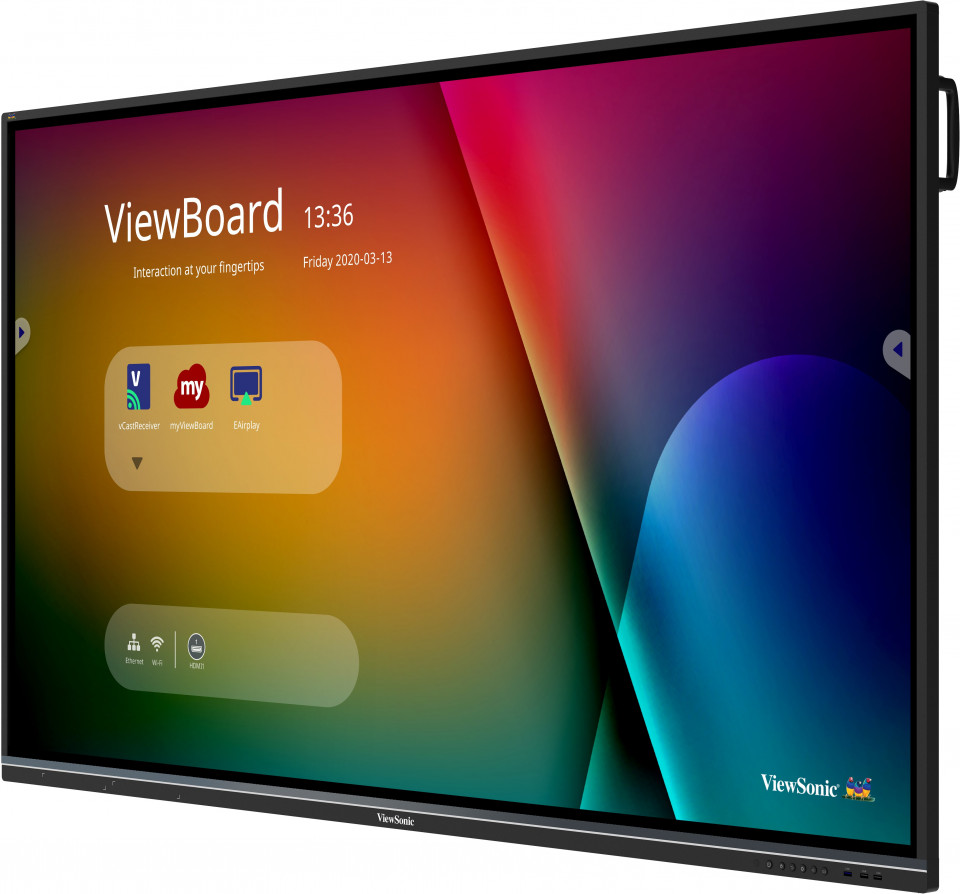

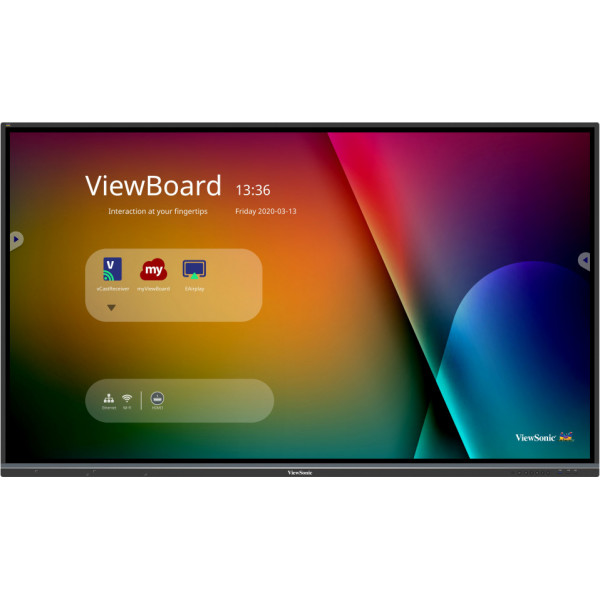

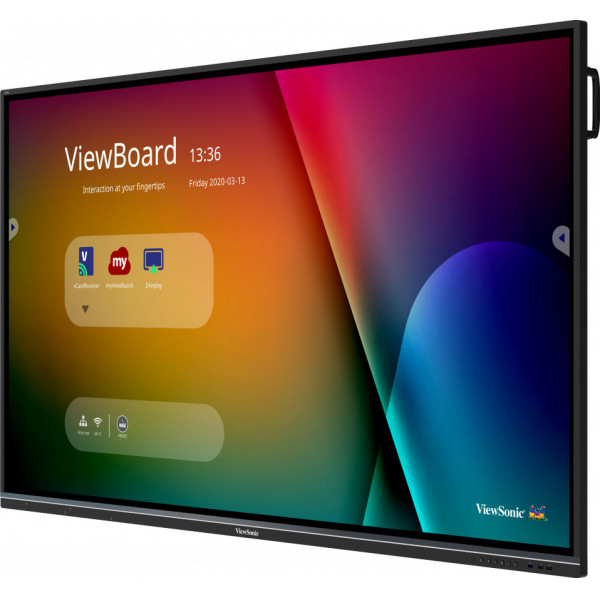

ViewBoard® 86" 4K Interactive Display
- Intuitive Interactive Interface and Eye-care Certified Display
- Synchronous Writing Performance with Dual Pens
- Lag-free, Pen-on-paper Writing Experience with Ultra Fine Touch Technology
- Native Whiteboarding Tool with built-in myViewBoard® App
- Wireless Content Sharing and 4-way Split Screen with ViewBoard® Cast App
SPECIFICATIONS
- DisplayPanel Size: 86"
Panel Type: TFT LCD Module with DLED Backlight.
Display Area (mm): 1895.04 (H) x 1065.96 (V) (85.6”diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160 (Pixels)
Colors: 1.07B colors (10bit)
Brightness: 350 nits (typ.)
Contrast Ratio: 5000:1 (DCR)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours (Min)
Surface Treatment: Hardness: 9H
Anti-glare coating

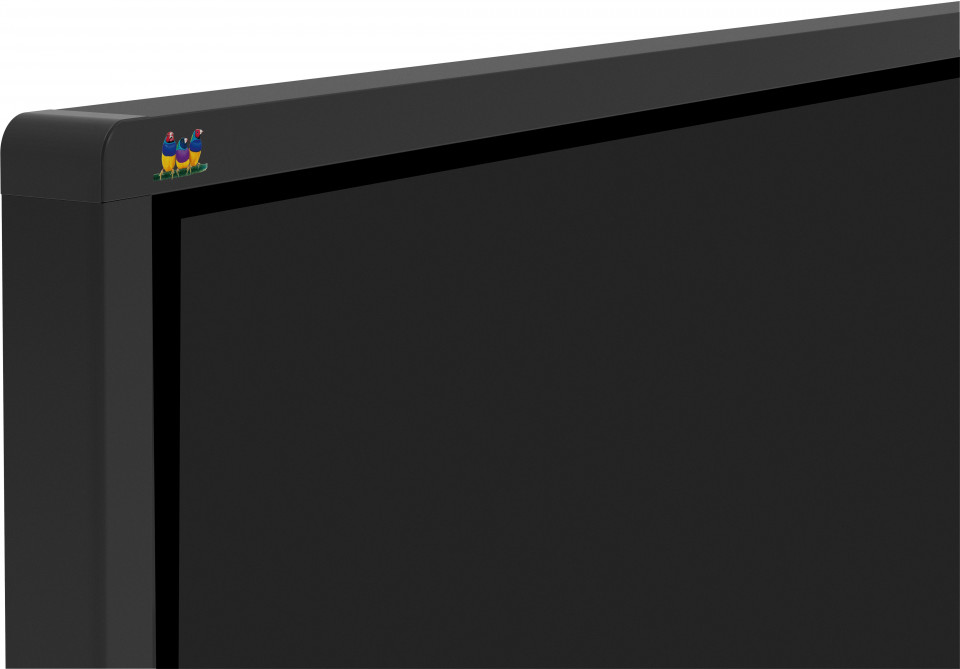

Bezel: Slim
Orientation: Landscape - PlatformProcessor: ARM Cortex-A73*2 + Cortex-A53*2 1.5GHz
RAM: 3GB DDR4
Storage: 32GB - TouchType/ Tech: IR Recognition
Touch Resolution: 32767 x 32767
Touch Point: 20 points touch, 10 points writing
- INPUTHDMI: 2.0 x3 (3840x2160 @60Hz)
RGB / VGA: x1
Audio: x1 (PC audio in)
RS232: x1
OPS: x1 PC Slot (proprietary) - OUTPUTAudio: x1 (Earphone out)
SPDIF: 1 (optical) - LANRJ45: x1

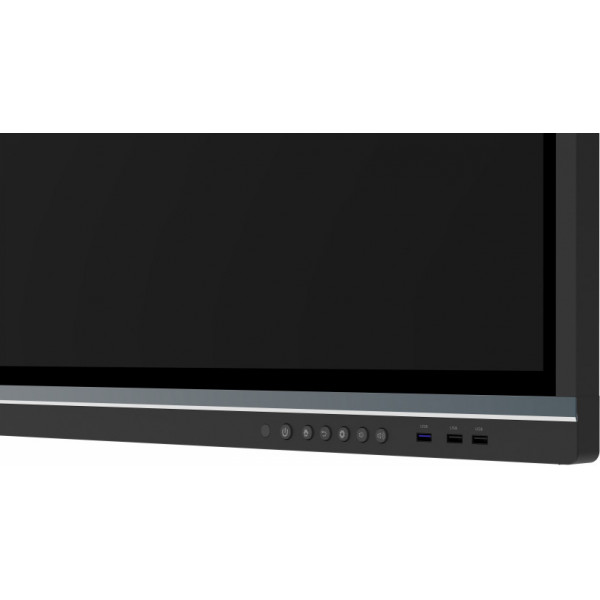

- USBType A: USB2.0: Front x2, Rear x1 (SmartPort™ for all)
USB3.0: Front x1, Rear x3 (SmartPort™ for Rear x3)
Type B: x2, for touch - SPEAKERS10W x 2 + 15W x 1 subwoofers
- Top Camera PlateYes
- COMPATIBILITYHDMI: 3840x2160
- Embedded OSAndroid 8
- Bundle SoftwareBasic Annotation Software: myViewBoard
Pro Annotation Software: myViewBoard for Windows (Embedded in Windows Slot-in PC) - Special FeaturesAll-in-one USB port: Front “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: 10M/100M/ for Android
10M/100M/1000M for slot-in PC - PowerVoltage: 100-240VAC +/- 10% Wide Range

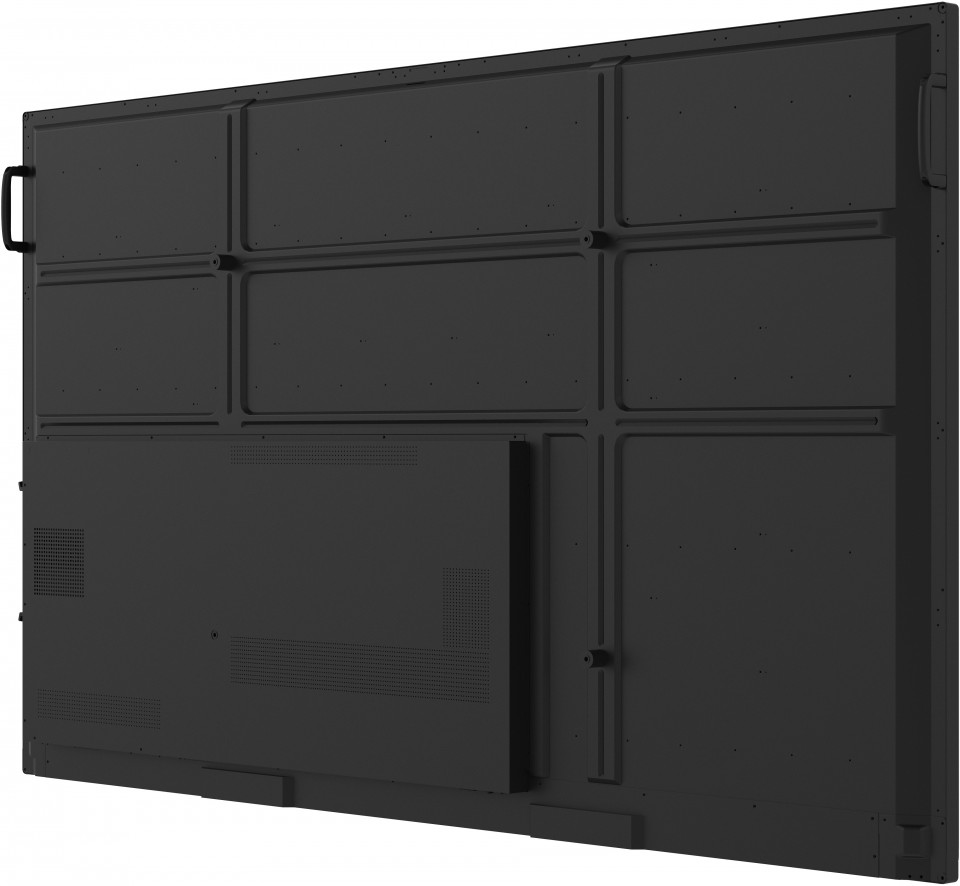

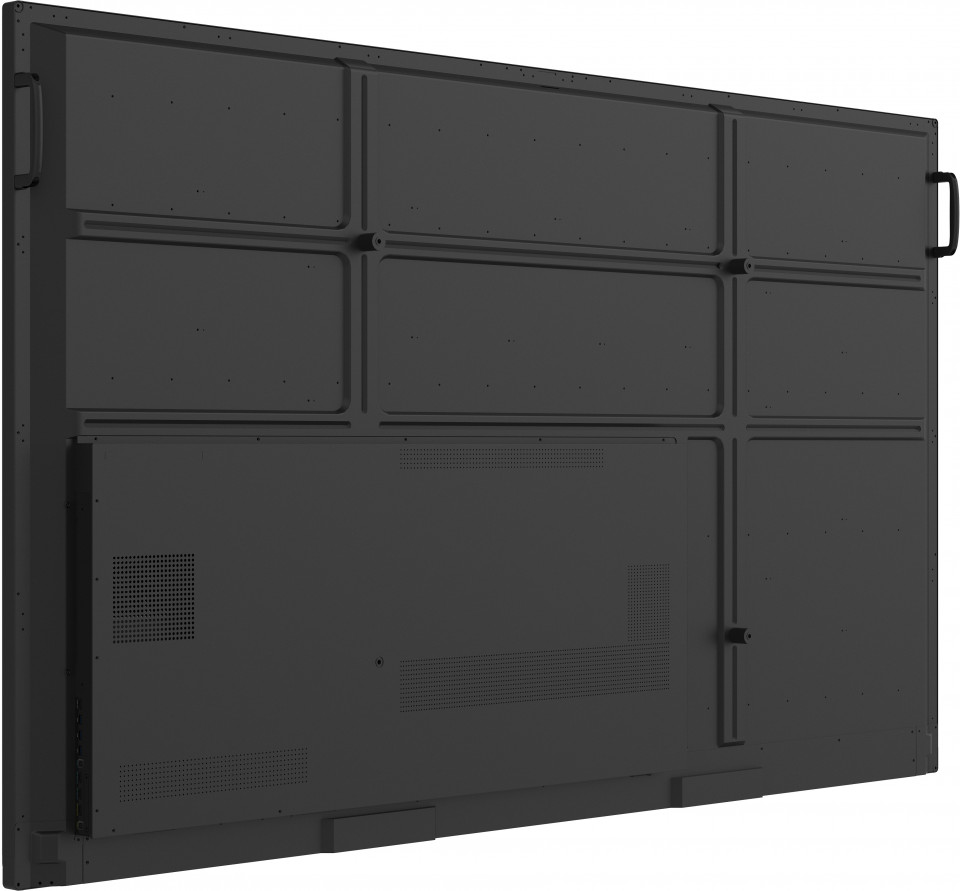

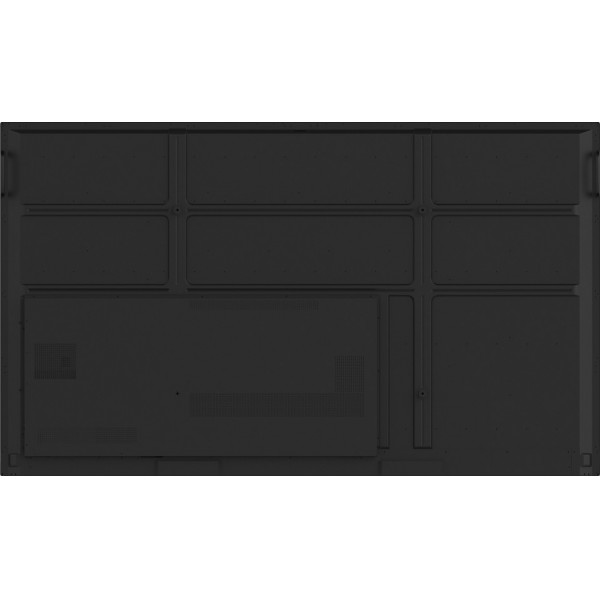

Consumption: On: 162W(typ.) / Off: <0.5W - ERGONOMICSWall Mount (VESA® ): 800 x 600
- OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 77.1 x 45.7 x 3.5 in / 1958 x 1160 x 90 mm
Packaging (inch / mm): 83.6 x 53.0 x 11.0 in / 2123 x 1345 x 280 mm - WEIGHTNet (lb / kg): 150.8 lb / 68.4 kg

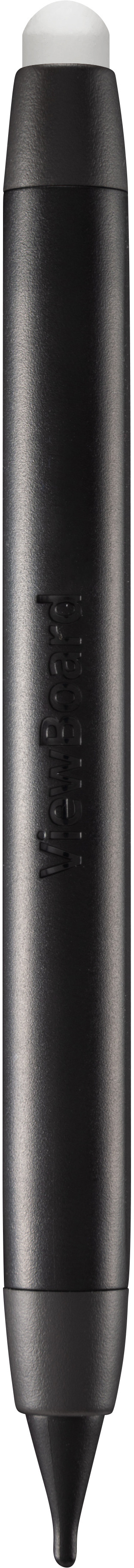

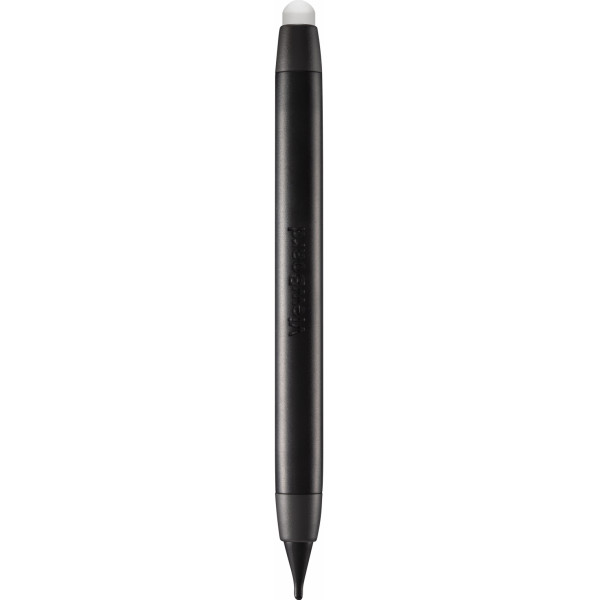

Gross (lb / kg): 200 lb / 90.7 kg - PACKAGE CONTENTS1. Power cable (3 meters). VSAx1, VSEx2, VSIx4 2. Remote control 3. USB cable (3 meters) 4. Touching pen x 2 5. Quick Start Guide 6. RS232 adapter 7. Clamp x 5 8. Plate 9. Screw x 8 10. HDMI cable 3M
- Compatible Slot-in PCVPC14-WP series
VPC10-WP series
VPC15-WP series
VPC16-WP series
VPC17-WP series
