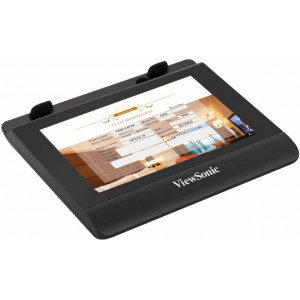

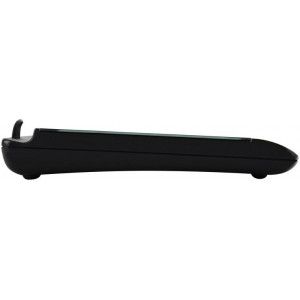

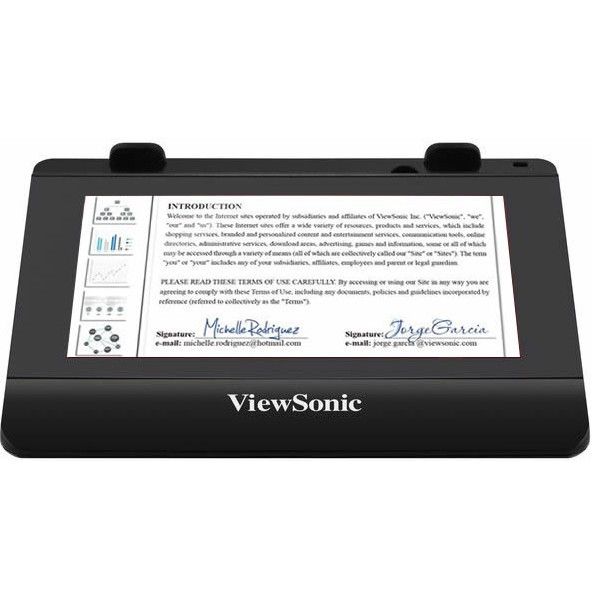

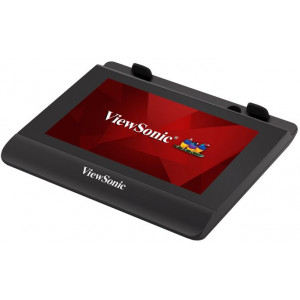

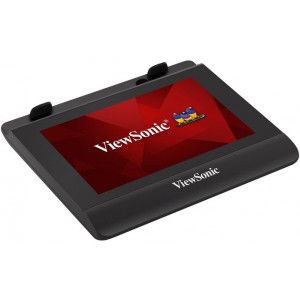

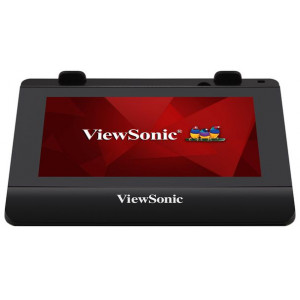

PD0511
5” high-performance compact pen display
SPECIFICATIONS
- LCD PANELDisplay Area: 5" TFT LCD
Optimum Resolution: 1024 x 600
Brightness: 200 cd/m2 (Typ); (with glass)
Contrast Ratio: 500:1(typ)
Backlight: LED light-bar
Viewing Angles: 120 Deg H and 80 Deg V (Typ.) CR >=10 - CONNECTORUSB: USB2.0 x1 for additional power in
Power: USB2.0: 5V/1A Max - TOUCHTechnology: Electromagnetic resonance
Touch Pen: Battery-less
Digitizer Resolution: 5080LPI
Writing Response: Average 250pps (point per second)
Accuracy: ± 0.5mm (center), ± 1 mm (edge)
Pressure Level: 2048
Detectable Height: 5-15mm above glass
- ERGONOMICsTilt: 5°/15°
- POWERVoltage: USB2.0: 5V/1A Max
Consumption: 5.0 W (max) - OPERATING CONDITIONSTemperature (º F / º C): 32°F to 104°F (0°C to40°C)
Humidity: 20% - 80%(Max), Non-Condensation - DIMENSIONS W x H x D (inch/mm)Physical (in / mm): 3.93" x 3.15" x 1.2" (10cm x 8cm x 3cm)
Box (in / mm): 15.62” (W) x 11.61” (H) x 14.57” (D) inch / 397 (W) x 295(H) x 370(D) mm - WEIGHTNet (lb / kg): 0.51 lb / 0.21kg
Gross (lb / kg): 1.435 lbs / 0.65kg - WARRANTY**Warranty offered may differ from market to market
- WHAT'S IN THE BOX1. Pen Display*1
2. USB 2.0 Y-cable*1
3. Pen*1
4. Pen tip*3
5. Replacement tool of Pen tip*1
6. Pen rope*1
7. Driver CD*1
8. User Guide *1 (e-file)
9. Quick Start Guide *1
10. Warranty card*1 (VSCN only)*1
*Actual content may differ from market to market
