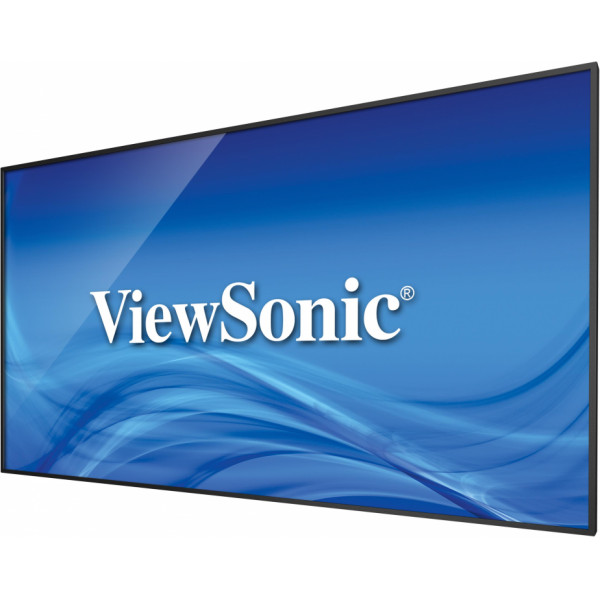

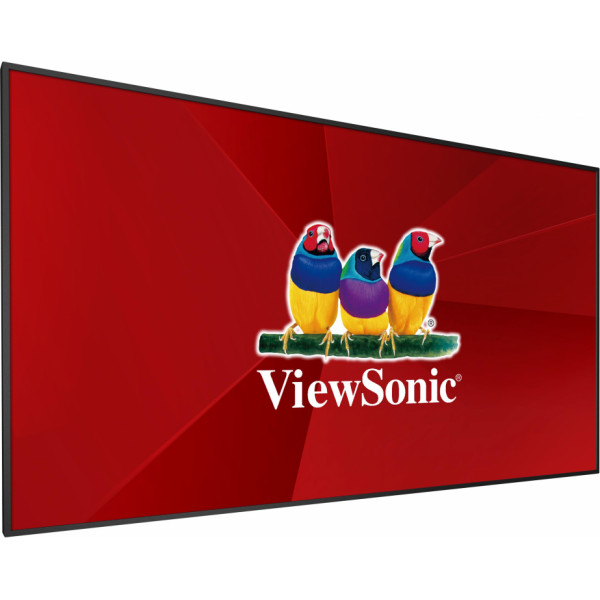

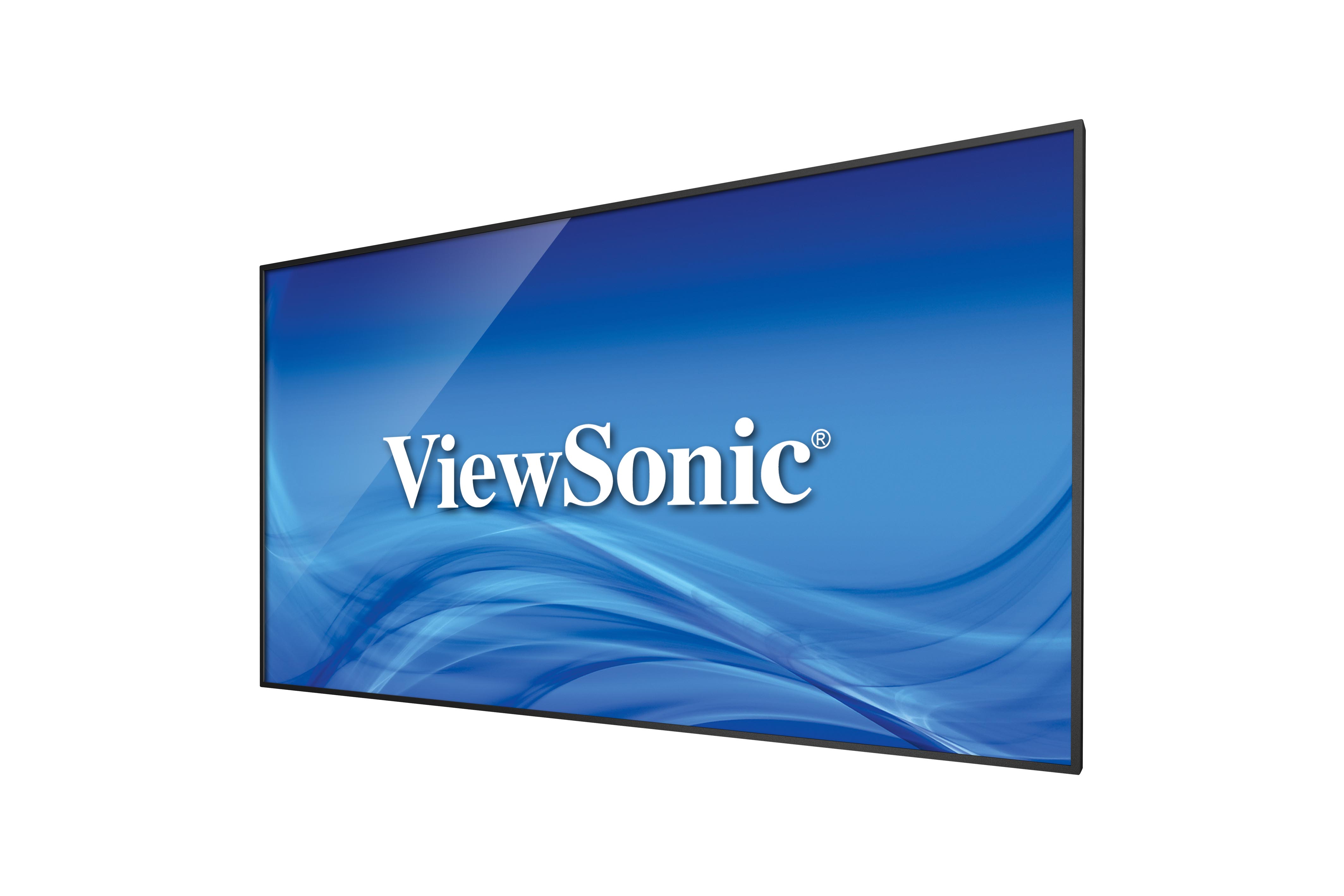

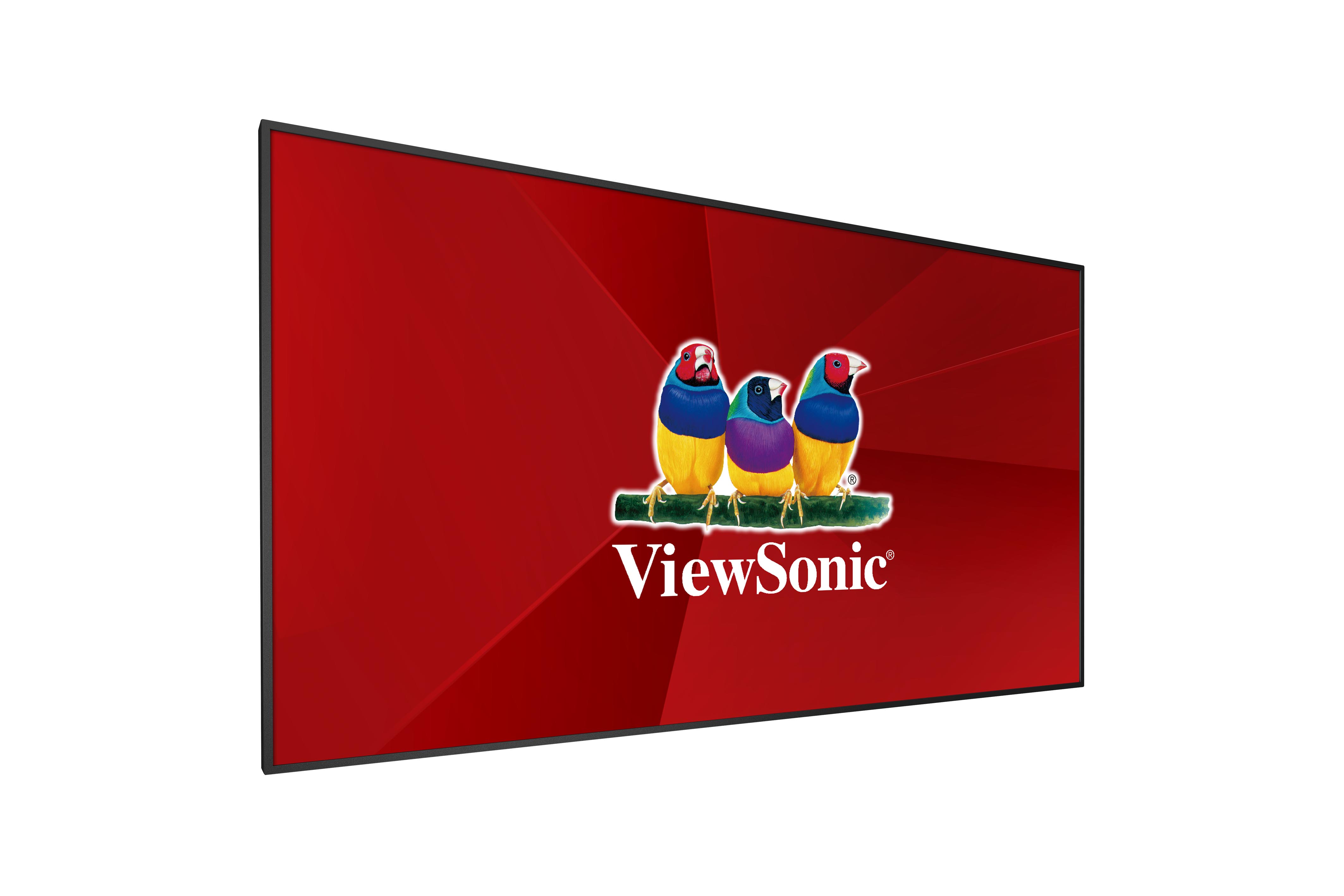

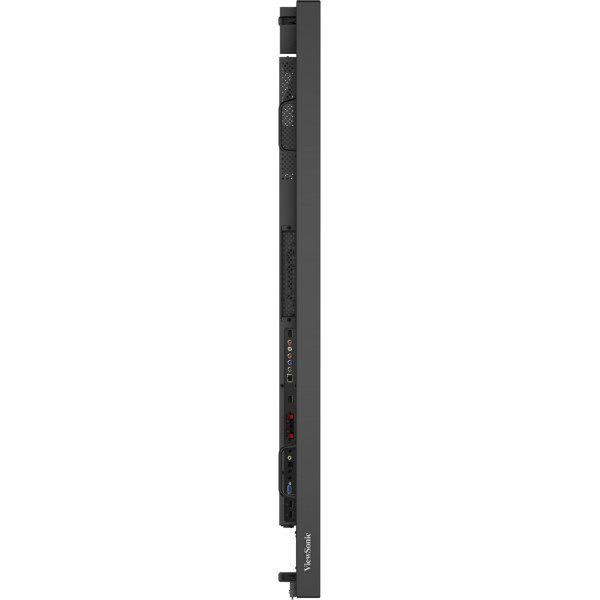

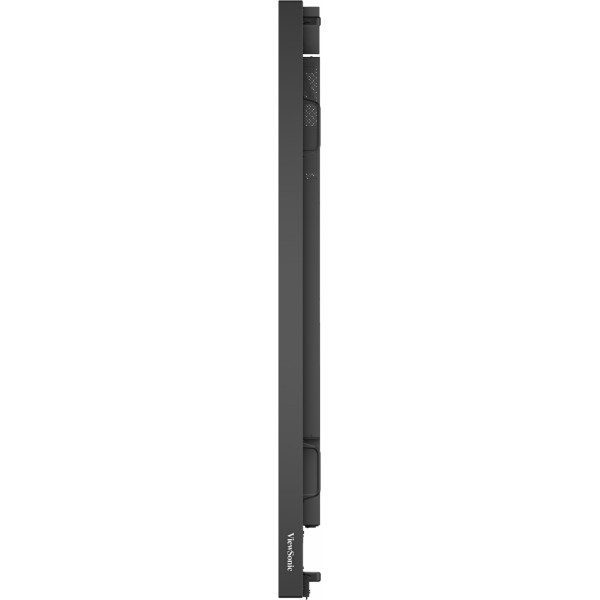

CDP9800

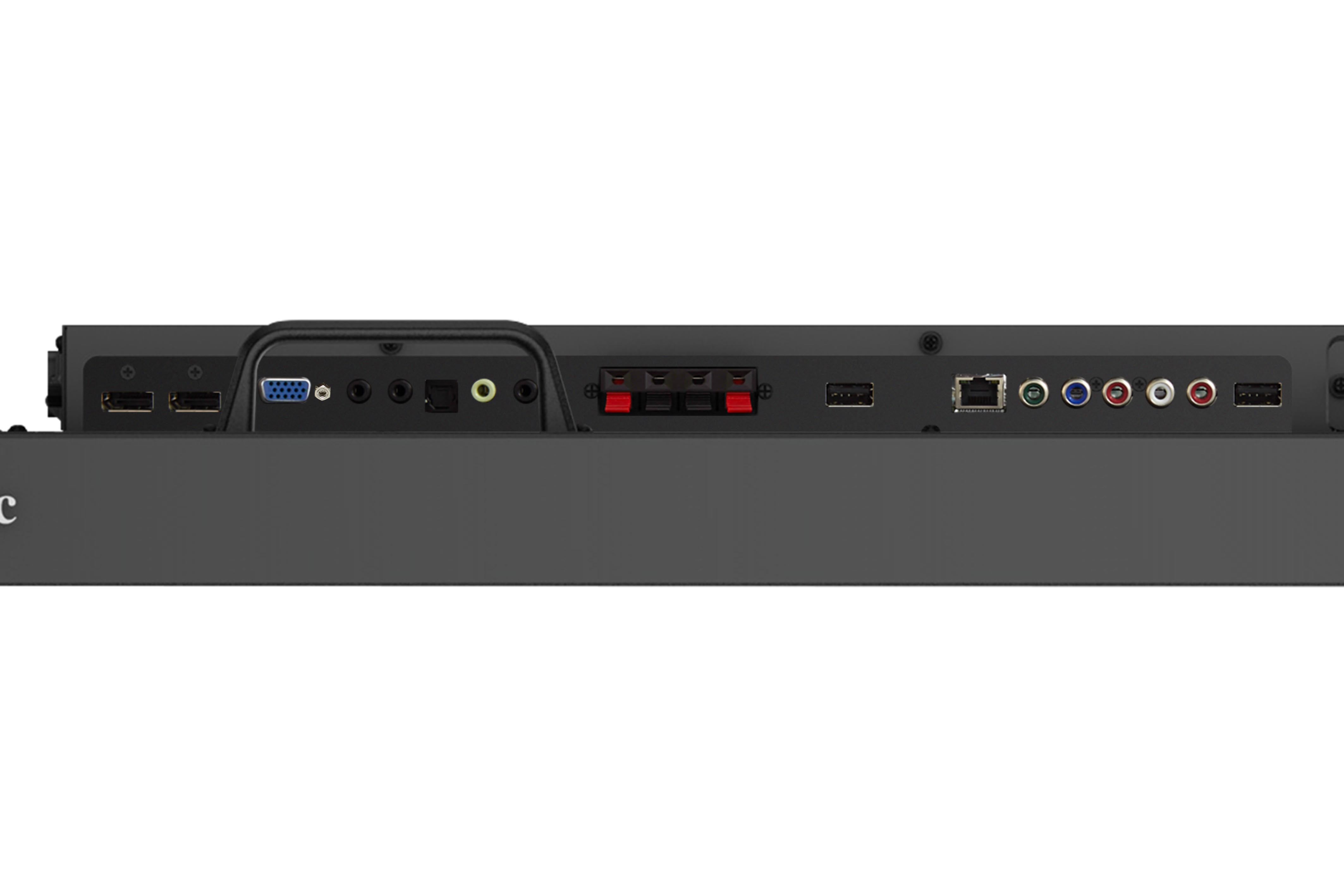

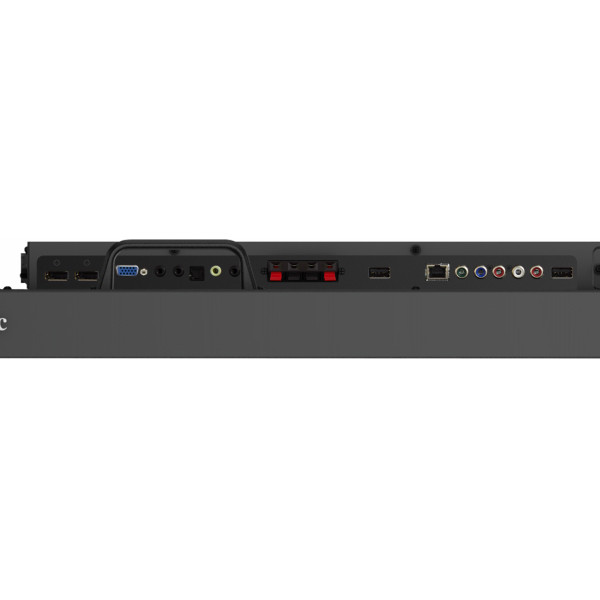

RJ45: x1

Loại A: x1

LOA: 10W x 2

PC RGB / PC HDMI: 480i, 480p,720p,1080i,1080p
HDMI: 480i, 480p,720p, up to 1080p

Physical- Top OSD: Brightness, Contrast, Sharpness, Black level, Tint, Color, Noise reduction, Gamma selection, Color temperature, Color control Smart picture, Light sensor, Scan mode, Picture reset
H position, V position, Clock, Clock phase, Zoom mode, Custom zoom, Screen reset
Balance, Treble, Bass, Audio Reset
Sub mode, PIP size, PIP position, PIP change, PIP reset
Switch on state, Auto adjust, Power save, Panel saving, Network controlport, Network settings, Configuration 1 reset, Factory reset
OSD turn off, OSD H-position, OSD V-position, Information OSD, Monitor ID, Heat status, Monitor information, DP Version, Human sensor, HDMI EDID, Configuration 2 reset
Input resolution, IR control, Tiling, Date and time, Off timer, Schedule, OPS settings,APM, Language, Adanced option reset
Video source, Sub 1, Sub 2, Sub 3, Audio source, PIP audio, Card OPS audio, Input reset

Vôn: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Sự tiêu thụ: "On": 700W(Max), 500W(Default)
"Off"(Suspend): ≤ 0.5 W

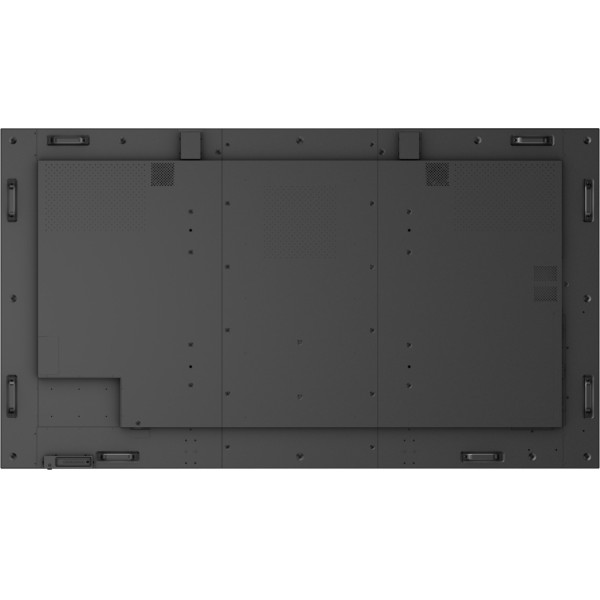

Wall Mount (VESA® ): 800 x 500mm; Screw: M8 x (15+X) mm

Temperature (º C): 5°C to 40°C (Landscape), 5°C to 35°C ( Portrait)
Độ ẩm: 20% ~ 80% non-condensing

Bao bì (inch / mm): 98.54 x 61.77 x 17.72 /2503 x 1569 x 450

Tổng (lb / kg): 296.26 / 134.5

CDP9800 commercial display / Remote Control with batteries / User manual CD wizard / Quick Start Guide / Power Cables / VGA cable / RS232 cable


*Actual content may differ from market to market
