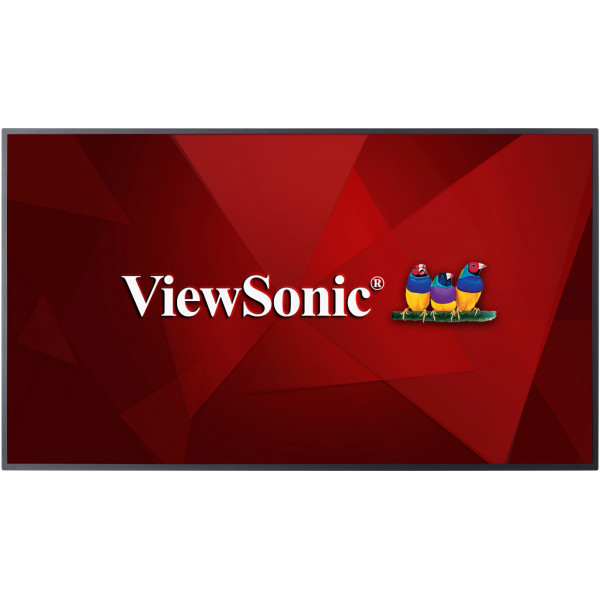

CDE6510
65" 4K Ultra HD Presenation Display
- Embedded Android SOC supports Android apps
- Computing expansion PC slot for Intel OPS
- USB multimedia player
- vController software
- Supports HDMI CEC pass-through
DANE TECHNICZNE
- LCD PANELRozmiar panelu: 65"
Rodzaj/Technologia: TFT LCD Module with DLED Backlight
Obszar wyświetlania (mm): 1428.48 (H) x 803.52 (V)
Proporcje obrazu: 16:09
Rozdzielczość: 3840x2160 @60Hz
Colors: 1.07B colors
Jasność: 350 nits (typ.)
Współczynnik kontrastu: 4000:1 (typ.)
Czas reakcji: 8 ms
Kąty widzenia: H = 178, V = 178 (typ.)
Backlight: DLED
Czas pracy podświetlenia: 30,000 Hours Min.
Hardness: 3H - INPUTHDMI: x 4
RGB / VGA: x 1
DisplayPort: x 1
Dźwięk: x1 PC audio (3.5 mm)
RS232: x 1
PC Slot: x 1 (optional VPC12-WPO)
IR: x 1 - OUTPUTRS232: x 1
IR: x 1
- Sieć lokalnaRJ45: x 1
- USBTyp A: x 1 for 5V/2A
2.0 Type A: x 2 (USB Playback)
3.0 Type A: x 1 (USB Playback) - Głośniki10W x 2
- COMPATIBILITYVGA: 1920 x 1080
DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz - POWERNapięcie: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Zużycie energii: Normal 165 W, Max 295 W
EEI Rating: A - ERGONOMICSUchwyt do montażu na ścianie (standard VESA®): 400 x 400mm ; Screw: M6*(10+X) mm. (X=thickness of wall mount plate)
- OPERATING CONDITIONSTemperatura (º C): 5°C to 40°C
Wilgotność powietrza: 20% ~ 80% non-condensing - WYMIARY (S x W x G)Physical (mm / inch): 1458.7 x 938.8 x 540 mm / 57.43 x 36.96 x 21.26 in. (with Stand)
Physical w/o Stand (mm / inch): 1458.7 x 834.7 x 81.6 mm / 57.43 x 32.86 x 3.21 in. (w/o Stand)
Packaging (mm / inch): 1655 x 1078 x 280 mm / 65.16 x 42.44 x 11.02 in - WEIGHTNet (kg / lb): 28.9 kg / 63.71 lbs (with Stand)
Net w/o Stand (kg / lb): 24.8 kg / 54.67 lbs (w/o stand)
Gross (kg / lb): 34.84 kg / 76.80 lbs - What's in the box?1. CDE6510 presenation display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. RS232 cable
7. RS232 daisy chain cable (2.4mm – 2.4mm)
8. IR sensor cable
