SPECIFICATIONS
- DisplayDisplay Size (in.): 27
Viewable Area (in.): 27
Panel Type: VA Technology
Resolution: 2560 x 1440
Resolution Type: QHD (Quad HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 120M:1
High Dynamic Range: VESA HDR400
Light Source: LED
Brightness: 550 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Aspect Ratio: 16:9
Response Time (MPRT): 1ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: 1500R
Refresh Rate (Hz): 165
Variable Refresh Rate Technology: FreeSync Premium PRO
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: DCI-P3: 86% size (Typ)
NTSC: 82% size (Typ)
sRGB: 116% size (Typ)
Pixel Size: 0.233 mm (H) x 0.233 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 2560x1440
Mac® Resolution (max): 2560x1440
PC Operating System: Windows 7/8/10 certified; macOS tested

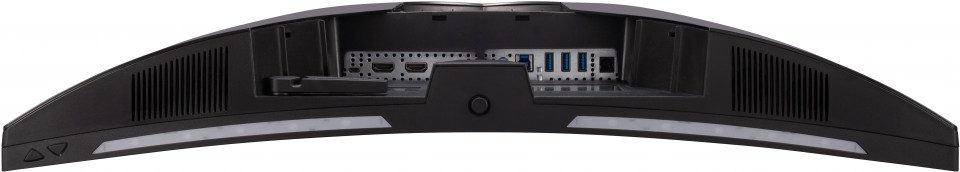

Mac® Resolution (min): 2560x1440 - ConnectorUSB 3.2 Type A Down Stream: 3
USB 3.2 Type B Up Stream: 1
Micro USB: 1
3.5mm Audio Out: 1
HDMI 2.0 (with HDCP 2.2): 2
DisplayPort: 1
Power in: DC Socket (Center Positive)
- AudioInternal Speakers: 3Watts x2
- PowerEco Mode (Conserve): 33W
Eco Mode (optimized): 45W
Consumption (typical): 55W
Consumption (max): 59W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor - Additional HardwareKensington Lock Slot: 1

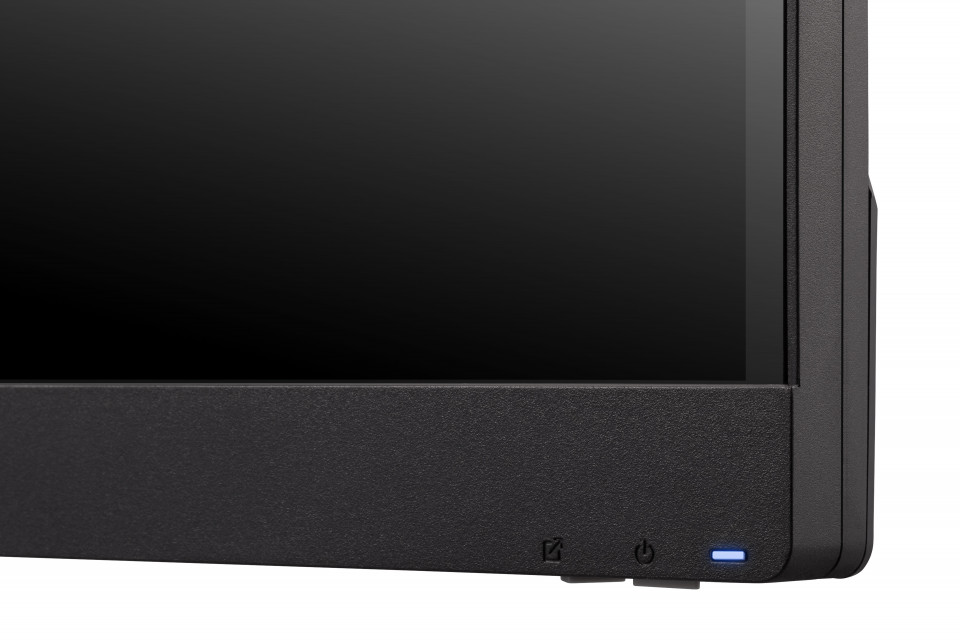

Cable Organization: Yes - ControlsPhysical Controls: Joystick key: Up, Right, Down, Left, Center; Quick Access; Power
On Screen Display: Game Modes, Display, Input Select, ViewMode, Audio Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall Mount VESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: HDMI (v2.0): 30 ~ 230KHz, DisplayPort (v1.4): 30 ~ 250KHz
Frequency Vertical: HDMI (v2.0): 48 ~ 144Hz, DisplayPort (v1.4): 48 ~ 165Hz - Video InputDigital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.4)

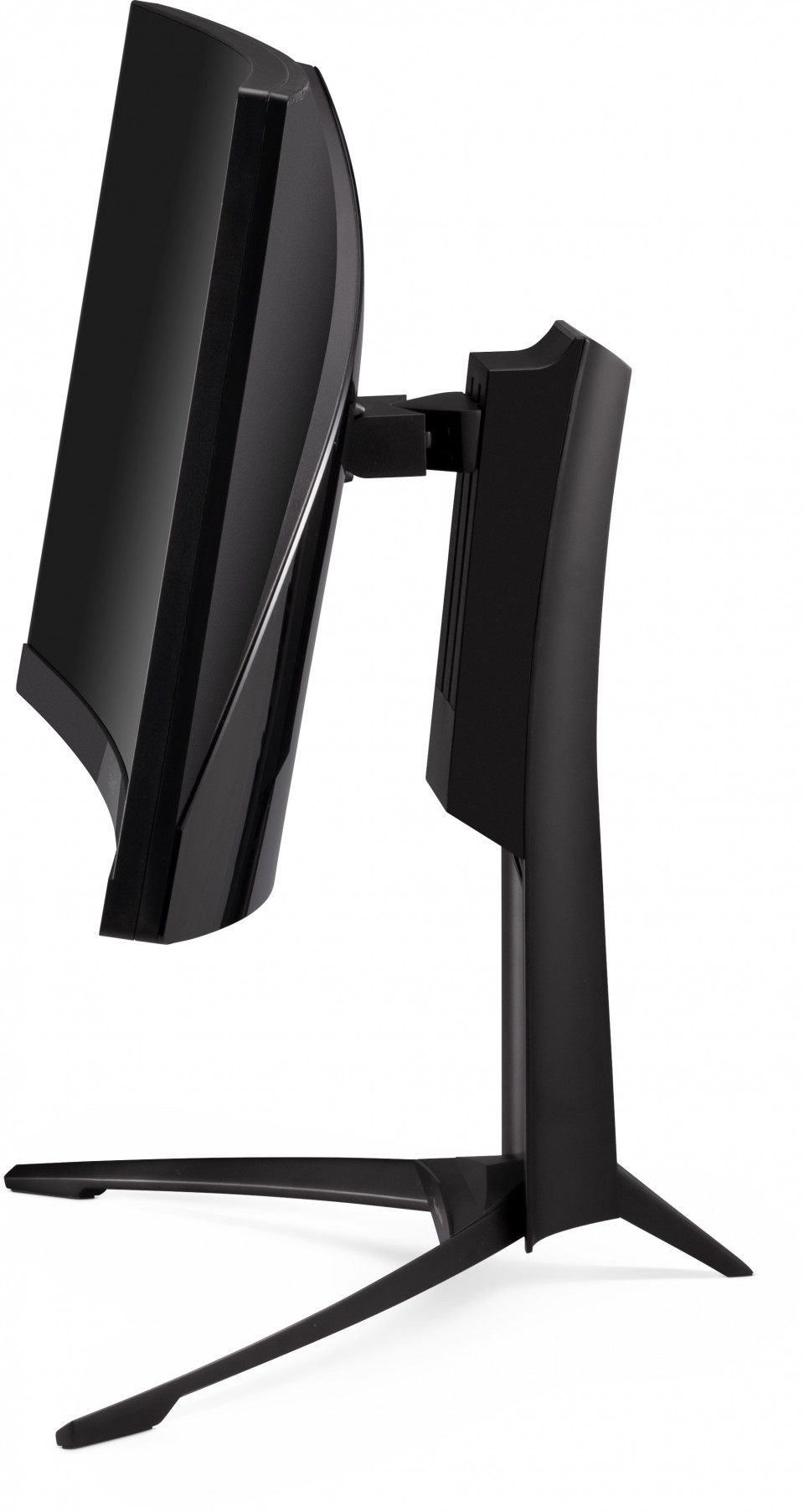

- ErgonomicsHeight Adjust (mm): 120
Swivel: 50º
Tilt (Forward/Back): -5º / 23º - Weight (imperial)Net (lbs): 16.6
Net Without Stand (lbs): 10.8
Gross (lbs): 24.4 - Weight (metric) Net (kg): 7.5
Net Without Stand (kg): 4.9
Gross (kg): 11.1 - Dimensions (imperial) (wxhxd)Packaging (in.): 28.5 x 20.7 x 11
Physical (in.): 24.1 x 18.97~23.69 x 14
Physical Without Stand (in.): 24.1 x 14.6 x 4 - Dimensions (metric) (wxhxd)Packaging (mm): 725 x 525 x 280
Physical (mm): 612 x 481.8~601.8 x 356
Physical Without Stand (mm): 612 x 372 x 103 - GeneralPACKAGE CONTENTS: XG270QC x1, 3-pin Mickey Mouse Plug (IEC C5) x1, DisplayPort Cable (v1.2; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
