Het RGB-effect van uw monitor activeren

1.) Sluit de USB 3.0-kabel aan op de monitor en de pc.

Type-A (rechthoek) wordt op de pc aangesloten.
Type-B (vierkant) wordt op de monitor aangesloten.

2.) Using the OSD control button on the monitor, navigate to the Setup Menu and turn “ELITE RGB” on.

Het waarschuwingssignaal deactiveren

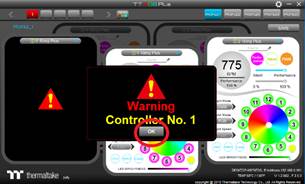

1.) If you open the software and are given a warning, this is to alert you that one of the ports is not detecting a device. Simply hit the OK button to get rid of the alert.

2.) Each activated RGB device is represented by a port, that lets you control the RGB behavior of each device recognized by your PC. See above- there are 4 activated ports and one port that is not activated (ex. 5 Riing Plus). Click the green circle with a vertical line going through the middle. This will disable the port and deactivate the warning alert.

Uw XG240R synchroniseren met TT RGB PLUS-software

1.) Click the square RGB button at the top, center of the program.

2.) Your monitor will be displayed here. Click Sync On. Your monitor is now synced and will follow the commands given to the device in Port 1.

Uw LED's bedienen

**Port 1 is the primary port. Other ports can follow the commands given to this port (See step 3).

Uw monitor zal dezelfde opdrachten uitvoeren als die welke aan het apparaat in Poort 1 worden gegeven.

1.) To Change a color of all the LEDs in in a port, click the preferred color in the Color Wheel.

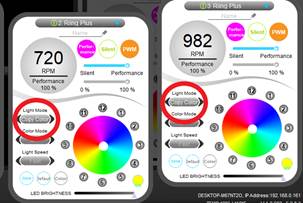

2.) To change the lighting effect of a device, select its designated port and toggle through the effects in Light Mode found on the left side, next to the color wheel.

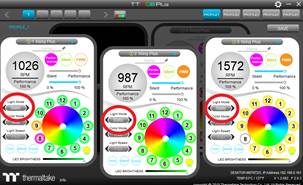

3.) To have one or all of your RGB devices perform the same effect, change the Light Mode in Port 2, 3, etc. to Copy Color. Now all your devices will be performing the effect of Port 1.

4.) In Color Mode, underneath Light Mode, the color mode option RGB allows you to change the color of individual LED units. Change the mode to Single and you will change the color of all LED units at once.

RGB Single



5.) To change the color of individual LED units in the RGB color mode, first, you need to freeze LEDs that you don’t want changed. Frozen LEDs will become small, allowing the colors of large LEDs to be changed. Choose your color by clicking in the Color Wheel and all large units will change to that color. Continue this for each individual LED unit, freezing and unfreezing units to change the colors.

Frozen LED Units Unfrozen LED Units

Schermvolger (Spelermodus)

1.) For your RGB to react to the colors on your screen, change the Light Mode to Player. The RGB will portray the dominant colors on the screen, so for optimal results play your game or entertainment in FULL SCREEN.

2.) Remember, for all your ports to follow the colors on the screen, either set each port to Player or set Port 1 to Player and the rest of the ports to Copy Color.



Voice Control and Additional Info Link
For information on downloading the ThermalTake voice control app, Amazon Alexa voice service, or for more software information, please go to https://ttrgbplus.thermaltake.com/

COMPATIBLE PRODUCTEN

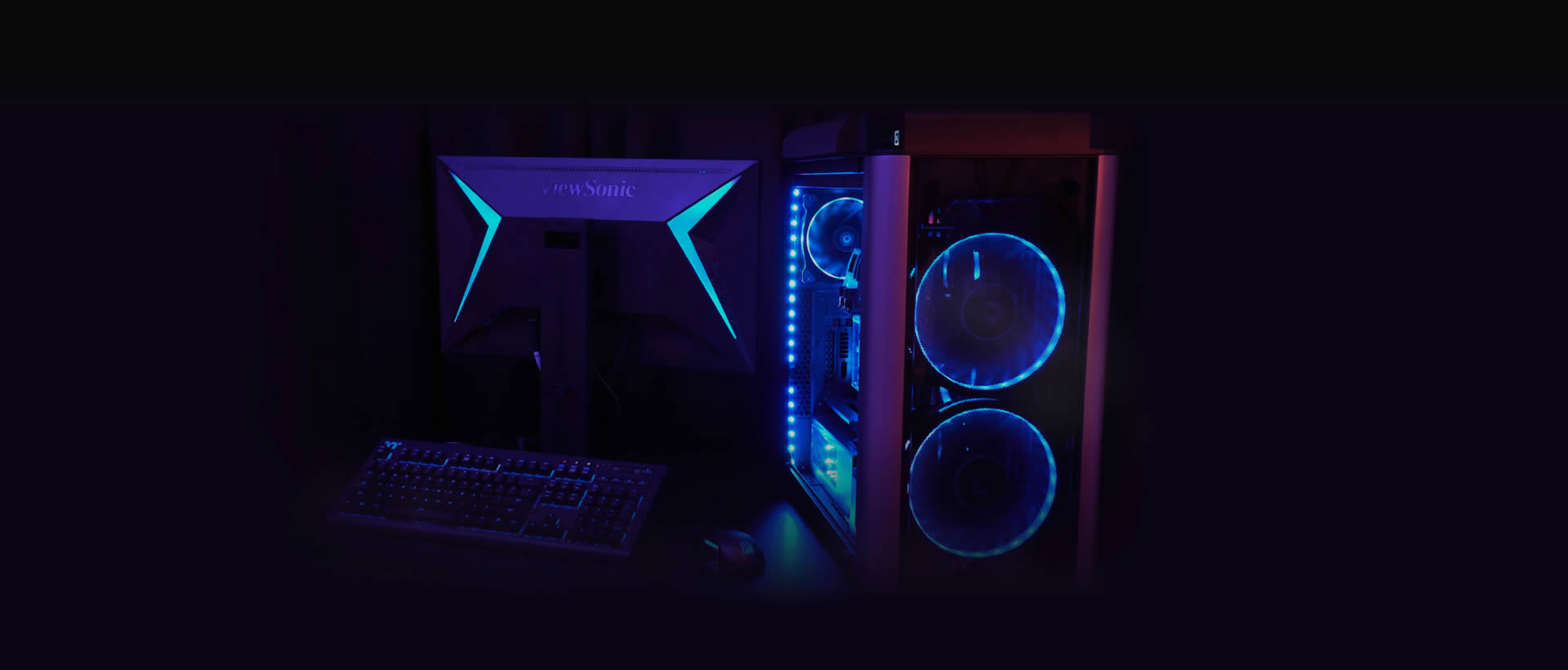

Het synchroniseren van de RGB-accentverlichting van uw ViewSonic Elite-monitor met het RGB-ecosysteem van Thermaltake
werkt momenteel alleen als u een van de onderstaande "Must Have" TT-producten bezit.

Zie hieronder de lijst met compatibele producten. Bezoek de website van Thermaltake voor meer informatie.

Moet product hebben¹	Synchroniseerbare producten²
	AIO vloeistofkoelers
	Floe Riing RGB 360 TT Premium Edition
	Floe Riing RGB 280 TT Premium Edition
	Floe Riing RGB 240 TT Premium Edition
	Pomp + Reservoir
	Pacific PR22-D5 Plus
	Radiators
	Pacific CL360 Plus RGB Radiator
	Pacific RL360 Plus RGB Radiator
	Waterblokken
	Pacific W4 Plus CPU Water Block
	Pacific W5 CPU Water Block
	Pacific W6 CPU Water Block (AMD Ryzen Threadripper TR4)
	Pacific V-GTX 1080Ti Plus Transparent (ASUS ROG)
	Pacific V-GTX 1080Ti Plus Transparent (MSI GAMING X)
	Pacific V-RTX 2080 Plus serie Founders Edition
	Behuizingsventilatoren
	Riing Trio 12 LED RGB Radiator Fan TT Premium Edition (3-Fan Pack)
	Riing Trio 14 LED RGB Radiator Fan TT Premium Edition (3-Fan Pack)
	Riing Plus 20 TT Premium Edition (Single Fan Pack w/ Controller)
	Riing Plus 14 TT Premium Edition (5 Fan Pack)
	Riing Plus 14 TT Premium Edition (3 Fan Pack)
	Riing Plus 12 TT Premium Edition (5 Fan Pack)
	Riing Plus 12 TT Premium Edition (3 Fan Pack)
	Riing Plus 12 TT Premium Edition (Single Fan Pack)
	Pure Plus 12 TT Premium Edition (3-Fan Pack)
	Pure Plus 14 LED RGB Radiator Fan TT Premium Edition (3-Fan Pack)
	Behuizing
	View 91 Tempered Glass RGB Edition Super Tower Chassis
	Level 20 Tempered Glass Edition Full Tower Chassis
	Level Level 20 GT RGB Plus Edition Full Tower Chassis
	Voedingen
	Toughpower iRGB PLUS 1250W Titanium
	Toughpower iRGB PLUS 1200W Platinum
	Toughpower iRGB PLUS 1050W Platinum
	Toughpower iRGB PLUS 850W Platinum
	Accessoires
	Pacific Lumi Plus LED Strip 3Pack
	Pacific Rad Plus LED Panel
	Toetsenborden
	TT Premium X1 Cherry MX Speed Silver Toetsenbord
	TT Premium X1 RGB Cherry MX Blue Toetsenbord
	Level 20 RGB Titanium Gaming Toetsenbord (Speed Silver)
	Level 20 RGB Titanium Gaming Toetsenbord (Blue Switch)
	Level 20 RGB Cherry MX Blue Gaming Toetsenbord
	Level 20 RGB Cherry MX Speed Silver Gaming Toetsenbord
	Headsets
	Cronos Riing RGB 7.1 gaming headset (Coming Soon)
	Headsetstandaard binnenkort verkrijgbaar***
	Muizen
	Nemesis Switch RGB gaming mouse
	Iris RGB gaming muis

*Modusvariaties, aanpassingsfuncties en andere functies of toepassingen zijn gebaseerd op en onderworpen aan de gebruiksvoorwaarden, de licentieovereenkomst voor eindgebruikers en de softwaremogelijkheden zoals gespecificeerd of geleverd in de software van partners.

¹Om uw Viewsonic-monitor te synchroniseren met Thermaltake RGB-producten, moeten gebruikers de XG240R of XG350R-C hebben en een van de gemarkeerde 'must have'-producten.

Thermaltake products to act as a host.
²Products with RGB sync up ability in TT RGB ecosystem
