OVERVIEW

The ViewSonic® VPC10-WP Windows slot-in PC is the ideal integrated solution for delivering smart whiteboard and smart meeting room functionality on ViewSonic® ViewBoard® interactive flat panel. This slot-in PC module supports high-definition audio and video, and easily plugs into compatible displays. With wireless Wi-Fi dual band and Bluetooth, a powerful Intel® Core™ i5 processor, 8GB DDR4 memory, and a 128GB SSD storage (up to 256GB), the VPC10-WP contains the computing power needed to operate CPU intensive applications. Connectivity options including 4K DisplayPort, HDMI, VGA, USB 3.0 ports, and Gigabit LAN RJ45 ensure that you stay connected to any and all peripheral devices.

Powerful Intel Processing Power

VPC10-WP leverages Intel®’s processing expertise by utilizing an Intel® Core™ i5 processor that provides the additional computing power needed to facilitate fast-paced educational and corporate environments.

8GB of Internal Memory, Up to 256GB SSD Storage

The VPC10-WP is capable of playing and storing enough multimedia content to satisfy even the most demanding users, thanks to 8GB of on-board memory and 128GB of SSD storage, which can also be expanded to 256GB, making VPC10-WP a reliable option for smooth multimedia playback free from crashes.

Complete Wireless Control

VPC10-WP provides a Dual Band 2.4GHz/5GHz WiFi network, as well as Bluetooth support to offer users the convenience and flexibility of a complete wireless control.

Improved User Experience with Windows 10 Pro OS Support

With Microsoft® Windows® 10 Pro OS support, VPC10-WP provides access to all the best MS Office Suite applications for corporate and educational use. A built-in browser also offers users instant access to the internet.

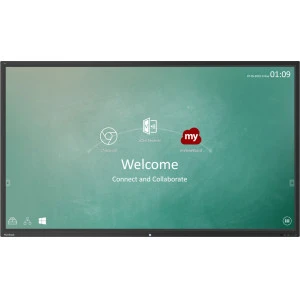

Compatible with ViewSonic® ViewBoard® IFP8650/7550/6550/5550

The VPC10-WP is designed to provide more powerful computing performance for the ViewSonic® ViewBoard® IFP8650/7550/6550/5550.

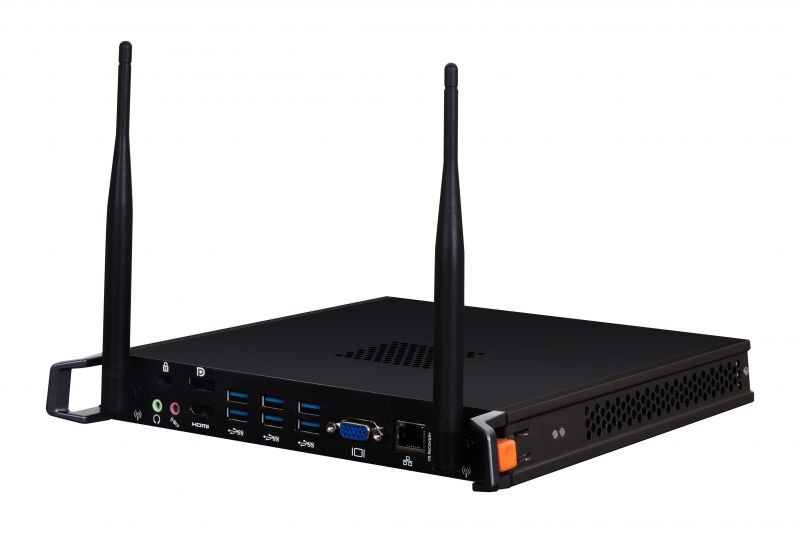

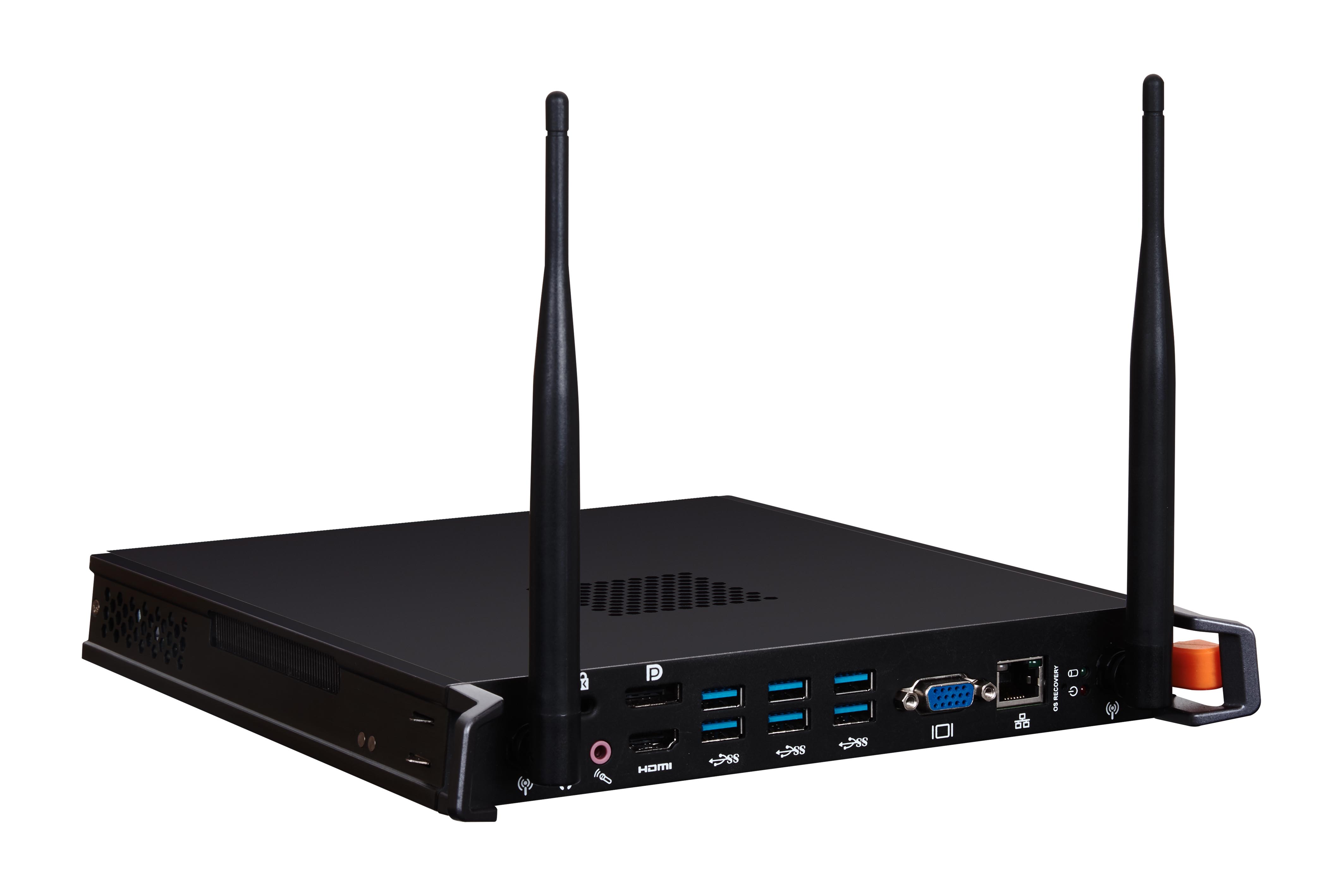

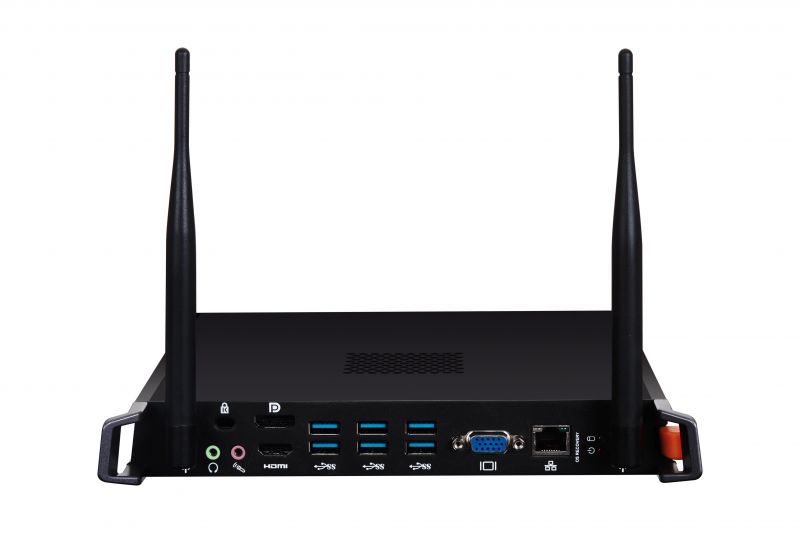

I/O Port

  1. KENSINGTON LOCK SLOT
  2. DISPLAY PORT
  3. AUDIO OUT
  4. MIC IN
  5. HDMI
  6. USB 3.0
  7. VGA OUT
  8. RJ45 (LAN)

SPECIFICATIONS


  • System
    CPU: Intel® Core™ i5-6400
    Memory: DDR4 8GB (expendable to 16GB)
    Graphics: Intel HD Graphics 530
    Storage: 2.5" 128GB SATA3 SSD (expendable to 256G)
    Network: Wireless 802.11 abgn-AC (2.4GHz/5GHz)
    Bluetooth 4.0
    Gigabit LAN ethernet
    OS: Windows 10 Pro 64 bit support
  • INPUT
    MIC(Microphone): x 1
  • OUTPUT
    HDMI: x 1
    RGB / VGA: x 1
    DisplayPort: x 1
    Audio (Earphone out): x 1
