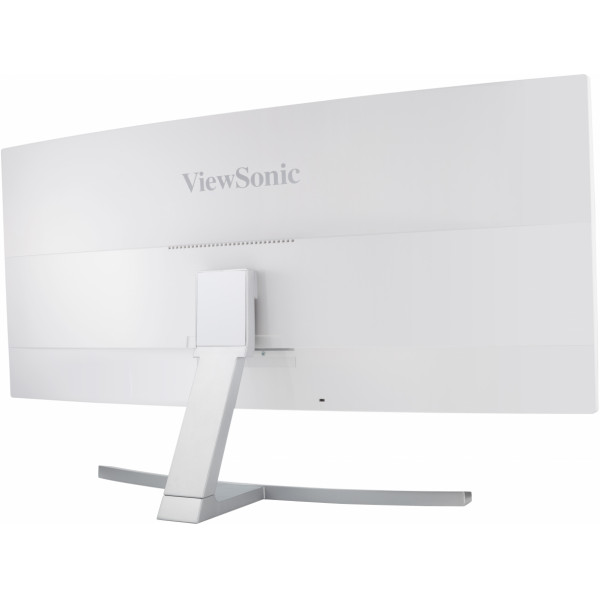

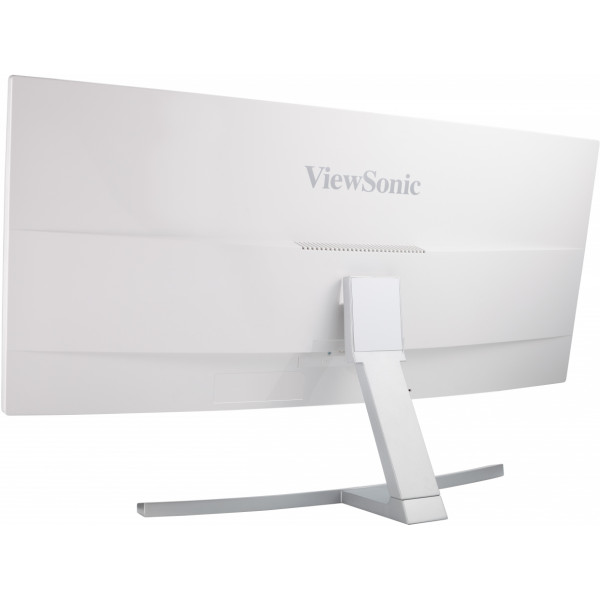

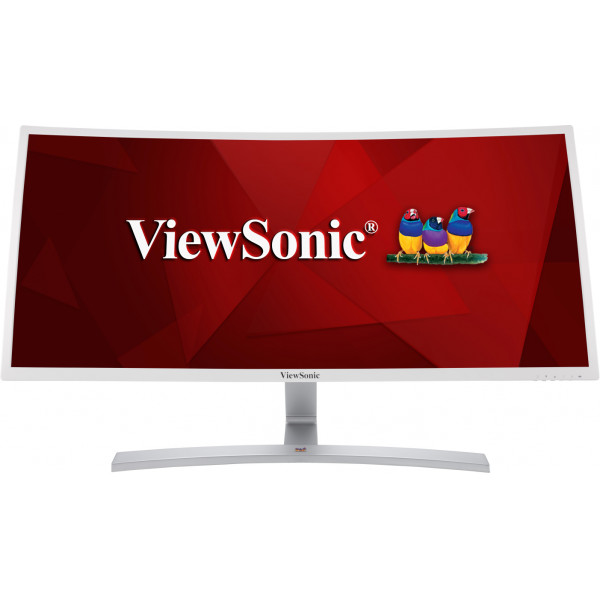

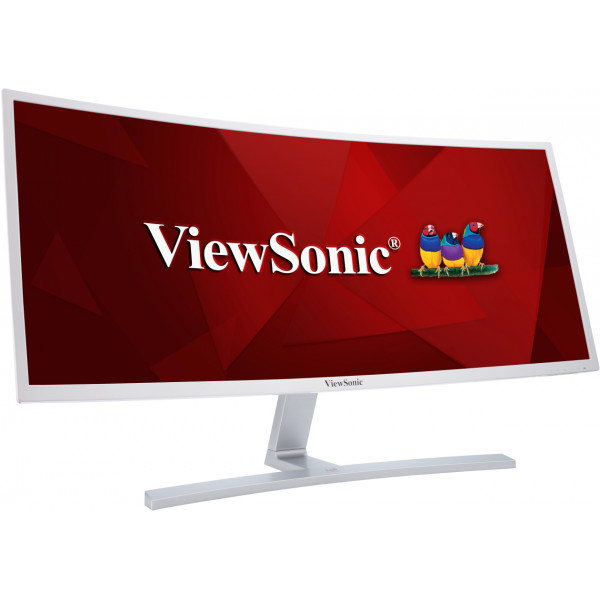

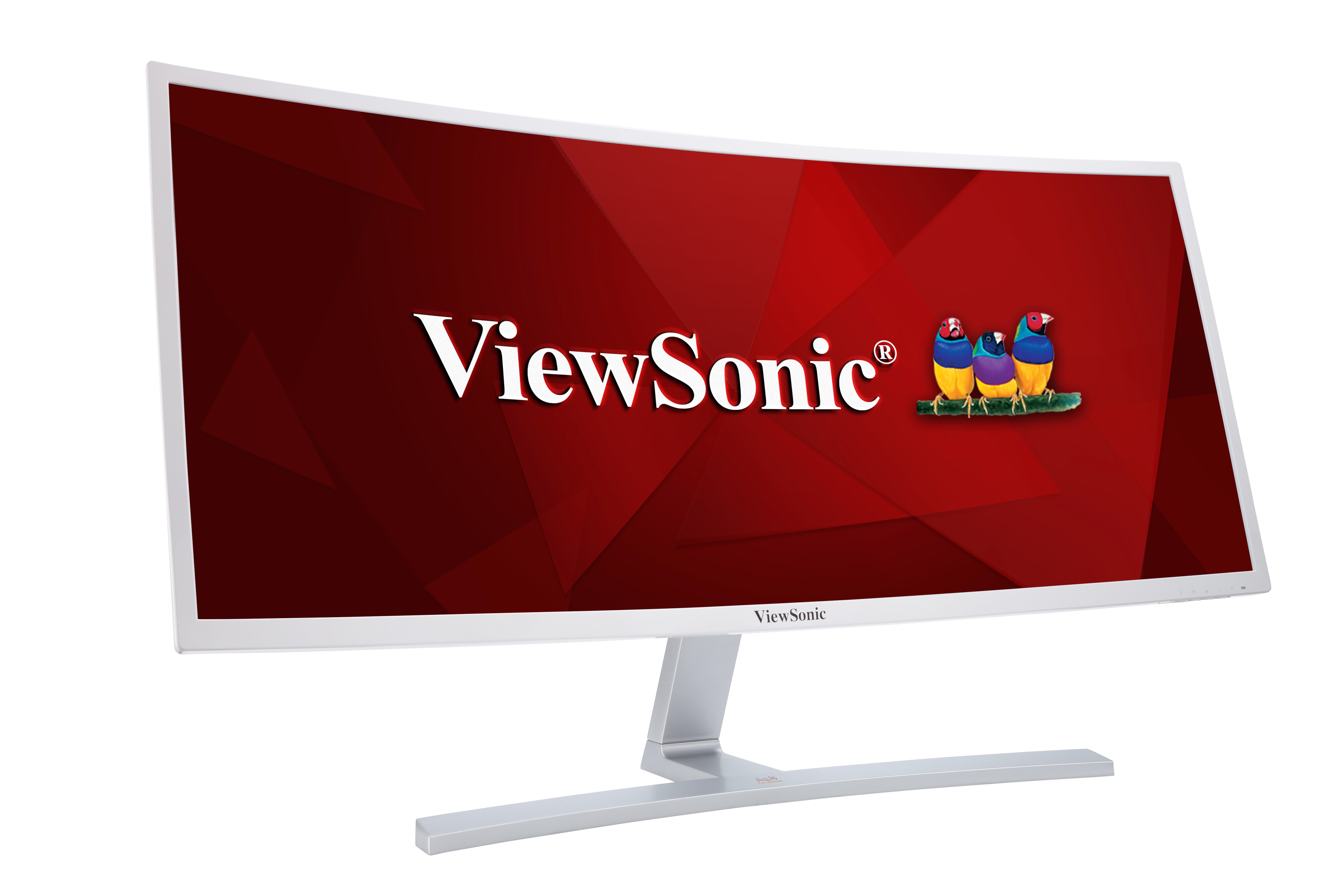

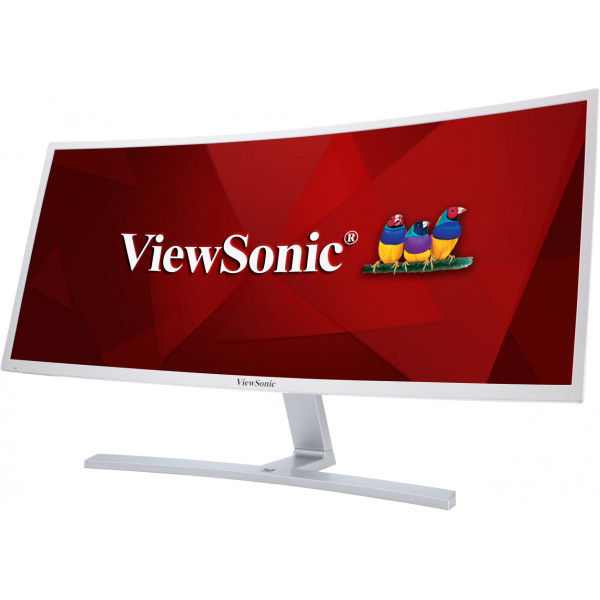

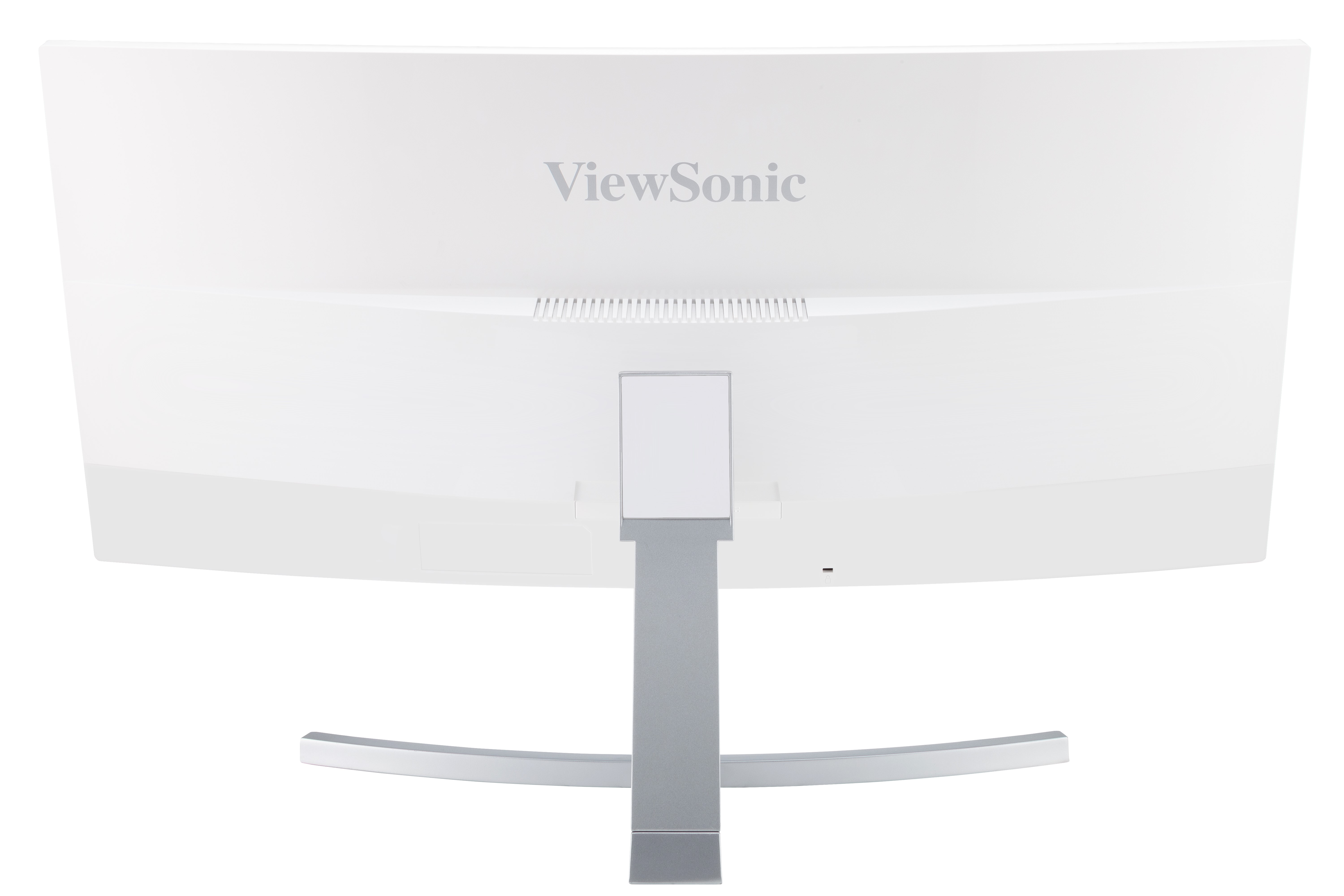

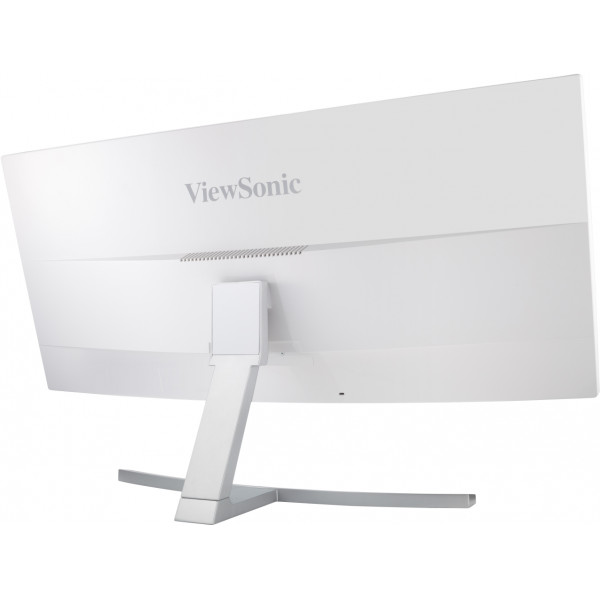

VX3515-2KPC-HD-W

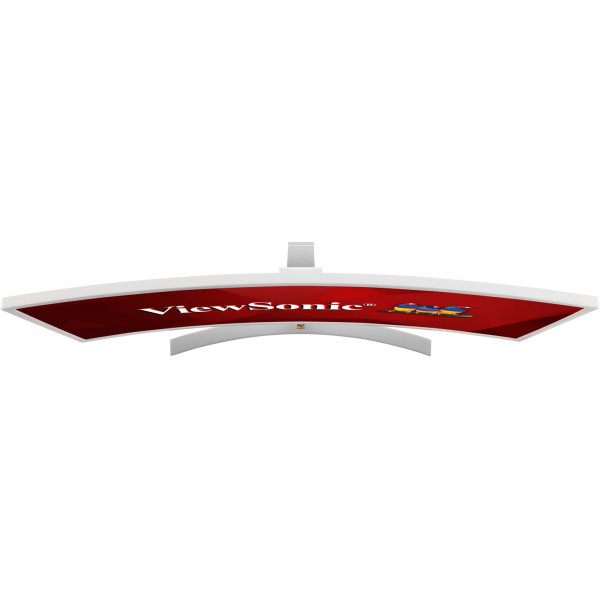

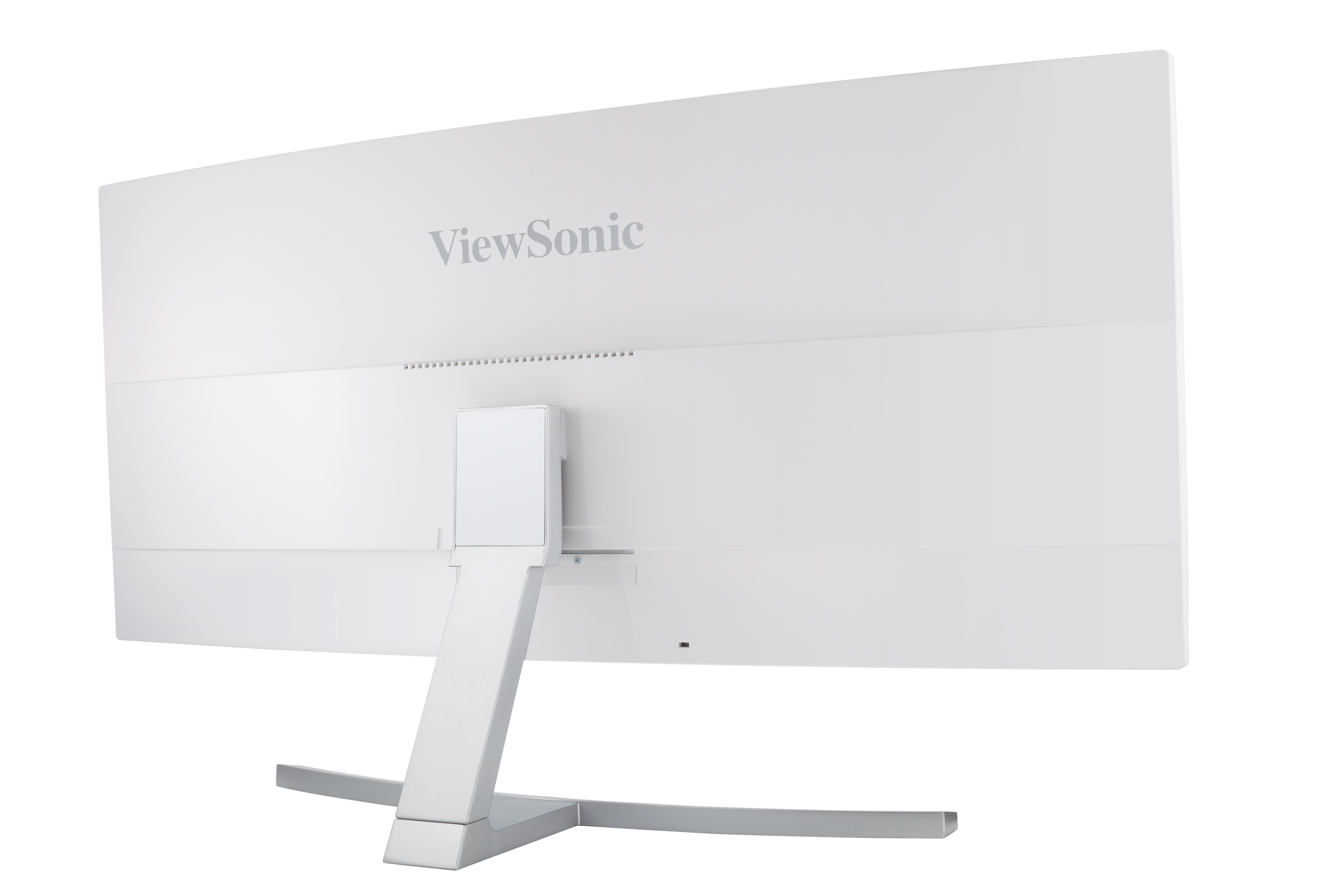

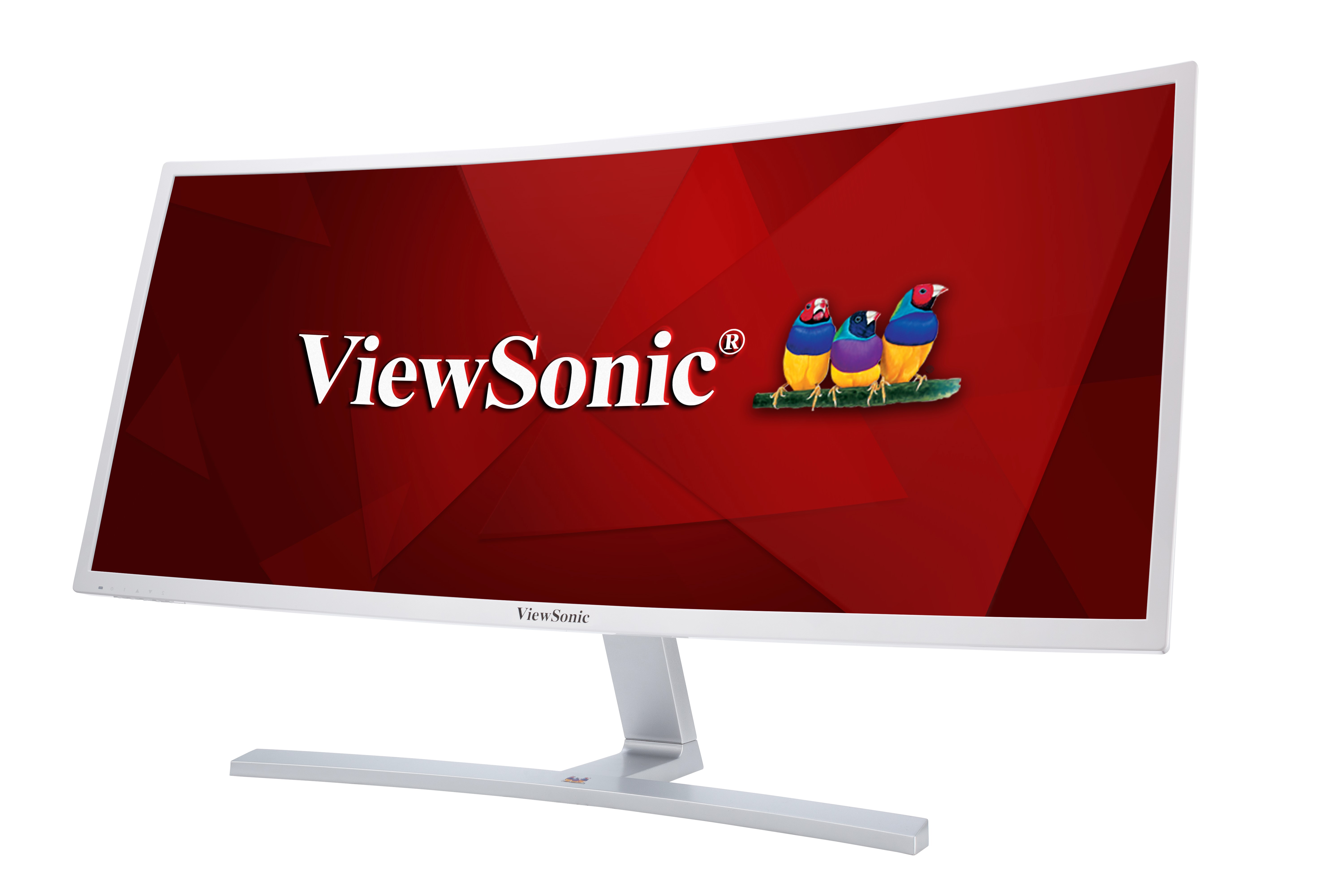

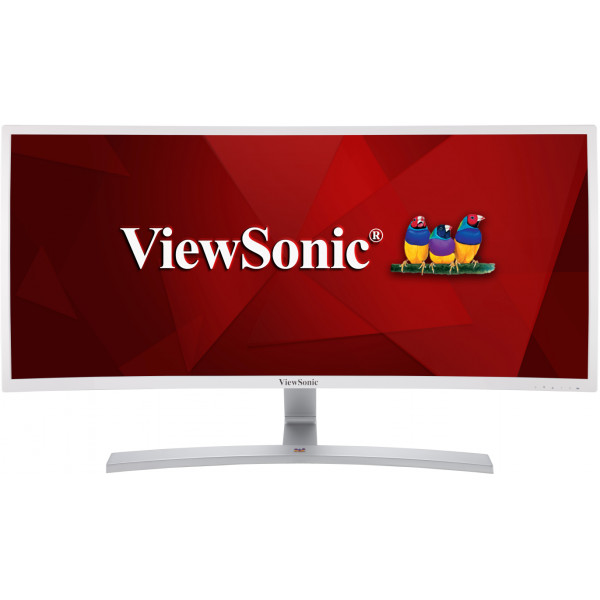

35” Ultrawide 21:9 Curved Entertainment Monitor
- Ultra Wide QHD resolution
- 100Hz refresh rate
- Adaptive sync
- HDMI and DisplayPort inputs
- 80M:1 dynamic contrast ratio
SPECIFICATIONS
- DisplayDisplay Size (in.): 35
Viewable Area (in.): 35
Panel Type: VA Technology
Resolution: 3440 x 1440
Resolution Type: UWQHD (UltraWide QHD)
Static Contrast Ratio: 2,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 21:9
Response Time (Typical GTG): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: 2500R
Refresh Rate (Hz): 100
Variable Refresh Rate Technology: Yes
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.238 mm (H) x 0.24 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 3440x1440
Mac® Resolution (max): 3440x1440
PC Operating System: Windows 10 tested; macOS tested

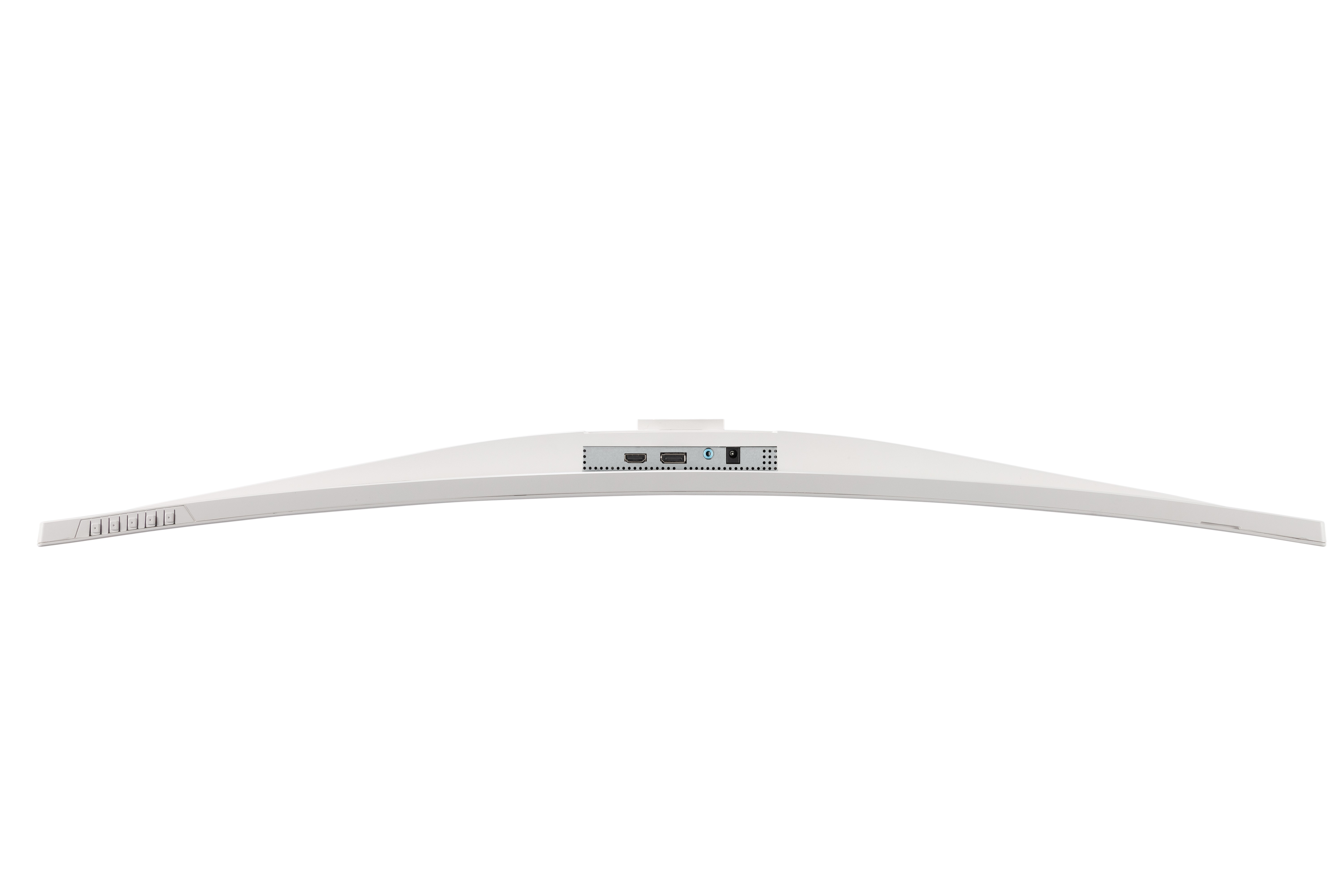

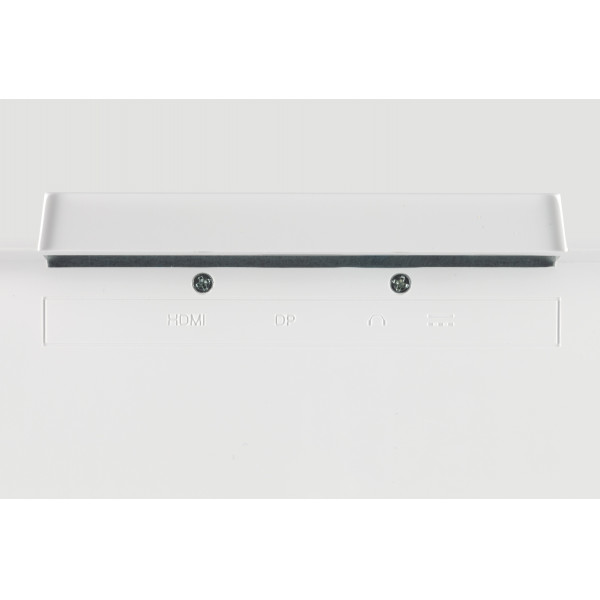

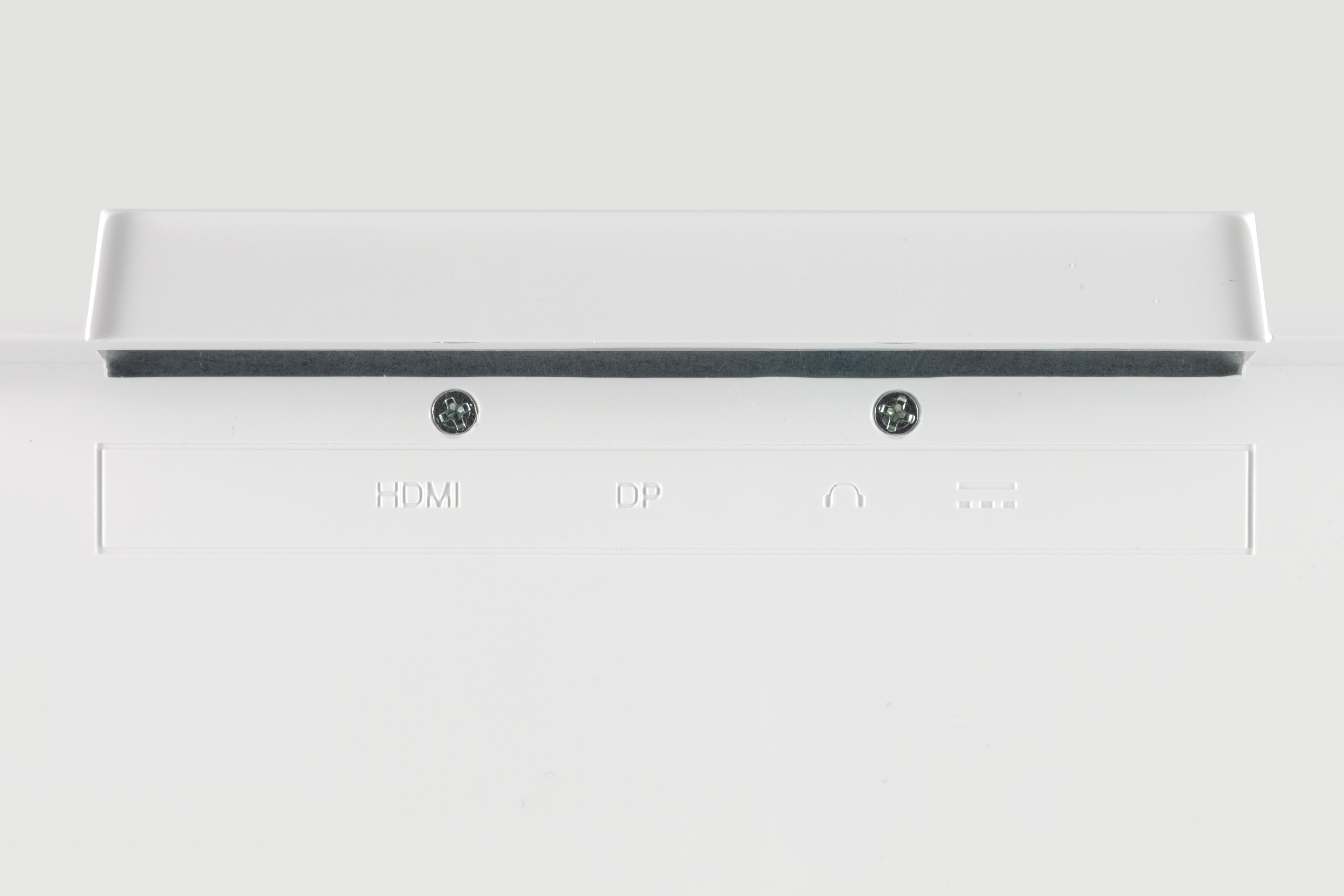

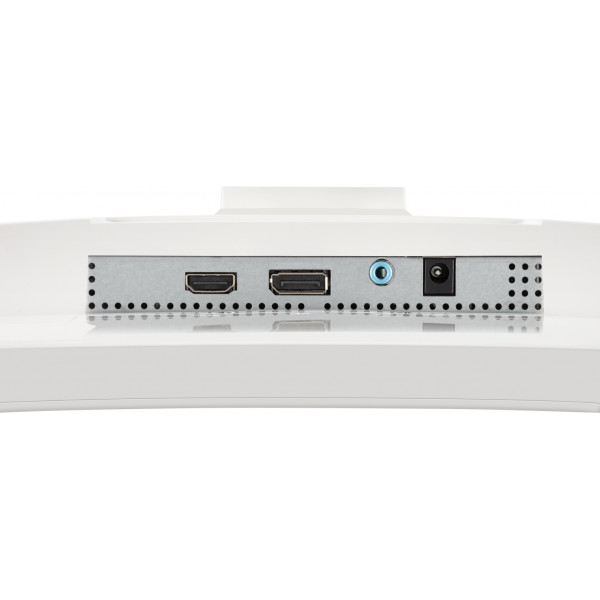

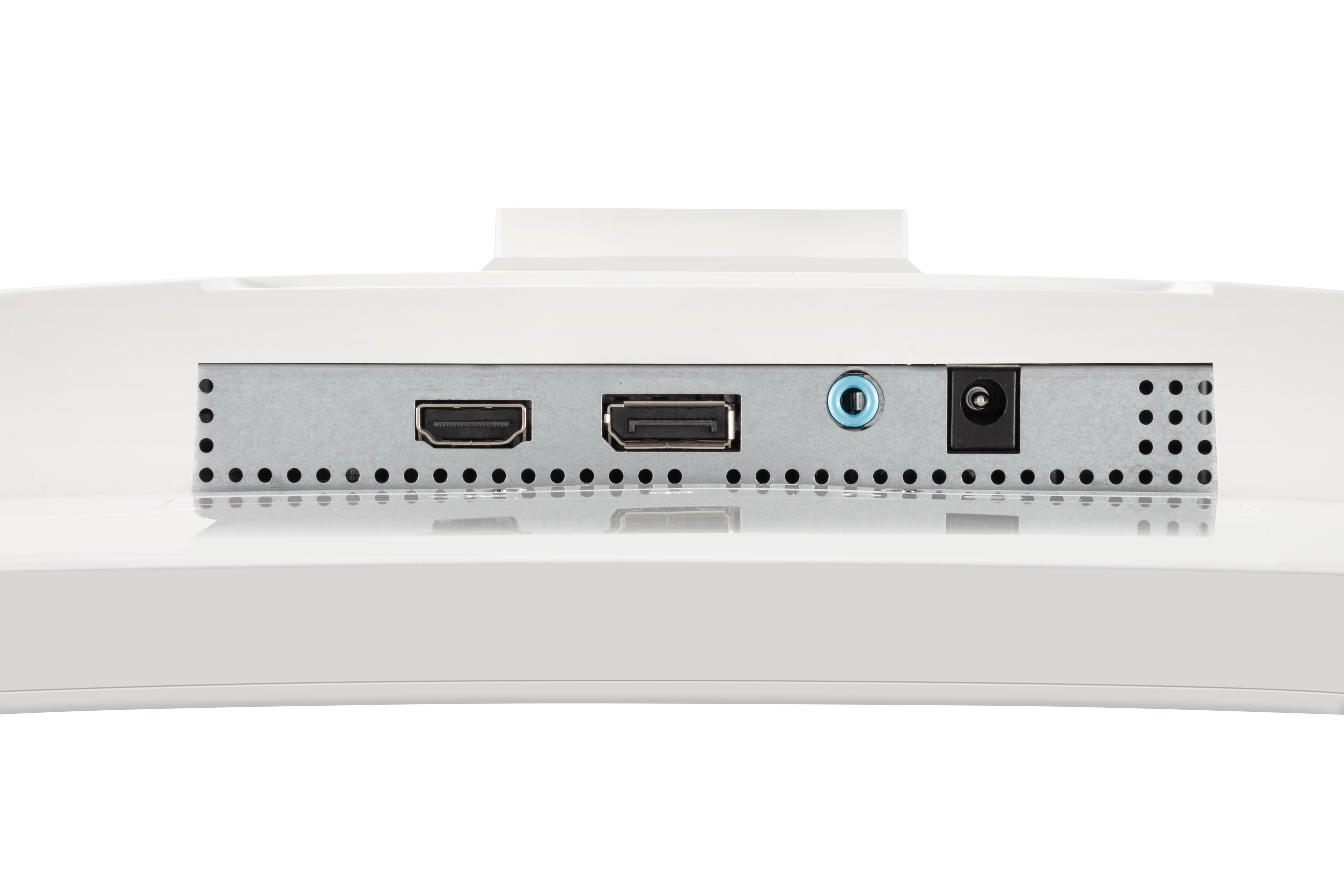

Mac® Resolution (min): 3440x1440 - Connector3.5mm Audio Out: 1
HDMI 2.0: 1
DisplayPort: 1
Power in: DC Socket (Center Positive)
- PowerEco Mode (Conserve): 40W
Eco Mode (optimized): 46W
Consumption (typical): 52W
Consumption (max): 55W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor - Additional HardwareKensington Lock Slot: 1
- ControlsPhysical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Input SignalFrequency Horizontal: HDMI (v2.0): 30 ~ 160KHz, DisplayPort (v1.2): 160 ~ 160KHz
Frequency Vertical: HDMI (v2.0): 48 ~ 100Hz, DisplayPort (v1.2): 48 ~ 100Hz - Video InputDigital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.2)

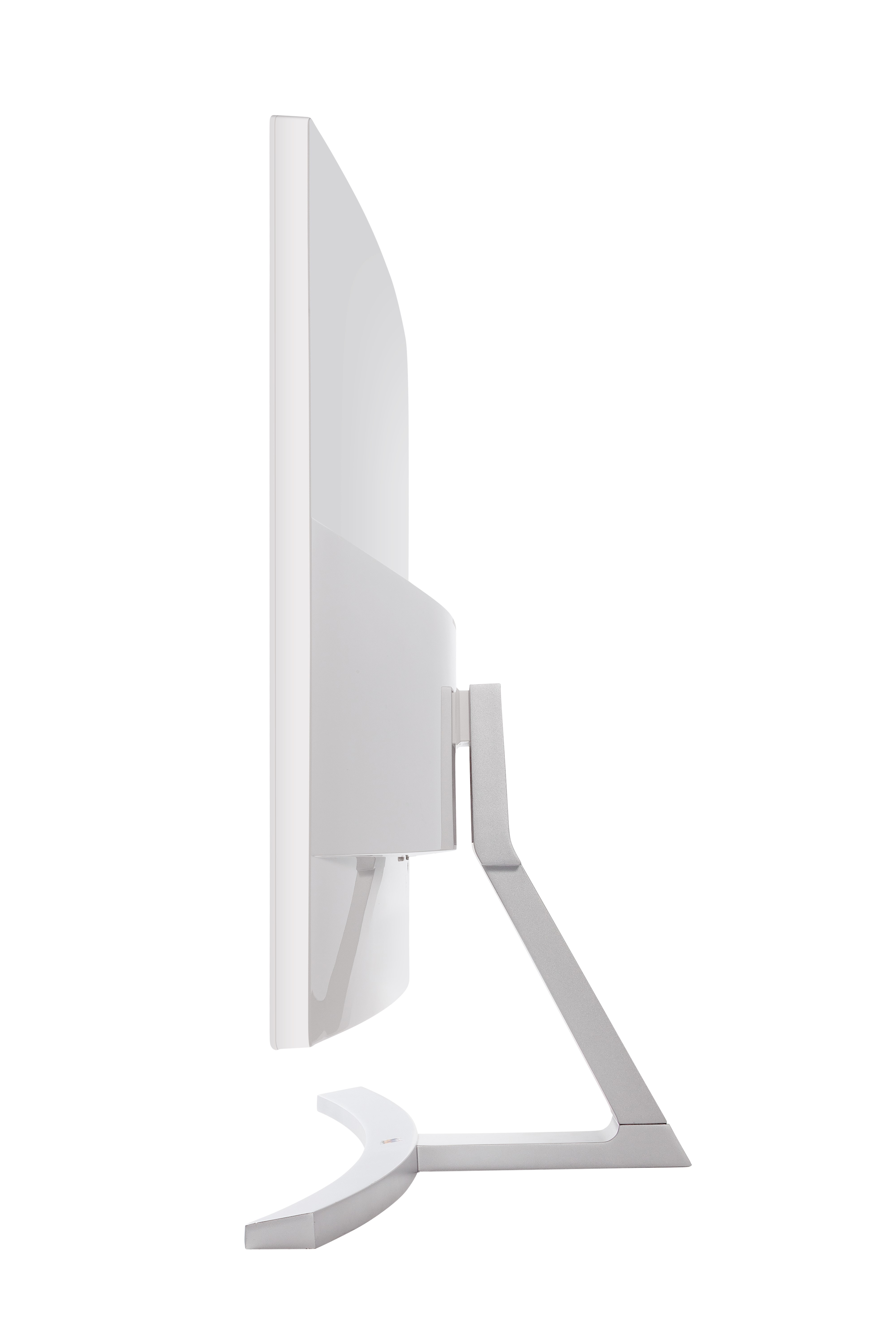

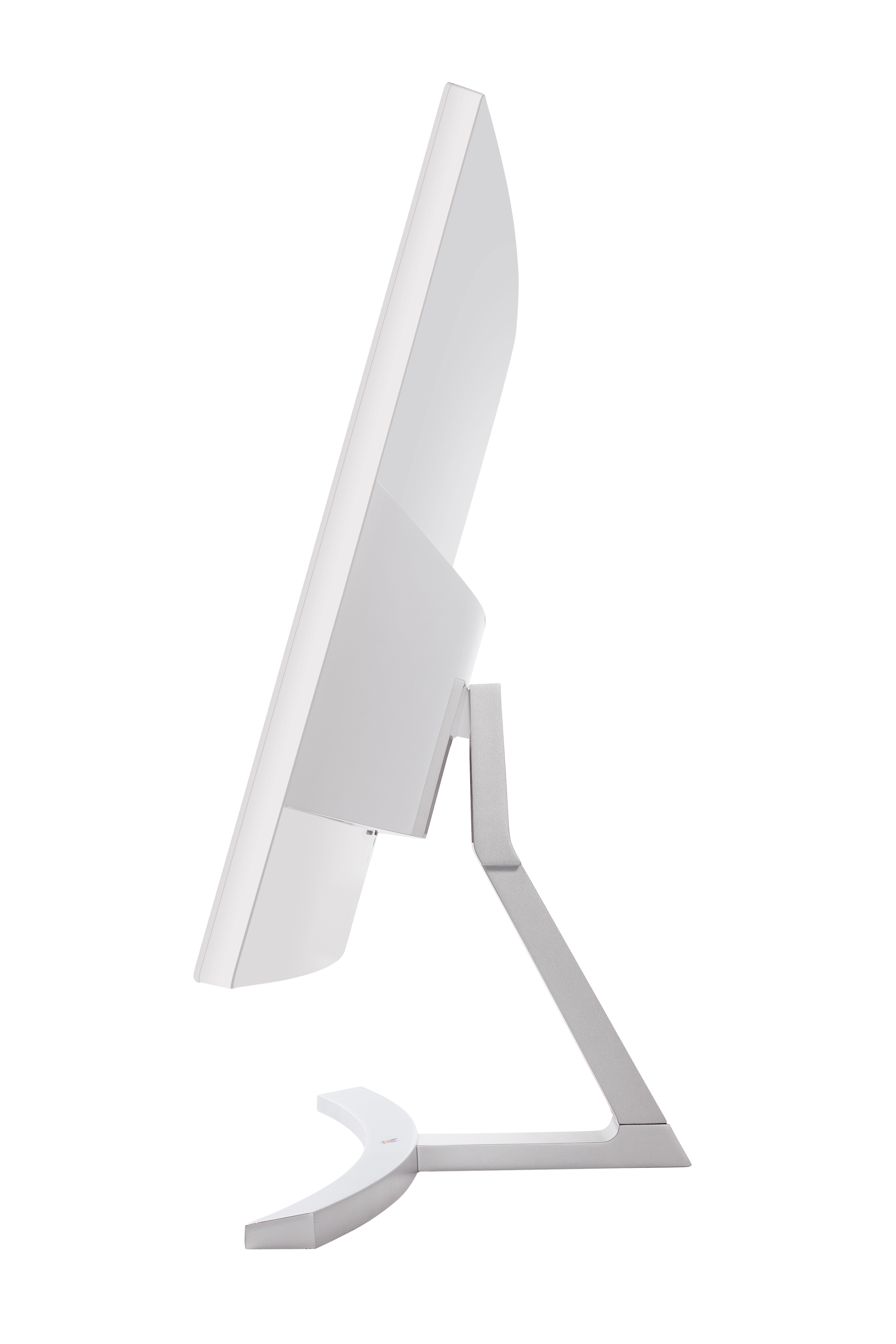

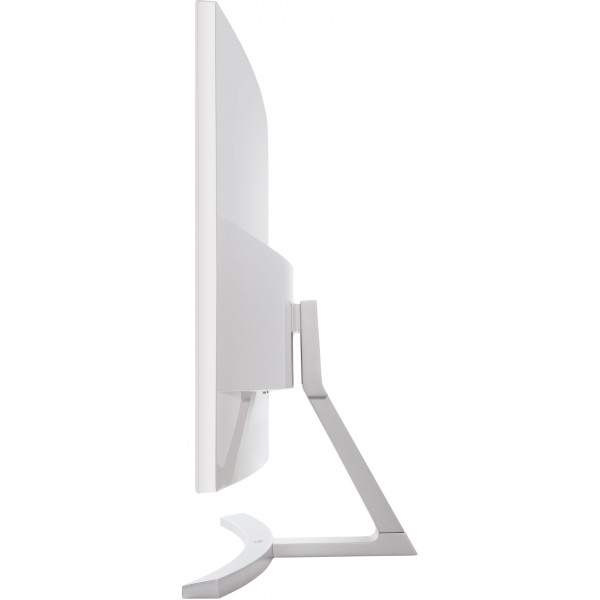

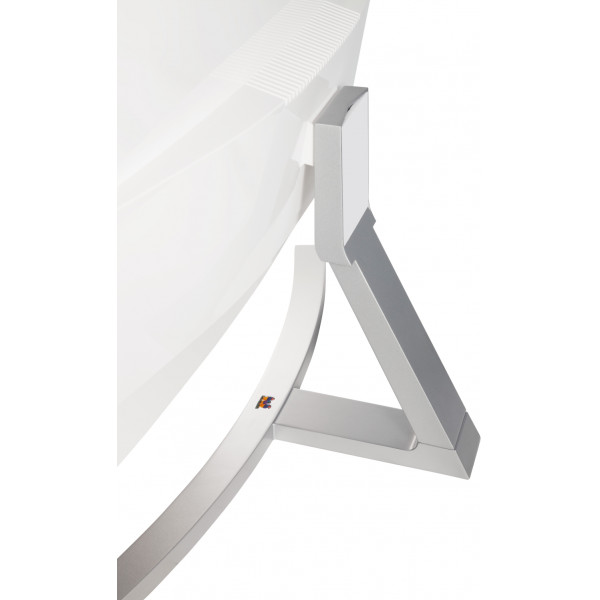

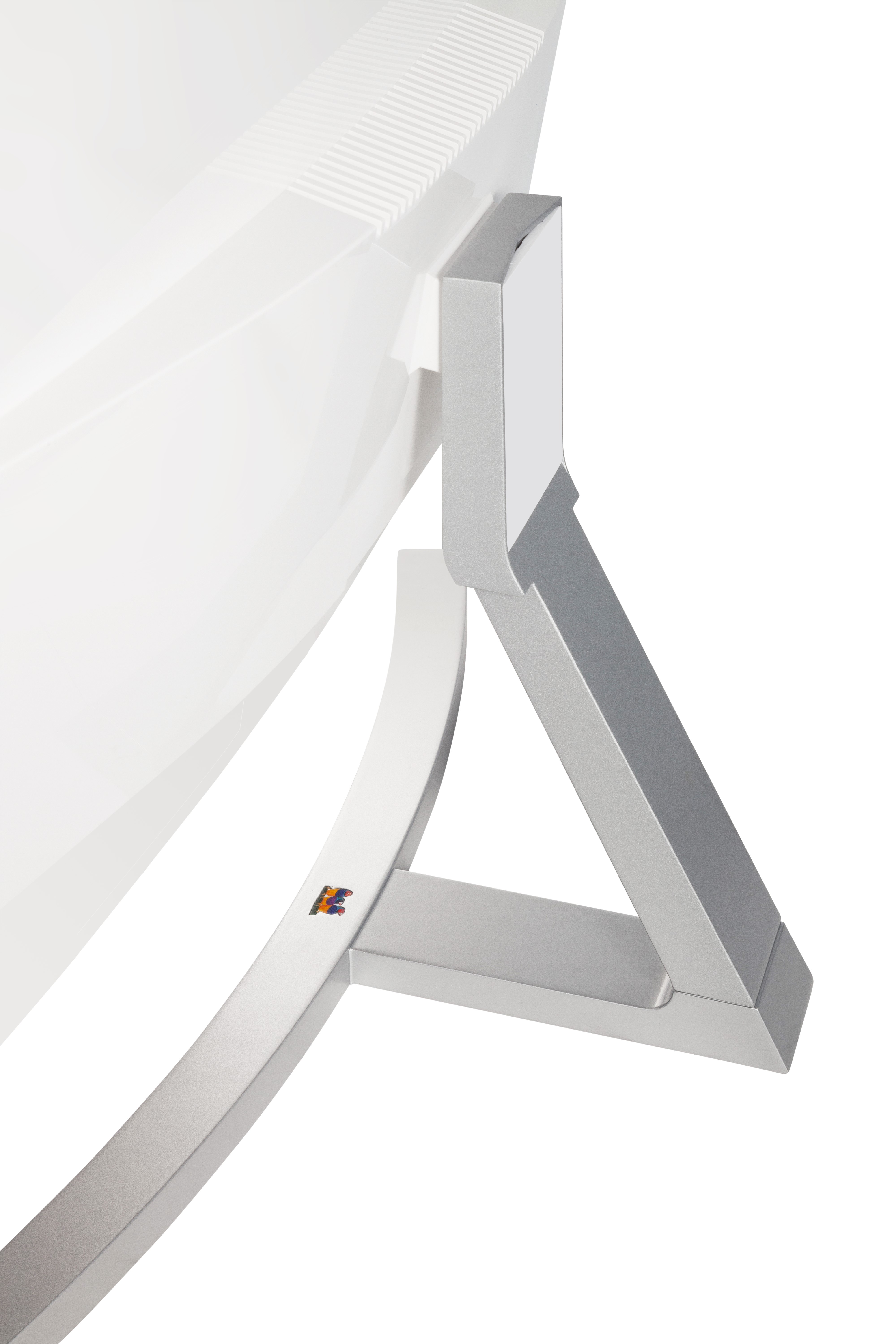

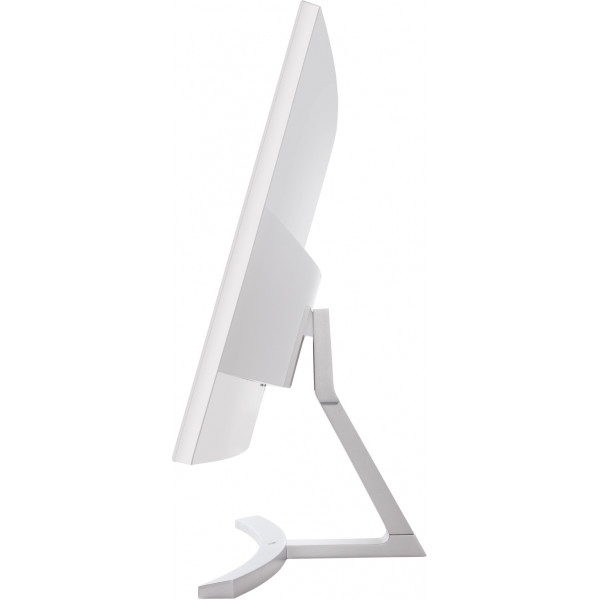

- ErgonomicsTilt (Forward/Back): -7º / 17º
- Weight (imperial)Net (lbs): 17.5
Net Without Stand (lbs): 14.4
Gross (lbs): 24.1 - Weight (metric) Net (kg): 8
Net Without Stand (kg): 6.6
Gross (kg): 11 - Dimensions (imperial) (wxhxd)Packaging (in.): 36.1 x 18.7 x 8
Physical (in.): 33.3 x 19.4 x 9.5
Physical Without Stand (in.): 33.3 x 15 x 3.2 - Dimensions (metric) (wxhxd)Packaging (mm): 916 x 476 x 202
Physical (mm): 845 x 493 x 240
Physical Without Stand (mm): 845 x 380 x 81 - GeneralPACKAGE CONTENTS: VX3515-2KPC-HD-W x1, 3-pin Plug (IEC C13 / CEE22) x1, DisplayPort Cable (v1.2; Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
