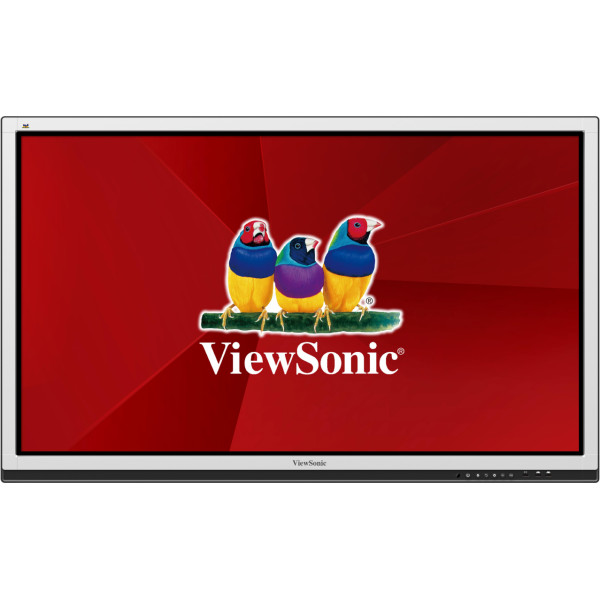

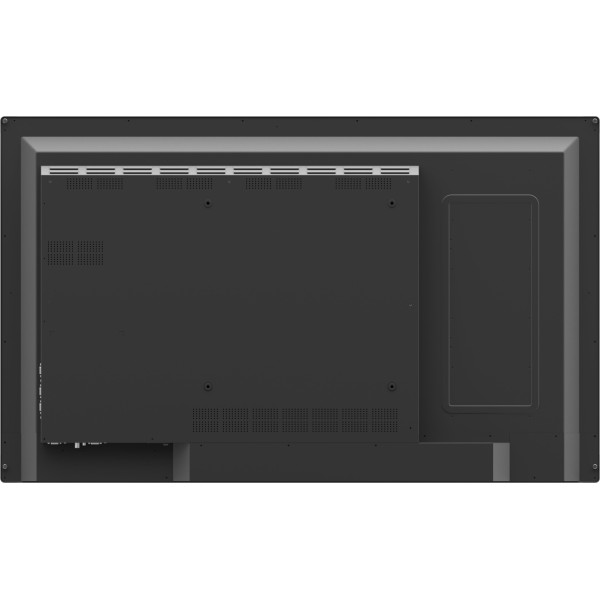

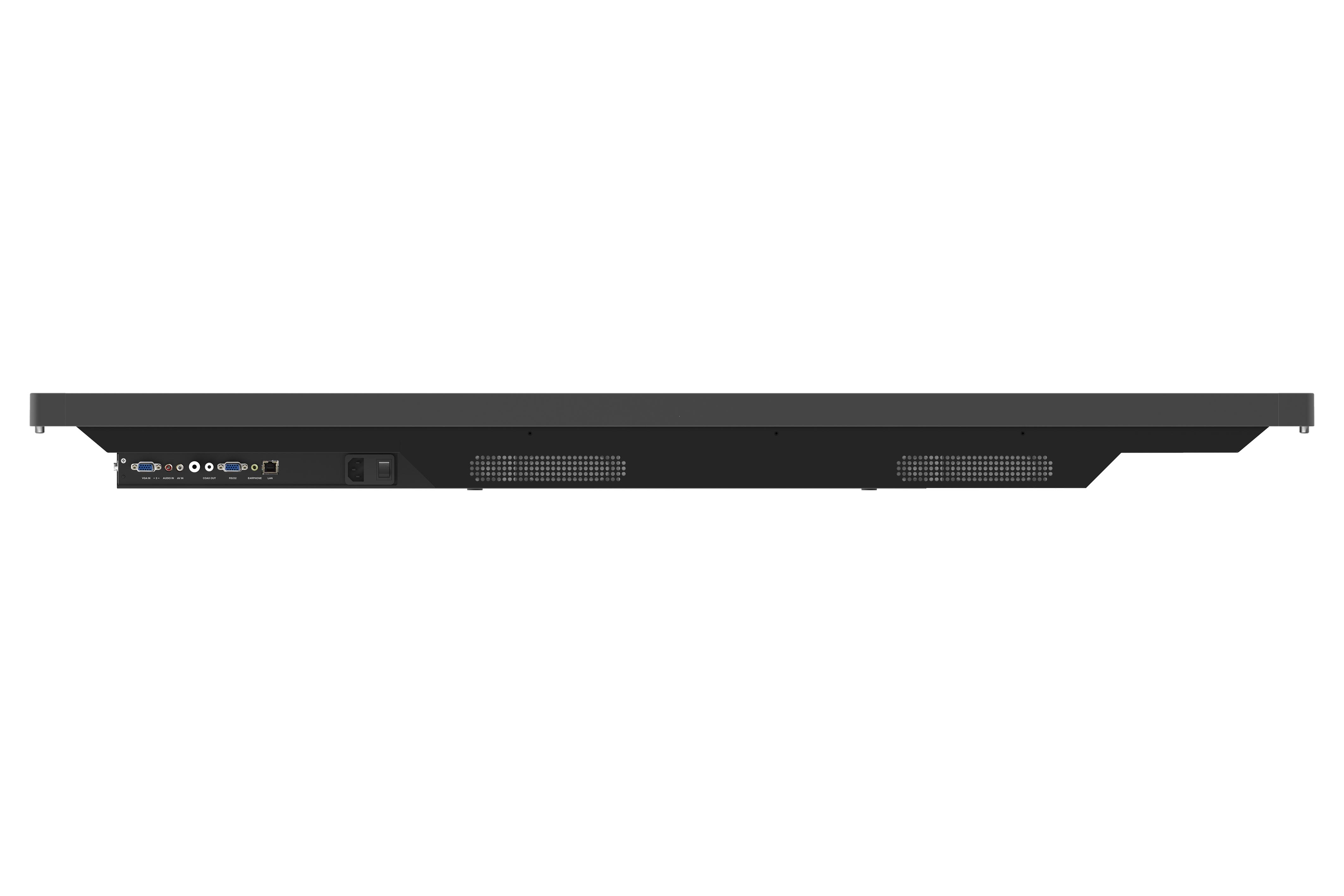

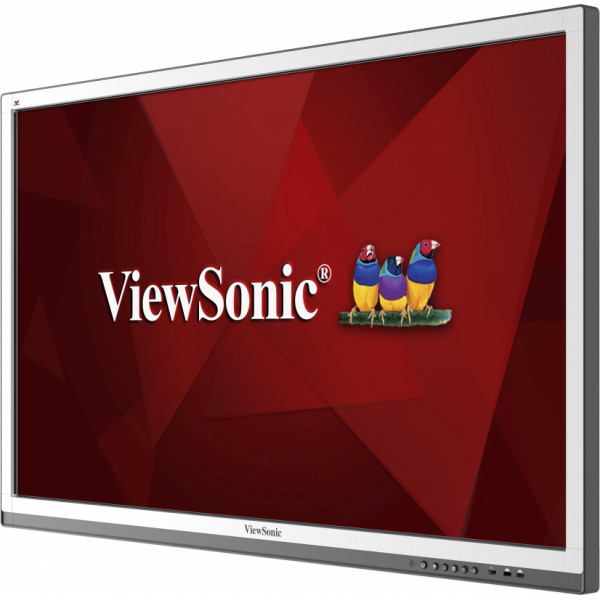

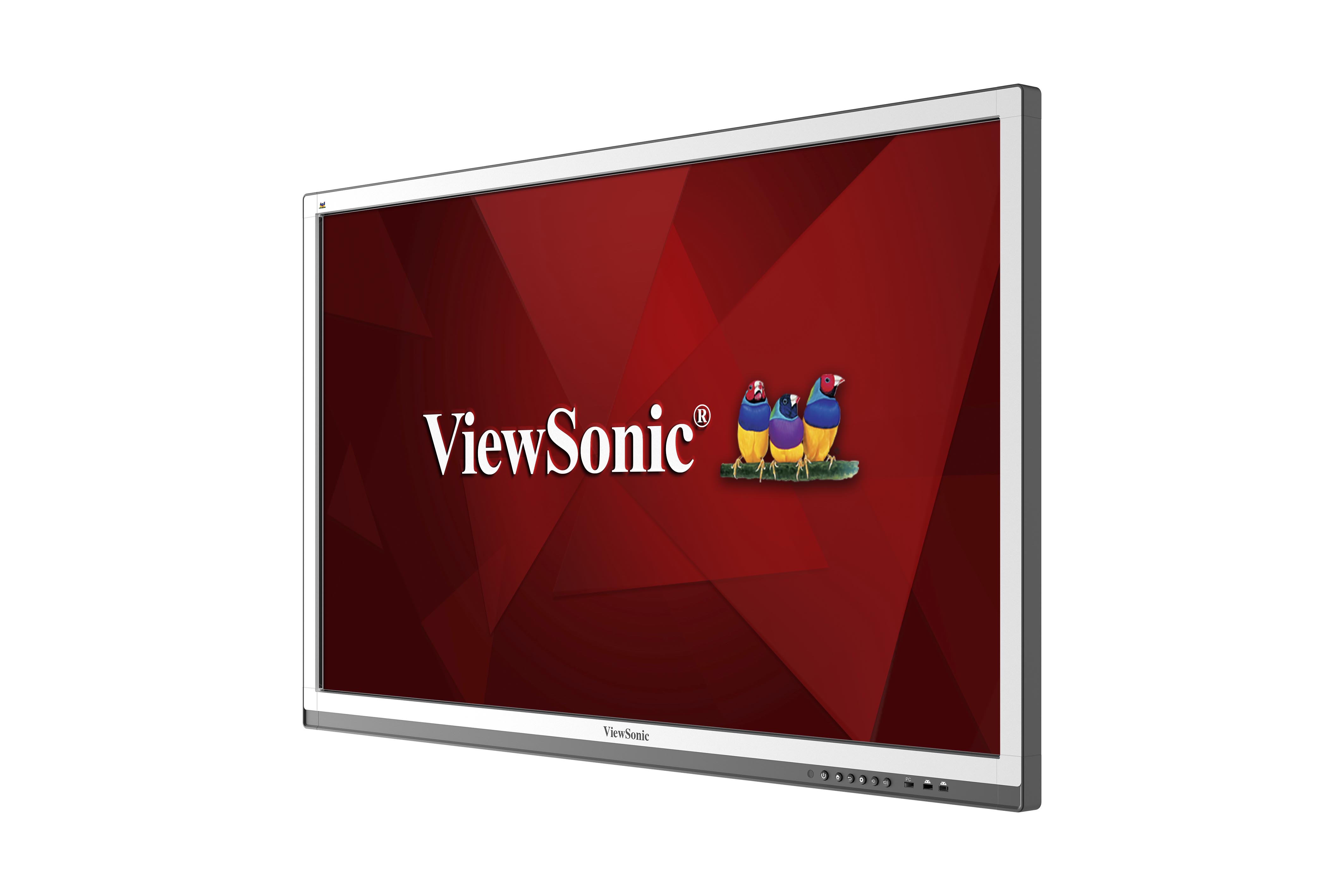

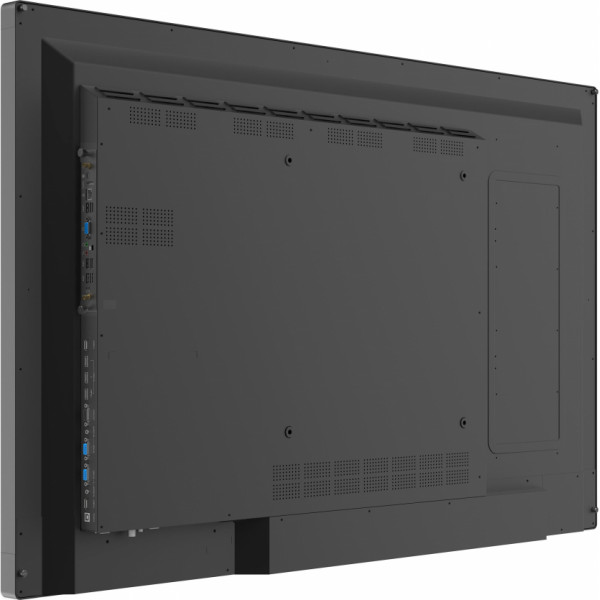

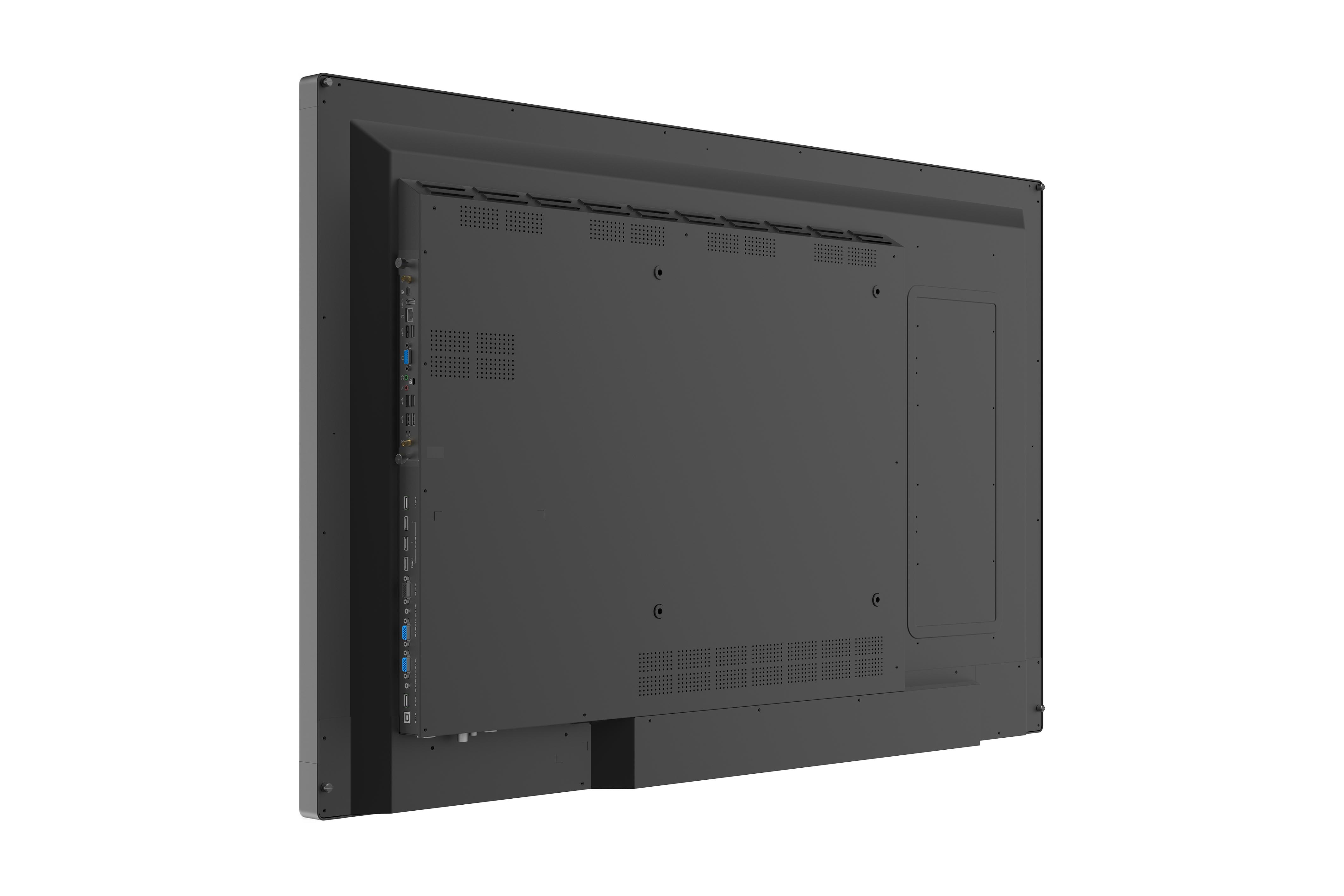

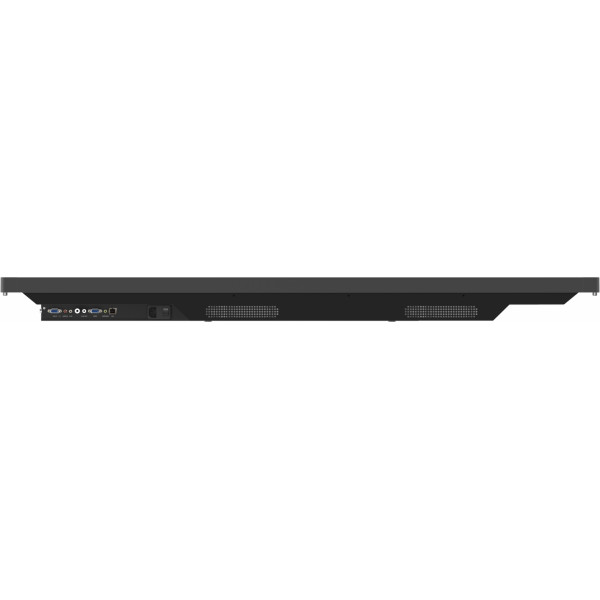

CDE5561T

RGB / VGA: x1
Audio: x1 (Earphone out)
SPDIF: x1 (Coxial)

RJ45 (controllo LAN): x1

Tipo A: x3 (2.0); x1 (3.0)
Tipo B: x1 (for touch)

10W x 2

Processore: ARM Cortex A9 Dual Core CPU
Graphic: ARM Mali400 MP4
Memoria: 1.5GB
Archiviazione: 8GB
Networking: Integrated 10/100/1000M Adaption

RGB PC/HDMI PC: Refer to timing table
CVBS: 480i
HDMI: 480i, 480p,720p, up to 1080

Physical- Top OSD: Power, Home, Return, Setting, VOL-, VOL+ INPUT: PC, Android, AV, VGA1, VGA2, VGA3, HDMI1, HDMI2, HDMI3, HDMI4 LIGHT: 1~10 VOLUME: 0~100 VGA: H Position, V Position, Phase, Clock, Zoom, Auto Adjust, Writing Mode PICTURE: Brightness, Contrast, Hue, Sharpness, Color Temp, Zoom, Writing Mode
Embedded Linux OS: SETTING: Ethernet checking, Sound, Display, Apps, Language&input, Date&time, About device ANNOTATION: Annotation menu, Return, Main, Pen, ViewBoard Lit, Open file, Screenshot, close menu INTERFACE: ViewBoard Lit, Folders, Browser, PIP, Settings, Apps
Multimedia: IMAGE: Close, Zoom in, Zoom out, Previous, Play/Pause, Next, Counterclockwise, Clockwise, setting AUDIO: Close, Previous, Play/Pause, Next, Playlist, Loop, Random, Single VIDEO: Close, Previous, Fast backward, Play/Pause, Fast forward, Next, Playlist

Voltaggio: 100-240VAC +/- 10% Wide Range
Consumo: "On" 162W(typ), "Power Saving" < 0.5 W, "Off" (Suspend) < 0.5 W

Wall Mount (VESA® ): 400 x 400 (M8 x 20mm)

Temperature (º C): 32°F to 104°F (0°C to 40°C)
Umiditá: 20% ~ 80% non-condensing

Prodotto (inch / mm): 51.34x31.5x3.82 / 1304x800x97
Imballaggio (inch / mm): 57.4x36.69x8.66 / 1458x932x220

Prodotto (lb / kg): 71.65 / 32.5
Imballaggio (lb / kg): 92.59 / 42

**Warranty offered may differ from market to market

• CDE Interactive Large Format Display Monitor
• VGA cable
• Power cable x 4
• Remote control
• USB cable
• Audio cable
• Touching pen x 3
• User manual CD wizard
• RS232 adapter
