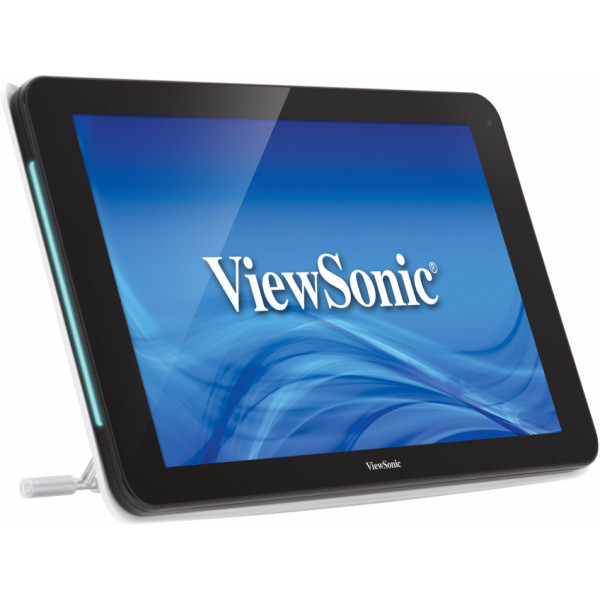

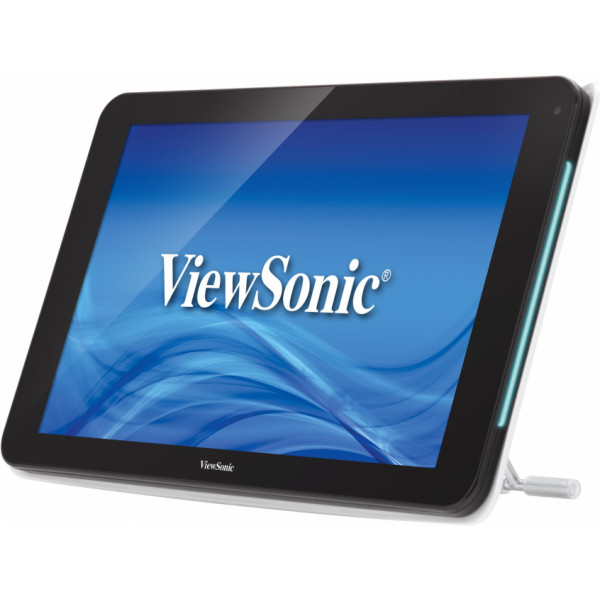

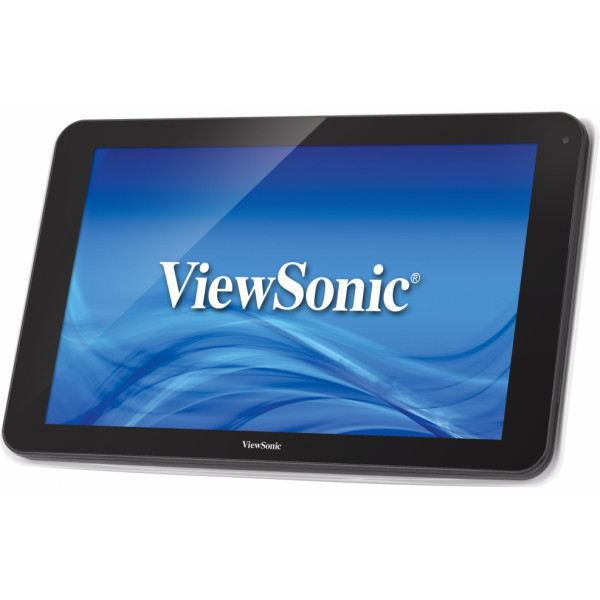

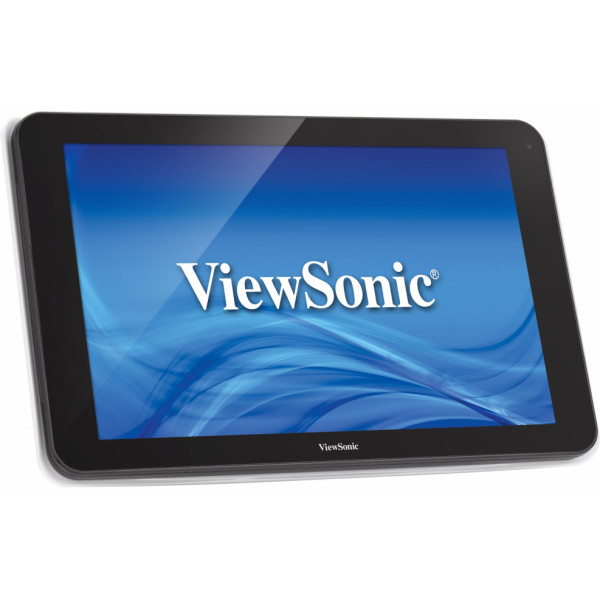

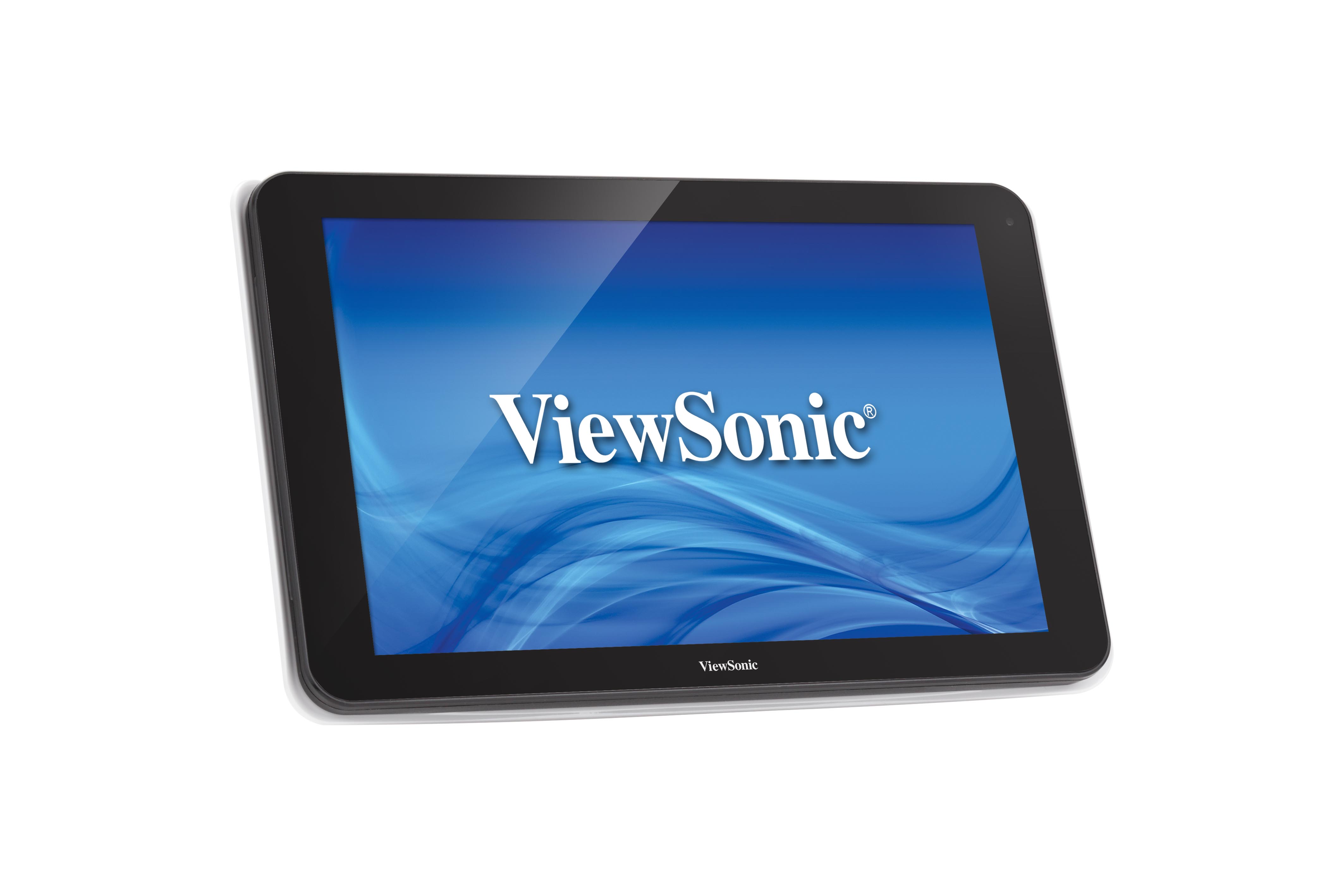

EP1042T

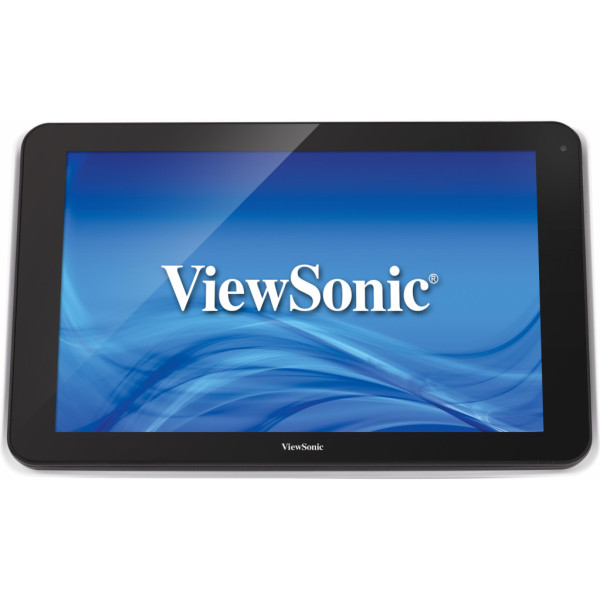

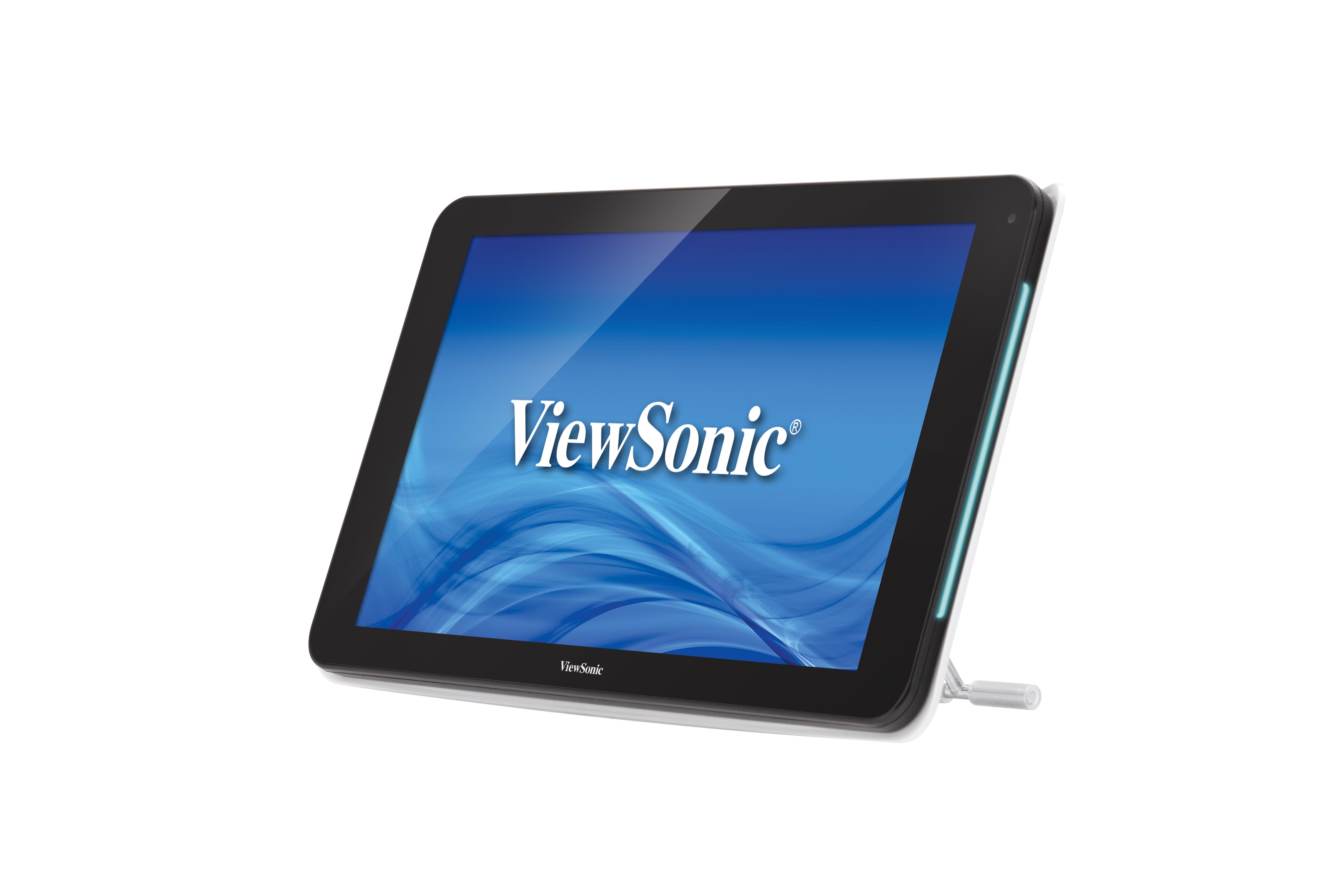

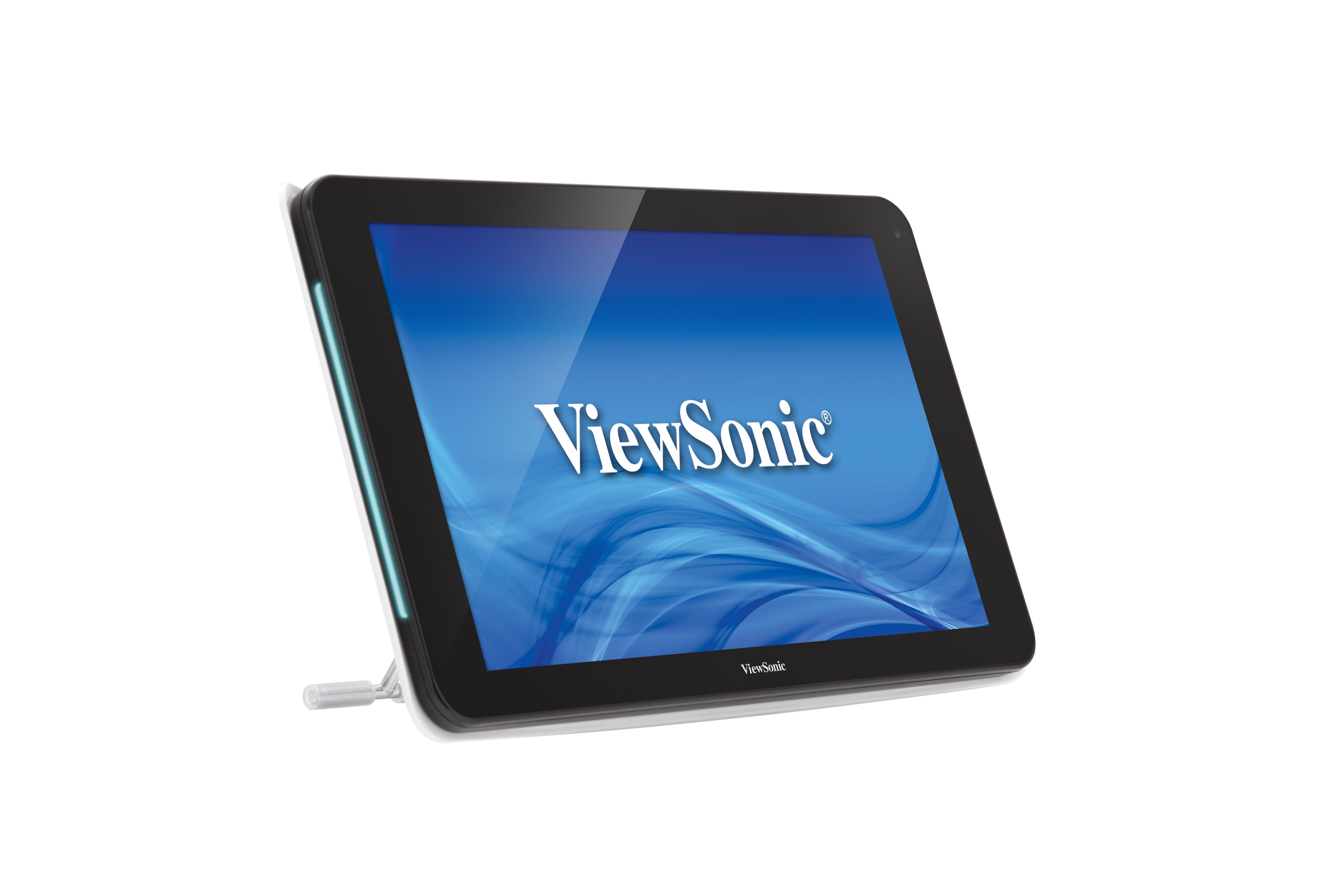

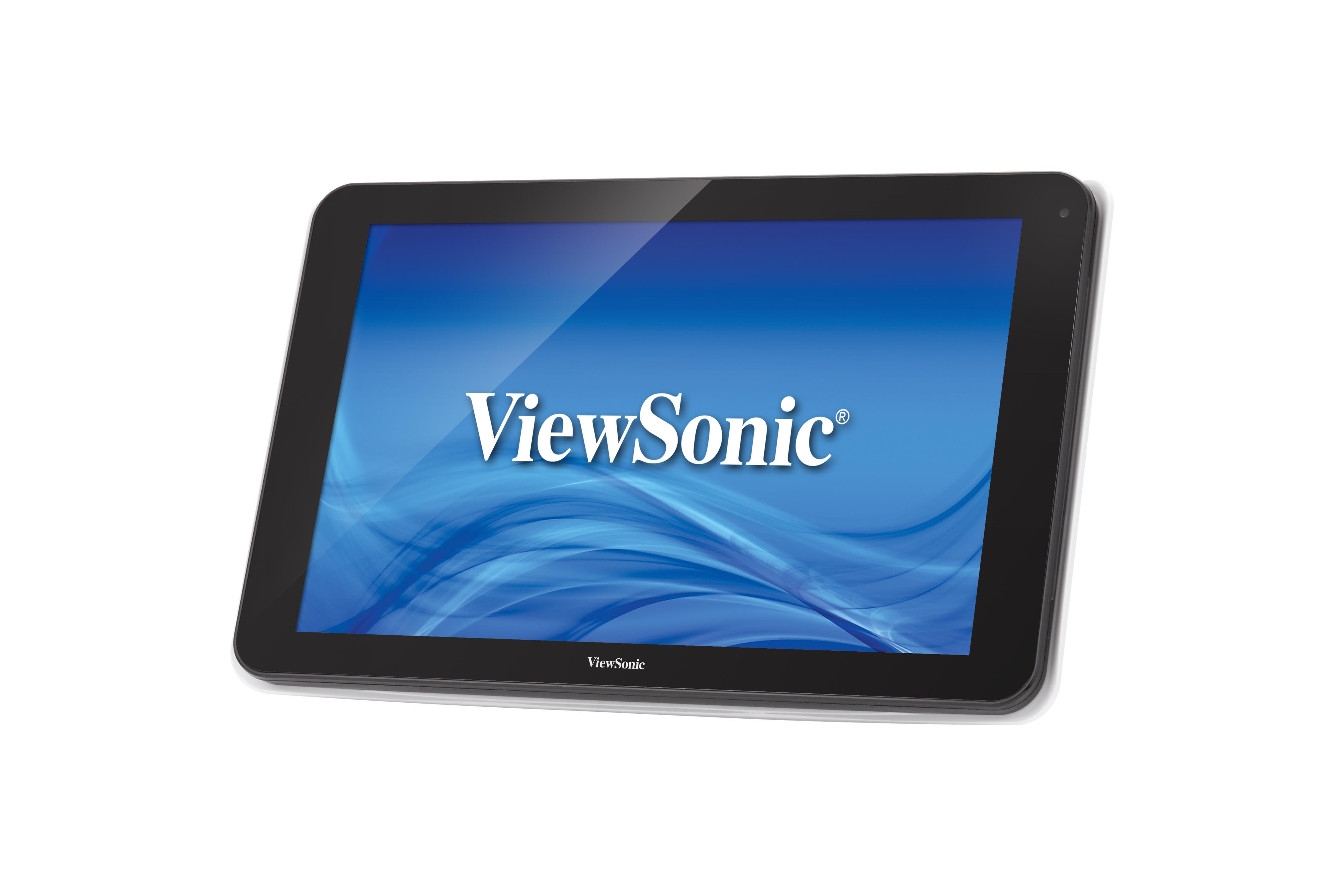

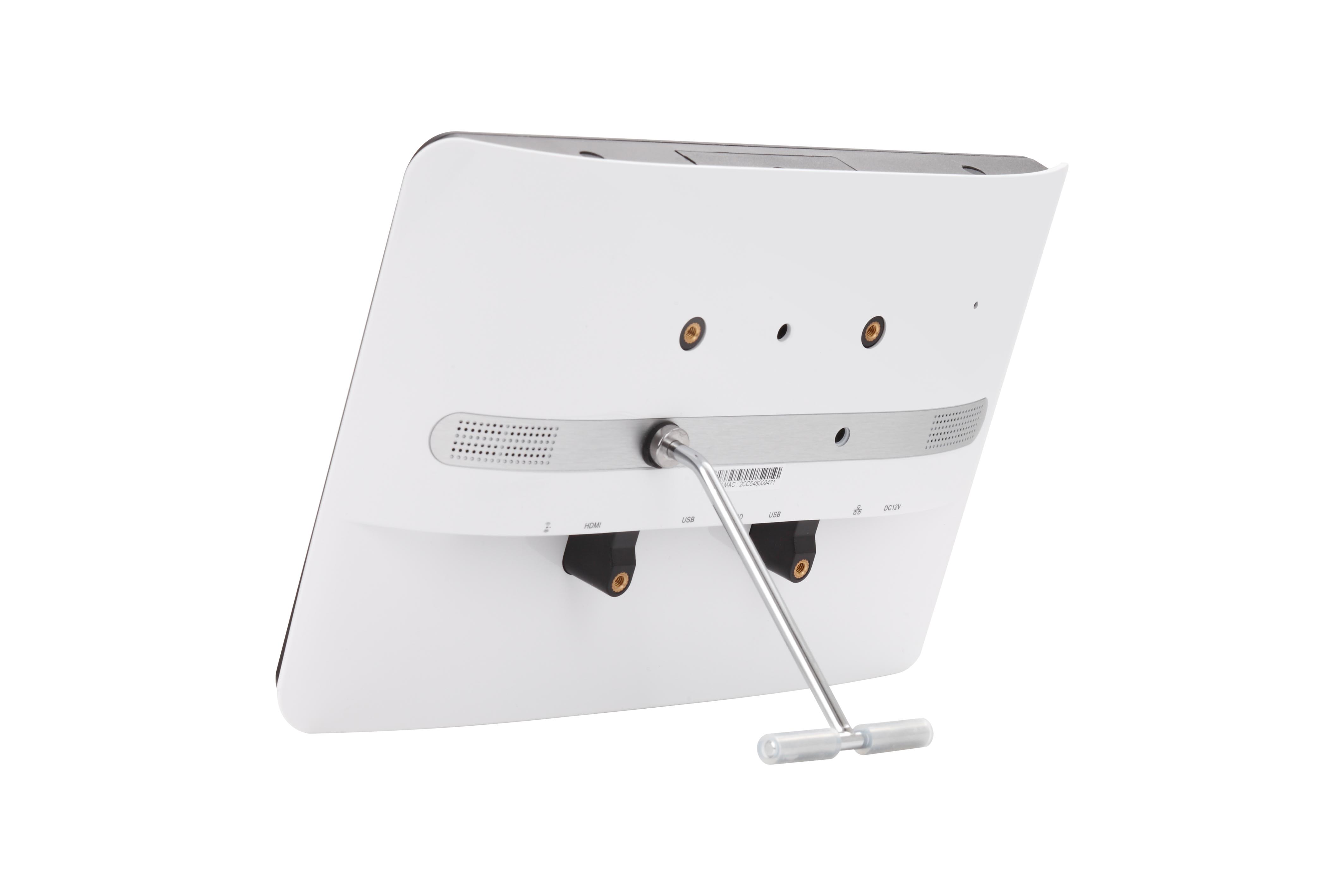

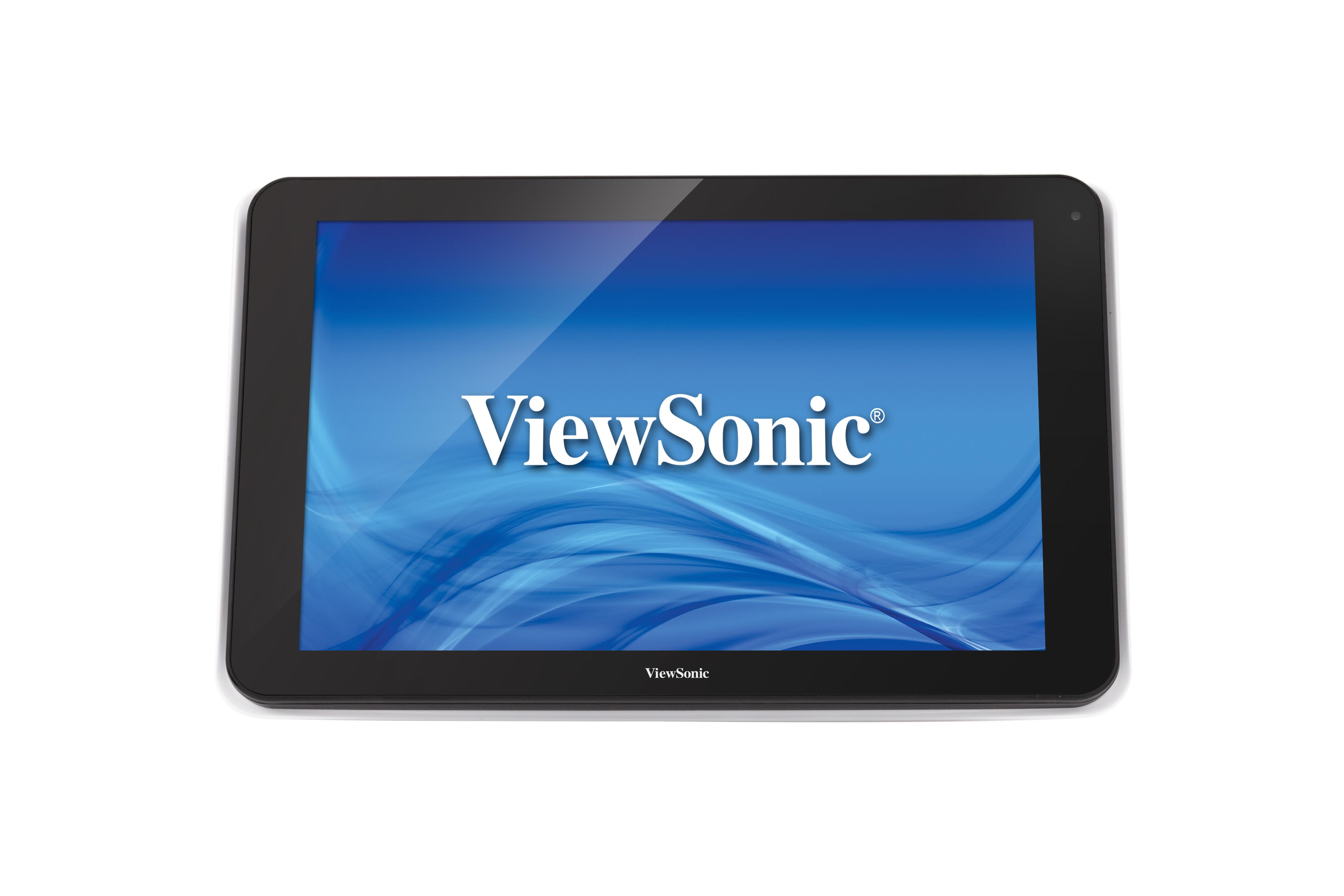

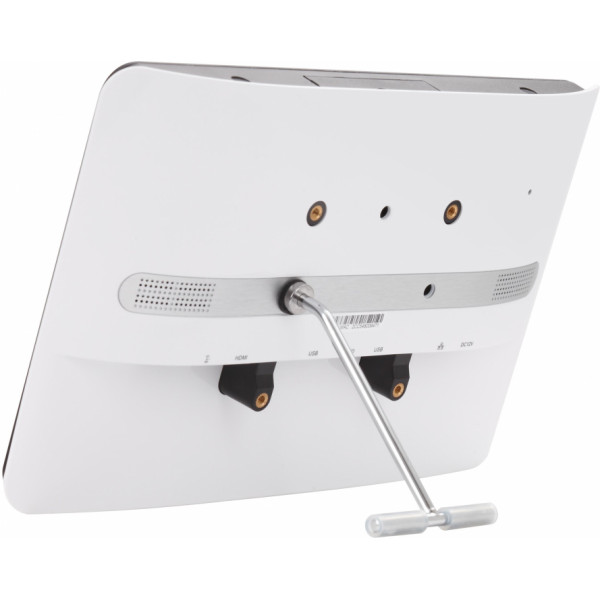

10” (10.1” viewable) All-in-one touch digital ePoster
- Support power-over-Ethernet (POE) for easy-one-wire installation
- 10 points multi-touch function for interactive
- Integrated media player for video, photo and music playback
- SMIL and HTML5 support for interactive message creation
- Built-in wireless network and Ethernet for easy content loading
- Embedded 8GB internal memory and integrated speakers
SPECIFICHE
- SPECIFICATIONDimensione display: 10" (10.1'' diagonal)
Tipo/Tecnologia: TFT LCD Module with LED Backlight
Area visualizzabile (mm): 216.96(W) x 135.6(H)
Rapporto d'aspetto: 16:10
Risoluzione: 1280 x 800
Colors: 262K Color
Luminosità: 300 nits (typ.)
Contrasto: 800:1 (typ.)
Tempo di risposta: 25 ms
Angolo visuale: Top = 85, Bottom = 85, Left = 85, Right = 85 (typ.)
Backlight: LED
Durata (ore): 10,000 Hours (typ.) - TOUCHTipo/Tecnologia: Capacitive
Touch Resolution: 1280x800

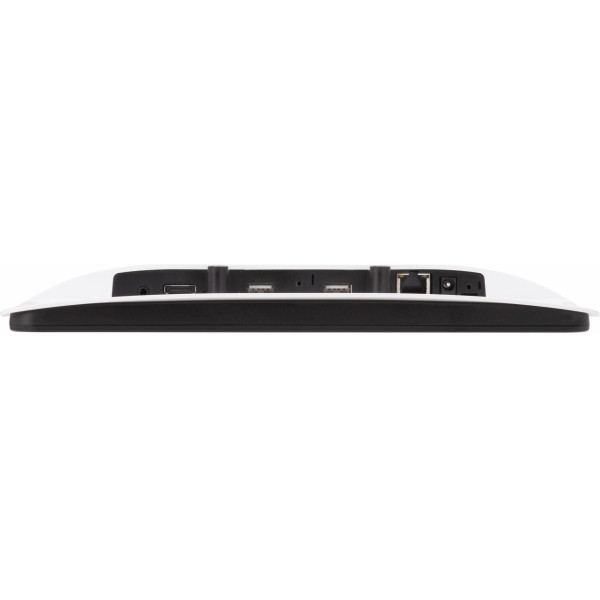

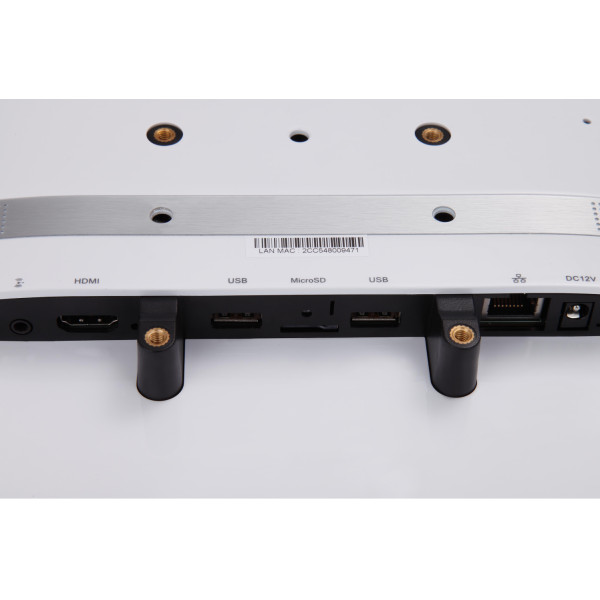

Punti di Tocco: 10 point for gesture - INPUTAudio: x1 (3.5mm jack)
SD/SDHC: Micro SD (Up to 32GB)
- LANRJ45 (controllo LAN): x1 (10M/100M BASE-T, PoE 13W)
- USBTipo A: x2 (USB2.0)
Micro USB: x1 - CAMERA2M Pixel
- SPEAKERS2W x2
- BUILT IN PLAYEROS: Android 4.4
Processore: Rockchip RK3188
Archiviazione: 1GB DDR3-1600 SDRAM
Graphic: ARM Mali400 MP4
Archiviazione: 8GB
HDMI (1080p): Up to 1080p @ 50/60Hz - POWERVoltaggio: 100-240VAC +/- 10% Wide Range
Consumo: 13.5W (Max) - ERGONOMICSStandard (VESA® ): 75 x 75mm
- OPERATING CONDITIONSTemperatura (º C): 32°F to 104°F (0°C to 40°C)
Umiditá: 30% ~ 80% non-condensing - Dimensioni (LxPxH)Prodotto (inch / mm): 269.88 x 170 x 28.5 mm / 10.62 x 6.69 x 1.12 in.
Imballaggio (inch / mm): 336 x 100 x 227 mm / 13.2 x 3.93 x 8.93 in. - WEIGHTProdotto (lb / kg): 0.727 kgs / 1.6 lbs
Imballaggio (lb / kg): 2.245 kgs / 4.95 lbs - What's in the box?1. AC Adapter
2. Power plug x 1 (US/EU/AU/UK)
3. Power and Micro SD card brackets
4. Display stand
5. Hardware Quick Start Guide
6. Software Quick Start Guide
7. Documentation CD (UG, QSG, Signage Manager software)
*Actual content may differ from market to market
