Archiviato
CDE6510

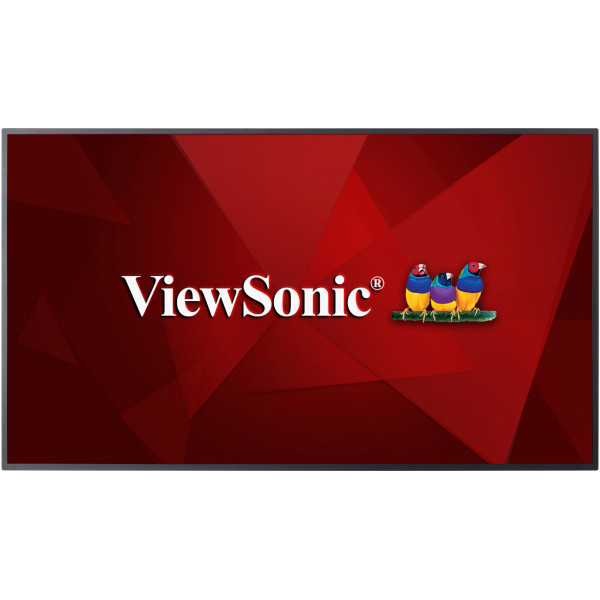

65" 4K Ultra HD Commercial Display
- Embedded Android SOC supports Android apps
- Computing expansion PC slot for Intel OPS
- USB multimedia player
- vController software
- Supports HDMI CEC pass-through
SPECIFICHE
- LCD PANELDimensione display: 65"
Tipo/Tecnologia: TFT LCD Module with DLED Backlight
Area visualizzabile (mm): 1428.48 (H) x 803.52 (V)
Rapporto d'aspetto: 16:09
Risoluzione: 3840x2160 @60Hz
Colors: 1.07B colors
Luminosità: 350 nits (typ.)
Contrasto: 4000:1 (typ.)
Tempo di risposta: 8 ms
Angolo visuale: H = 178, V = 178 (typ.)
Backlight: DLED
Durata (ore): 30,000 Hours Min.
Hardness: 3H - INPUTHDMI: x 4
RGB / VGA: x 1
DisplayPort: x 1
Audio: x1 PC audio (3.5 mm)
RS232: x 1
PC Slot: x 1 (optional VPC12-WPO)
IR: x 1 - OUTPUTRS232: x 1
IR: x 1
- LANRJ45 (controllo LAN): x 1
- USBTipo A: x 1 for 5V/2A
2.0 Type A: x 2 (USB Playback)
3.0 Type A: x 1 (USB Playback) - SPEAKERS10W x 2
- COMPATIBILITYVGA: 1920 x 1080
DisplayPort: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz
HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz - POWERVoltaggio: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
Consumo: Normal 165 W, Max 295 W - ERGONOMICSStandard (VESA® ): 400 x 400mm ; Screw: M6*(10+X) mm. (X=thickness of wall mount plate)
- OPERATING CONDITIONSTemperatura (º C): 5°C to 40°C
Umiditá: 20% ~ 80% non-condensing - Dimensioni (LxPxH)Physical (mm / inch): 1458.7 x 938.8 x 540 mm / 57.43 x 36.96 x 21.26 in. (with Stand)
Physical w/o Stand (mm / inch): 1458.7 x 834.7 x 81.6 mm / 57.43 x 32.86 x 3.21 in. (w/o Stand)
Packaging (mm / inch): 1655 x 1078 x 280 mm / 65.16 x 42.44 x 11.02 in - WEIGHTNet (kg / lb): 28.9 kg / 63.71 lbs (with Stand)
Net w/o Stand (kg / lb): 24.8 kg / 54.67 lbs (w/o stand)
Gross (kg / lb): 34.84 kg / 76.80 lbs - What's in the box?1. CDE6510 commercial display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. RS232 cable
7. RS232 daisy chain cable (2.4mm – 2.4mm)
8. IR sensor cable
