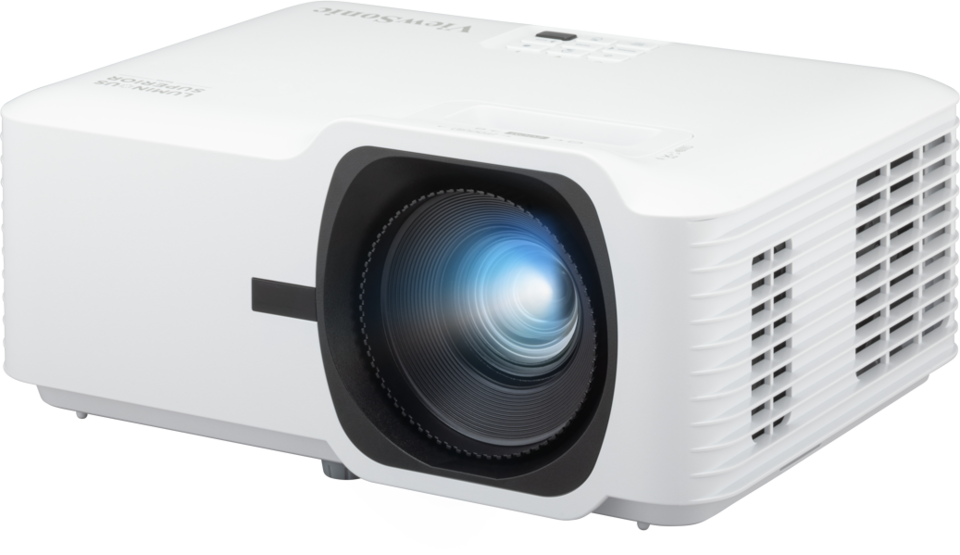

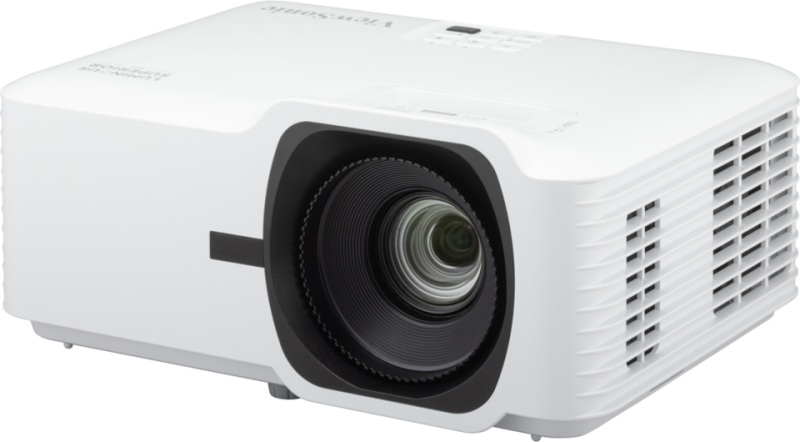

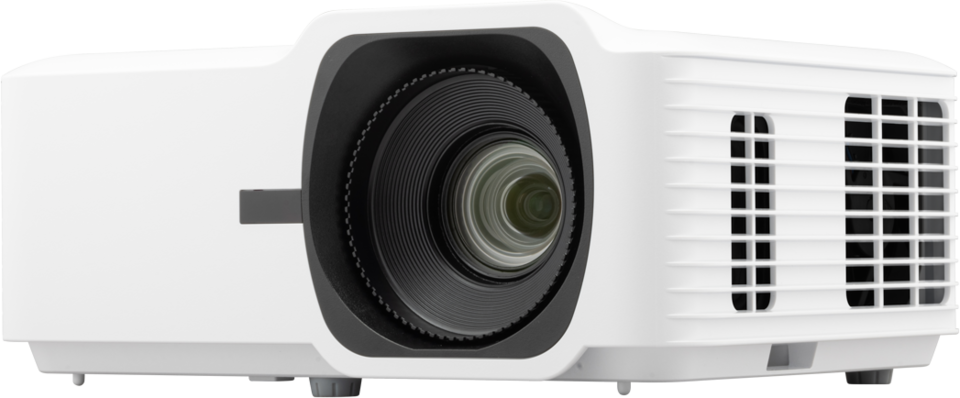

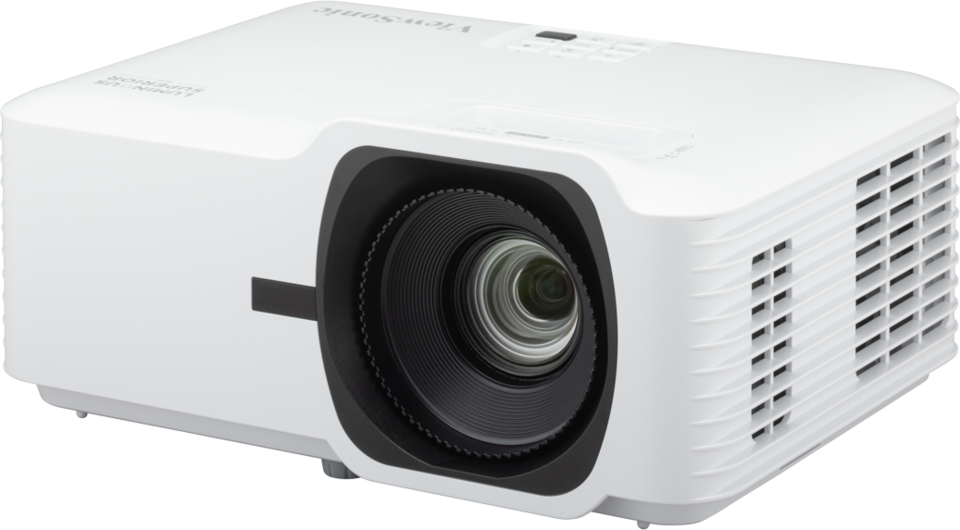

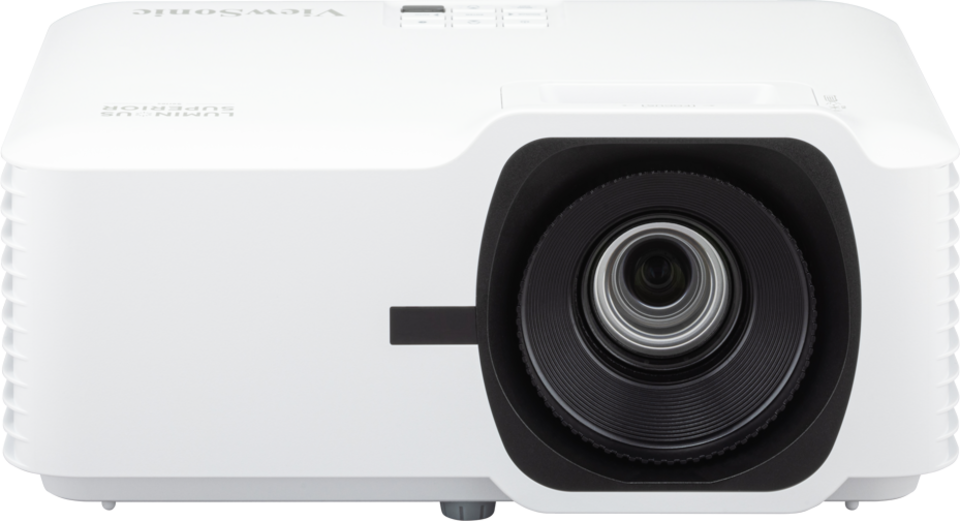

LSD500HD

5,500 ANSI Lumens 1080p Laser Installation Projector

  • 3rd generation laser phosphor technology with up to a 30,000-hour lifespan
  • 5,500 ANSI Lumens offering bright images in any environment
  • Up to a 300" ultra-large screen with a lower cost-per-inch
  • Centralized LAN control for efficient management
  • Installation flexibility: 1.3x optical zoom, H/V keystone, 360° projection, and portrait mode
Pertanyaan Penjualan

GAMBARAN

The LSD500HD is part of ViewSonic’s Luminous Superior Series, a lamp-free projector lineup designed for corporate and commercial environments. This DLP projector uses 3rd generation laser phosphor technology, delivering a brightness of 5,500 ANSI Lumens for up to 30,000 hours. It can project up to a 300” ultra-large screen in 1080p Full HD resolution with high native contrast. Its comprehensive LAN control enables centralized management, making it ideal for boardrooms, public, and sports simulation spaces. Its lamp-free design offers an eco-friendly and cost-effective solution with less power consumption, while its lightweight and compact build reduces transportation costs. This projector offers flexible setup, equipped with features like a 1.3x optical zoom, H/V keystone, and 360° projection capabilities, possibilities.

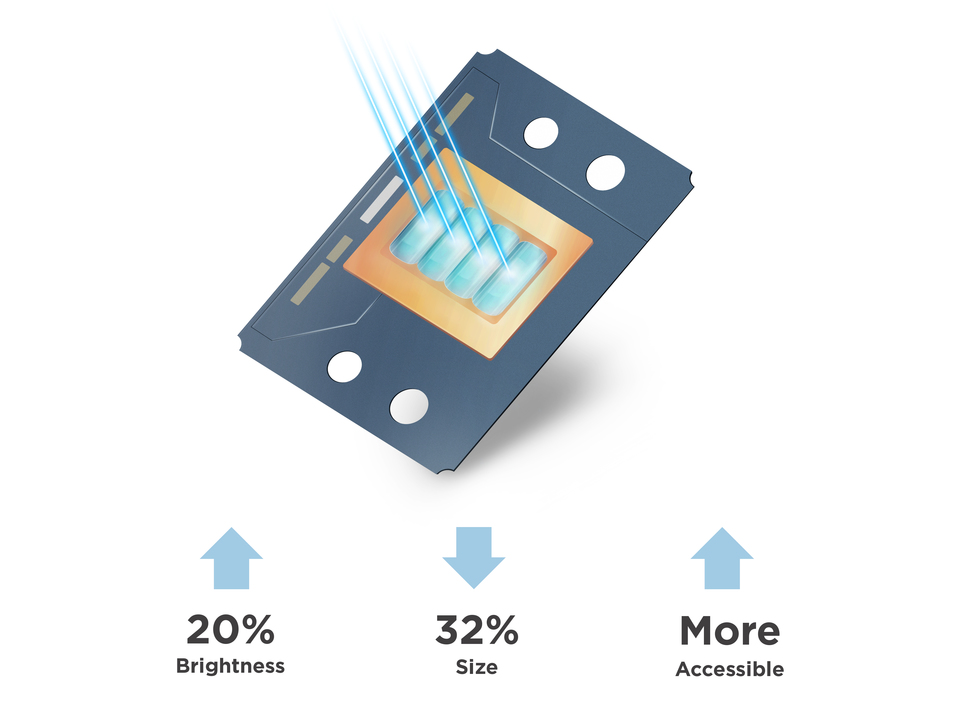

Bright, Compact, Durable

The LSD500HD incorporates advanced 3rd-gen laser phosphor technology, enhancing brightness by 20% and achieving better luminous efficiency, all while being 32% more compact and more accessible than the previous generation. Its lamp-free light source offers instant power on/off and a lifespan of up to 30,000 hours without maintenance, ensuring consistent image quality even during extended periods of use.
3rd Generation Laser Phosphor Technology
Bright, Compact, Durable 1

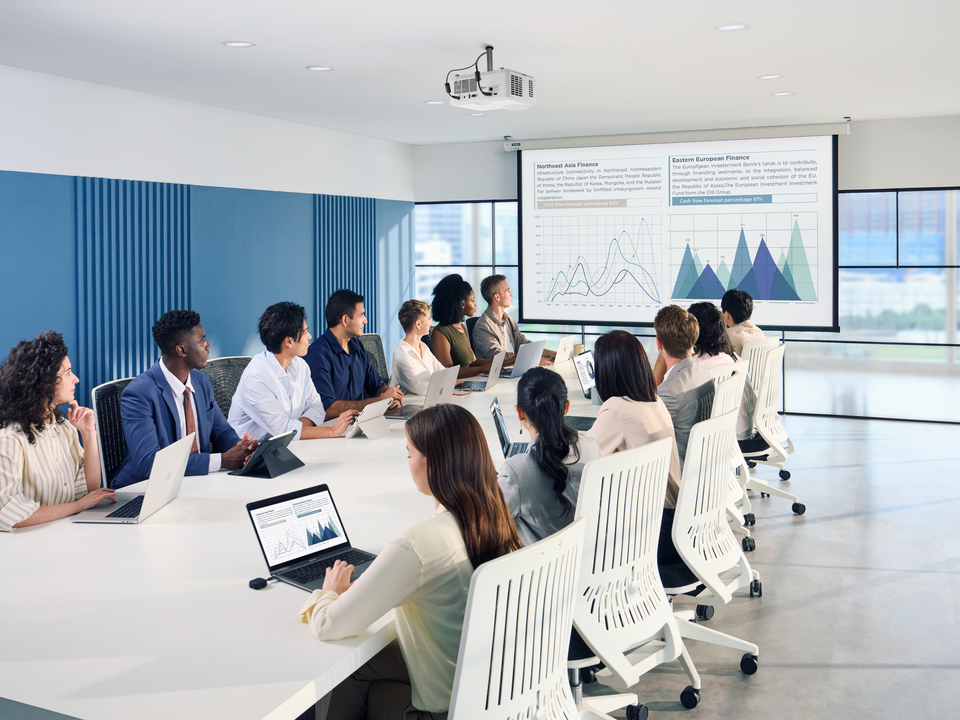

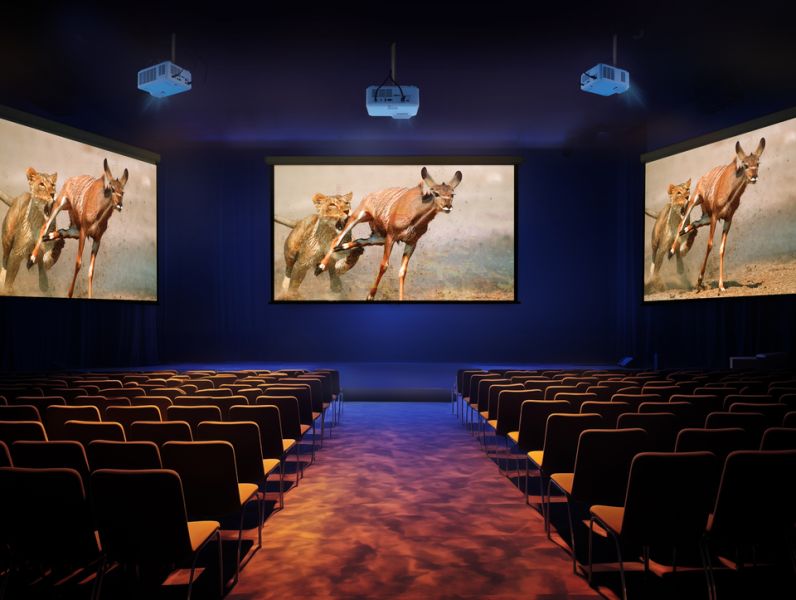

Bright Images for Large Venues

Delivering 5,500 ANSI Lumens, the LSD500HD provides vibrant and sharp projection in 1080p FHD in all lighting conditions for auditoriums, boardrooms, public venues, and other expansive spaces.
5,500 ANSI Lumens, 1080 FHD
Bright Images for Large Venues 1

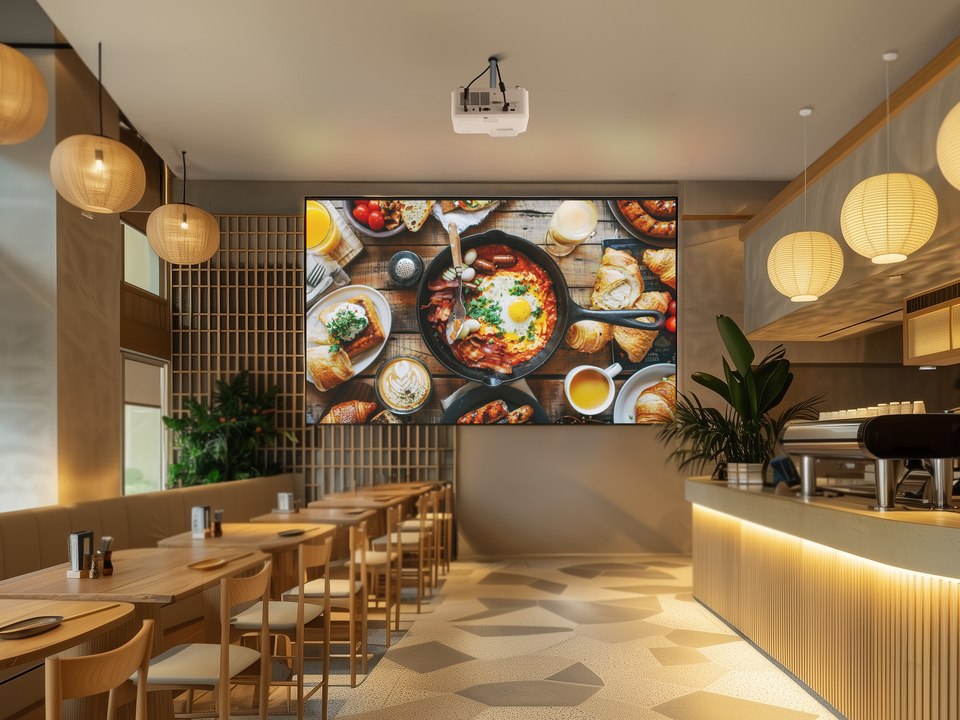

Bright Images for Large Venues 2

Unmatched Contrasts, Enhanced Visibility

The projector's high native contrast ratio, achieved through its Texas Instruments 0.65"DMD chip, enables deeper blacks and brighter whites. As a result, it delivers more visual depth, clearer images, and enhanced legibility.
0.65” DMD Chip | High Native Contrast Ratio
Unmatched Contrasts, Enhanced Visibility 1

Ultra-Large Screen with Lower Cost-per-Inch

This easy-to-install projector allows for an image size of up to 300”, offering a lower cost-per-inch compared to other types of commercial displays
Up to a 300" Image
Ultra-Large Screen with Lower Cost-per-Inch 1

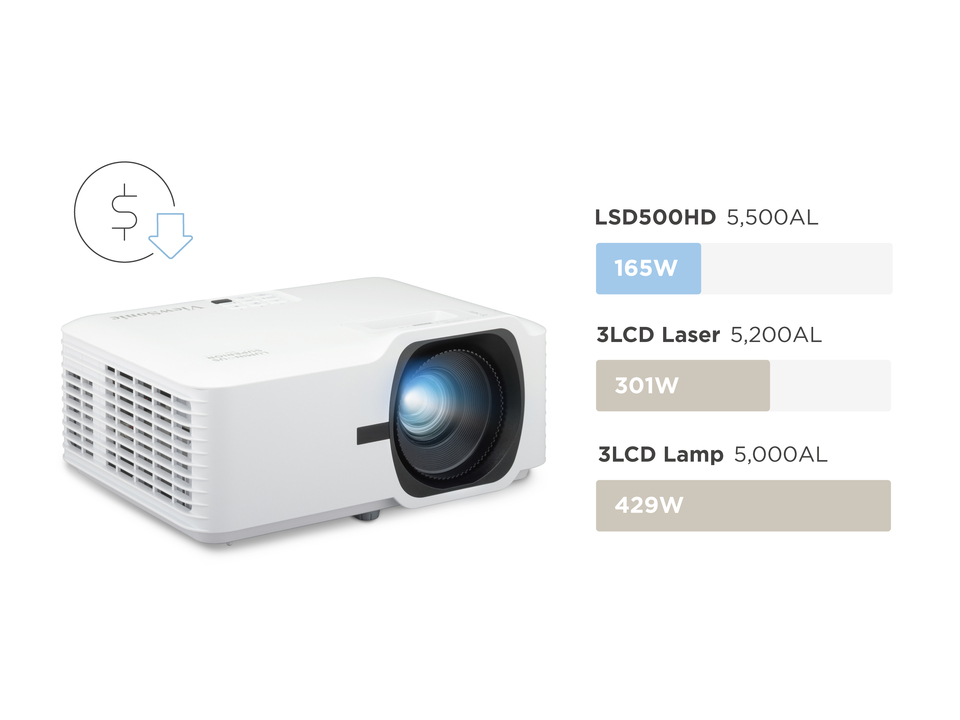

Save on Costs and Energy

With its advanced lamp-free light source, the LSD500HD offers a highly energy-efficient and cost-saving display solution by consuming up to 62% less power than competing projectors
Lower Power Consumption
Save on Costs and Energy 1

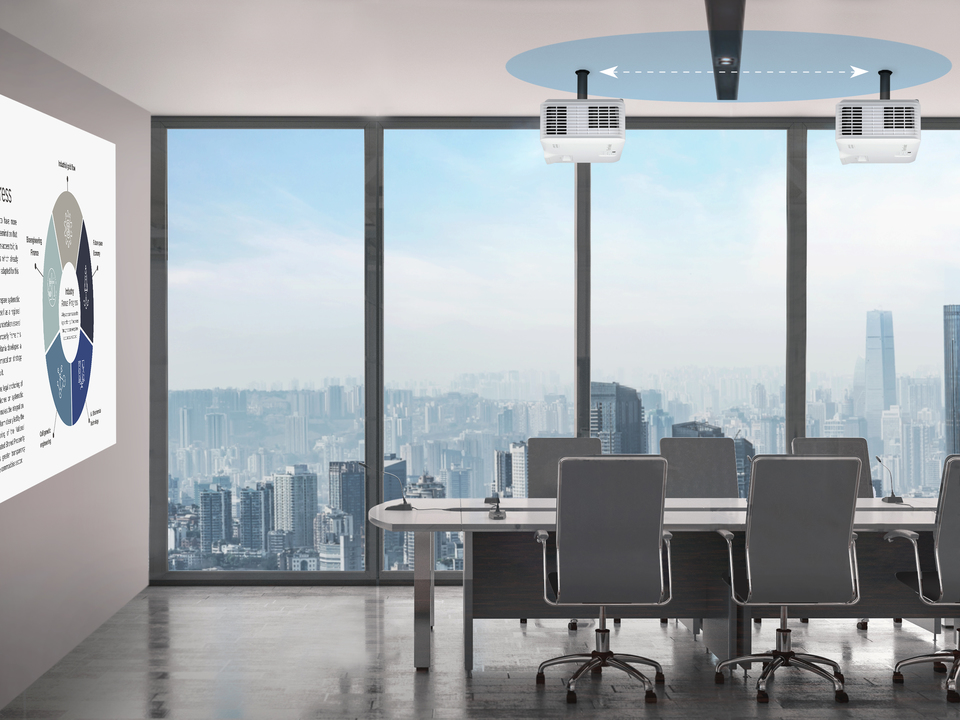

Enhanced Installation Flexibility

Equipped with a 1.3x optical zoom, the projector allows users to choose the most ideal set-up location within a range, getting the desired image size without needing to change the existing interior design.
1.3x Optical Zoom
Enhanced Installation Flexibility 1

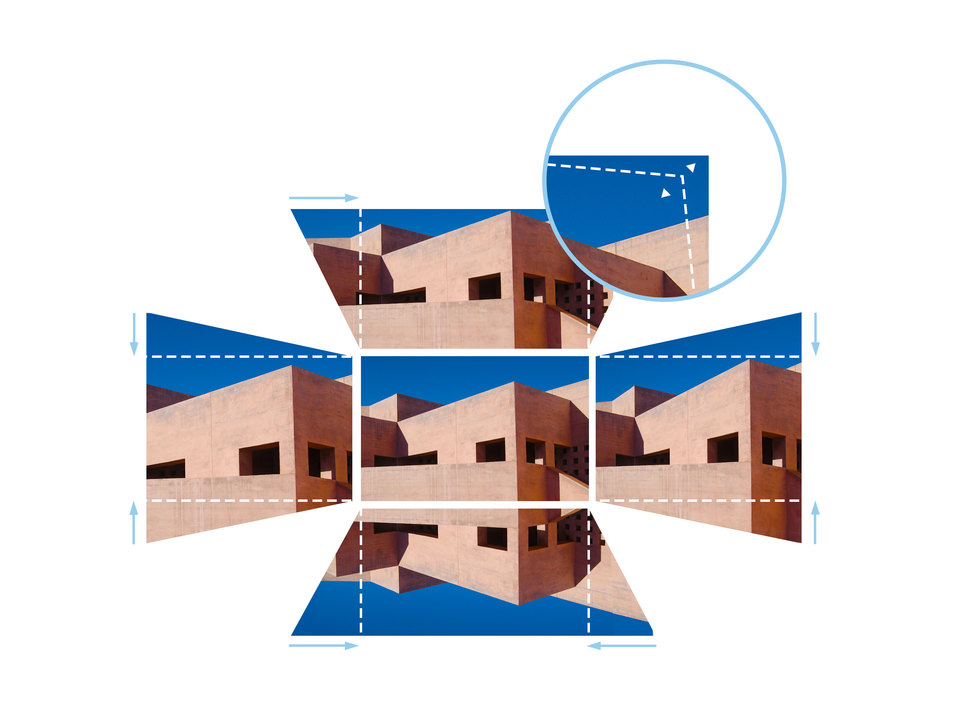

Get ​​Perfectly-Shaped Images Effortlessly

Horizontal and vertical keystone correction, along with 4-corner adjustment features, eliminate crooked or distorted images for a perfectly proportioned picture every time.
H/V Keystone Correction | 4-corner Adjustment
Get ​​Perfectly-Shaped Images Effortlessly 1

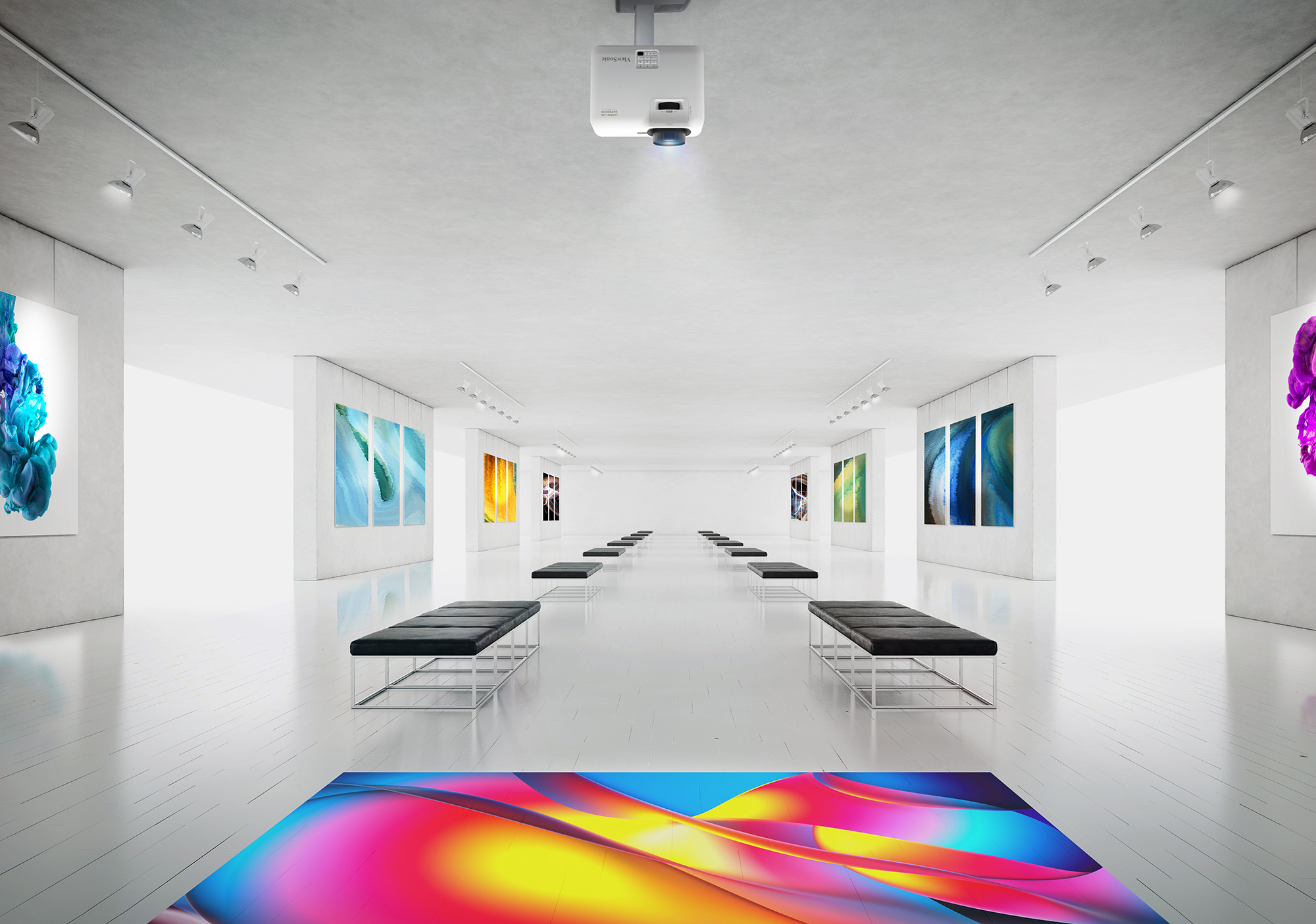

Versatile Creative Application​s

The projector can rotate vertically at any angle, enabling projection onto ceilings, walls, or floors, and its portrait mode further expands its capabilities for projection mapping, staging, and creative advertising applications.
360° Projection | 90° Portrait Mode
Versatile Creative Application​s 1

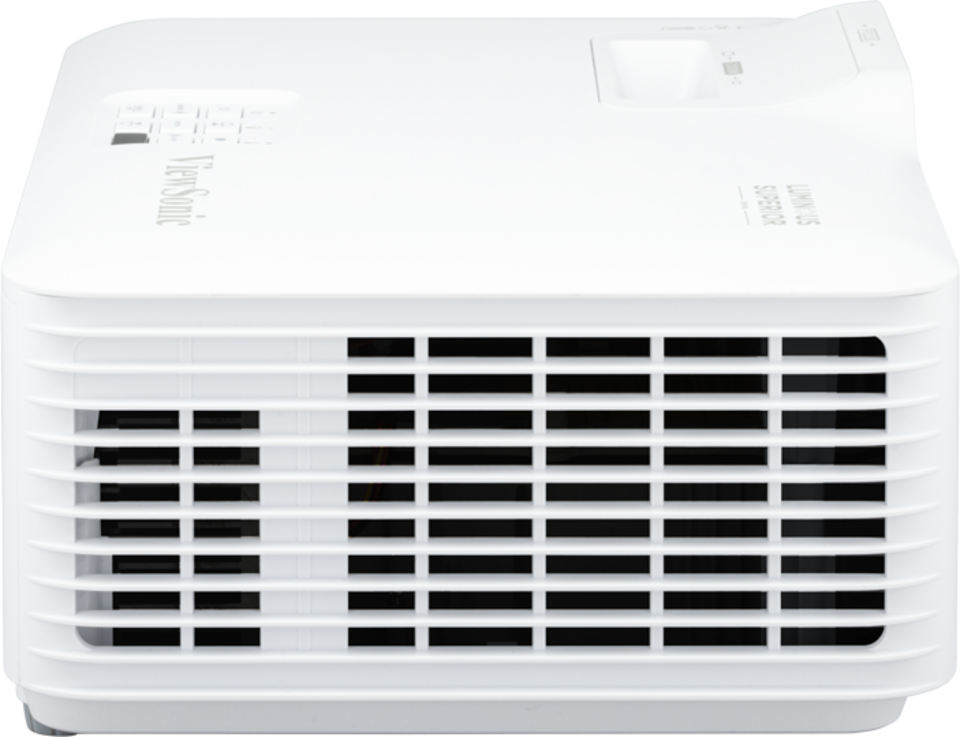

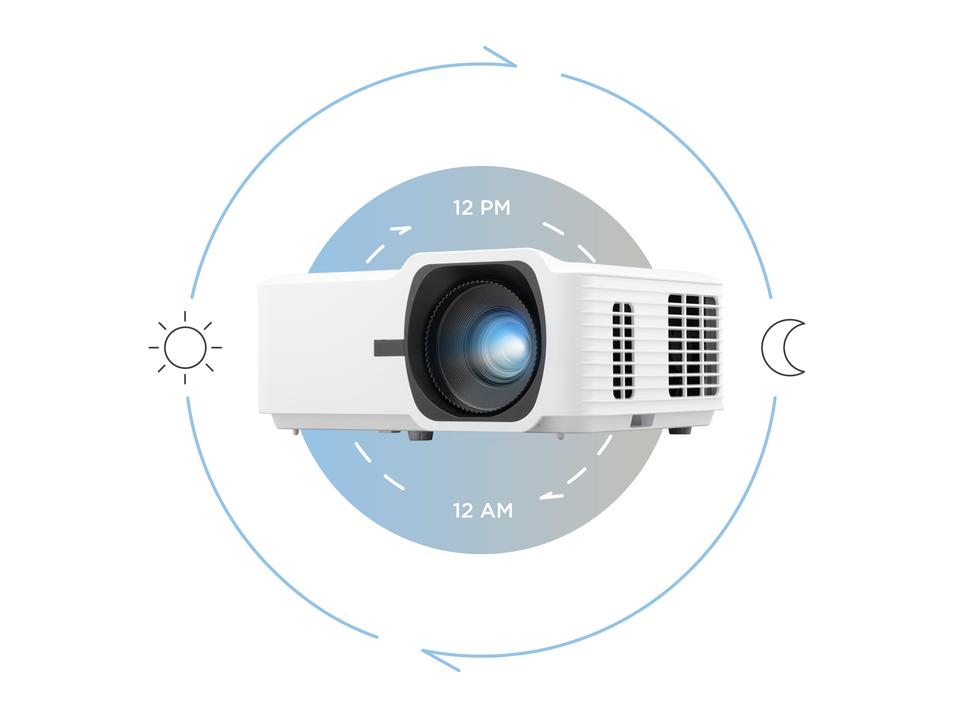

Non-stop 24/7 Operation​​

The projector's advanced cooling design enables 24/7 operation without any degradation in image quality or performance. This makes it the go-to solution for applications that require continuous projection in retail stores, malls, museums, airports, and other public spaces.
Non-stop 24/7 Operation​​ 1

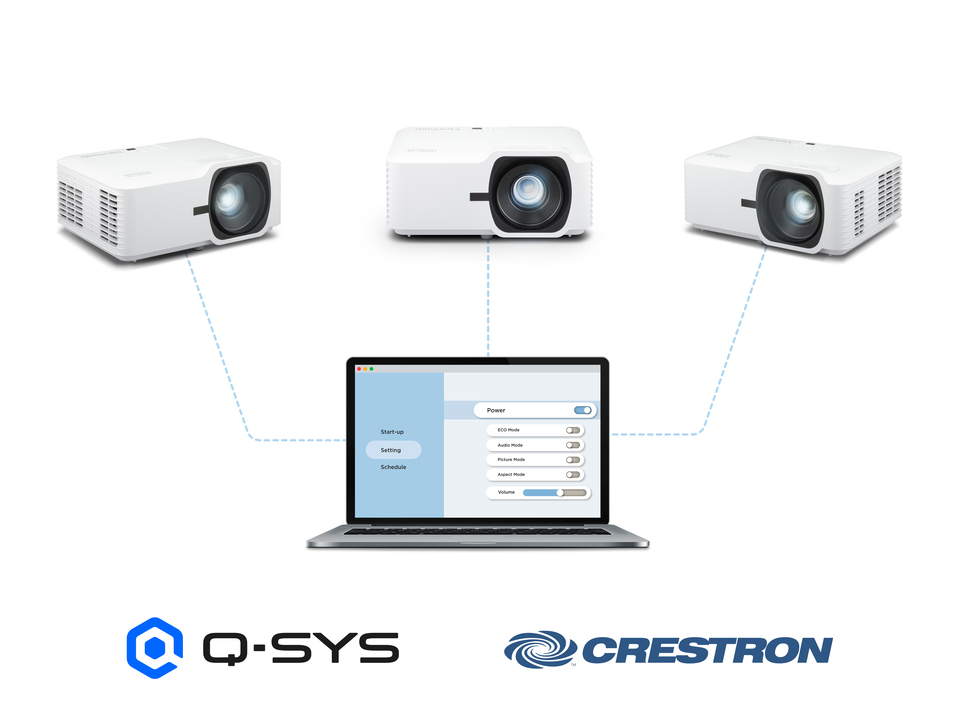

Centralized Control for Management Efficiency

The LSD500HD is certified for Crestron and Q-SYS, and compatible with AMX, PJ Link, ATEN, and Extron systems, allowing for centralized device management for better operational efficiency.
Comprehensive LAN Control
Centralized Control for Management Efficiency 1

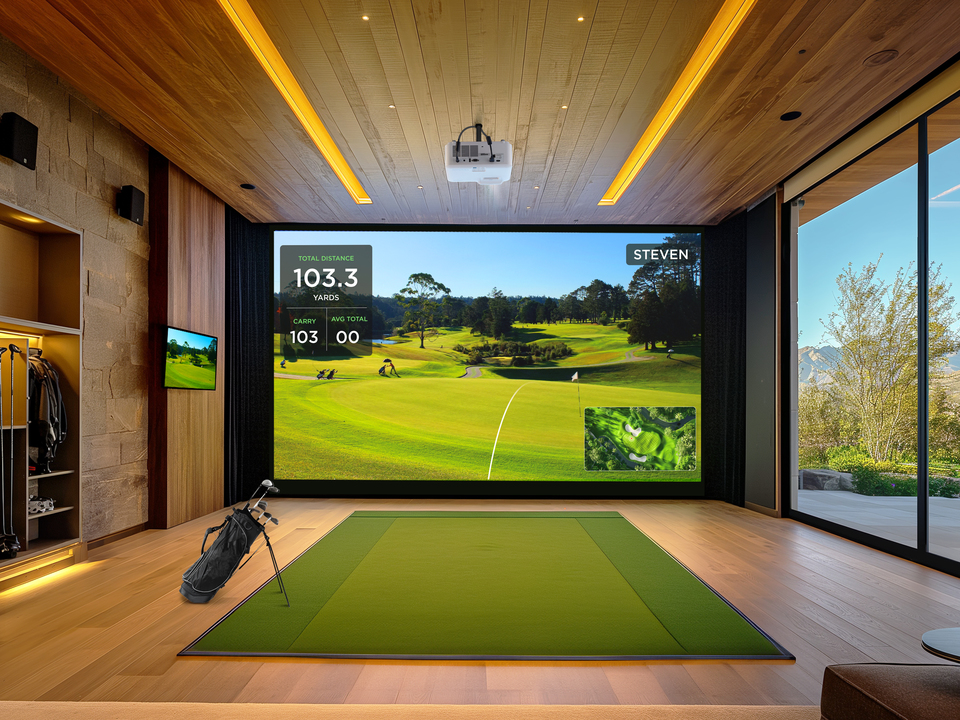

Brilliant Colors for an Authentic Golf Experience

Powered by ViewSonic’s advanced color-tuning technology, the projector features a dedicated Golf Mode that enhances colors, especially greens and blues, more vivid and brings fairways and putting surfaces to life with striking realism, creating a golf experience that feels as close to reality as possible
Golf Color Mode
Brilliant Colors for an Authentic Golf Experience 1

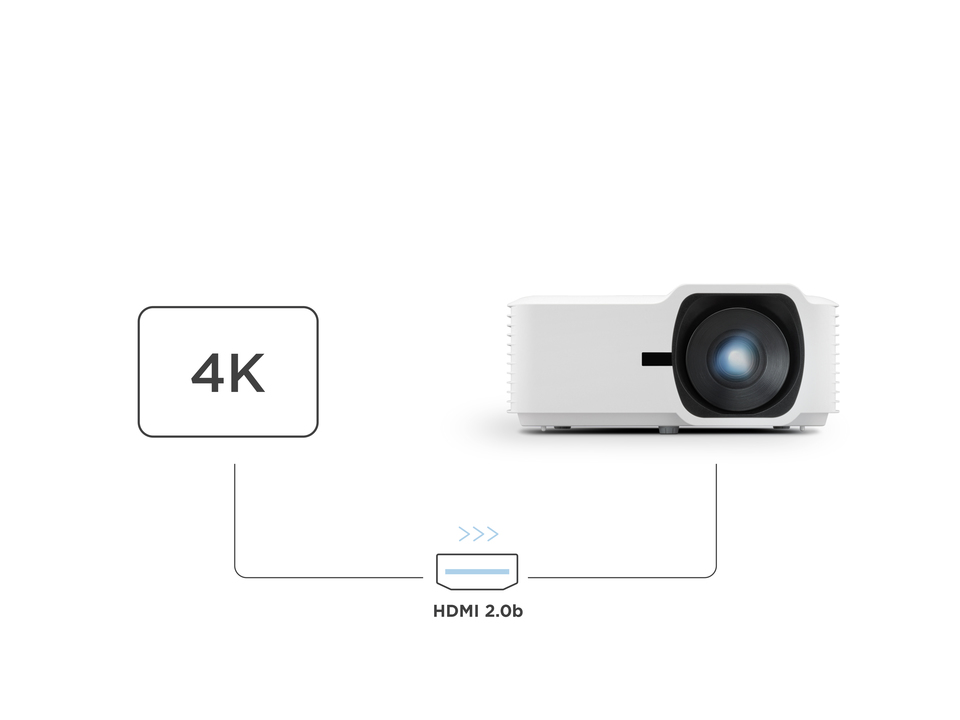

HDR / HLG / 4K UHD supported by HDMI 2.0b

The LSD500HD is equipped with HDMI 2.0b and HDCP 2.2 ports, delivering full 4K resolution with HDR10 and HLG support at a smooth 60Hz frame rate. Whether streaming via a Roku stick or playing from a 4K Blu-ray player, enjoy brilliant whites, rich blacks, and enhanced detail for a truly cinematic visual experience.
HDR / HLG / 4K UHD supported by HDMI 2.0b 1

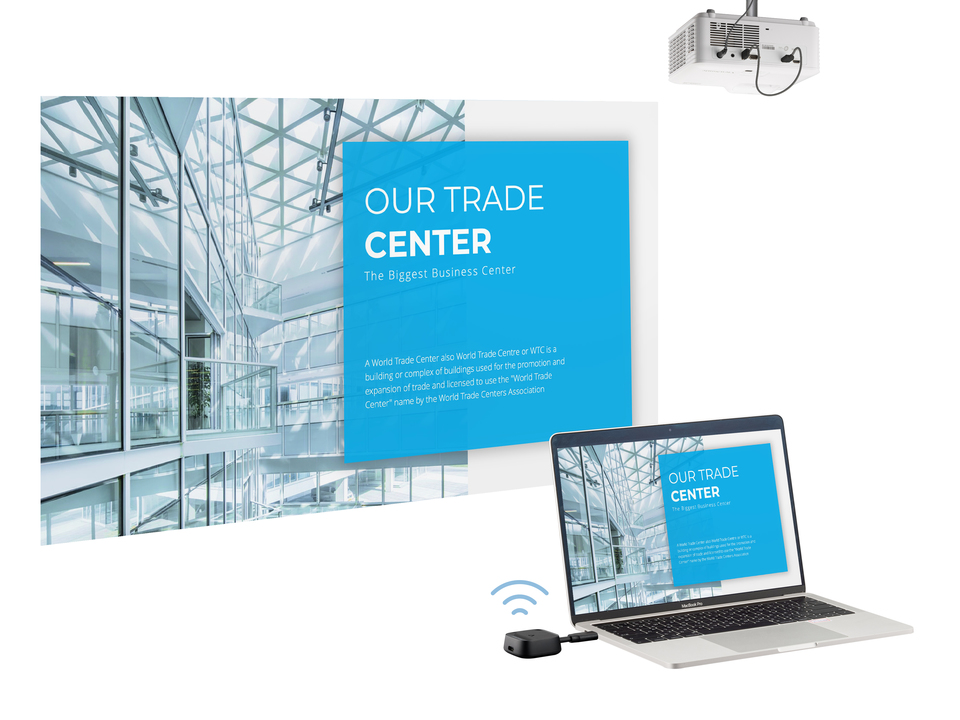

Upgrade Your Projector with Wireless Content Casting

Enhance your projector with the ViewShare Wireless Screen Casting Kit for seamless wireless content sharing. The projector‘s built-in 5V/1.5A USB-A output powers the dongle, enabling simultaneous multimedia streaming and power charging without adapters. *ViewShare sold separately
ViewShare​ | USB-A Power Supply
Upgrade Your Projector with Wireless Content Casting 1

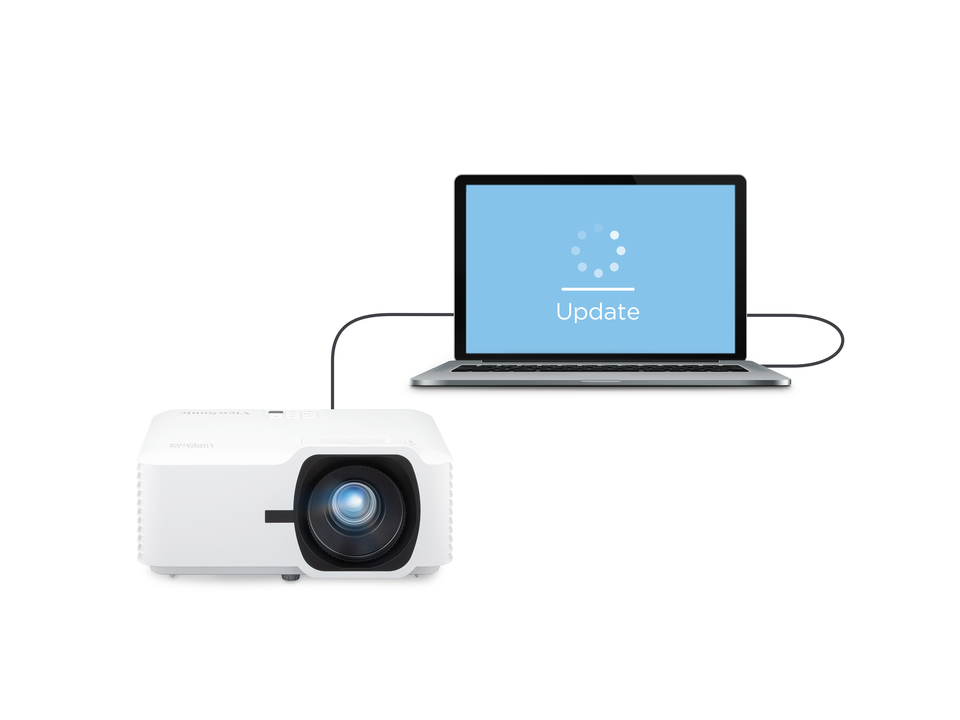

A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily via USB cable connection with your laptop. This efficient solution, developed exclusively by ViewSonic, ensures optimal performance without the hassle.Learn more: https://youtu.be/irlhJLpDHas*The latest projector software update can be found in the download section at the bottom of the page when available.
Projector Software Update
A Simpler Way to Update Projector Software 1

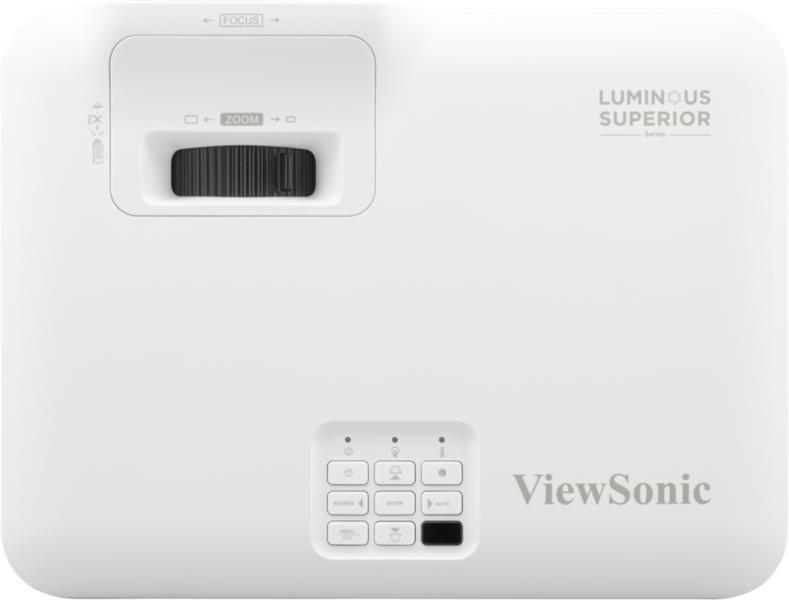

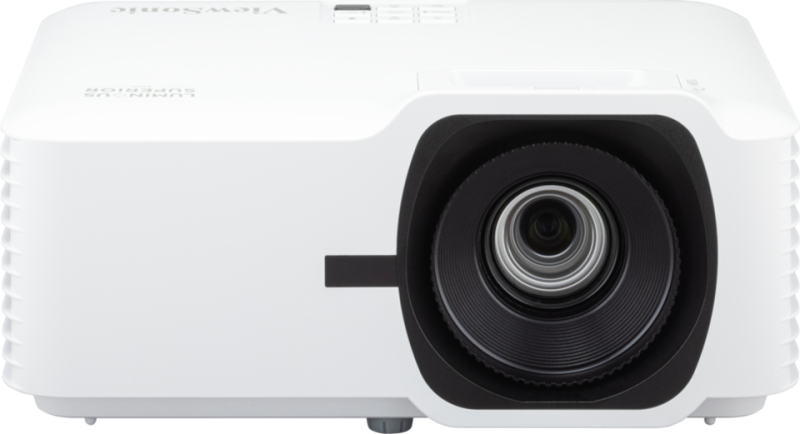

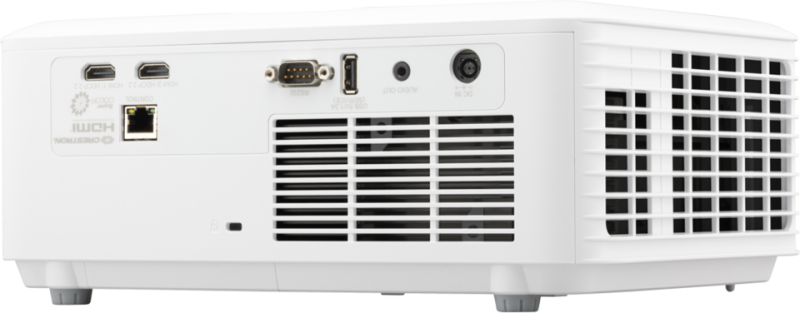

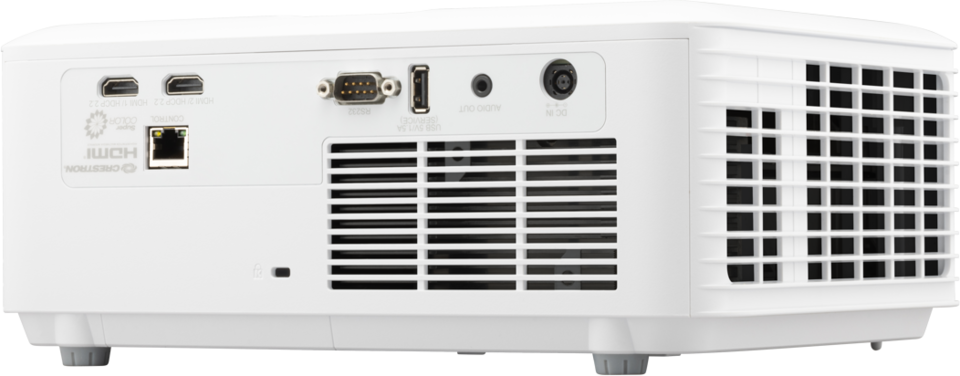

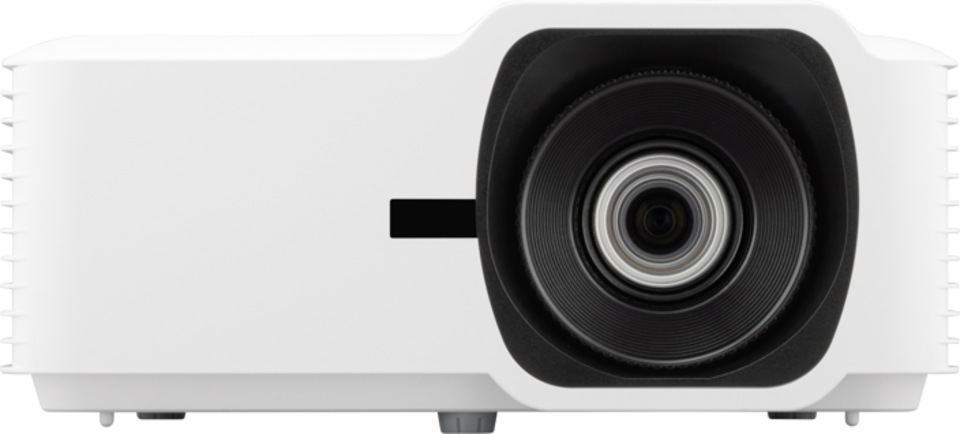

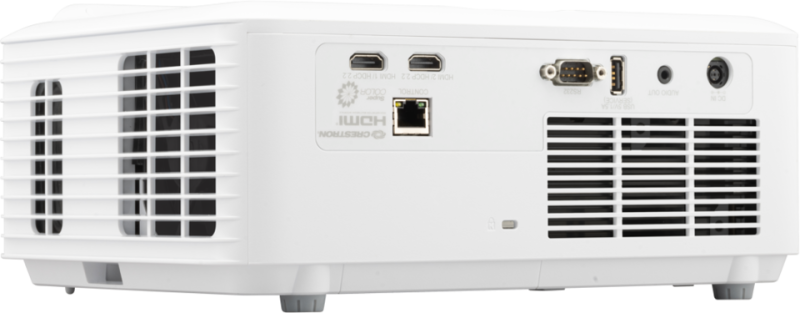

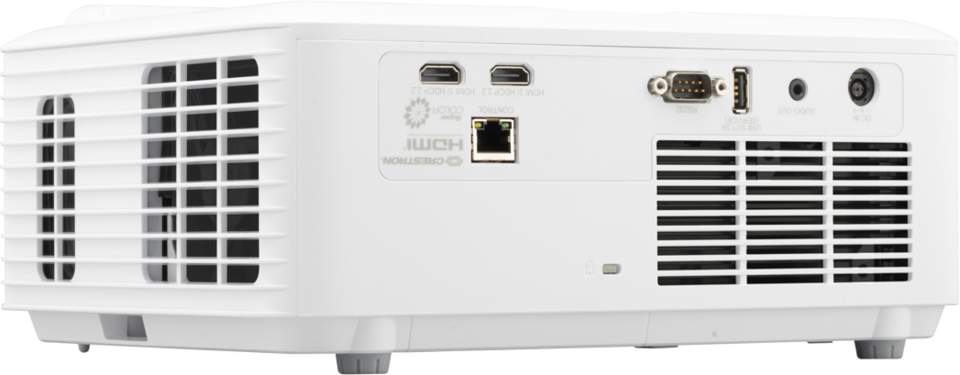

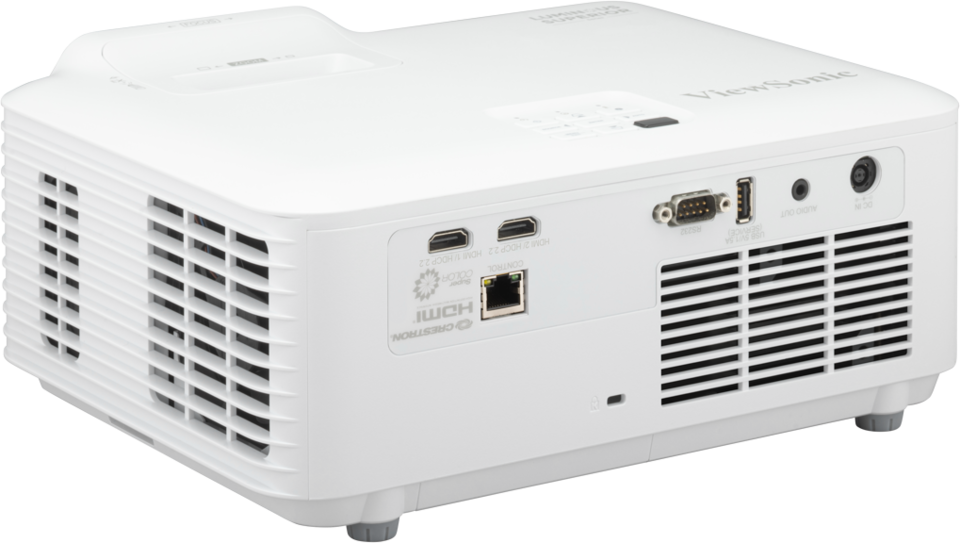

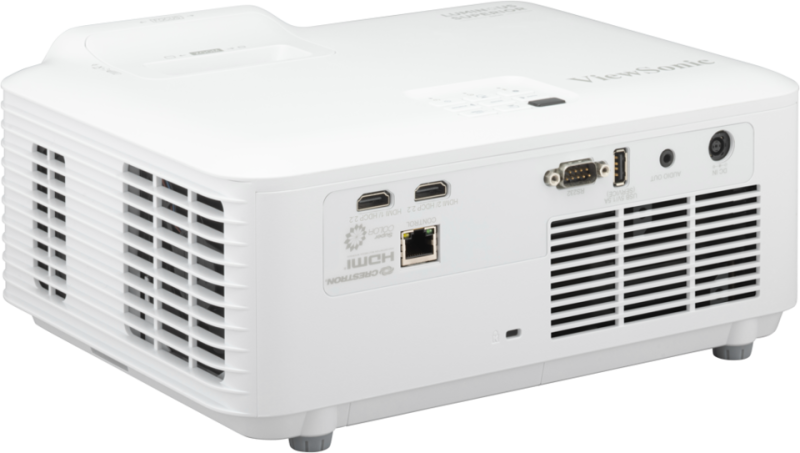

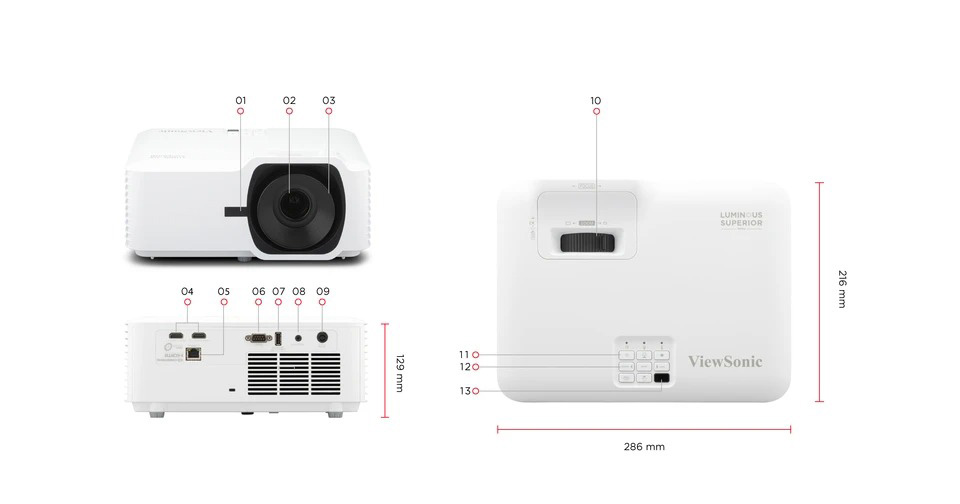

Dimensions & I/O Ports

  1. Front IR
  2. Lens
  3. Focus Ring
  4. HDMI 2.0b/HDCP 2.2
  5. RJ45
  6. RS232
  7. USB-A (5V/1.5A, Service)
  8. Audio Out
  9. DC in
  10. Zoom Ring
  11. Power Button
  12. Keypad
  13. Top IR

SPESIFIKASI


  • Spesifikasi
    Sistem Proyeksi: 0.65" 1080P
    Resolusi Asli: 1920x1080
    Kecerahan: 5500 (ANSI Lumens)
    Brightness (Center Lumens): 6000
    Rasio Kontras: 3000000:1
    Display Color: 1.07 Billion Colors
    Jenis Sumber Cahaya: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lensa: F=2.43-2.78, f=16.90-21.61mm
    Proyeksi Offset: 132%+/-10%
    Throw Ratio: 1.13-1.47
    Zoom Optik: 1.3X
    Zoom Digital: 0.8x-2.0x
    Ukuran gambar: 30"-300"
    Throw Distance: 0.75-9.76m
    (100"@2.50m)
    Keystone: H:+/-30° , V:+/-30°
    Audible Noise (Eco): 32dB
    Audible Noise (Eco): 27dB
    Input Lag: 16.8ms
    Dukungan Resolusi: VGA(640 x 480) to 4K UHD(3840 x 2160)
    Kompatibilitas HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    Frekuensi Horizontal: 15K-135KHz
    Vertical Scan Rate: 24-120Hz
  • Input
    HDMI: 2
    (HDMI 2.0, HDCP 2.2)
  • Output
    Audio-out (3.5mm): 1
    Speaker: 15W
    USB Tipe A (Daya): 1 (5V/1.5A)
