PD2211

Ideal for full-size document viewing and writing in e-document workflow

  • Implemented Antimicrobial technology on pen and housing
  • High Performance and e-Signature precision with 2048 pen pressure
  • Ergonomic design, VESA-compliance, and Kensington lock security
  • Windows® compatible and support e-Signature software
  • 8H glass with anti-scratch, anti-glare, and anti-fingerprint
Pertanyaan Penjualan  Bagikan

GAMBARAN

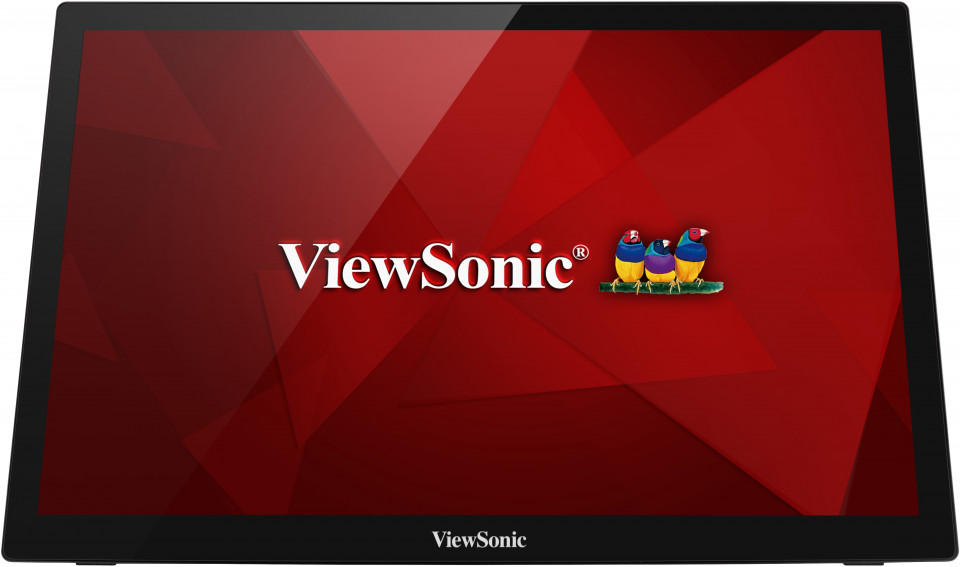

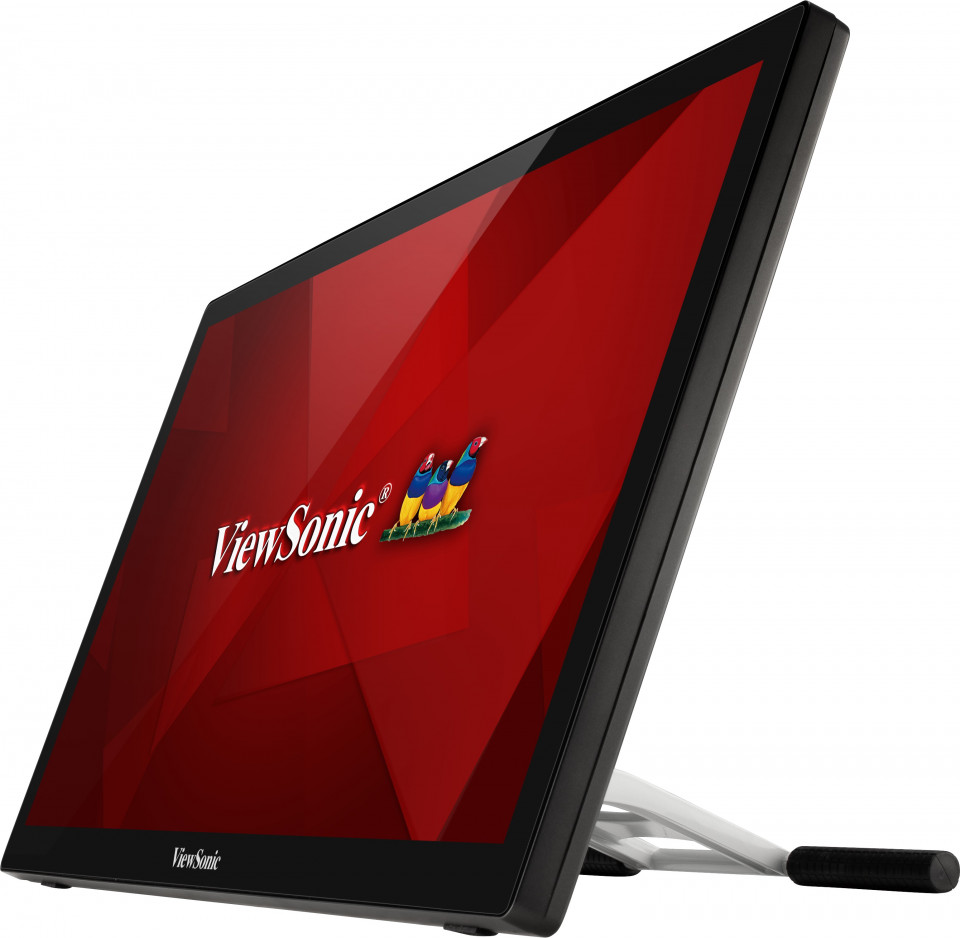

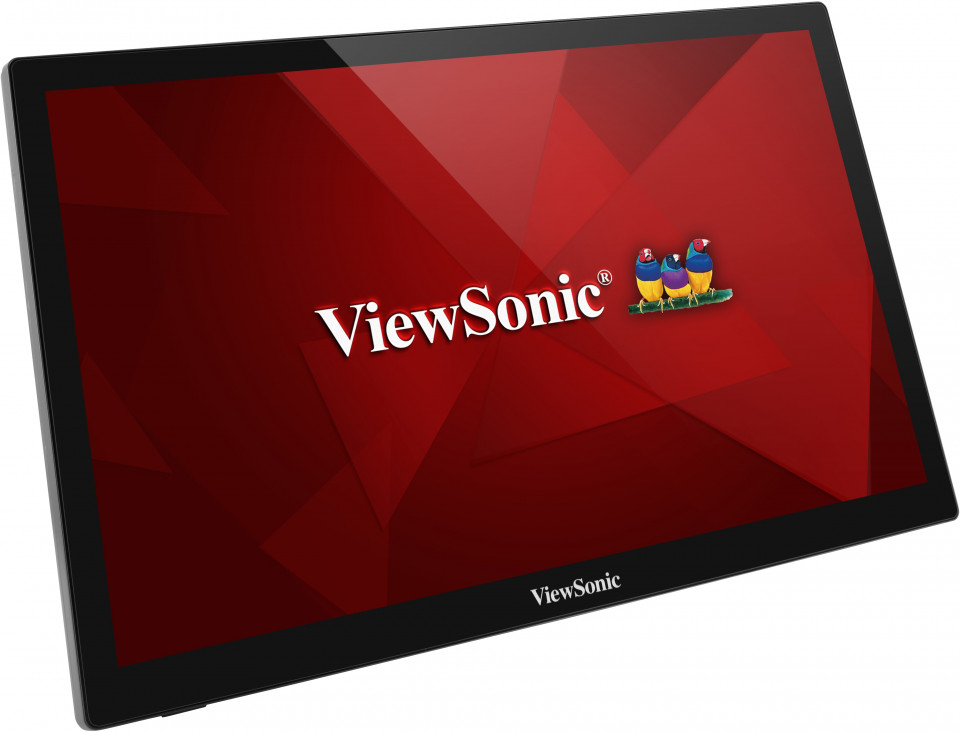

The ViewSonic 21.5 inch pen display supports 1920 x 1080 1080p high resolution and features advanced electromagnetic resonance pen (EMP) technology to deliver an intuitive, accurate and authentic handwriting experience. With leading 2048 pen pressure sensitivity, 200pps tracking speed, and 5080 line per inch density, the PD2211 allows you to accurately and naturally write, sign, or draw directly on the display. Battery-free V Pen and hover capabilityprovides user-friendly and convenient touch operation. With sturdy,ergonomic bookstand design, HDMI and VGA connectivity to PCs or laptops, and Windows® 7,8,and 10. The PD2211 makes a great device to support e-signature applications and digital art drawing solutions.

A verified 99.9% antimicrobial solution

A verified 99.9 % antibacterial solution have been tested by SGS. Antibacterial technology implemented across all aspects of our product line including the pen, housing. *Option by request

A superior and intuitive handwriting experience

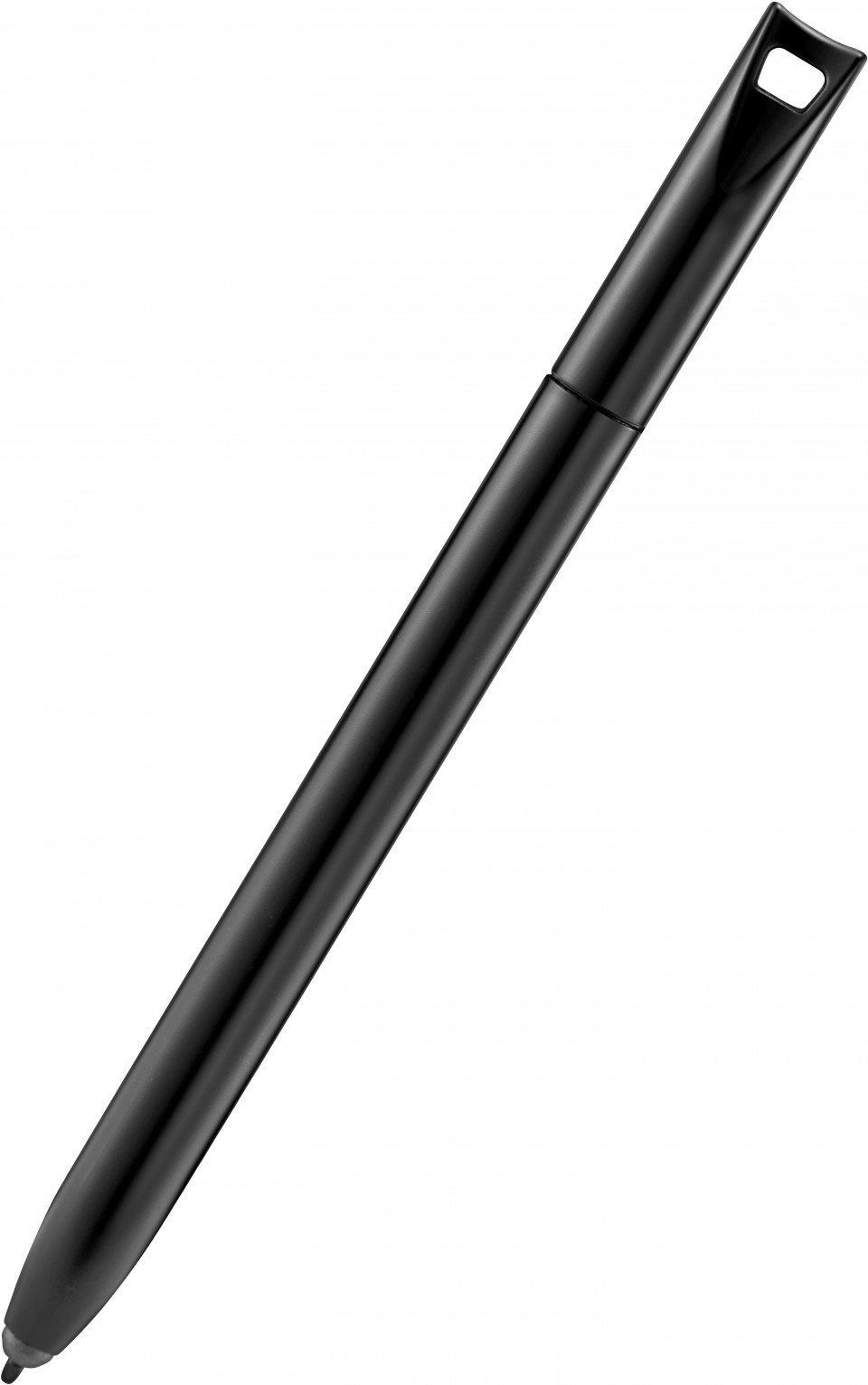

ViewSonic pen display delivers intuitive and accurate handwriting with 2048 levels of pen pressure sensitivity. The 250 pps response rate produces written text and highlighting on the screen without delays.

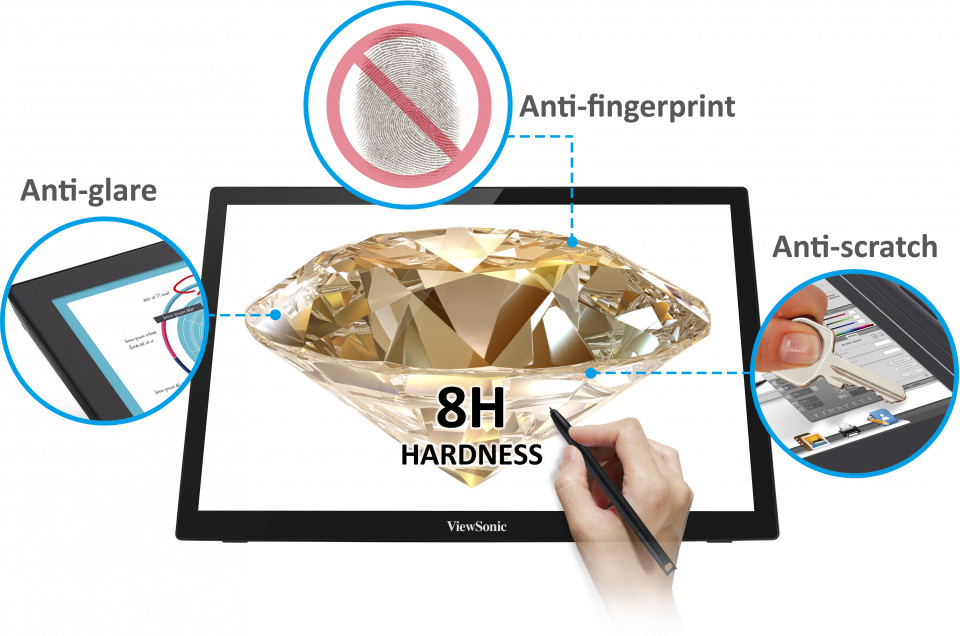

Outstanding durability surface

Constructed with an edge-to-edge 8H protective glass faceplate, the ViewSonic pen display is anti-scratch, anti-glare, and anti-fingerprint coating, delivering a durable and reliable user touch experience for e-signature solution in public usages.

Ergonomic design

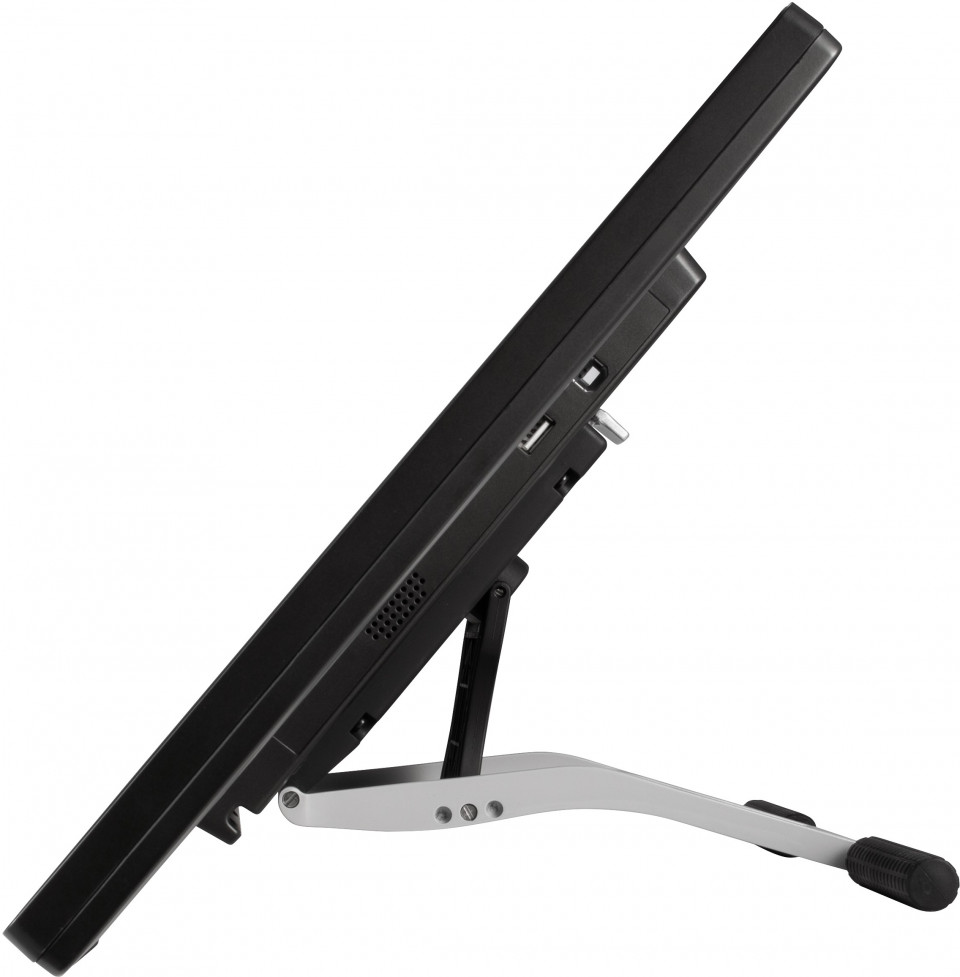

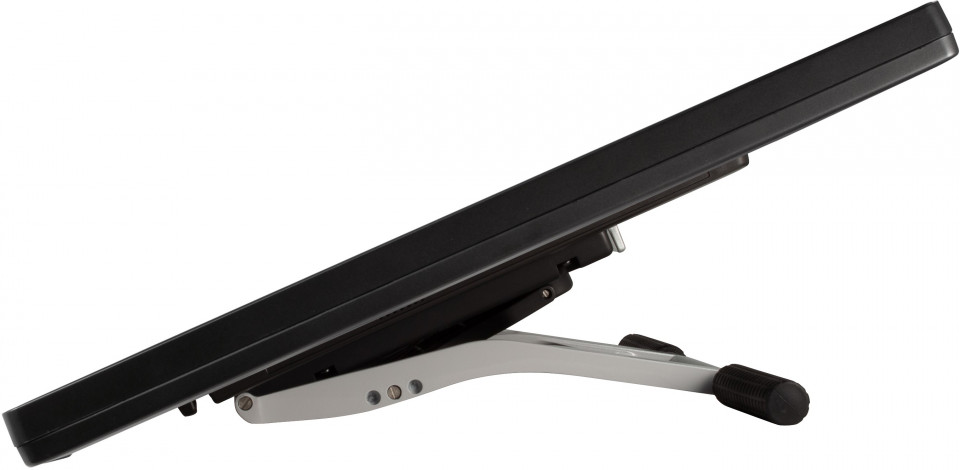

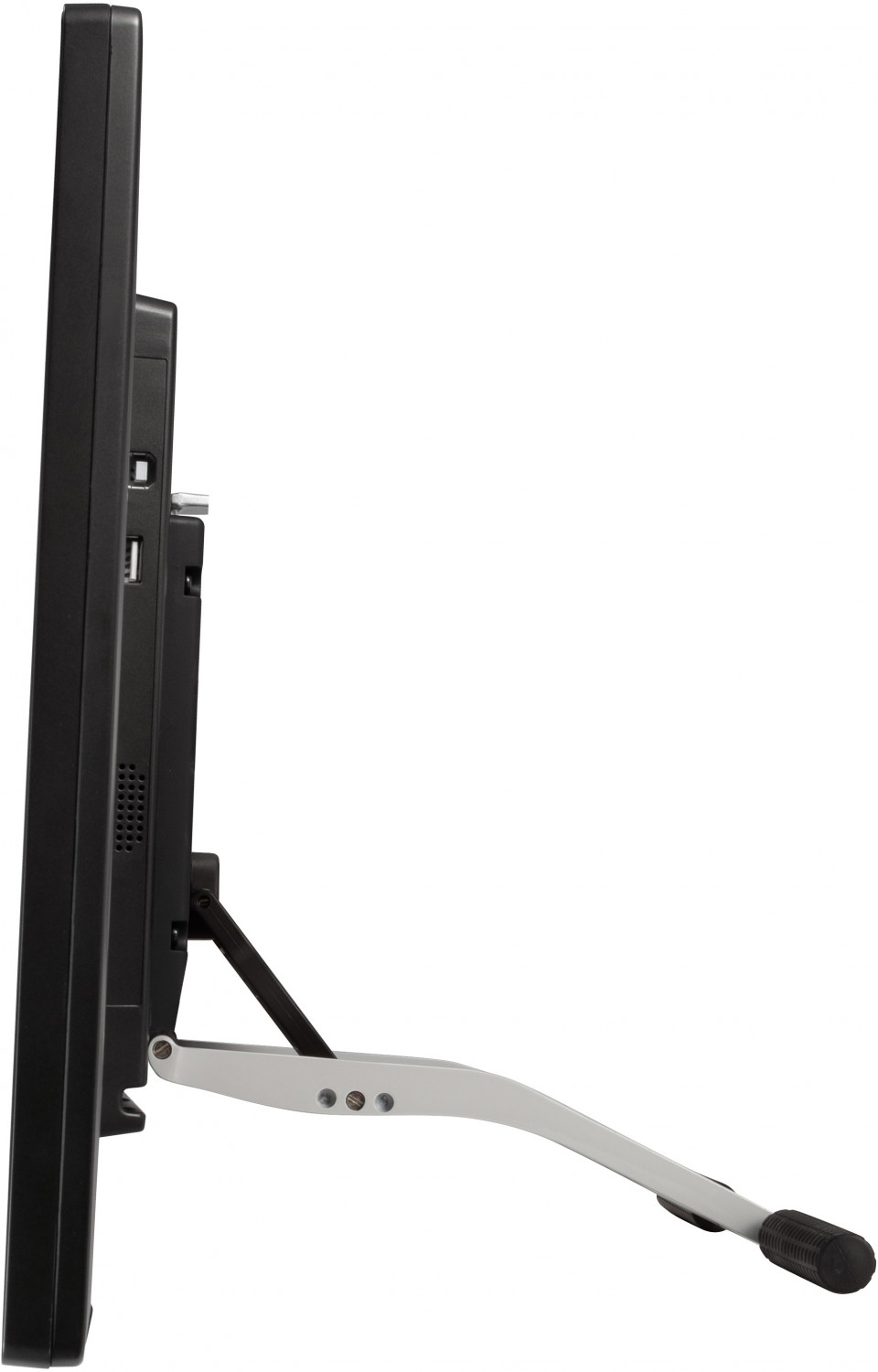

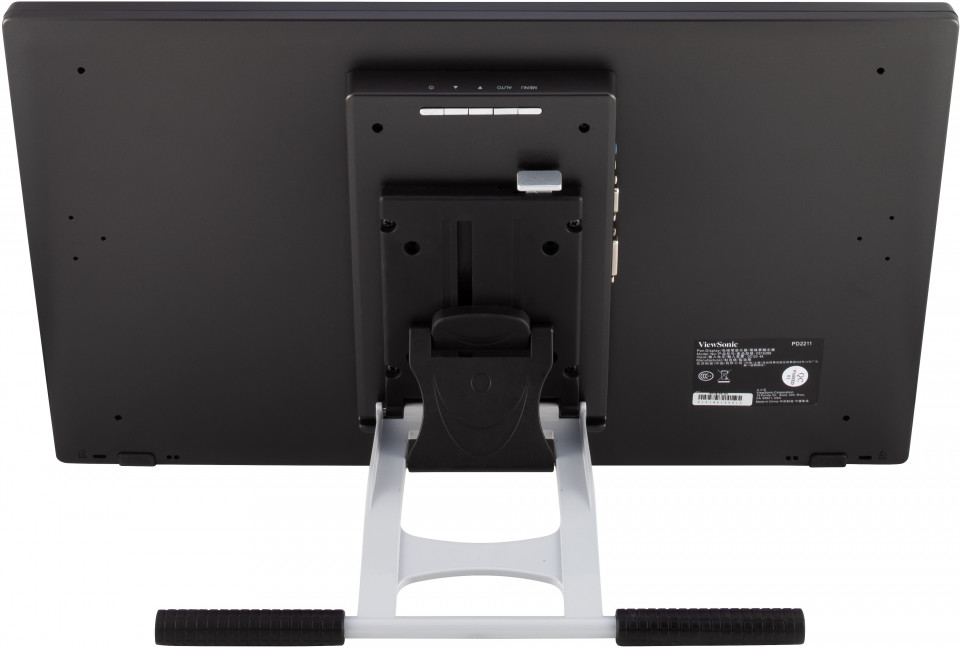

The PD2211 comes with ergonomic 13.5 ° to 84 ° stand tilt adjustments to accommodate placement on low and high counters or other surfaces.

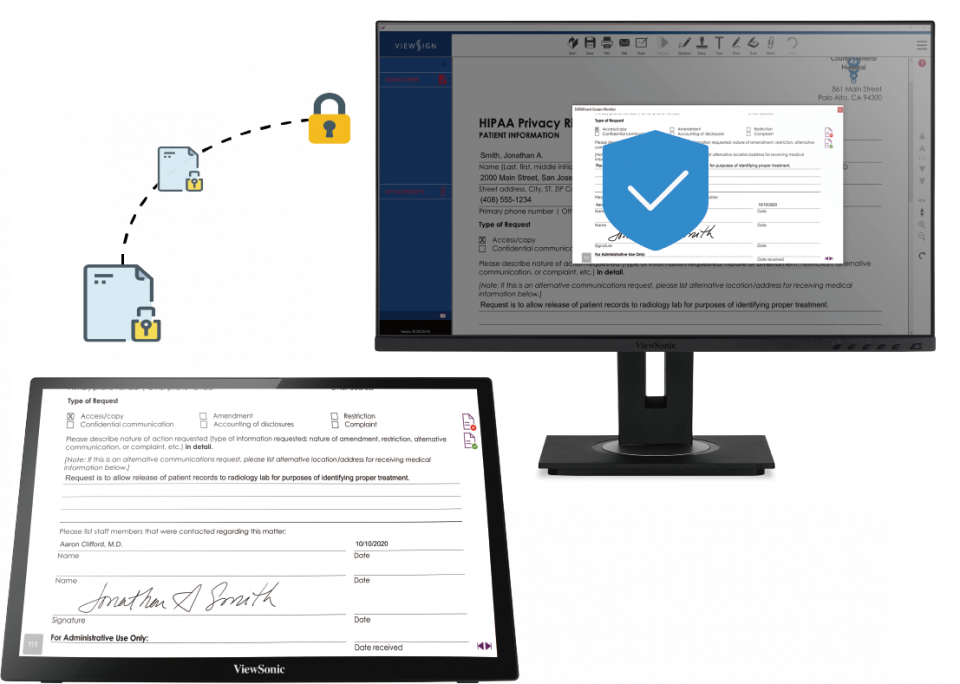

Secured Encryption

Each signature signed on the pen display undergoes a hardware and software based encryption. All data is protected according to RSA2048 & AES256,the highest industry standards. *Option by request

Support for virtualized environment

ViewSonic pen display offers several options for virtualized, remote desktop, Citrix, VMWare, and RDS and thin client / zero client environments.

SPESIFIKASI


  • LCD PANEL
    Display Area : 474.64 x 268.11 mm (21.5" TFT LCD)
    Optimum Resolution: FHD 1920 x 1080 pixels
    Kecerahan: 250 cd/m2
    Rasio Kontras: 4000:1
    Backlight: LED Light-bar
    Sudut Pandang: H:178° / V:178°
    Panel Surface: Anti-glare, Hard coating (8H)

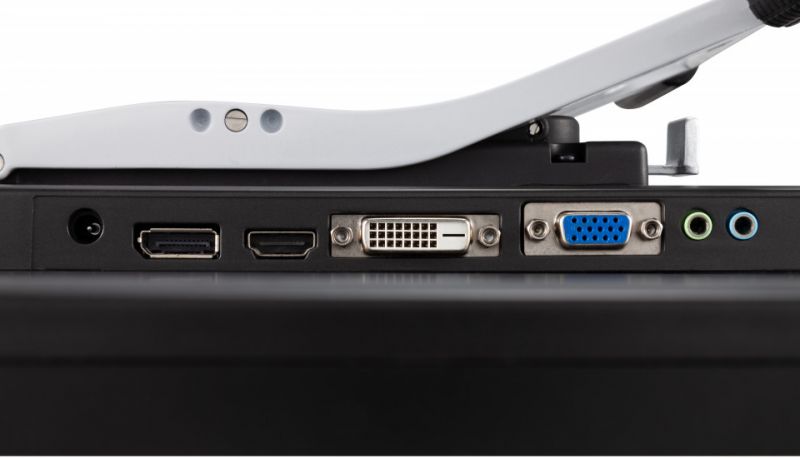

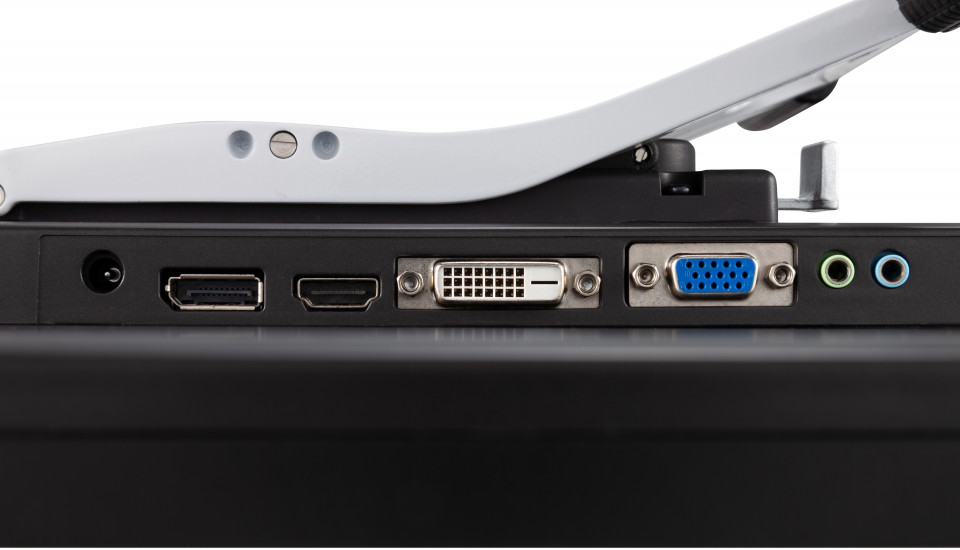

  • CONNECTOR
    HDMI: HDMI x 1
    Video: HDMI, DVI, VGA
    Audio: Earphone x 1, SPK 1W x 1
    USB: USB 2.0 (B) x 1
    Power: Adapter : 12V/4A
  • TOUCH
    Accuracy: +/- 1.0mm(center)
