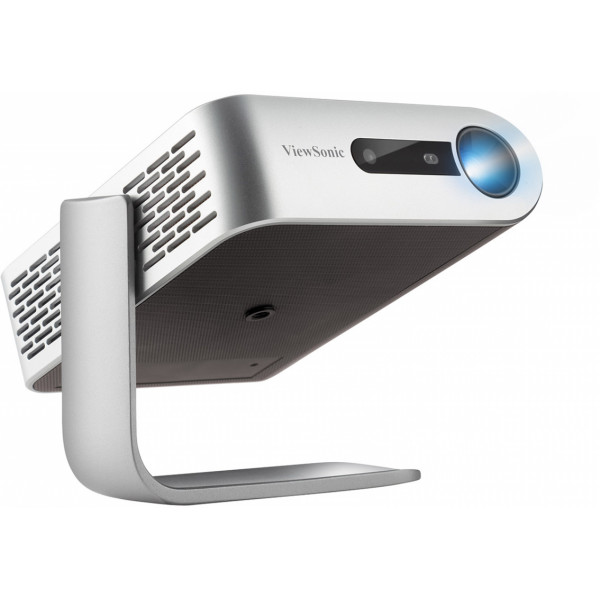

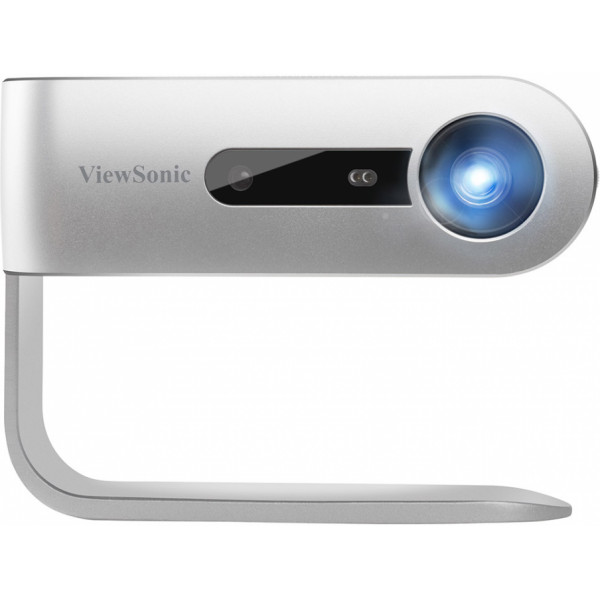

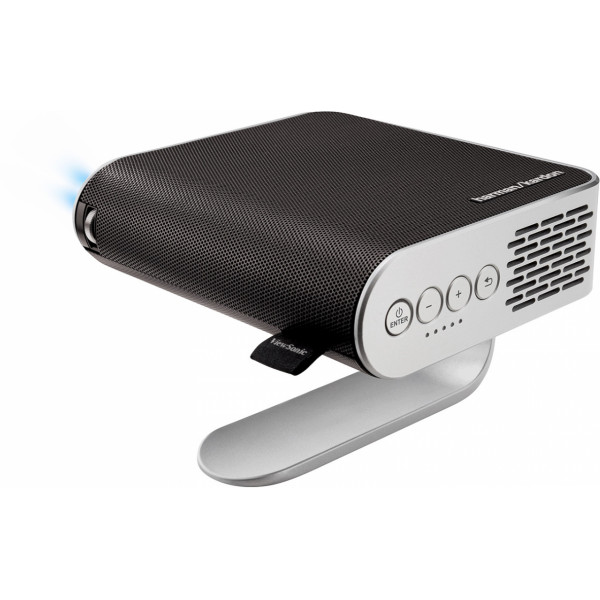

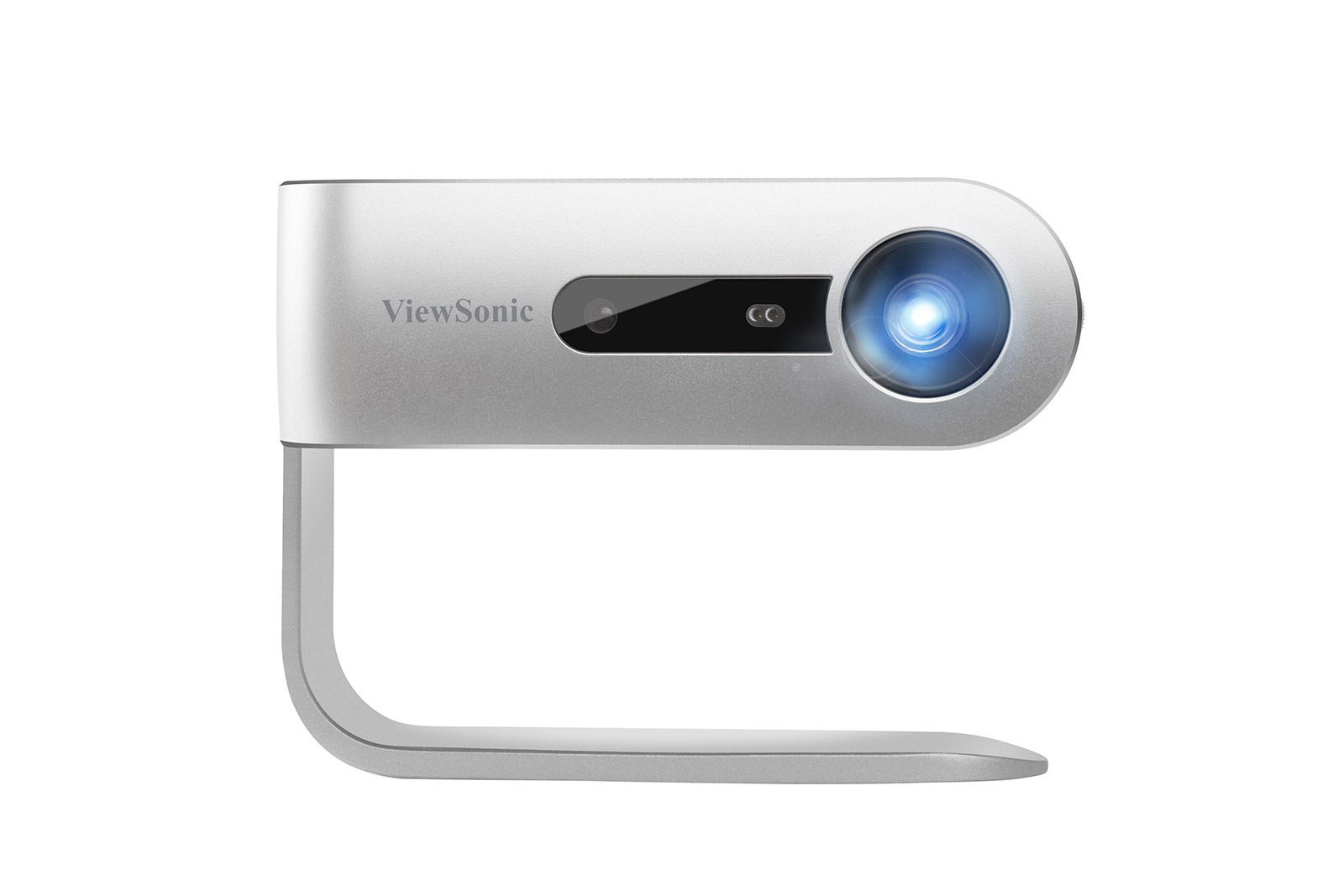

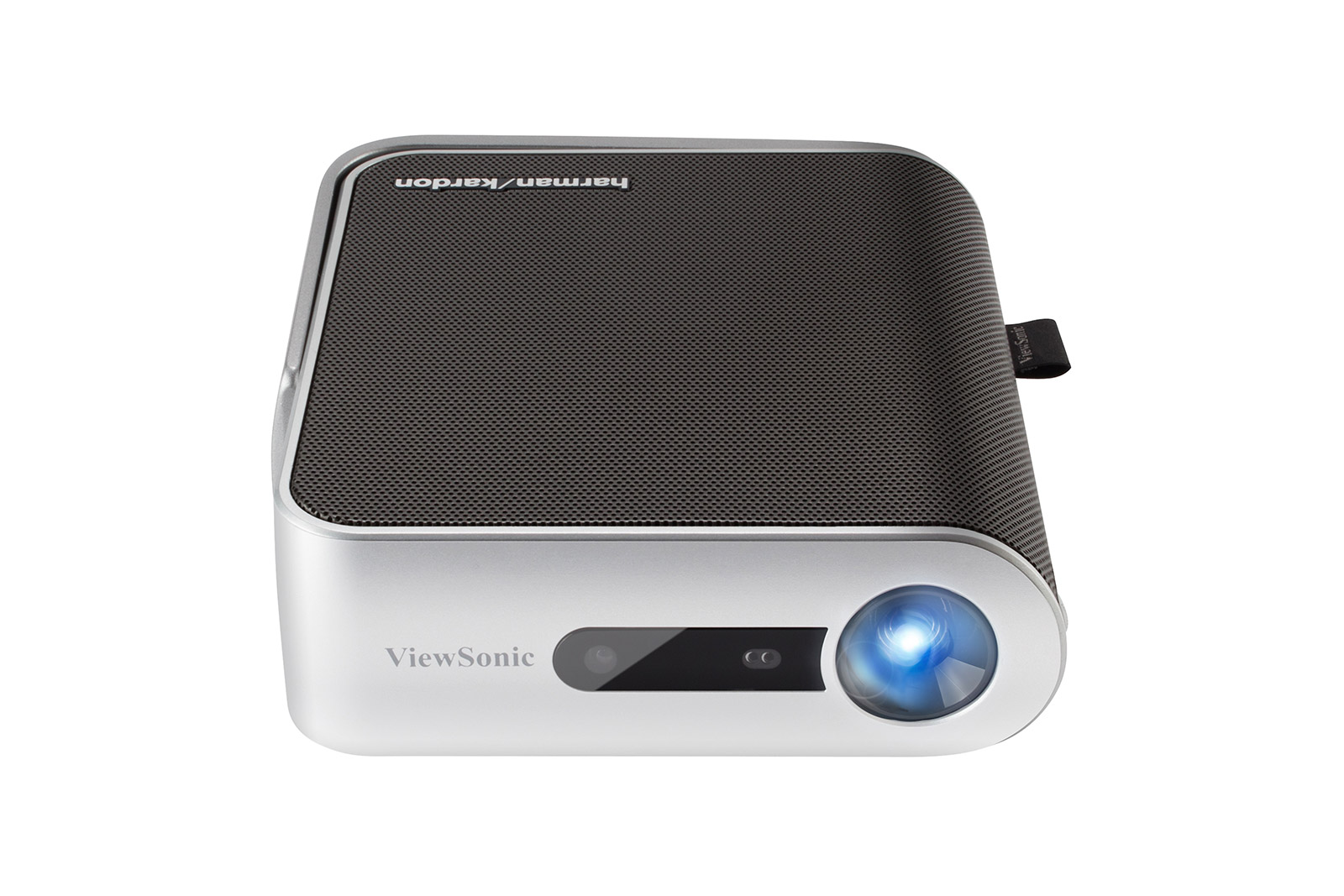

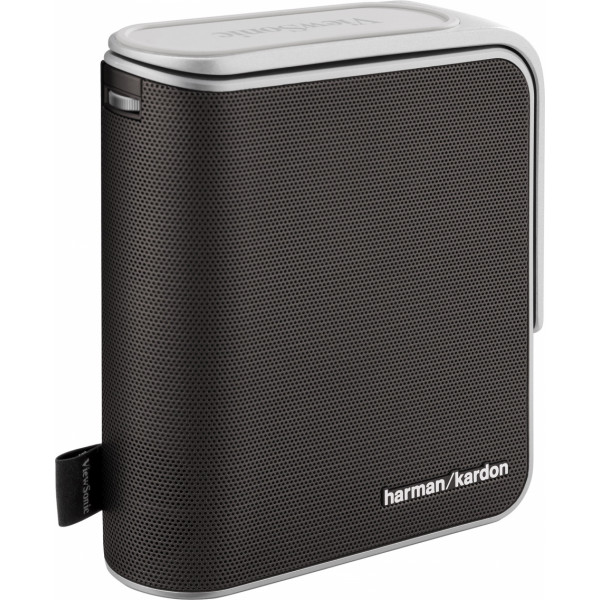

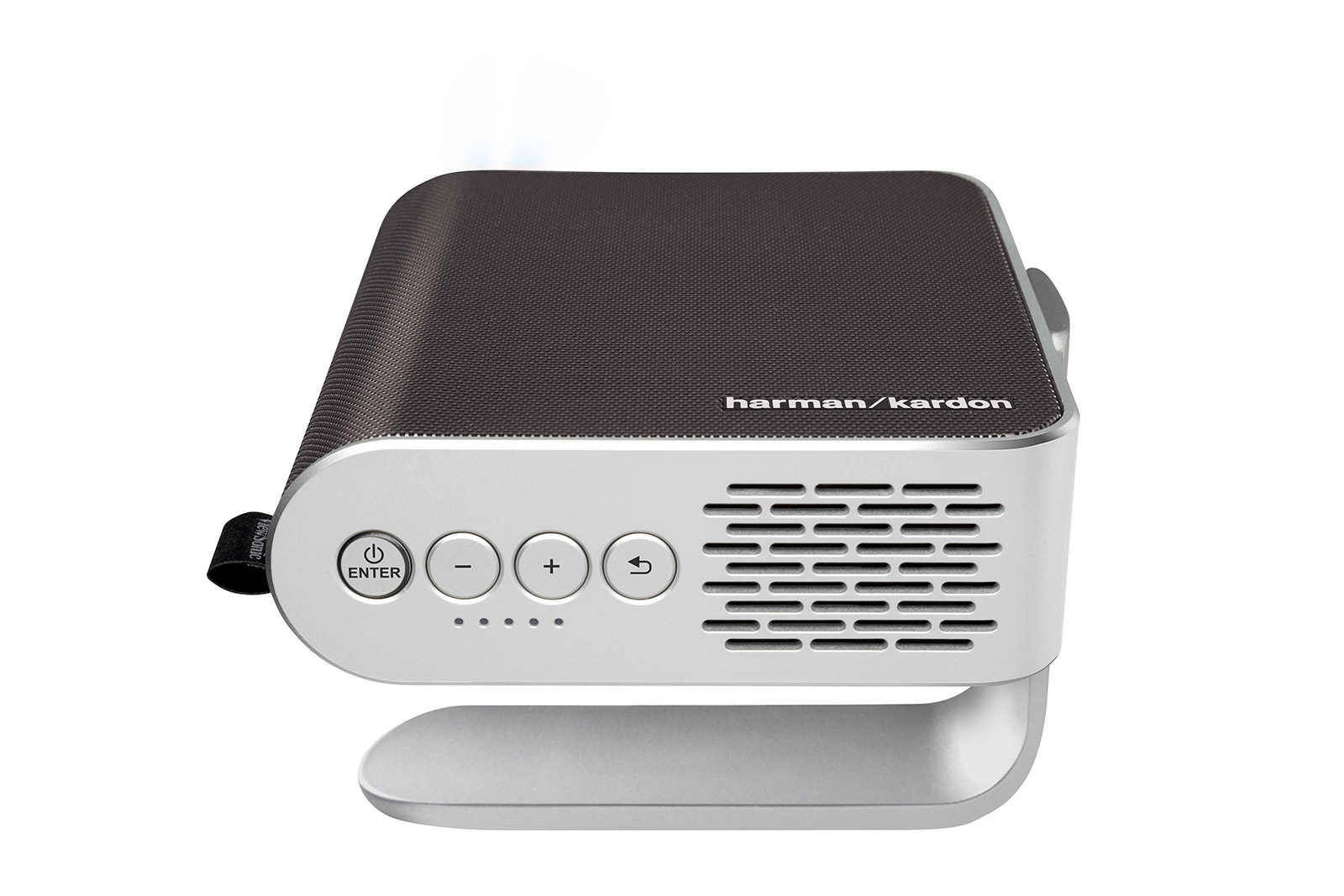

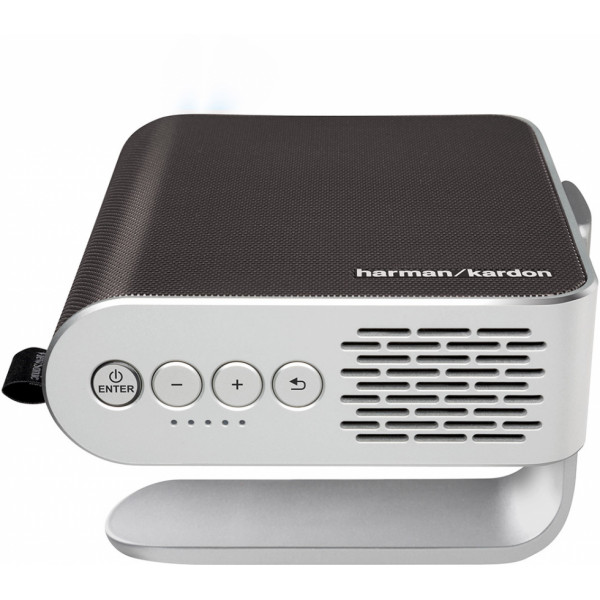

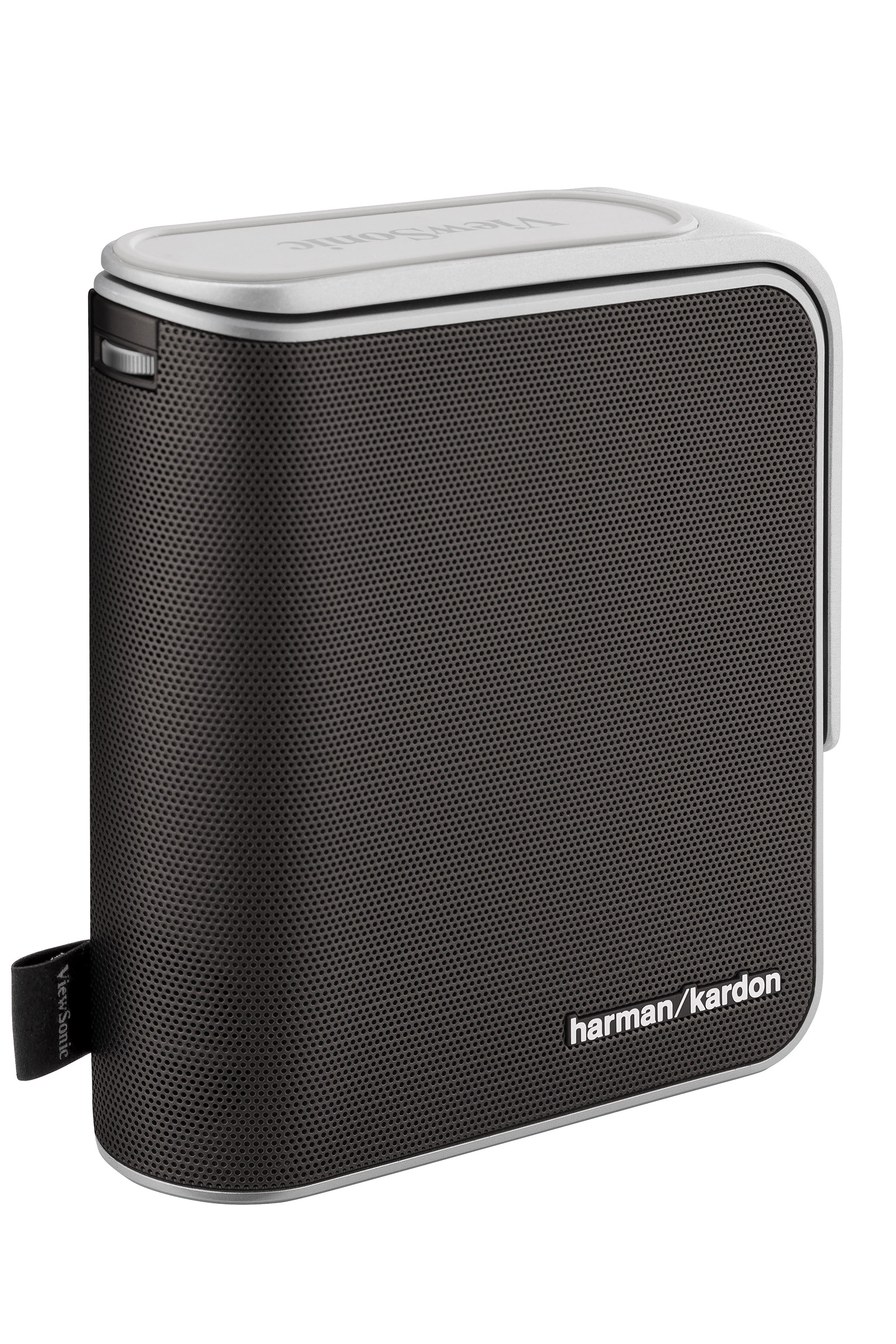

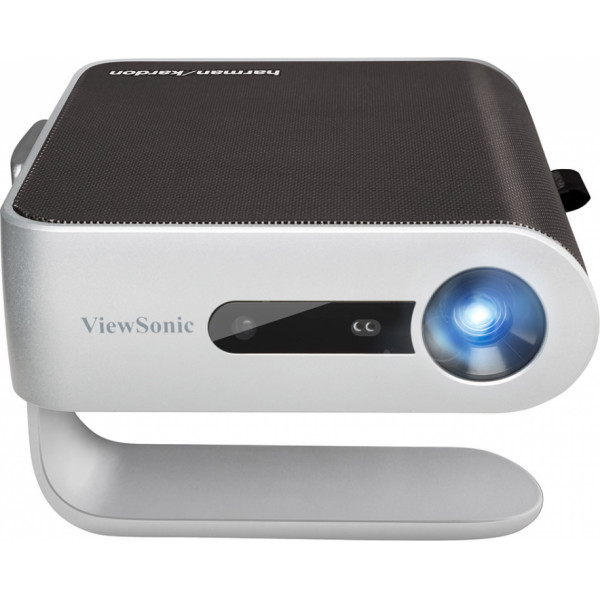

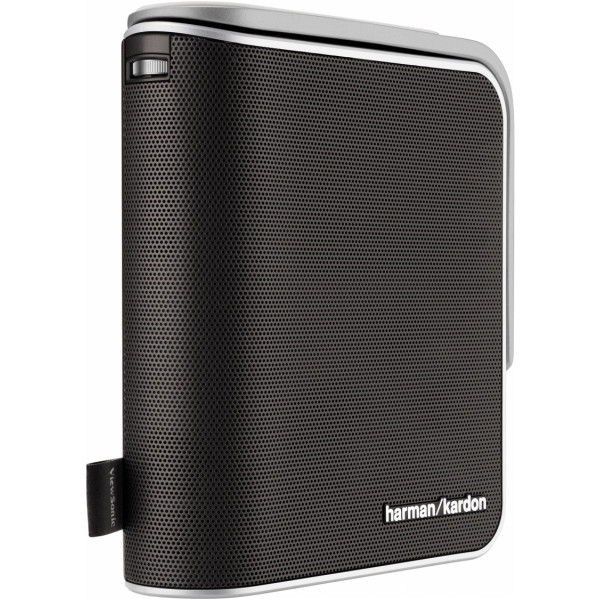

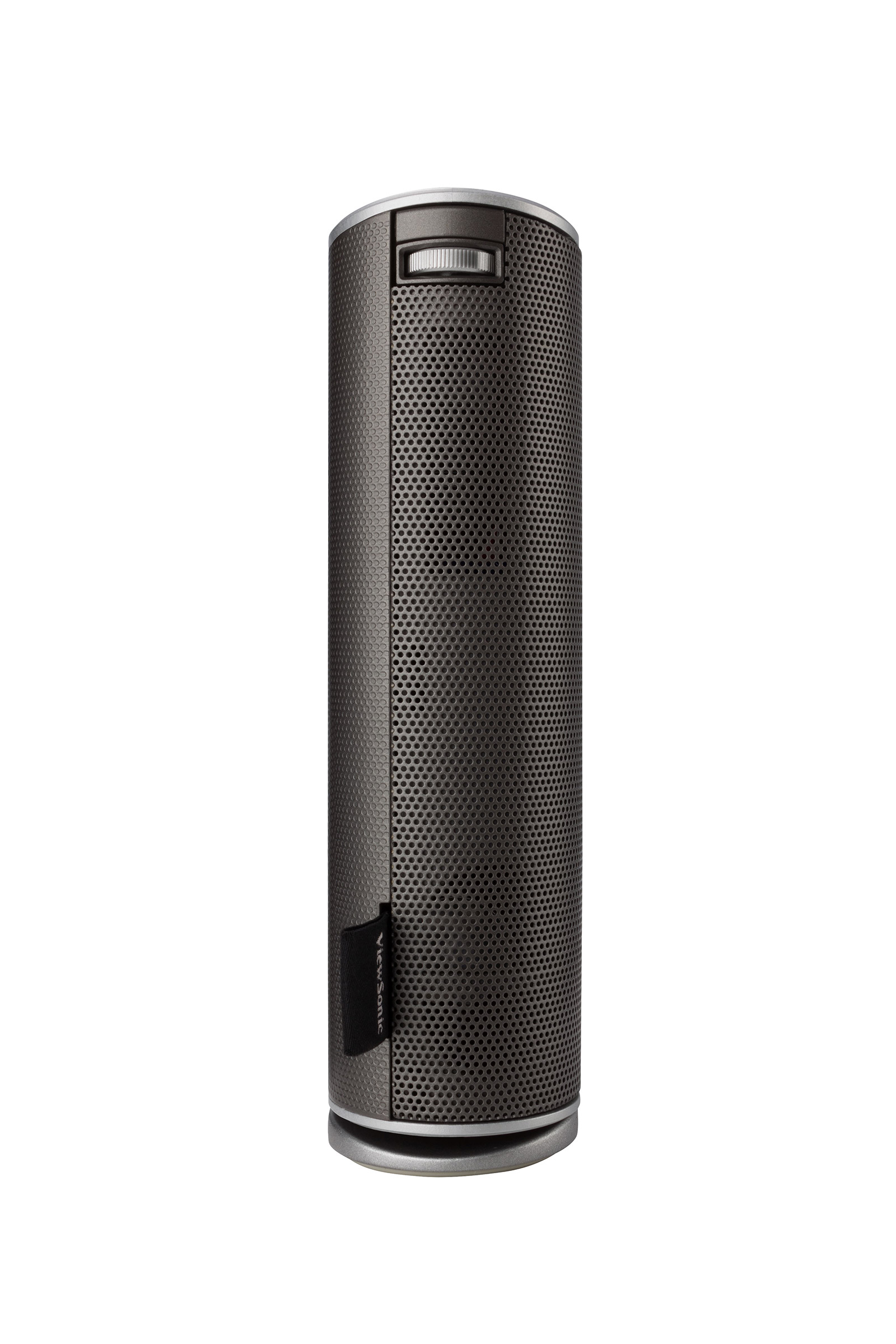

M1+

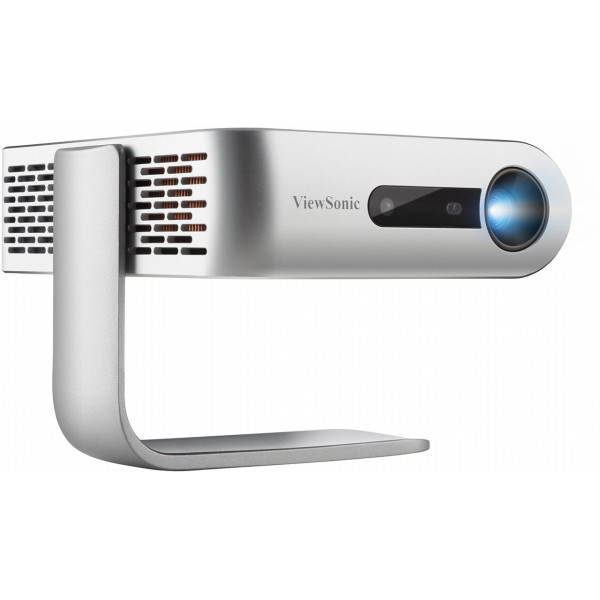

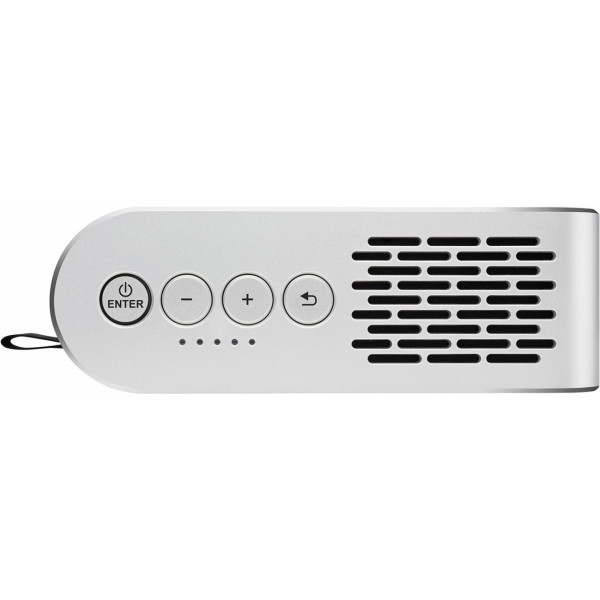

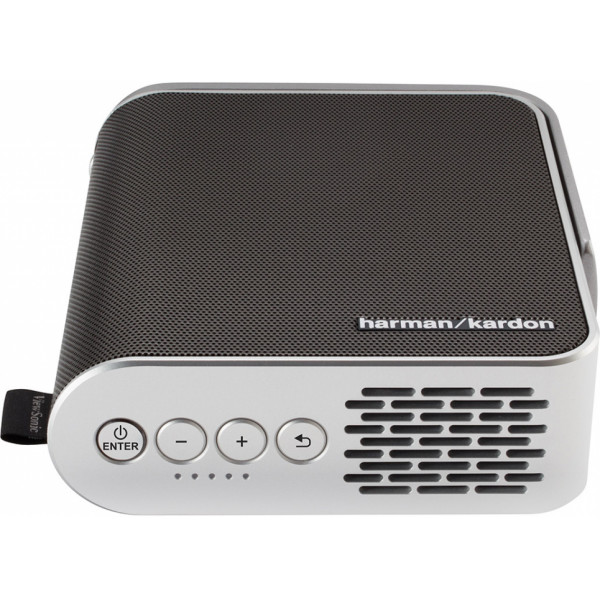

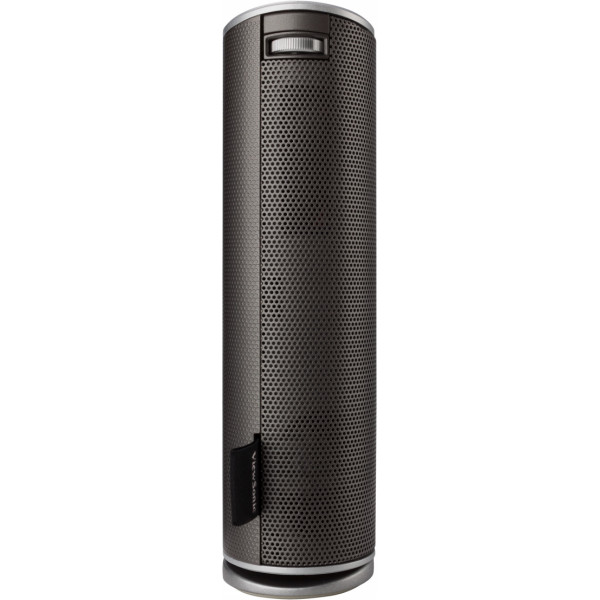

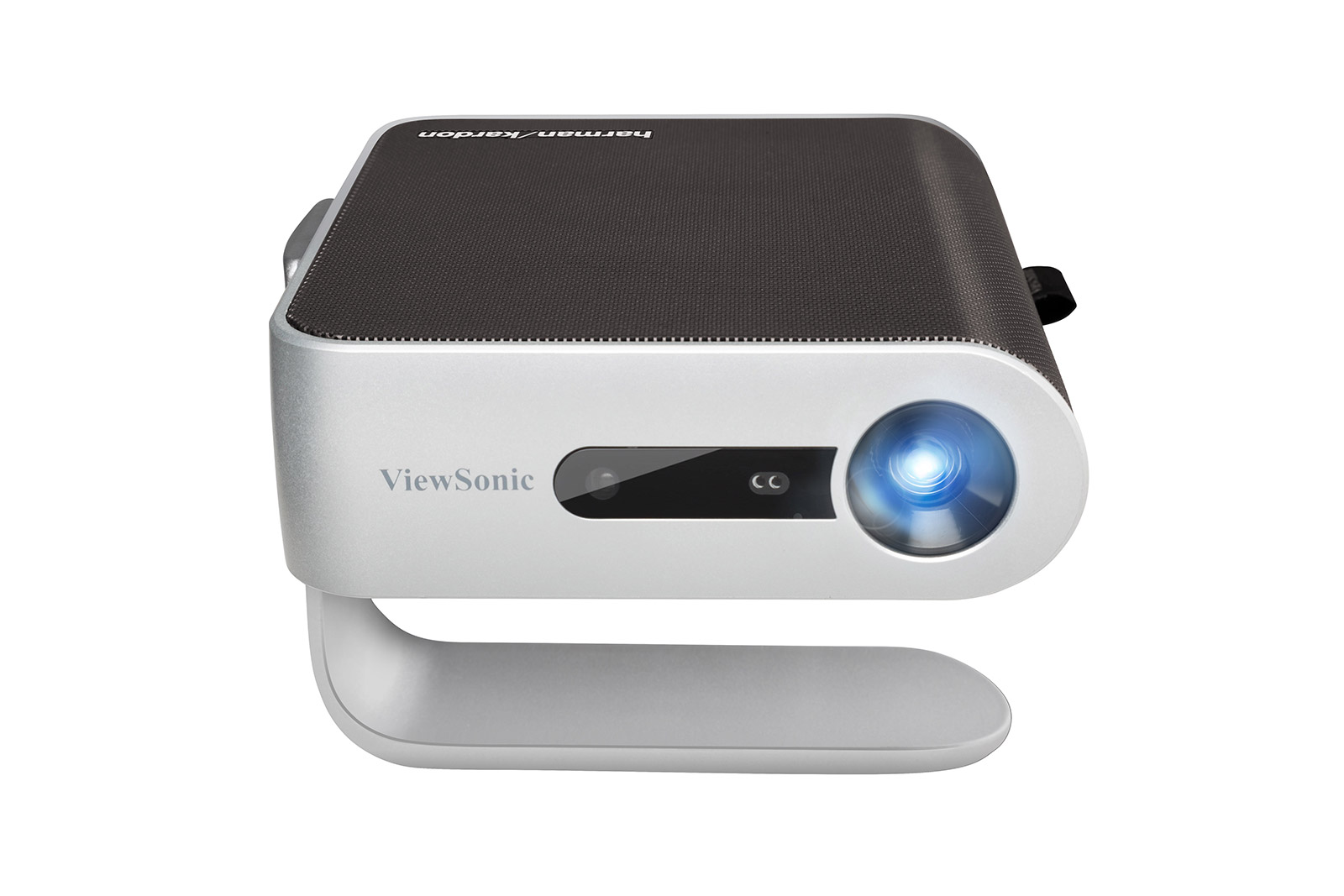

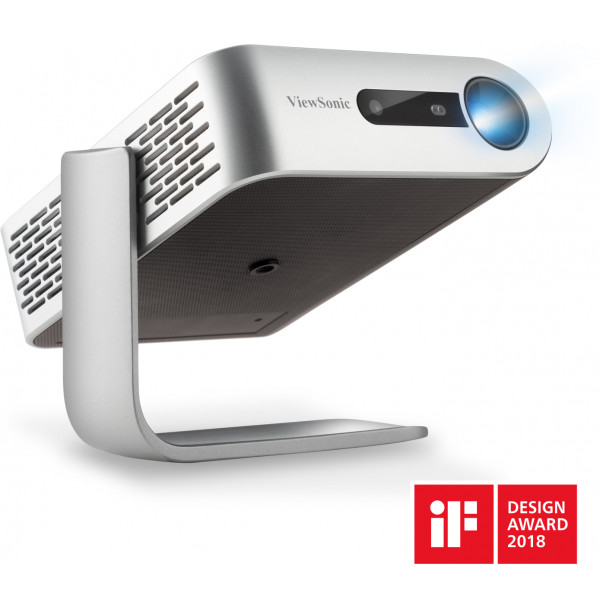

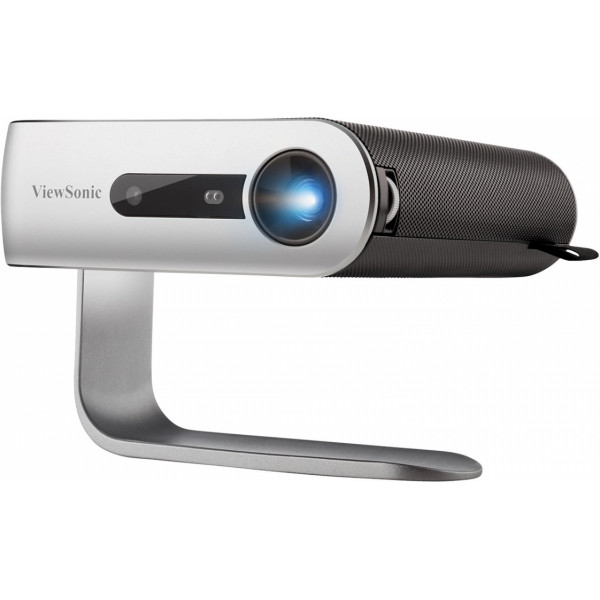

LED Portable Wireless Projector with Harman Kardon® Speakers

  • Wireless screen mirroring and Wi-Fi connection to App store

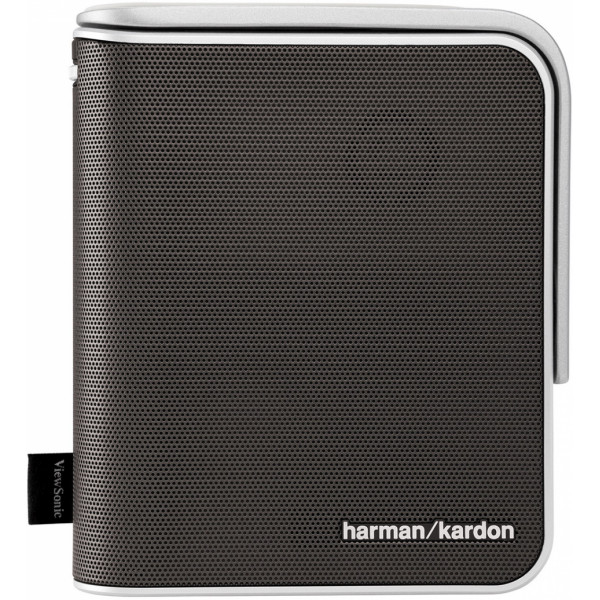

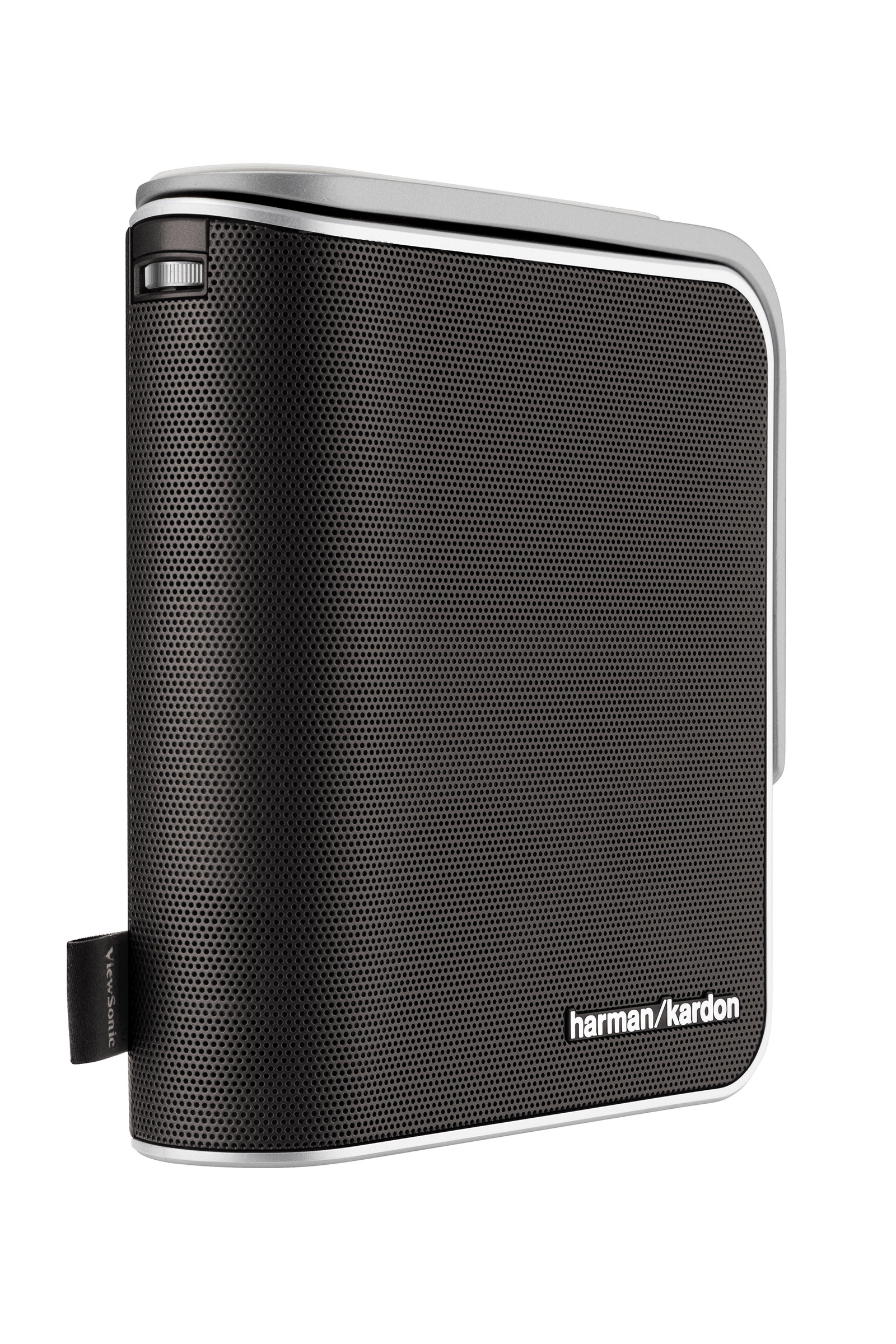

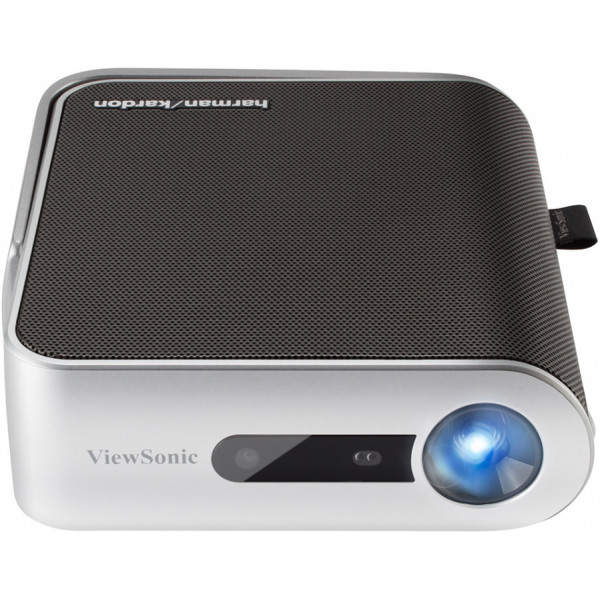

  • Dual integrated Harman Kardon Bluetooth speakers

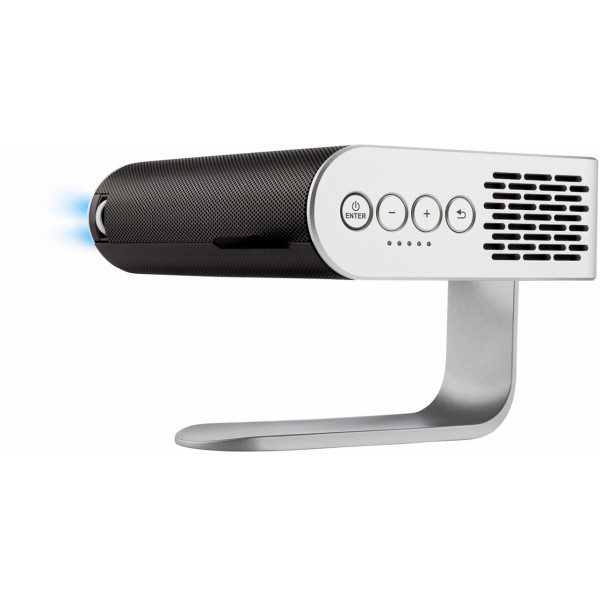

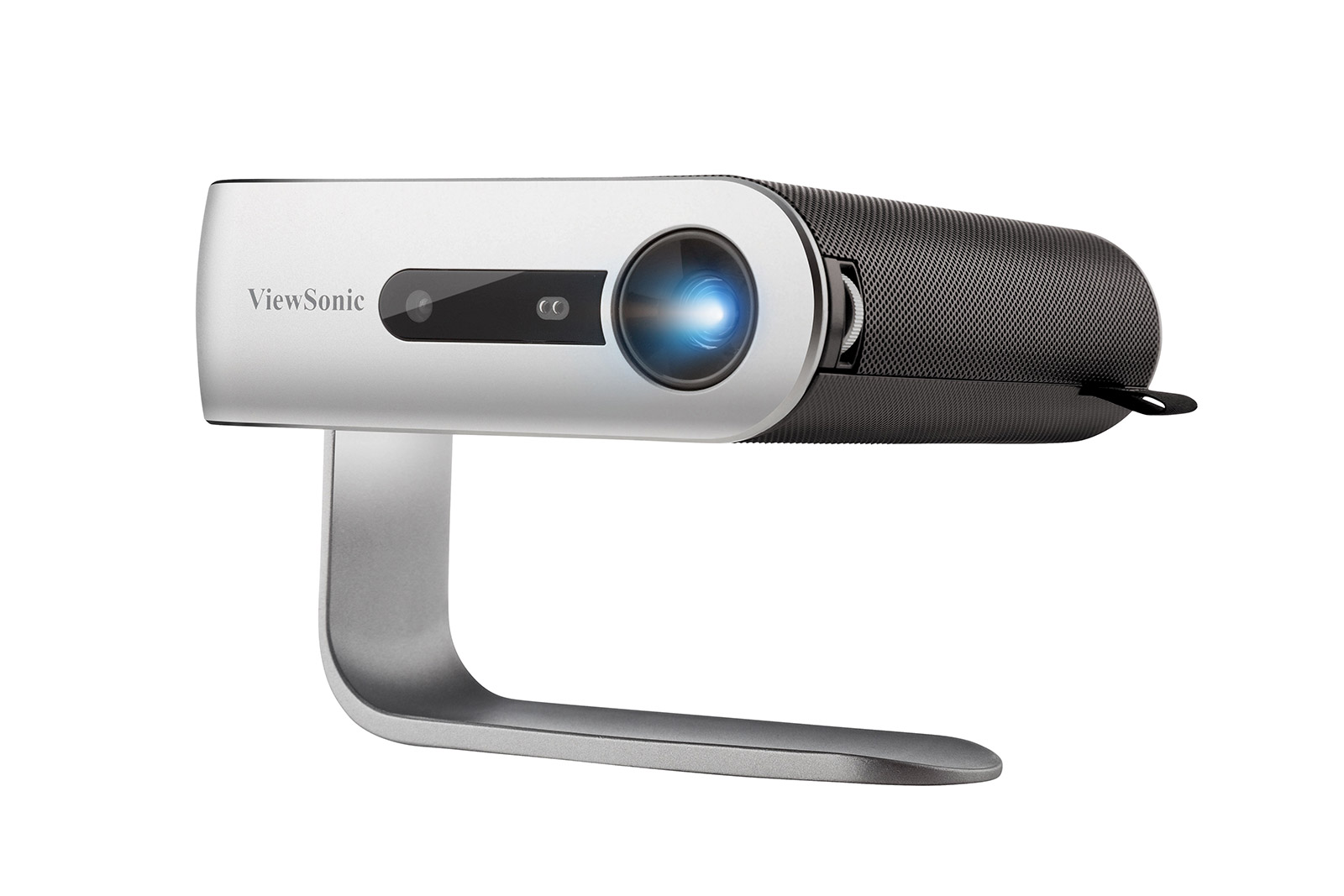

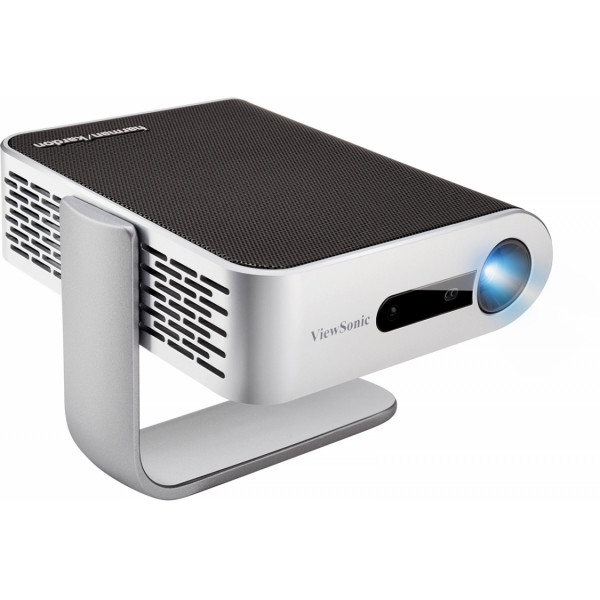

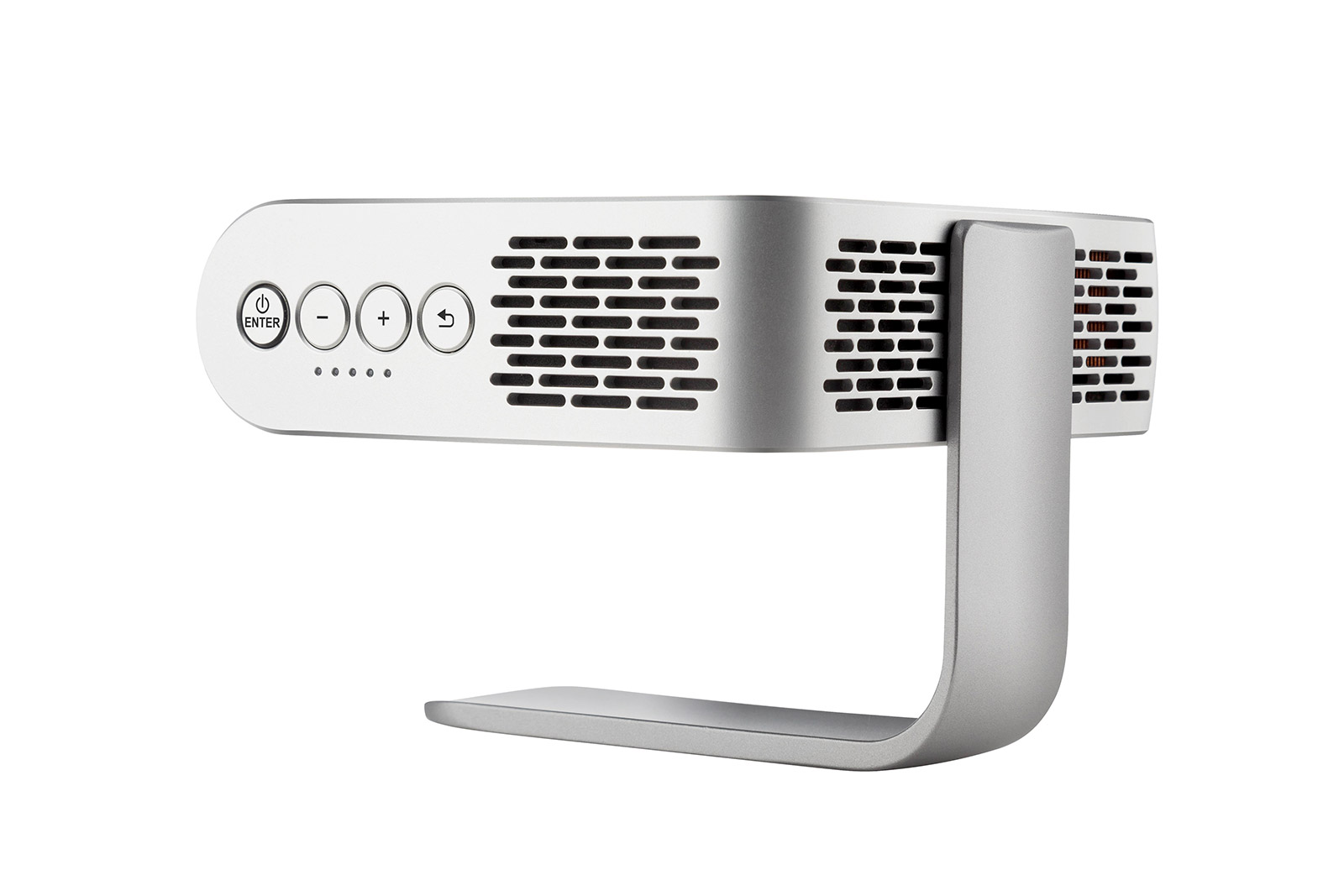

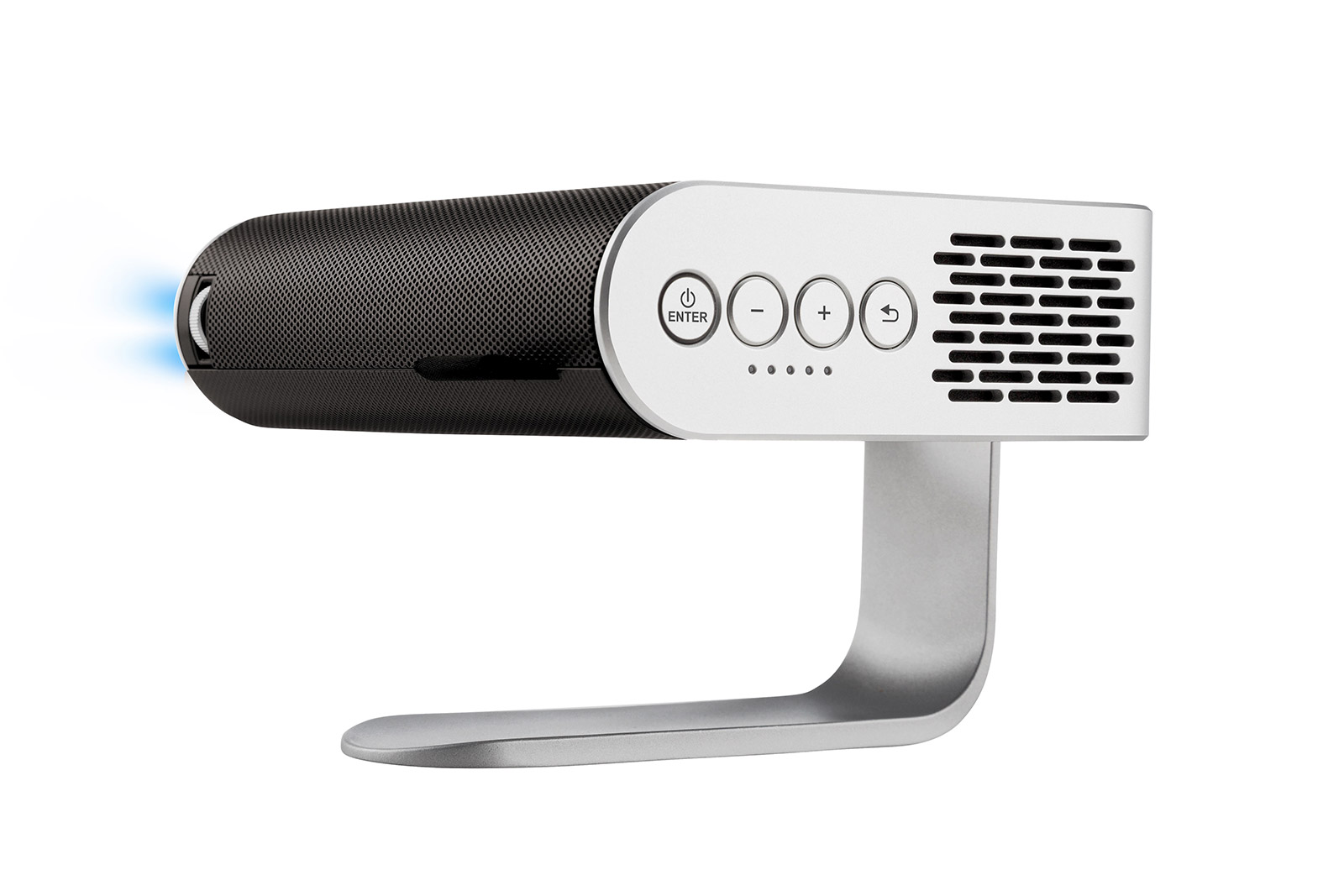

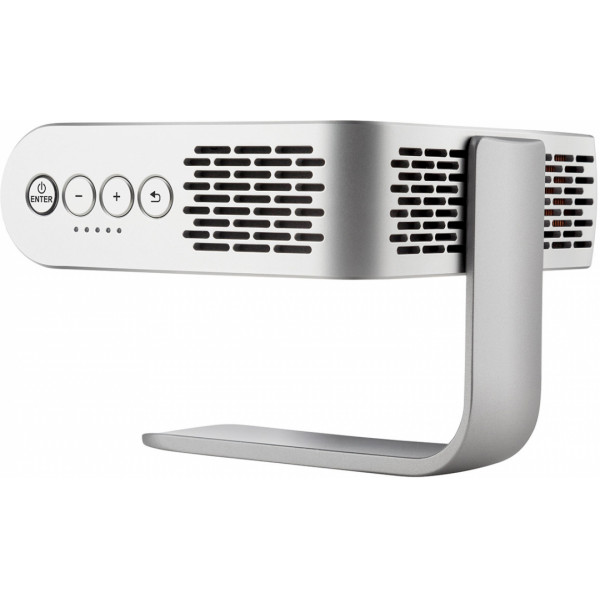

  • Smart Stand for 360 degree projection
  • USB Type-C Connectivity

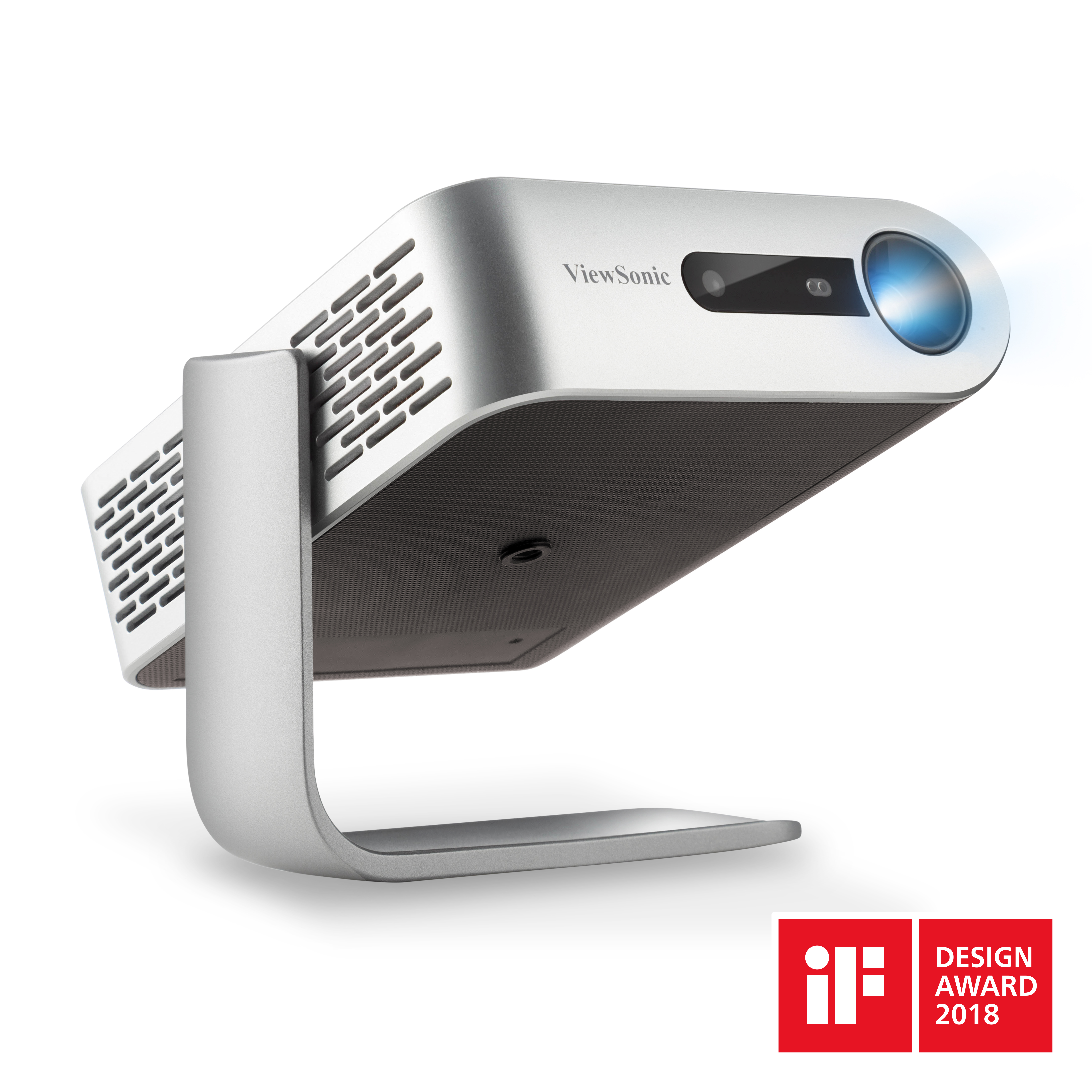

  • iF Award winning design

REVIEWS


Discover how Murugiah, a UK Artist & Illustrator and graphic designer, is using M1+

“I want technology to enhance my work without hindering it. It's gotta be versatile, portable, and it's got to keep up my pace of life.”

Read Review

뷰소닉M1+ 사용가이드_ 추가된기능 함께 알아보아요!!

“뷰소닉M1+ 사용가이드_ 추가된기능 함께 알아보아요!!”

Read Review

SPECIFICATIONS


  • Specification
    Projection System: 0.2" WVGA
    Native Resolution: 854x480
    Brightness (LED Lumens): 300 LED Lumens
    Contrast Ratio: 120000:1
    Display Colour: 1.07 Billion Colours
    Light Source Type: LED
    Light Source Life (Normal): up to 30000
    Lamp Watt: RGB LED
    Lens: F=1.7, f=5.5mm
    Projection Offset: 100%+/-5%
    Throw Ratio: 1.2
    Optical Zoom: Fixed
    Image Size: 24"-100"
    Throw Distance: 0.64m-2.66m
    (38" @1m)
    Keystone: +/- 40° (V)
    Audible Noise (Normal): 26dB
    Audible Noise (Eco): 25dB
    Local Storage: Total 16GB
    (12GB available storage)
    Input Lag: 33 ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 15h-135kHz
    Vertical Scan Rate: 23-120Hz

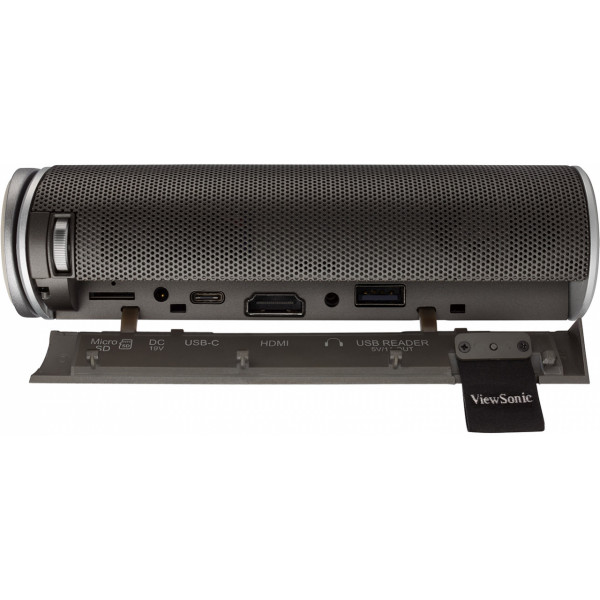

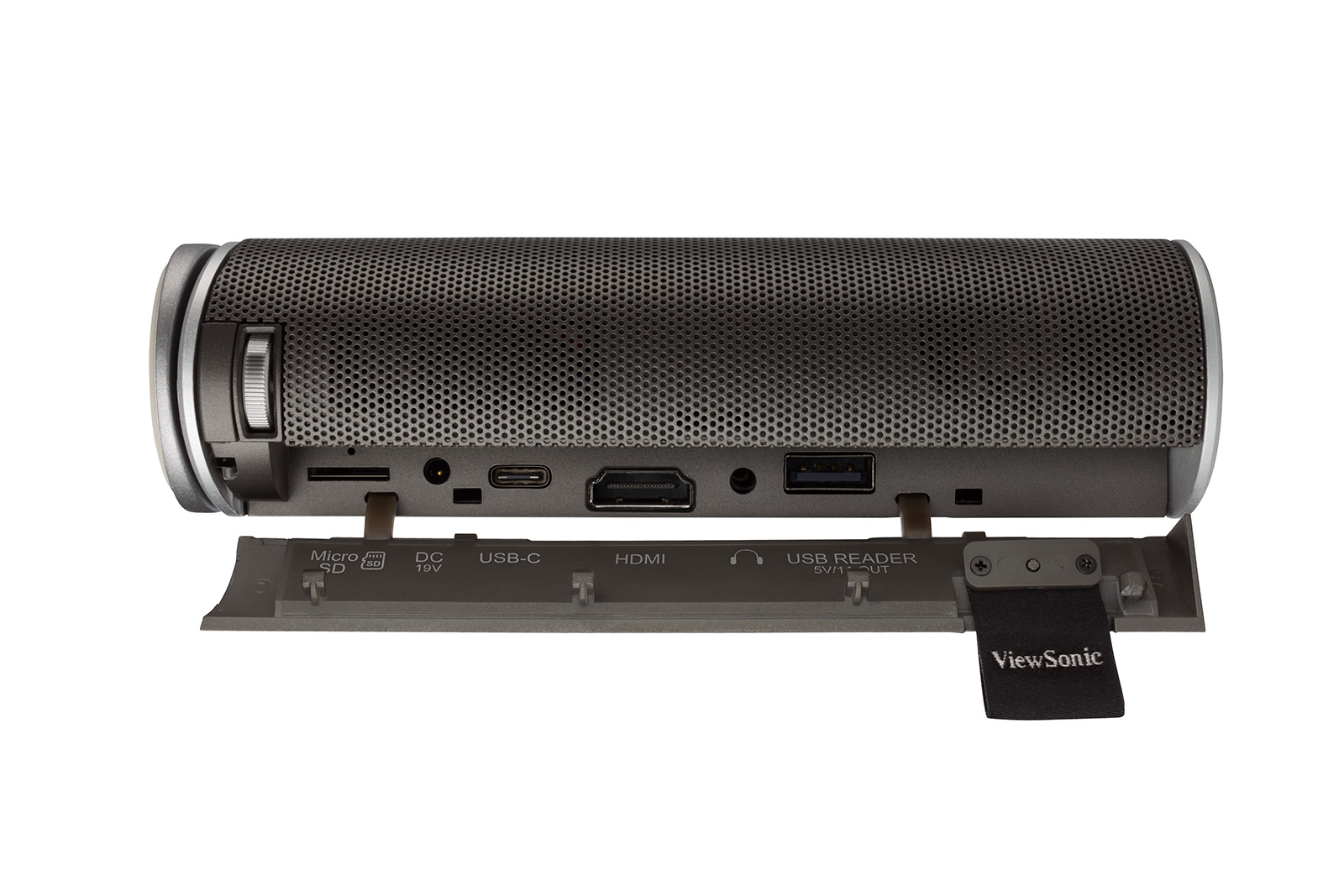

  • Input
    HDMI: 1
    (HDMI 1.4/ HDCP 1.4)
    SD Card: Micro SD (32GB, SDHC)
    USB Type C: 1 (5V/ 2A)
    USB Type A: 1
    (USB2.0 Reader, share with power)
    Wifi Input: 1 (5Gn)
    Bluetooth Input: 1
  • Output
    Audio out (3.5mm): 1
    Speaker: 3W Cube x2
    USB Type A (Power): 1
    (USB2.0 - 5V/ 1A,
    share with USB reader)
