“VLOG My Daily Essentials with @viewsonicmy Everyday can be happy, it depends on what you decided to do for yourself. Well, my way of happiness? Bring cinema to everywhere I go 😜 Don’t limit your imagination. Introducing ViewSonic M1 Pro, it is an upgrade from M1+_G2, 2x brightness and higher resolution from 480P upgrade to 720p. It also has 3-in-1 smart stand for 360° projection. Smart Wi-Fi screen mirroring & Bluetooth connectivity. Oh ya, I also use it for creative photography idea! Project the true-to-life color on the portrait, you will be surprised! Reimagine my on-the-go entertainment device with ViewSonic M1 Pro.”
M1 Pro
Smart LED Portable Projector with Harman Kardon® Speakers
- 3-in-1 smart stand for 360° projection
- Embedded battery and power bank compatibility
- 100" large screen in 720p HD resolution
- Powerful sound by Harman Kardon speakers
- Smart Wi-Fi screen mirroring & Bluetooth connectivity
OVERVIEW
The ViewSonic M1 Pro is an ultra-portable LED projector that delivers dynamic and high-quality entertainment while helping you to reimagine your space. A built-in battery and the power bank compatibility give you hours of fun anywhere you go. Immerse yourself indoors or outdoors with an up to 100” large screen in 720p HD resolution. Its adaptable smart stand enables 360-degree customized projection angle, while doubling as a lens cover and power combo. Once the lens is uncovered, the projector automatically powers on to full brightness for instant entertainment. The touch buttons on the mesh surface provide intuitive use and a tactile texture at the same time. Harman Kardon stereo speakers create room-filling sound for an amplified experience, while more flexible audio needs can be achieved via Bluetooth connectivity. Integrated Wi-Fi makes content sharing easier than ever thanks to both wireless screen mirroring from smart devices and built-in access to streaming platforms.M1 Pro
360 Degrees of Possibilities
Be Your Own Way
Lens Cap
Work as a cover to protect the lens when being transported.
Auto Power On
Simply swivel the stand to uncover the lens and automatically power on the M1 Pro.
Metal Stand
Solid stand for easy setup and 360 degree of customized projection angle anywhere.
Stylish and Intuitive
All at Once
An iF Design Award winner, the M1 Pro adopts mesh texture, providing a sense of warmth that fuses with the sleek silver metal for a harmonious blend. The surface is embedded with a touch keypad for intuitive operation, achieving both great function and style at once.
So Easy to Carry
The M1 Pro is small enough to fit in the palm of your hand and weighs less than 1kg – making it easy to put in your bag or backpack for big screen anywhere you go.
Built-in Battery for Any Spontaneous Trip
The M1 Pro is a must-have for any serendipitous adventure. The built-in battery provides the on-the-go entertainment as you don’t have to deal with tangled cords or plug the projector into a power source. For even more extended play, power it via a USB-C power bank.*
*To power on the projector, the power bank should be at least 45W (15V/3A) and support Power Delivery (PD) protocol output.
Endless Fun with 30,000 Hours Light Source Life
The LED light source delivers consistent brightness without lamp replacement for 30,000 hours. Enjoy uninterrupted big fun for over 20 years with 4 hours of projection per day.
Audiovisual Feast at Ease
Uncompromised Resolution On the Go
The M1 Pro delivers a cinematic experience of 100” large screen in 720p HD resolution at once, from indoors to outdoors, extending and enlarging the fun wherever you go.
Ultimate Spectacle with True-to-life Colors
Vibrant colors powered by ViewSonic’s proprietary Cinema SuperColor+™ Technology with 125% Rec.709, bring you mind-blowing visuals of true cinematic experience.
Mind-blowing Sound by Harman Kardon
Amazed by the room-filling sound delivered by a palm-sized projector. The integrated stereo speakers customized by Harman Kardon provide crisp, clear and powerful audio performance for thrilling movies, latest live concert and exciting games anytime and anywhere.
360-degree Projection for Unlimited Creativity
The M1 Pro is the perfect companion for relaxing weekends. Whether you’re watching your favorite show in bed or having fun with friends at the bar, the setup is a breeze. With the M1 Pro’s 360-degree perfect projection and auto keystone, you can project images onto the ceiling, wall, floor or anywhere you please – with ease.
A Perfect Fit from Any Angle
No need for central positioning - now you have comprehensive H/V keystone and 4 corner adjustment capabilities that deliver perfectly shaped images from above, below, front, or side.
Big Screen, Little Effort
Project 60’’ images from only 1.4 meters away, even a 100” large screen won’t be a problem. Easily get a big screen in your room, rooftop, skate park or anywhere beyond your imagination.
Designed with Eye Care in Mind
Utilizing reflective light, which bounces off the wall or projector screen before hitting your eyes, the projector makes the viewing experience virtually blue light free, less invasive to your sight and reduces eyestrain over prolonged viewing periods.
Live a Smart Life
Wireless Screen Mirroring from Your Smart Devices
Create and share amplified enjoyment in an instant. Thanks to the embedded 5GHz fast speed Wi-Fi connectivity, you can cast or screen-mirror content from your devices at hand to the big screen without a single cable.
*iPhone and Android phones supported but must be connected under the same network as the M1 Pro.
Bluetooth Enabled for
Additional Audio Options
Enjoy quality sound on your terms. Use the M1 Pro as a Bluetooth speaker to get the party started, or connect your Bluetooth headphones and immerse yourself in your own world of big screen entertainment.
Intuitive Touch Control with Your Phone
Now you can turn your mobile device into an alternative powerful remote control with intuitive touch control, easy typing, and simple annotation. Simply download the ViewSonic vCastSender app on your phone, make sure your phone and the projector are connected to the same Wi-Fi network, and pair them up in the app to get started.
Direct Content
Streaming via USB-C
Project content directly from your phone or other mobile devices via USB-C while simultaneously charging it. Stream videos, FaceTime with friends, or play Nintendo® Switch without a docking station, all through a single cable.
*Devices must support USB Type-C video streaming.*Apple-authorized Lightning to HDMI adaptor required for iPhone and iPad users.
Remote Control via Bluetooth
By pairing the projector and the remote control via Bluetooth, there’s not need to point the remote directly at the projector for operating anymore, The better reception of your commands provides greater convenience of use compared to the traditional IR handset.
Dimensions & I/O Connectivity
- Lens
- Focus Ring
- Smart Stand
- Touch Pad
- DC In (19V)
- DC In via USB-C (15V/3A)
- Audio Out
- USB-C (5V/2A)
- HDMI
- USB-A (5V/1.5A)
REVIEWS
“Built-in Battery, Smart stand 360 degree and portable with 720P resolutions.”
![[Video] Máy chiếu di động linh hoạt nhất](https://www.viewsonic.com/vsAssetFile/global/img/VSVN/M1%20Pro%20-%20Duy%20Luan.jpg)

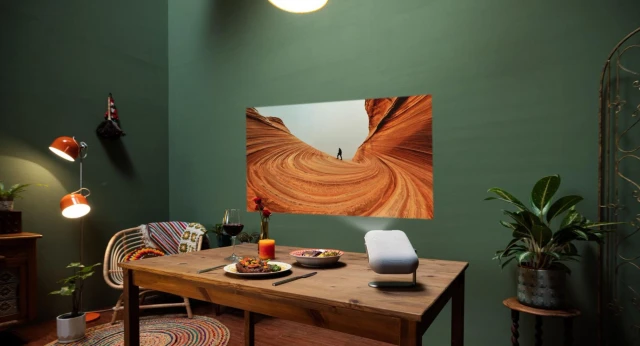

![[Video] Thiết kế đẳng cấp, nhiều tính năng thông minh](https://www.viewsonic.com/vsAssetFile/global/img/VSVN/M1%20Pro%20review.jpeg)
“Thiết bị hướng đến người dùng ưa thích sự tối giản ở thiết kế, sự tiện lợi trong quá trình sử dụng và sự đầy đủ về mặt tính năng trên một thiết bị thông minh. Với những ai đang tìm kiếm một máy chiếu di động hướng đến sự cầu toàn, thì ViewSonic M1 Pro chính là một giải pháp hoàn hảo dành cho họ!”
![[Video] Trải nghiệm Máy chiếu di động Viewsonic M1 Pro](https://www.viewsonic.com/vsAssetFile/global/img/VSVN/M1%20Pro-GenZ%20Viet.jpg)
“ViewSonic M1 Pro là chiếc máy chiếu di động có ngoại hình rất thời trang, kích cỡ gọn gàng, dễ dàng bỏ túi. Trong bài viết ngày hôm nay, chúng ta hãy cùng nhau trải nghiệm và đánh giá thiết bị này nhé!”

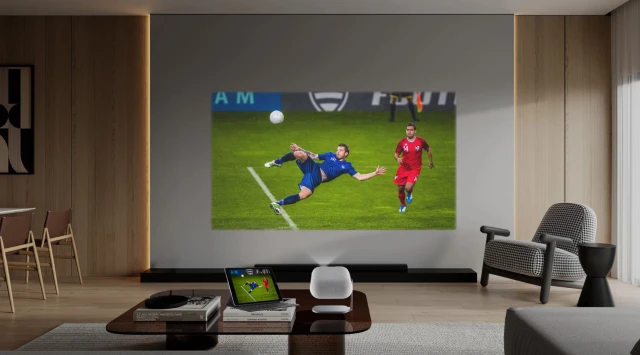

“Máy chiếu – Giải pháp tiết kiệm mà vẫn mang đến không gian hiển thị lớn”
“Cuối năm, các thương hiệu đồng loạt tung ra các sản phẩm công nghệ mới và điều chỉnh giá bán những model cũ nhằm thu hút người dùng mua sắm.”
SPECIFICATIONS
- SpecificationProjection System: 0.3" 720p
Native Resolution: 1280x720
Brightness: 600 (LED Lumens)
Contrast Ratio: 120000:1
Display Color: 1.07 Billion Colors
Light Source Type: LED
Light Source Life (hours) with Normal Mode: 30000
Lens: F=1.7, f=7.4mm
Projection Offset: 100%+/-5%
Throw Ratio: 1.07
Optical Zoom: Fixed
Digital Zoom: 0.8x-1.0x
Image Size: 40"-150"
Throw Distance: 0.94m-3.52m
(42.6"@1m)
Keystone: H:+/-40° , V: +/-40°
Audible Noise (Normal): 26dB
Audible Noise (Eco): 25dB
Local Storage: Total 16GB
(12GB available storage)
Input Lag: 68ms
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz - InputHDMI: 1
(HDMI 1.4/ HDCP 1.4)
USB Type C: 2 (Video/5V/2A out *1,
DC in /15V/3A *1)
Audio-in (Bluetooth): 1 (BT4.2)
USB Type A: 1
(USB2.0 Reader)
Wifi Input: 1 (5Gn) - OutputAudio-out (3.5mm): 1
Audio-out (Bluetooth): 1 (BT4.2)
Speaker: 3W Cube x2
(Full range x2)
USB Type A (Power): 1
(USB2.0 - 5V/1.5A,
share with USB A Input)
- ControlUSB Type A (Services): 1
(share with USB A Input) - OthersPower Supply Voltage: Power adaptor:
Input: 100~240V
Output: 19VDC / 3.42A
Battery:
12000mAh(4000mAh 3.7Vx3)
(1.4hrs@Normal, 2hrs@Eco)
Power Consumption: Normal: 45W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Color
Net Weight: 0.95Kg
Gross Weight: 2.8Kg
Dimensions (WxDxH) with Adjustment Foot: 182x140x62mm
Packing Dimensions: 453x242x94mm
OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Hungary Total 24 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages - Standard AccessoryPower Cord: 1
USB-C Cable: 1 (1m)
Remote Control: 1
QSG: Yes
Warranty Card: Yes (CN & JP)
Carry Bag: Yes
