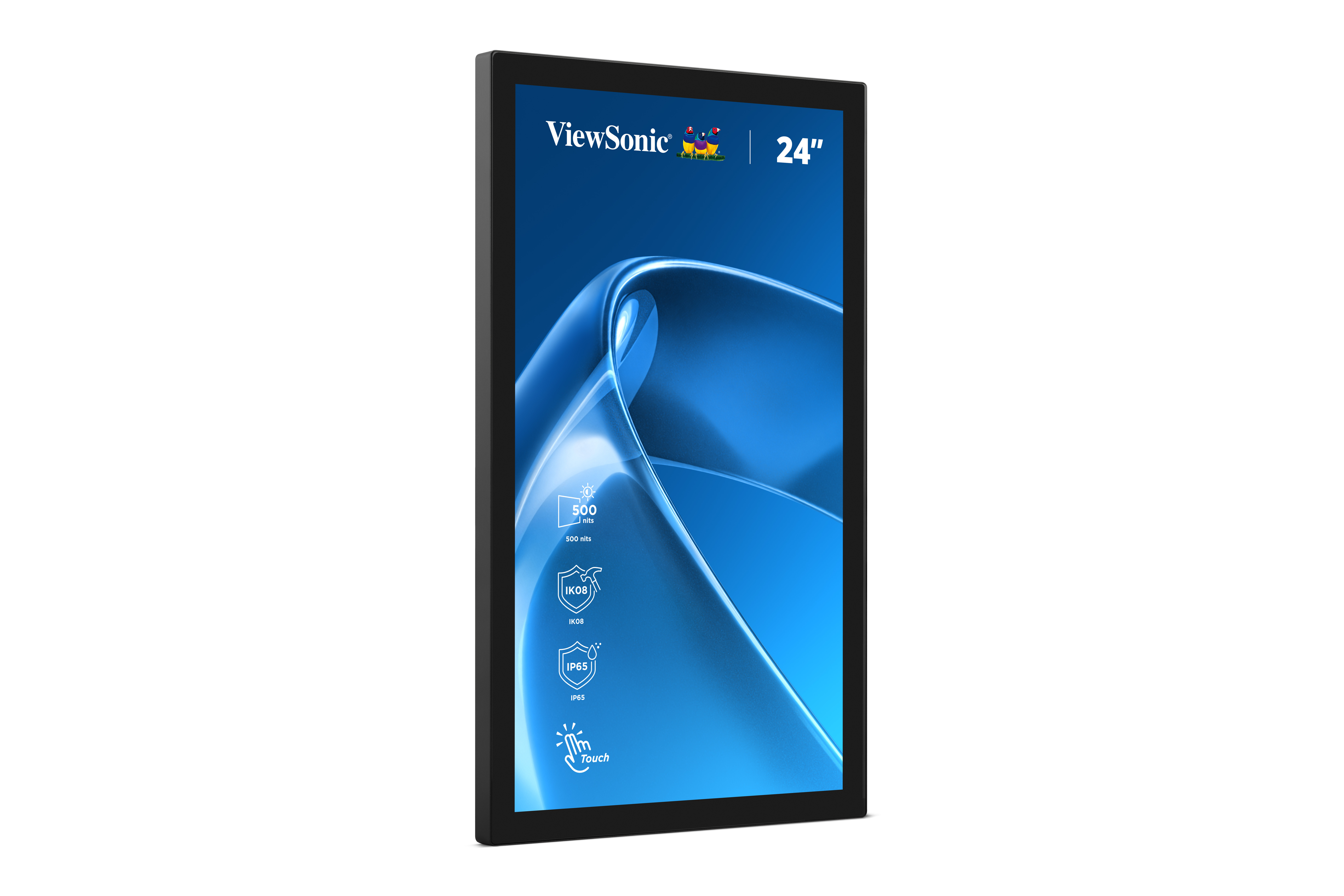

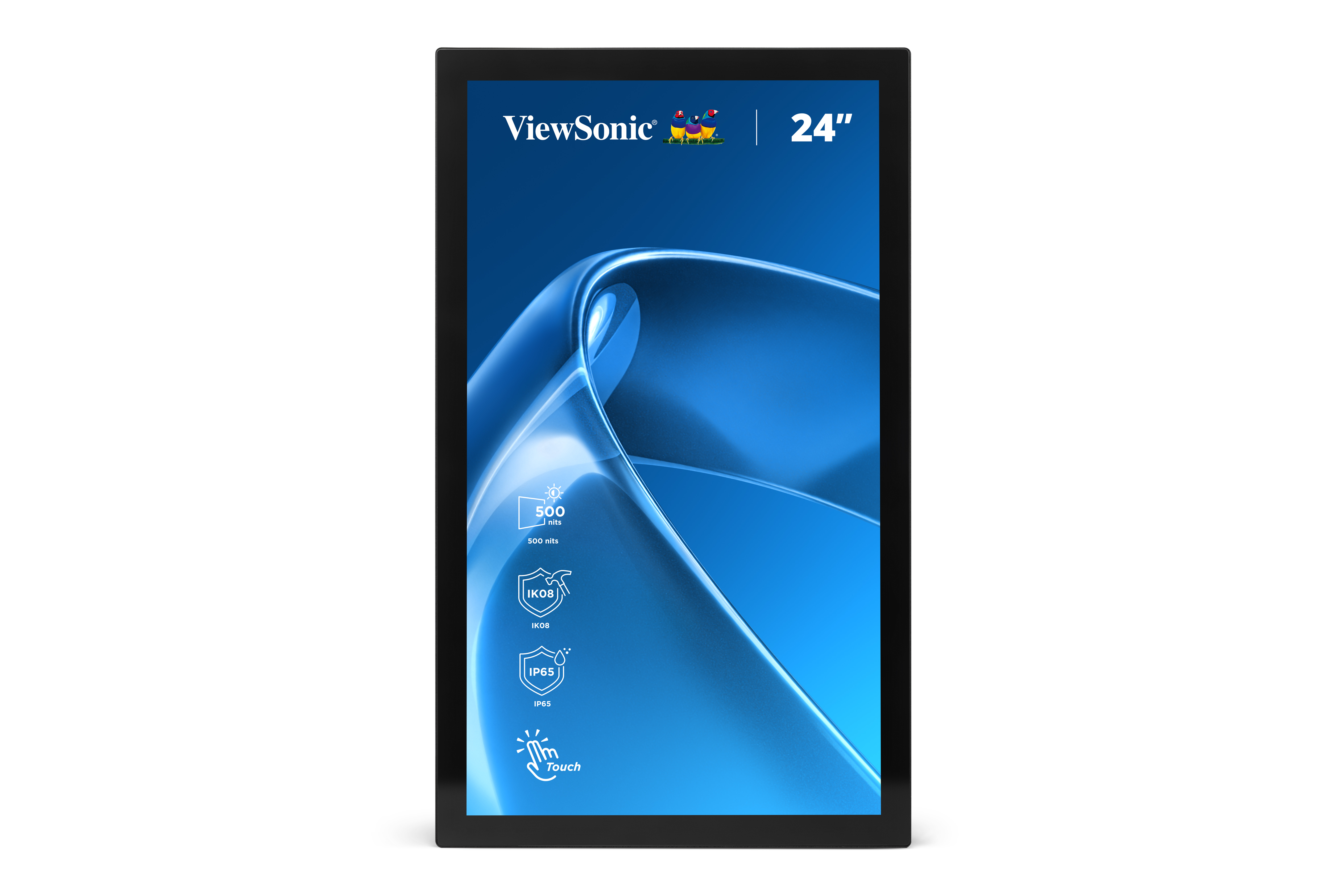

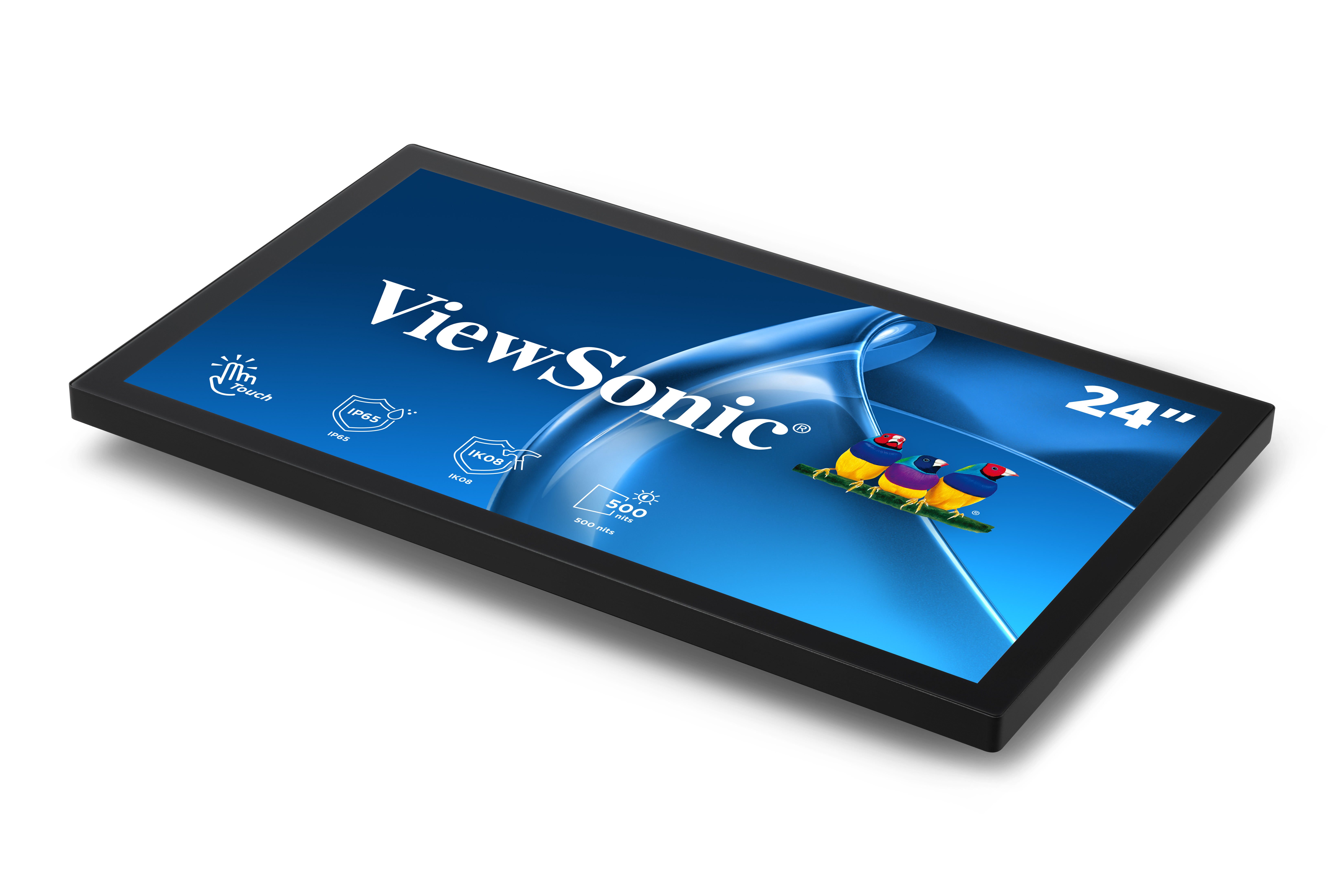

XF2432

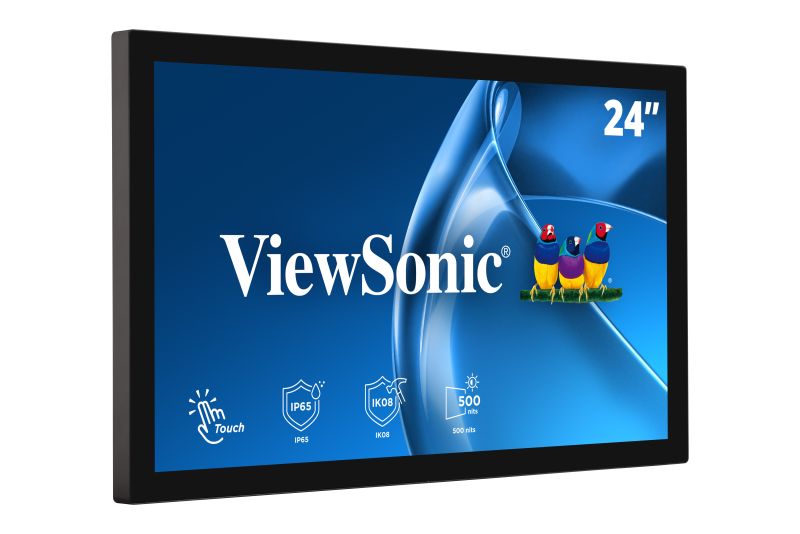

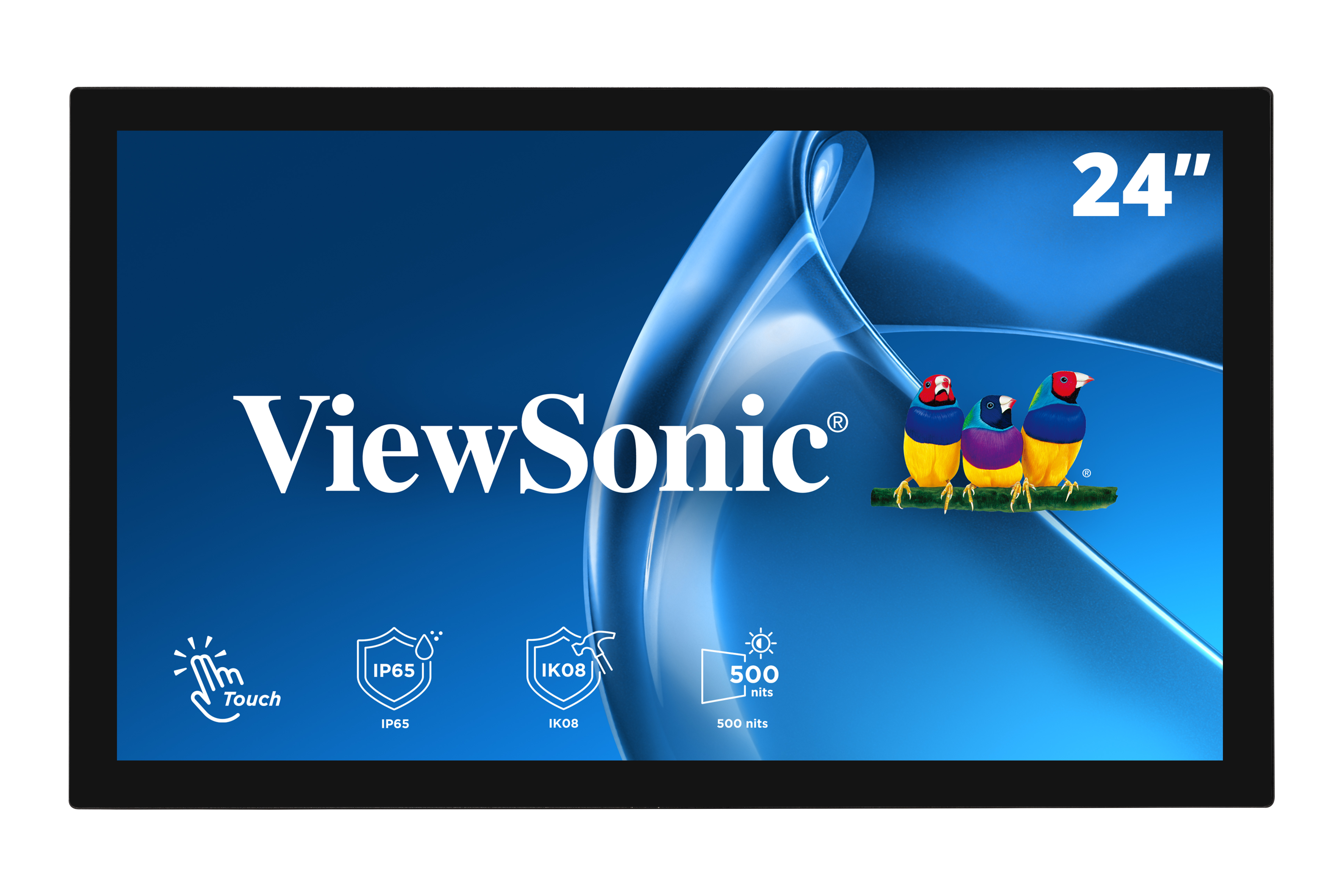

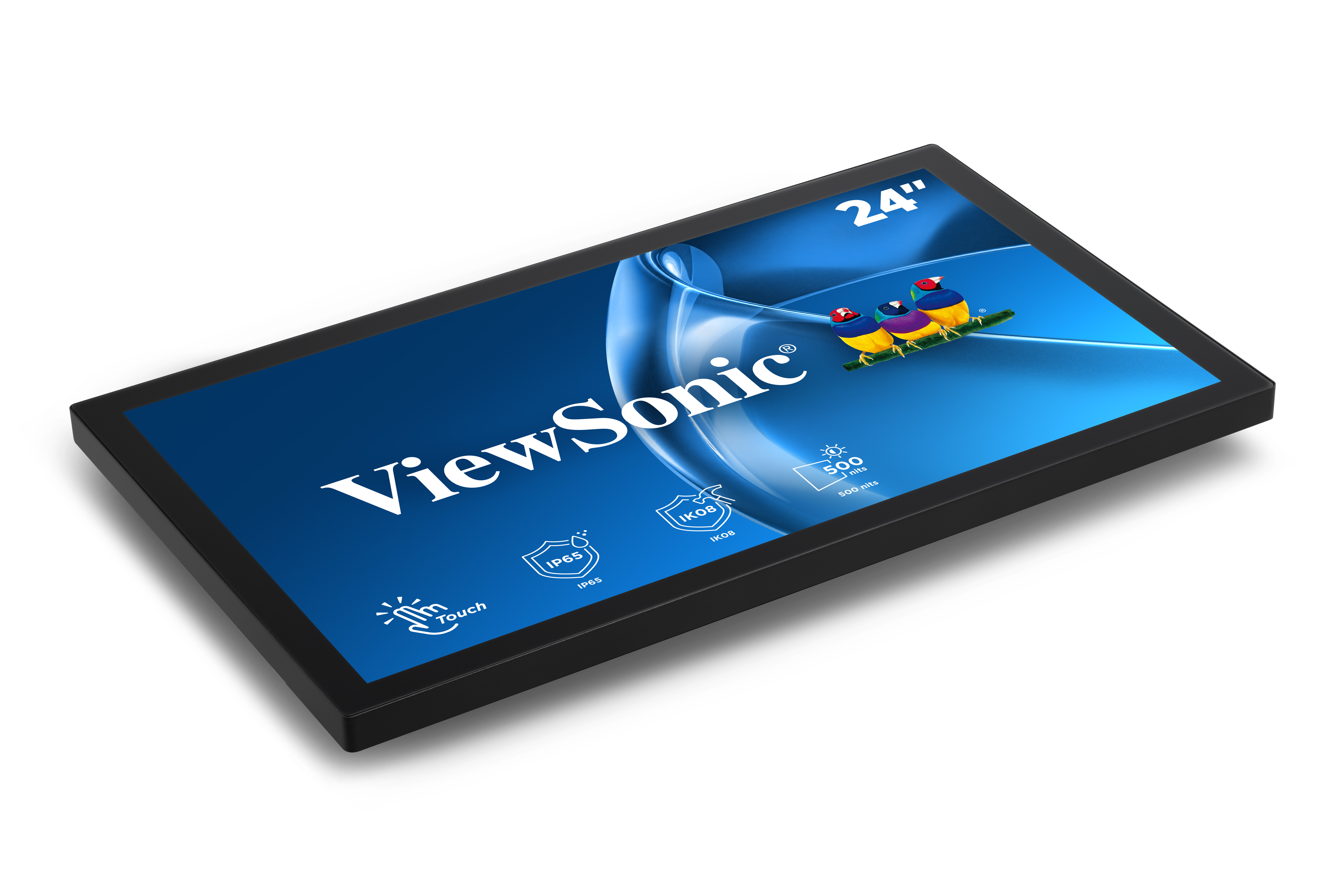

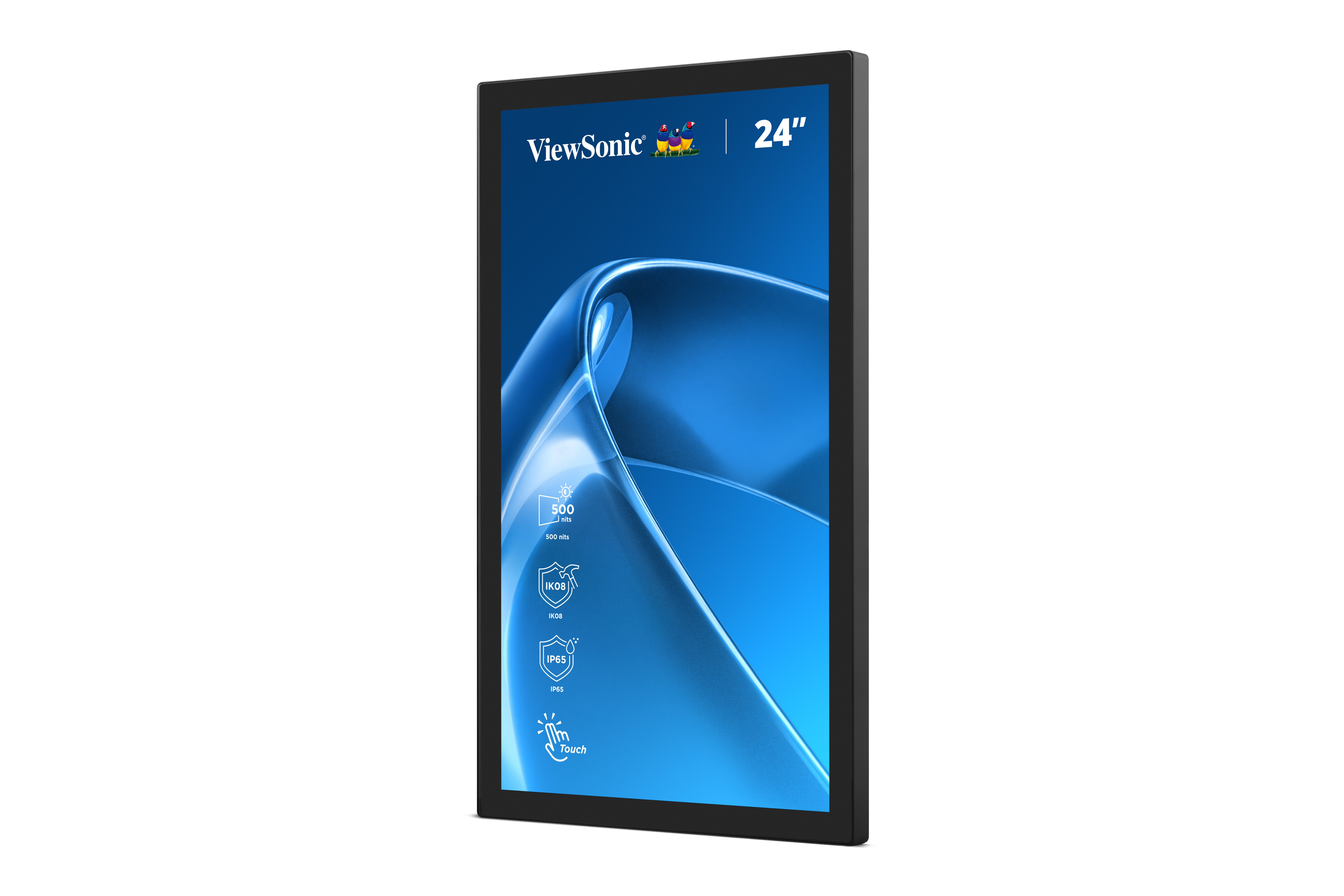

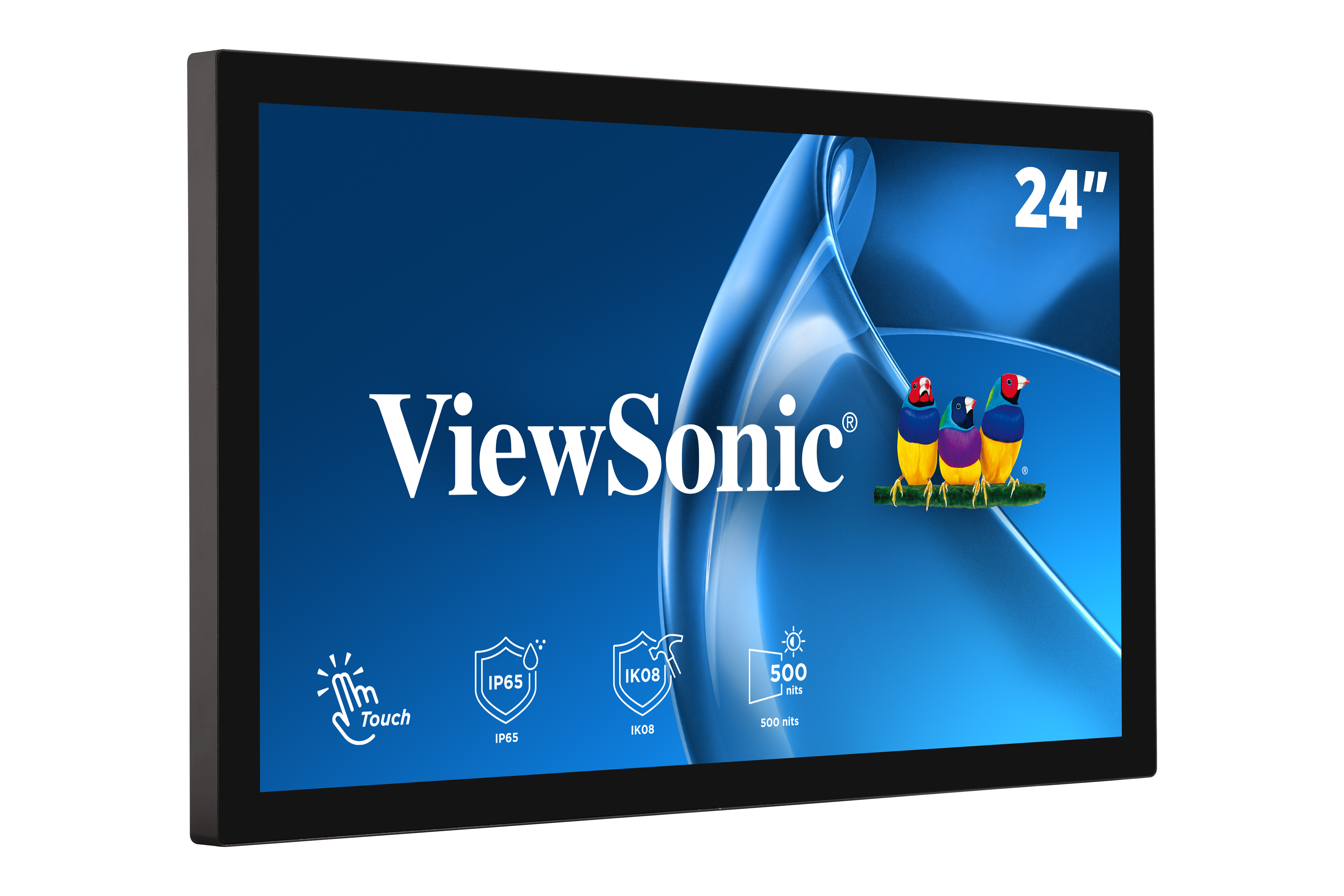

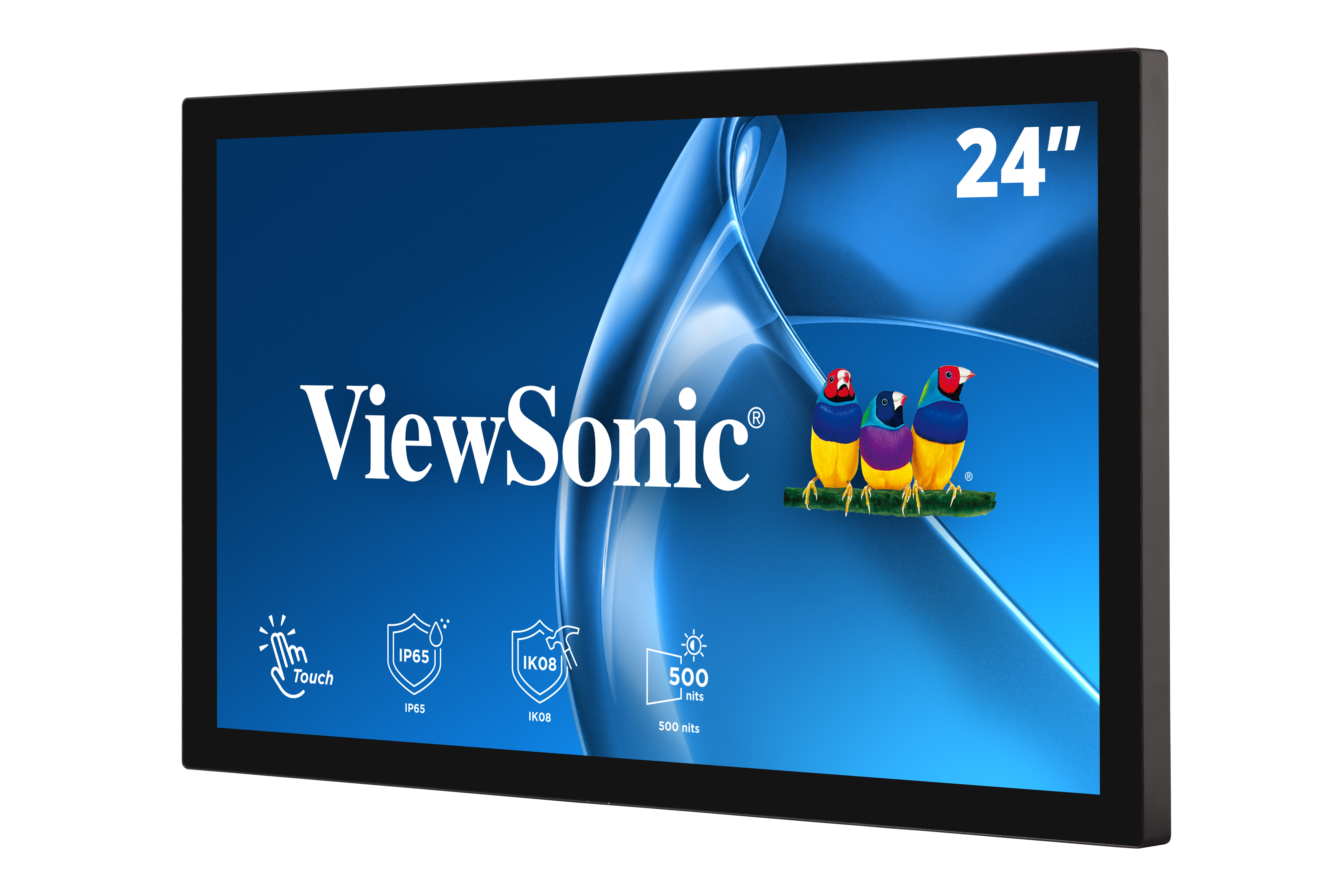

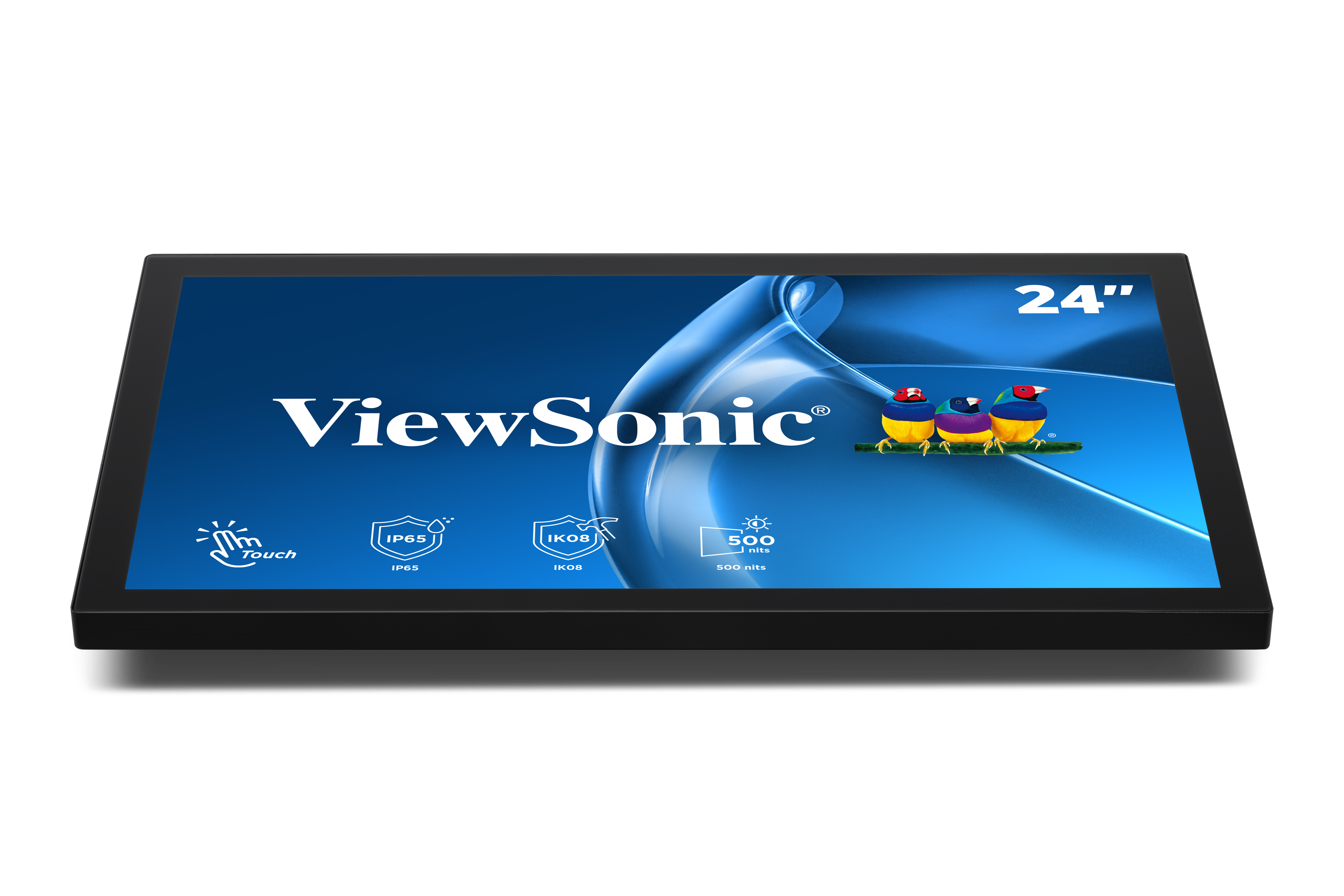

23.8” 500-Nit Indoor Open Frame Touchscreen Monitor for 24/7 Operation

  • Responsive 10-point PCAP touch technology​
  • 500-nit brightness for easy readability​
  • IP65 dust and water resistance ​
  • IK08 impact resistance with 7H hardness​
  • VESA-mountable​undefined
Sales Enquiry

OVERVIEW

The ViewSonic XF2432 is an open-frame monitor designed for 24/7 operation in indoor commercial and industrial applications, such as ATMs, kiosks, and vending machines. With a high-brightness display reaching 500 nits, it offers viewing clarity and comfort in a wide range of indoor environments. Its durable 3 mm-thick glass with a scratch-resistant surface provides long-lasting reliability, while 10-point PCAP touch enables smooth, responsive interaction. As a VESA-compatible display, it features rear mounting holes for easy and quick installation in a variety of systems and enclosures. Built-in HDMI, DisplayPort, and VGA ensure seamless content integration, and optional stylus support can be added for advanced precision enabling handwritten input.​

Reliable Touch Monitor for Any Application

The XF2430 touch monitor provides a user-friendly, durable, and pollution-resistant solution for industrial, retail, and commercial settings. Ideal for self-ordering kiosks, it provides outstanding image quality, flexible mounting options, and responsive 10-point touch technology.
Reliable Touch Monitor for Any Application 1

Advanced Touch Technology

Streamline your operations with a smooth and responsive touchscreen, powered by advanced Projective Capacitive (PCAP) Touch Technology. This screen accurately detects up to 10 simultaneous touch points, ensuring precise and reliable input with every interaction.
PCAP 10 Points Touch
Advanced Touch Technology 1

IP65 Dustproof & Water-resistant Screen

The IP65-rated screen is fully protected against dust and water splash, ensuring durability even in harsh conditions. Its robust design minimizes downtime and maintenance costs, maintaining continuous productivity in demanding environments. Additionally, the screen features a 7H scratch-resistant surface for long-lasting clarity and enhanced durability.
IP65-rated Screen
IP65 Dustproof & Water-resistant Screen 1

Long-Lasting Performance

Designed for 24/7 operation in demanding environments, the XF2430 delivers reliable performance and maximum uptime, ensuring your operations run seamlessly around the clock.
24/7 Continuous Operation
Long-Lasting Performance 1

Effortless Content Sharing

Streamline operations with seamless content-sharing capabilities. With multiple inputs, including HDMI, DisplayPort, and VGA, external consoles, laptops, or high-definition devices can be effortlessly connected to share content with ease.
HDMI, DisplayPort, VGA
Effortless Content Sharing 1

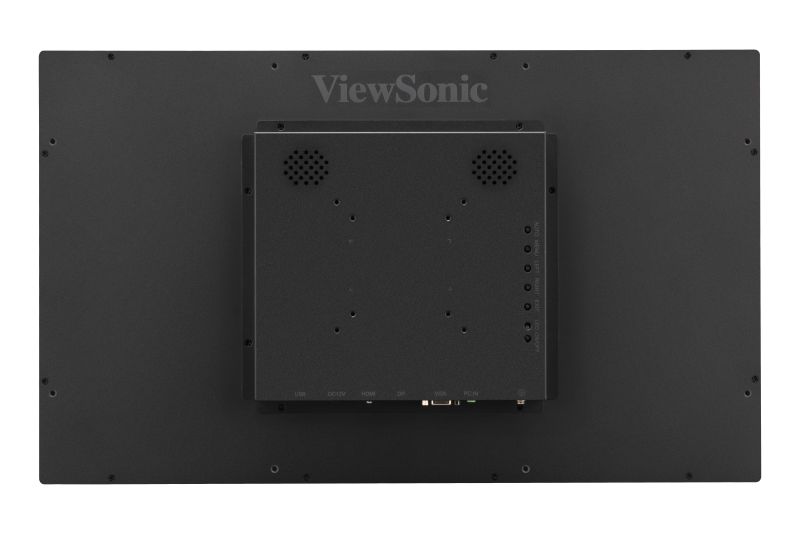

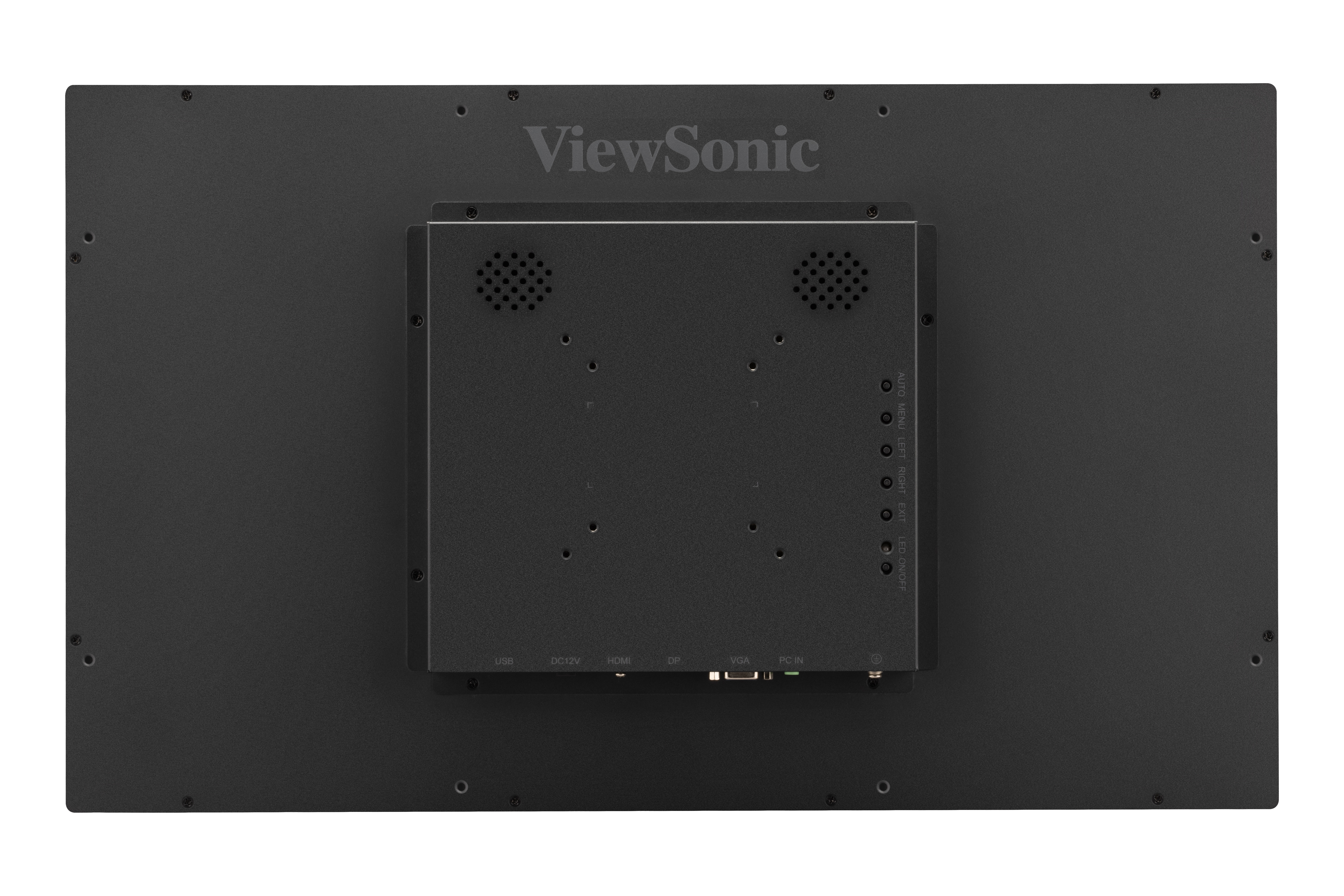

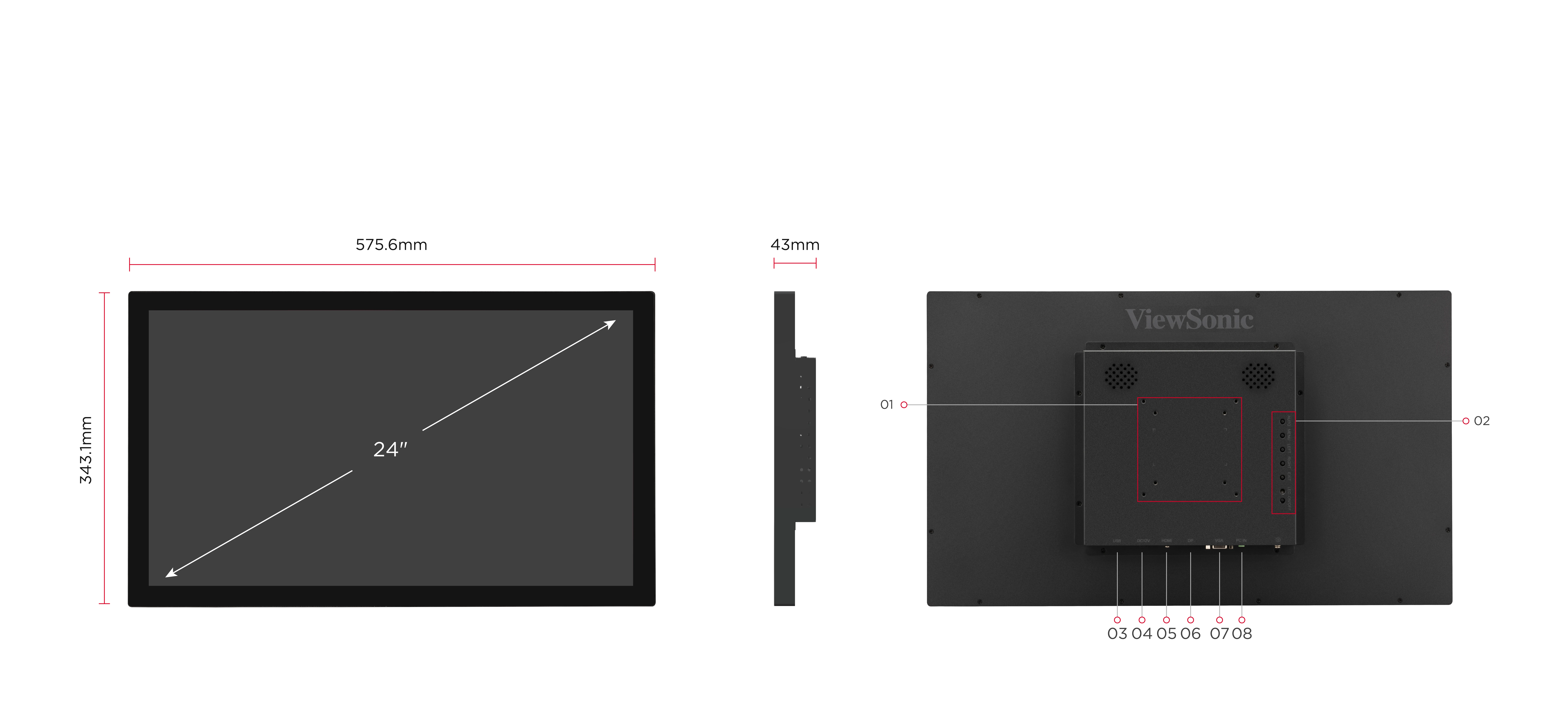

Dimension & I/O Ports

75 x 75mm and 100 x 100mm VESA mount
  1. VESA Compatible
    (Wall Mount 75 x 75mm & 100 x 100 mm
  2. Menu Control Panel
  3. USB
  4. DC12V
  5. HDMI
  6. DP
  7. VGA
  8. PC IN

SPECIFICATIONS


  • Display
    Aspect Ratio: 16:9
    Screen Size: 24"
    Active Area: 531.36 (H) x 298.89 (V)
    Pixel Pitch (mm): 0.28 (H) x 0.28 (V)
    Resolution: 1920 x 1080
    Contrast Ratio: 1000:1
    Brightness: 210 cd/m²
    Viewing Angles: H:178° V:178°
    Response Time: 14 ms
    Display Colors: 16.7 M
    Backlight Life: 30,000 hrs
    Color Gamut: NTSC 72%
    Surface Treatment: Hard coating (7H)
    Cover Glass Thickness: 3 mm
    Touch Screen: PCAP 10 points
  • Compatibility
    PC Resolution (max): 1920 x 1080
    Mac Resolution (max): 1920 x 1080
    Operating System: Windows & macOS
  • Connector
    USB 2.0 Type-B: 1 (for touch screen only)
    3.5mm Audio in: 1
    HDMI: 1
    DisplayPort: 1
    VGA: 1
    Power In: DC socket
