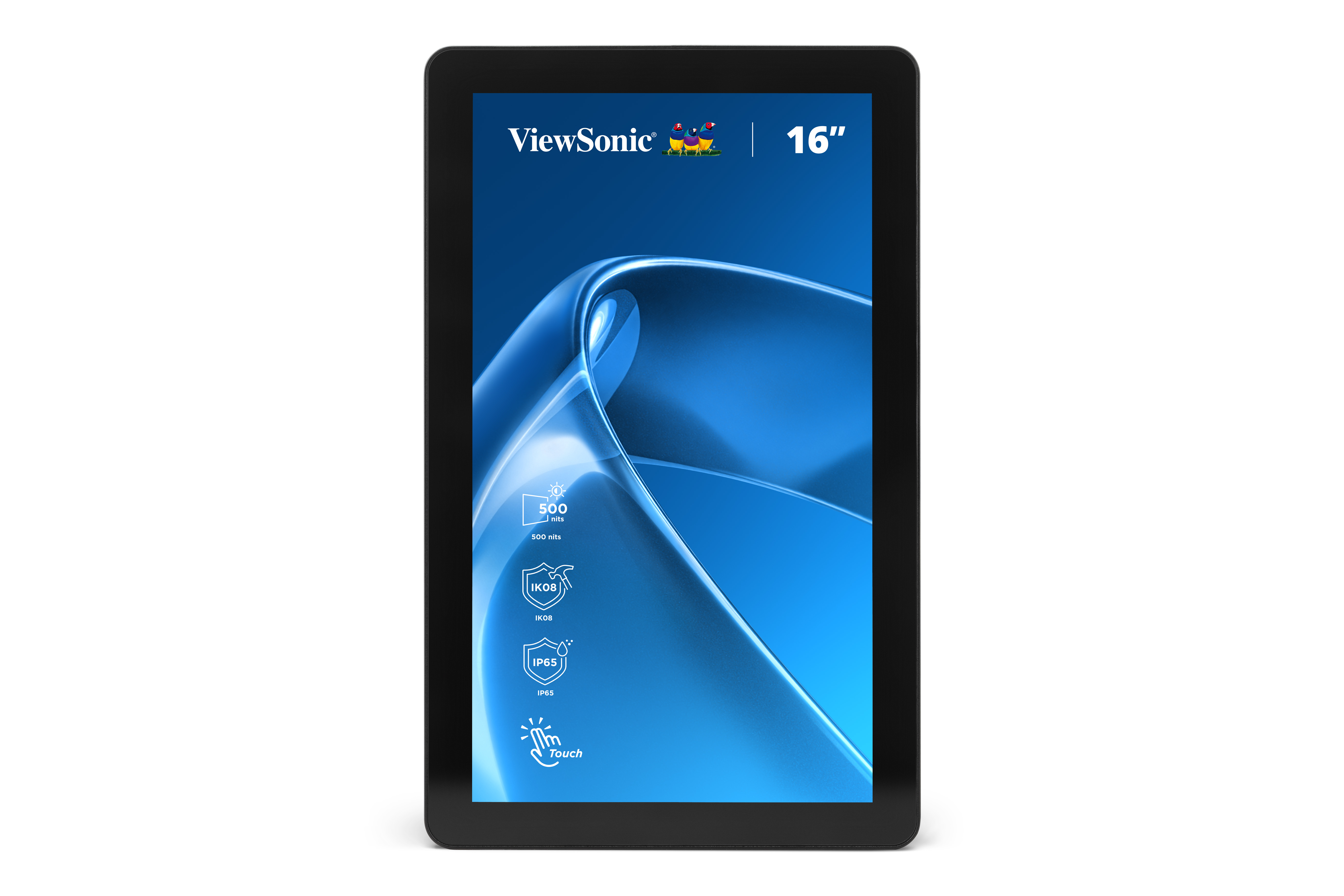

XF1632

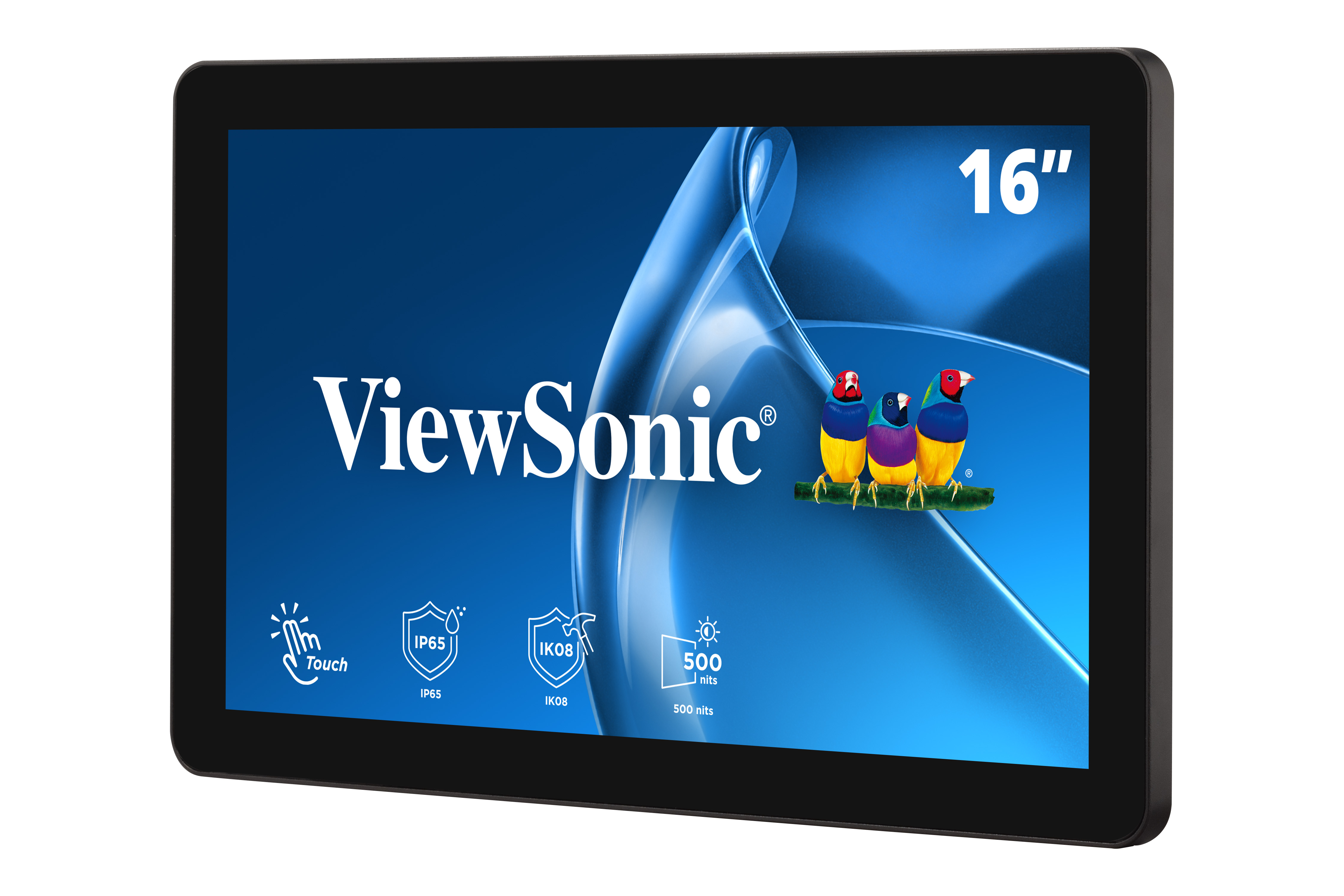

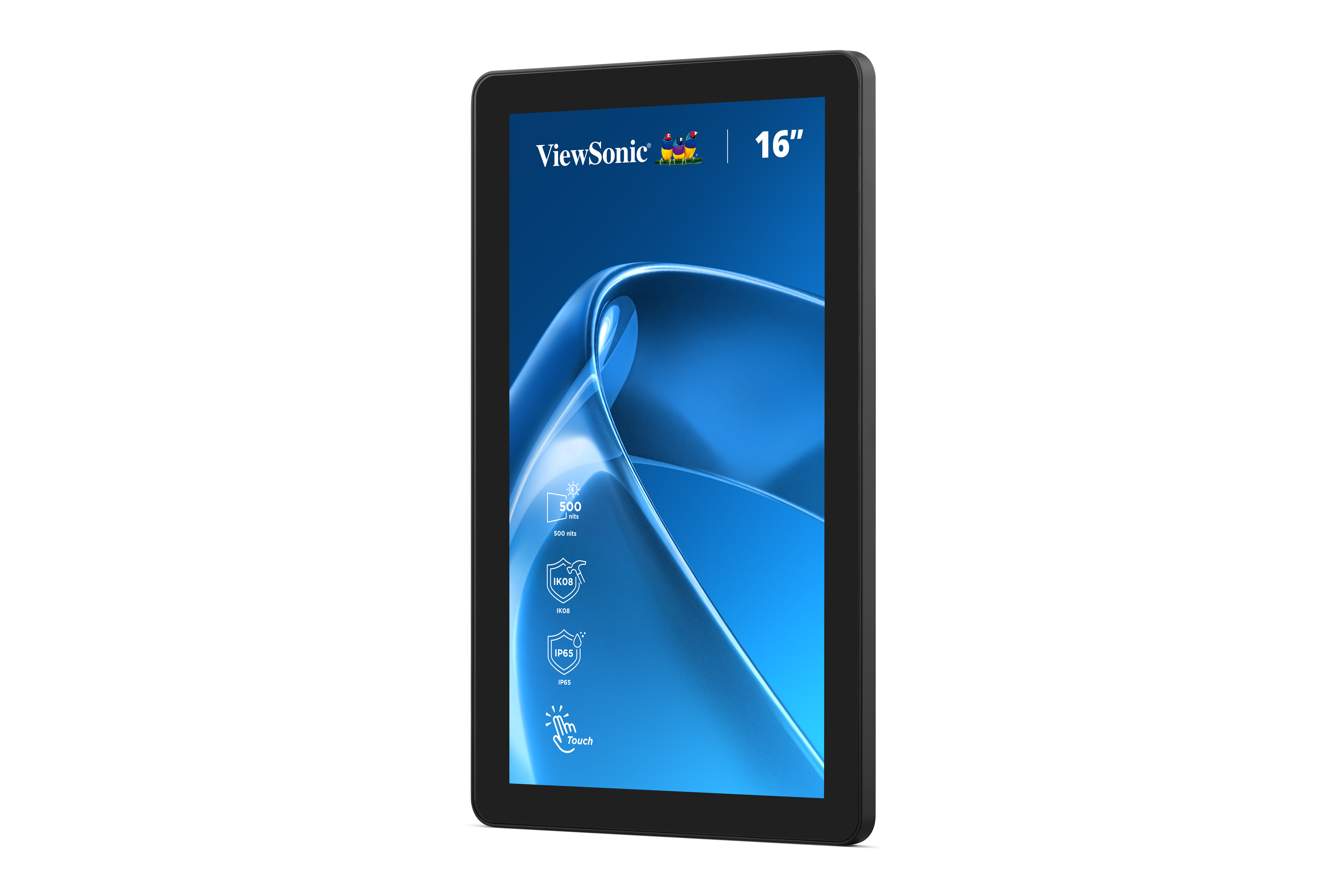

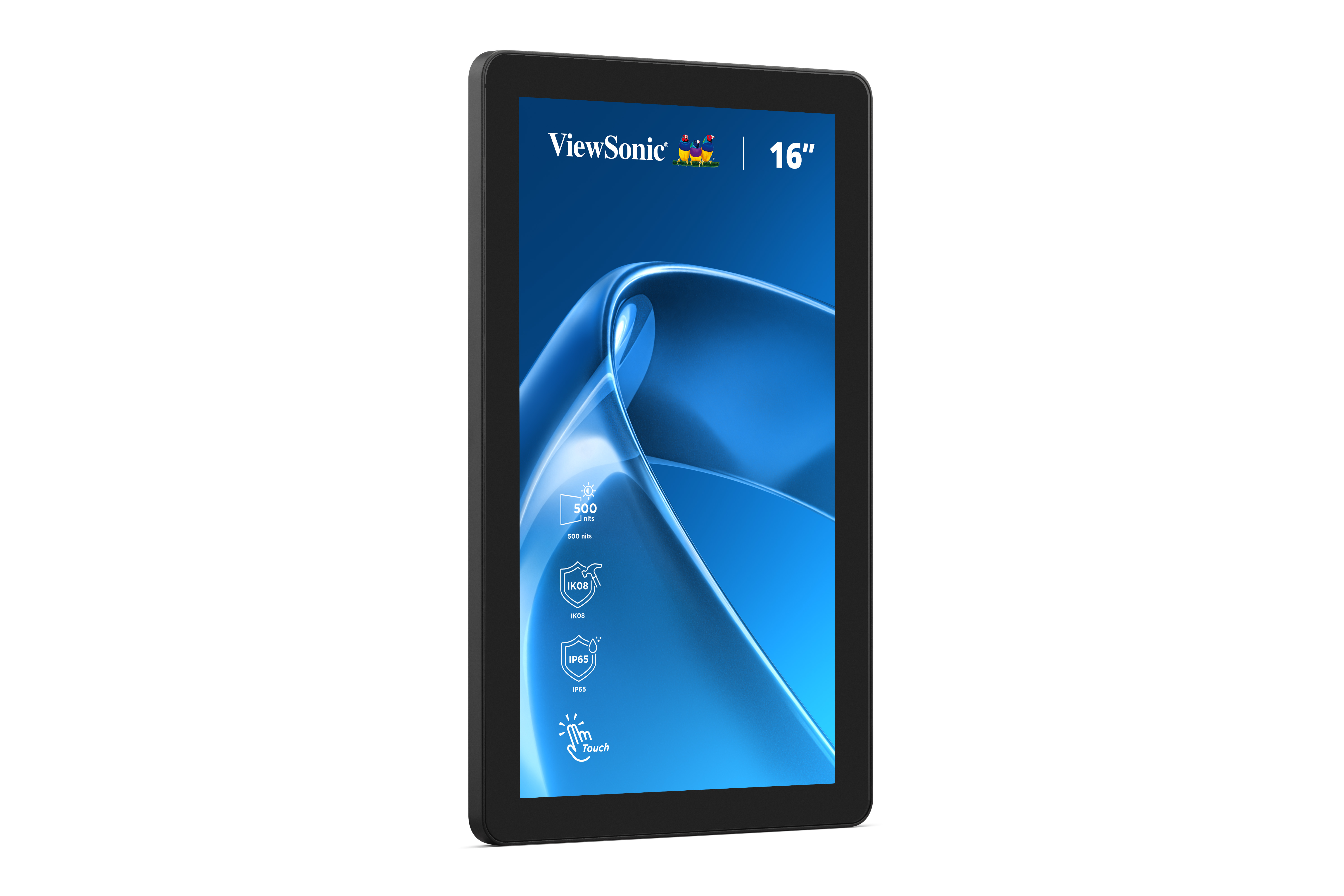

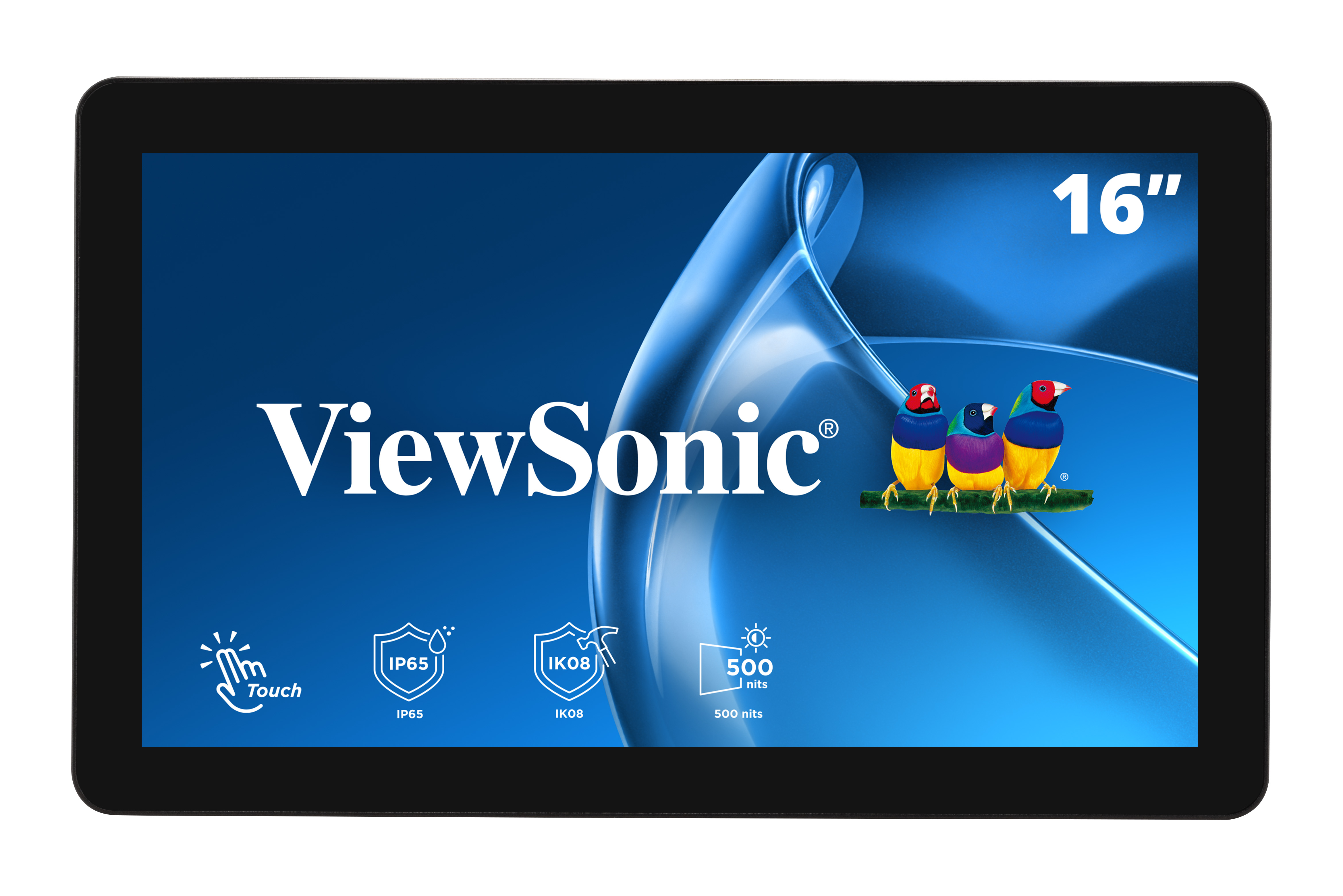

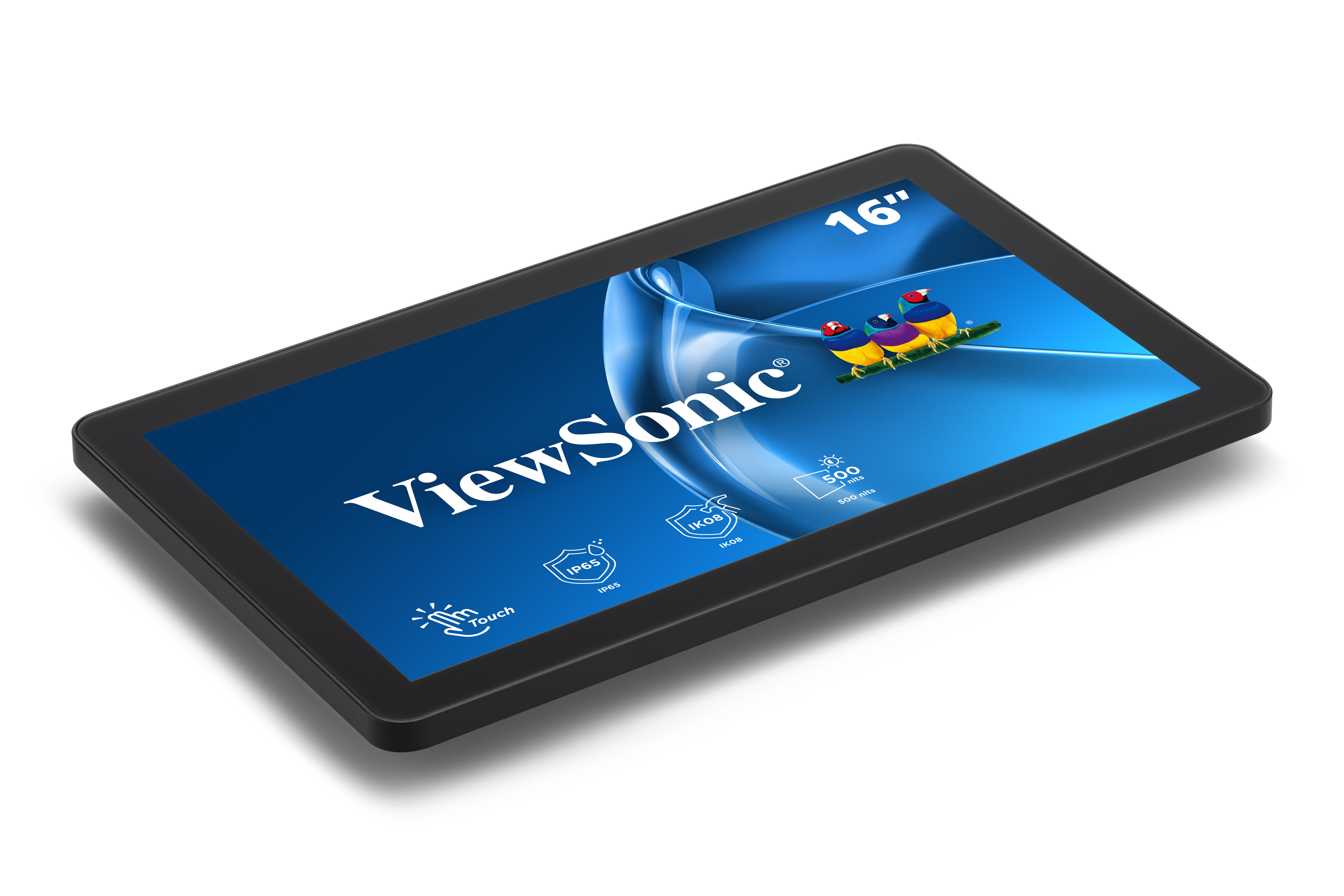

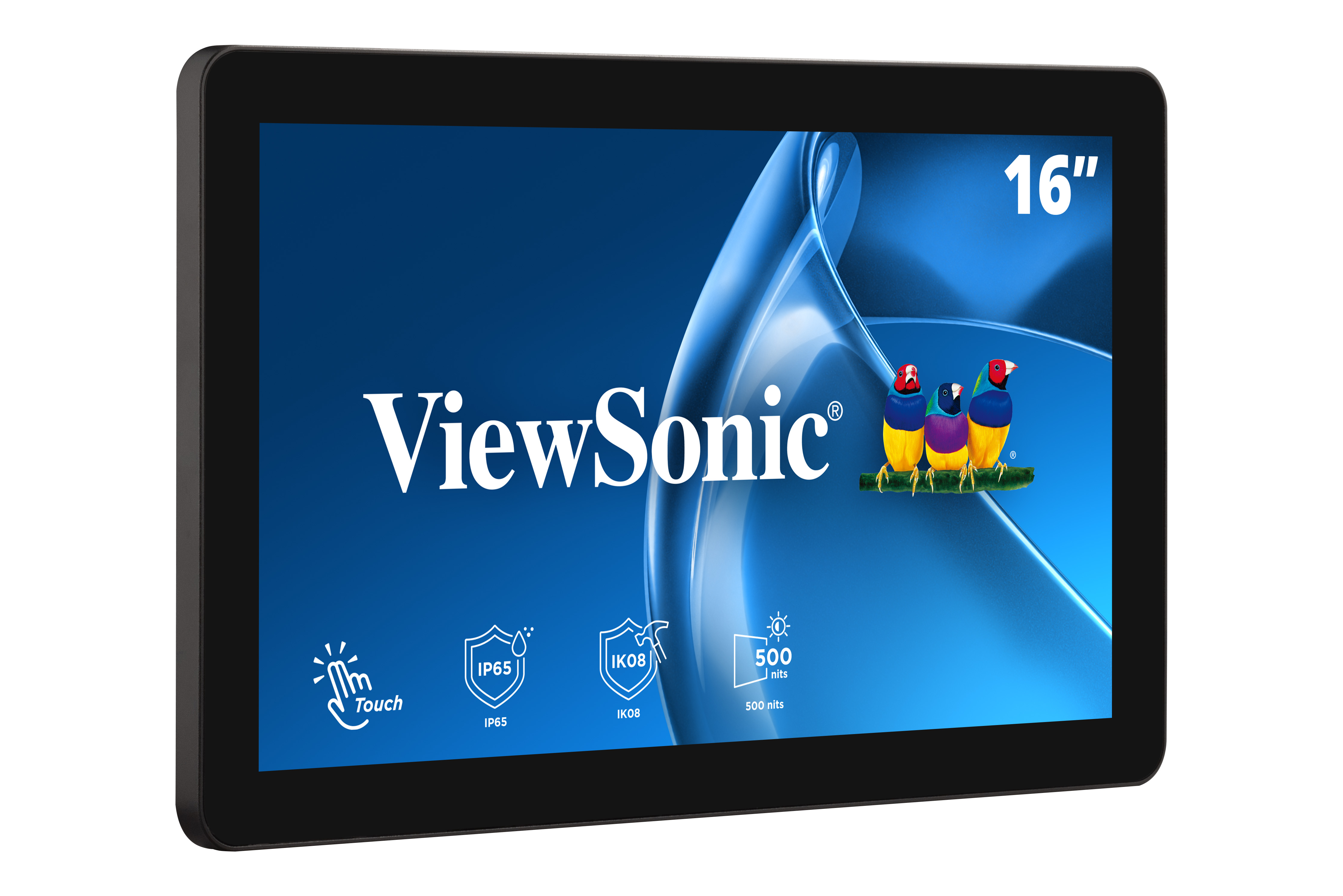

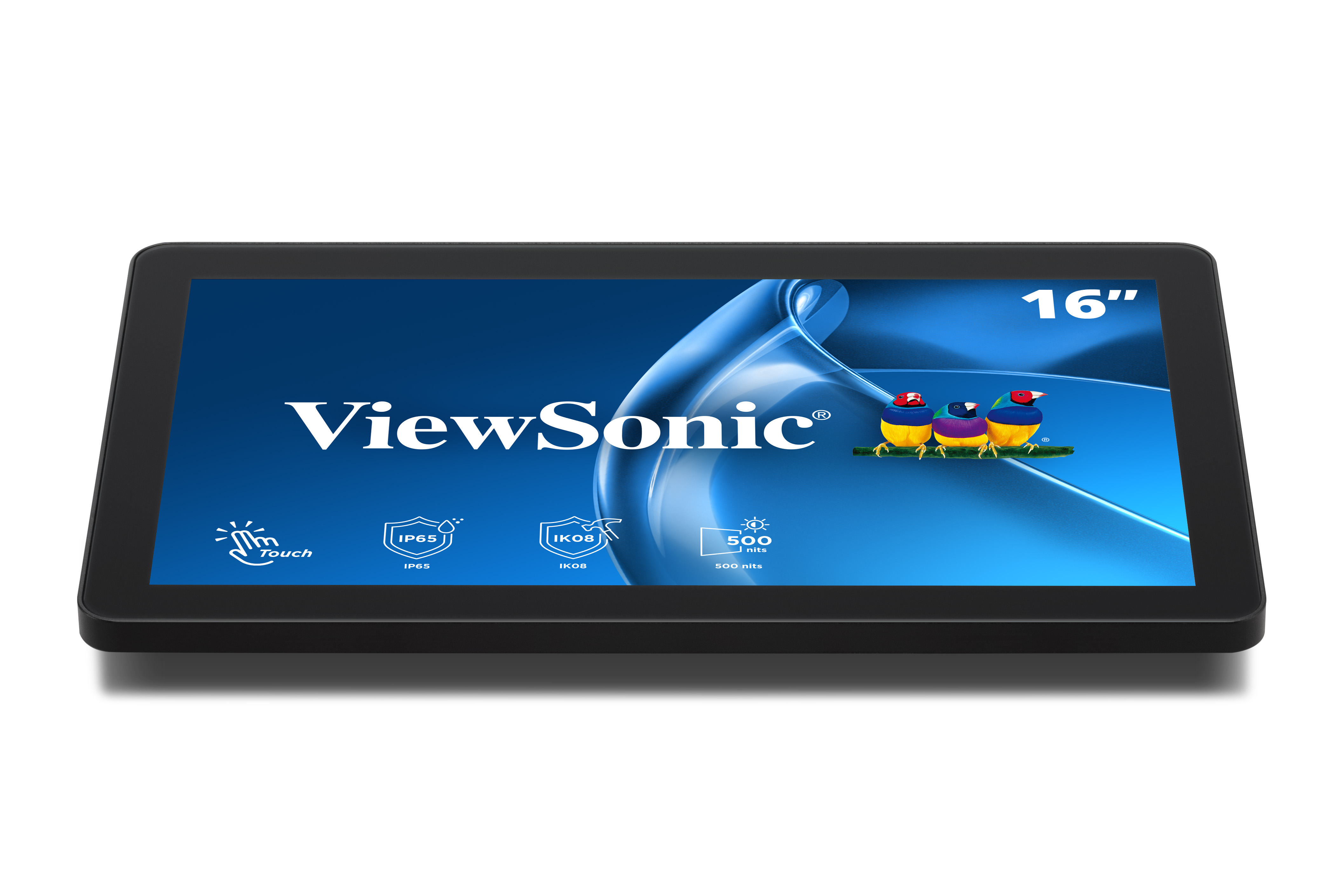

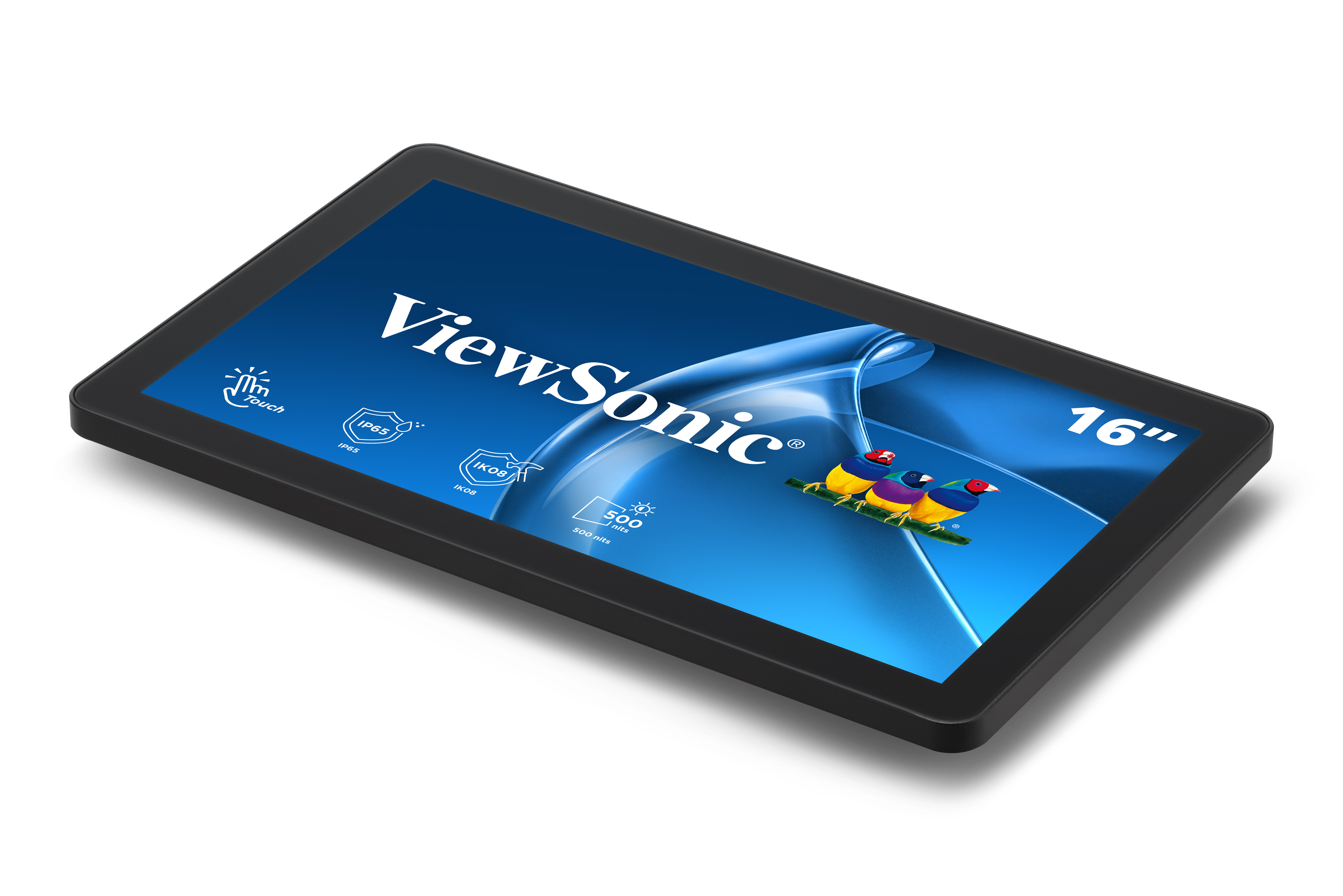

15.6” 500-Nit Indoor Open Frame Touchscreen Monitor for 24/7 Operation

  • Responsive 10-point PCAP touch technology​
  • IP65 dust and water resistance ​
  • IK08 impact resistance​
  • 7H surface hardness for scratch resistance​
  • VESA-mountable​
Sales Enquiry

OVERVIEW

The ViewSonic XF1630 is an open-frame monitor designed for indoor commercial and industrial applications, such as ATMs, kiosks, and vending machines, ensuring reliable 24/7 operation. Its durable 3mm thick glass screen protects against moisture and scratches, ensuring long-lasting performance. The intuitive 10-point PCAP touch technology delivers smooth, responsive interaction, enhancing the user experience. With versatile connectivity options, including HDMI, DisplayPort, and VGA, content integration is simple and seamless. The VESA-compatible design allows for flexible installation on any surface or orientation. Optional stylus support can be added for advanced precision enabling handwritten input.​

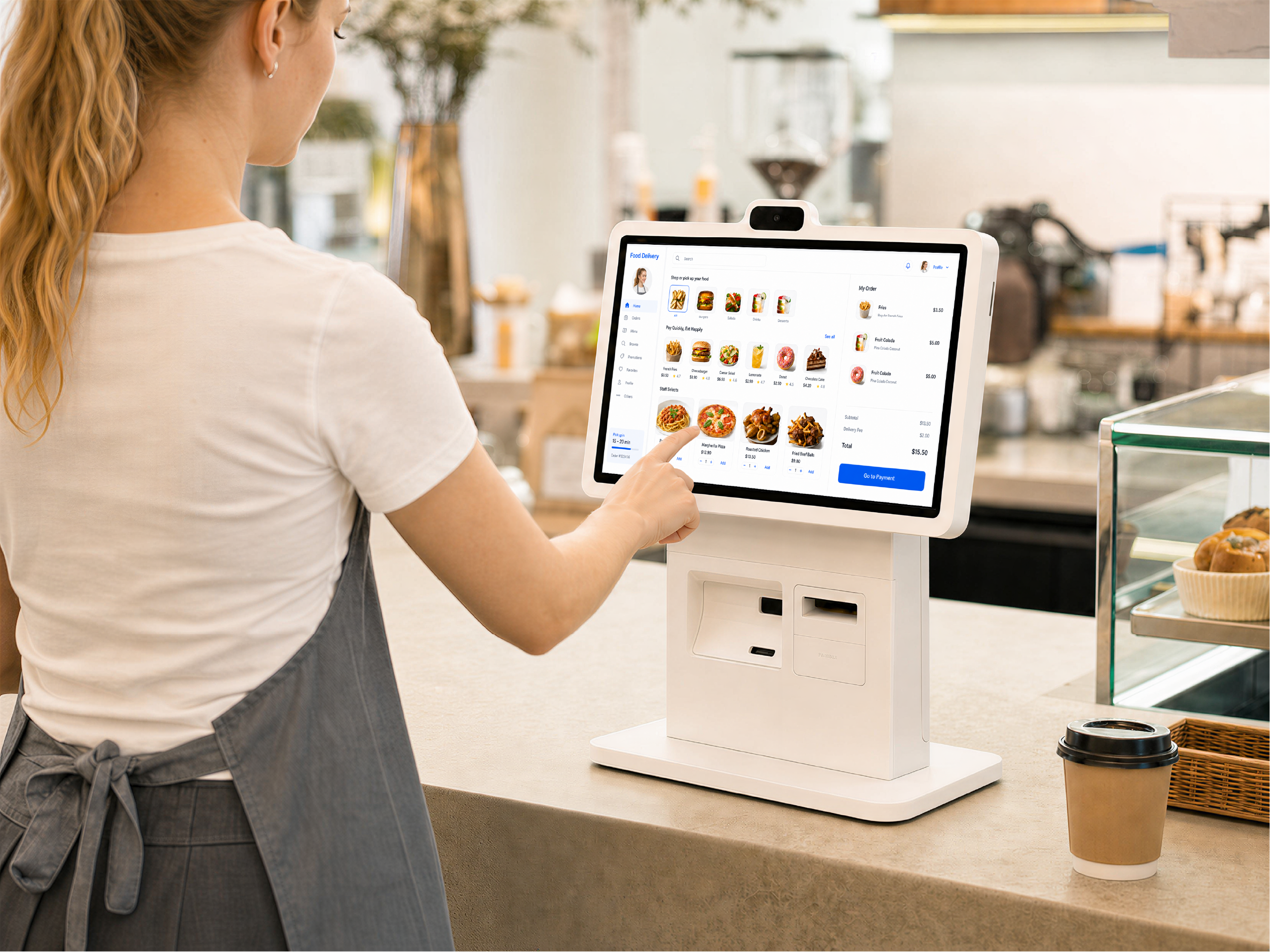

Reliable Touch Monitor for Any Application

The XF1630 touch monitor provides a user-friendly, durable, and pollution-resistant solution for industrial, retail, and commercial settings. Perfect for point-of-sale systems, self-ordering kiosks, vending machines, or bank ATMs, it delivers outstanding image quality, flexible mounting options, and responsive 10-point touch technology.

Reliable Touch Monitor for Any Application 1

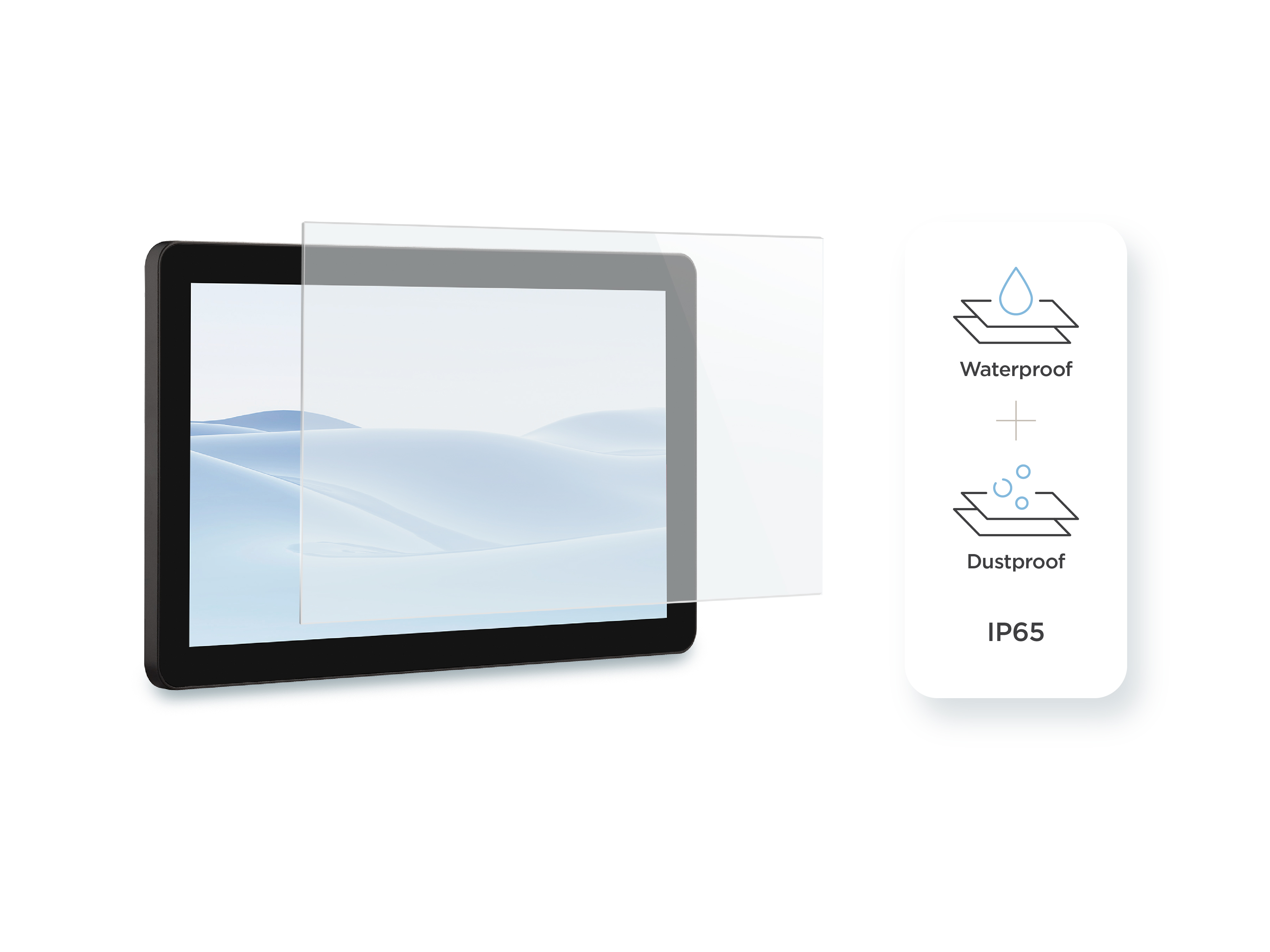

IP65 Dustproof & Water-resistant Screen

The IP65-rated screen is fully protected against dust and water splash, ensuring durability even in harsh conditions. Its robust design minimizes downtime and maintenance costs, maintaining continuous productivity in demanding environments. Additionally, the screen features a 7H scratch-resistant surface for long-lasting clarity and enhanced durability.
IP65-rated Screen
IP65 Dustproof & Water-resistant Screen 1

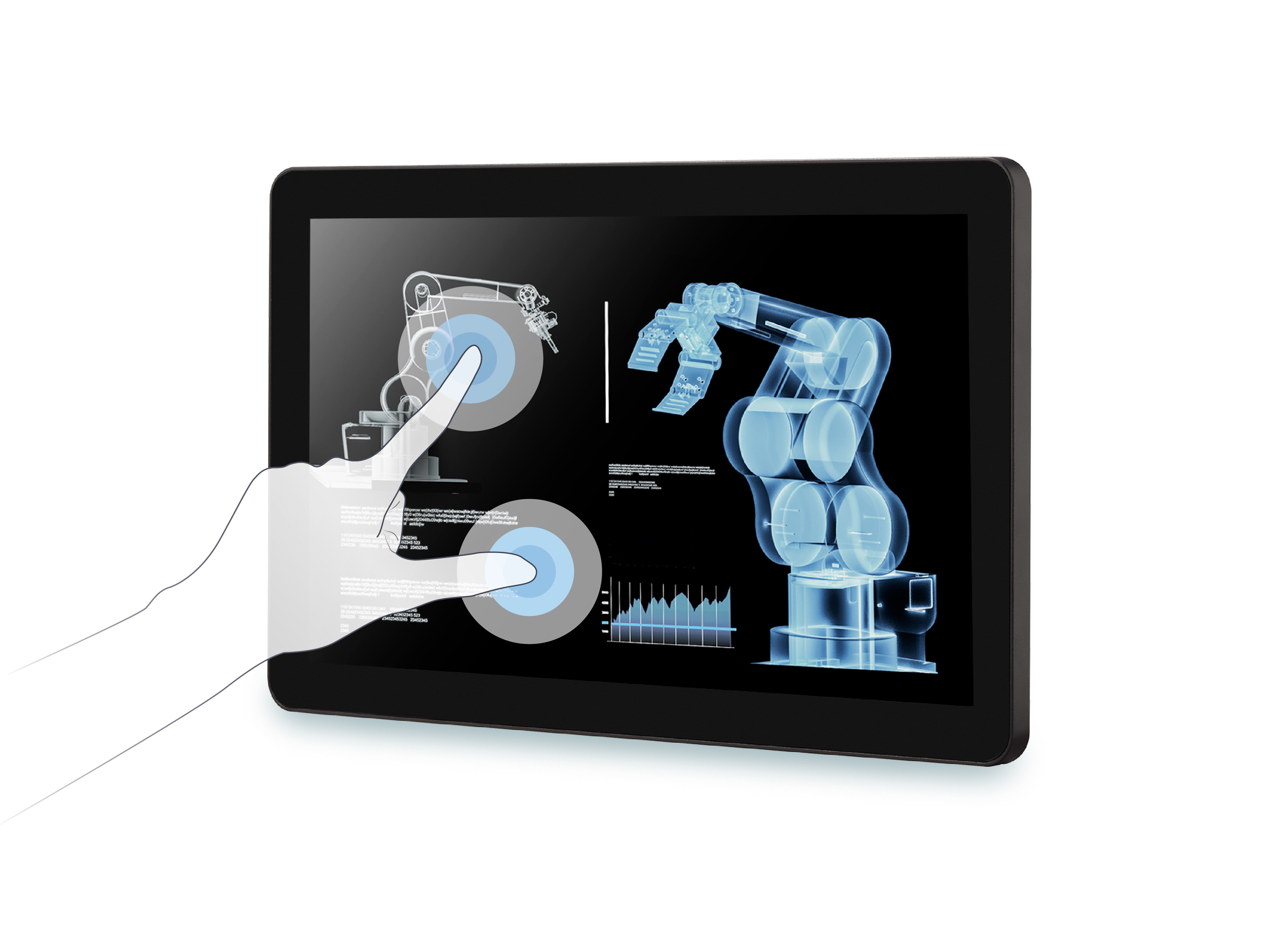

Advanced Touch Technology

Streamline your operations with a smooth and responsive touchscreen, powered by advanced Projective Capacitive (PCAP) Touch Technology. This screen accurately detects up to 10 simultaneous touch points, ensuring precise and reliable input with every interaction.
PCAP 10 Points Touch
Advanced Touch Technology 1

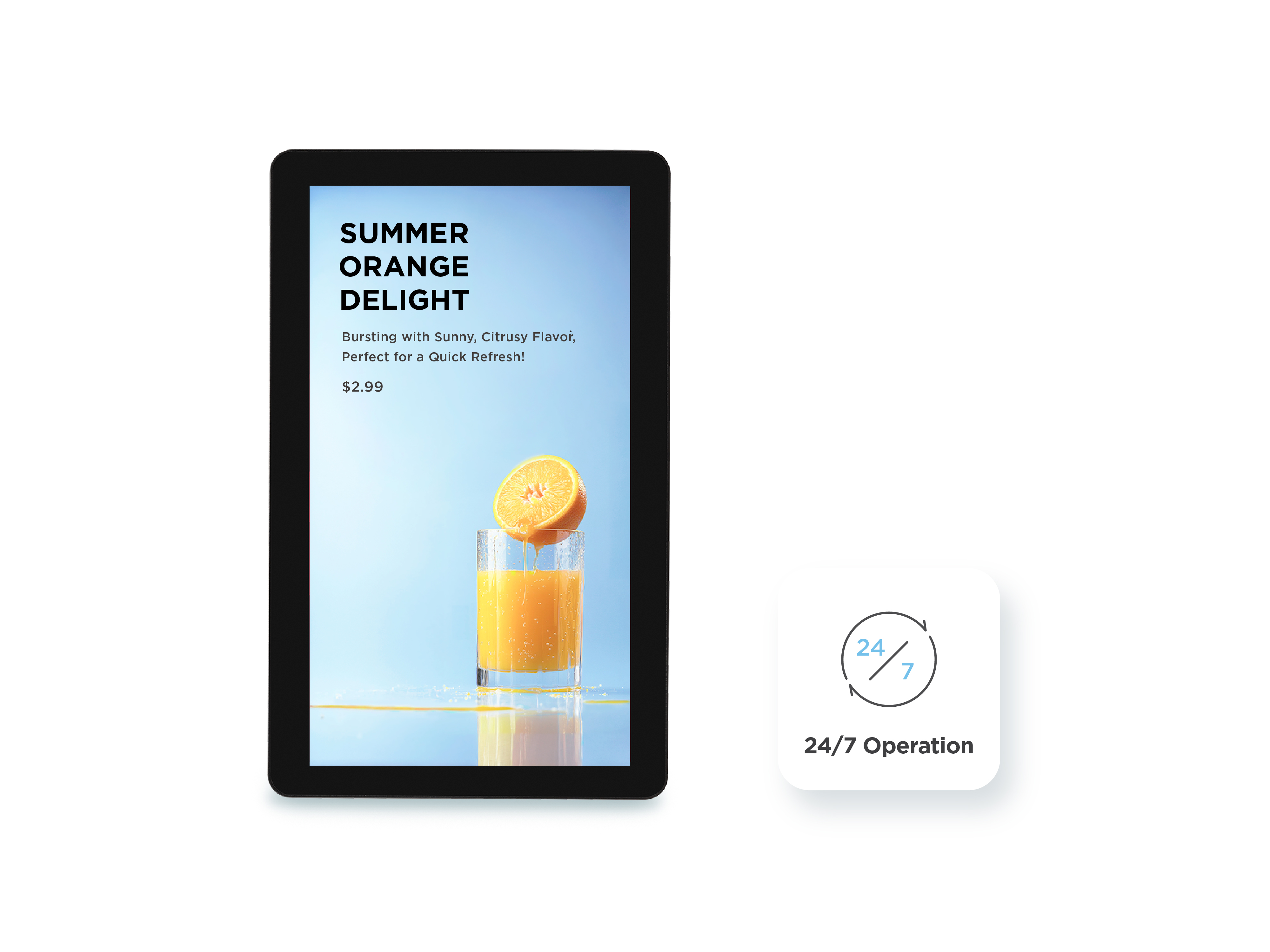

Long-Lasting Performance

Designed for 24/7 operation in demanding environments, the XF1630 delivers reliable performance and maximum uptime, ensuring your operations run seamlessly around the clock.
24/7 Continuous Operation
Long-Lasting Performance 1

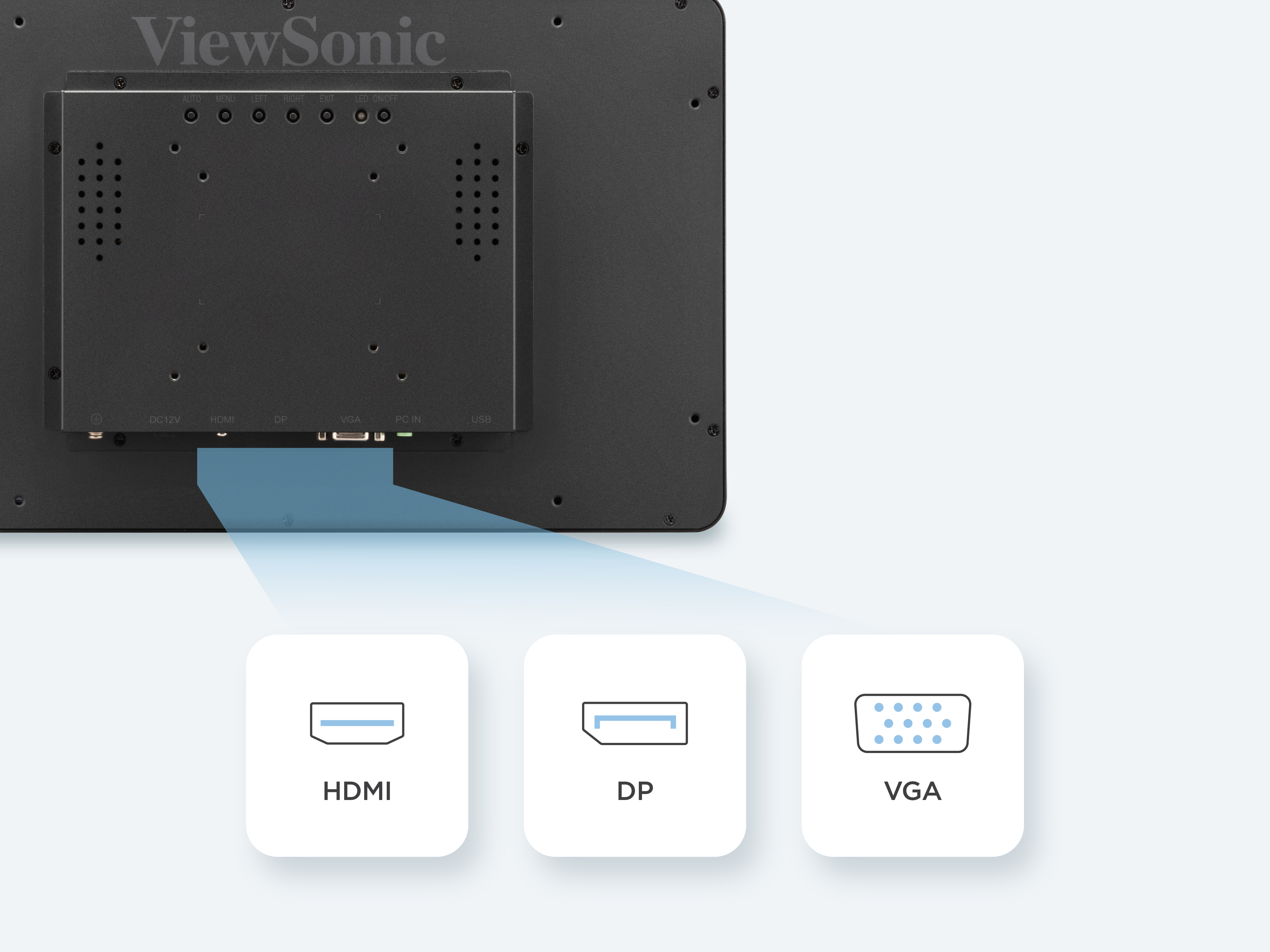

Effortless Content Sharing

Streamline operations with seamless content-sharing capabilities. With multiple inputs, including HDMI, DisplayPort, and VGA, external consoles, laptops, or high-definition devices can be effortlessly connected to share content with ease.
HDMI, DisplayPort, VGA

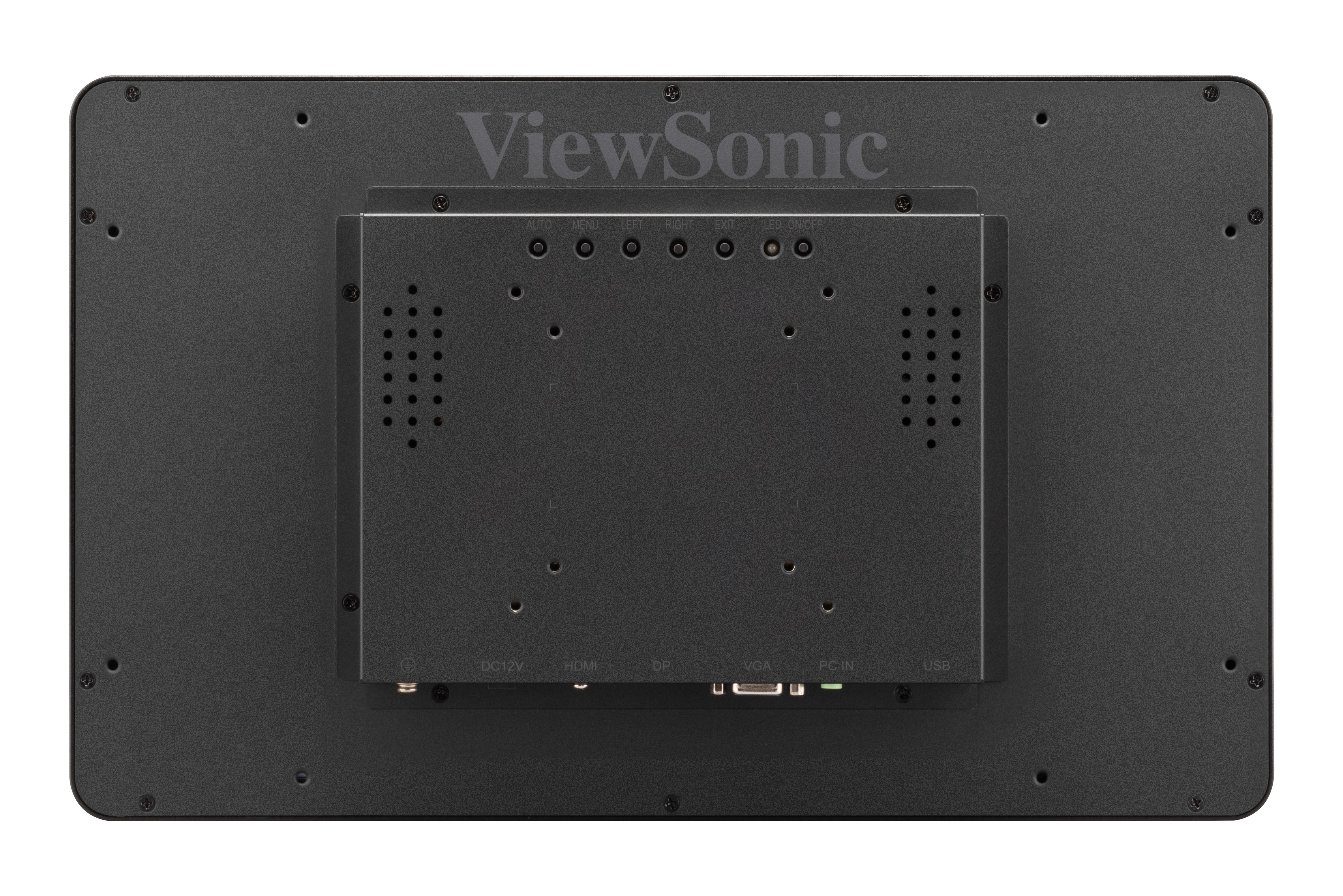

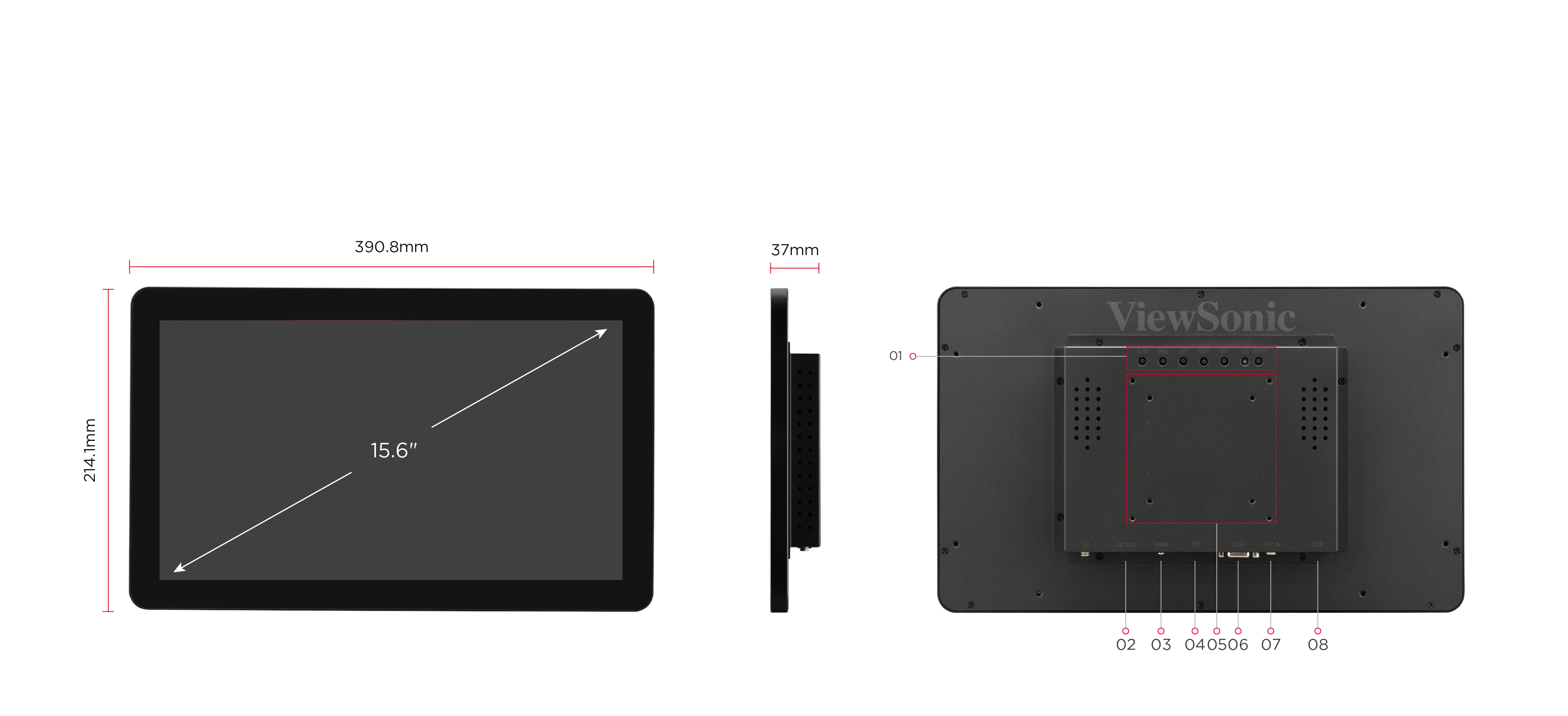

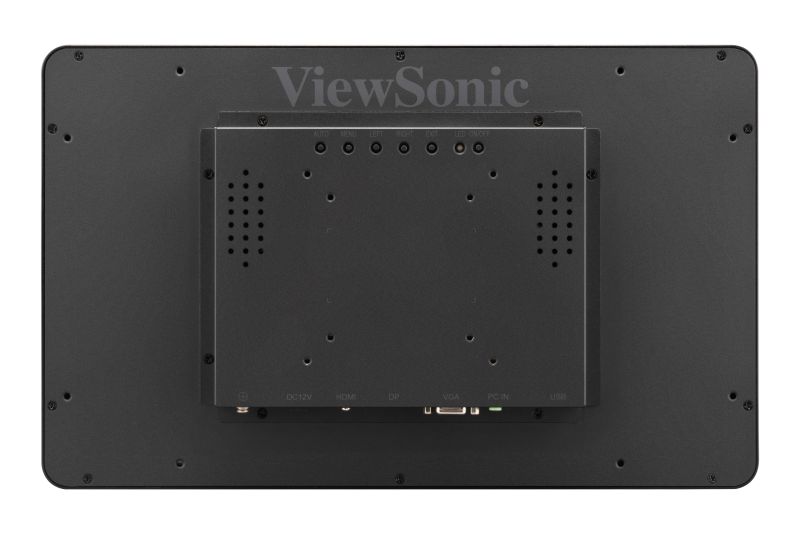

Dimension & I/O Ports

75 x 75mm and 100 x 100mm VESA mount
  1. VESA Compatible
    (Wall Mount 75 x 75 mm & 100 x 100 mm)
  2. Menu Control Panel
  3. USB
  4. DC12V
  5. HDMI
  6. DP
  7. VGA
  8. PC IN

SPECIFICATIONS


  • Display
    Aspect Ratio: 16:9
    Screen Size: 15.6"
    Active Area: 344.16 (H) x 193.59 (V)
    Pixel Pitch (mm): 0.18 (H) x 0.18 (V)
    Resolution: 1920 x 1080
    Contrast Ratio: 800:1
    Brightness: 187 cd/m²
    Viewing Angles: H:170° V:170°
    Response Time: 30 ms
    Display Colors: 262 K
    Backlight Life: 15,000 hrs
    Color Gamut: NTSC 45%
    Surface Treatment: Hard coating (7H)
    Cover Glass Thickness: 3 mm
    Touch Screen: PCAP 10 points
  • Compatibility
    PC Resolution (max): 1920 x 1080
    Mac Resolution (max): 1920 x 1080
    Operating System: Windows & macOS

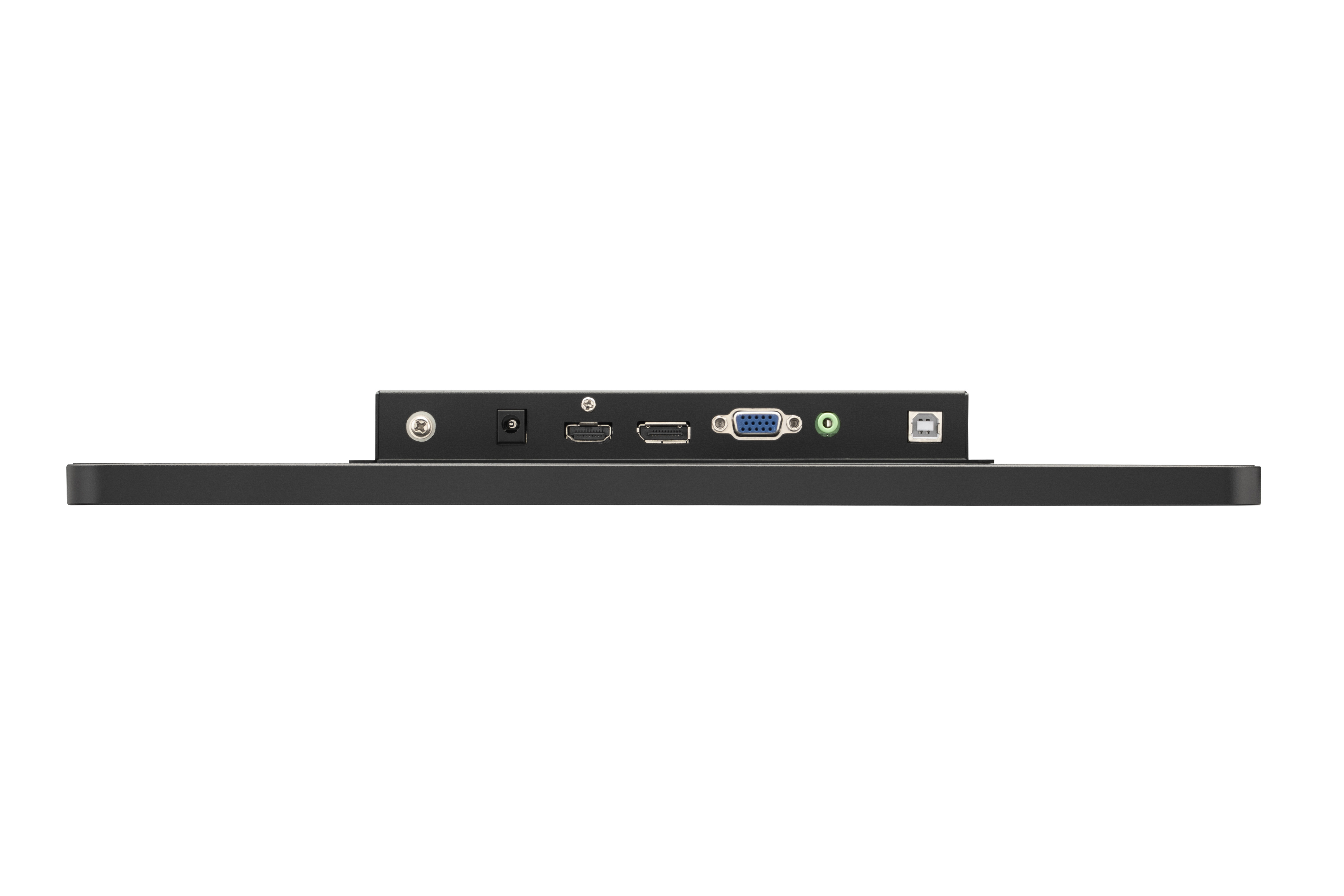

  • Connector
    USB 2.0 Type-B: 1 (for touch screen only)
    3.5mm Audio in: 1
    HDMI: 1
    DisplayPort: 1
    VGA: 1
    Power In: DC socket
