PD1631

Ideal for full-size document viewing and writing in e-document workflow

  • Implemented antimicrobial technology on pen and housing
  • High Performance and e-Signature precision with 2048 pen pressure

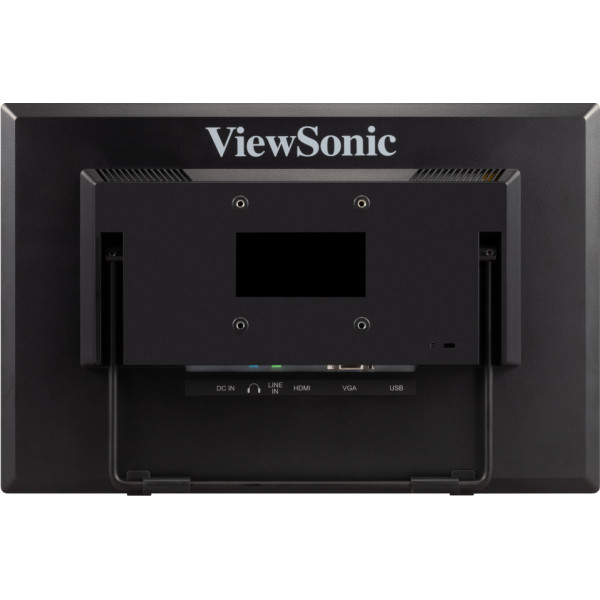

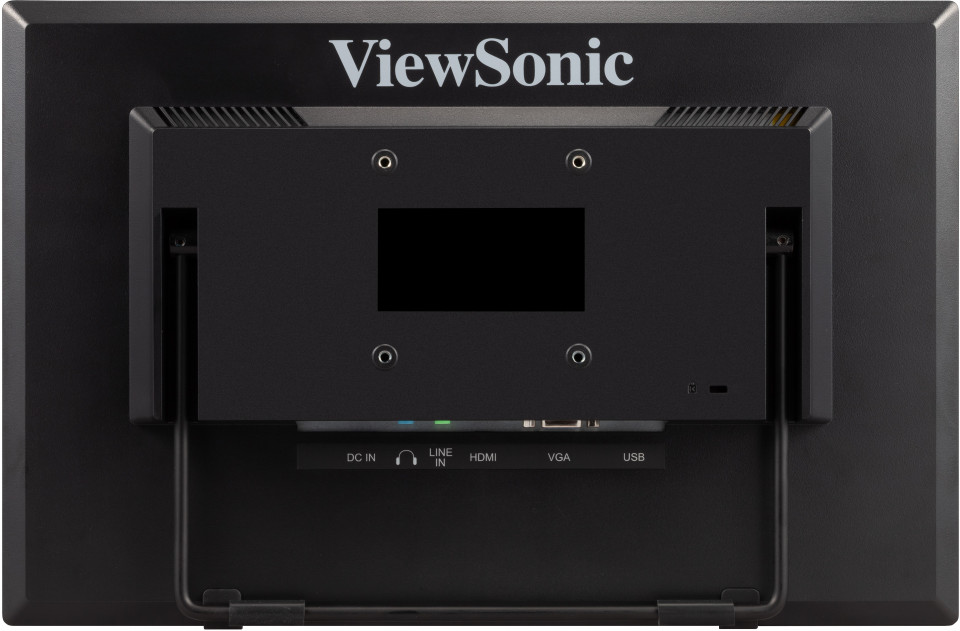

  • Ergonomic design, VESA-compliance, and Kensington lock security
  • Windows® compatible and support e-Signature software
  • 8H glass with anti-scratch, anti-glare, and anti-fingerprint
Sales Enquiry  Share

OVERVIEW

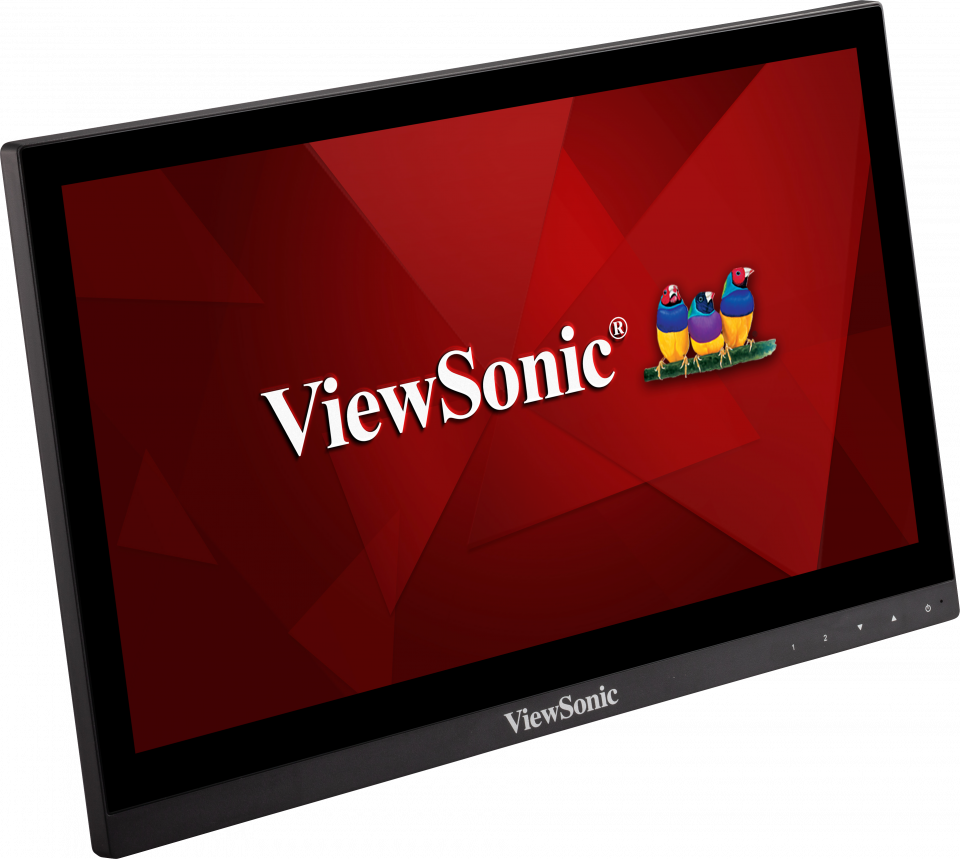

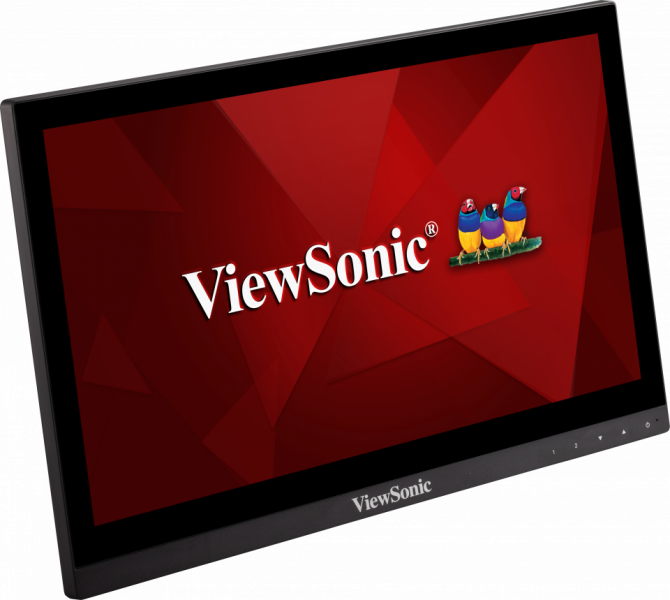

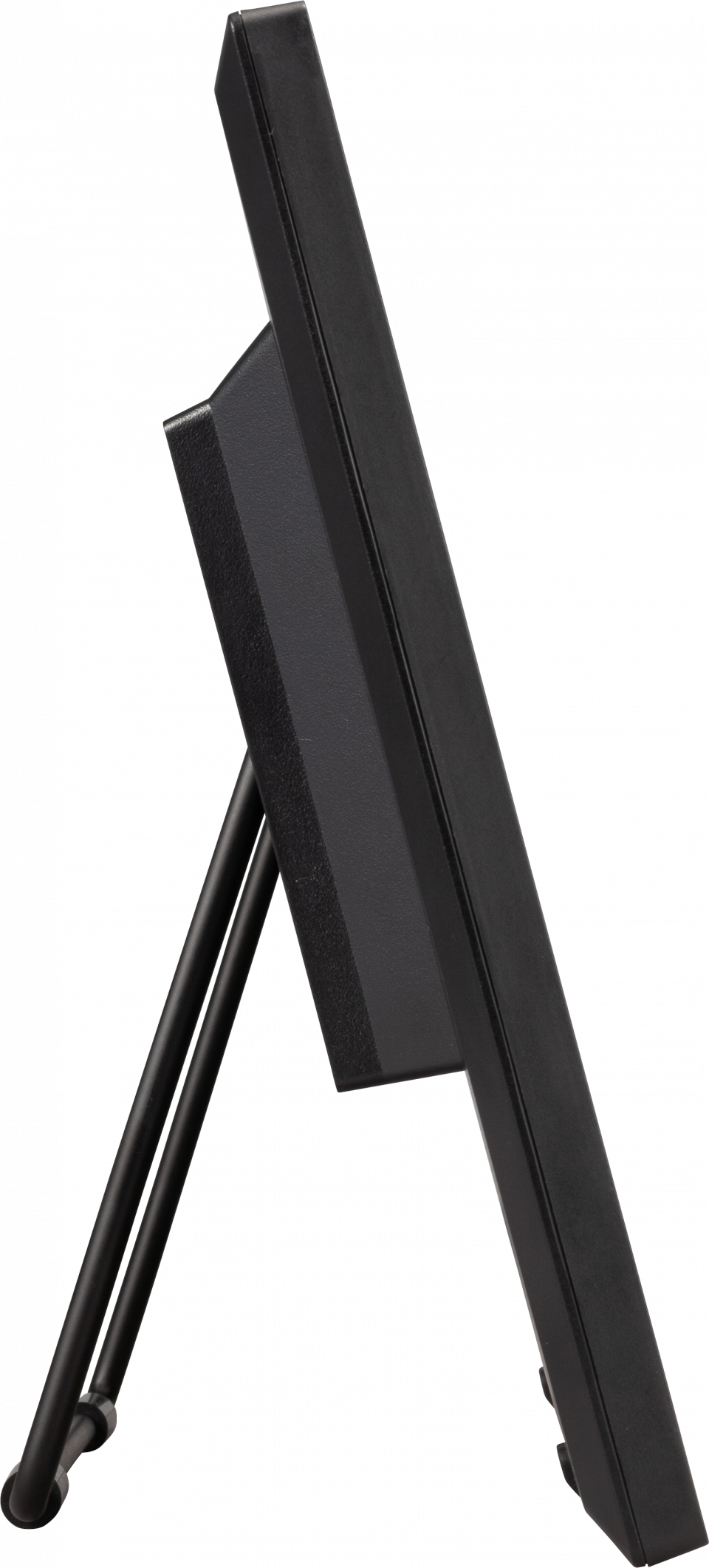

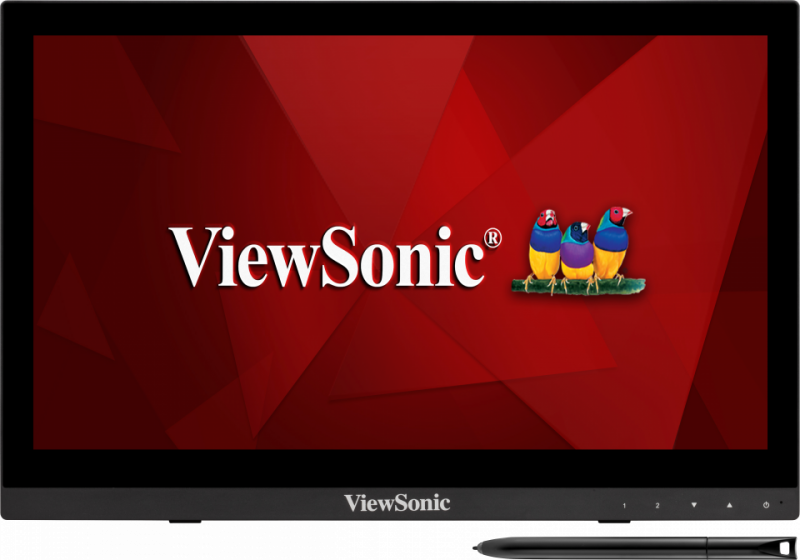

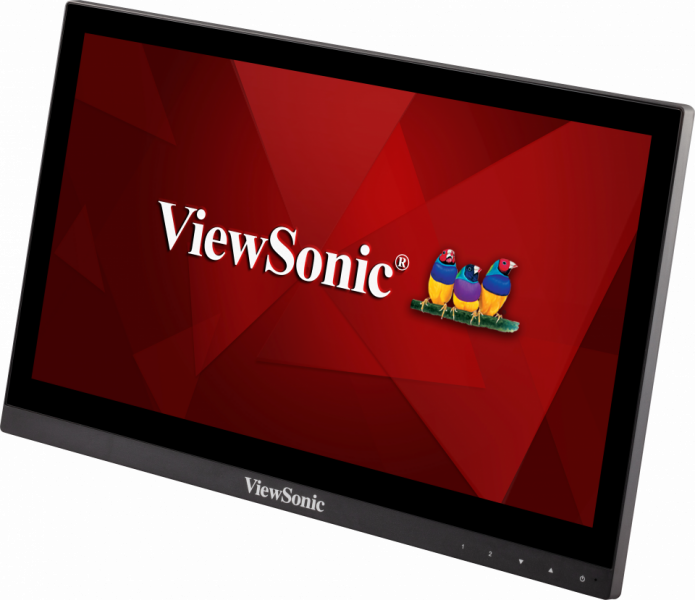

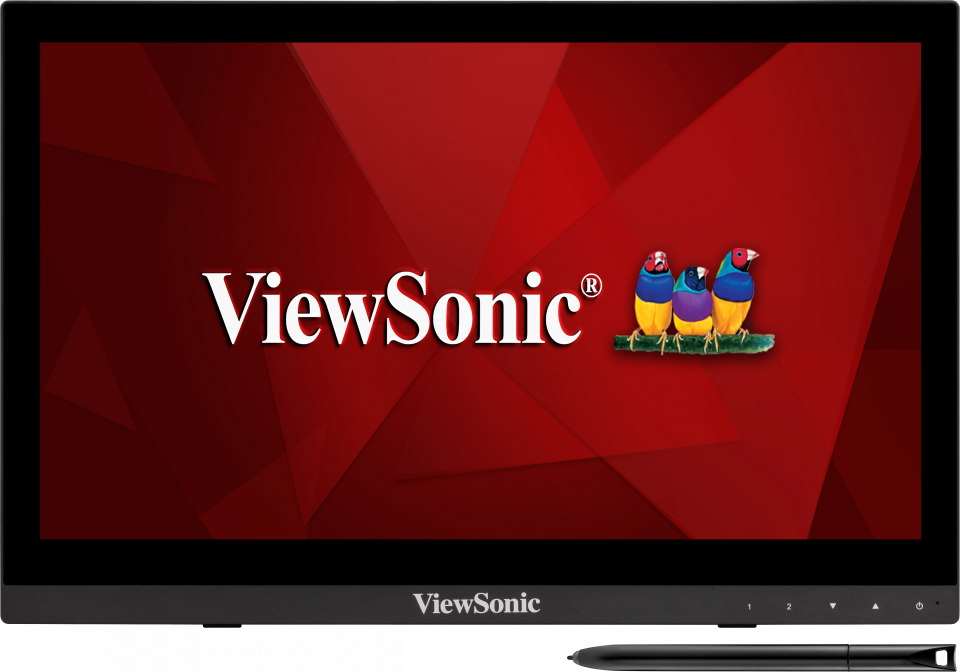

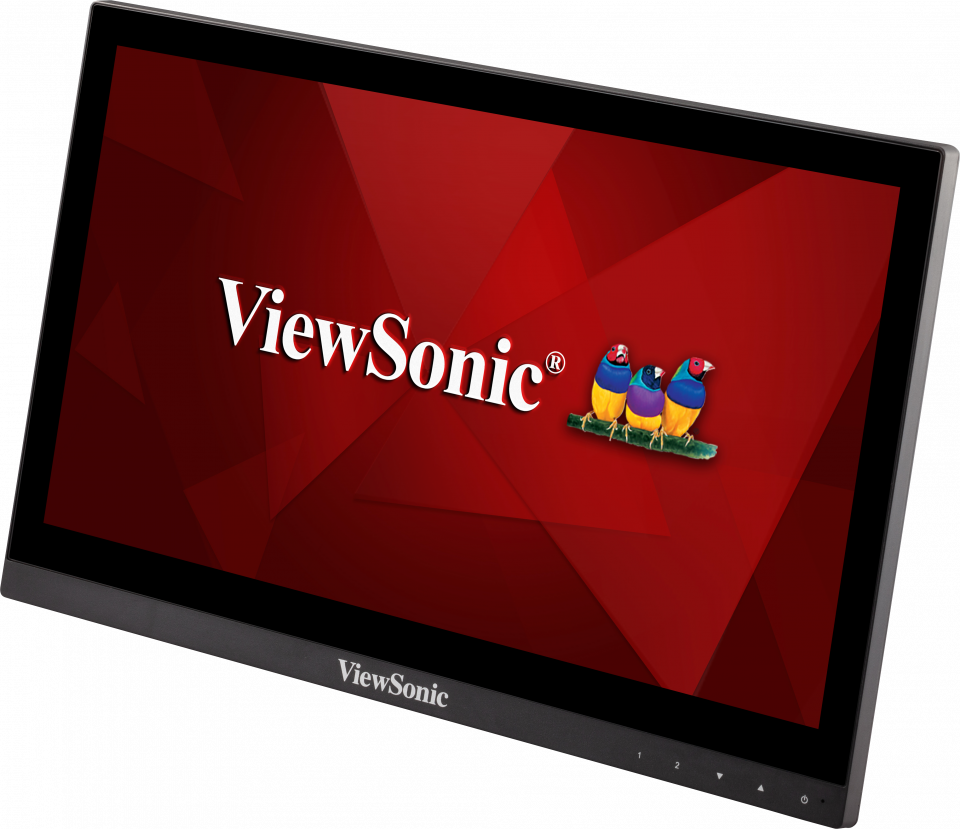

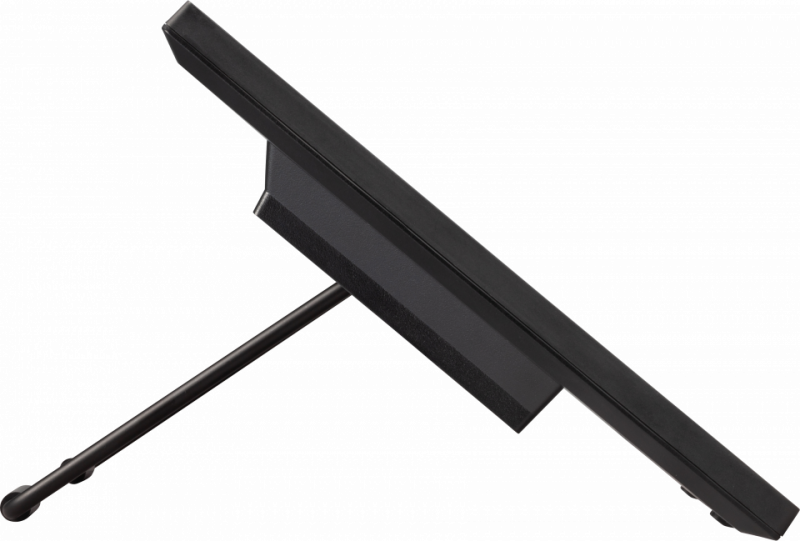

ViewSonic PD1631 is an ideal 15.6- inch LCD pen display for intuitive writing, annotating, and viewing in full-size document, making it easier for the user to view and signed documents. It offers the most comfortable signing and excellent writing experience with 2048 levels of pen pressure. The PD1631 also provides steady, shake-free operation with its sturdy book-stand design and it is compatible with Windows and various customized e-signature software.

A verified 99.9% antimicrobial solution

A verified 99.9 % antibacterial solution have been tested by SGS. Antibacterial technology implemented across all aspects of our product line including the pen, housing. *Option by request

A superior and intuitive handwriting experience

ViewSonic pen display delivers intuitive and accurate handwriting with 2048 levels of pen pressure sensitivity. The 250 pps response rate produces written text and highlighting on the screen without delays.

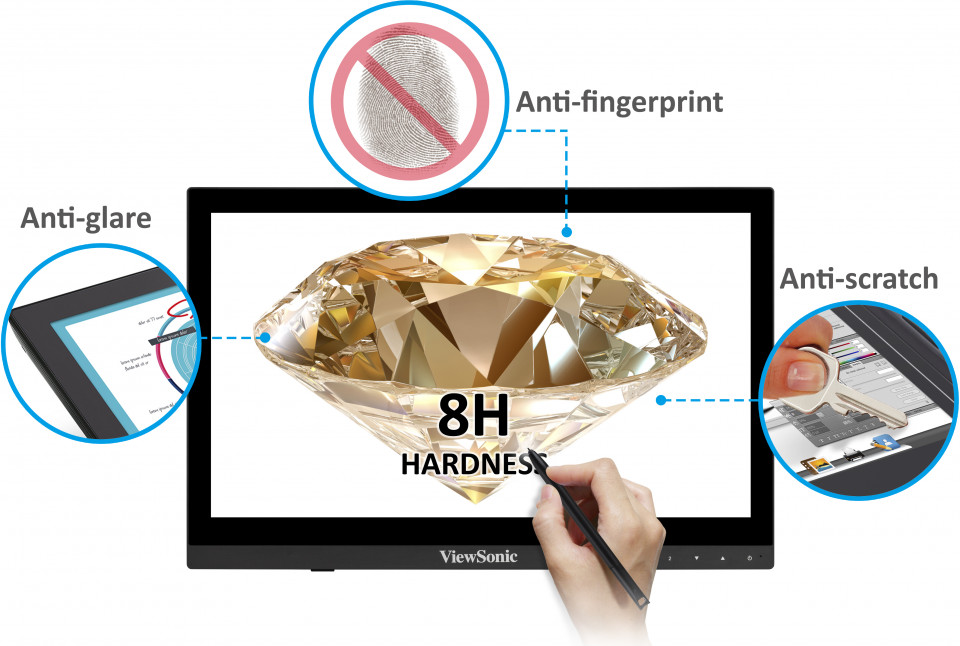

Outstanding durability surface

Constructed with an edge-to-edge 8H protective glass faceplate, the ViewSonic pen display is anti-scratch, anti-glare, and anti-fingerprint coating, delivering a durable and reliable user touch experience for e-signature solution in public usages.

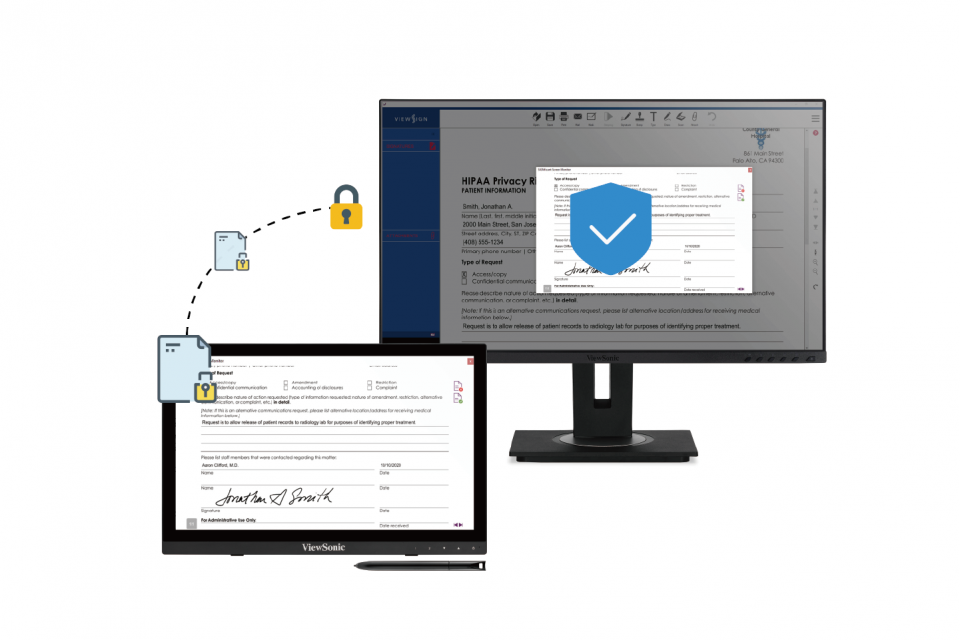

Secured Encryption

Each signature signed on the pen display undergoes a hardware and software based encryption. All data is protected according to RSA2048 & AES256,the highest industry standards. *Option by request

Support for virtualized environment

ViewSonic pen display offers several options for virtualized, remote desktop, Citrix, VMWare, and RDS and thin client / zero client environments.

SPECIFICATIONS


  • LCD PANEL
    Display Area: 344.16mm x 193.59 mm (15.6" TFT LCD)
    Optimum Resolution: FHD 1920 x 1080 pixels
    Brightness: 190 cd/m2
    Contrast Ratio: 1000:1
    Backlight: LED Light-Bar
    Viewing Angles: H:170° / V:170°

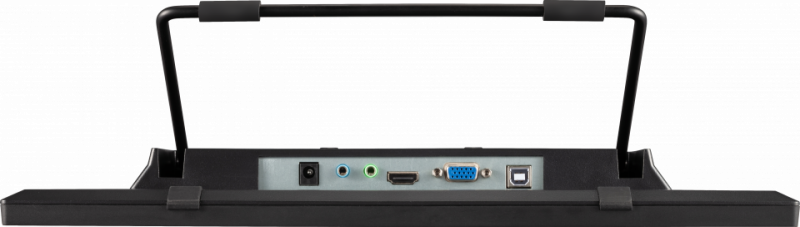

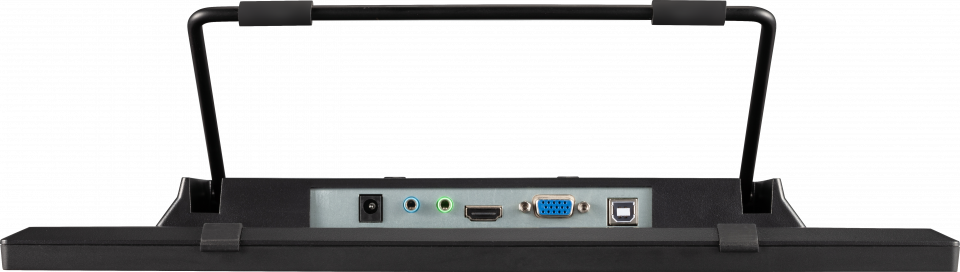

  • CONNECTOR
    Video: HDMI (1.4) x 1, VGA x 1
    Audio: Earphone x 1
    USB: USB2.0 (B) x 1
    Power: Adapter : 12V/3A
  • TOUCH
    Technology: EMP Technology
    Digitizer Resolution: 5080 LPI
    Writing Response: 250 PPS
    Accuracy: +/- 0.5mm(center)
    Pressure Level: 2048 levels
