VX3217-2KC-mhd

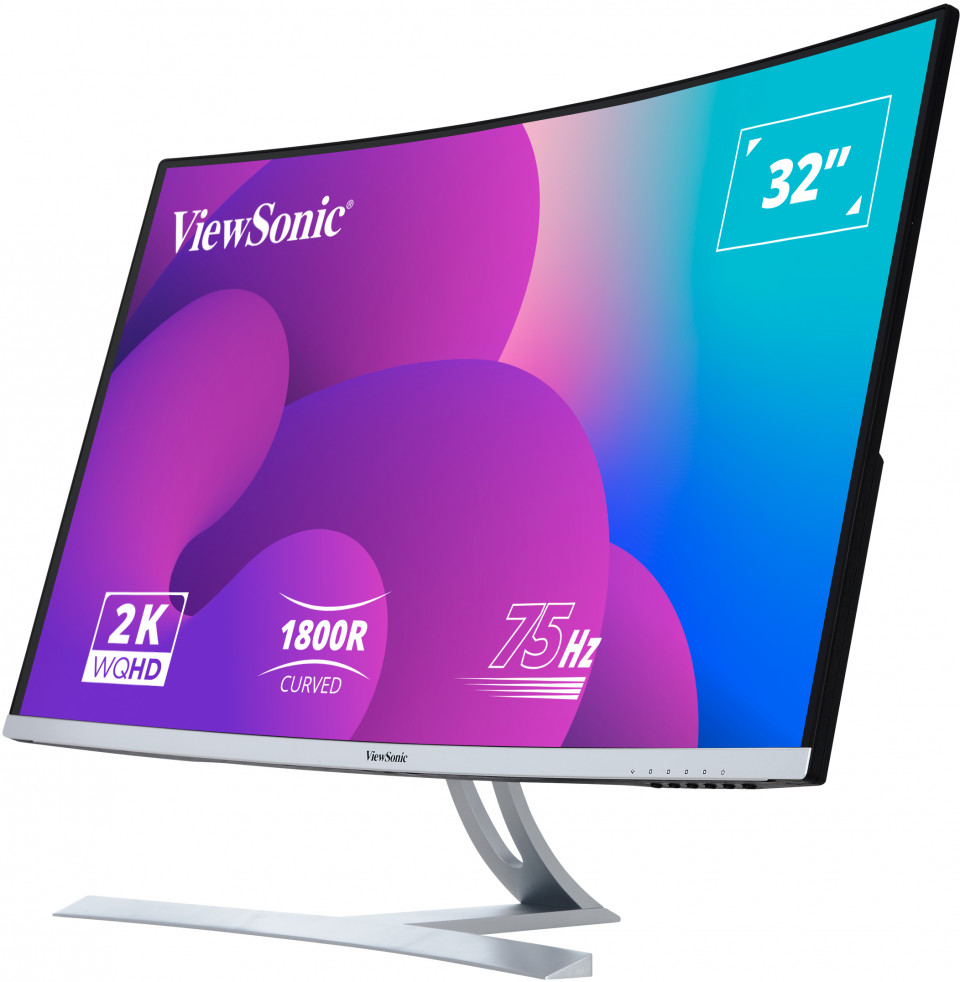

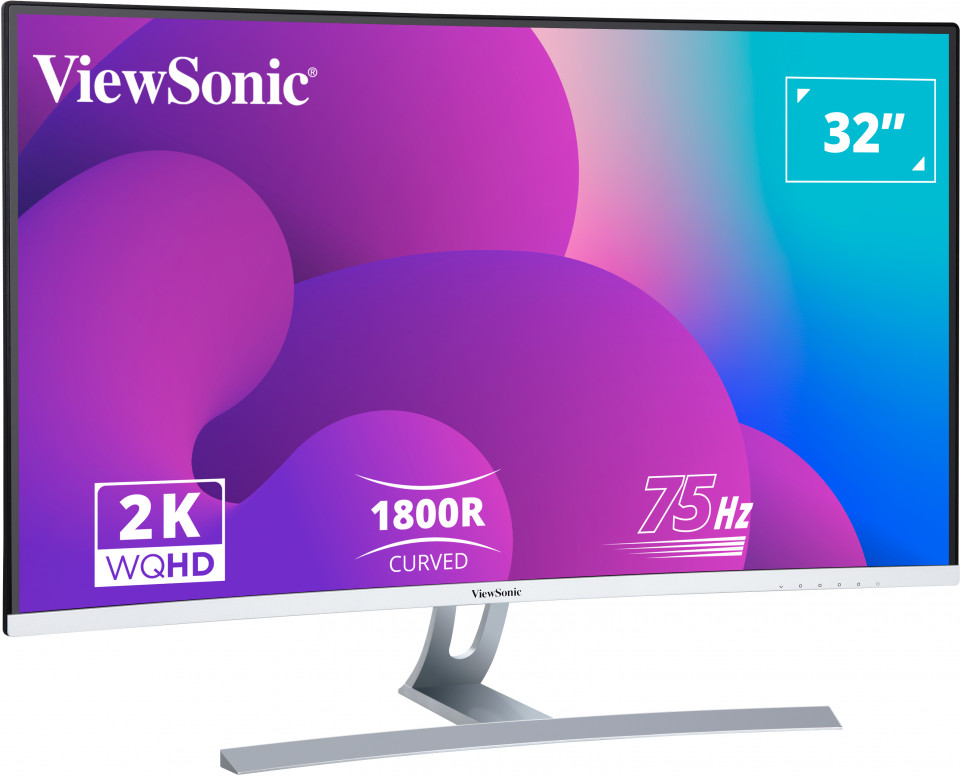

32" 2K Curved Frameless Entertainment Monitor

WQHD 1440p resolution
75Hz refresh rate
Dual HDMI, DisplayPort and mini DP inputs
Frameless bezel
Dual integrated speakers

GALLERY

REVIEWS

๋JIB

“[Live สด : EP.763] REVIEW : ViewSonic VX3276-2K-mhd จอขนาด 32” ที่ออกแบบได้โฉบเฉี่ยวและบางเฉียบ มาพร้อมกับรุ่น VX3217-2KC-mhd ในแบบจอโค้ง”

Read Review

นายบอส

“ViewSonic VX3217 vs. VX3276 #บอสรีวิว เมื่อจับเอามอนิเตอร์พาเนล IPS (ViewSonic VX3276) มาเทียบกับพาเนล VA (ViewSonic VX3217) มาดูกันว่าเทคโนโลยี SuperClear® IPS ของ ViewSonic จะสร้างความแตกต่างได้มากแค่ไหน .. แล้วคุณละ ชอบสีสันหน้าจอแบบไหนมากกว่ากัน?”

Read Review

SPECIFICATIONS

Display
Display Size (in.): 32
Viewable Area (in.): 31.5
Panel Type: VA Technology
Resolution: 2560 x 1440
Resolution Type: QHD (Quad HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)

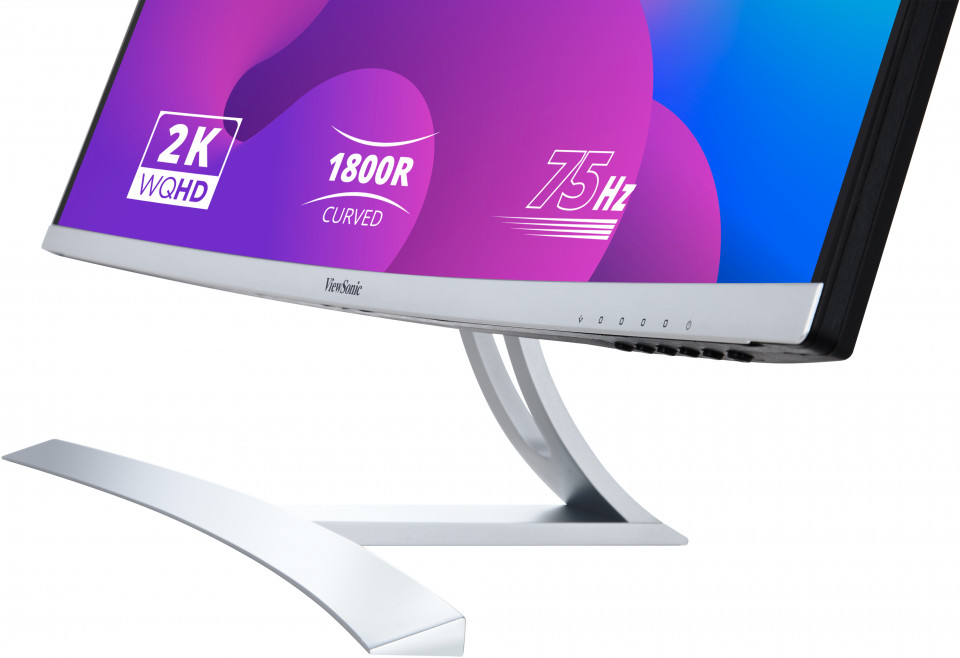

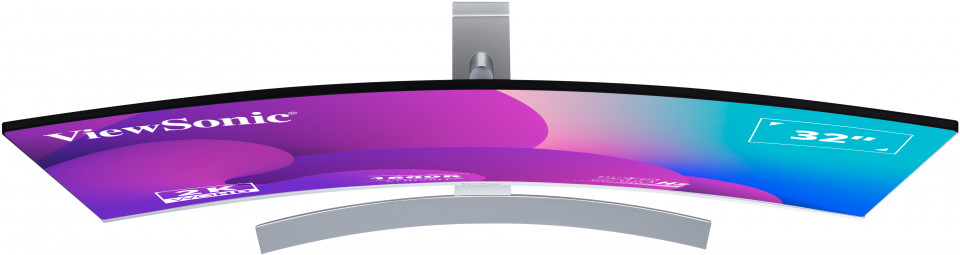

Curvature: 1800R
Refresh Rate (Hz): 75
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 75% size (Typ)
sRGB: 105% size (Typ)
Pixel Size: 0.272 mm (H) x 0.272 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 2560x1440
Mac® Resolution (max): 2560x1440
PC Operating System: Windows 7/8/8.1/10 certified; macOS tested
Mac® Resolution (min): 2560x1440

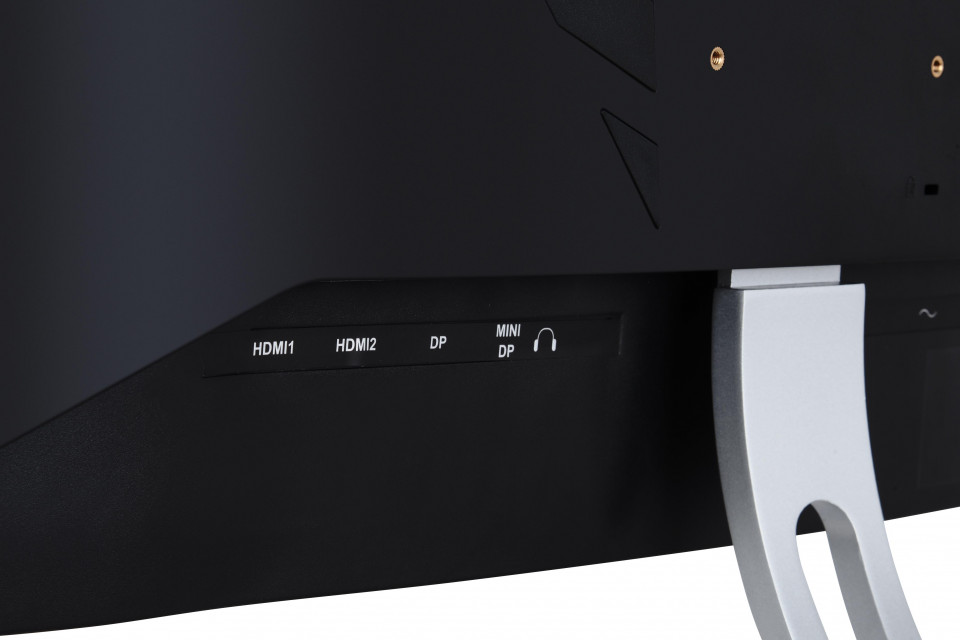

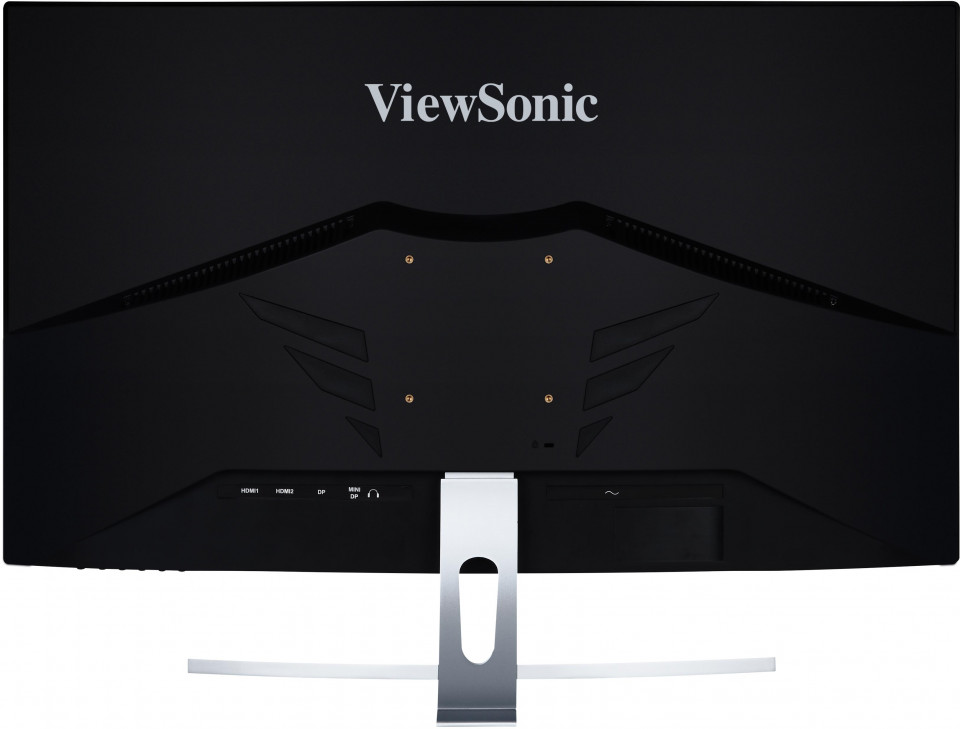

Connector
3.5mm Audio Out: 1
HDMI 1.4: 2
DisplayPort: 1
Mini DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 30W
Eco Mode (optimized): 35W
Consumption (typical): 40W
Consumption (max): 42W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Controls
Physical Controls: Key 1 (game mode), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%

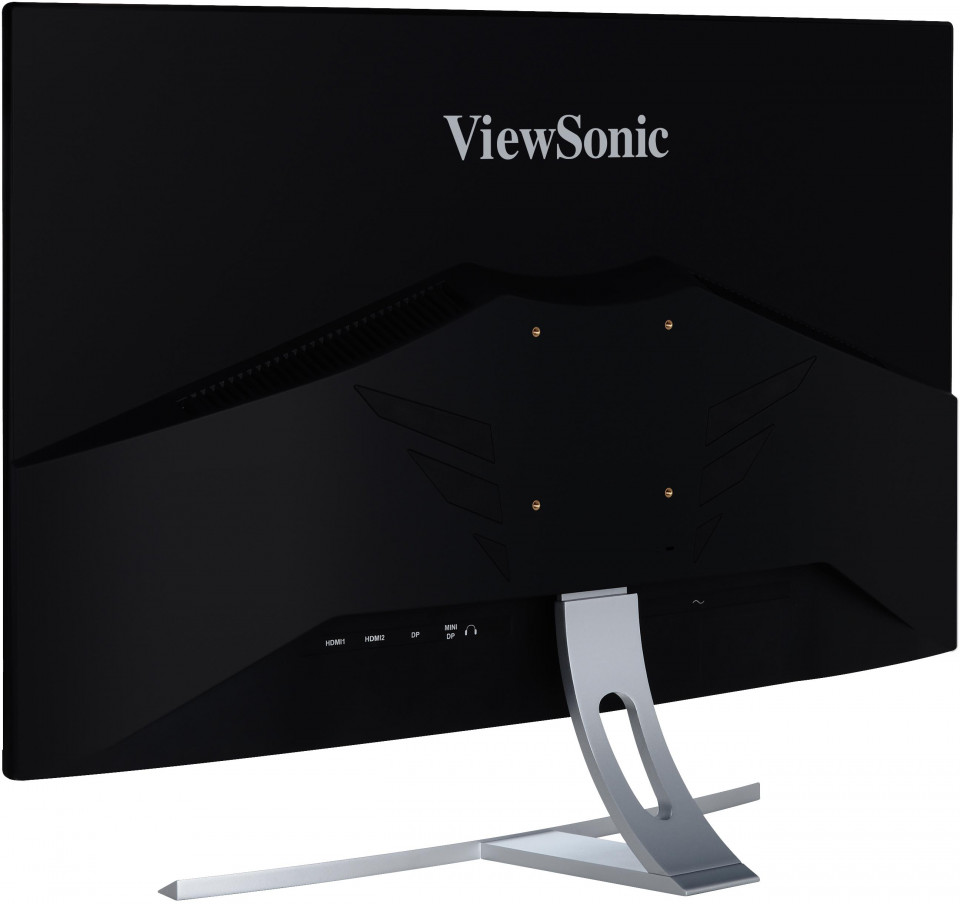

Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: HDMI (v1.4): 15 ~ 113KHz, DisplayPort (v1.2): 24 ~ 113KHz, mini DisplayPort (v1.2): 24 ~ 113KHz
Frequency Vertical: HDMI (v1.4): 24 ~ 75Hz, DisplayPort (v1.2): 50 ~ 75Hz, mini DisplayPort (v1.2): 50 ~ 75Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2), PCI-E - mini DisplayPort (v1.2)
Ergonomics

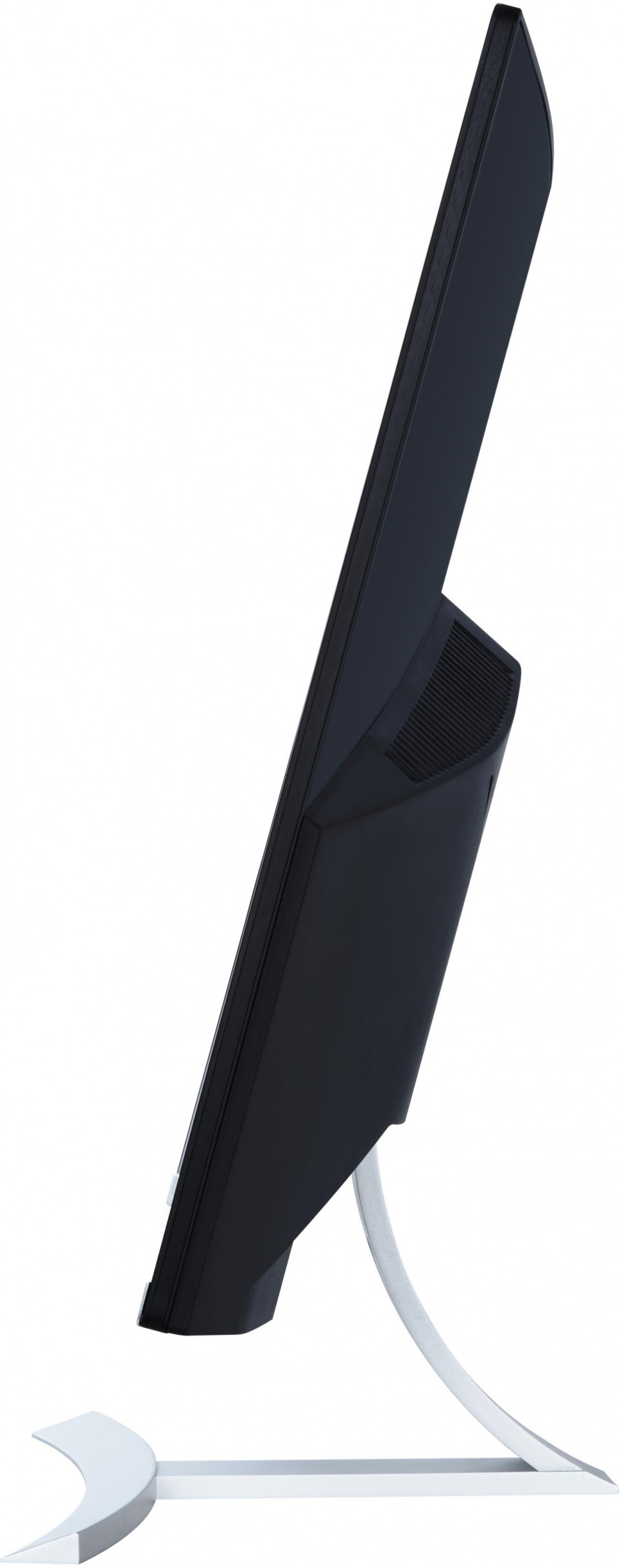

Tilt (Forward/Back): -4º / 15º
Weight (imperial)
Net (lbs): 14.8
Net Without Stand (lbs): 13.2
Gross (lbs): 20.3
Weight (metric)
Net (kg): 6.7
Net Without Stand (kg): 6
Gross (kg): 9.2
Dimensions (imperial) (wxhxd)
Packaging (in.): 32.1 x 21.7 x 7.2
Physical (in.): 28 x 19.9 x 9.8
Physical Without Stand (in.): 28 x 16.5 x 3.2
Dimensions (metric) (wxhxd)
Packaging (mm): 815 x 551 x 183
Physical (mm): 711 x 507 x 249
Physical Without Stand (mm): 711 x 420 x 80
General
PACKAGE CONTENTS: VX3217-2KC-MHD x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
