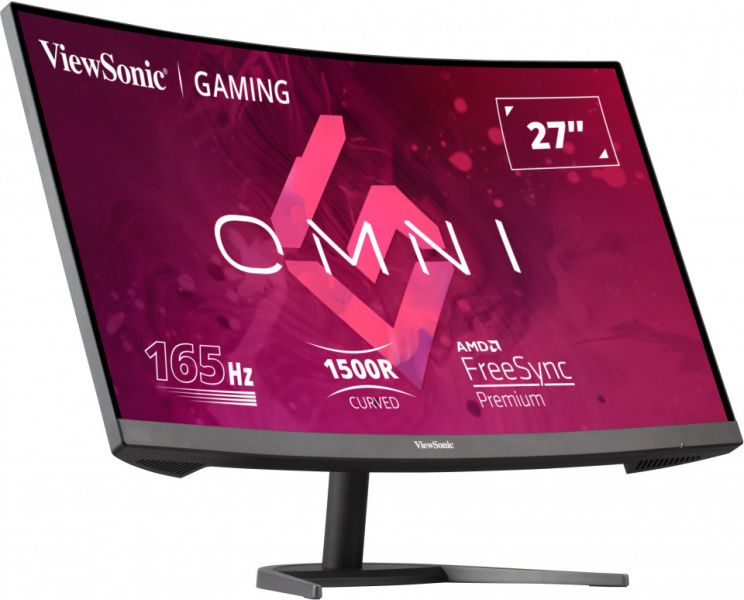

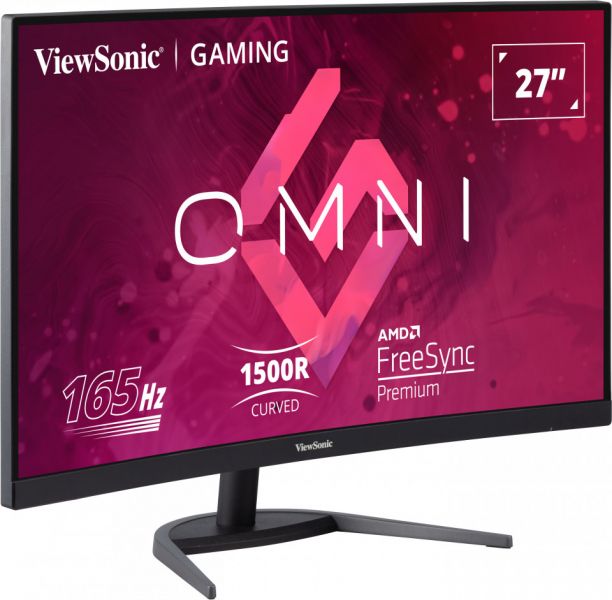

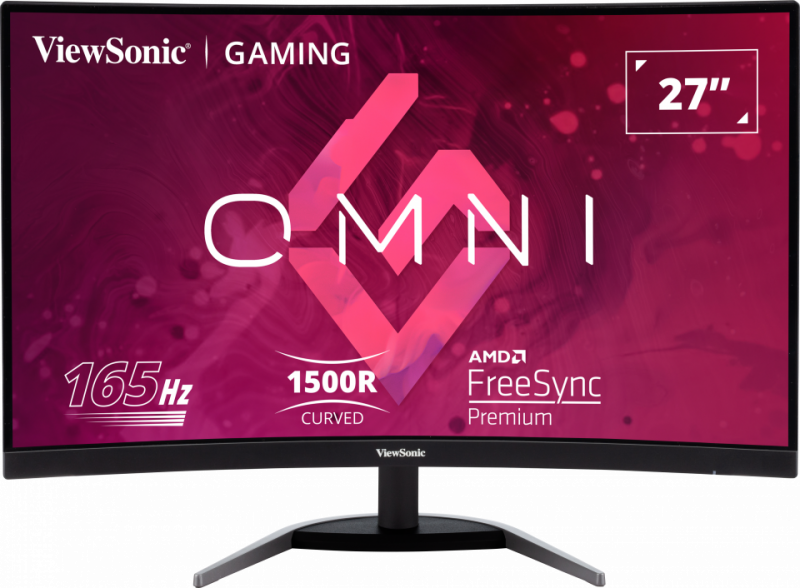

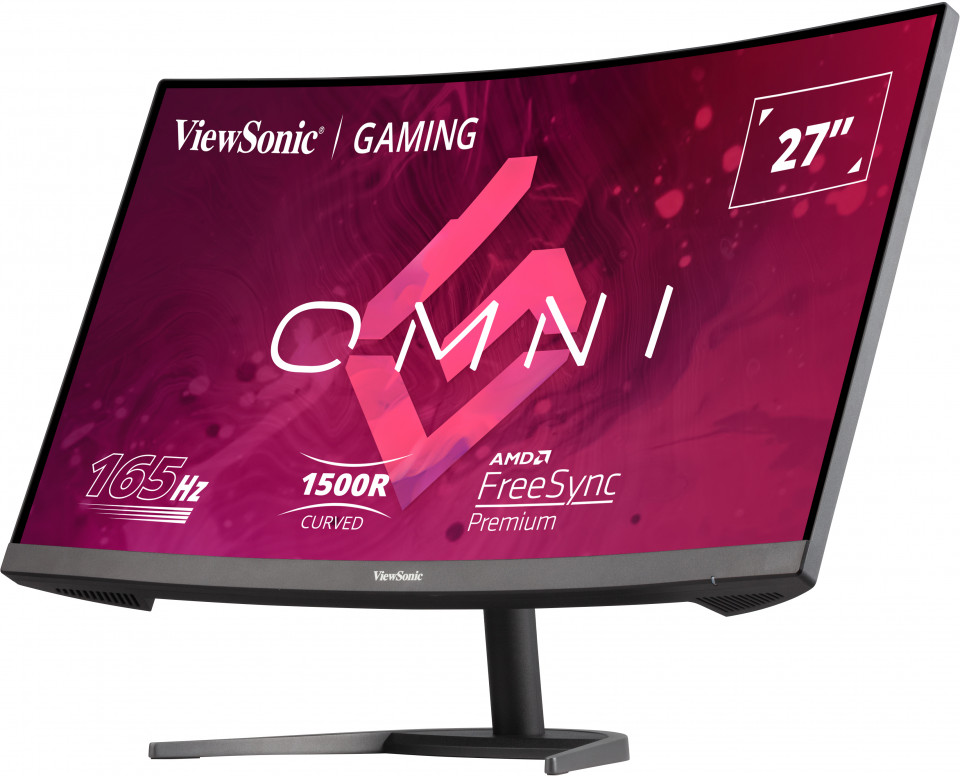

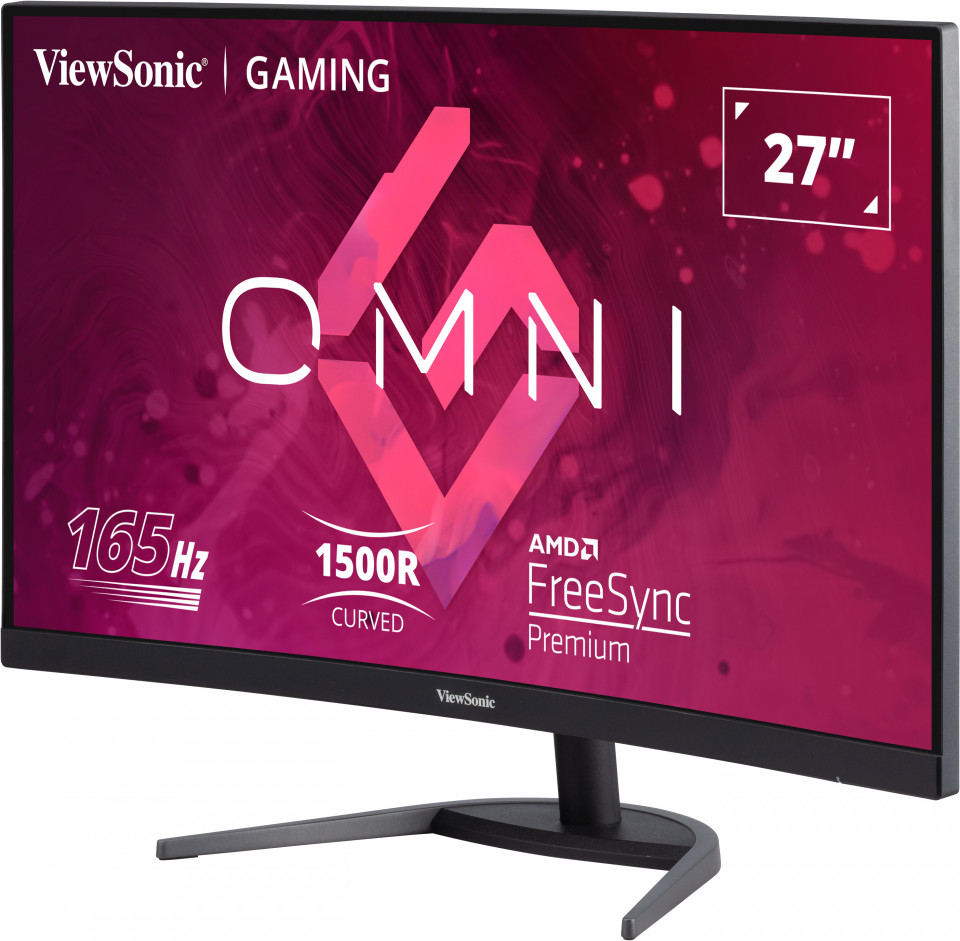

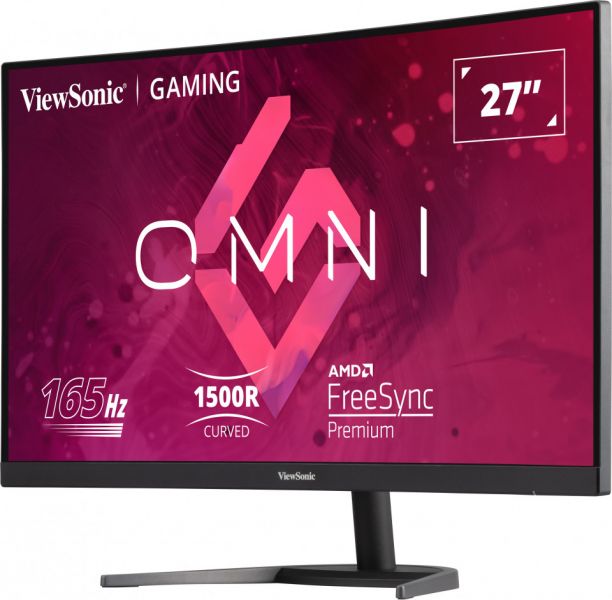

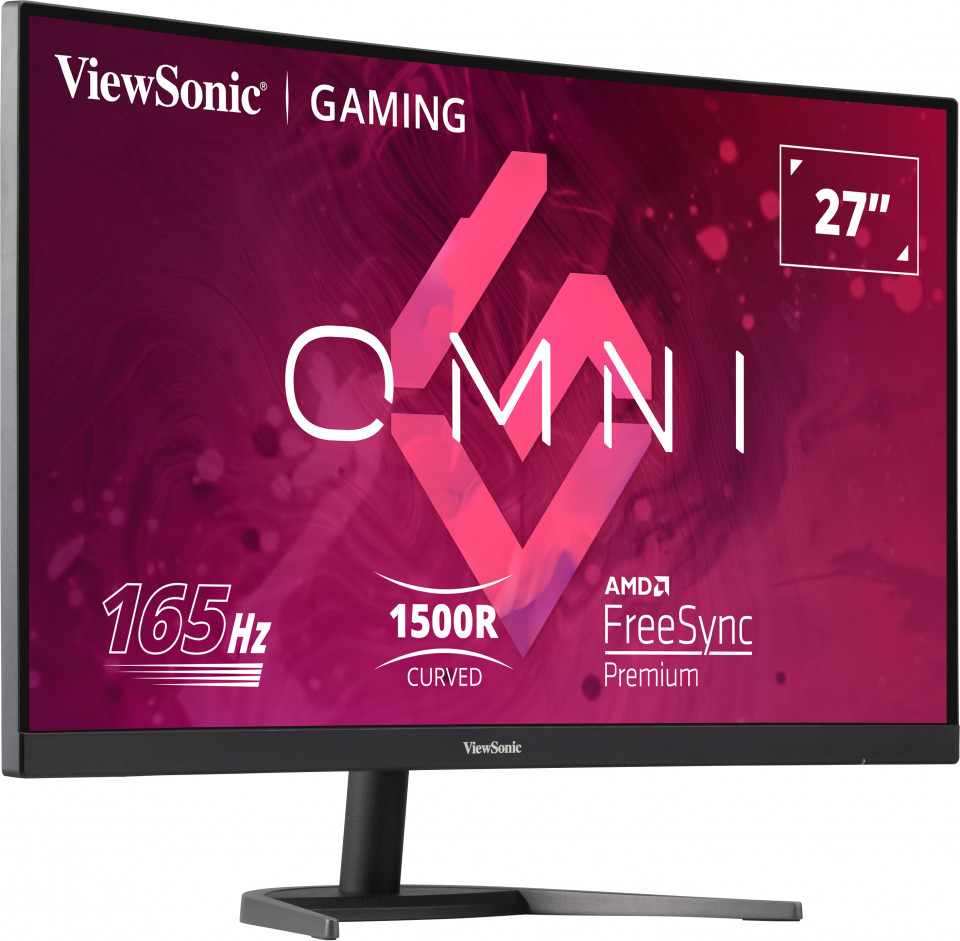

VX2768-PC-mhd
27” 165Hz Curved Gaming Monitor
- 1500R curved screen for a perfect balance of immersion and comfort
- 165Hz refresh rate ensures clarify in motion
- 1ms (MPRT) response time ensures smooth images
- AMD FreeSync™ Premium prevents screen tearing
- FHD 1080p resolution for clear detail
OVERVIEW
With an ultimate immersive curved screen and 165Hz refresh rate, the ViewSonic VX2768-PC-MHD provides a stunning viewing experience.The monitor has been designed with a 1500R curved and borderless panel for an immersive experience. A high 165Hz refresh rate delivers clarity in motion while AMD FreeSync™ Premium, virtually eliminates screen tearing and stuttering for a fluid gaming experience. With 1ms MPRT response time, the monitor delivers smooth images without ghosting. The VX2768-PC-MHD is also equipped with ViewSonic’s exclusive ViewMode™ presets, which offer user-customized game modes, including FPS, RTS and MOBA game settings. In addition, a DisplayPort and two HDMI inputs offer flexible connectivity for gameplay.Clarity in Motion
165Hz refresh rate delivers great visual fluidity and flawless graphics no matter how quickly the in-game action unfolds.165Hz
Smooth Images without Ghosting
1ms (MPRT) response time delivers better performance with smooth pixel transitions from color to color and reduced ghosting.1ms Response Time
Prevent Screen Tearing
With AMD FreeSync™ technology, the monitor is able to adapt so that there is less fluctuation and jumpiness in the image.AMD FreeSync™ Premium
Wide Gamut and Color Possibilities
The monitor covers a wide portion of the color gamut to reproduce and communicate colors from their source.85% NTSC Color Coverage
User-Customized Game Mode
ViewSonic’s exclusive ViewMode offers specialized presets to fit different usage scenarios. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver the optimal viewing characteristics for each application. The Game Mode integrates pre-calibrated FPS, RTS and MOBA game settings with in-game testing and adjustments for the best blend of color and technology.ViewMode
Immersive Audio
Designed with dual integrated speakers, the monitor accents its incredible screen performance with stereo sound for a complete multimedia experience.2W Dual Speakers
Connection Flexibility
Dual HDMI and DisplayPort inputs offer a wide range of compatibility, giving you the ultimate flexibility when connecting devices.
Viewing Comfort
Flicker-Free technology and a Blue Light Filter help reduce eye strain and fatigue from too much screen time and intense use.Flicker Free
Blue Light Filter
Low Energy Consumption
The monitor has been designed with energy efficiency in mind, featuring an Eco Mode that consumes less power, resulting in a smaller carbon footprint and reduced office overhead costs.Eco Mode

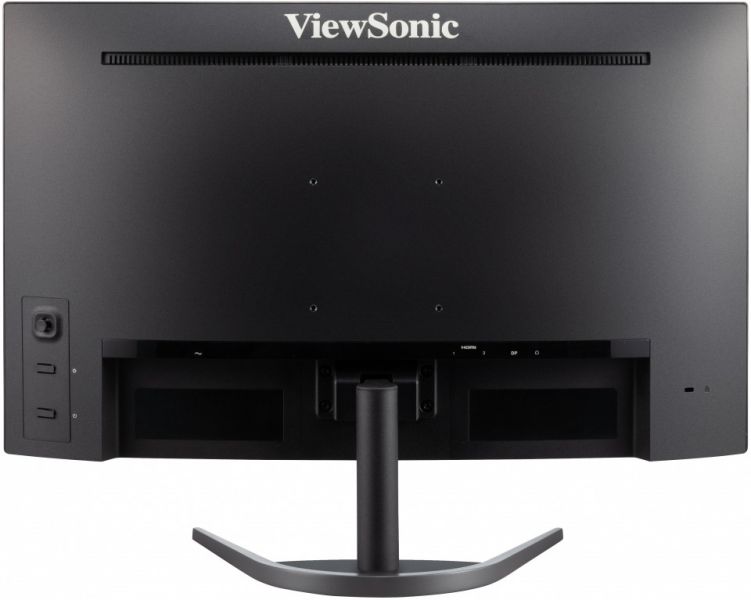

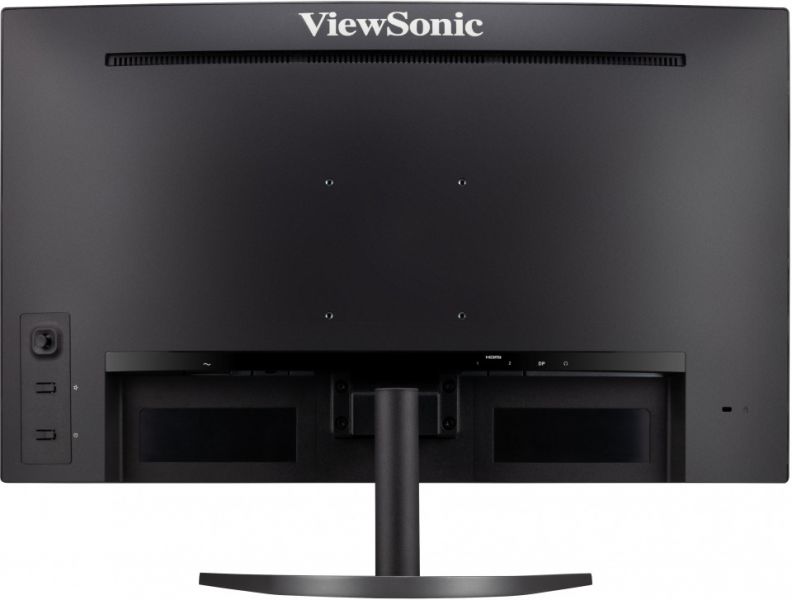

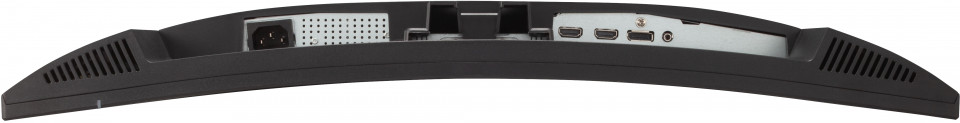

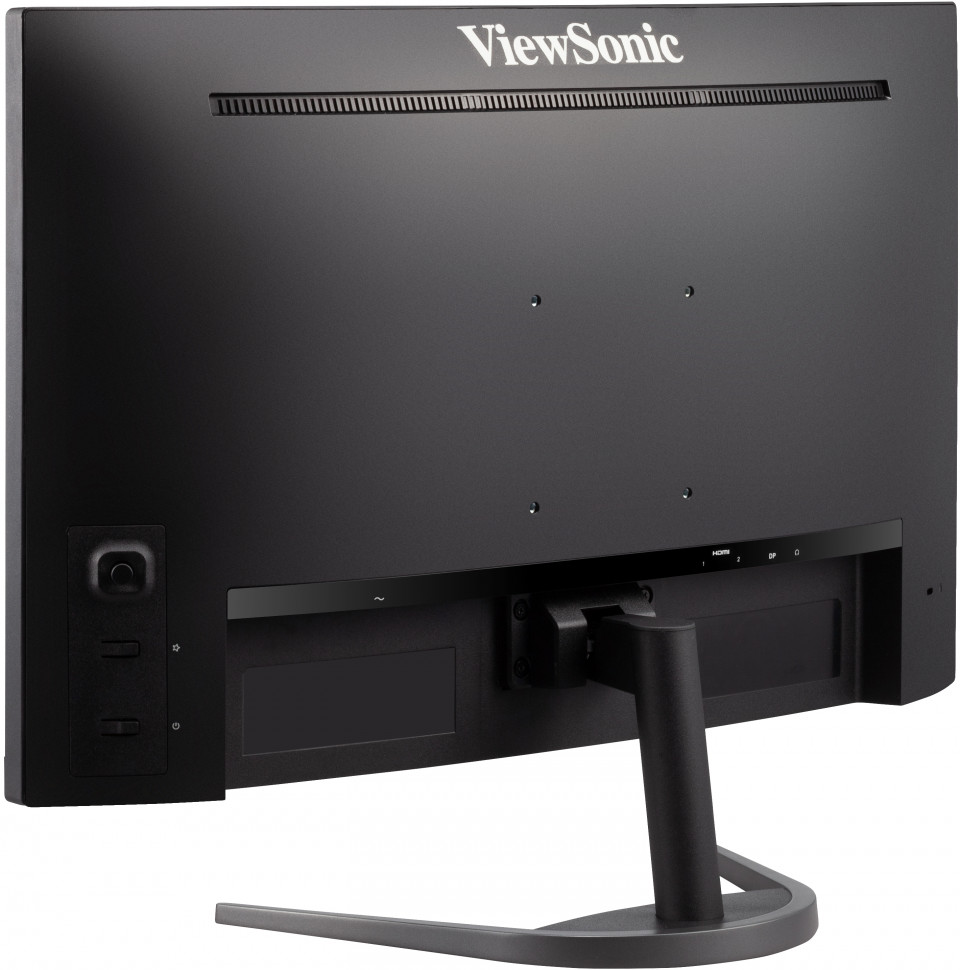

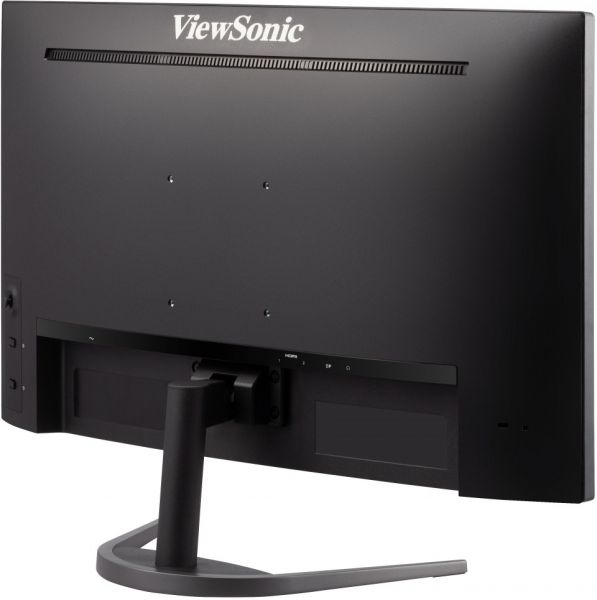

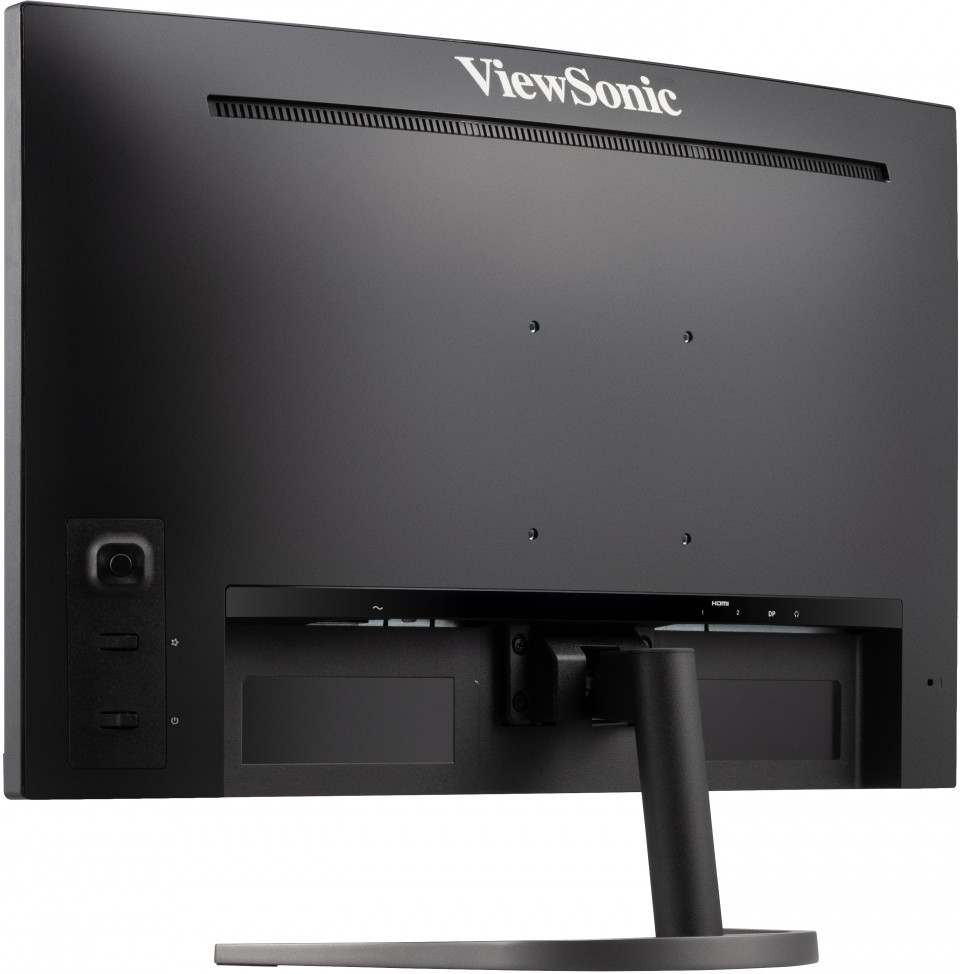

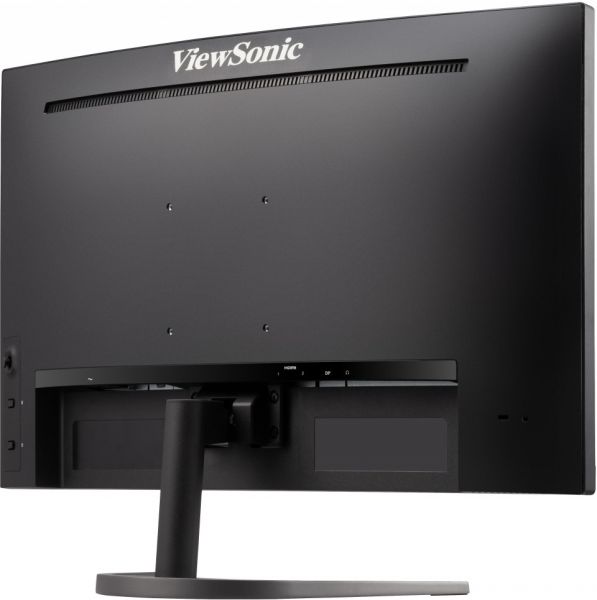

Dimensions & I/O Ports
SPECIFICATIONS
- DisplayDisplay Size (in.): 27
Viewable Area (in.): 27
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (MPRT): 1ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)

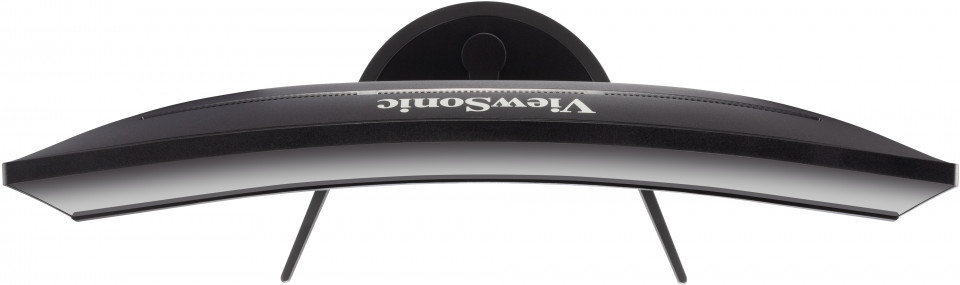

Curvature: 1500R
Refresh Rate (Hz): 165
Variable Refresh Rate Technology: FreeSync Premium
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 85% size (Typ)
sRGB: 120% size (Typ)
Pixel Size: 0.311 mm (H) x 0.311 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H) - CompatibilityPC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 7/8/8.1/10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080 - Connector3.5mm Audio Out: 1
HDMI 1.4: 2
DisplayPort: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
- AudioInternal Speakers: 2Watts x2
- PowerEco Mode (Conserve): 17W
Eco Mode (optimized): 22W
Consumption (typical): 26W
Consumption (max): 40W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply - Additional HardwareKensington Lock Slot: 1

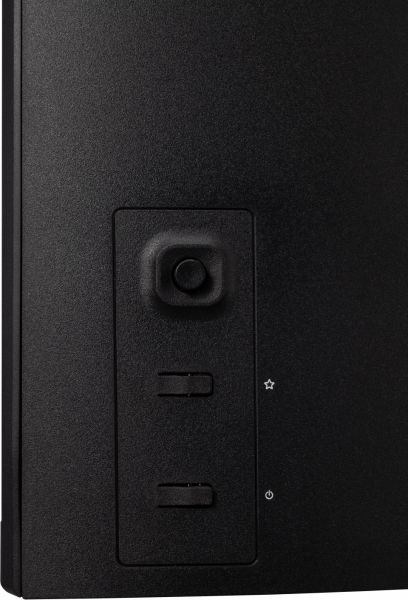

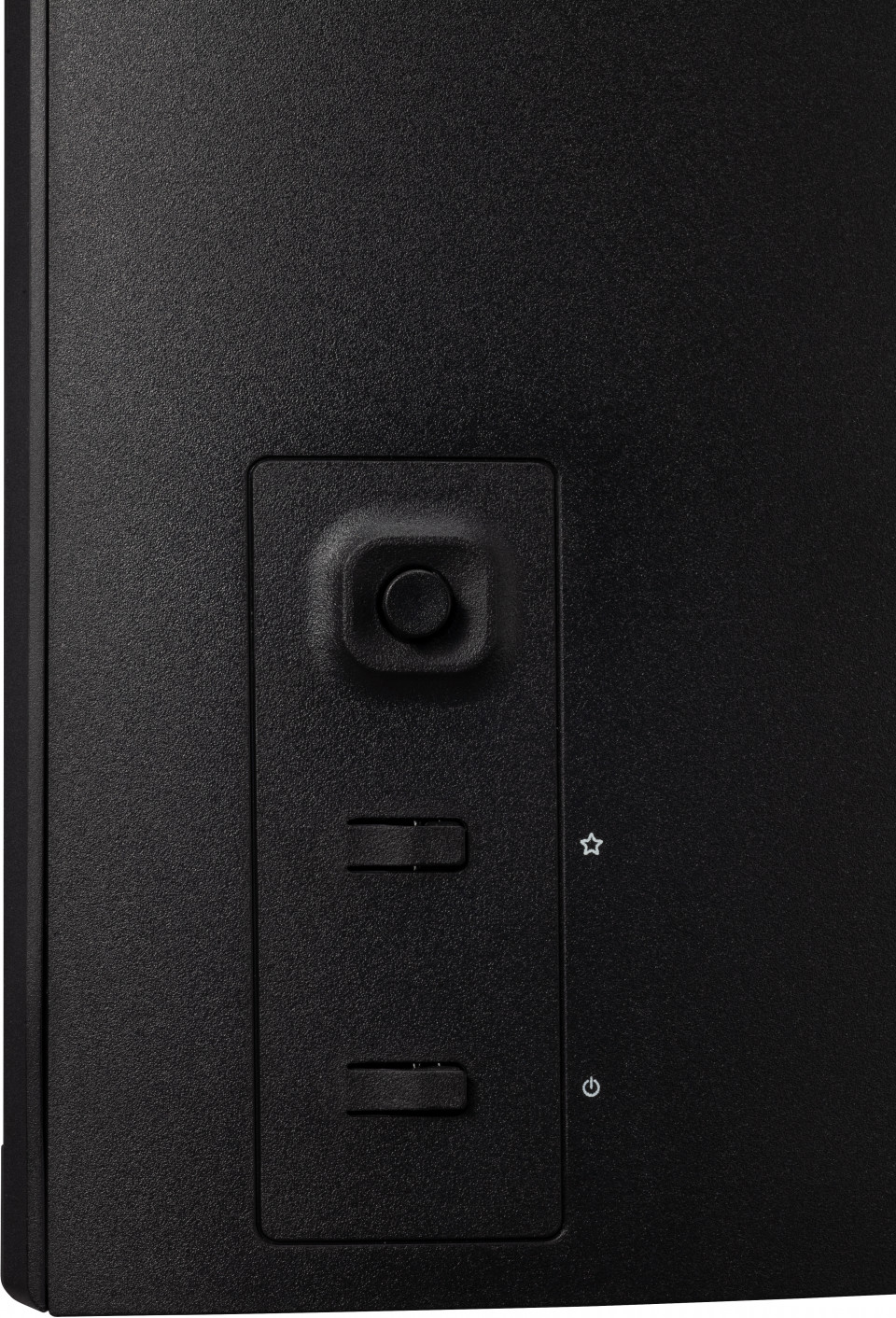

- ControlsPhysical Controls: Joystick key: Up, Right, Down, Left, Center; Key 1 (favorite); Key 2 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90% - Wall Mount VESA Compatible: 100 x 100 mm
- Input SignalFrequency Horizontal: HDMI (v1.4): 30 ~ 180KHz, DisplayPort (v1.2): 30 ~ 200KHz
Frequency Vertical: HDMI (v1.4): 48 ~ 144Hz, DisplayPort (v1.2): 48 ~ 165Hz - Video InputDigital Sync: TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)

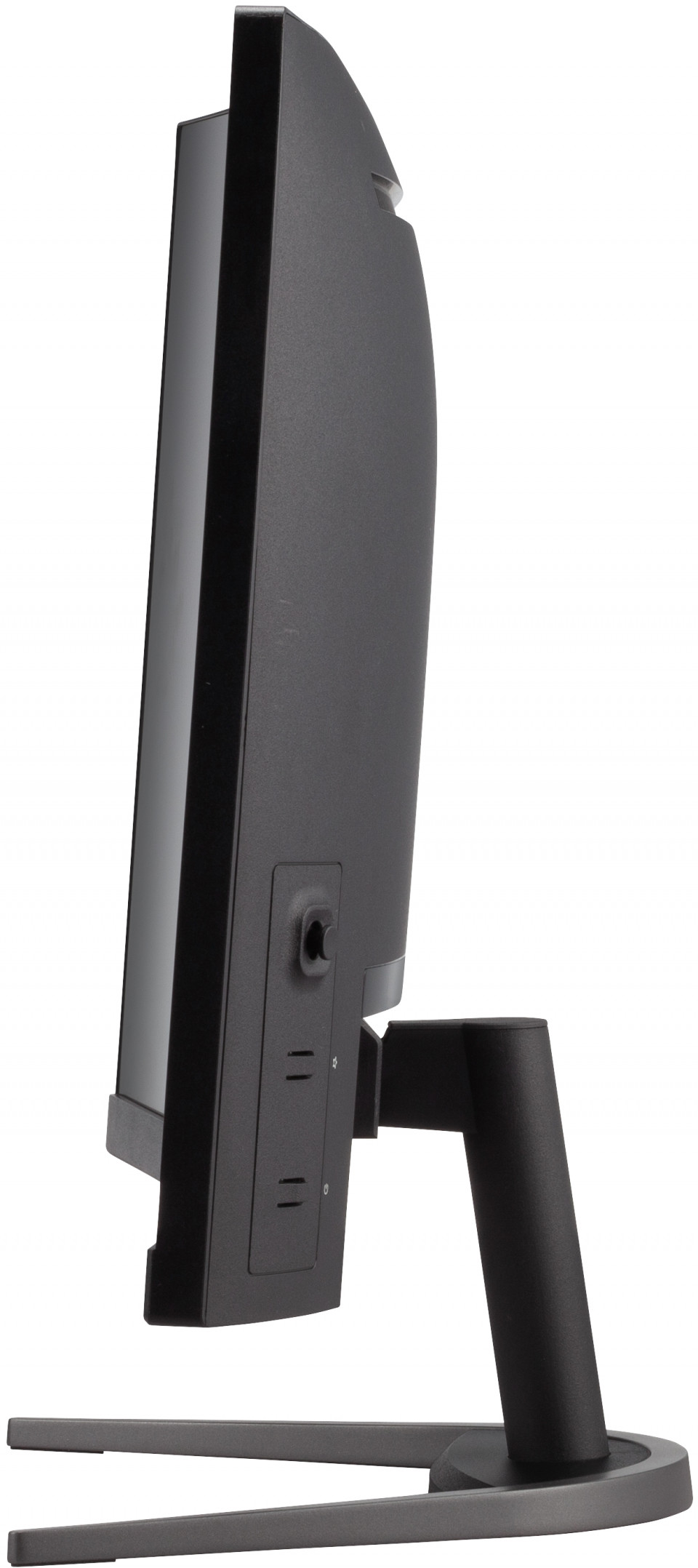

- ErgonomicsTilt (Forward/Back): -3º / 21º
- Weight (imperial)Net (lbs): 11
Net Without Stand (lbs): 9.6
Gross (lbs): 14.9 - Weight (metric) Net (kg): 5
Net Without Stand (kg): 4.4
Gross (kg): 6.8 - Dimensions (imperial) (wxhxd)Packaging (in.): 26.8 x 18.4 x 6.5
Physical (in.): 24 x 17.8 x 8.6
Physical Without Stand (in.): 24 x 14.5 x 3.1 - Dimensions (metric) (wxhxd)Packaging (mm): 680 x 467 x 166
Physical (mm): 610 x 452 x 219
Physical Without Stand (mm): 610 x 367 x 78 - GeneralRegulations: cTUVus, FCC-B, ICES003, CEC, TUV S-Mark, MX-CoC, Mexico Energy, REACH, WEEE
PACKAGE CONTENTS: VX2768-PC-MHD x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
