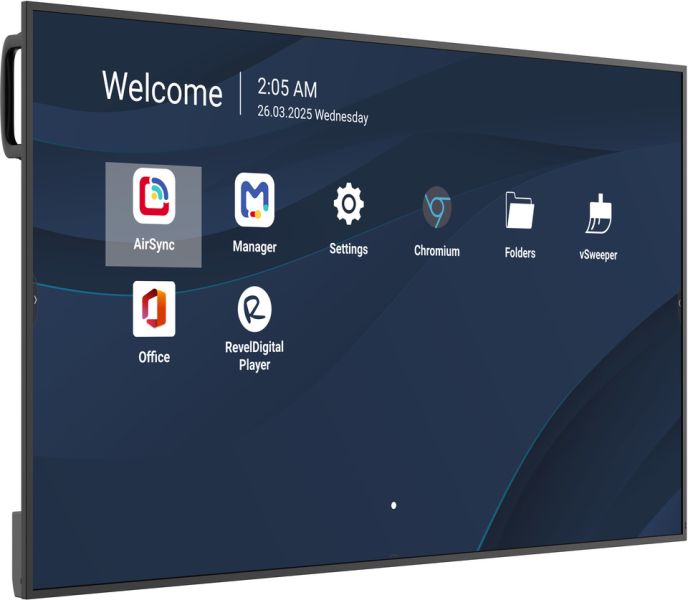

CDE5514-2C

55" 4K Commercial Display with ProAV Integration

  • Quad-Core SoC with 4 GB RAM delivers smooth, stable performance.
  • Fast warm boot launches signage and content in under seven seconds.
  • USB playback with signal failover ensures continuous content delivery.
  • 4K UHD in any orientation provides sharp, professional visuals.
  • 500-nit brightness and 24/7 operation support reliable round-the-clock signage.
  • ProAV integration and remote control via ViewSonic Manager and leading platforms.
Sales Enquiry  Share

OVERVIEW

The ViewSonic CDE14-2C Series is a commercial-grade 4K display built for 24/7 operation in offices, retail spaces,transit hubs, and other high-demand environments. Powered by Android 14 (upgradeable to Android 16) and a quad-coreSoC with 4 GB RAM, it supports smooth multitasking and fast warm boot for immediate startup. With 500 nits ofbrightness and support for both landscape and portrait modes, it delivers sharp, high-impact visuals forpresentations and signage alike. Continuous USB media playback with automatic signal failover ensures uninterruptedcontent delivery, even when the primary source is lost. Designed for IT and AV professionals, the CDE14-2C Seriesintegrates seamlessly with leading ProAV control systems and ViewSonic Manager for streamlined deployment and remotemanagement. Whether deployed as a standalone unit or as part of a larger installation, it provides a dependablesolution for corporate and commercial environments.

Fast Warm Boot for Seamless Communication​

With a warm boot in under 7 seconds, the CDE14-2C Series eliminates delays at the start of meetings,presentations, and scheduled signage. It ensures your content appears exactly when it’sneeded—ideal for corporate, retail, and education environments where every second counts.​

Reliable Performance for Multitasking and Signage​

Powered by Android 14 OS (upgradeable to Android 16), this commercial display combines a quad-coreprocessor with 4 GB RAM to deliver smooth multitasking during meetings and dependable performance formultimedia playback and digital signage.​
Reliable Performance for Multitasking and Signage​ 1

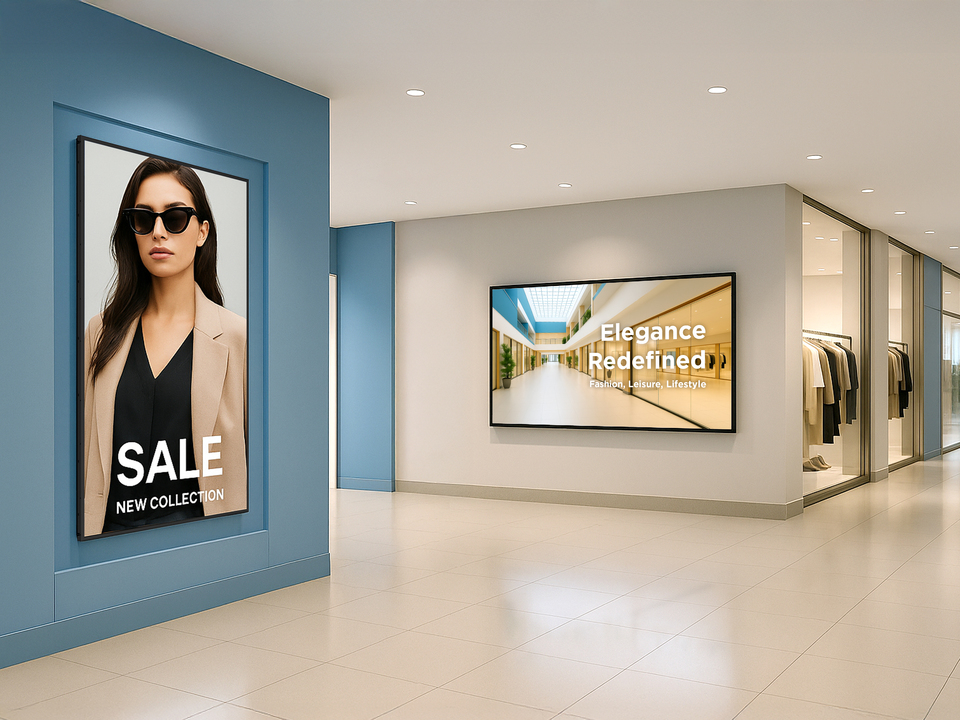

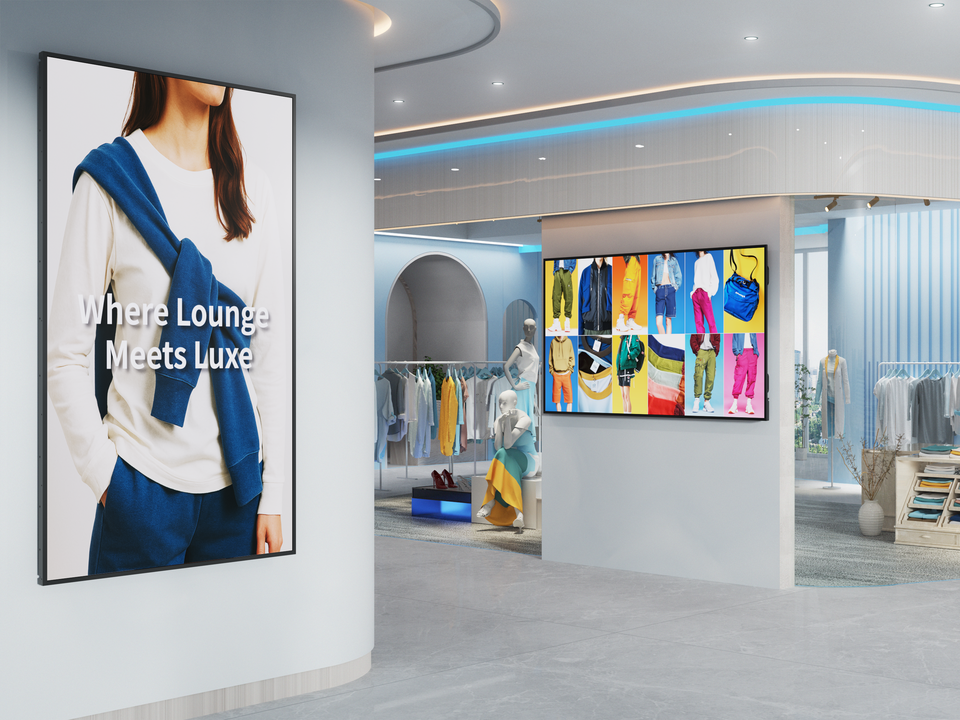

Flexible Orientation for Any Setup ​

Supporting both landscape and portrait modes, this commercial-grade display adapts to a wide range ofinstallation needs, from retail and digital menu boards to meeting room displays and campuscommunication.
Flexible Orientation for Any Setup ​ 1

Native 4K Resolution for Uncompromised Detail​

The CDE14 Series delivers true native 4K resolution in both landscape and portrait modes, offeringnoticeably sharper and more detailed visuals than standard upscaled 4K. This ensures exceptional clarityand precise detail reproduction, making it ideal for text-heavy presentations and visually rich digitalsignage.
Other Golf Mode

Commercial-grade Digital Display​

Built for 24/7 operation, the CDE14-2C Series delivers uninterrupted communication in business-criticalenvironments. With 500 nits of brightness, it produces clear, vibrant visuals in any indoor setting,regardless of lighting conditions.
Commercial-grade Digital Display​ 1

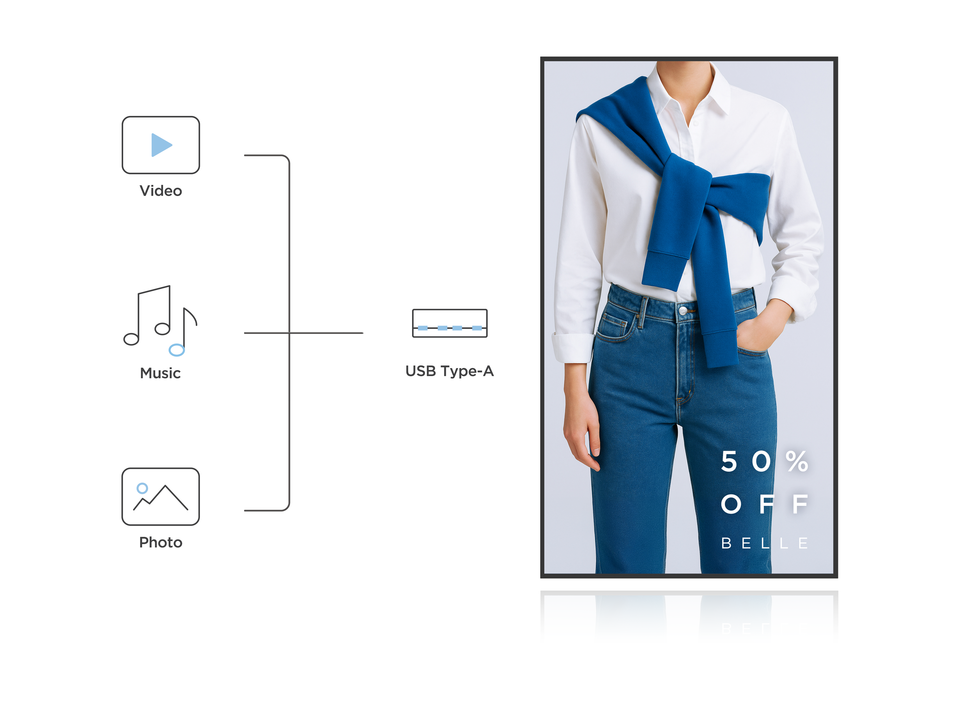

Scheduled USB Media Playback​

The CDE14-2C Series supports USB playback for video, audio, and image files. Boot-on-Sourcefunctionality—via USB Auto-Play or resume-last-source settings—enables seamless, automatedplayback for digital signage without requiring a connected PC.​​
Scheduled USB Media Playback​ 1

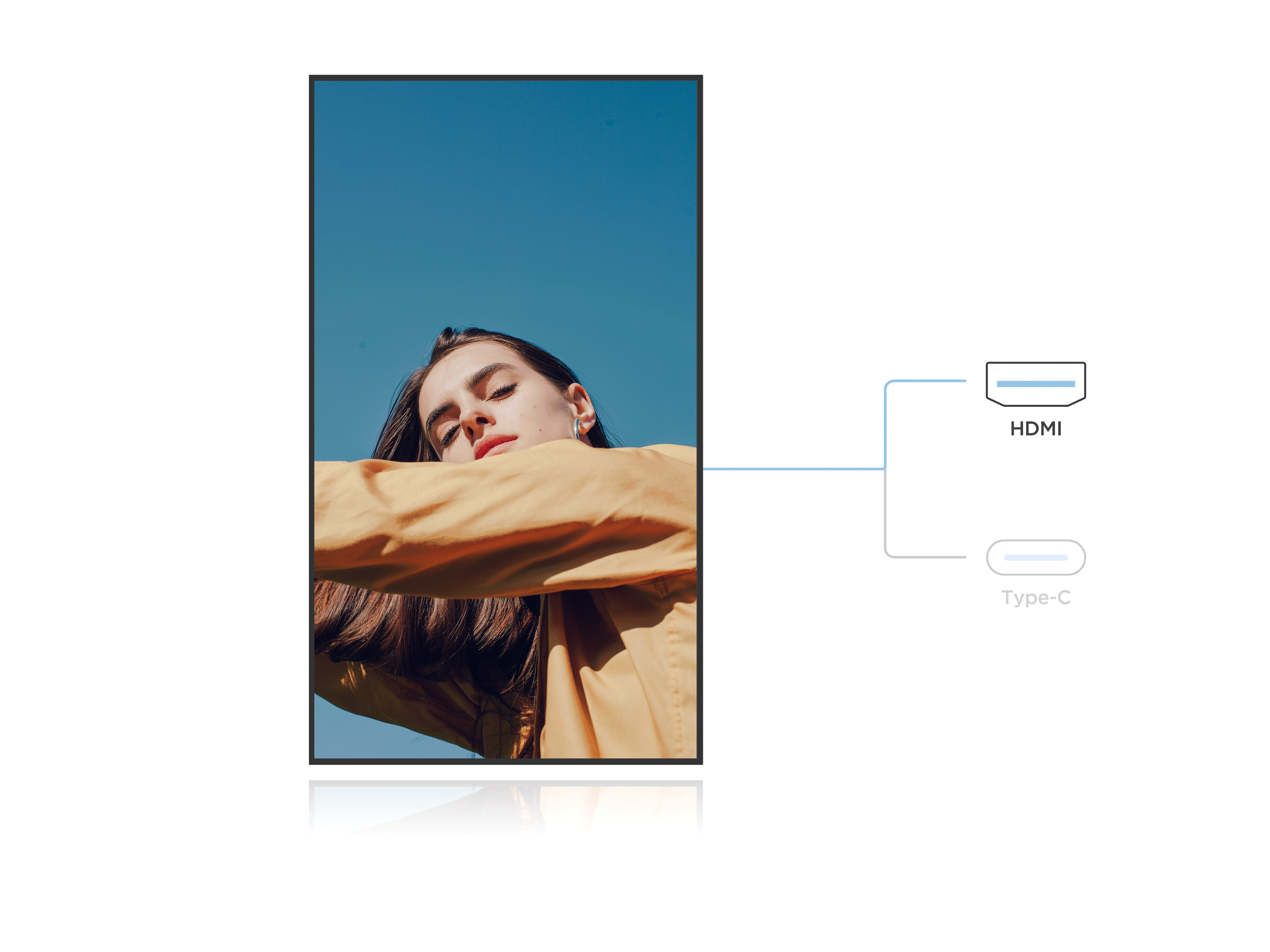

Signal Failover for Continuous Playback

When no signal is detected on the primary input, the CDE14-2C Series automatically switches to the nextavailable source, ensuring uninterrupted content display. With configurable input priority, users canset fallback sources such as an alternative HDMI or USB-C port to maintain uninterrupted contentdelivery in high-traffic environments, including retail stores, transit hubs, and corporate lobbieswhere uptime is critical.
One-Cable USB-C Connectivity​​ 1

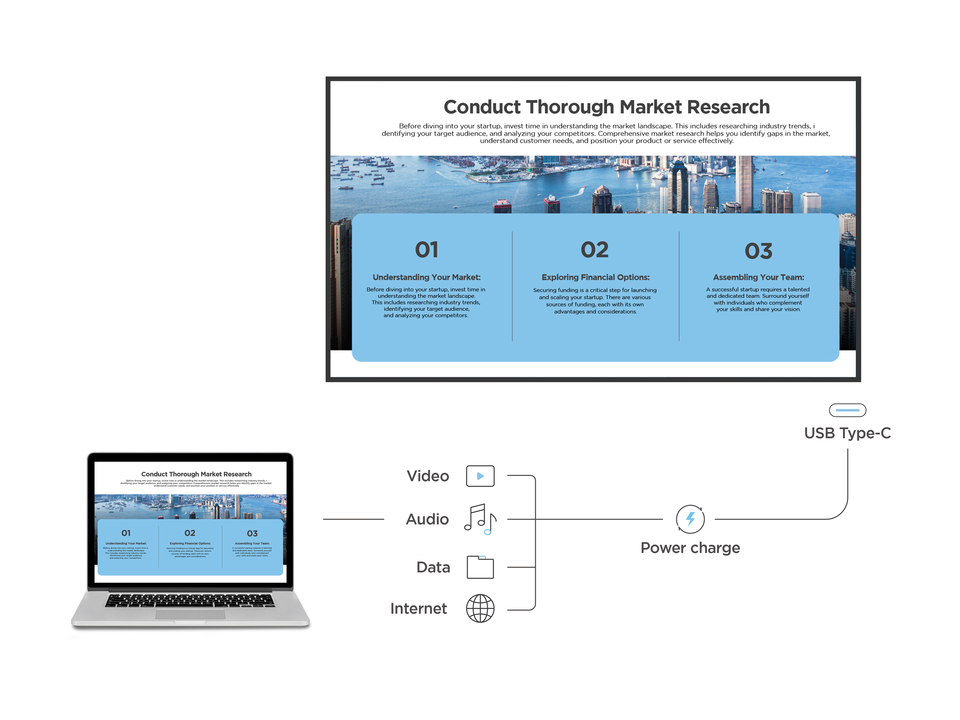

One-Cable USB-C Connectivity​​

The CDE14-2C Series includes a USB-C port that delivers video, high-speed data, Ethernet, and 15Wcharging—all through a single cable. Ideal for meeting rooms and shared workspaces, it lets usersconnect a laptop and start presenting instantly, minimizing startup delays and eliminating cableclutter.​
One-Cable USB-C Connectivity​​ 1

Instant, Cable-Free Presentations with ViewShare

Present instantly in Full HD with the optional ViewShare WPD-900 Wireless Screen Casting Kit*. UsingUSB-C or native protocols, presenters can cast from laptops or mobile devices with no Wi-Fi or softwaresetup required. A secure point-to-point connection and one-click switching between users keepcollaboration smooth and clutter-free. *WPD-900 Wireless Casting Kit sold separately.
Instant, Cable-Free Presentations with ViewShare 1

Built-In Speakers and Audio Output for AV Flexibility​

Two integrated 10W speakers deliver clear sound for standalone use in smaller spaces like huddle and meeting rooms. For larger environments or more advanced AV setups, a 3.5 mm audio output enables seamless integration with external audio systems, making it ideal for classrooms, lobbies, and public venues.

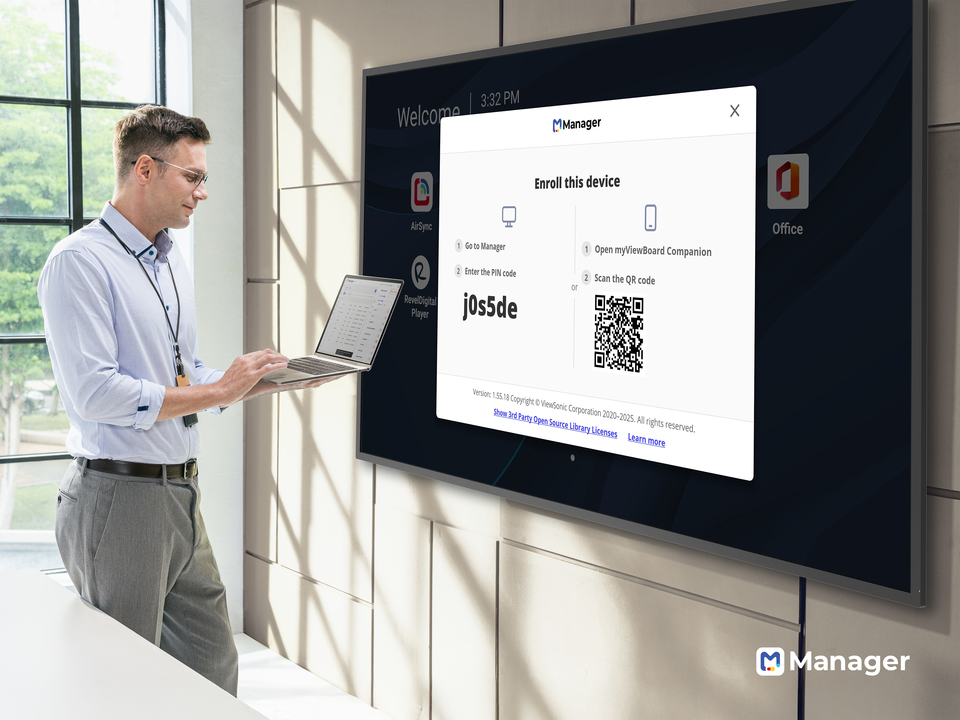

Web-Based Remote Device Management

Built for IT efficiency, ViewSonic Manager gives admins remote management tools to control inputs,monitor usage in real time, and access insight reports. The browser-based Web UI streamlines access andnavigation, while Remote Desktop simplifies troubleshooting and reduces the need for on-site IT support.
Web-Based Remote Device Management 1

Built for a Lower Environmental Impact​​

The CDE14-2C Series is EPEAT Silver rated, ENERGY STAR® certified, and RoHS compliant, reflectingViewSonic’s commitment to sustainable product design. With an EEI level E rating, it supportsresponsible energy use and aligns with key environmental standards for energy efficiency and lifecycleimpact.​
Built for a Lower Environmental Impact​​ 1

Dimensions & I/O Ports

  1. Speaker
  2. Power Switch
  3. AC IN
  4. Audio Out
  5. LAN
  6. USB Type C
  7. HDMI 1
  8. HDMI 2
  9. HDMI 3
  10. USB
  11. USB
  12. SPDIF
  13. RS232
  14. Control Panel

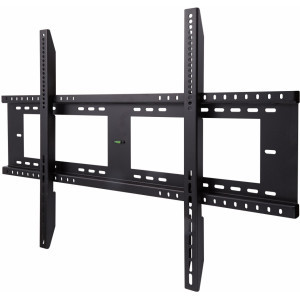

  15. VESA® Wall Mount (400x400mm)
  16. WiFi Slot

SPECIFICATIONS


  • Display
    Panel Size: 55"
    Type/ Tech: TFT LCD Module. DLED backlight
    Display Area (mm): 1209.60 (H) x 680.40 (V) 55" diagonal
    Native Resolution: 3840 x 2160
    Aspect Ratio: 16:9
    Colors: 8bit+FRC
    Brightness: 500 nits (typ.)
    Contrast Ratio: 1200:1 (typ.) / 2000:1 (DCR enabled)
    Response Time: 8ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 50,000 Hours
    Surface Treatment: Hardness: 3H, Anti-glare coating, Haze 25%
    Bezel: 9.9/9.9/9.9/9.9 mm (L/R/T/B)
    Orientation: Landscape & Portrait
  • Platform
    Processor: Quad-core ARM Cortex-A73
    RAM: 4GB DDR4
    Storage: 32GB
  • INPUT
    HDMI: x3 (HDMI 2.1 4K@60Hz*3, HDMI 3 supports ARC)
    RS-232: x 1
    WiFi Slot: x 1
